850W PSUs
Best Three PSUs
| Section | #1 | #2 | #3 |
|---|---|---|---|
| Best Overall Performance (115V) | Super Flower Leadex VII XG 850W | Cooler Master V850i | Thermaltake Toughpower PF3 850W |
| Best Overall Performance (230V) | Super Flower Leadex VII XG 850W | Cooler Master V850i | Asus Rog-Strix-850G-Aura-Gaming |
| Highest Average Efficiency (115V) | be quiet! Dark Power 13 850W | Thermaltake Toughpower PF3 850W | Super Flower Leadex VII XG 850W |
| Highest Average Efficiency (230V) | be quiet! Dark Power 13 850W | Super Flower Leadex VII XG 850W | Thermaltake Toughpower PF3 850W |
| Lowest Average Noise (115V) | be quiet! Dark Power 13 850W | Asus Rog-Strix-850G-Aura-Gaming | SilverStone Hela 850R Platinum |
| Lowest Average Noise (230V) | Asus Rog-Strix-850G-Aura-Gaming | be quiet! Dark Power 13 850W | SilverStone Hela 850R Platinum |
| Best ATX v3.x Transient Response (200% Load) | Seasonic Vertex GX-850 | Thermaltake Toughpower GF A3 850W | Aqirys Magnetar 850W |
The best performance belongs to the Zhong Yuan Power GX850, but since this model is not available for purchase, I only included it in the charts below for reference.
850W ATX v3.x PSU Reviews
- be quiet! Dark Power 13 850W PSU Review
- be quiet! Pure Power 12 M 850W PSU Review
- Corsair RM850x (2021) PSU Review
- Cooler Master GX III 850W ATX v3.0 PSU Review
- Cougar GEX X2 850W PSU Review
- Montech Titan Gold 850W PSU Review
- MSI MAG A850GL PCIE5 850W PSU Review
- Thermaltake Toughpower GF3 ARGB 850W PSU Review
- Thermaltake ToughPower GF3 850W ATX v3.0 PSU Review
- Thermaltake Toughpower PF3 850W PSU Review
- Thermaltake Toughpower GF A3 850W PSU Review
- XPG Core Reactor II 850W PSU Review
- XPG KYBER 850W ATX v3.1 PSU Review

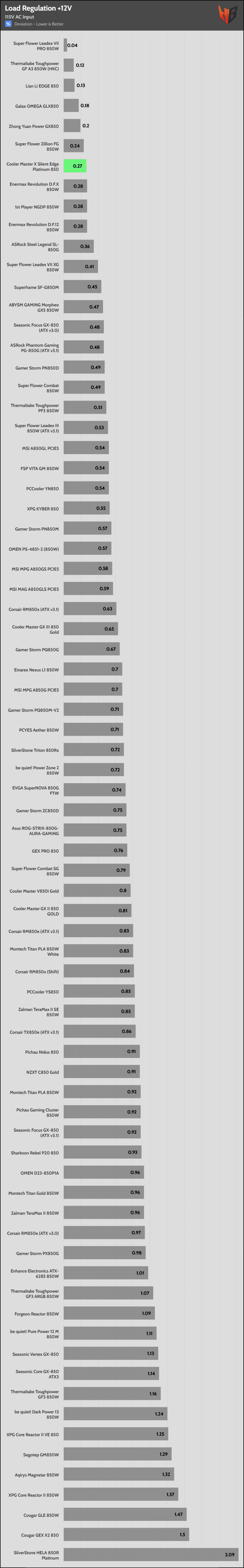

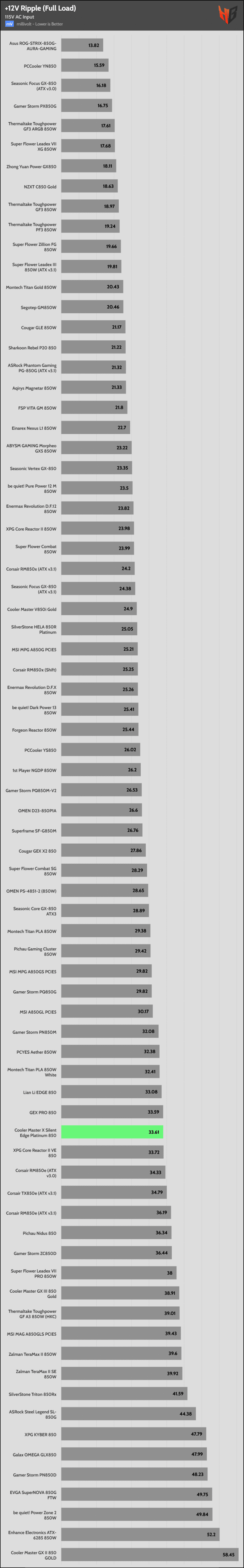

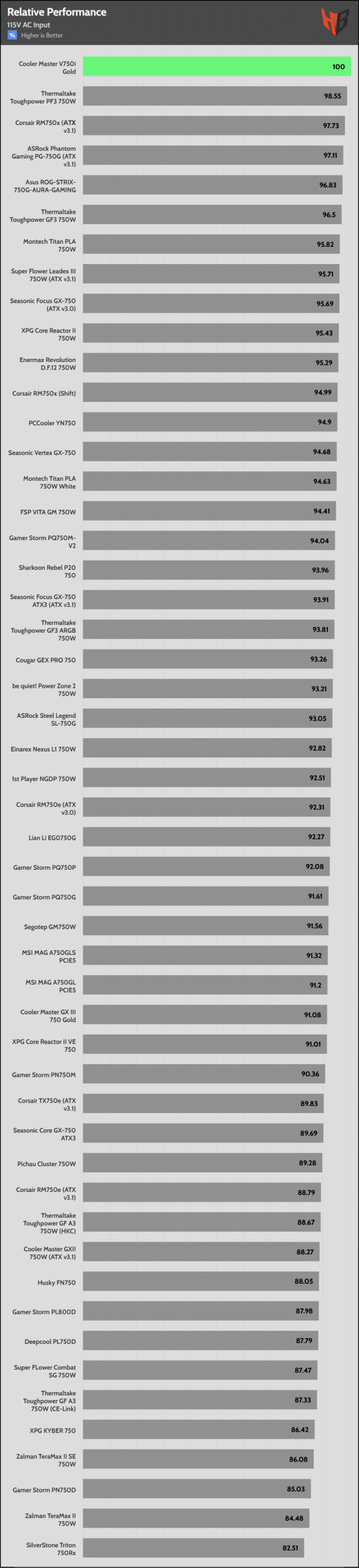

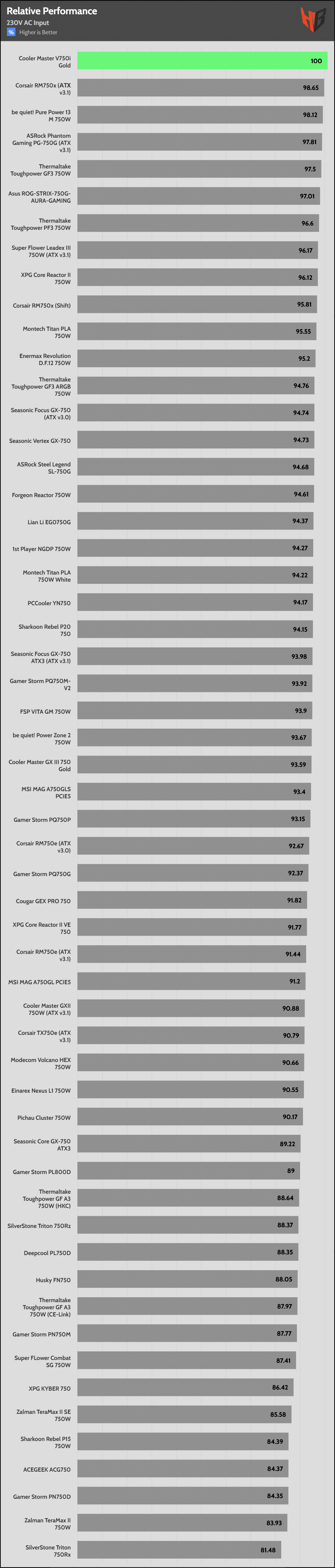

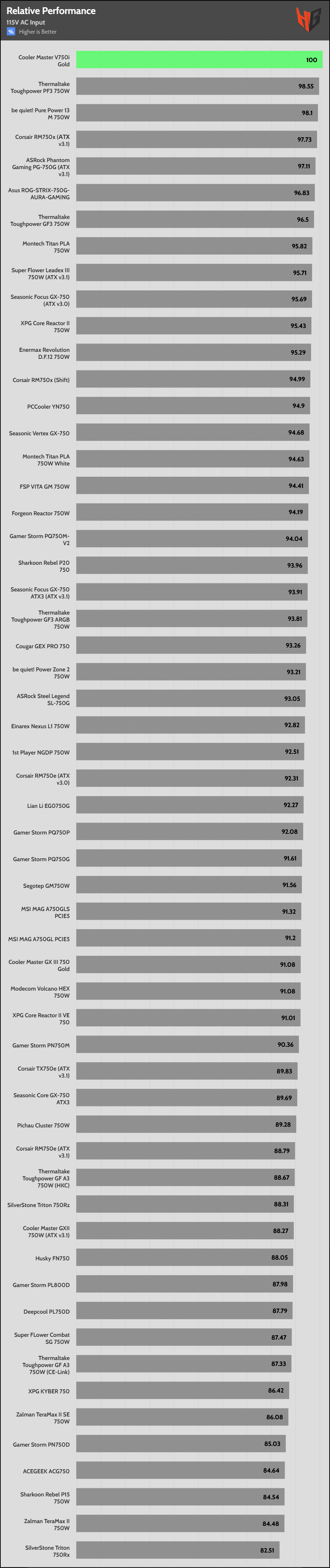

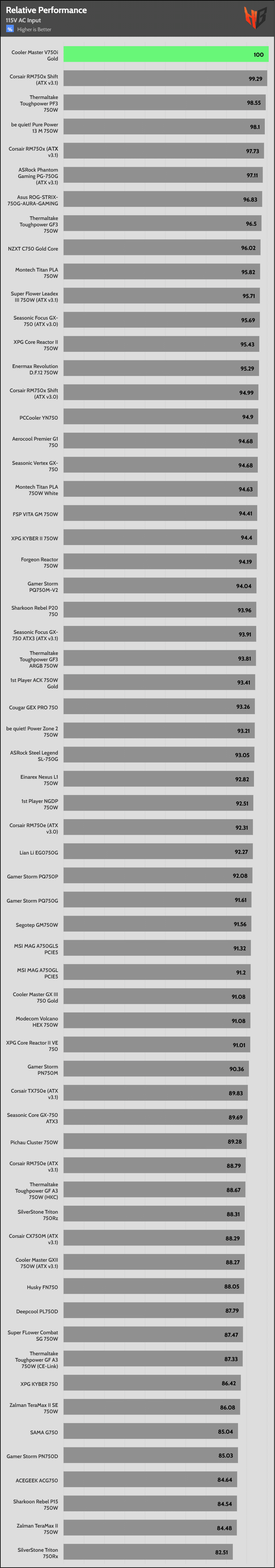

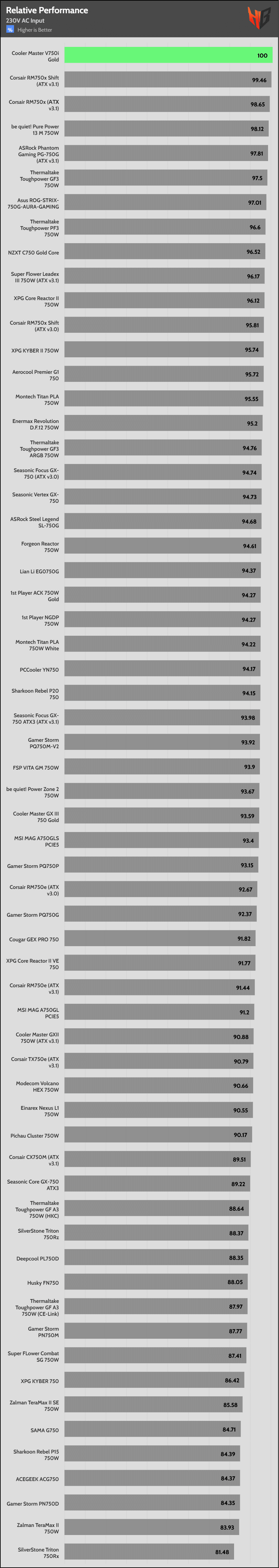

Overall Performance 115/230V
 |
 |

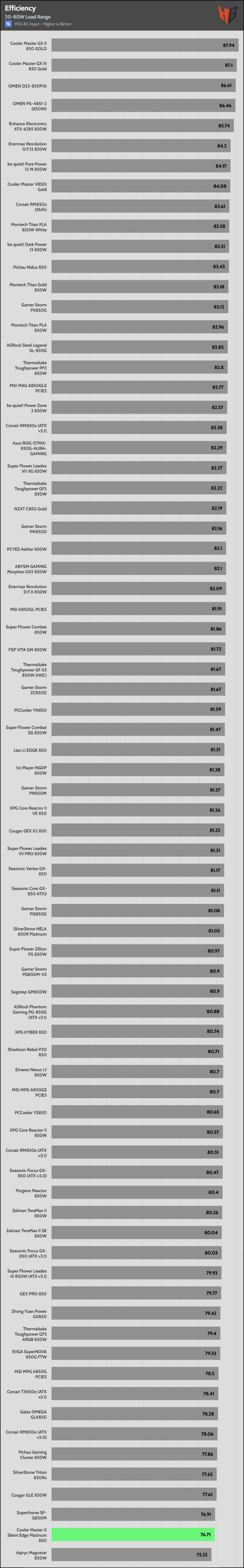

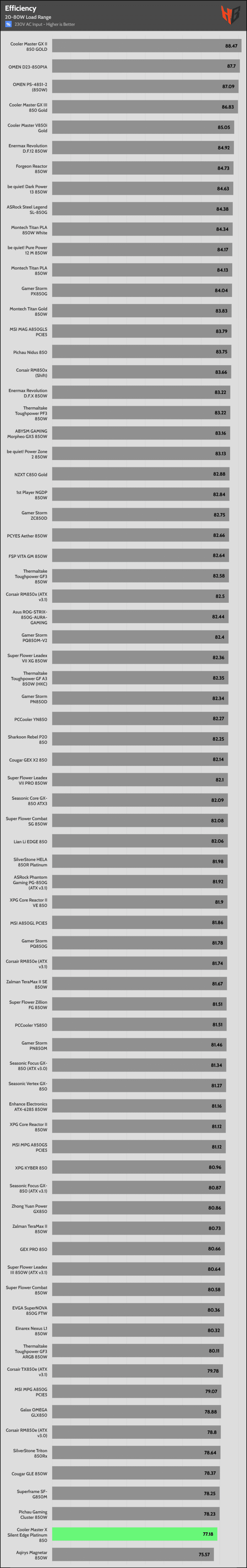

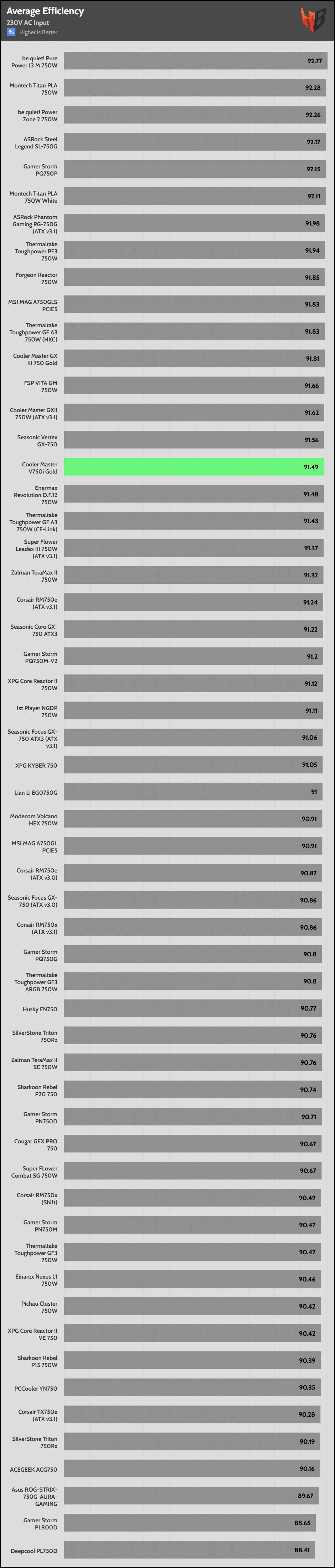

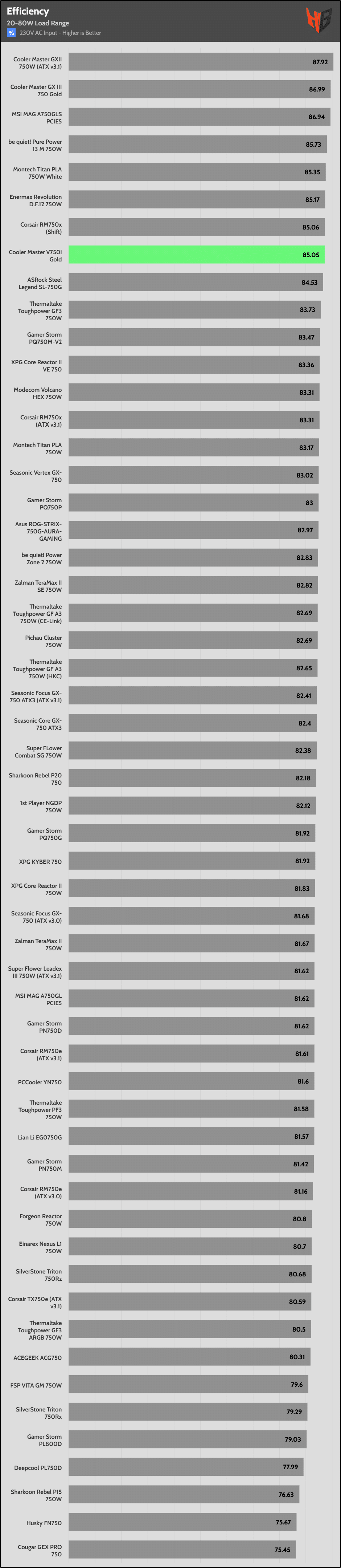

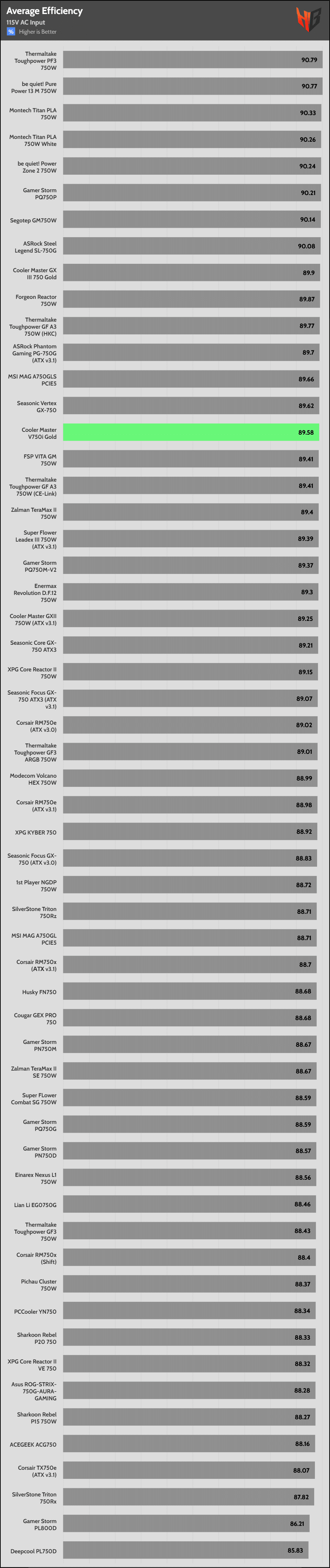

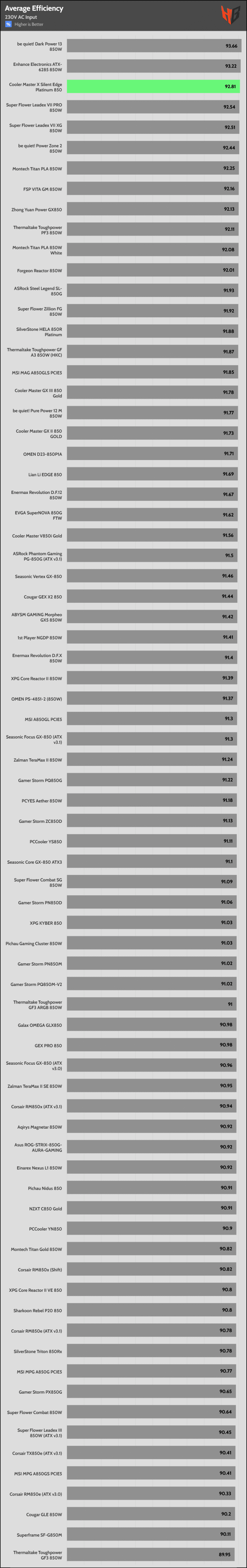

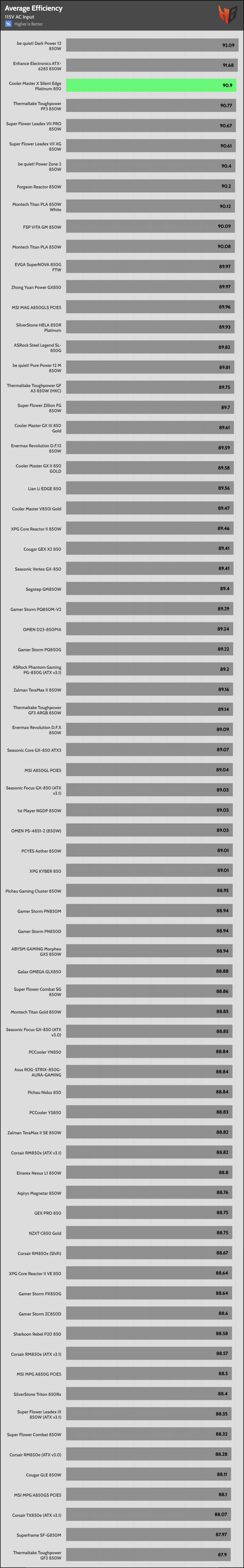

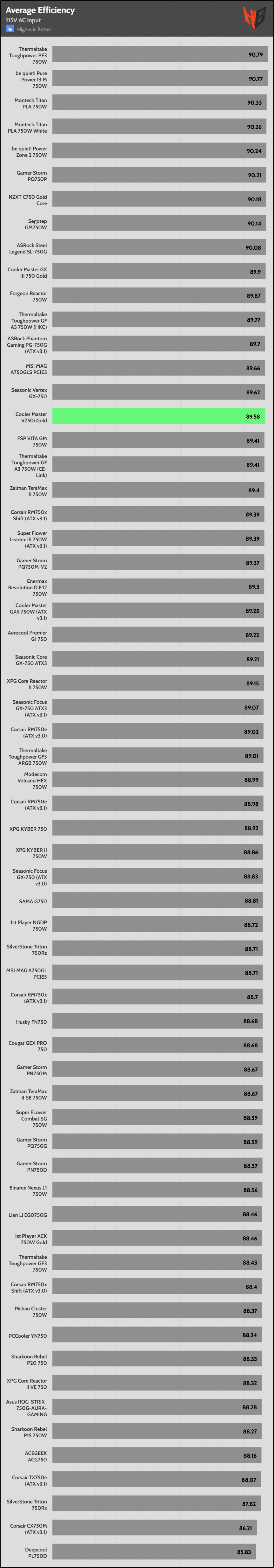

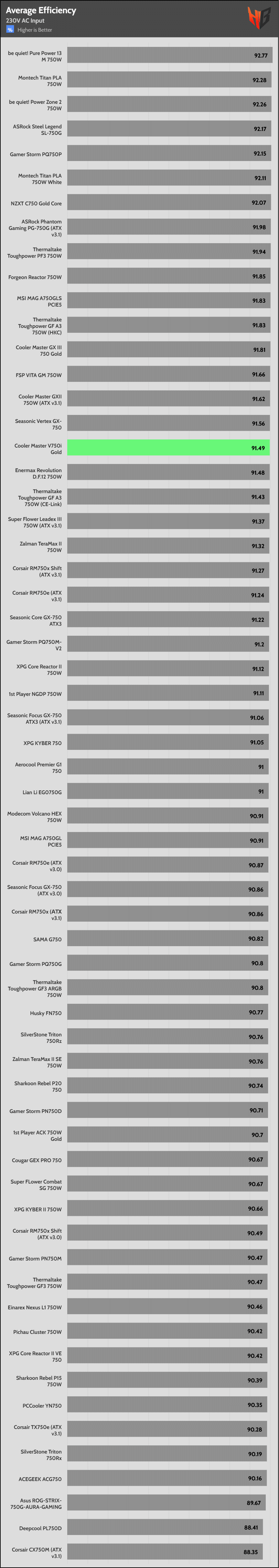

Average Efficiency 115/230V
 |
 |

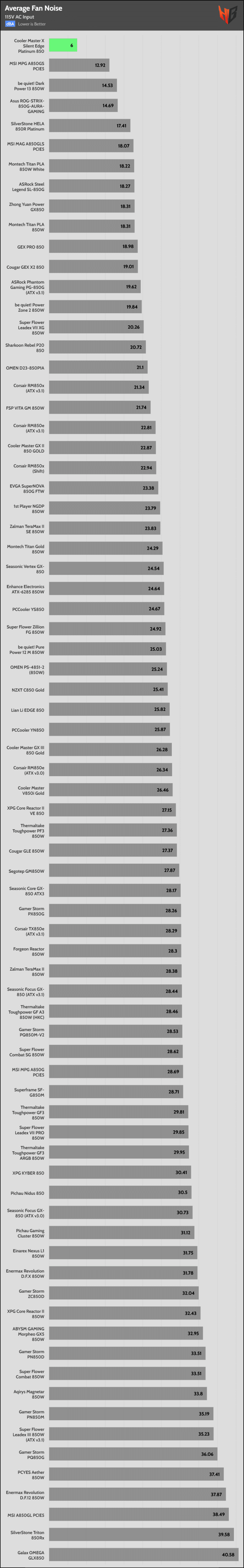

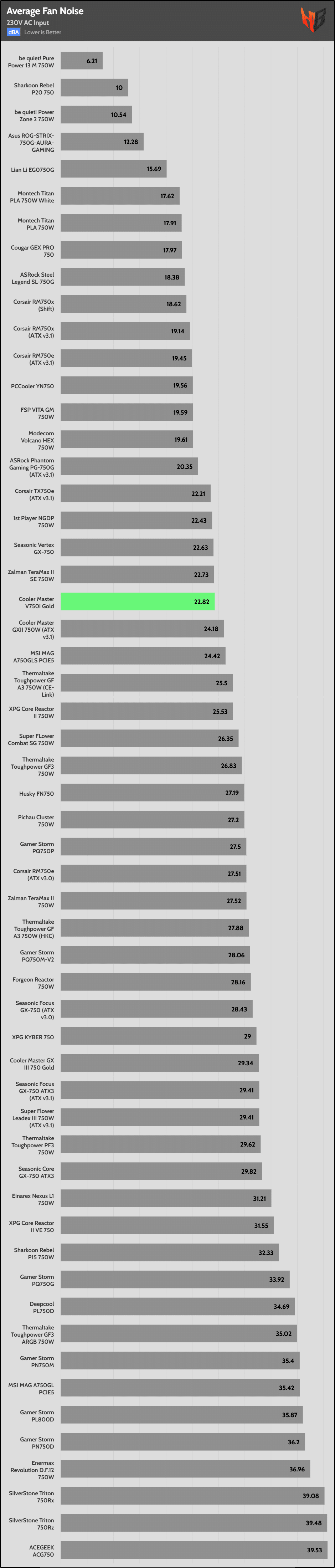

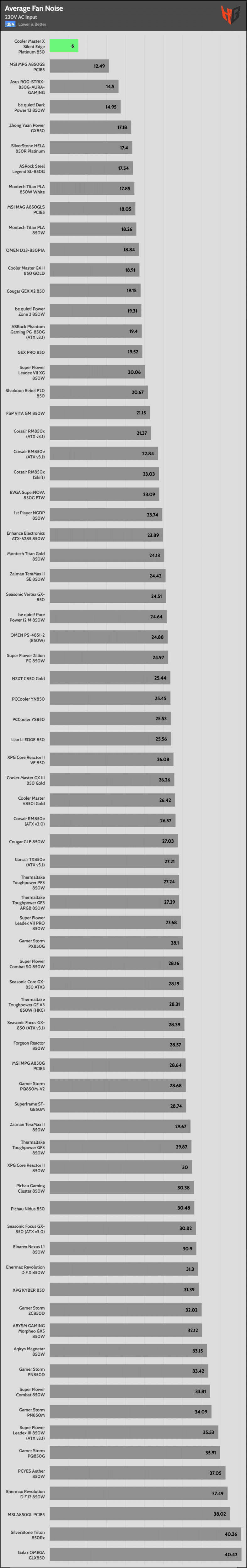

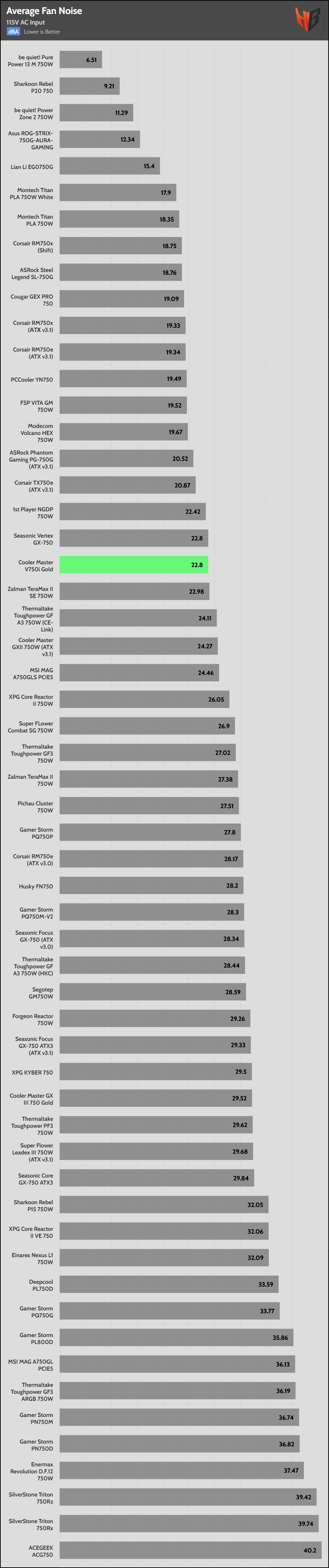

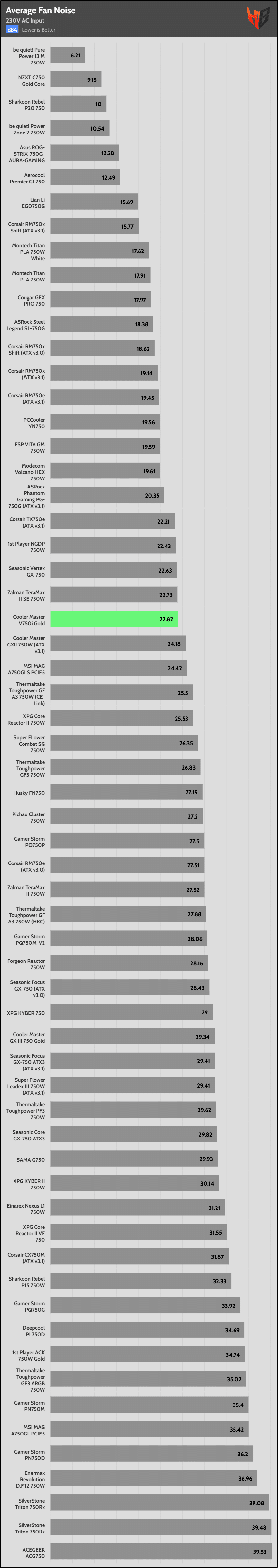

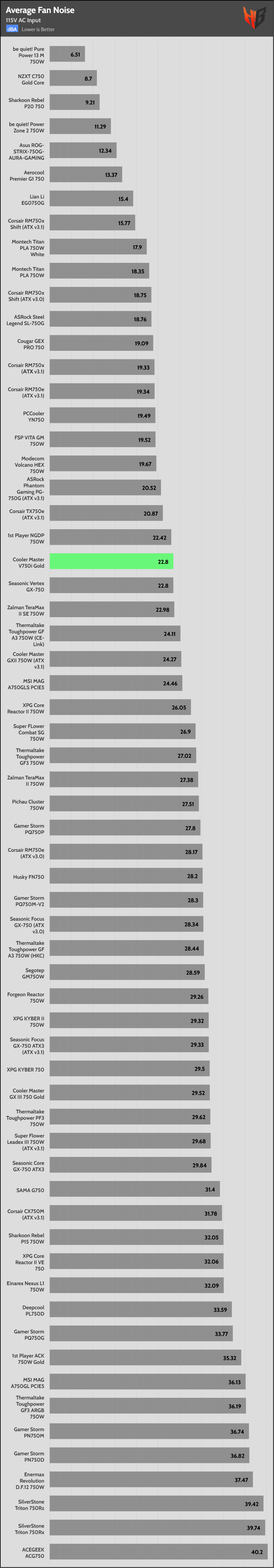

Average Noise 115/230V
 |
 |

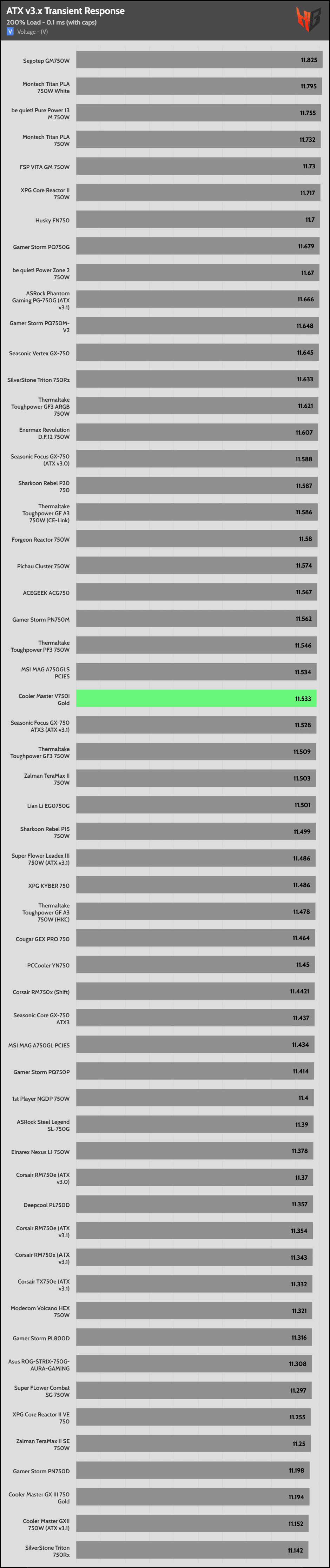

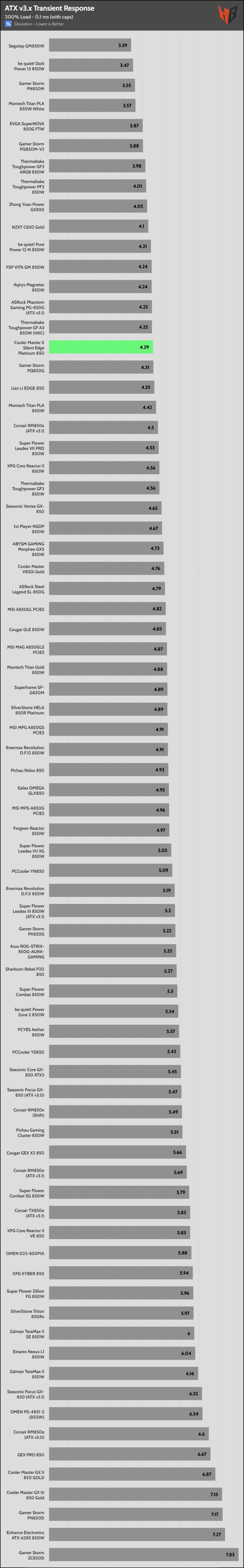

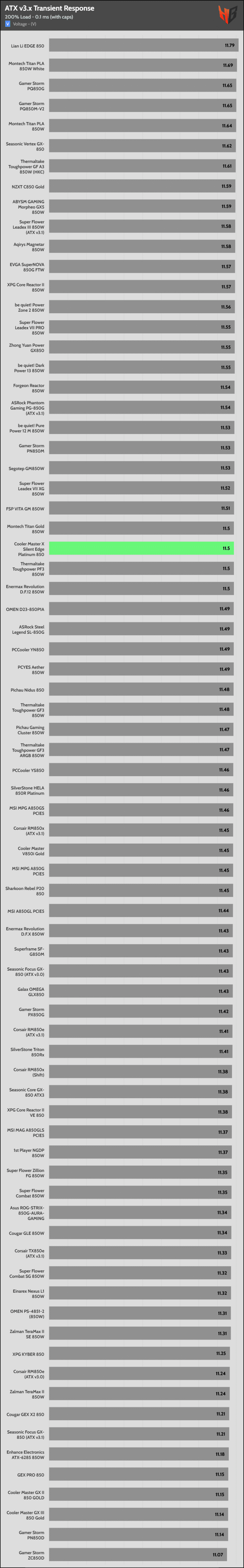

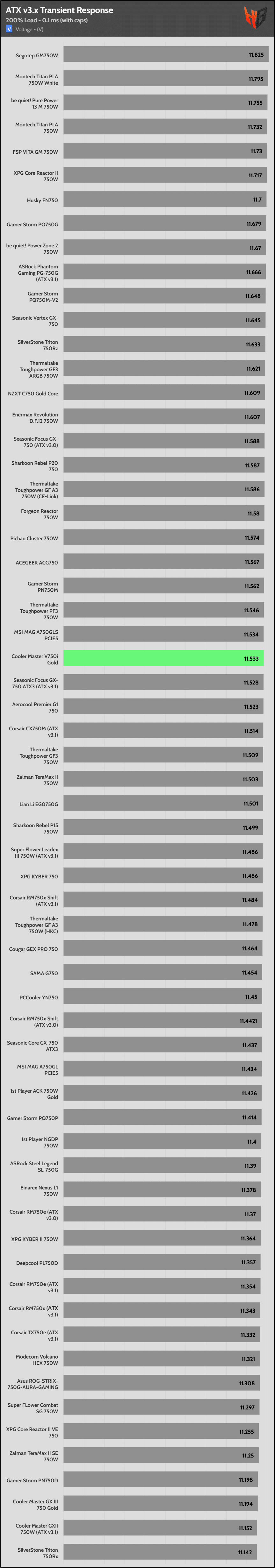

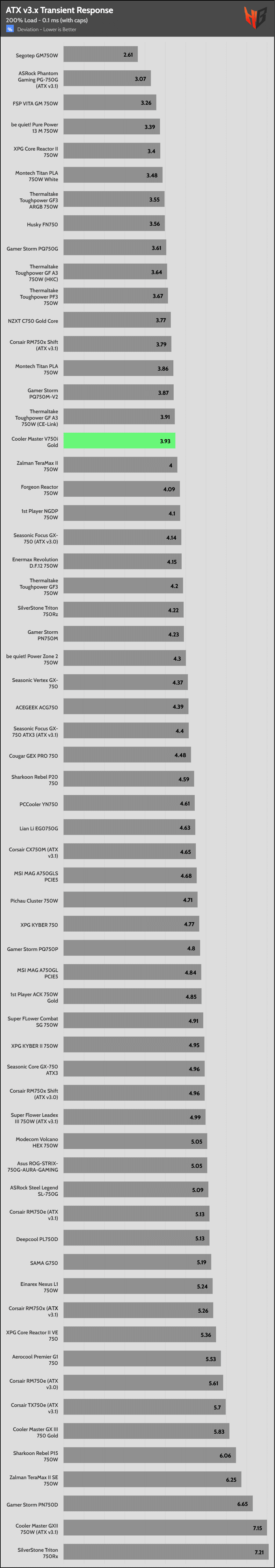

ATX v3.x Transient Response Testing – 200% Load
 |
 |
 |
 |
Pages:
Hi, i just don’t understand what the Overall Performance means in that subject ? Since Efficiency is already in there i don’t get it…
Overall performance takes into account ALL major aspects in a PSU, from load regulation and ripple, to efficiency and transient response.
Allright thanks
Allright funky one : Why the PSU high end market doesn’t offer the possibility of managing the power supply of our screens and thus benefit a little more from their efficiency. with double or triple screens becoming usual and drawing more and more pixels this seems like a good idea? with few ports on the back next to the input and little plastic protection when not used and all good!
I’m also sad you don’t have any test of the FSP Hydro Ti Pro 850W but since i might wait for the atx3.1 and pci 5.1 i don’t care that much 🙂
Hello Aris,
After checking out your articles about atx 3.x, I can’t help but feel a bit frustrated as I got a Prime PX1600 atx 3.0 PSU and need to get another 1200+ watts atx 3.x for my brother’s build.
It costs quite a penny and now I just feel like it will need to be upgraded for the next GPUs that will have the 12V-2×6 sockets. I’m just speculating, but by then the PSU maufacturers will update (AGAIN) their lineup to have that connector on their PSUs. Is there something I’m missing in order to circumvent that ? Or just change PSUs and sink another 800+ bucks in just a year for the two PCs?
Also, you mention that the change from 3.0 to 3.1, wont be beneficial unless you have both a 3.1 PSU and 3.1 gpu. I found this news regarding Seasonic releasing a “12v-2×6” cable: https://videocardz.com/newz/seasonic-reveals-its-new-12v-2×6-angled-power-invites-rtx-40-owners-to-test-it
Any opinion on it? Is it just some marketing stuff so that they dont update their PSU boards?
Thanks a lot for your help and greatly appreciate your work!
PS: I initially wanted to go with the cybercore II 1300w or the MSI AI1300P, but the XPG wasn’t available and the MSI’s 24pin would never click on the mobo (almost impossible to get it flush, almost broke the mobo pcb, and extremely hard to pull out, I had to use a flathead screwdriver to seperate it) so I returned it. Is it normal or I just had a faulty cable ?
The fact is that the PSU’s connector rarely creates issues, whether it is 12VHPWR or 12V-2×6. You won’t have any issues if you have the respective cable connected properly (all the way into the socket). The problem was mainly with the graphics cards. So, I wouldn’t worry much about the PSU.
Please review 1stplayer ngdp gold 850w
have it on the list!
Alright, thanx 👍
Hi Aris!
I have a Corsair Rm550x PSU back from 2018 that is currently powering a Ryzen 5 5600 and GTX 1060 GPU. I am looking at upgrading to an RTX 4070 Super or an RX 7900 GRE, and possibly upgrading the CPU also to a 5800x3d at a later date.
Do you think the Rm550x is still ok if I am only using the pc for gaming at 1440p, or is it time for an upgrade? If so, what PSUs would you reccomend?
Hello Aris!
I am upgrading my CPU and GPU to a Ryzen 5800x3d and an RX 7800XT respectively. Currently I have a Corsair Rm550x PSU from my previous build. Will it be enough if I am only using the pc for gaming at 1440p or is it time to upgrade the PSU too and if so what PSUs do you recommend?
It would be better to upgrade your PSU given these results: https://hwbusters.com/gpu/amd-radeon-rx-7800-xt-rx-7700-xt-performance-power-analysis-noise-output/28/
To be future-proof, I suggest a 750W unit. The cost difference with a similar-spec 650W is small. There are plenty of choices in 750W, with a quick look at the corresponding category in this article, you can find the one closer to your budget.
hello!
In Korea, many people understand that pcie 5.1 is a socket on the graphics card of the motherboard. But in the content, we are all talking about power cables. Can I use pcie 5.0 as it is for the motherboard?
Sorry, I cannot understand. PCIe 5.0 for the motherboard?
The Korean community says that PCie 5.0 on the motherboard changes to 5.1
So the motherboard of PCie 5.0 on sale becomes useless when it changes to 5.1.
But it seems to me that the motherboard has nothing to do with this issue and only needs to change the power.
FSP’s line of PSUs seems to be about to get replaced if Amazon stock is any indicator. All models are starting to run low and prices have dropped.
Got a FSP Hydro Ti Pro for USD 255, that’s pretty good!
or they decided to drop their prices.
ZHONGYUAN POWER GX850 is south korea(ABKO ULTIMATE GX850 and darkflash UPT 850W)or china thetmaltake GF1 850 ATX3.0
ZHONGYUAN POWER GX850
They are very similar to each other，in especial is ABKO ULTIMATE GX850
Would love to see you check out the Antec NeoECO NE1000G M or NE1300G M. From what I can find they seem to be a Helly OEM design (according to johnnylucky’s PSU database), and the psu seem rather interesting. I’ve been tempted to pick one up, but have been unsure about it over the Seasonic Vertex GX-1000W considering it’s been on sale. They are around similar price points. If it is indeed a Helly design PSU, would it in theory perform similar to something like the NGDP 1000W? From what I could find, It has a FDB fan with no Ball bearings from Yate Loon. The cables are all 16awg except the sata, and Molex cables which are 18.
I will talk to Antec during Computex to continue our cooperation.
Awesome! Thanks always for all you do
FSP Hydro PTM X PRO 1200W or Super Flower Leadex VII XP PRO 1200W ?
Both are very good. It depends on the price you find them. Which wIll be more affordable.
Between the seasonic vertex platinum 1200W and super flower leadex vii 1300w, which would you go with? Primary concern is ripple and transients. Adding it to a 4090+7700x build
Would love the seasonic tx 1300W but it’s just too pricey, unless you think it’d be worth saving for. Currently have an evga 1000 g3 with the atx adapter to get me by.
Super Flower
Was looking on the Cybenetics PSU list for ATX 3.1 and stumbled upon a brand which I’ve never heard of: BoosBoxx. Any thoughts on their power supplies. In particular the PB1000P. Thanks !
Decent PSUs made by Great Wall is among the largest PSU OEMs.
Trying to order a 90-degree 12vhpwr by 2x 8pin PCI-e cable to connect an Nvidia FE 4080 Super GPU and a Super Flower Leadex VII XG 850 PSU.
Cable mod makes a 90-degree cable that is compatible with a Super Flower Leadex III PSU. Are the 8pin PCI-e connectors on the Leadex VII pinned the same as on the Leadex III ?
as far as I know, it is different, the pin-out on the Leadex VII
In terms of efficiency and quality of the component base, which is better – Cooler Master V750i Gold Corsair or RM750x (Shift), subject to the same price
I would say equal in quality. For efficiency you can look at the provided graphs, in my article.
