Epilogue

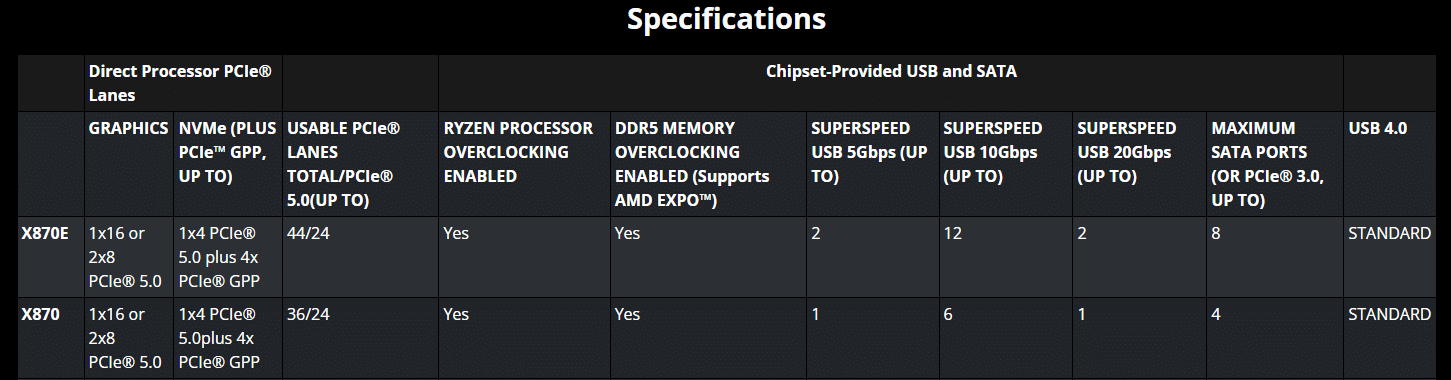

Built around the AMD X870 chipset, the ASRock X870 Taichi Creator supports Ryzen 7000-, 8000G-, and 9000-series processors, fully leveraging the AM5 platform’s strengths, DDR5, PCIe 5.0, and USB4. Compared to the flagship X870E chipset, it retains nearly all the platform’s essential features.
What sets the Taichi Creator apart are its creator-focused enhancements. It offers dual PCIe 5.0 slots (one x16, one x8) with ample spacing, ideal for dual-GPU setups, capture cards, or accelerators.
Networking is another strong point: dual high-speed LAN (10GbE + 5GbE) provides workstation-class throughput for NAS access or media production. Dual USB4 Type-C ports deliver 40Gbps transfers, perfect for modern drives and docks. We’d like to see 10GbE connectivity become a standard feature across more motherboards, especially at this price point. High-speed networking is no longer a luxury; it’s a necessity for content creators and professionals working with large project files or NAS-based storage. ASRock’s decision to include it here is a welcome move in the right direction.
For storage, it features dual PCIe Gen5 M.2 x4 slots alongside additional Gen4 options, delivering lightning-fast speeds for editing and rendering. To get the most from them, check for lane sharing with the USB4 and PCIe 3.0 slots.
Having dual PCIe 5.0 slots with full x16 lanes on both would be the ultimate setup. Also, check ASRock’s compatibility list before buying memory to avoid issues. If you want to see what choosing an incompatible kit might look like, check out our previous review here. For updates regarding X3D processor support, keep an eye on ASRock’s website.
In summary, the X870 Taichi Creator is a well-rounded, feature-rich motherboard. It’s ideal for users who need high-speed networking and USB4 storage connectivity, as well as those running dual GPUs or expansion cards. The storage options don’t disappoint either. Priced around $350, it’s not cheap, but considering its features and build quality, it’s an excellent value for professionals and enthusiasts alike.
- EZ-Release mechanism
- Tool-less M.2 installation system with heatsink
- Dual high-speed LAN (10GbE + 5GbE)
- Wi-Fi 7
- Great layout for multi-GPU or workstation setups
- PCIe 5.0 x16 slot spacing for large cards
- Socketed Wi-Fi module
- BIOS Flashback button
- 36W PD charging for the front USB Type-C connector
- Clean layout, good aesthetics
- CMOS battery placement looks out of place
- The second PCIe 5.0 X16 has only eight signal lanes
- Lane sharing between USB4 and M.2 slots
