From network speed to storage flair, the X870 Taichi Creator maxes its potential: 10GbE and 5GbE onboard, dual USB4. What more could you ask from a board?
The Taichi series has become ASRock’s flagship line, blending performance, premium design, and feature-rich engineering. Within this family, the Creator Edition targets a particular audience: professionals, content creators, and power users who demand uncompromising stability, connectivity, and bandwidth for intensive workloads such as 3D rendering, video editing, and multi-GPU compute tasks.
The ASRock X870 Taichi Creator pairs AMD’s latest platform with an 18+2+1 power phase design, dual high-speed Ethernet ports (10GbE and 5GbE), and fast storage. Modern conveniences like USB4 connectivity, 36W PD charging, and a toolless M.2 installation system make both setup and day-to-day use more efficient.

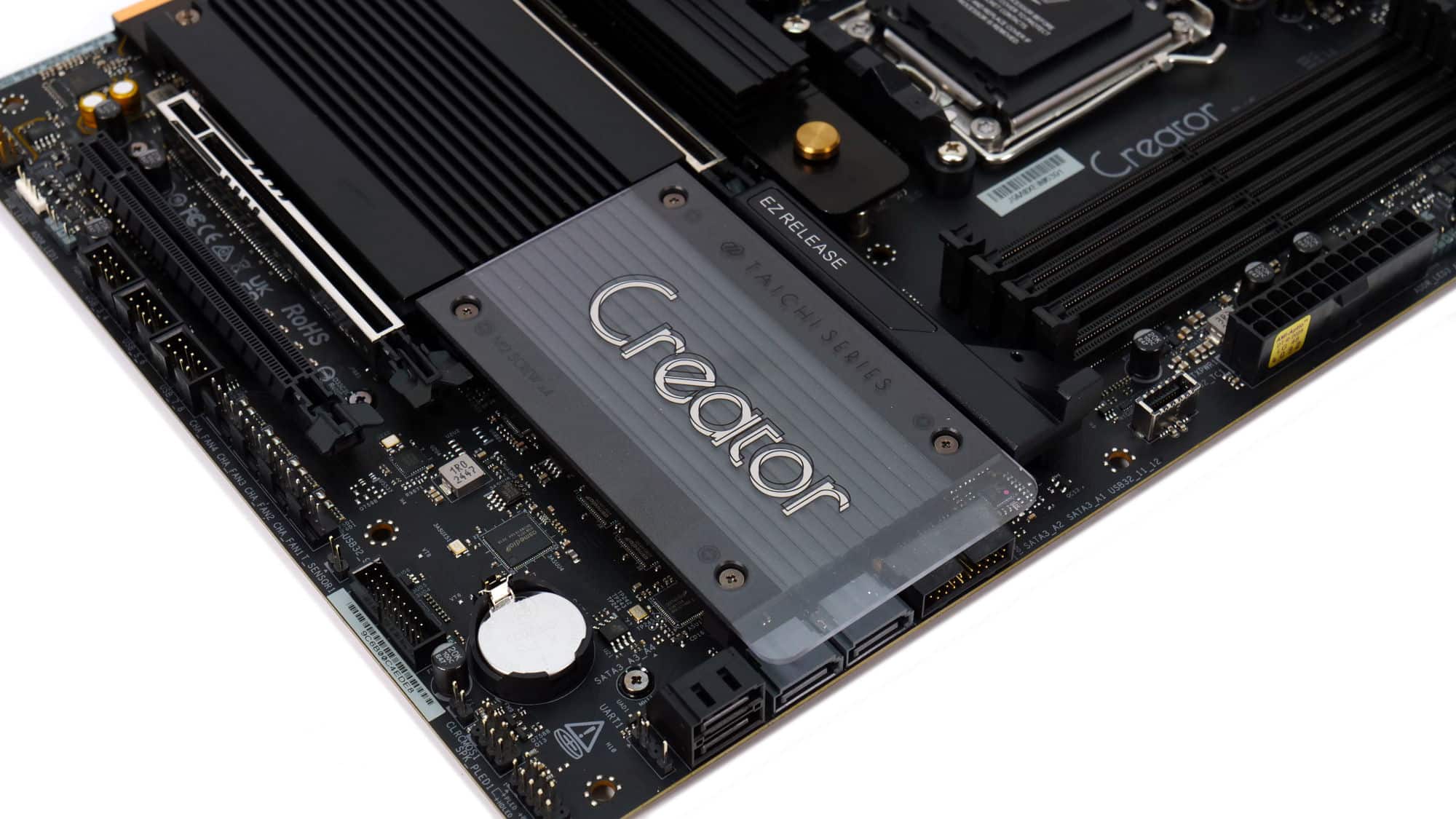

Visually, the X870 Taichi Creator Edition continues ASRock’s tradition of premium aesthetics. It’s available in a sleek silver-and-black color scheme accented by gold highlights, striking a balance between professional sophistication and enthusiast appeal.
Let’s take a quick look at the technical specifications of the X870 Taichi Creator:
| Specification | ASRock X870 Taichi Creator |
|---|---|
| CPU Support | AMD Socket AM5 Ryzen™ 9000 / 8000 / 7000 Series* |
| Chipset | AMD X870 |
| Memory | DDR5, 4 DIMM, up to 8000+ MHz (OC), 256GB max, ECC/Non-ECC, XMP & EXPO |
| BIOS | 512Mb AMI UEFI Legal BIOS with GUI support |
| Graphics Outputs | HDMI 2.1 (4K 120Hz) / 2 x USB4 (iGPU) (8K 30Hz) |
| Audio | Realtek ALC4082, 7.1 CH HD, Nahimic Audio |
| LAN | Marvell (Aquantia) AQC113 10G LAN / Realtek RTL8126 5G LAN |
| Wi-Fi / BT | Wi-Fi 7 (802.11be), BT 5.4 |
| PCIe Slots* | 1× PCIe 5.0 x16, 1× PCIe 5.0 x16 (x8 connection), 1× PCIe 3.0 x16 (x4 connection), 1× M.2 Key-E |
| M.2 Slots* | 2× Gen5 x4, 1× Gen4 x4, 1× Gen3 x4 |
| SATA Ports* | 4× SATA 6Gb/s |
| RAID Support | RAID 0, 1, 10 (NVMe) |
| USB (Rear + Front) | Rear: 2× USB4, 2× Gen2-A, 6× Gen1-A, 2× USB2.0 Front: 1× Gen2x2-C, 4× Gen1-A, 6× USB2.0 |
| Rear Panel I/O | BIOS Flashback, Clear CMOS, Antenna x2, HDMI, 10GbE, 5GbE, Line In, Mic, SPDIF |
| Connectors & Headers | RGB + ARGB headers, multiple fan/pump headers, USB headers, thermistor header, and clear CMOS header |
| Software & UEFI | ASRock A-Tuning, Polychrome SYNC, EZ Mode, Full HD UEFI, Auto Driver Installer, Instant Flash |
| Form Factor | ATX, 30.5 × 24.4 cm, 8-layer PCB |
| OS Support | Windows 10 / 11 64-bit |
*The availability of slots and ports may vary. Further discussed in the next two sections.
