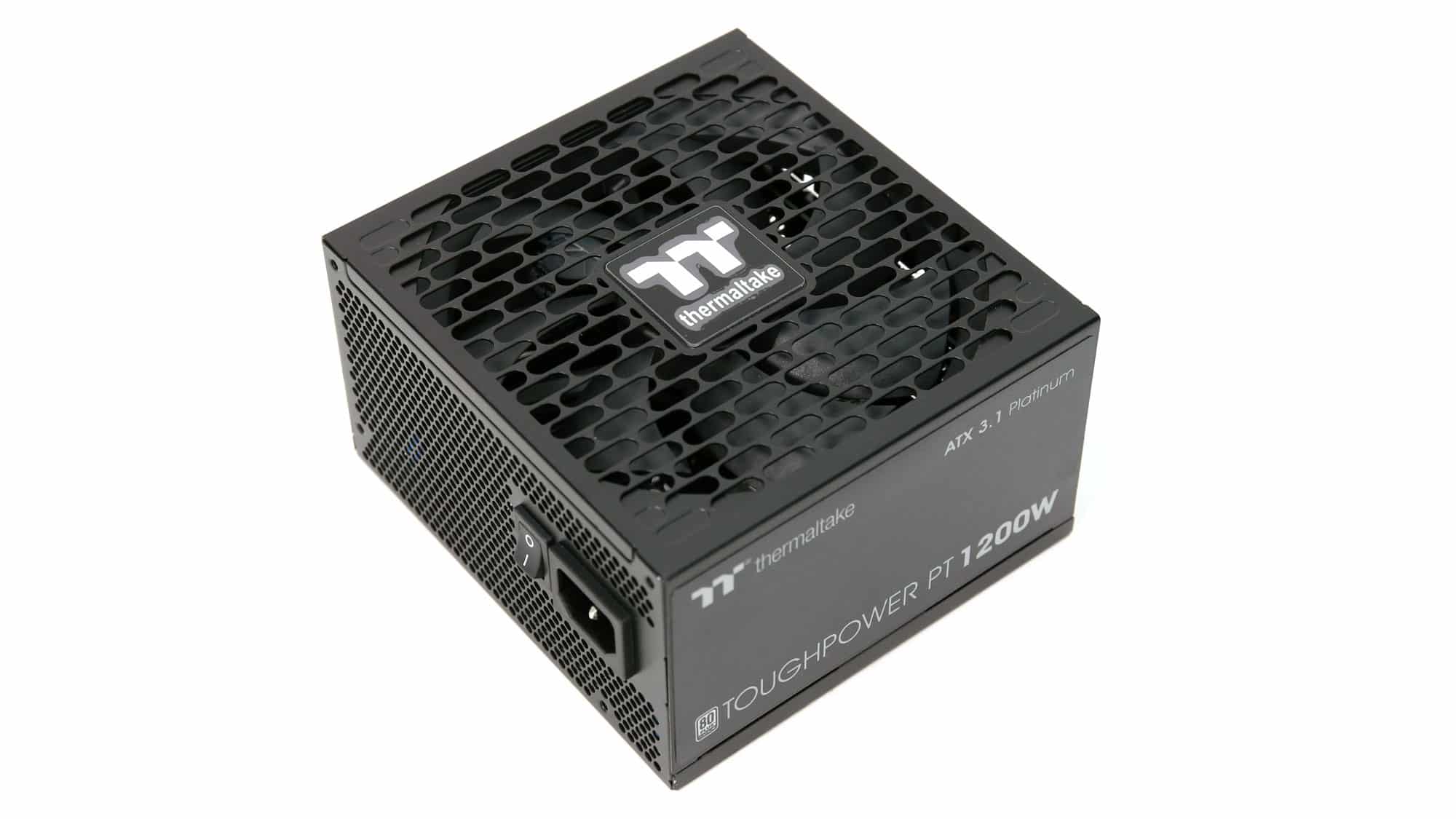

The Thermaltake Toughpower PT 1200 uses a platform provided by CWT, with code name CSA. This is a Cybenetics Platinum certified unit, and it also has an ATX v3.1 compliance from the same certifications agency. You want more information about this product’s performance? Read the full review!
The Thermaltake Toughpower PT 1200 is (or will be) included in my best ATX v3.x & PCIe 5.x PSU picks article.
The Thermaltake Toughpower PT line consists of three members with capacities ranging from 850W to 1200W. All are Cybenetics Platinum-certified and also carry ATX v3.1 spec-compliance certification from the same agency. Thermaltake used Japanese caps to boost the marketing image of this new PSU line, along with a hydraulic fan and a fully modular cable design.
All PT models have a 40°C temperature rating for continuous full-load operation, which is a bit low for a high-end platform. Nonetheless, I will totally ignore the 40°C temperature rating and exceed 45°C in my tests. Normal testing is not that stressful since I keep the load for 4 minutes. Still, during the protection features evaluation, I apply loads well above the nominal loads at high operating temperatures, pushing the platform far beyond its limits until the protection features intervene to save it, or until it blows sky-high.
The MSRP prices of Thermaltake’s new PT series PSUs are listed below:
Check out our top ATX v3.1 PSU guide before purchasing your next PSU.
High-Capacity ATX v3.1 PSU Reviews:
- Asus ROG Thor 1200W Platinum III ATX v3.1 PSU Review
- Asus Rog Strix 1200W Platinum ATX v3.1 PSU Review
- ASRock SL-1200G 1200W ATX v3.1 PSU Review
- be quiet! Dark Power Pro 13 1600W PSU Review
- Cooler Master X Silent MAX Platinum 1300W
- Cooler Master GX III 1250W ATX v3.0 PSU Review
- Corsair HX1200i ATX v3.1 (2025) PSU Review
- darkFlash UPMOST 1250W ATX v3.0 PSU Review
- Lian Li EG1200G ATX v3.1 PSU Review
- MSI MAG A1250GL PCIE5 ATX v3.1 PSU Review
- Micronics Wizmax G 1200W ATX v3.1 PSU Review
- Montech Titan PLA 1200W ATX v3.1 PSU Review
- Montech Century II 1200W ATX v3.1 PSU Review
- NZXT C1500 ATX v3.1 PSU Review
- PCCooler YT1200 ATX v3.1 PSU Review
- PCCooler YS1200 ATX v3.1 PSU Review
- Seasonic Prime PX-1600 ATX v3.0 PSU Review
- Seasonic Prime TX-1600 ATX v3.0 PSU Review
- Seasonic Prime TX-1300 ATX v3.0 PSU Review
- SilverStone Hela 2500Rz ATX v3.1 PSU Review
- Super Flower Leadex 2800W ATX v3.1 PSU Review
- Super Flower Leadex Titanium ATX v3.0 1600W PSU Review
- Super Flower Leadex III 1300W ATX v3.1 PSU Review
- Thermaltake Toughpower GF3 1350W ATX v3.0 PSU Review
- Thermaltake Toughpower GF3 1650W ATX v3.0 PSU Review
- XPG Fusion 1600W Titanium PSU Review
- XPG Cybercore II 1300 Platinum PSU Review
- Manufacturer (OEM): CWT (CSA)
- Max Power: 1200W
- Cybenetics Efficiency: [115V] Cybenetics Platinum (90.345%), [230V] Cybenetics Platinum (92.072%)
- Noise: [115V] Cybenetics A (23.82 dB[A]), [230V] Cybenetics A (22.97 dB[A])
- Compliance: ATX v3.1, EPS 2.92
- Operating Temperature (Continuous Full Load): 0 – 40 °C
- Alternative Low Power Mode support: ✓
- Power 12V combined: 1200W
- Number of 12V rails: 1
- Power 5V + 3.3v: 110W
- Power 5VSB: 15W
- Cooling: 135mm Fluid Dynamic Bearing Fan (CWT13525H12F-9)
- Semi-Passive Operation: No
- Modular Design: Yes (Fully)
- High Power Connectors: 2x EPS (2x cables), 2x 12+4 pin (600W), 5x PCIe 6+2 pin (3x cables)
- Peripheral Connectors: 6x SATA (2x cables), 4x 4-pin Molex (1x cable)
- ATX Cable Length: 550mm
- EPS Cable Length: 700mm
- 12+4 pin PCIe Cable Length: 600mm
- 6+2 pin PCIe Cable Length: 600mm
- Distance between SATA/4-pin Molex: 150mm
- In-cable capacitors: No
- Dimensions (W x H x D): 150 mm x 85 mm x 140mm
- Weight: 1.72 kg (3.79 lb)
- Warranty: 10 Years
- MSRP (excluding VAT): $180
Power Specifications
| Rail | 3.3V | 5V | 12V | 5VSB | -12V | |
| Max. Power | Amps | 20 | 20 | 100 | 3 | 0.3 |
| Watts | 110 | 1200 | 15 | 3.6 | ||
| Total Max. Power (W) | 1200 | |||||
