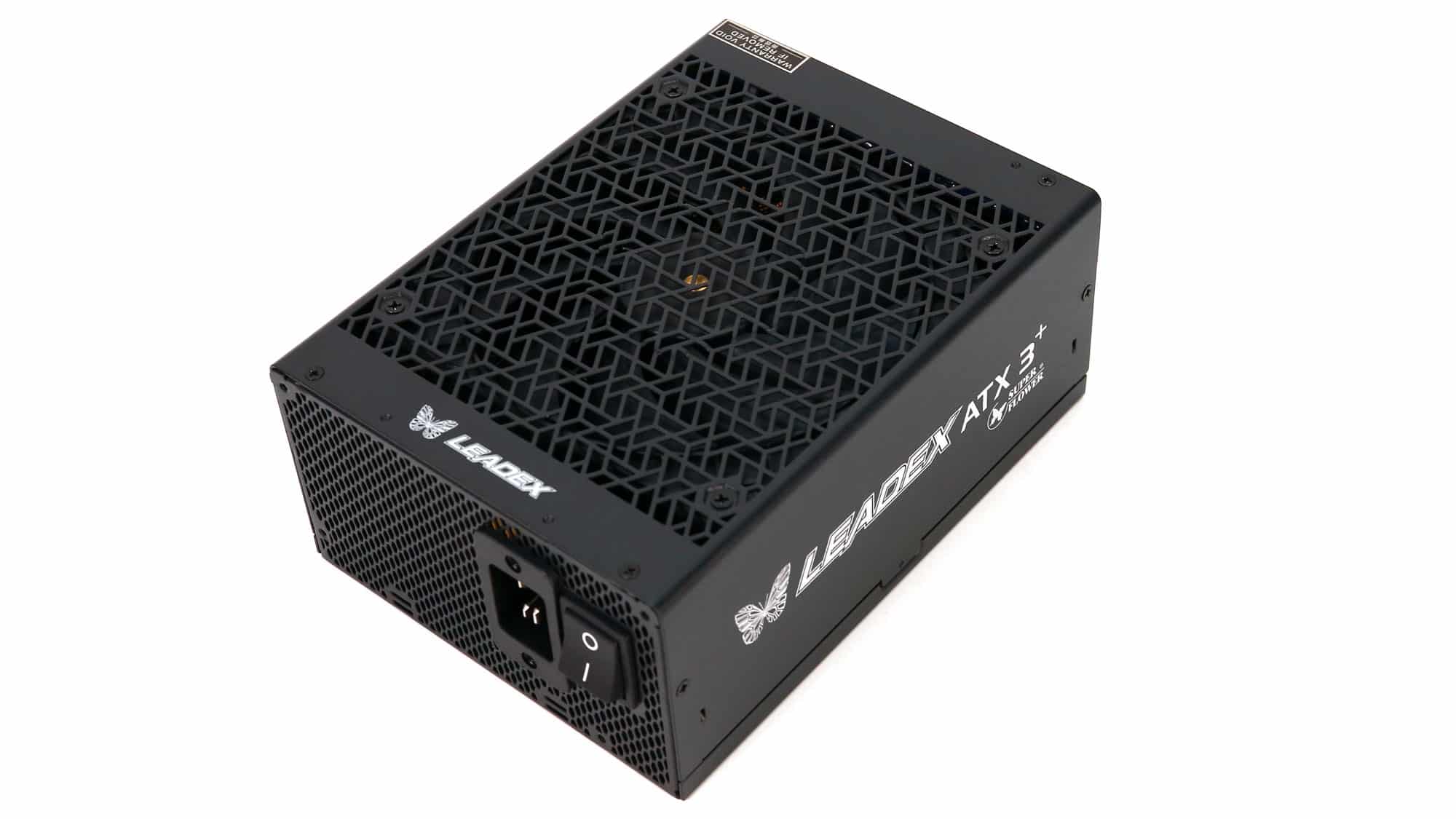

The Super Flower Leadex 2800W is the strongest PSU available in today’s market and in today’s review I will push it to the limits of my equipment, to see how it will perform and if it will handle the low.
The Super Flower Leadex 2800W (SF-2800F14HP) is (or will be) included in my best ATX v3.x & PCIe 5.x PSU picks article.
As I see it, Super Flower wanted to make a statement that it still has what is necessary to lead the PSU race by releasing the Leadex Platinum 2800W monster. This PSU doesn’t support voltage inputs lower than 200V, so you will need a special socket to use it in the US or any other 115V market. It offers four 12V-2×6 cables/connectors! Say that you utilize all of them fully, at 600W each, you still have 400W available for the rest of the system parts, and this is with the PSU’s nominal full power, since it can deliver way more if required.
This PSU’s price will probably make you want to cry. During a promotional pre-order phase on Newegg, it was listed at $899. This special PSU addresses unique needs, so it is expected to cost a bomb! In today’s review, I will thoroughly evaluate it, checking also if it can deliver full power at a much lower voltage input than 200V. The official price is $1000 when it lands with enough stock in the US market.
Look at our best ATX v3.1 PSU guide before buying your next PSU.
High-Capacity ATX v3.1 PSU Reviews:
- Asus Rog Strix 1200W Platinum ATX v3.1 PSU Review
- be quiet! Dark Power Pro 13 1600W PSU Review
- Corsair HX1200i ATX v3.1 (2025) PSU Review
- Cooler Master V1600 Platinum V2 ATX v3.1 PSU Review
- Cooler Master X Silent MAX Platinum 1300W
- Cooler Master GX III 1250W ATX v3.0 PSU Review
- darkFlash UPMOST 1250W ATX v3.0 PSU Review
- Lian Li EG1200G ATX v3.1 PSU Review
- MSI MAG A1250GL PCIE5 ATX v3.1 PSU Review
- Montech Titan PLA 1200W ATX v3.1 PSU Review
- NZXT C1500 ATX v3.1 PSU Review
- Seasonic Prime TX-1300 ATX v3.0 PSU Review
- Seasonic Prime PX-1600 ATX v3.0 PSU Review
- Seasonic Prime TX-1600 ATX v3.0 PSU Review
- Super Flower Leadex Titanium ATX v3.0 1600W PSU Review
- Super Flower Leadex III 1300W ATX v3.1 PSU Review
- Thermaltake Toughpower GF3 1350W ATX v3.0 PSU Review
- Thermaltake Toughpower GF3 1650W ATX v3.0 PSU Review
- XPG Fusion 1600W Titanium PSU Review
- XPG Cybercore II 1300 Platinum PSU Review
- Manufacturer (OEM): Super Flower
- Max Power: 2800W
- Cybenetics Efficiency: [230V] Cybenetics Titanium (93.184%)
- Noise: Cybenetics Standard+ (39.85dB[A])
- Compliance: ATX v3.1, EPS 2.92
- Operating Temperature (Continuous Full Load): 0 – 50 °C
- Alternative Low Power Mode support: Yes
- Power 12V combined: 2799.6W
- Number of 12V rails: 1
- Power 5V + 3.3v: 100W
- Power 5VSB: 15W
- Cooling: 140mm Fluid Dynamic Bearing Fan (ZFB142512D)
- Semi-Passive Operation: No
- Modular Design: Yes (Fully)
- High Power Connectors: 2x EPS (2x cables), 6x PCIe 6+2 pin (6x cables), 4x PCIe 12+4 pin (600W)
- Peripheral Connectors: 16x SATA (4x cables), 4x 4-pin Molex (1x cable)
- ATX Cable Length: 590mm
- EPS Cable Length: 700mm
- 12+4 pin PCIe Cable Length: 700mm
- 6+2 pin PCIe Cable Length: 700mm
- Distance between SATA/4-pin Molex: 110mm / 100mm
- In-cable capacitors: No
- Dimensions (W x H x D): 150 mm x 85 mm x 200mm
- Weight: 2.99 kg (6.60 lb)
- Warranty: 10 years
- MSRP (excluding VAT): $1000
Power Specifications
| Rail | 3.3V | 5V | 12V | 5VSB | -12V | |
| Max. Power | Amps | 20 | 20 | 233.3 | 3 | 0.5 |
| Watts | 100 | 2799.6 | 15 | 6 | ||
| Total Max. Power (W) | 2800 | |||||
