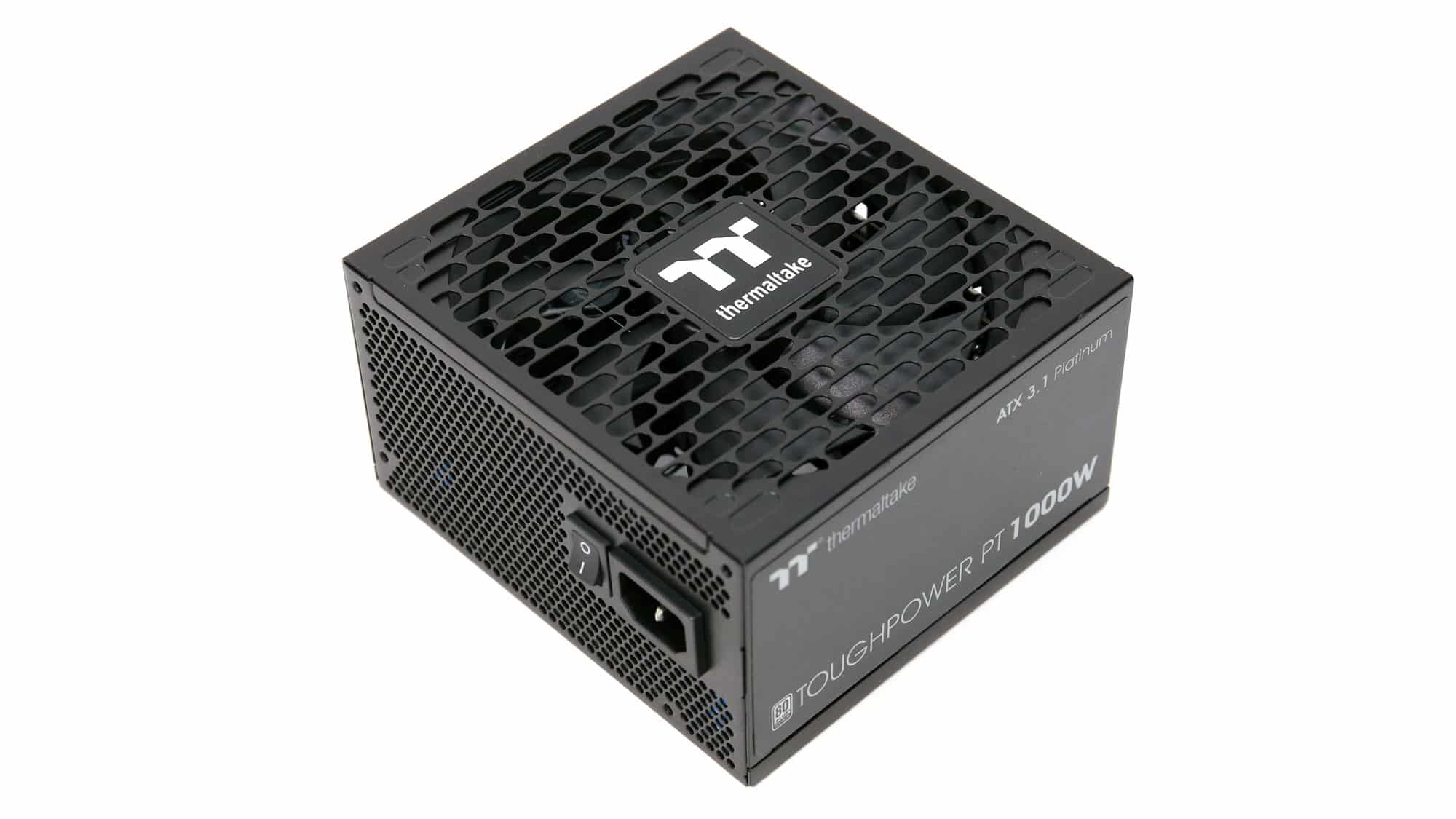

All Thermaltake PT models use a platform provided by Channel Well Technology (CWT), with code name CSA. All are Cybenetics Platinum certified in efficiency and they also have an ATX v3.1 compliance from the same certifications agency. Read the review to learn more about the middle member of the family, with 1000W full power.
The Thermaltake Toughpower PT 1000 is (or will be) included in my best ATX v3.x & PCIe 5.x PSU picks article.
The Thermaltake Toughpower PT line consists of three members with capacities ranging from 850W to 1200W. All are Cybenetics Platinum-certified and also carry ATX v3.1 spec-compliance certification from the same agency. Thermaltake used Japanese caps to boost the marketing image of this new PSU line, along with a hydraulic fan and a fully modular cable design.
- Thermaltake Toughpower PT 1200 ATX v3.1 PSU Review
- Thermaltake Toughpower PT 1000 ATX v3.1 PSU Review
- Thermaltake Toughpower PT 850 ATX v3.1 PSU Review
All PT models have a 40°C temperature rating for continuous full-load operation, which is a bit low for a high-end platform. Nonetheless, I will totally ignore the 40°C temperature rating and exceed 45°C in my tests. Normal testing is not that stressful since I keep the load for 4 minutes. Still, during the protection features evaluation, I apply loads well above the nominal loads at high operating temperatures, pushing the platform far beyond its limits until the protection features intervene to save it, or until it blows sky-high.
The MSRP prices of Thermaltake’s new PT series PSUs are listed below:
Check out our top ATX v3.1 PSU guide before purchasing your next PSU.
ATX v3.x 1000W PSU Reviews:
- 1st Player NGDP 1000W PSU Review
- ASUS ROG Thor 1000W Platinum III ATX v3.1 PSU Review
- be quiet! Pure Power 13 M 1000W ATX v3.1 PSU Review
- be quiet! Pure Power 11 FM 1000W PSU Review
- be quiet! Power Zone 2 1000W ATX v3.1 PSU Review
- be quiet! Dark Power 13 1000W PSU Review
- Cougar GEX X2 1000W PSU Review
- Endorfy Supremo FM6 1000W ATX v3.1 PSU Review
- FSP Hydro Ti Pro 1000W PSU Review
- FSP Hydro G Pro 1000W ATX v3.0 PSU Review
- FSP VITA GM 1000W ATX v3.1 PSU Review
- Gamer Storm PQ1000M-V2 ATX v3.1 PSU Review
- Montech Titan Gold 1000W PSU Review
- Micronics Wizmax G 1000W ATX v3.1 PSU Review
- MSI MAG A1000GLS PCIE5 ATX v3.1 PSU Review
- PCCooler YT1000 ATX v3.1 PSU Review
- Seasonic Vertex PX-1000 ATX v3.0 PSU Review
- Super Flower Leadex VII Gold 1000W (SF-1000F14XG) PSU Review
- Super Flower Leadex VII PRO 1000W ATX v3.1 PSU Review
- Sharkoon Rebel P20 1000W ATX v3.1 PSU Review
- Thermaltake Toughpower PT 1000 ATX v3.1 PSU Review
- Thermaltake Toughpower GF3 1000W ATX v3.0 PSU Review
- Vetroo 1000W ATX v3.0 PSU Review
- Manufacturer (OEM): CWT (CSA)
- Max Power: 1000W
- Cybenetics Efficiency: [115V] Cybenetics Platinum (90.350%), [230V] Cybenetics Platinum (92.068%)
- Noise: [115V] Cybenetics A+ (16.02 dB[A]), [230V] Cybenetics A+ (16.02 dB[A])
- Compliance: ATX v3.1, EPS 2.92
- Operating Temperature (Continuous Full Load): 0 – 40 °C
- Alternative Low Power Mode support: ✓
- Power 12V combined: 1000W
- Number of 12V rails: 1
- Power 5V + 3.3v: 110W
- Power 5VSB: 15W
- Cooling: 135mm Fluid Dynamic Bearing Fan (CWT13525H12F-9)
- Semi-Passive Operation: No
- Modular Design: Yes (Fully)
- High Power Connectors: 2x EPS (2x cables), 1x 12+4 pin (600W), 5x PCIe 6+2 pin (3x cables)
- Peripheral Connectors: 6x SATA (2x cables), 4x 4-pin Molex (1x cable)
- ATX Cable Length: 540mm
- EPS Cable Length: 700mm
- 12+4 pin PCIe Cable Length: 600mm
- 6+2 pin PCIe Cable Length: 600mm
- Distance between SATA/4-pin Molex: 150mm
- In-cable capacitors: No
- Dimensions (W x H x D): 150 mm x 85 mm x 140mm
- Weight: 1.68 kg (3.70 lb)
- Warranty: 10 Years
- MSRP (excluding VAT): $160
Power Specifications
| Rail | 3.3V | 5V | 12V | 5VSB | -12V | |
| Max. Power | Amps | 20 | 20 | 83.3 | 3 | 0.3 |
| Watts | 110 | 999.6 | 15 | 3.6 | ||
| Total Max. Power (W) | 1000 | |||||
Here cybenetics reports
850w which is not very good
https://www.cybenetics.com/evaluations/psus/2580/
1000w Malfunctioning protections that don’t engage in time before the minor rails experience a huge voltage drop out of spec.
https://www.cybenetics.com/evaluations/psus/2575/
Basically i wouldnt do none of these
Any chance for review Thermaltake SFX ATX 3.1 ?
If we have it in our database sure.
