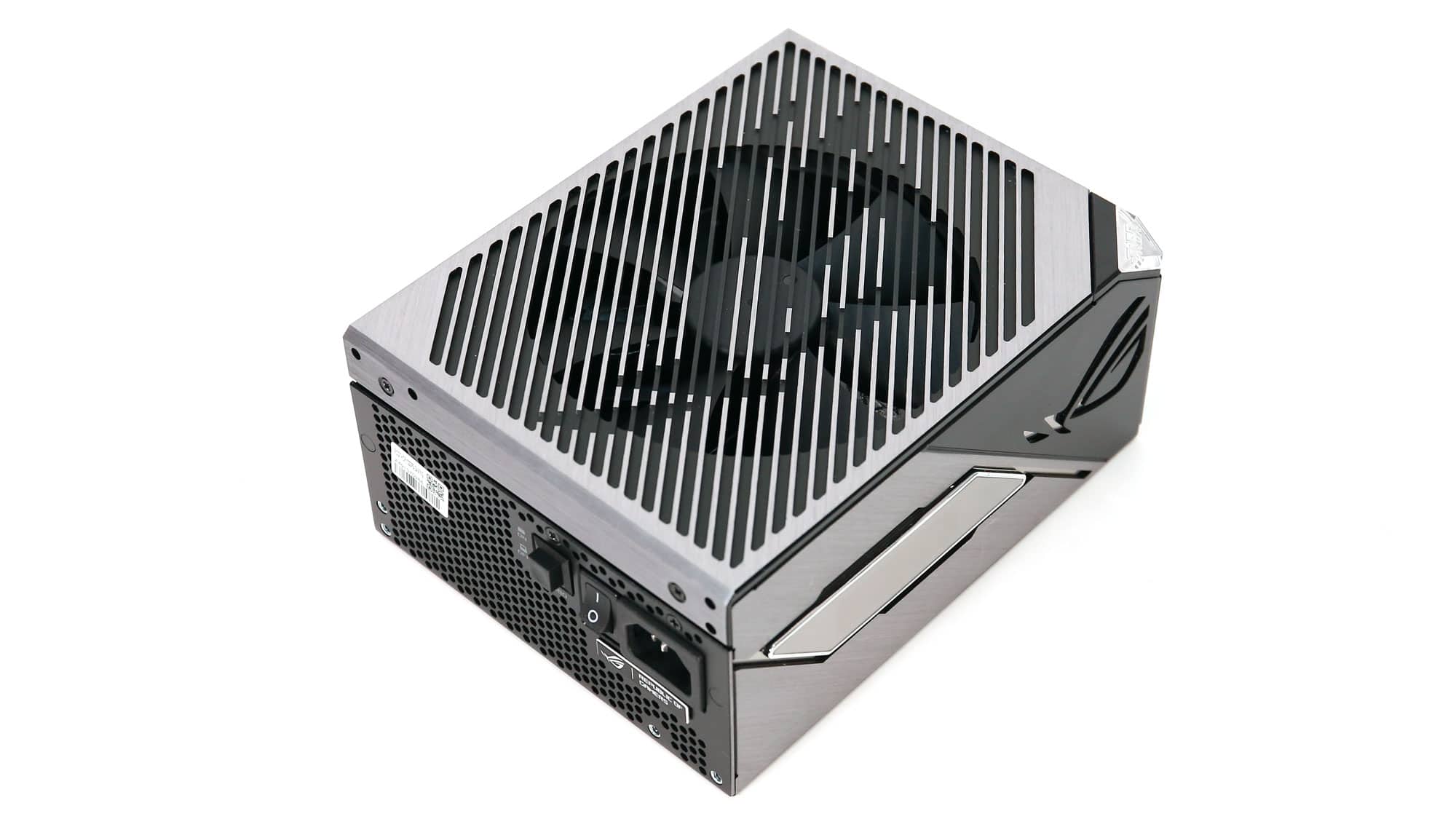

The ASUS ROG Thor 1000W Platinum III in an expensive PSU using a new Seasonic platform. It features a single GaN MODFET on its primary side along with a magnetic-munt OLED display showing real-time power draw.
The ASUS ROG Thor 1000W Platinum III is (or will be) included in my best ATX v3.x & PCIe 5.x PSU picks article.
I have already evaluated the ASUS ROG Thor 1200W Platinum III, so the time has come to test its 1000W sibling.
The ASUS ROG Thor 1000W Platinum III is not affordable, since its price without VAT exceeds 350€ in Europe. The new Seasonic platform it uses doesn’t come cheap, mainly since it uses a single MODFET in its APFC converter, mainly for marketing reasons. Another reason behind the product’s high price is the magnetically mounted OLED display, which can be installed on either side of the PSU, showing real-time power draw from the wall. The rest of the features of this PSU include etched modular cables, large heatsinks at its internals to minimize the fan’s workload and noise, a turbo mode switch at its front side for spinning the fan at high speeds and a voltage sensing system for its 12V-2×6 connector which promises a tighter load regulation under high transient loads.
Look at our best ATX v3.1 PSU guide before buying your next PSU.
ATX v3.x 1000W PSU Reviews:
- 1st Player NGDP 1000W PSU Review
- be quiet! Pure Power 11 FM 1000W PSU Review
- be quiet! Power Zone 2 1000W ATX v3.1 PSU Review
- be quiet! Dark Power 13 1000W PSU Review
- Cougar GEX X2 1000W PSU Review
- Endorfy Supremo FM6 1000W ATX v3.1 PSU Review
- FSP Hydro Ti Pro 1000W PSU Review
- FSP Hydro G Pro 1000W ATX v3.0 PSU Review
- FSP VITA GM 1000W ATX v3.1 PSU Review
- Montech Titan Gold 1000W PSU Review
- Seasonic Vertex PX-1000 ATX v3.0 PSU Review
- Super Flower Leadex VII Gold 1000W (SF-1000F14XG) PSU Review
- Super Flower Leadex VII PRO 1000W ATX v3.1 PSU Review
- Sharkoon Rebel P20 1000W ATX v3.1 PSU Review
- Thermaltake Toughpower GF3 1000W ATX v3.0 PSU Review
- Vetroo 1000W ATX v3.0 PSU Review
- Manufacturer (OEM): Seasonic
- Max Power: 1000W
- Cybenetics Efficiency: [115V] Cybenetics Platinum (90.872%), [230V] Cybenetics Platinum (92.472%)
- Noise: Cybenetics A++ (<15 dB[A])
- Compliance: ATX v3.1, EPS 2.92
- Operating Temperature (Continuous Full Load): 0 – 50 °C
- Alternative Low Power Mode support: Yes
- Power 12V combined: 1000W
- Number of 12V rails: 1
- Power 5V + 3.3v: 125W
- Power 5VSB: 15W
- Cooling: 135mm Dual Ball Bearing Fan (F1214025BL)
- Semi-Passive Operation: ✓ (Selectable)
- Modular Design: Yes (Fully)
- High Power Connectors: 2x EPS (2x cables), 4x PCIe 6+2 pin (4x cables), 1x PCIe 12+2 pin (600W)
- Peripheral Connectors: 7x SATA (2x cables), 6x 4-pin Molex (2x cables)
- ATX Cable Length: 610mm
- EPS Cable Length: 1000mm
- 12+4 pin PCIe Cable Length: 740mm
- 6+2 pin PCIe Cable Length: 750mm
- Distance between SATA/4-pin Molex: 120/135mm
- Distance between 4-pin Molex: 165mm
- In-cable capacitors: No
- Dimensions (W x H x D): 150 mm x 85 mm x 190mm
- Weight: 2.39 kg (5.27 lb)
- Warranty: 10 years
- MSRP (excluding VAT): 345€
Power Specifications
| Rail | 3.3V | 5V | 12V | 5VSB | -12V | |
| Max. Power | Amps | 30 | 25 | 83.33 | 3 | 0.3 |
| Watts | 125 | 1000 | 15 | 3.6 | ||
| Total Max. Power (W) | 1000 | |||||
