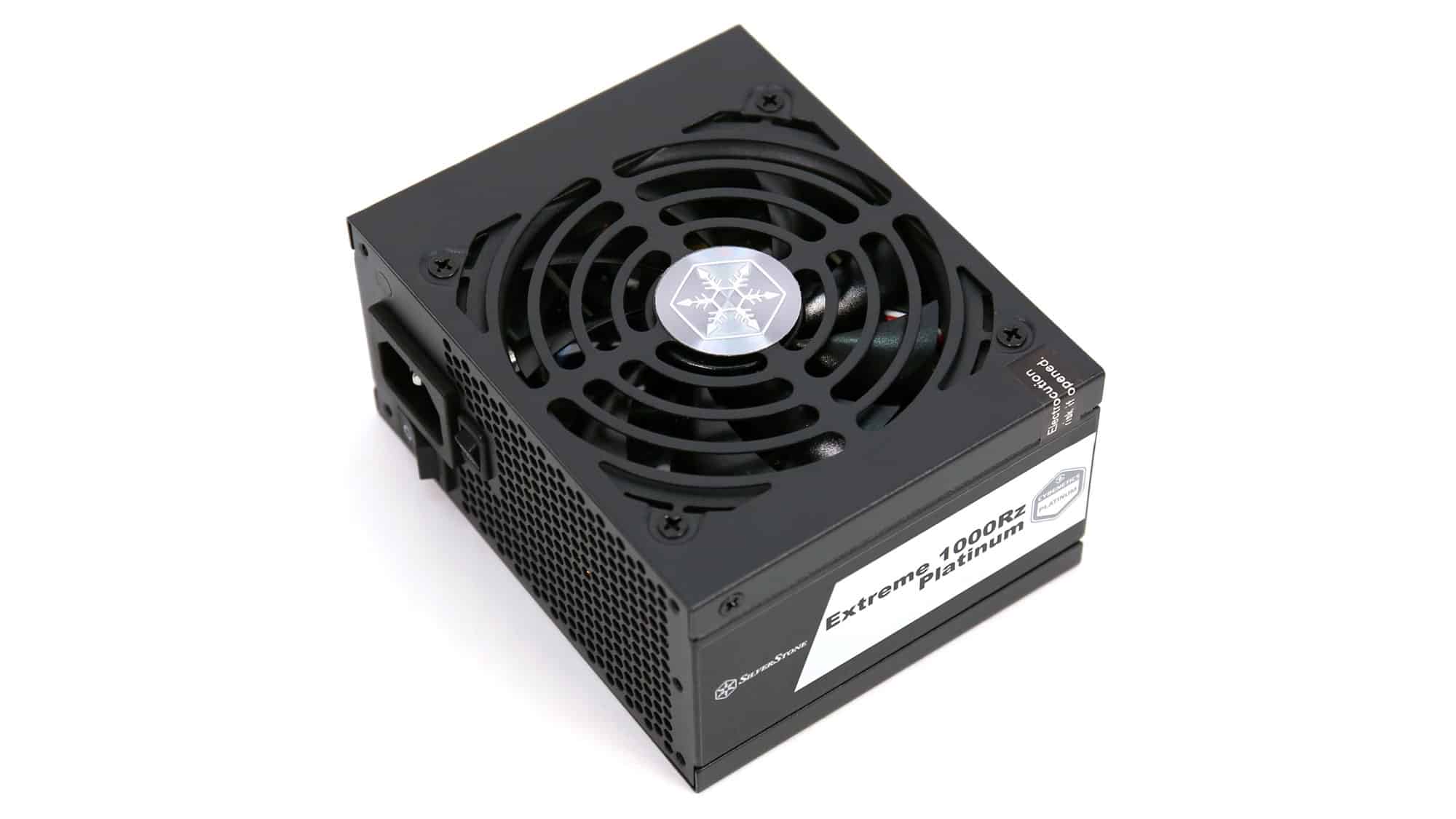

SilverStone Extreme 1000Rz Platinum 1000W SFX12V V4.1 PSU Review

The SilverStone Extreme 1000Rz is Platinum certified in the Cybenetics efficiency scale and it meets the Intel SFX12V V4.1 specification standard which is the equivalent to the ATX v3.1 standard but for SFX units.

The SilverStone Extreme 1000Rz is (or will be) included in my best ATX v3.x & PCIe 5.x PSU picks article.

The SilverStone Extreme 1000Rz is an SFX unit, meaning that it has notably smaller dimensions than a standard ATX PSU and a higher power density. The same PSU has a 92mm fan, which is ideal for this form factor since it allows for a higher airflow at lower speeds, compared to an 80mm fan. Regardless of the PSU’s footprint, it is always nice to manage to keep the noise output as low as possible. The issue with such high-power-density units is that there is not enough space among parts on their small PCBs to allow for optimal airflow, so their small fans have to operate at higher speeds to provide the necessary airflow and static pressure required.


Check out our top ATX v3.1 PSU guide before purchasing your next PSU.

ATX v3.x 1000W PSU Reviews:

Technical Specifications:
  • Manufacturer (OEM): High Power
  • Product No.: SST-EX1000R-PM
  • Power density: 1260.8 W/L
  • Max Power: 1000W
  • Cybenetics Efficiency: [115V] Cybenetics Platinum (89.988%), [230V] Cybenetics Platinum (91.830%)
  • Noise: [115V] Cybenetics A (21.34 dB[A]), [230V] Cybenetics A (20.27 dB[A])
  • Compliance: ATX v3.1, SFX v4.1
  • Operating Temperature (Continuous Full Load): 0 – 50 °C
  • Alternative Low Power Mode support: Yes
  • Power 12V combined: 1000W
  • Number of 12V rails: 1
  • Power 5V + 3.3v: 100W
  • Power 5VSB: 15W
  • Cooling: 92mm Fluid Dynamic Bearing Fan (S0921512HHB)
  • Semi-Passive Operation: ✓ (Selectable)
  • Modular Design: Yes (Fully)
  • High Power Connectors: 2x EPS (2x cables), 4x PCIe 6+2 pin (2x cables), 1x PCIe 12+4 pin (600W)
  • Peripheral Connectors: 4x SATA (1x cable), 3x 4-pin Molex (1x cable), 1x FDD (1x cable)
  • ATX Cable Length: 300mm
  • EPS Cable Length: 400mm
  • 12+4 pin PCIe Cable Length: 400mm
  • 6+2 pin PCIe Cable Length: 400
  • Distance between SATA/4-pin Molex: 200-100mm/300-200mm
  • In-cable capacitors: No
  • Dimensions (W x H x D): 125 mm x 63.5 mm x 100mm
  • Weight: 1.02 kg (2.25 lb)
  • Warranty: 5 Years
  • MSRP (excluding VAT): no info

Power Specifications

Rail 3.3V 5V 12V 5VSB -12V
Max. Power Amps 20 20 83.3 3 0.3
Watts 100 1000 15 3.6
Total Max. Power (W) 1000
Pages ( 1 of 11 ): 1 234567891011Next »
