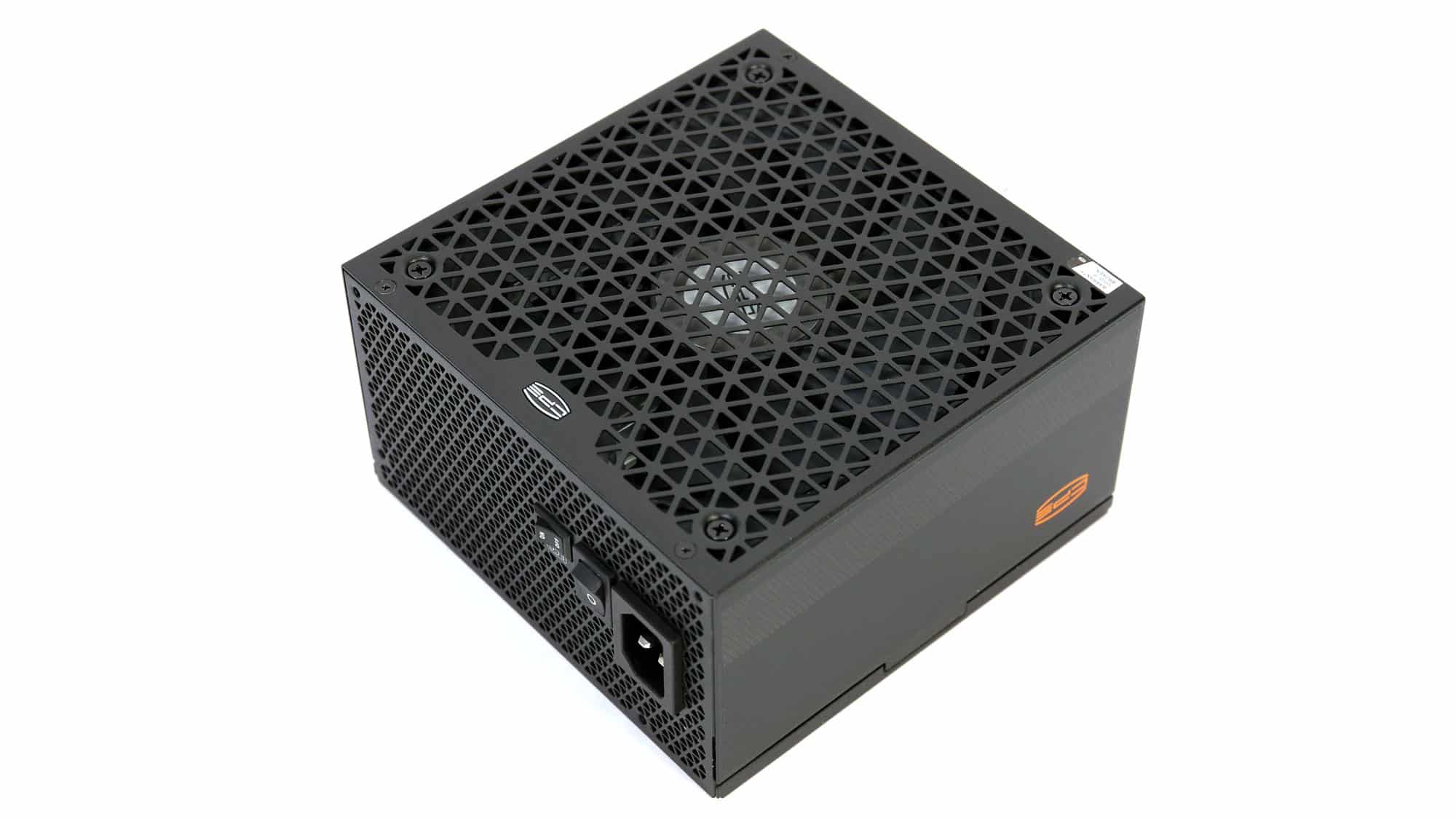

The PCCooler YT850 is Cybenetics Platinum certified in efficiency and it is also compliant with the ATX v3.1 spec, meaning that it can deliver 1700W for short periods, without issues. Read the review to learn more about this product!
The PCCooler YT850 is (or will be) included in my best ATX v3.x & PCIe 5.x PSU picks article.
PCCooler, a brand owned by Shenzhen Fluence Technology, produces air and liquid coolers, case fans, power supplies, and RGB/ARGB components for PCs. The company holds several patents related to cooling and lighting technologies and is publicly listed in China under the stock code 300647. Its products are generally positioned to offer practical performance at accessible prices.
The PCCooler YT line consists of three models with maximum power ratings of 850W, 1000W, and 1200W. All are certified by Cybenetics, and in today’s review, I will evaluate the weakest member of the line.
The PCCooler YT850 is Platinum certified by Cybenetics and meets the ATX v3.1 compliance standard, as approved by the same agency. At the time of the review, I was unable to find any price information on this product.
Check out our top ATX v3.1 PSU guide before purchasing your next PSU.
ATX v3.1 850W PSU Reviews:
- 1st Player NGDP 850W PSU Review
- be quiet! Dark Power 13 850W PSU Review
- be quiet! Pure Power 13 M 850W ATX v3.1 PSU Review
- be quiet! Pure Power 12 M 850W PSU Review
- Chieftec VEGA M 850W ATX v3.1 PSU Review
- Cooler Master GX III 850W ATX v3.0 PSU Review
- Cougar GEX X2 850W PSU Review
- Enermax Revolution D.F.12 850W PSU Review
- MSI MPG A850GS PCIE5 ATX v3.1 PSU Review
- MSI MAG A850GLS PCIE5 ATX v3.1 PSU Review
- MSI MAG A850GL PCIE5 850W PSU Review
- Montech Titan Gold 850W PSU Review
- Montech Titan PLA 850W ATX v3.1 PSU Review
- Micronics Wizmax G 850W ATX v3.1 PSU Review
- Sharkoon Rebel P20 850W ATX v3.1 PSU Review
- SilverStone Triton 850Rx ATX v3.1 PSU Review
- SilverStone Triton 850Rz ATX v3.1 PSU Review
- Thermaltake Toughpower PF3 850W PSU Review
- Thermaltake Toughpower GF A3 850W PSU Review
- Thermaltake Toughpower GF3 ARGB 850W PSU Review
- Thermaltake ToughPower GF3 850W ATX v3.0 PSU Review
- XPG Core Reactor II VE 850W PSU Review
- XPG KYBER 850W ATX v3.1 PSU Review
- XPG Core Reactor II 850W PSU Review
- Manufacturer (OEM): Andyson
- Max Power: 850W
- Cybenetics Efficiency: [115V] Cybenetics Platinum (89.981%), [230V] Cybenetics Platinum (91.590%)
- Noise: [115V] Cybenetics A (21.53 dB[A]), [230V] Cybenetics A (21.00 dB[A])
- Compliance: ATX v3.1, EPS 2.92
- Operating Temperature (Continuous Full Load): 0 – 50 °C
- Alternative Low Power Mode support: ✓
- Power 12V combined: 849.6W
- Number of 12V rails: 1
- Power 5V + 3.3v: 110W
- Power 5VSB: 15W
- Cooling: 135mm Fluid Dynamic Bearing Fan (HA13525M12F-Z)
- Semi-Passive Operation: ✓ (Selectable)
- Modular Design: Yes (Fully)
- High Power Connectors: 2x EPS (2x cables), 1x 12+4 pin (600W), 3x PCIe 6+2 pin (3x cables)
- Peripheral Connectors: 9x SATA (3x cables), 3x 4-pin Molex (3x cables)
- ATX Cable Length: 610mm
- EPS Cable Length: 650mm
- 12+4 pin PCIe Cable Length: 650mm
- 6+2 pin PCIe Cable Length: 600mm
- Distance between SATA/4-pin Molex: 150mm
- In-cable capacitors: No
- Dimensions (W x H x D): 150 mm x 85 mm x 150mm
- Weight: 1.69 kg (3.73 lb)
- Warranty: 10 Years
- MSRP (excluding VAT): no info
Power Specifications
| Rail | 3.3V | 5V | 12V | 5VSB | -12V | |
| Max. Power | Amps | 20 | 20 | 70.8 | 3 | 0.3 |
| Watts | 110 | 849.6 | 15 | 3.6 | ||
| Total Max. Power (W) | 850 | |||||
