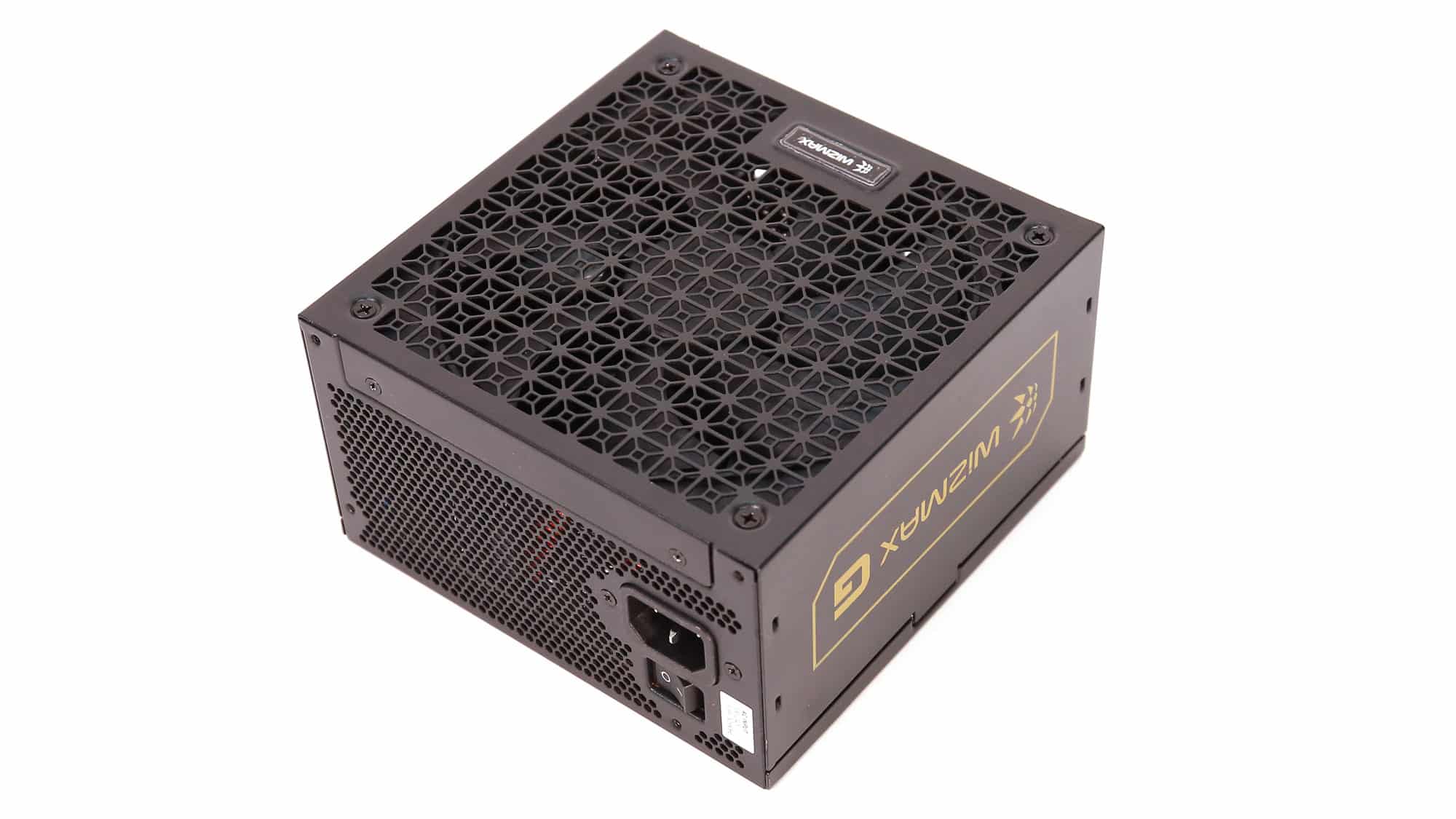

The Micronics Wizmax G 1200W is a high-end PSU from a brand mostly known in the Korean market. Read the review to find out more about its performance.
The Micronics Wizmax G 1200W is (or will be) included in my best ATX v3.x & PCIe 5.x PSU picks article.
The Micronics Wizmag G lineup offers three power supplies ranging from 850W to 1200W. They’re based on a platform from the Chinese OEM Great Wall—the same company behind Corsair’s popular SFX units that dominate the small-form-factor scene. Following today’s design standards, all Wizmag G models are fully modular and built to deliver solid performance while maintaining low noise levels, thanks to their advanced platform. How well they actually deliver on these claims is what this review will explore.
The Micronics Wizmax G 1200W is Platinum certified by Cybenetics, and it also meets the ATX v3.1 compliance standard, as approved by the same agency. At the time of the review, I found the Micronics Wizmax G 1200W on AliExpress for $210.
Check out our top ATX v3.1 PSU guide before purchasing your next PSU.
High-Capacity ATX v3.1 PSU Reviews:
- Asus ROG Thor 1200W Platinum III ATX v3.1 PSU Review
- Asus Rog Strix 1200W Platinum ATX v3.1 PSU Review
- ASRock SL-1200G 1200W ATX v3.1 PSU Review
- be quiet! Dark Power Pro 13 1600W PSU Review
- Cooler Master X Silent MAX Platinum 1300W
- Cooler Master GX III 1250W ATX v3.0 PSU Review
- Corsair HX1200i ATX v3.1 (2025) PSU Review
- darkFlash UPMOST 1250W ATX v3.0 PSU Review
- Lian Li EG1200G ATX v3.1 PSU Review
- MSI MAG A1250GL PCIE5 ATX v3.1 PSU Review
- Montech Titan PLA 1200W ATX v3.1 PSU Review
- Montech Century II 1200W ATX v3.1 PSU Review
- NZXT C1500 ATX v3.1 PSU Review
- Seasonic Prime TX-1300 ATX v3.0 PSU Review
- Seasonic Prime PX-1600 ATX v3.0 PSU Review
- Seasonic Prime TX-1600 ATX v3.0 PSU Review
- SilverStone Hela 2500Rz ATX v3.1 PSU Review
- Super Flower Leadex 2800W ATX v3.1 PSU Review
- Super Flower Leadex Titanium ATX v3.0 1600W PSU Review
- Super Flower Leadex III 1300W ATX v3.1 PSU Review
- Thermaltake Toughpower GF3 1350W ATX v3.0 PSU Review
- Thermaltake Toughpower GF3 1650W ATX v3.0 PSU Review
- XPG Fusion 1600W Titanium PSU Review
- XPG Cybercore II 1300 Platinum PSU Review
- Manufacturer (OEM): Great Wall
- Max Power: 1200W
- Cybenetics Efficiency: [115V] Cybenetics Platinum (89.045%), [230V] Cybenetics Platinum (91.238%)
- Noise: [115V] Cybenetics A (24.74 dB[A]), [230V] Cybenetics A (24.82 dB[A])
- Compliance: ATX v3.1, EPS 2.92
- Operating Temperature (Continuous Full Load): 0 – 50 °C
- Alternative Low Power Mode support: ✓
- Power 12V combined: 1200W
- Number of 12V rails: 1
- Power 5V + 3.3v: 130W
- Power 5VSB: 15W
- Cooling: 140mm Fluid Dynamic Bearing Fan (HA1425M12F-Z)
- Semi-Passive Operation: ✓
- Modular Design: Yes (Fully)
- High Power Connectors: 2x EPS (2x cables), 4x PCIe 6+2 pin (3x cables)
- Peripheral Connectors: 8x SATA (2x cables), 4x 4-pin Molex (1x cable)
- ATX Cable Length: 610mm
- EPS Cable Length: 700mm
- 12+4 pin PCIe Cable Length: 675mm
- 6+2 pin PCIe Cable Length: 675mm
- Distance between SATA/4-pin Molex: 120mm
- In-cable capacitors: No
- Dimensions (W x H x D): 150 mm x 85 mm x 150mm
- Weight: 1.65 kg (3.64 lb)
- Warranty: 10 Years
- Street Price (excluding VAT): $210
Power Specifications
| Rail | 3.3V | 5V | 12V | 5VSB | -12V | |
| Max. Power | Amps | 25 | 25 | 100 | 3 | 0.8 |
| Watts | 130 | 1200 | 15 | 9.6 | ||
| Total Max. Power (W) | 1200 | |||||
