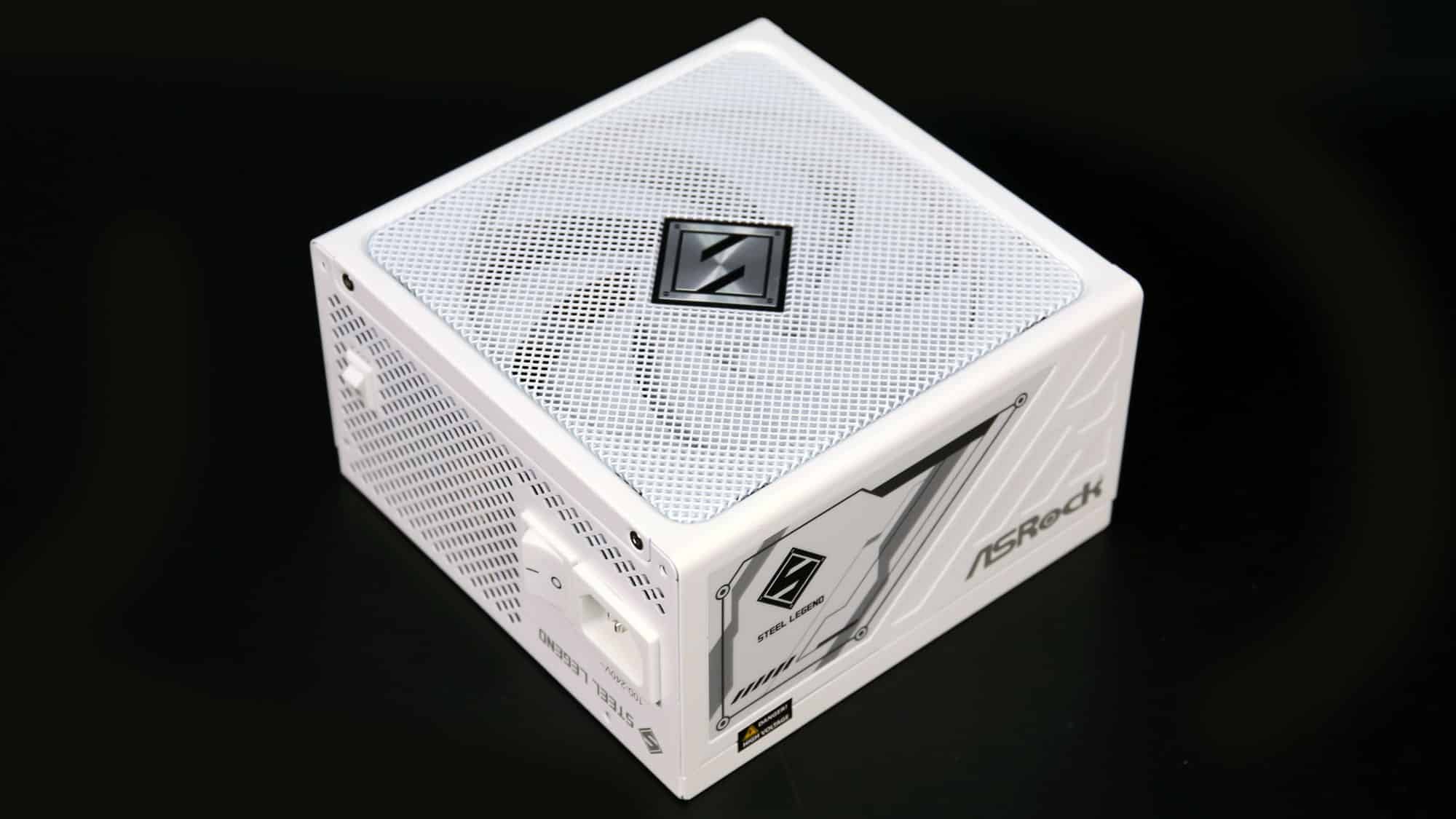

ASRock SL-1200G 1200W ATX v3.1 PSU Review

The ASRock SL-1200G is a high-power, ATX v3.1 PSU. In the Cybenetics efficiency and noise schemes it is certified as Platinum and LAMBDA-A, respectively. Read the full review to find out more about this product.

The ASRock SL-1200G is (or will be) included in my best ATX v3.x & PCIe 5.x PSU picks article.

ASRock is continuing its push into the PSU market, with two major OEMs behind the respective products, HEC and FSP. The SL-1200G is based on an HEC platform, which achieves Platinum efficiency and LAMBDA-A noise certifications in the Cybenetics standards. This PSU also has an ATX v3.1 pass by Cybenetics, meaning that it meets all requirements of this standard.

To keep the noise down, ASRock utilizes the fan-stop feature, which it calls iCool mode. Thankfully, you can deactivate it through a switch located at the unit’s front side. It is highly preferred to have a PWM-driven fan spinning at low speeds under light loads, to remove the heat from the PSU’s internals, rather than have the fan stopped and allow for heat build-up, which will need increased fan speed later to be removed. Till this happens, it will stress sensitive, heat-sensitive parts. Moreover, in fluid dynamic bearing fans, initial contact might occur between the bearing and the shaft at startup before the hydrodynamic pressure builds up.

Check out our top ATX v3.1 PSU guide before purchasing your next PSU.

High-Capacity ATX v3.1 PSU Reviews:

Technical Specifications:
  • Manufacturer (OEM): HEC
  • Max Power: 1200W
  • Cybenetics Efficiency: [115V] Cybenetics Platinum (89.875%), [230V] Cybenetics Platinum (92.059%)
  • Noise: Cybenetics A (20-25 dB[A])
  • Compliance: ATX v3.1, EPS 2.92
  • Operating Temperature (Continuous Full Load): 0 – 50 °C
  • Alternative Low Power Mode support: Yes
  • Power 12V combined: 1200W
  • Number of 12V rails: 1
  • Power 5V + 3.3v: 150W
  • Power 5VSB: 15W
  • Cooling: 135mm Fluid Dynamic Bearing Fan (RLAZ S1352512EH-3M)
  • Semi-Passive Operation: ✓ (Selectable)
  • Modular Design: Yes (Fully)
  • High Power Connectors: 2x EPS (2x cables), 3x PCIe 6+2 pin (3x cables), 2x PCIe 12+4 pin (600W)
  • Peripheral Connectors: 12x SATA (3x cables), 4x 4-pin Molex (1x cable)
  • ATX Cable Length: 590mm
  • EPS Cable Length: 640mm
  • 12+4 pin PCIe Cable Length: 645mm
  • 6+2 pin PCIe Cable Length: 650mm
  • Distance between SATA/4-pin Molex: 120/110mm
  • In-cable capacitors: No
  • Dimensions (W x H x D): 150 mm x 85 mm x 140mm
  • Weight: 1.85 kg (4.08 lb)
  • Warranty: 10 years
  • MSRP (excluding VAT): $188.44

Power Specifications

Rail 3.3V 5V 12V 5VSB -12V
Max. Power Amps 25 25 100 3 0.3
Watts 150 1200 15 3.6
Total Max. Power (W) 1200
