Test System, BIOS & Software

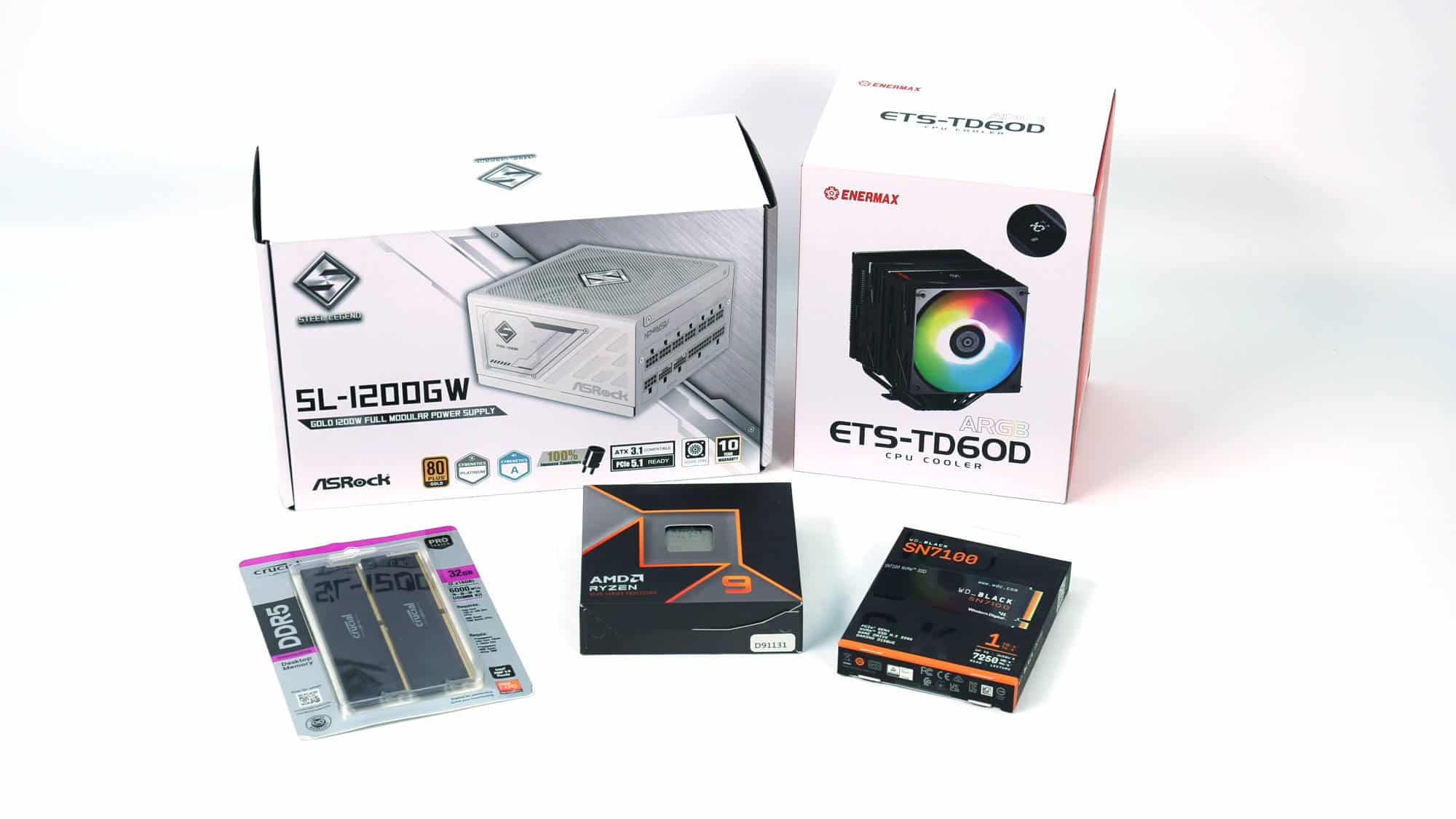

For this review, we used the fastest CPU available in our lab at the time: the AMD 9600X. Alongside it, we paired a 32GB DDR5 EXPO-compatible kit rated at 6000MT/s, a high-speed PCIe 4.0 SSD, and an Enermax cooler we recently reviewed (you can check out that review here).

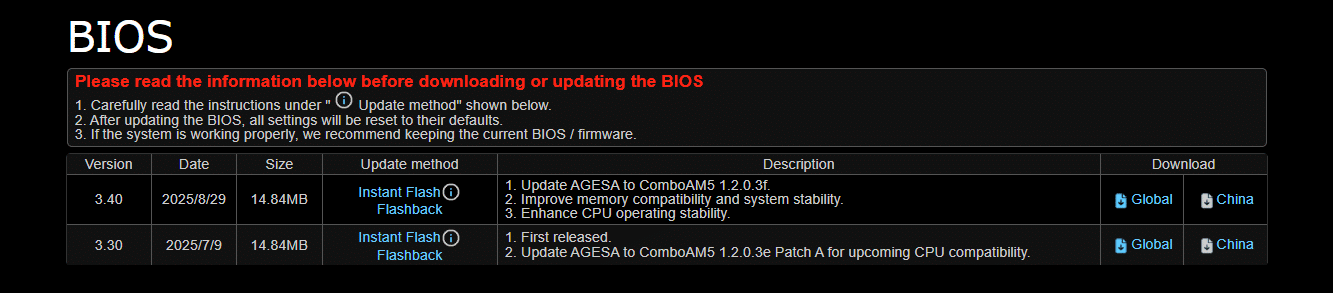

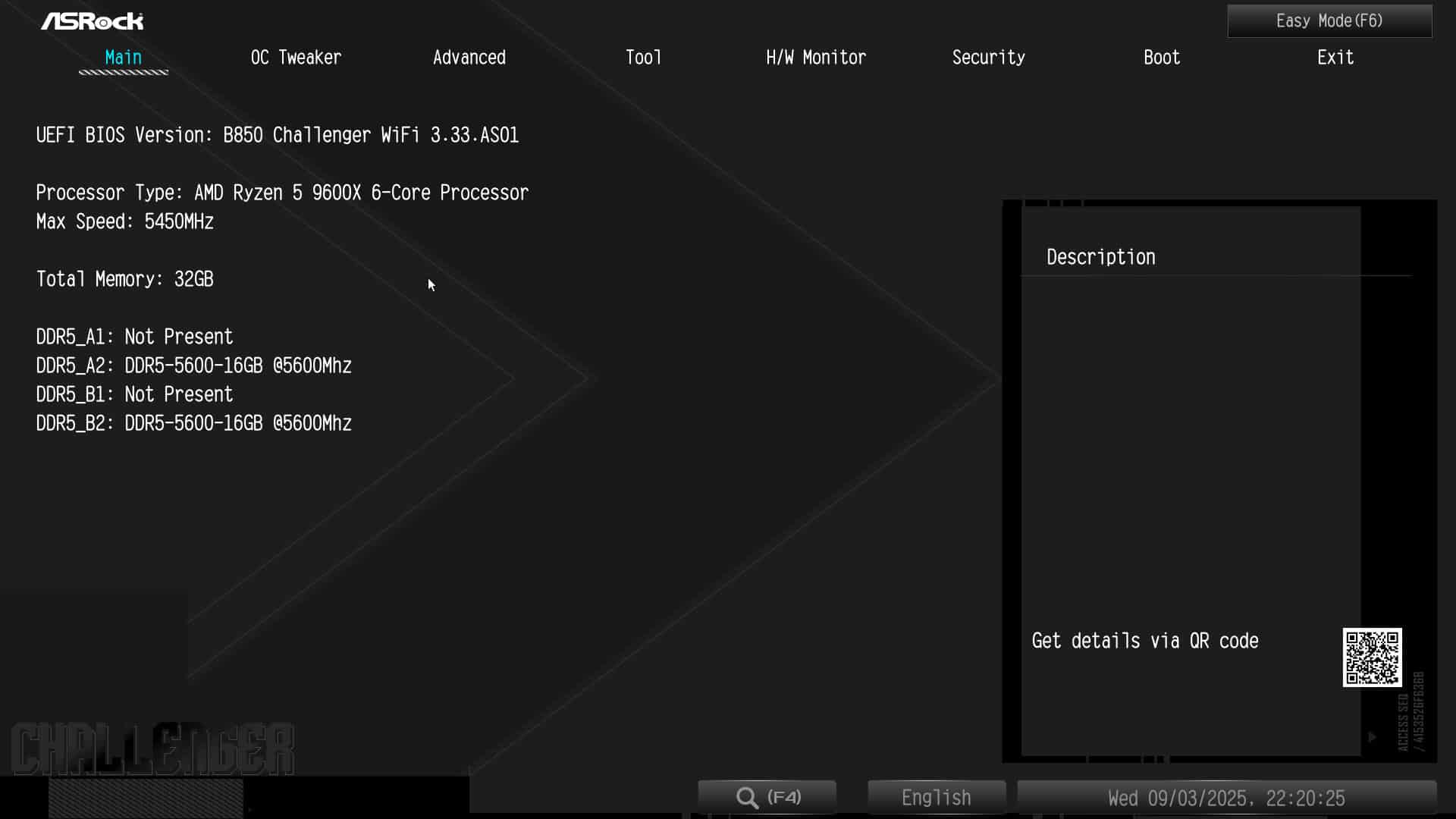

The board arrived with BIOS version 3.33, but a few days later, a new 3.4 version was released on ASRock’s website. We updated it and reran all tests. Below, you can find more details on our setup.
| Component | Specification |
|---|---|
| CPU | AMD 9600X |
| Memory | Crucial Pro 32 GB DDR5 @ 6000 MT/s |
| Storage | WD Black SN7100 1TB |
| CPU Cooler | Enermax ETS-TD60D ARGB |
| Power Supply | ASRock SL-1200GW |
| Thermal Paste | Arctic MX4 |

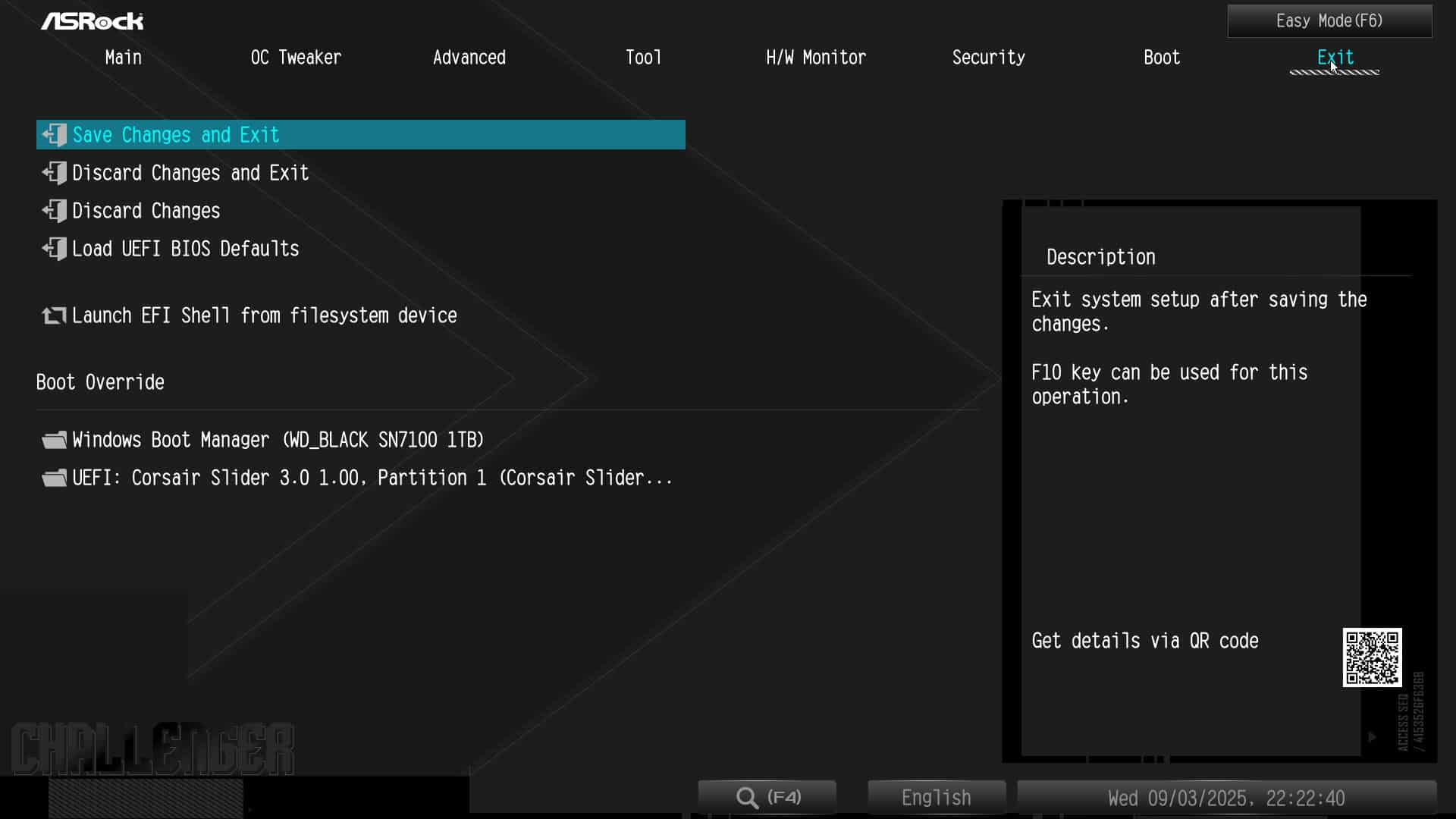

BIOS

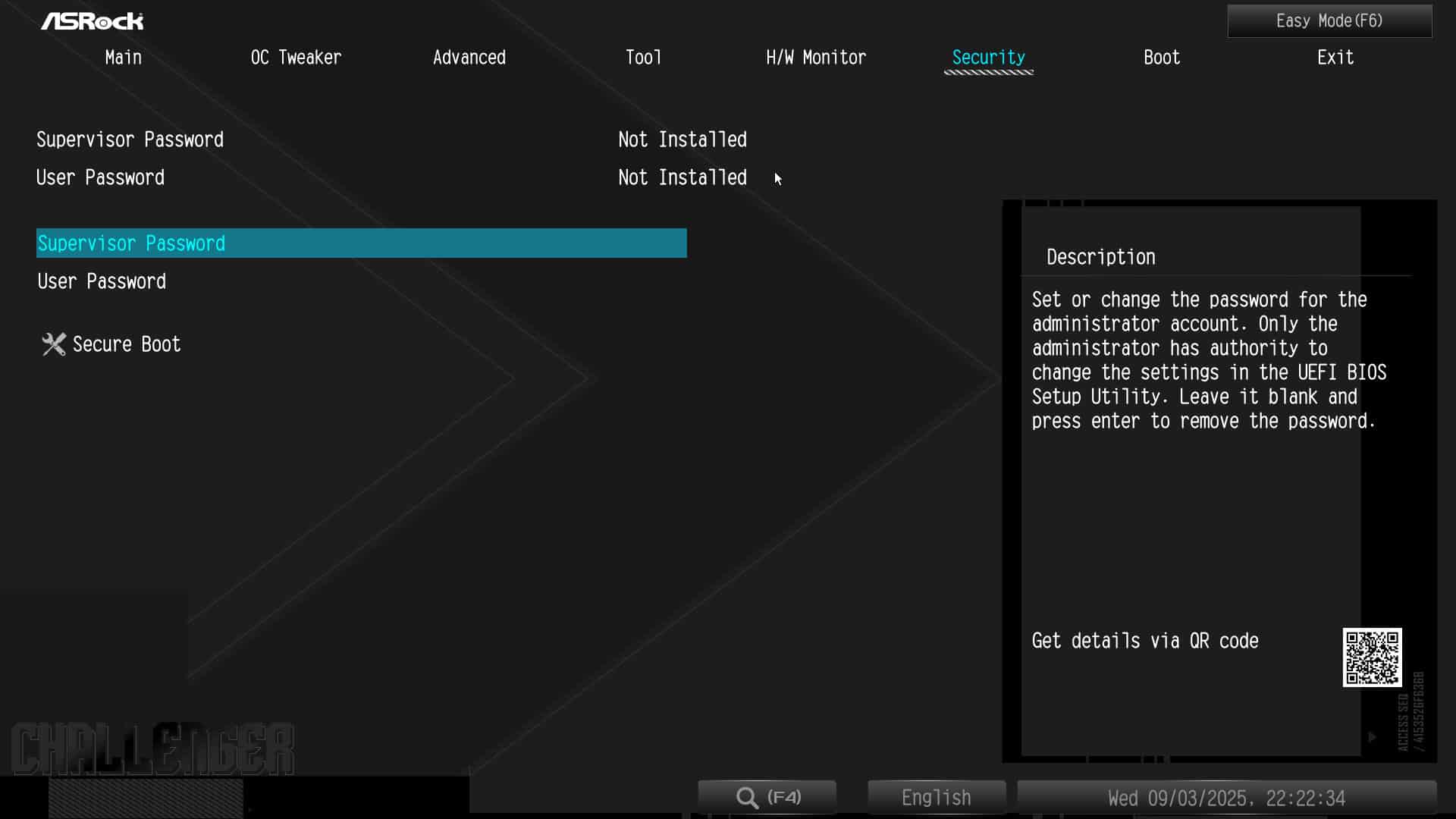

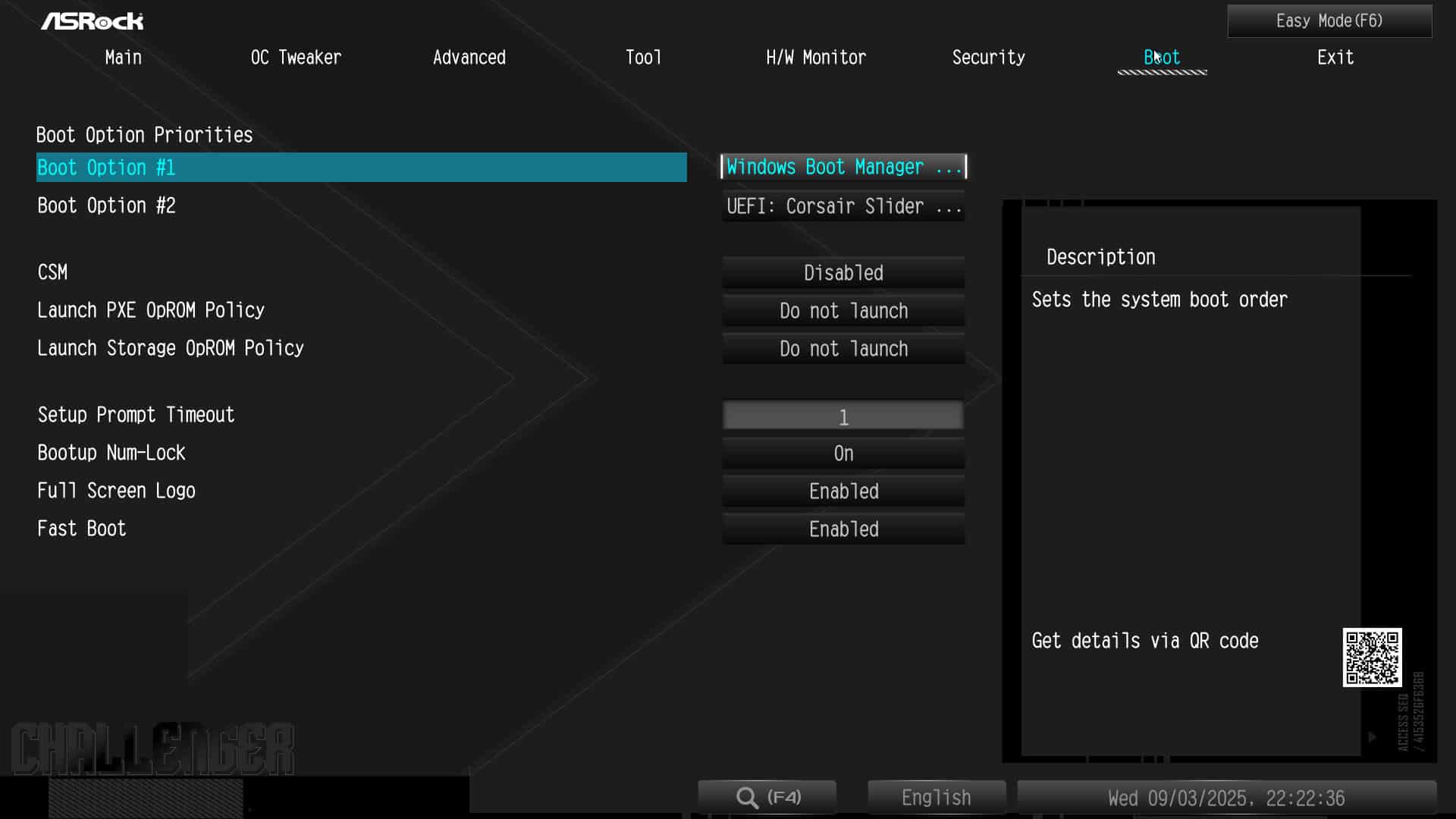

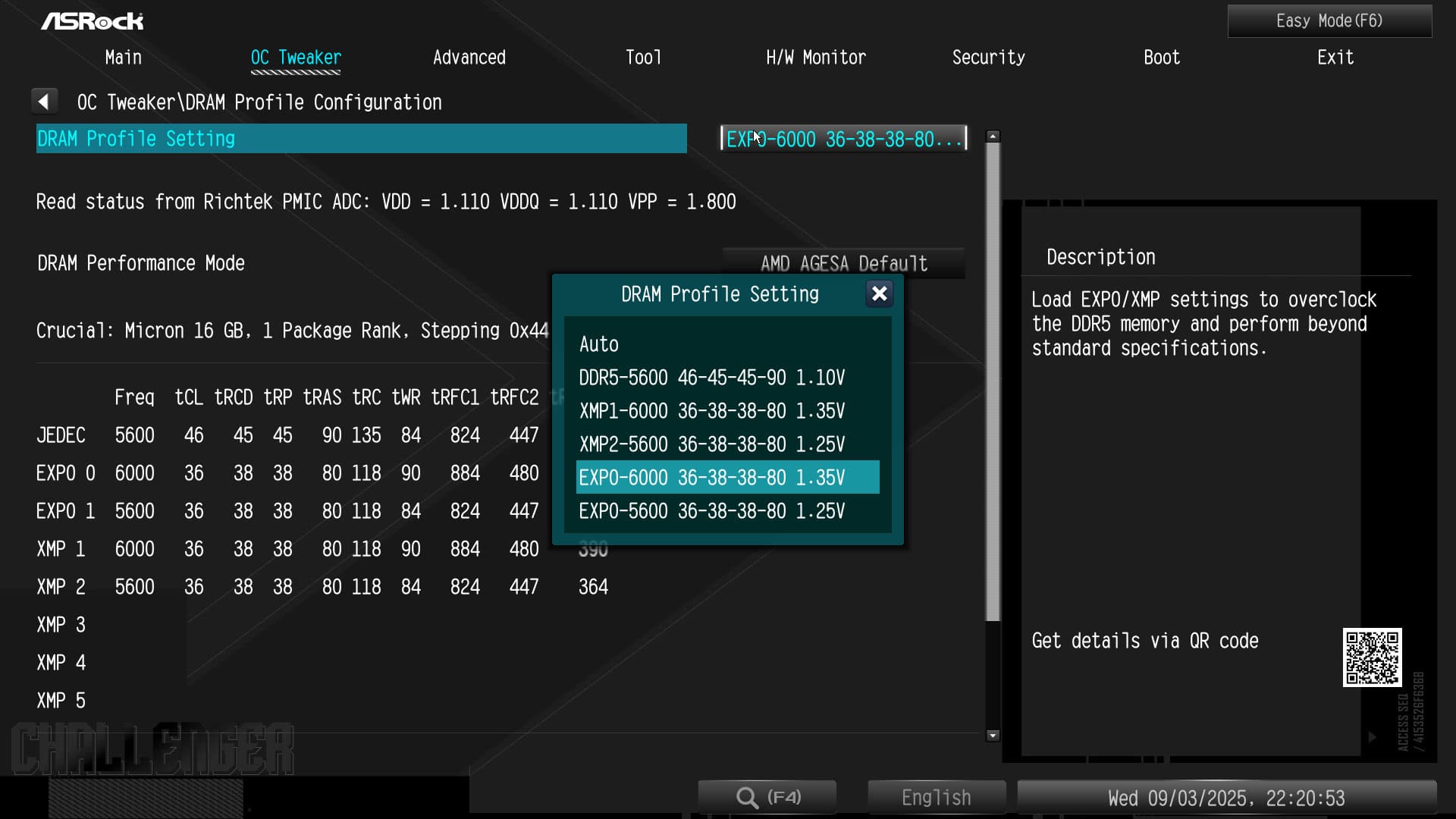

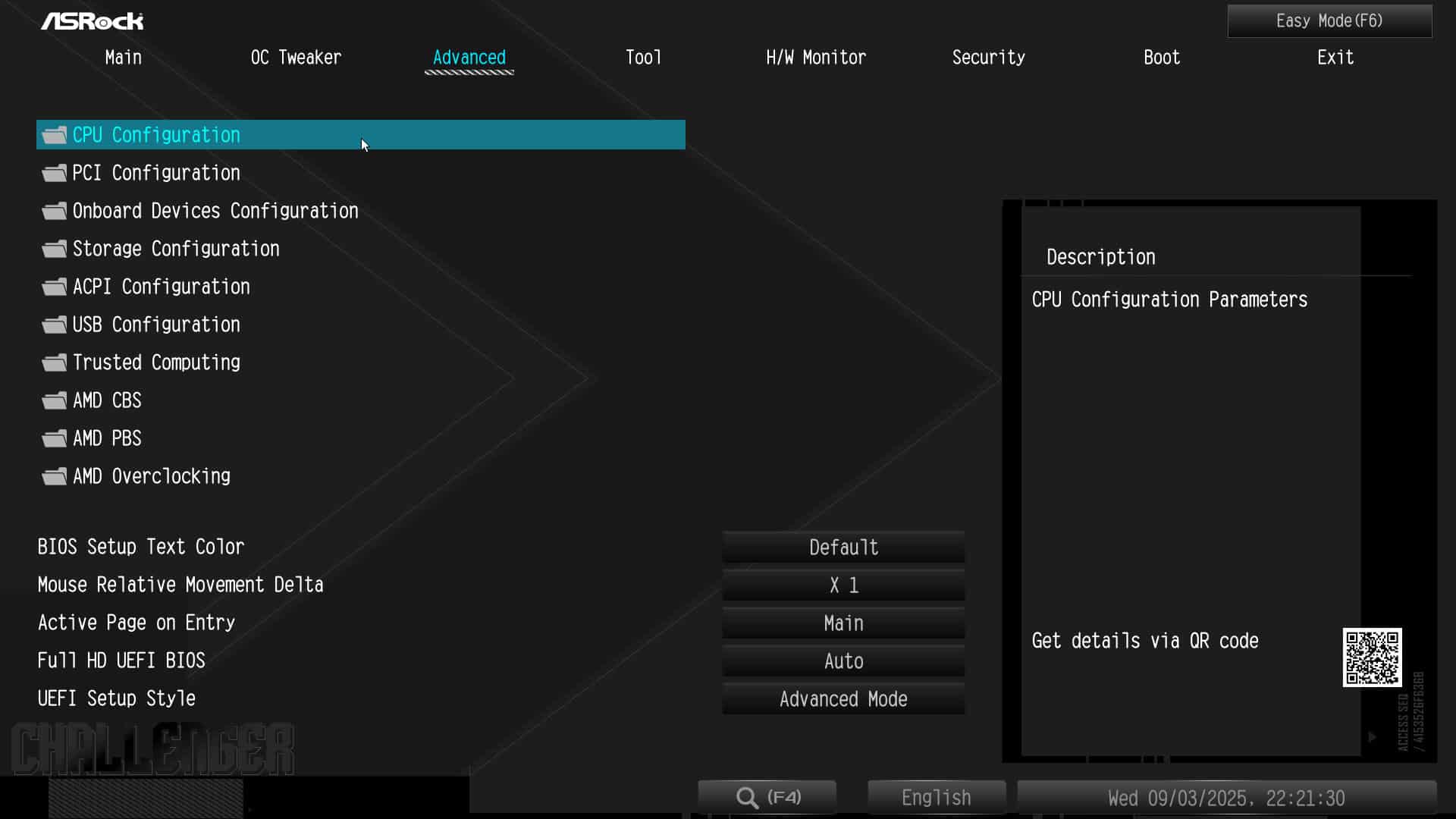

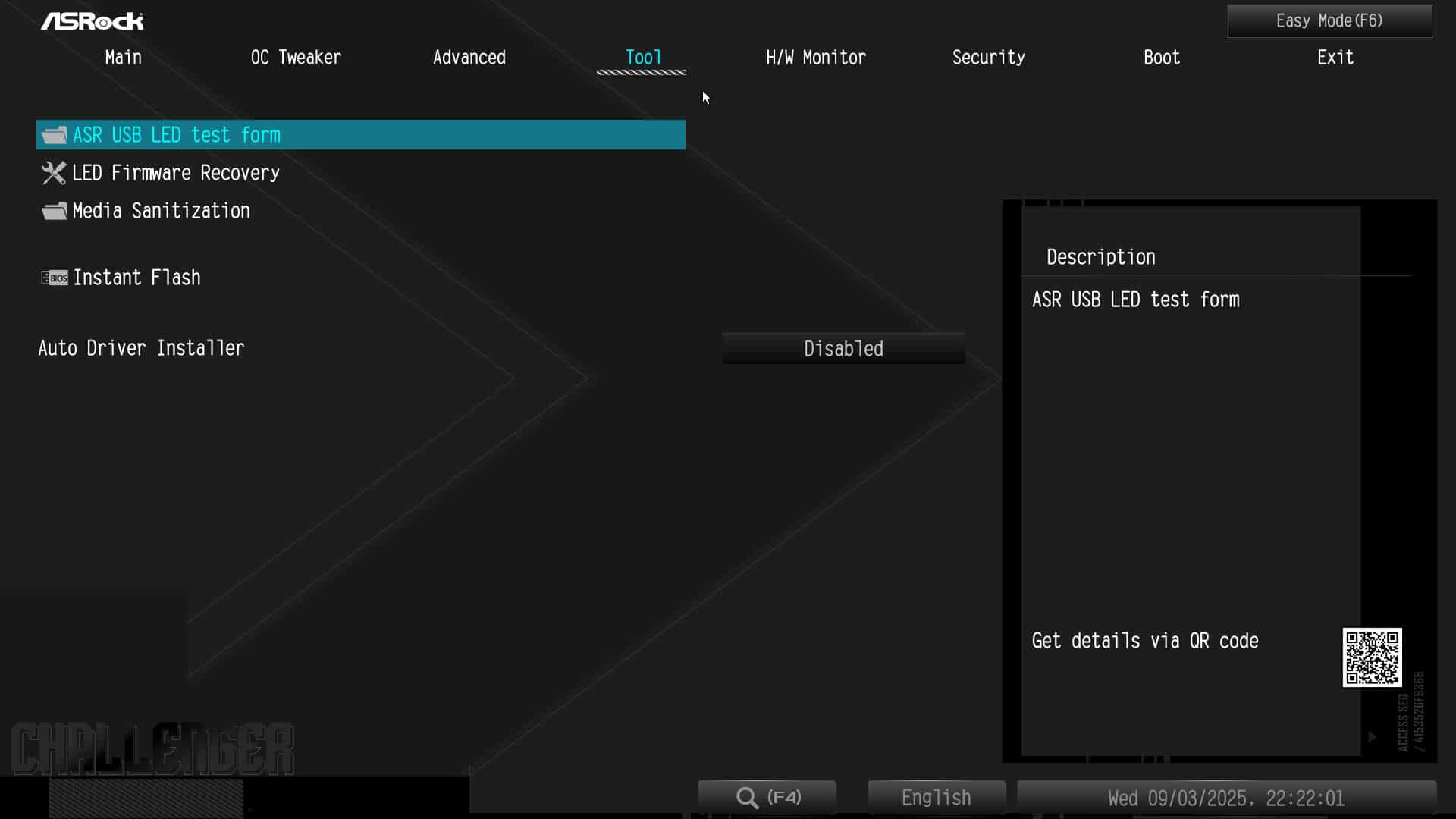

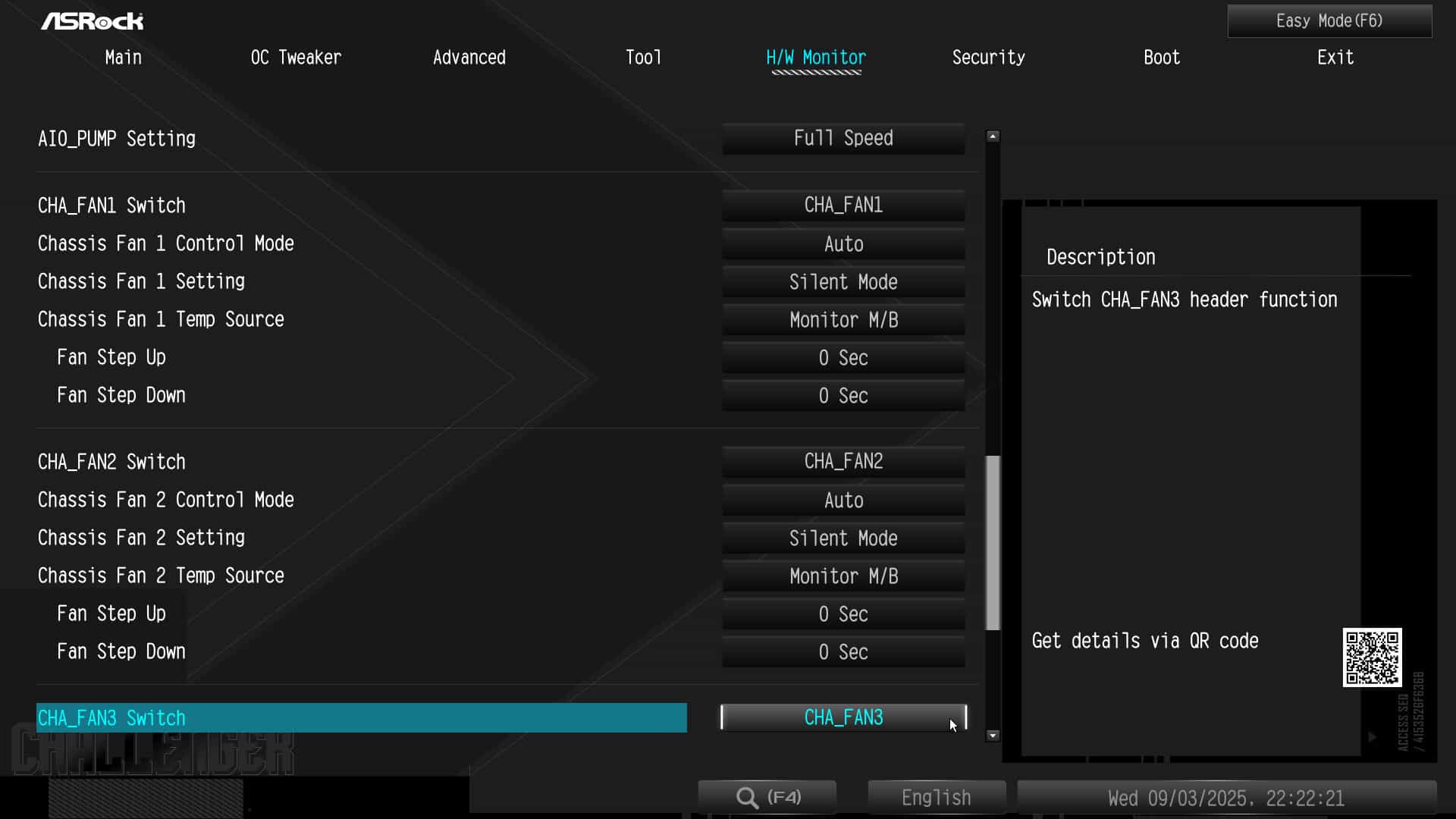

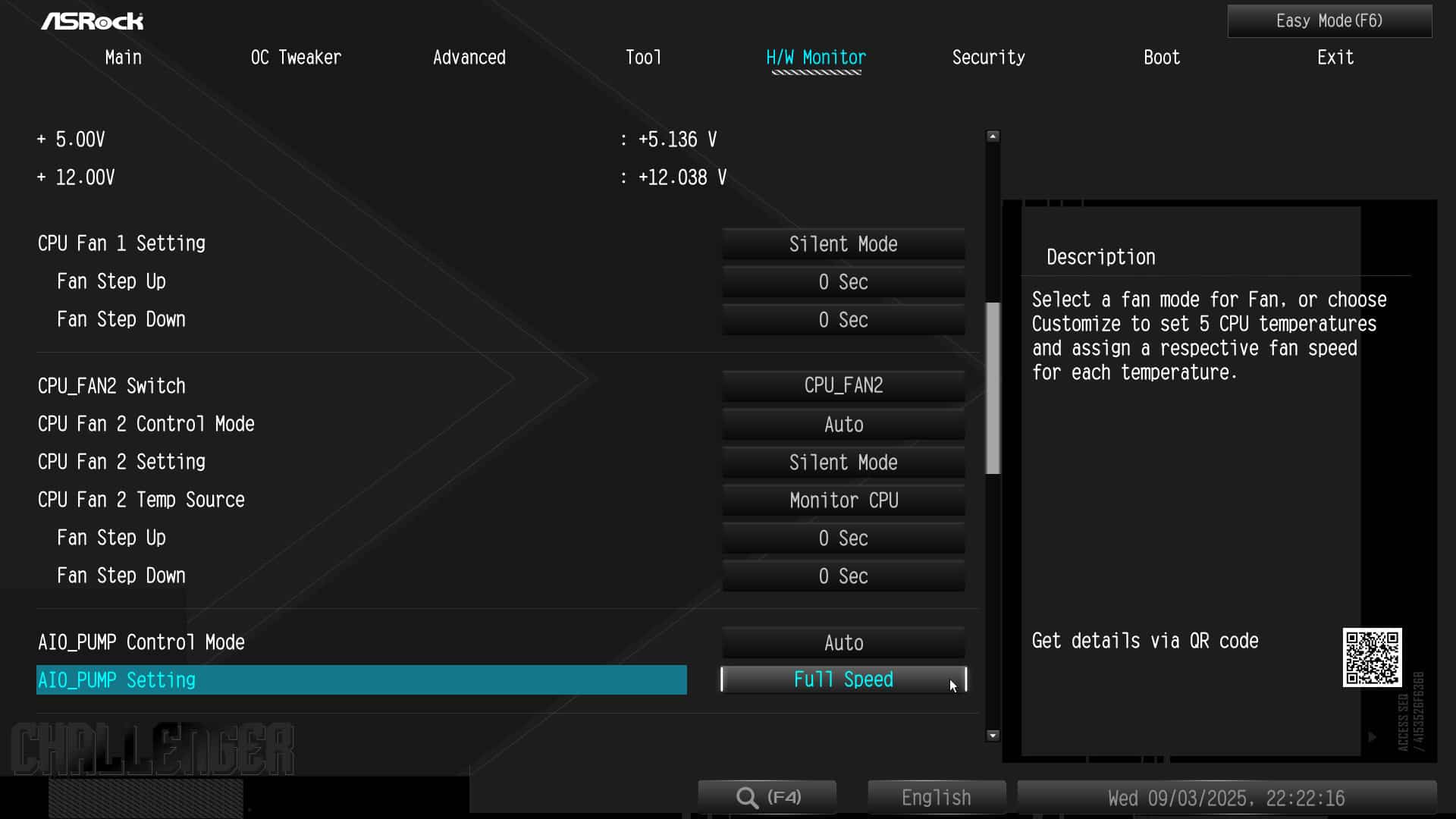

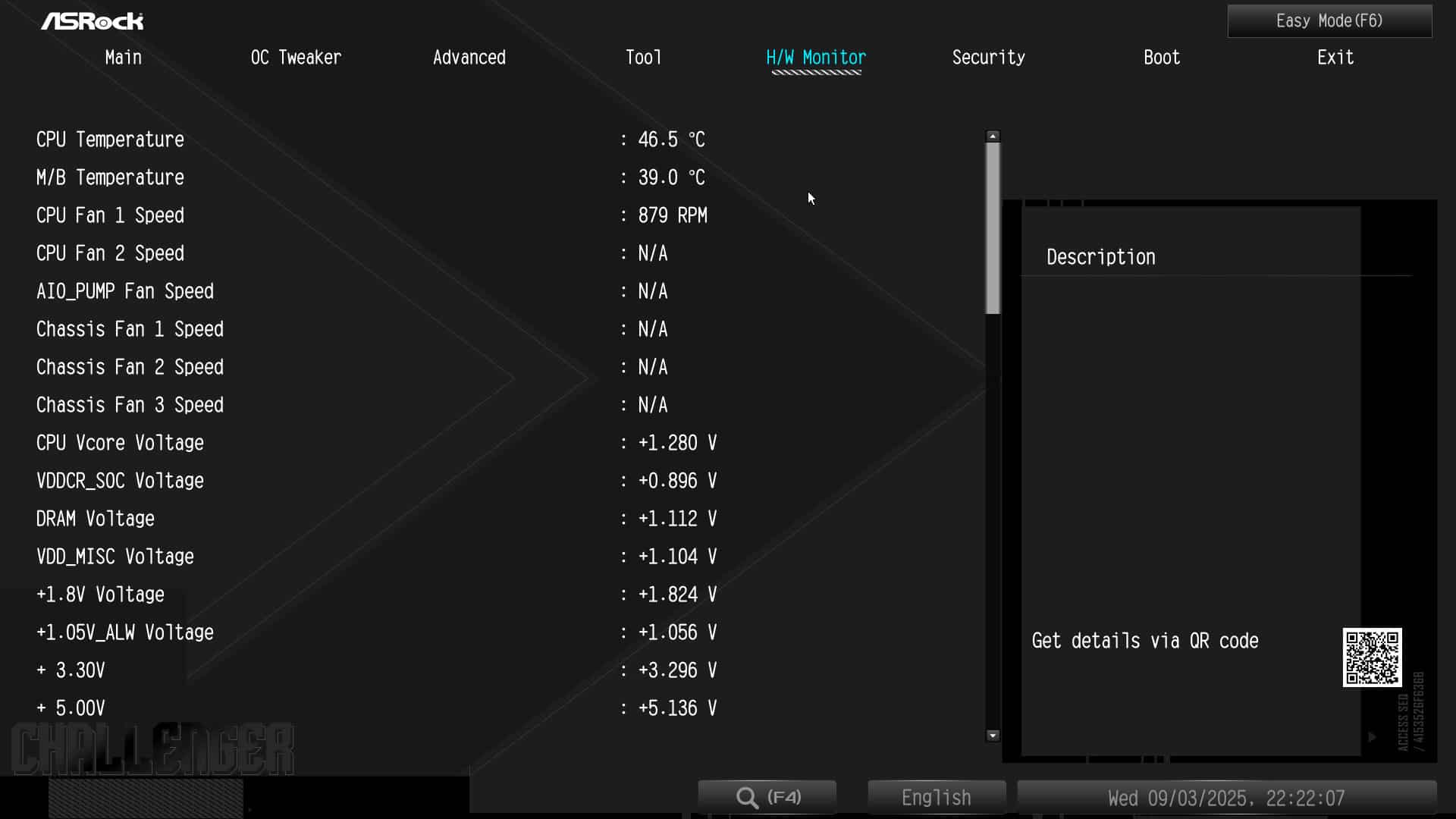

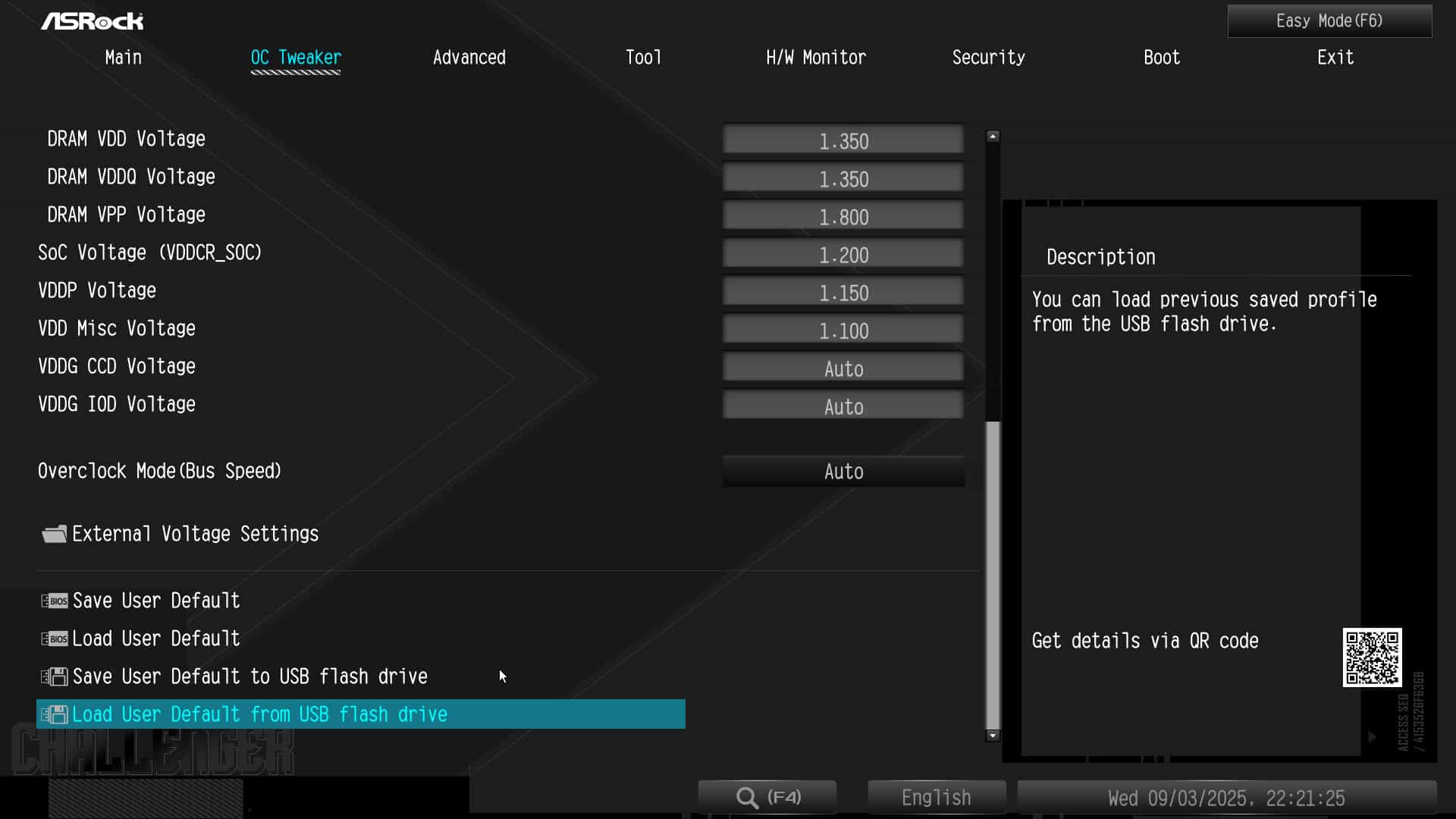

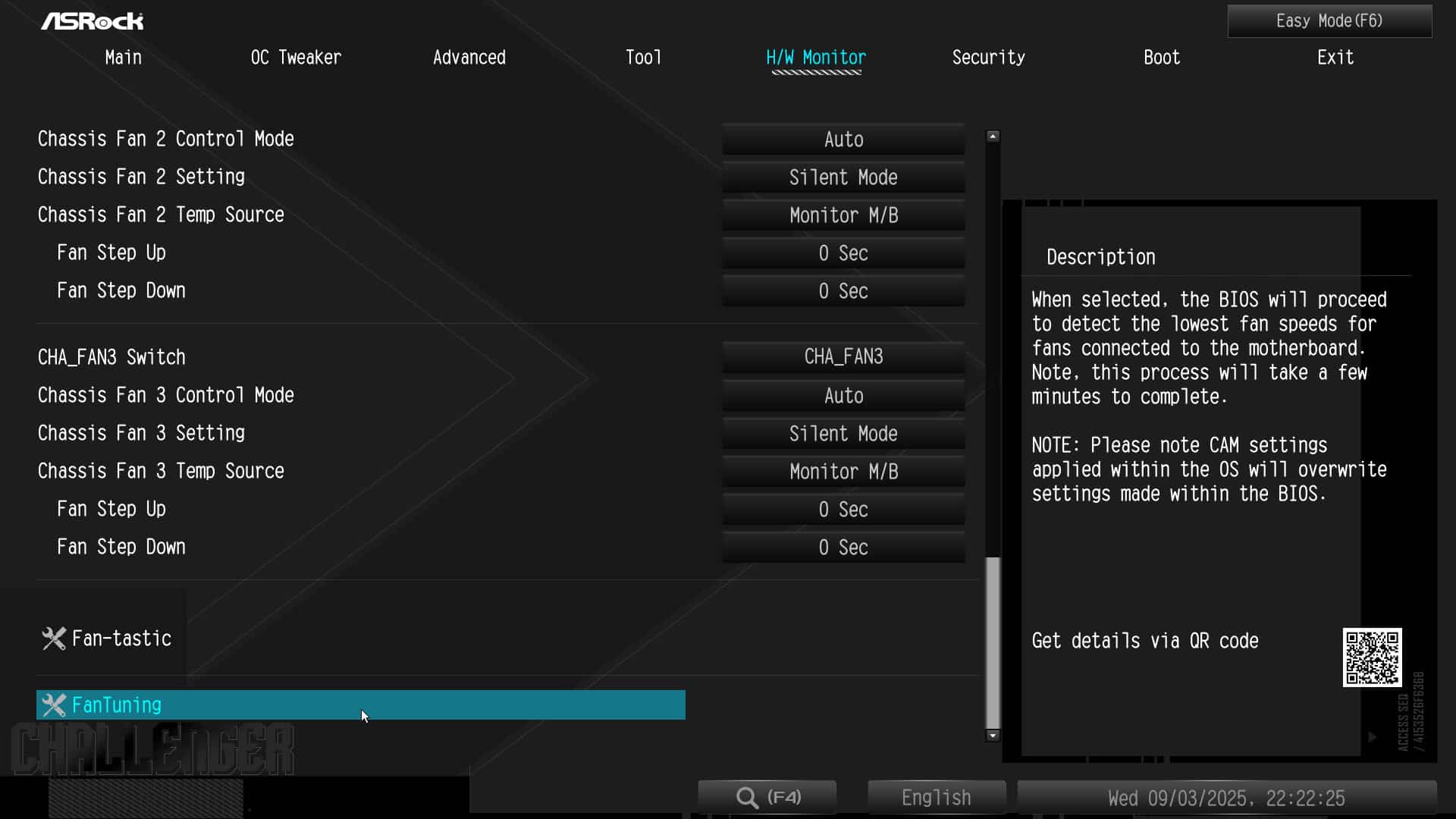

The BIOS is full of customization options to help you fully utilize your board’s capabilities. Among others, you’ll find PBO settings, EXPO settings, ASRock’s fan tuning software, as well as the ability to save and load different overclocking setups.
There is also an EZ Mode option for those who don’t want to tweak too much.
Software

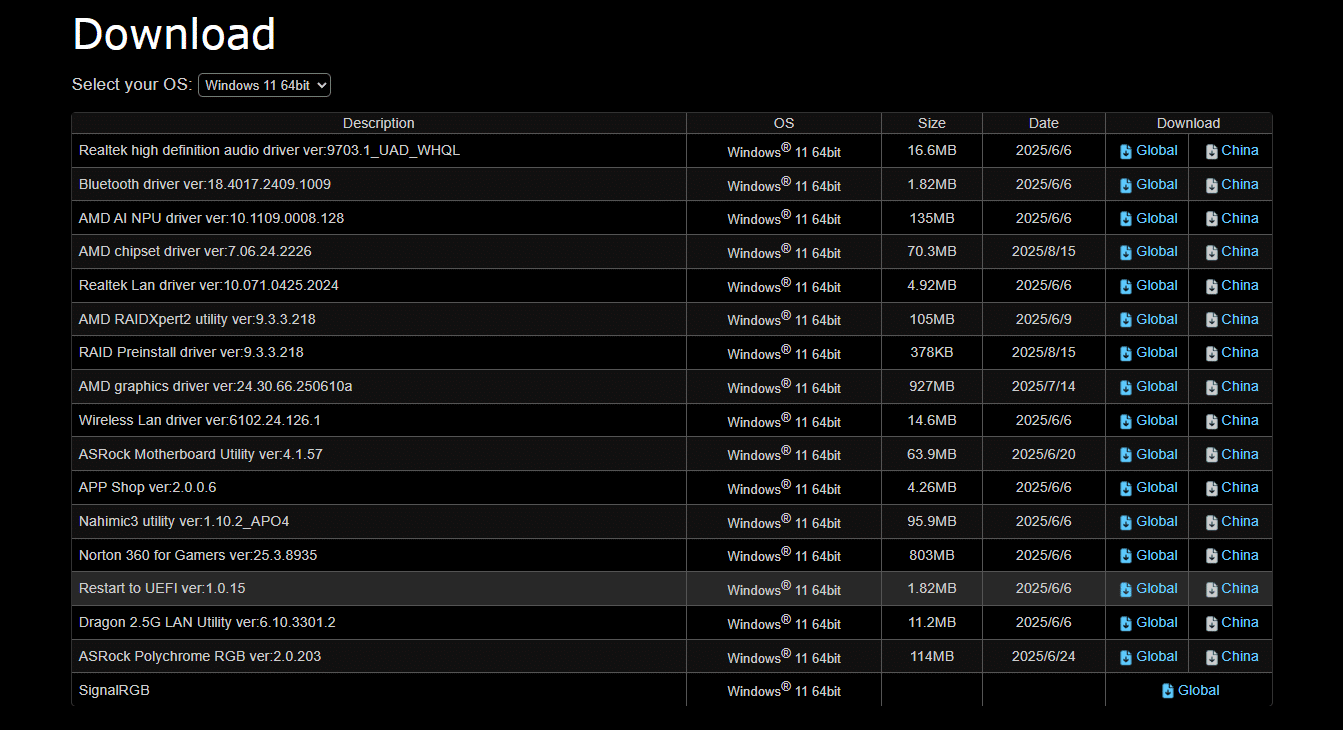

ASRock provides several utilities to help users get started. The ASRock Auto Driver Installer is especially handy, installing all necessary drivers as soon as an internet connection is available, making setup significantly easier.

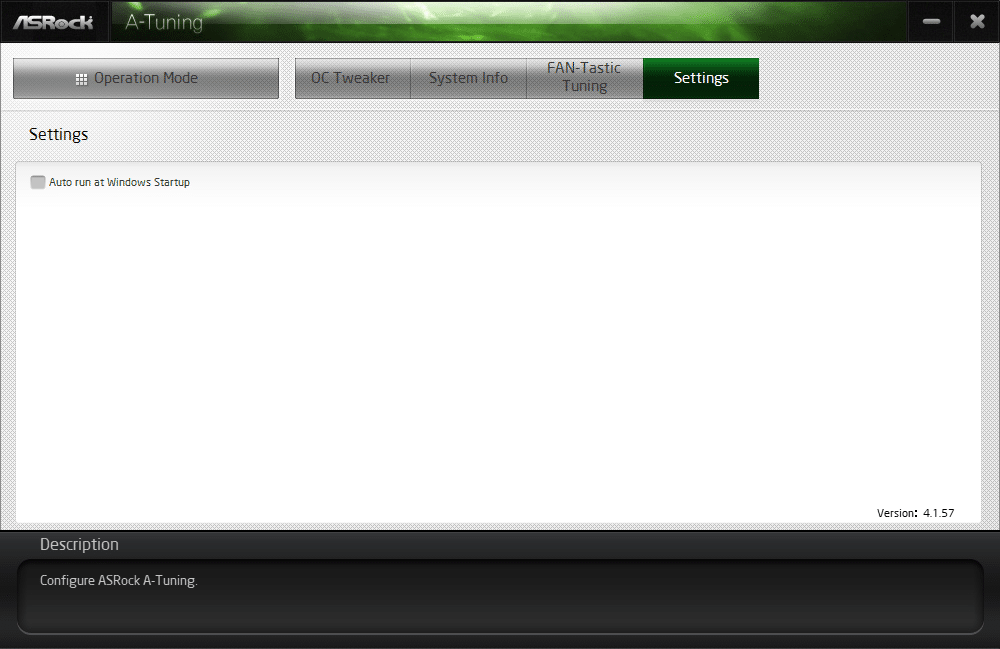

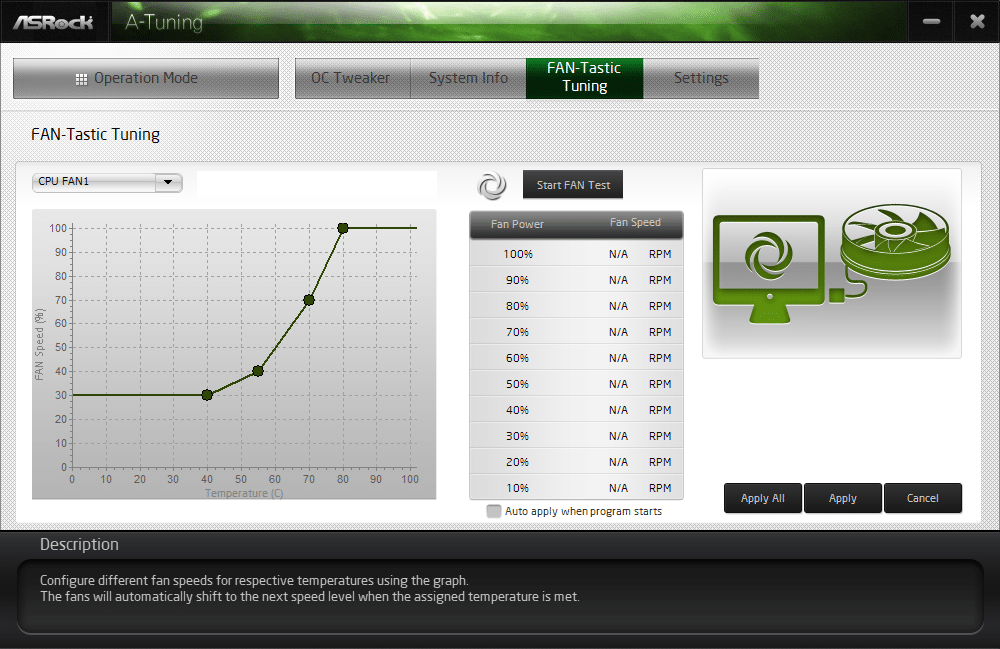

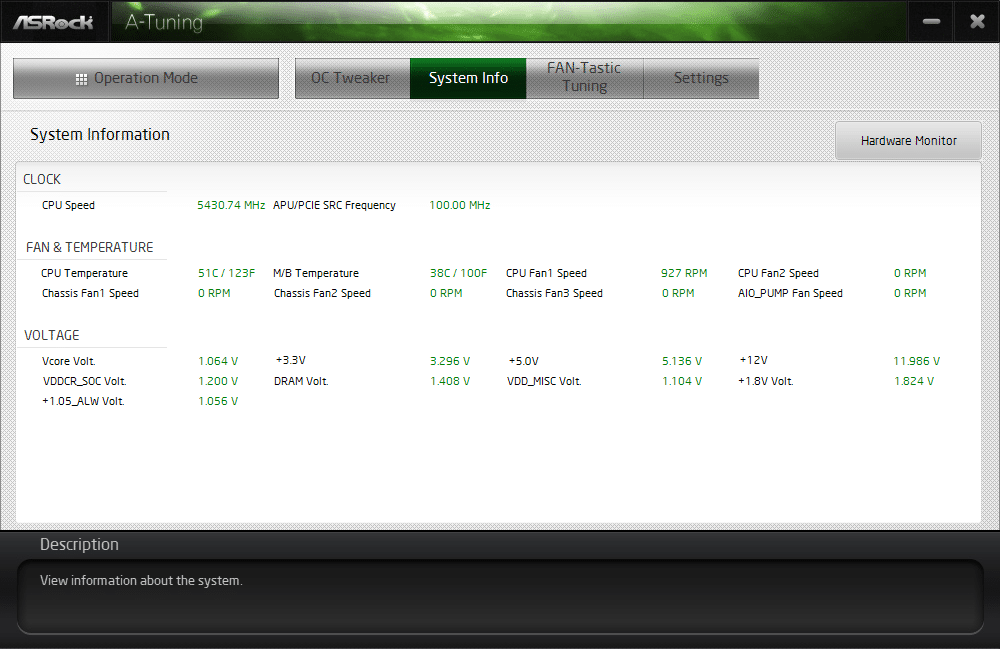

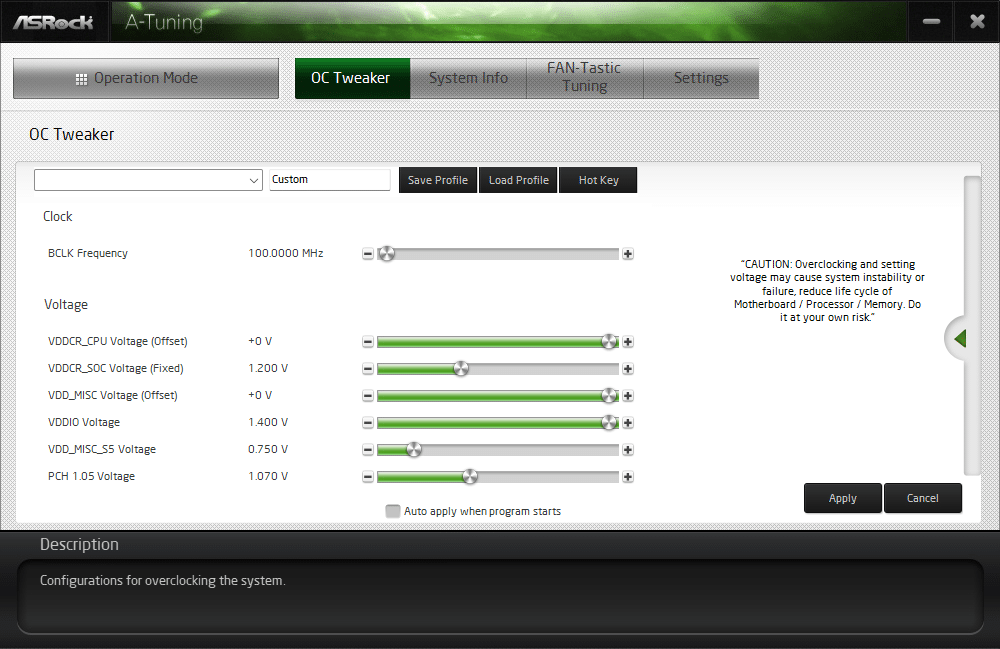

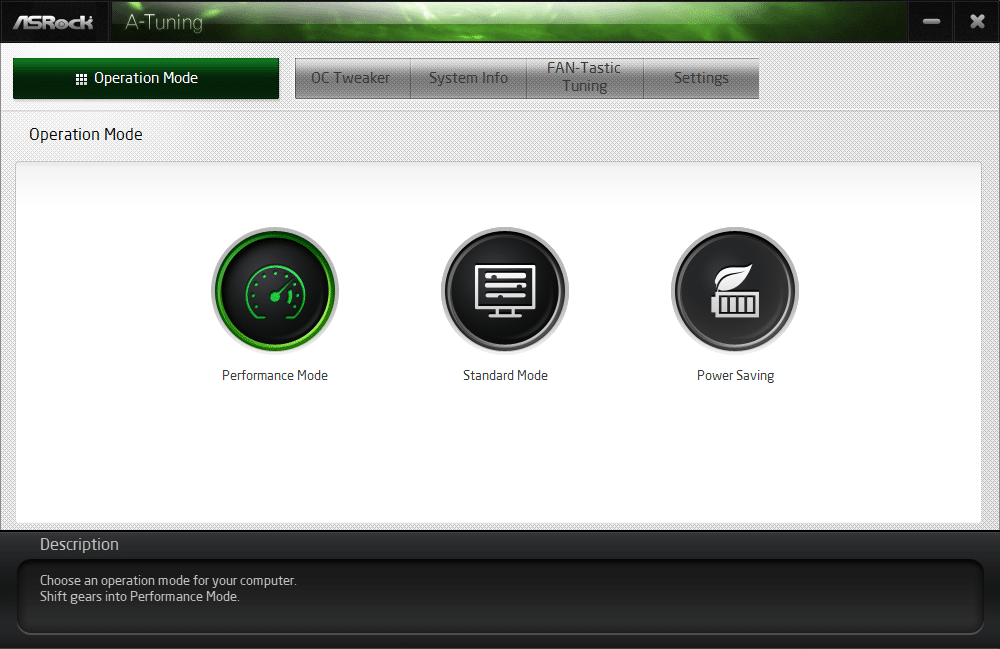

With the A-Tuning software, you can modify some of the options typically found in the BIOS, such as voltages and fan curves, while also monitoring crucial system information. It’s not necessary to use it, but it’s convenient if you want quick access without shutting down your system.
The Nahimic audio app is another optional tool for customizing audio features.

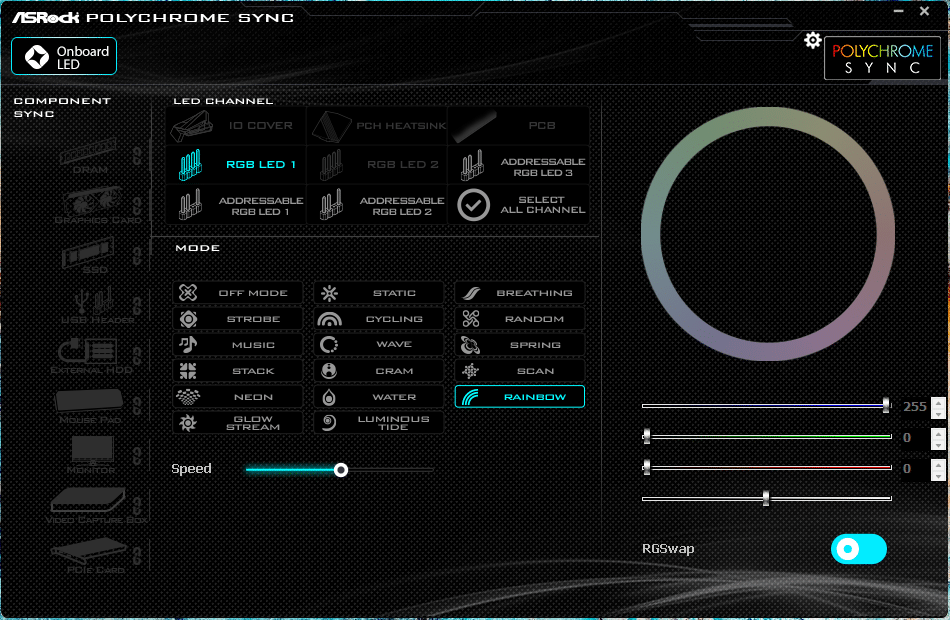

The ASRock Polychrome app controls your motherboard’s ARGB headers, offering a wide range of options for endless ARGB customization. ASRock boards are also compatible with SignalRGB.
