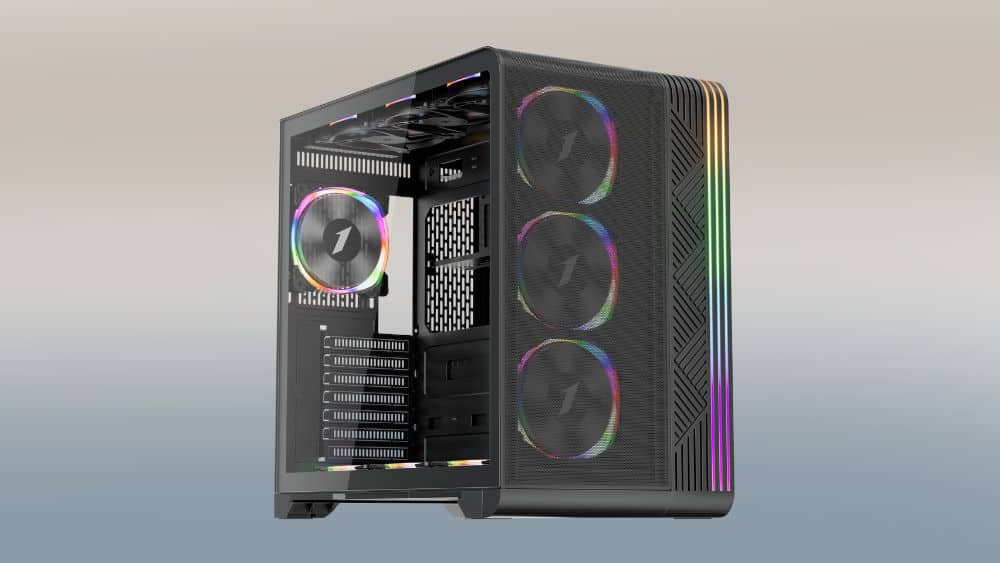

Super Flower Zillion M705 Case Review: Thermal & Noise Damping/Output Evaluation

The Zillion M705 is an affordable, yet high-quality and user-friendly chassis. The tempered glass side panel is of high quality, and all components can be easily installed. Both thermal and noise performances are good. It is a good option even for larger systems, with just a few minor details that require attention.

Super Flower is well known for its power supplies and recently entered the cooling market with its impressive Megacool fans, which are among the strongest in the 120mm and 140mm categories. As this brand seems to want to enter more market segments, it introduced a chassis named Zillion M705.


The Zillion M705 has large enough dimensions to hold 360mm radiators and up to eleven fans ,two of which can be placed on top of the PSU shroud. If you choose to follow the air cooling method, the maximum supported CPU cooler height is 165mm, which is enough to offer compatibility with most high-end air coolers in today’s market. It also supports up to 400mm long graphics cards so that you won’t have a problem even with a beast RTX 4090. Given that 4090s require lots of power, the PSU compartment is large enough to accommodate up to 220mm long PSUs.


Official Technical Specifications:
  • Brand: Super Flower
  • Model Name: Zillion M705
  • Case Type: Mid Tower
  • Materials: Steel (SGCC), Aluminum, ABS Plastic, Tempered Glass
  • Color Options: Black / White
  • Mainboard compatibility: E-ATX / ATX / M-ATX / Mini-ATX
  • Pre-installed fans: [Front] 3x 120mm, [Rear] 1x 120mm
  • Fan Type: Super Flower ARGB 120mm
  • Fan bearing: No info
  • Fan support (Front): 3x 120mm / 3x 140mm
  • Fan support (Top): 3x 120mm / 2x 140mm
  • Fan support (Side): 2x 120mm
  • Fan support (Rear): 1x 120mm
  • Fan support (PSU Shroud): 2x 120mm
  • Radiator support (Front): 120 / 140 / 240 / 280 / 360mm
  • Radiator support (Top): 120 / 140 / 240 / 280 / 360mm
  • Radiator support (Rear): 120mm
  • PSU form factor: ATX PS/2
  • Max PSU length (mm): 220
  • Max GPU length (mm): 400 (380 mm with front fan mounted)
  • Max cooler height (mm): 165
  • Drive Bays:  [3.5 “] 2x Internal / [2.5”] 2x Internal
  • Dimensions (L x W x H), (mm): 470 x 215 x 493
  • Fan PWM/RGB Hub: Yes (6x 4-pin, 6x ARGB)
  • I/O Panel: 2x USB 3.0, 1x USB 3.2 Type-C, 1x Headphone, 1x Microphone
  • Removable dust filters: 4x (Top, Front, Bottom, Side)
  • Expansion slots: 7x horizontal
  • Weight (kg): 6.8
  • Price (excluding VAT): $110
  • Warranty: No info
