The Sharkoon Rebel P20 750 is the smallest member of the corresponding line, featuring ATX v3.1 compliance and Cybenetics Gold efficiency. It is among the quietest PSUs available in today’s market and this is depicted on its Cybenetics A++ noise rating.
The Sharkoon Rebel P20 750 is included in my best ATX v3.x & PCIe 5.x PSU picks article.
Sharkoon released two new power supply lines: one with normal-size ATX members and one with small-form-factor SFX models. I have already evaluated three members of the normal form factor (ATX) line, and in today’s review, I will look at the lowest capacity member, with 750W max power. You will find the rest reviews in the links below:
- Sharkoon Rebel P20 1200W ATX v3.1 PSU Review
- Sharkoon Rebel P20 1000W ATX v3.1 PSU Review
- Sharkoon Rebel P20 850W ATX v3.1 PSU Review

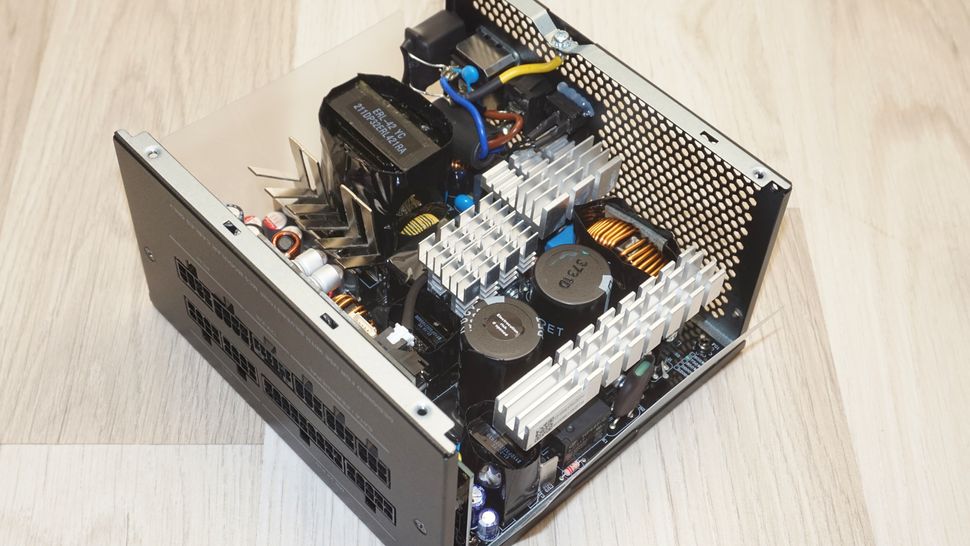

Andyson is the OEM of all Rebel P20 units, an OEM able to deliver good platforms at fair prices. The Rebel P20 750 is a fully modular unit with ultra-compact dimensions thanks to the restricted 140mm depth. Compact, downsized PSUs are usually noisy because their small PCBs are overloaded with parts, so the thermal load is increased, while there isn’t enough space at the internals for optimal airflow. This is NOT the case here, with the P20 750 being one of the quietest PSUs on today’s market with below 10 dBA average noise output. I just hope such a relaxed fan speed profile does not jeopardize the PSU’s reliability under harsh conditions.
ATX v3.1 750W PSU Reviews:
- 1st Player NGDP 750W PSU Review
- ASUS TUF Gaming 750W Bronze PSU Review
- Cooler Master GX III 750W ATX v3.0 PSU Review
- DeepCool PN750D ATX v3.1 PSU Review
- Enermax Revolution D.F.12 750W PSU Review
- Thermaltake Toughpower PF3 750W PSU Review
- Thermaltake Toughpower GF A3 750W PSU Review
- Thermaltake Toughpower GF3 ARGB 750W PSU Review
- Thermaltake Toughpower SFX 750W Gold PSU Review
- Thermaltake Toughpower GF3 750W ATX v3.0 PSU Review
- XPG Core Reactor II VE 650W PSU Review
- XPG KYBER 750W ATX v3.1 PSU Review
- XPG Core Reactor II VE 750W PSU Review
- Manufacturer (OEM): Andyson
- Max Power: 750W
- Cybenetics Efficiency: [115V] Cybenetics Gold (87-89%) [230V] Cybenetics Gold (89-91%)
- Noise: Cybenetics A++ (<15 dB[A])
- Compliance: ATX v3.1, EPS 2.92
- Operating Temperature (Continuous Full Load): 0 – 40 °C
- Alternative Low Power Mode support: Yes
- Power 12V combined: 750W
- Number of 12V rails: 1
- Power 5V + 3.3v: 100W
- Power 5VSB: 15W
- Cooling: 120mm Fluid Dynamic Bearing Fan (HA1225M12F-Z)
- Semi-Passive Operation: ✓ (selectable)
- Modular Design: Yes (Fully)
- High Power Connectors: 2x EPS (2x cables), 4x PCIe 6+2 pin (2x cables), 1x PCIe 12+4 pin (600W)
- Peripheral Connectors: 11x SATA (3x cables), 1x 4-pin Molex (adapter)
- ATX Cable Length: 600mm
- EPS Cable Length: 700mm
- 6+2 pin PCIe Cable Length: 550+150mm
- 12+4 pin PCIe Cable Length: 600mm
- Distance between SATA / 4-pin Molex: 150mm
- In-cable capacitors: No
- Dimensions (W x H x D): 150 mm x 85 mm x 140mm
- Weight: 1.49 kg (3.28 lb)
- Warranty: 2-years
- MSRP (including VAT): 112€
Power Specifications
| Rail | 3.3V | 5V | 12V | 5VSB | -12V | |
| Max. Power | Amps | 20 | 20 | 62.5 | 3 | 0.3 |
| Watts | 100 | 750 | 15 | 3.6 | ||
| Total Max. Power (W) | 750 | |||||
