Load Regulation
| Test | 12V | 5V | 3.3V | 5VSB | DC/AC (Watts) | Efficiency | Fan Speed (RPM) | PSU Noise (dB[A]) | Temps (In/Out) | PF/AC Volts |
| 10% | 4.404A | 1.99A | 1.99A | 0.986A | 75.006 | 88.074% | 0 | <6.0 | 44.36C | 0.974 |
| 12.126V | 5.027V | 3.316V | 5.07V | 85.161 | 40.33C | 115.16V | ||||
| 20% | 9.822A | 2.988A | 2.992A | 1.186A | 149.964 | 90.366% | 0 | <6.0 | 44.95C | 0.985 |
| 12.122V | 5.021V | 3.309V | 5.059V | 165.952 | 40.65C | 115.14V | ||||
| 30% | 15.591A | 3.49A | 3.498A | 1.387A | 224.973 | 91.207% | 911 | 27.0 | 41.26C | 0.991 |
| 12.117V | 5.015V | 3.303V | 5.047V | 246.66 | 45.98C | 115.13V | ||||
| 40% | 21.368A | 3.993A | 4.005A | 1.589A | 300.063 | 91.298% | 912 | 27.0 | 41.96C | 0.993 |
| 12.114V | 5.01V | 3.296V | 5.035V | 328.664 | 47.01C | 115.11V | ||||
| 50% | 26.763A | 4.999A | 5.017A | 1.792A | 374.687 | 90.961% | 913 | 27.0 | 42.13C | 0.994 |
| 12.112V | 5.003V | 3.289V | 5.023V | 411.926 | 47.59C | 115.08V | ||||
| 60% | 32.187A | 6.006A | 6.034A | 1.996A | 449.602 | 90.397% | 1121 | 33.1 | 42.63C | 0.995 |
| 12.110V | 4.997V | 3.282V | 5.011V | 497.366 | 48.70C | 115.06V | ||||
| 70% | 37.610A | 7.016A | 7.056A | 2.201A | 524.526 | 89.478% | 1489 | 40.2 | 43.25C | 0.995 |
| 12.109V | 4.99V | 3.274V | 4.998V | 586.222 | 50.29C | 115.04V | ||||
| 80% | 43.103A | 8.027A | 8.081A | 2.306A | 599.735 | 88.446% | 1839 | 44.3 | 43.77C | 0.996 |
| 12.106V | 4.984V | 3.267V | 4.988V | 678.088 | 51.83C | 115.02V | ||||
| 90% | 48.935A | 8.538A | 8.587A | 2.411A | 674.784 | 87.967% | 2064 | 46.9 | 44.43C | 0.996 |
| 12.103V | 4.978V | 3.26V | 4.979V | 767.087 | 53.45C | 114.99V | ||||
| 100% | 54.566A | 9.052A | 9.129A | 3.028A | 750.005 | 87.236% | 2157 | 47.5 | 45.47C | 0.996 |
| 12.101V | 4.972V | 3.253V | 4.954V | 859.74 | 55.49C | 114.97V | ||||
| 110% | 60.071A | 10.07A | 10.259A | 3.032A | 825.036 | 86.425% | 2158 | 47.5 | 46.78C | 0.995 |
| 12.098V | 4.965V | 3.246V | 4.947V | 954.657 | 57.70C | 114.97V | ||||
| CL1 | 0.116A | 12.023A | 12.043A | 0A | 101.311 | 83.68% | 916 | 27.1 | 40.19C | 0.977 |
| 12.124V | 5.007V | 3.296V | 5.089V | 121.072 | 45.69C | 115.16V | ||||
| CL2 | 0.115A | 19.987A | 0A | 0A | 101.403 | 82.019% | 926 | 27.5 | 40.20C | 0.977 |
| 12.125V | 5.003V | 3.311V | 5.095V | 123.634 | 47.69C | 115.16V | ||||
| CL3 | 0.115A | 0A | 18.825A | 0A | 63.395 | 77.449% | 906 | 26.9 | 40.38C | 0.97 |
| 12.122V | 5.023V | 3.294V | 5.088V | 81.875 | 49.46C | 115.16V | ||||
| CL4 | 61.985A | 0A | 0A | 0A | 749.787 | 88.283% | 2172 | 47.6 | 45.75C | 0.996 |
| 12.096V | 4.992V | 3.274V | 5.052V | 849.3 | 56.69C | 114.97V |

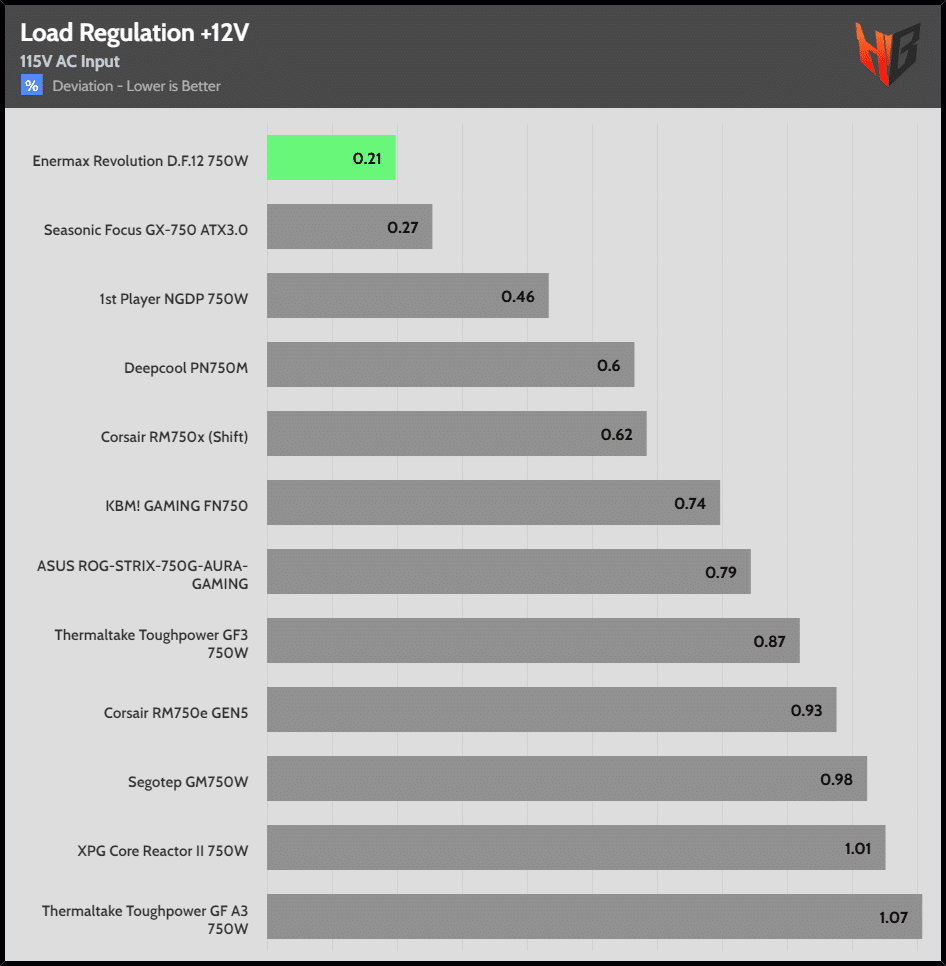

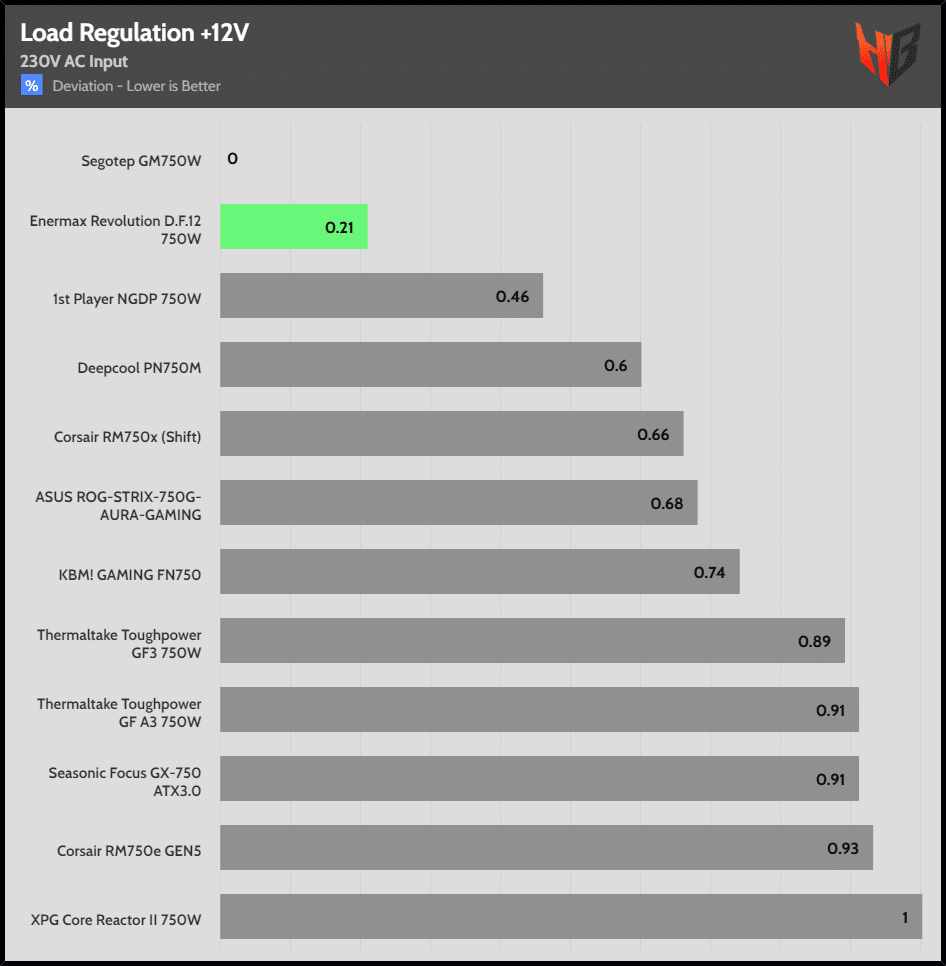

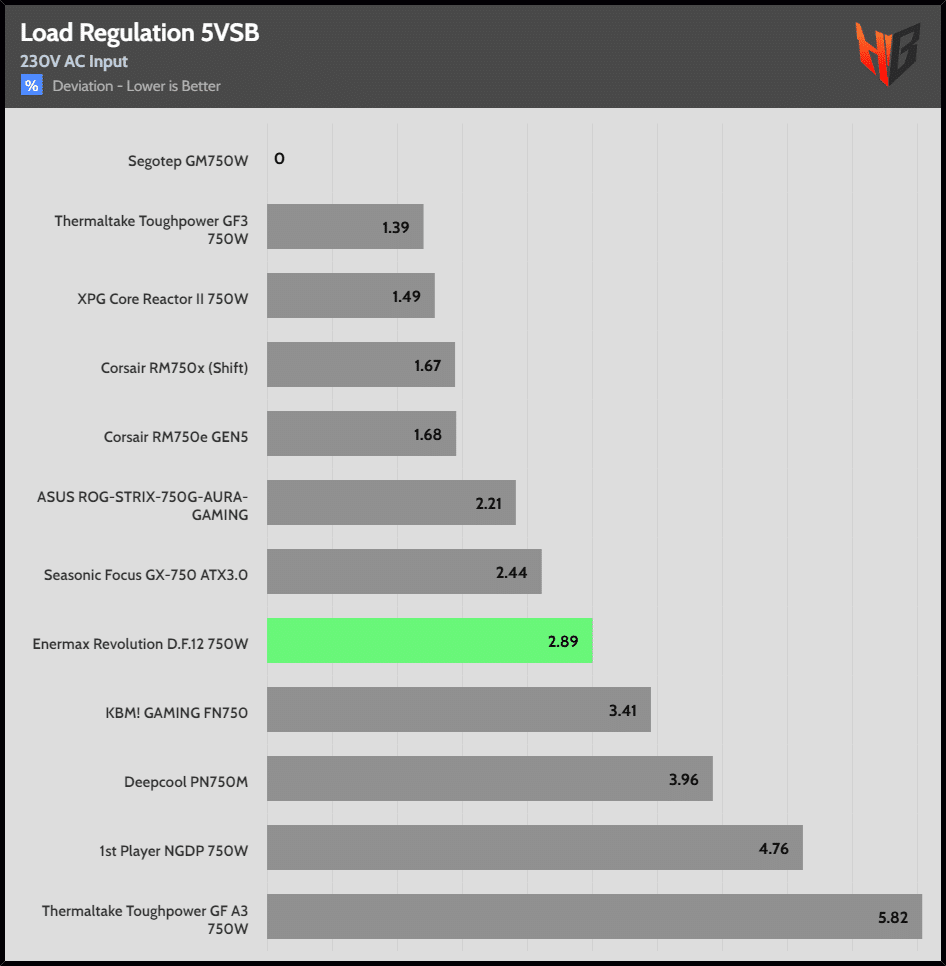

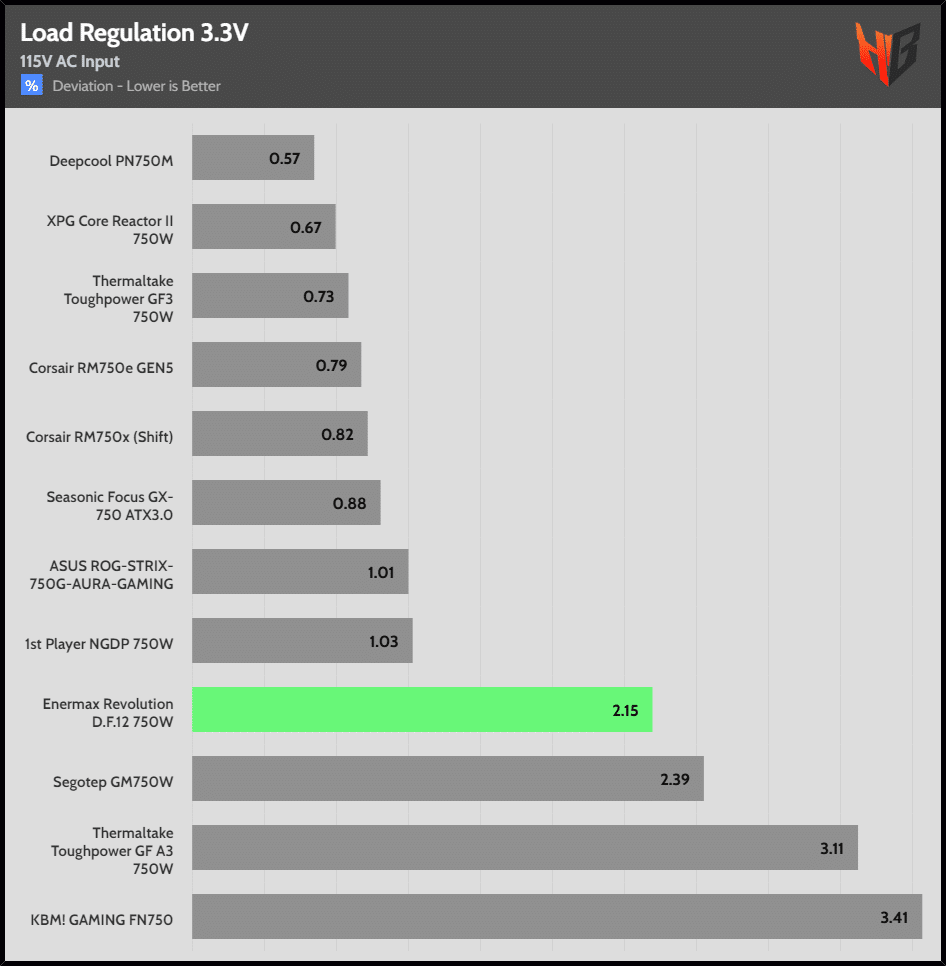

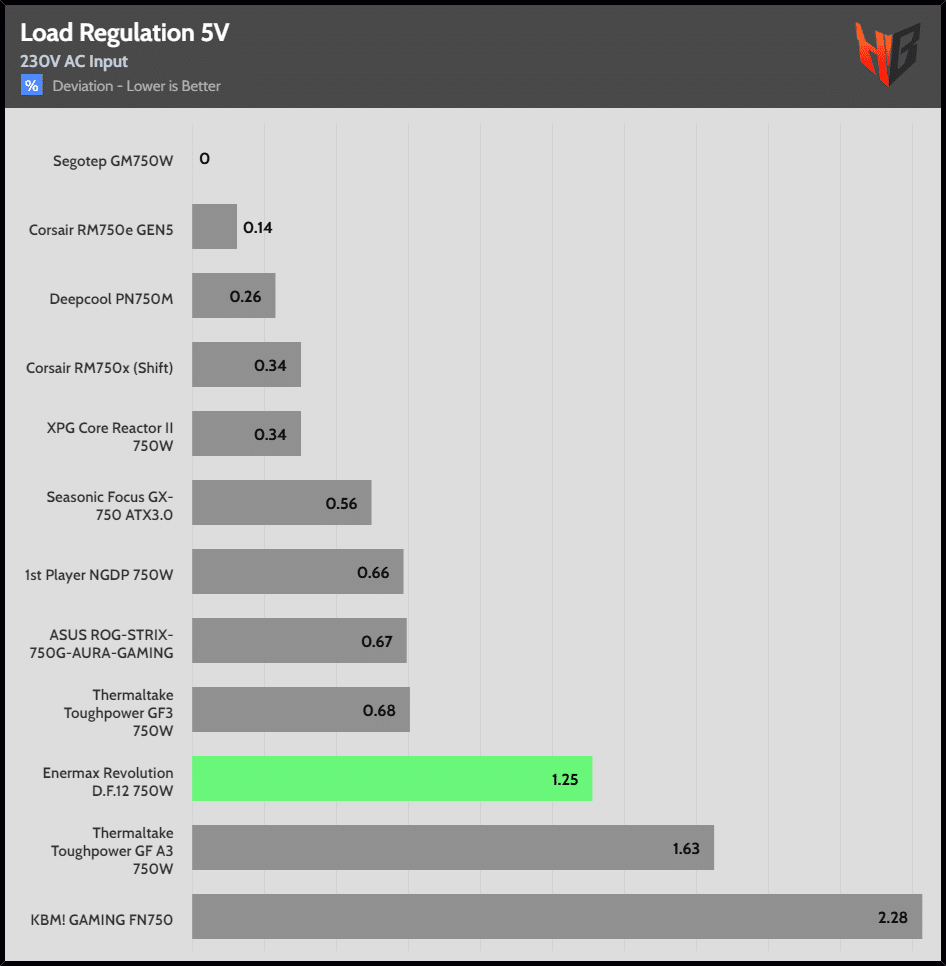

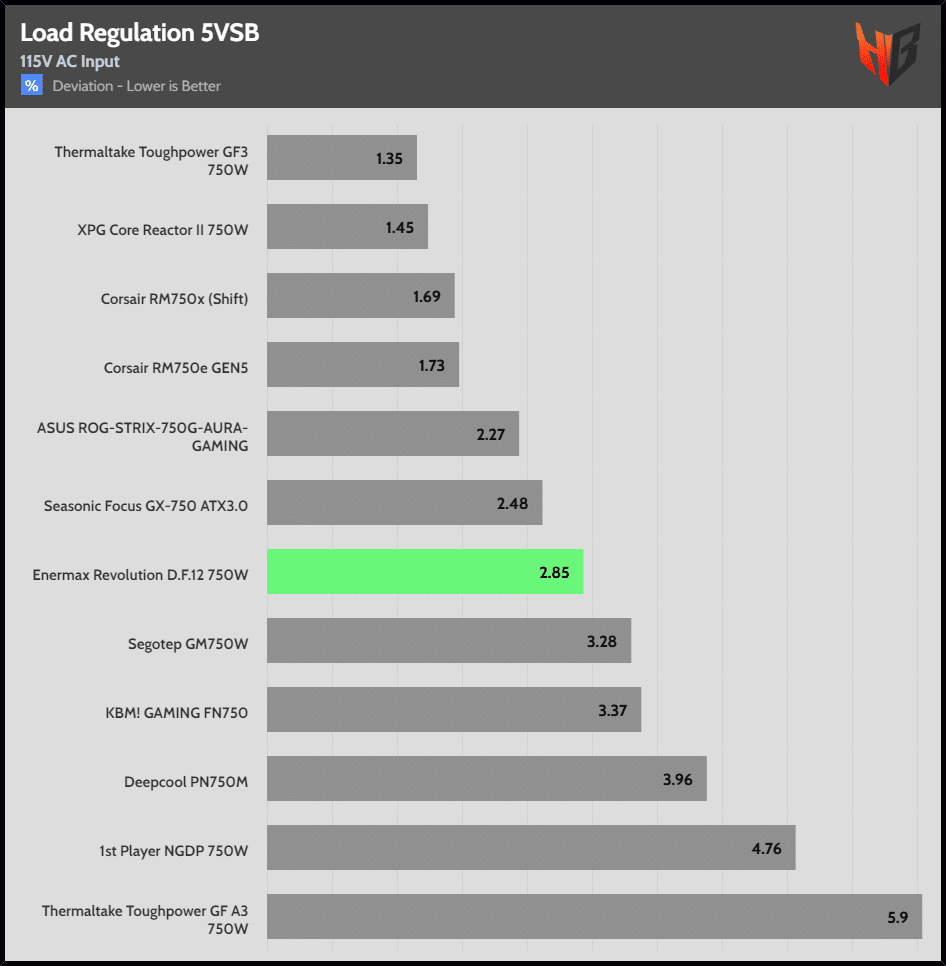

Load regulation is tight at 12V, which matters most, but loose on the rest rails.
Ripple Suppression
| Test | 12V | 5V | 3.3V | 5VSB | Pass/Fail |
| 10% Load | 6.8 mV | 7.7 mV | 5.0 mV | 7.1 mV | Pass |
| 20% Load | 8.5 mV | 8.2 mV | 6.1 mV | 9.1 mV | Pass |
| 30% Load | 9.4 mV | 8.7 mV | 6.4 mV | 11.2 mV | Pass |
| 40% Load | 10.5 mV | 9.2 mV | 6.9 mV | 11.2 mV | Pass |
| 50% Load | 12.3 mV | 9.8 mV | 7.5 mV | 11.9 mV | Pass |
| 60% Load | 15.2 mV | 11.1 mV | 8.7 mV | 13.9 mV | Pass |
| 70% Load | 14.6 mV | 12.1 mV | 9.4 mV | 15.5 mV | Pass |
| 80% Load | 15.9 mV | 13.2 mV | 13.1 mV | 17.6 mV | Pass |
| 90% Load | 16.2 mV | 13.7 mV | 14.4 mV | 18.5 mV | Pass |
| 100% Load | 23.6 mV | 15.8 mV | 15.1 mV | 25.4 mV | Pass |
| 110% Load | 25.2 mV | 16.9 mV | 16.4 mV | 22.8 mV | Pass |
| Crossload 1 | 15.3 mV | 15.1 mV | 13.9 mV | 21.4 mV | Pass |
| Crossload 2 | 10.8 mV | 17.7 mV | 6.8 mV | 19.9 mV | Pass |
| Crossload 3 | 13.7 mV | 10.9 mV | 15.8 mV | 18.1 mV | Pass |
| Crossload 4 | 19.8 mV | 10.9 mV | 10.3 mV | 20.0 mV | Pass |

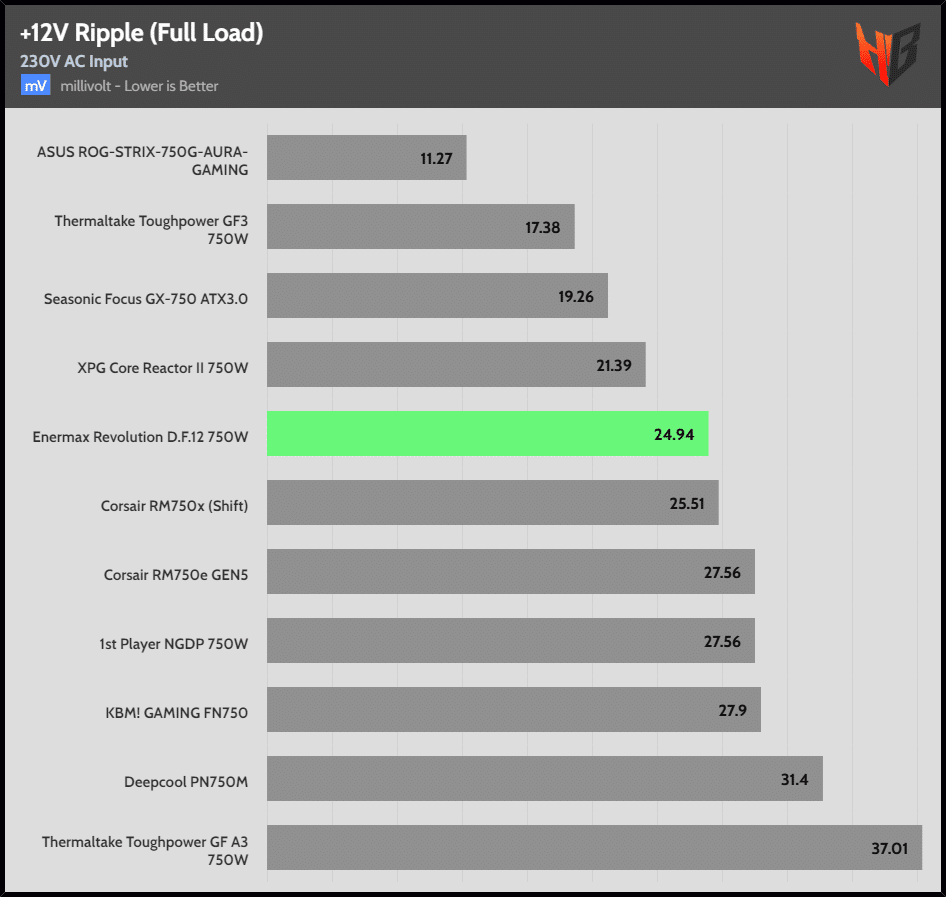

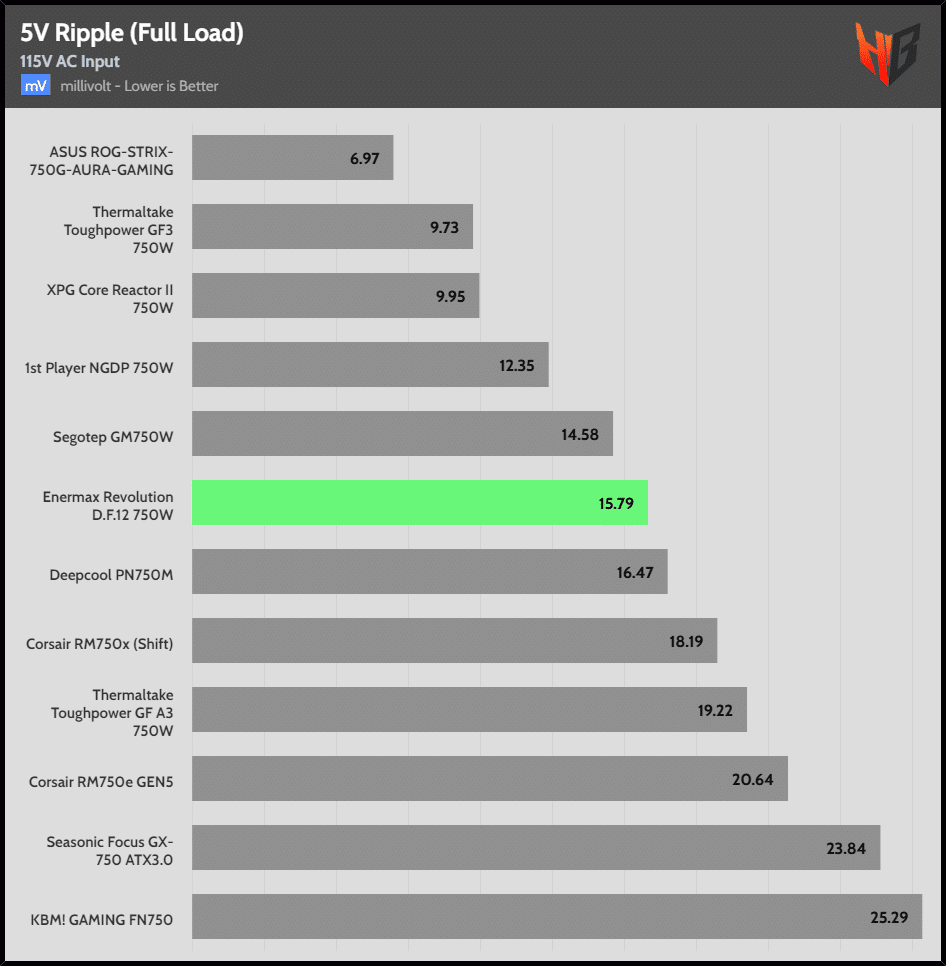

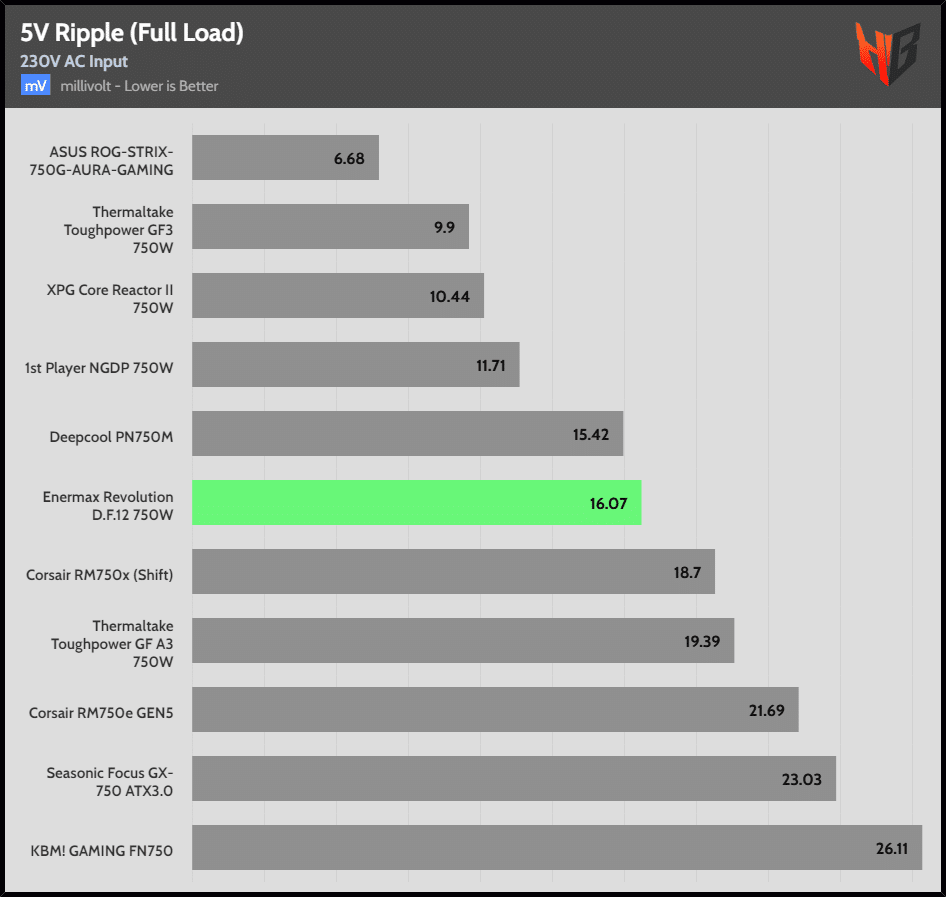

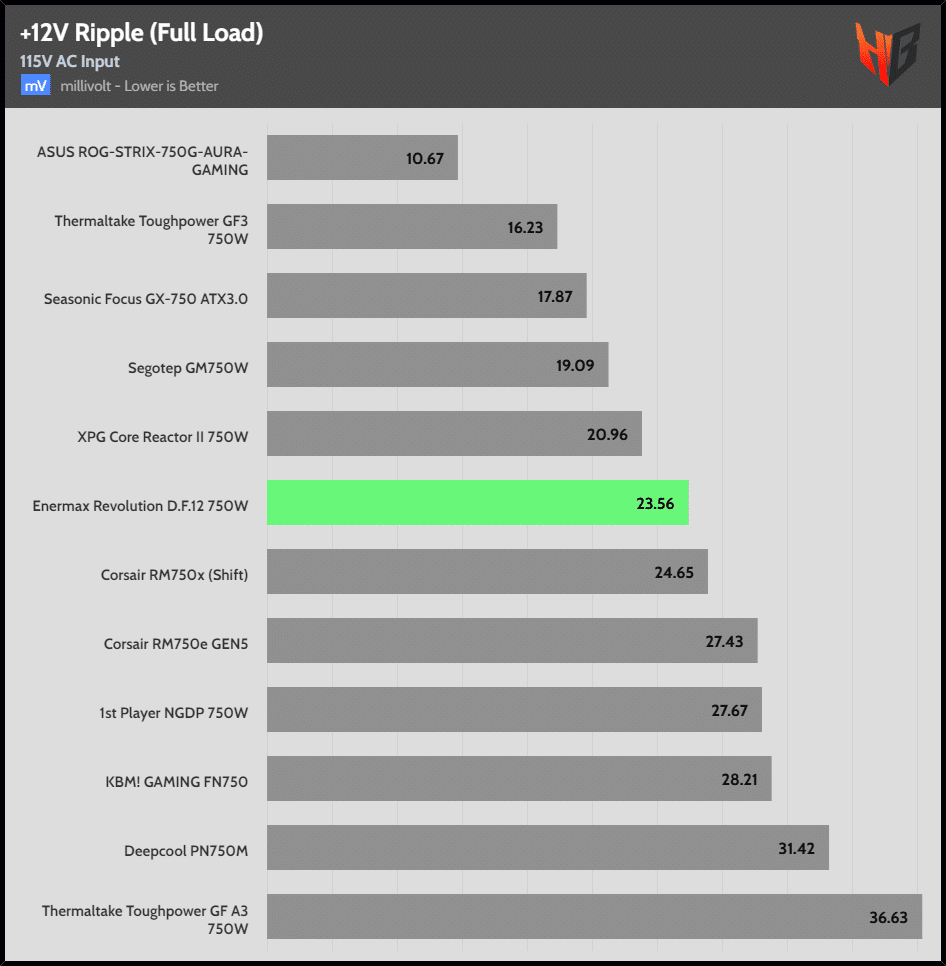

Ripple suppression is good on all rails.
