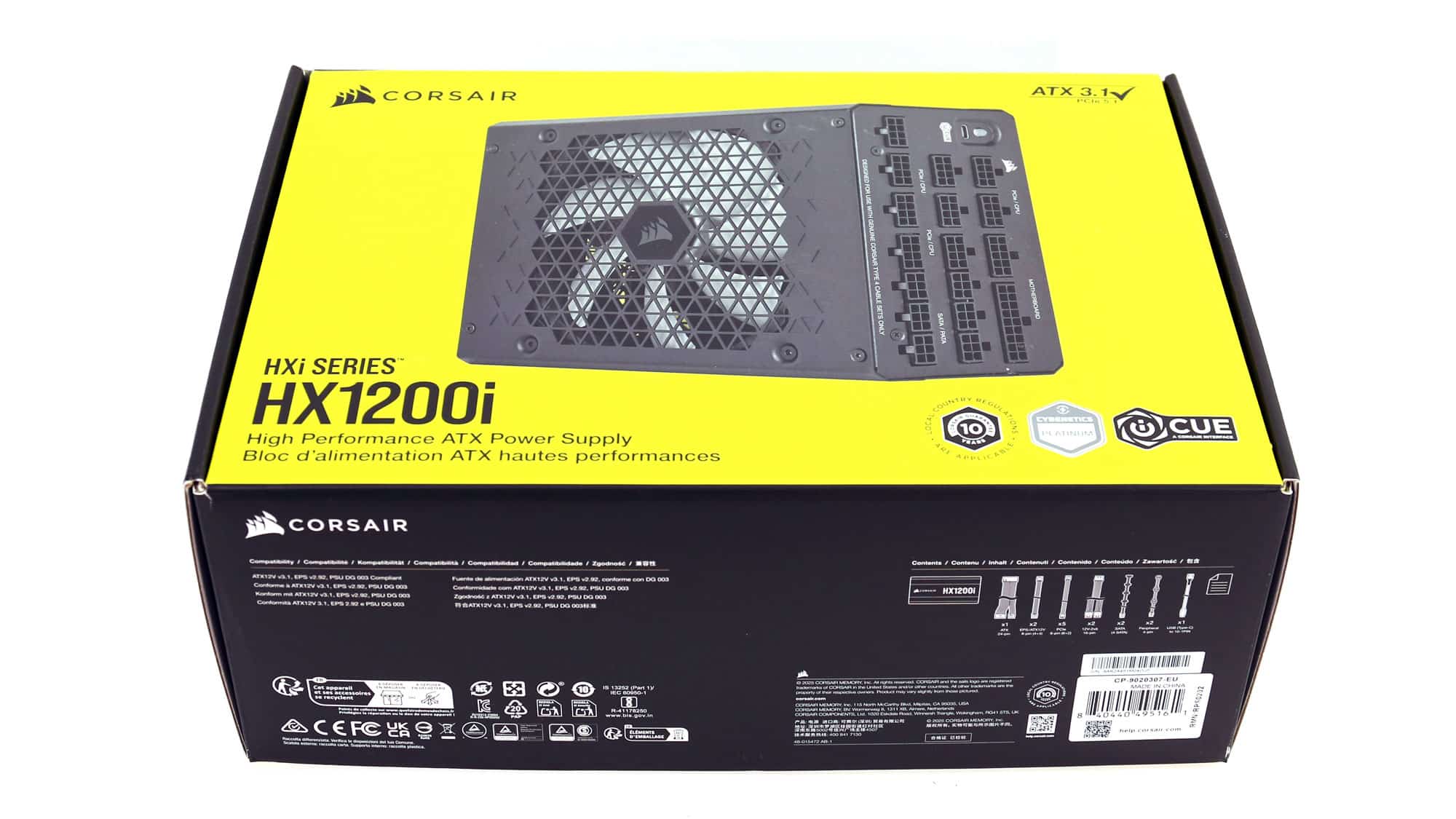

Box & Bundle
What we have here is a large box that offers good protection to the PSU inside, and it has the Cybenetics badges on its face!

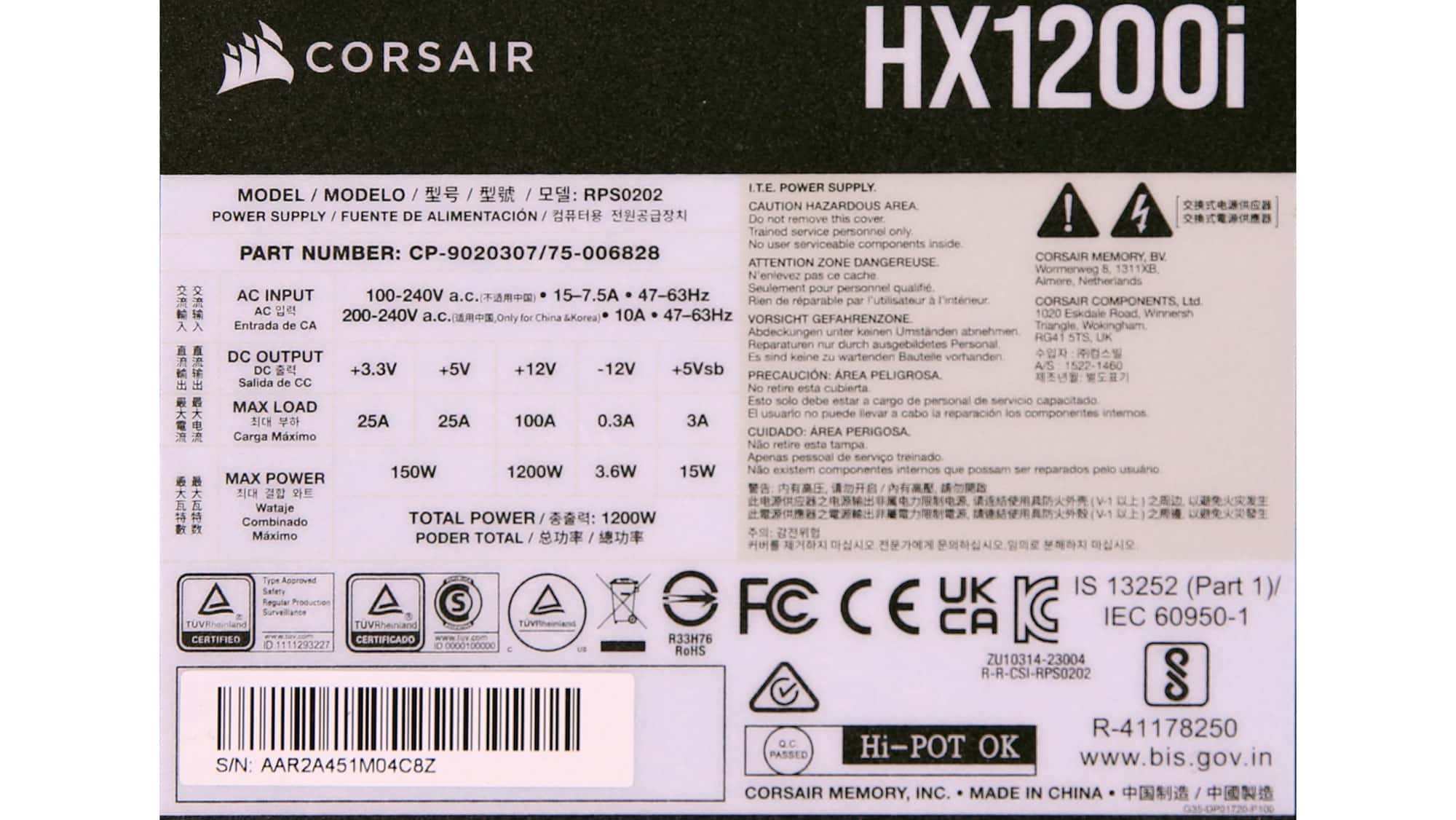

Product Photos

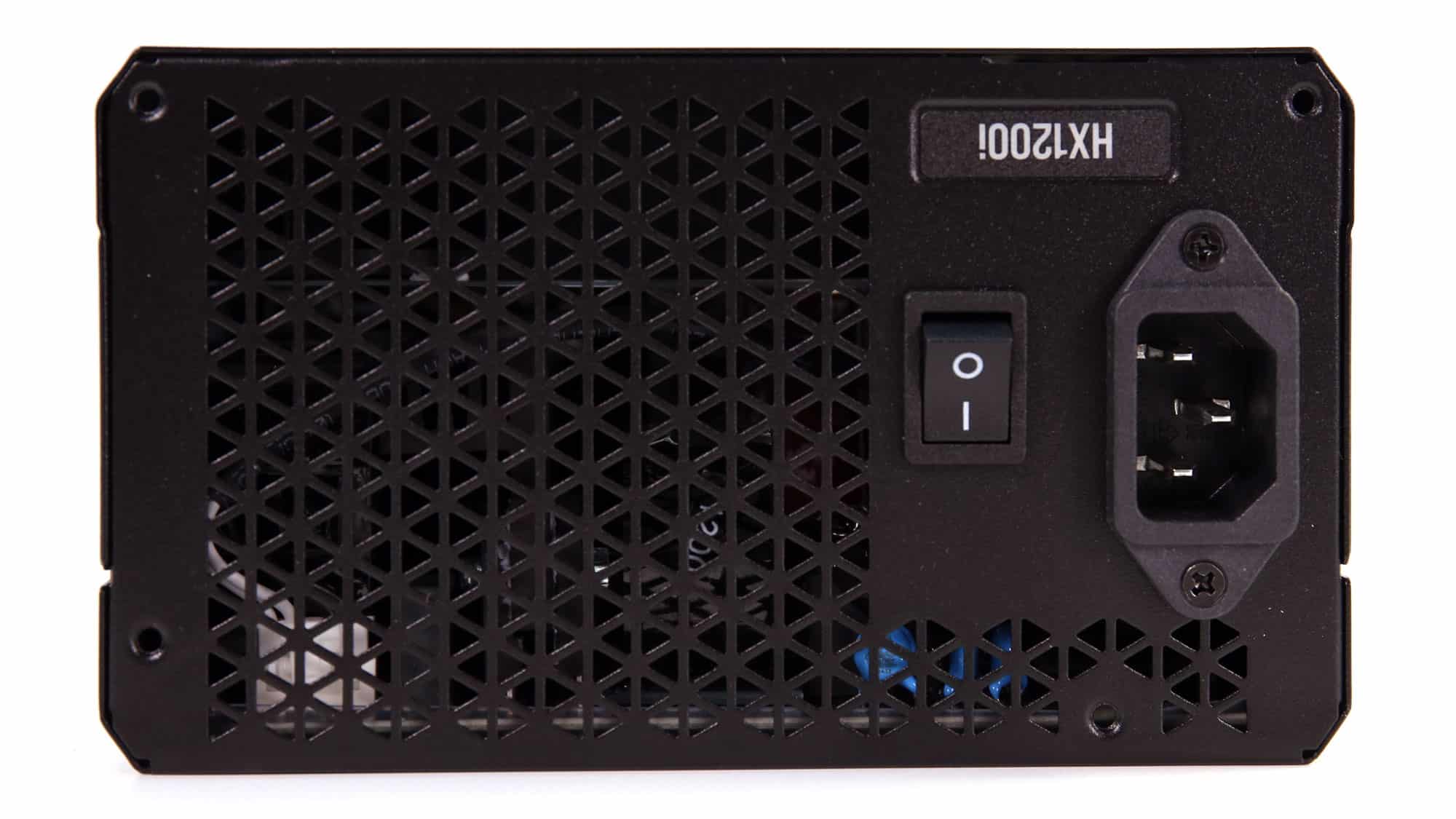

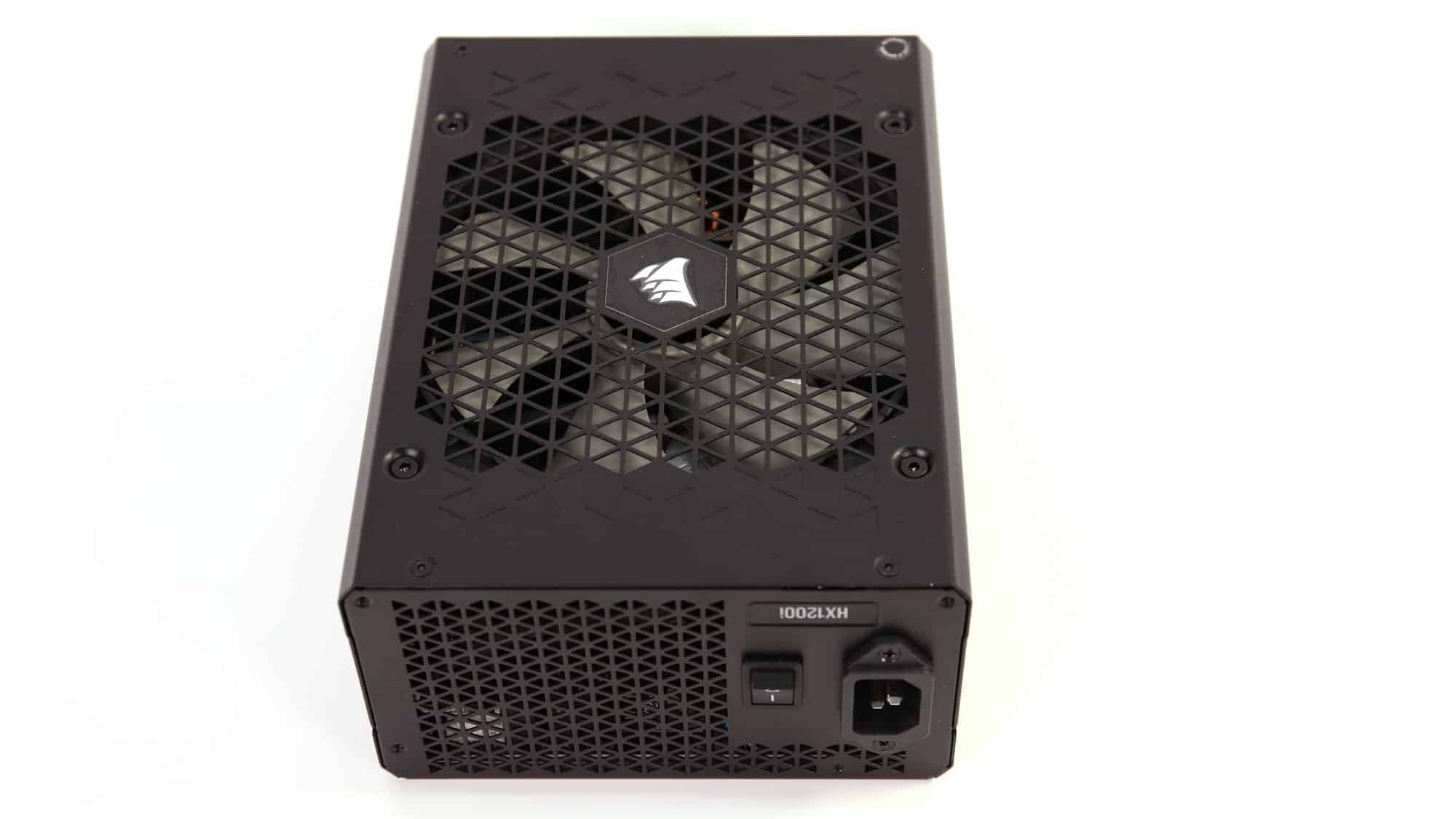

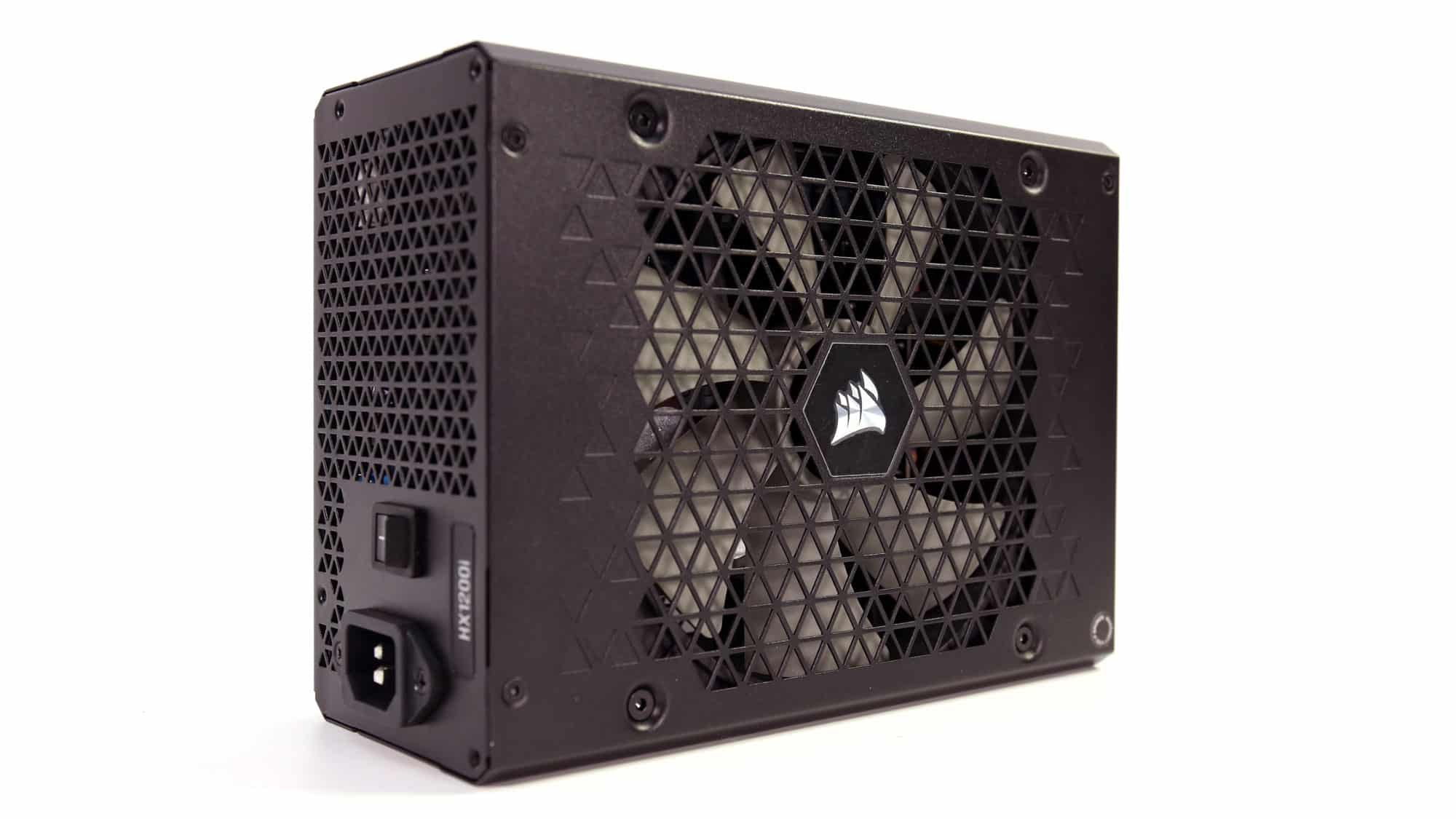

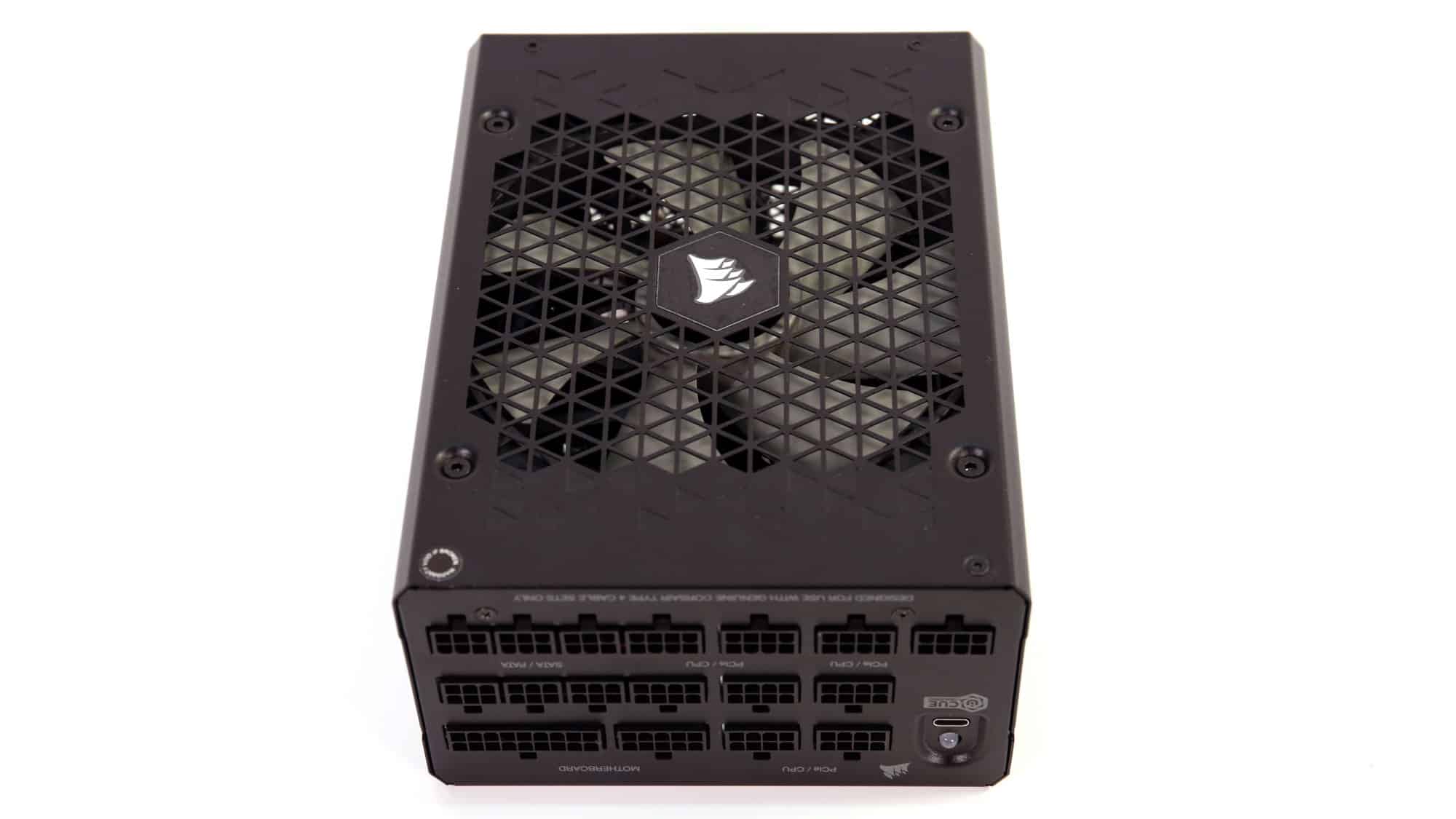

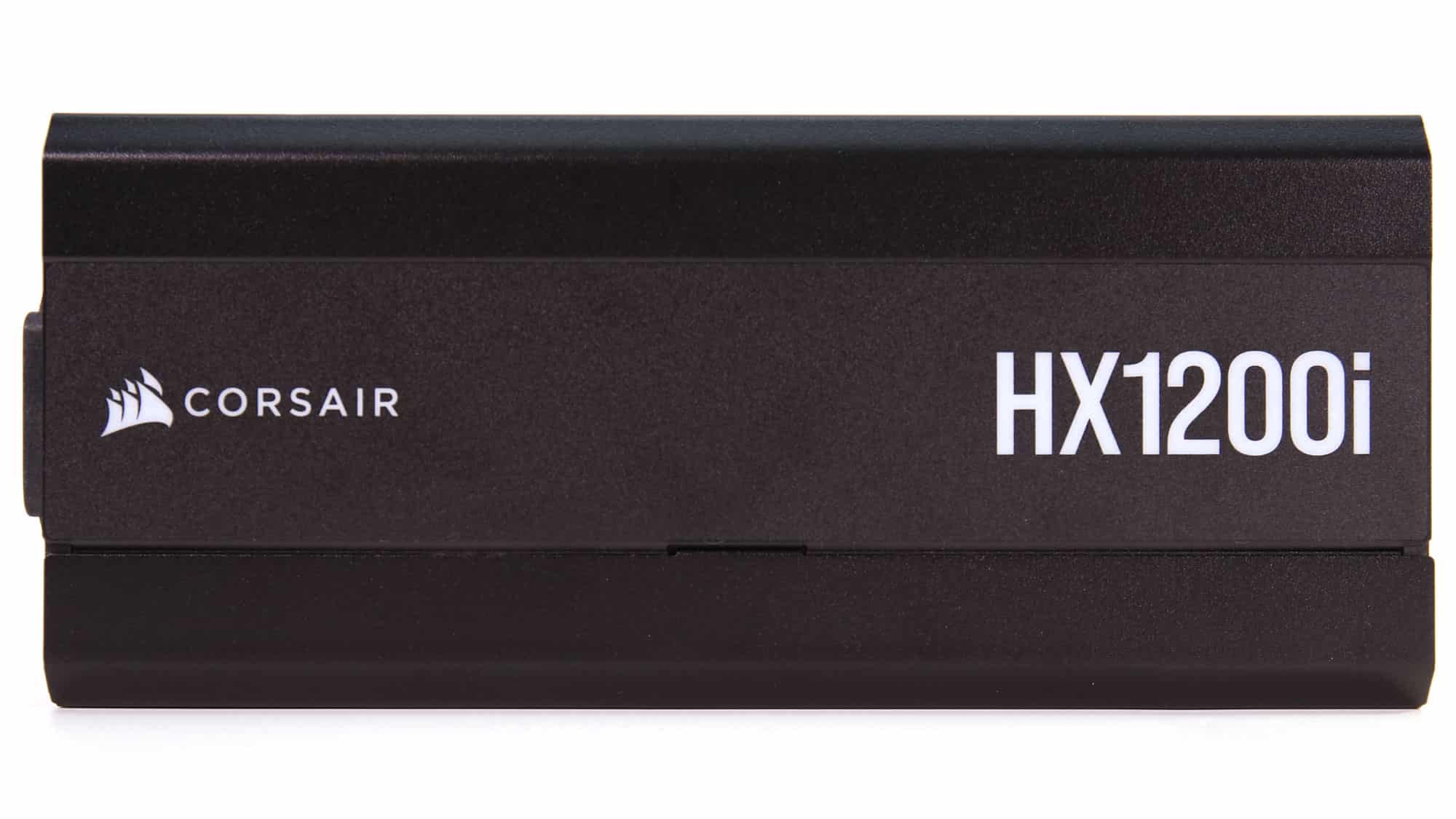

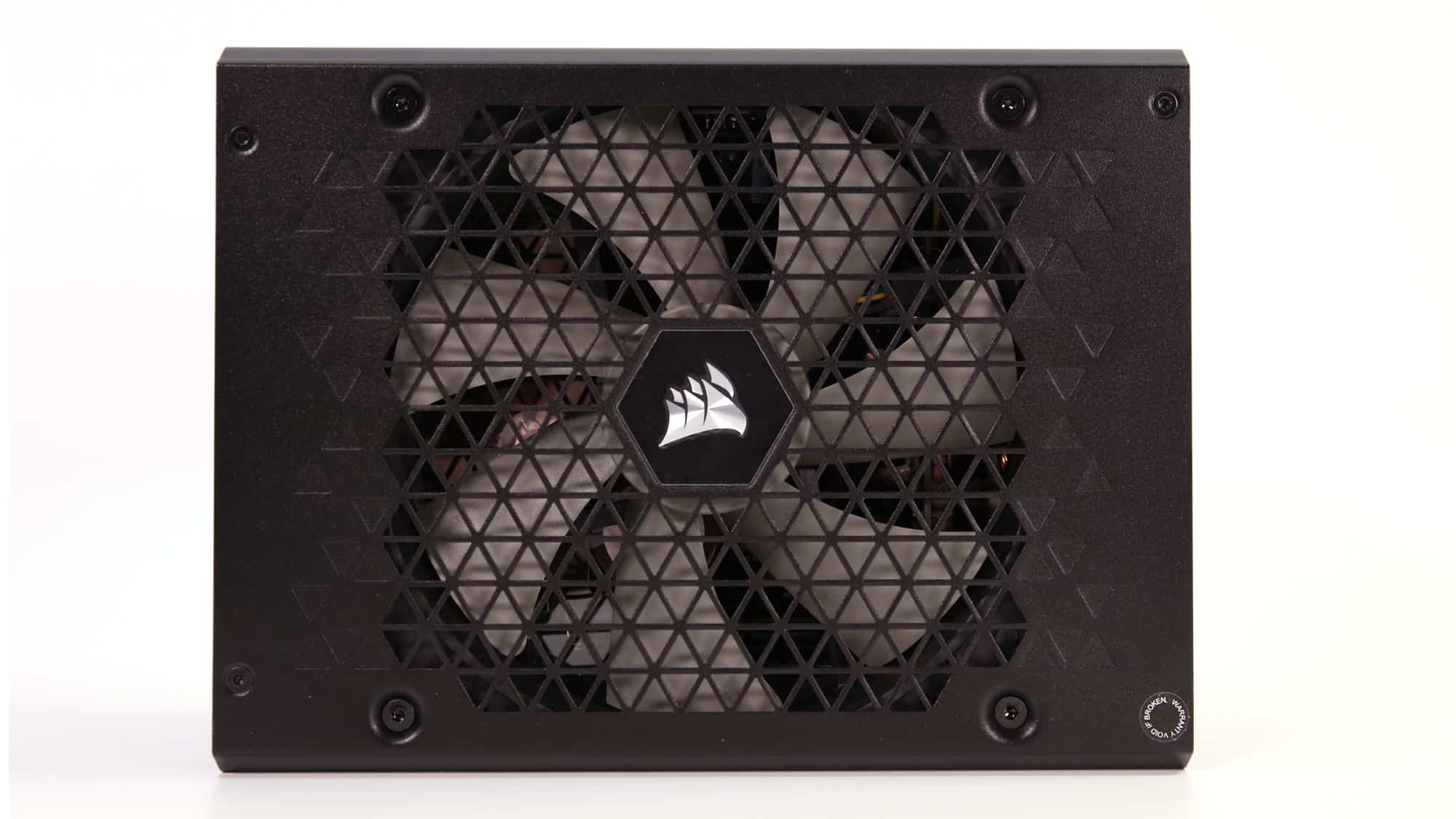

The PSU has large dimensions, which I prefer since it means that its PCB will provide enough clearance between parts for adequate airflow without the fan having to spin at high speeds. The perforations at the fan grille and the exhaust size are large enough not to disrupt (notably) the airflow, and are triangular. The finish of the PSU’s casing is also good, which is expected on an expensive product.

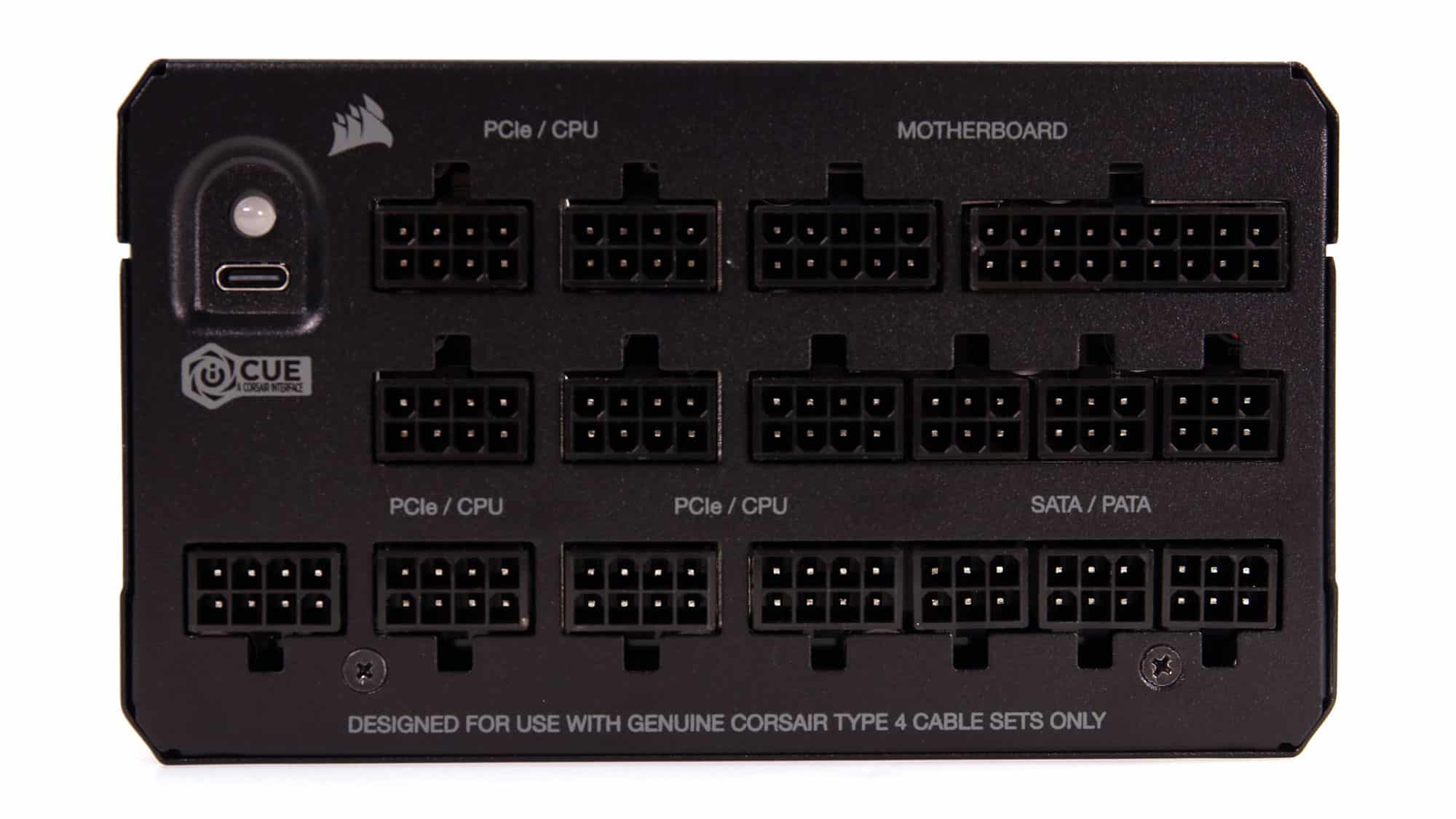

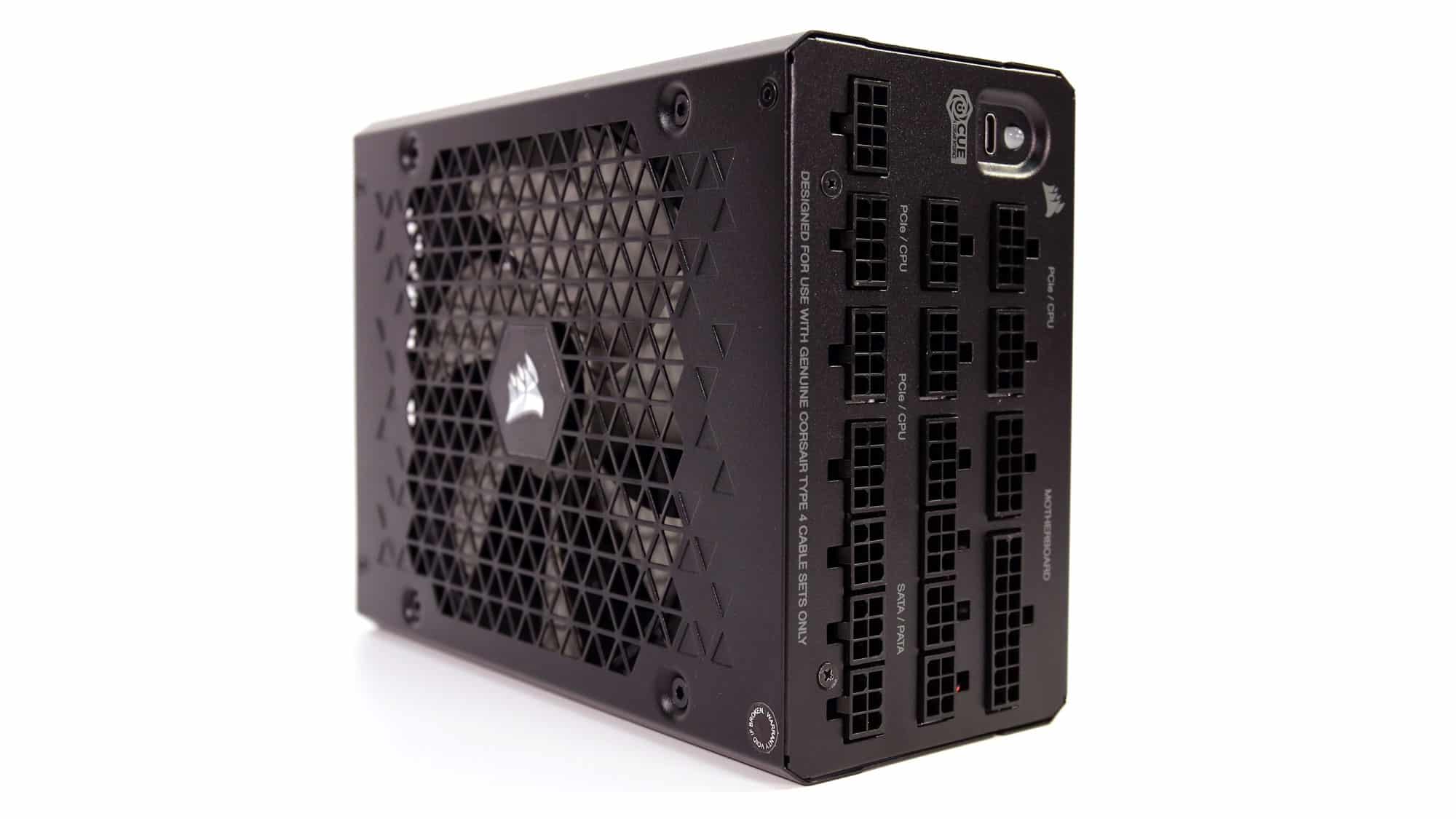

The modular panel around the back includes 17 sockets. The unit doesn’t use a native 12+4-pin header. It uses two 8-pin connectors instead, which are, if not the same, even safer since they allow the cable to flex more, and the larger space between the pins also provides higher tolerance to increased operating temperatures. There is also a Type-C port here for those who want to monitor the PSU through iCUE. I don’t belong to this group, so don’t expect to find any relevant information in this review.

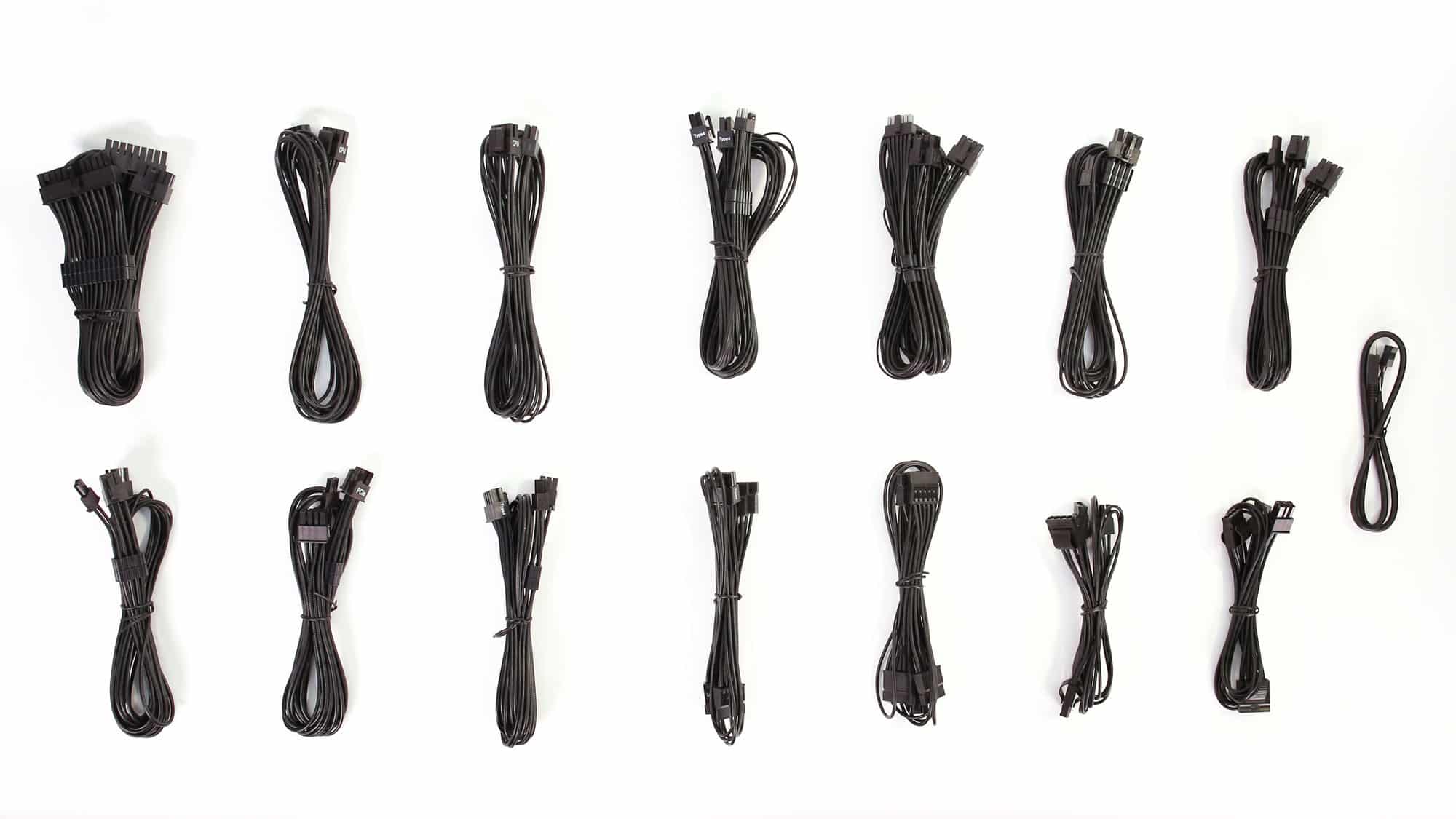

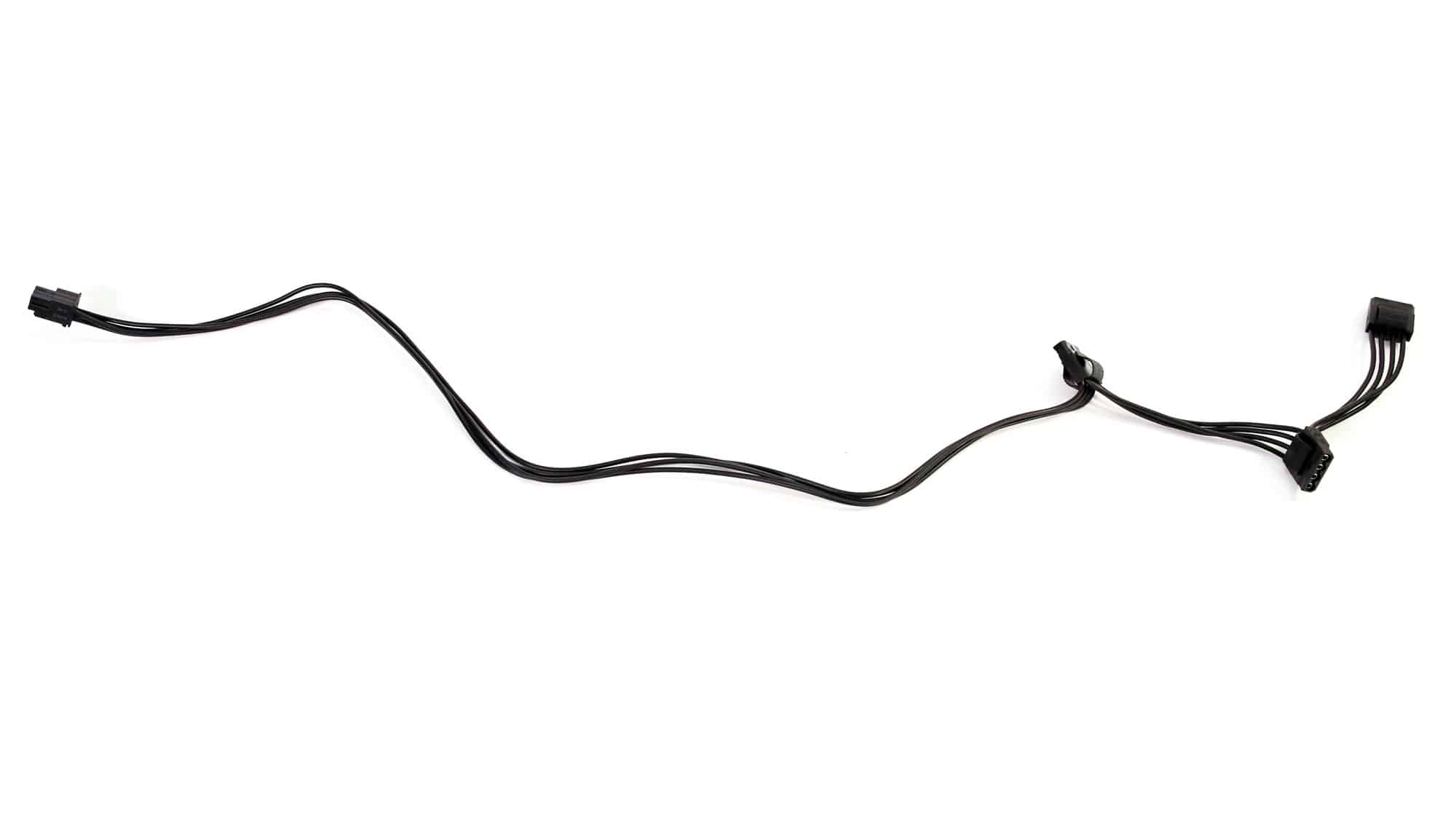

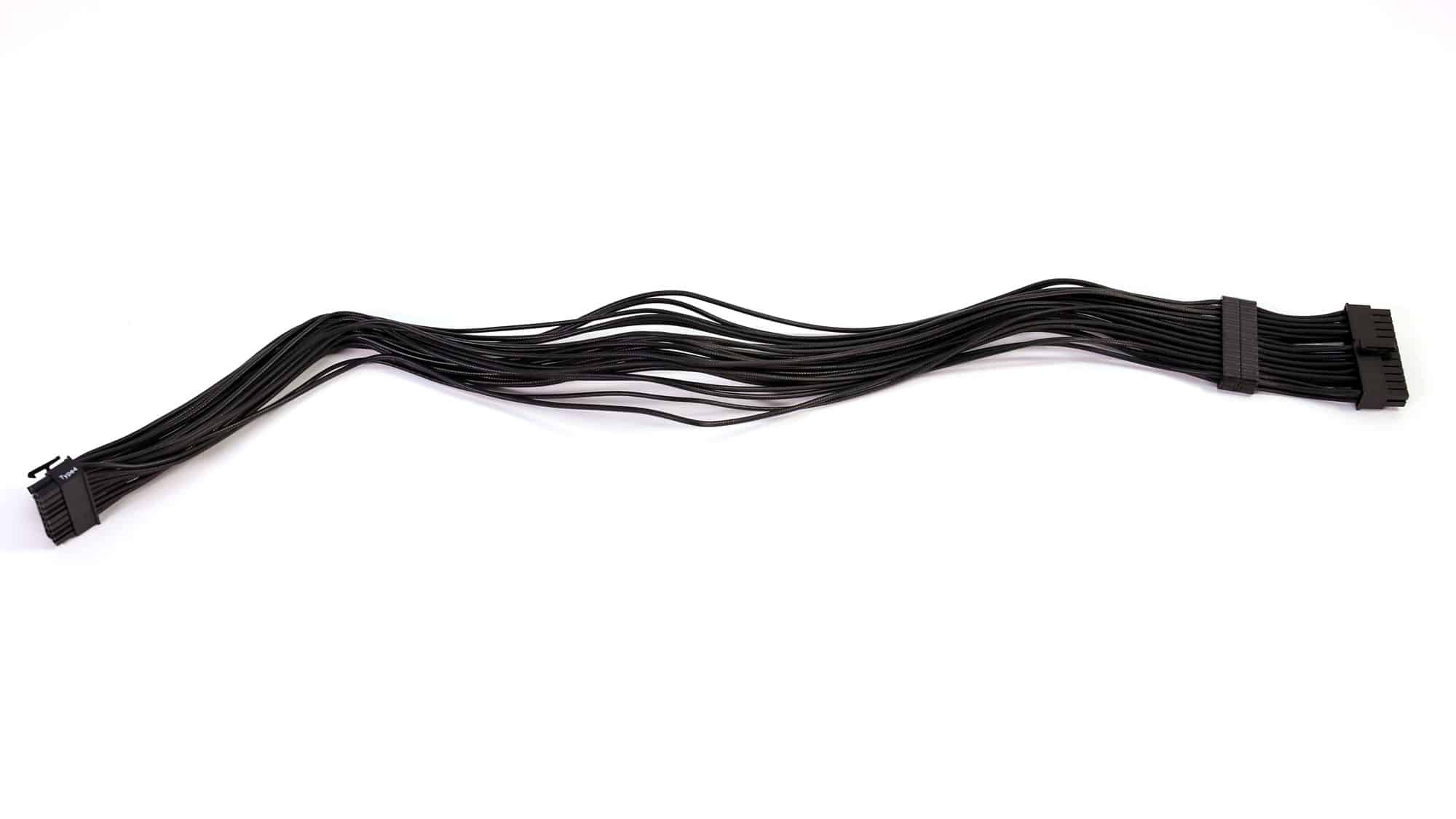

Cables
| Modular Cables | ||||
| Description | Cable Count | Connector Count (Total) | Gauge | In Cable Capacitors |
|---|---|---|---|---|
| ATX connector 24 pin (610mm) | 1 | 1 | 16-20AWG | No |
| 4+4 pin EPS12V (650mm) | 2 | 2 | 18AWG | No |

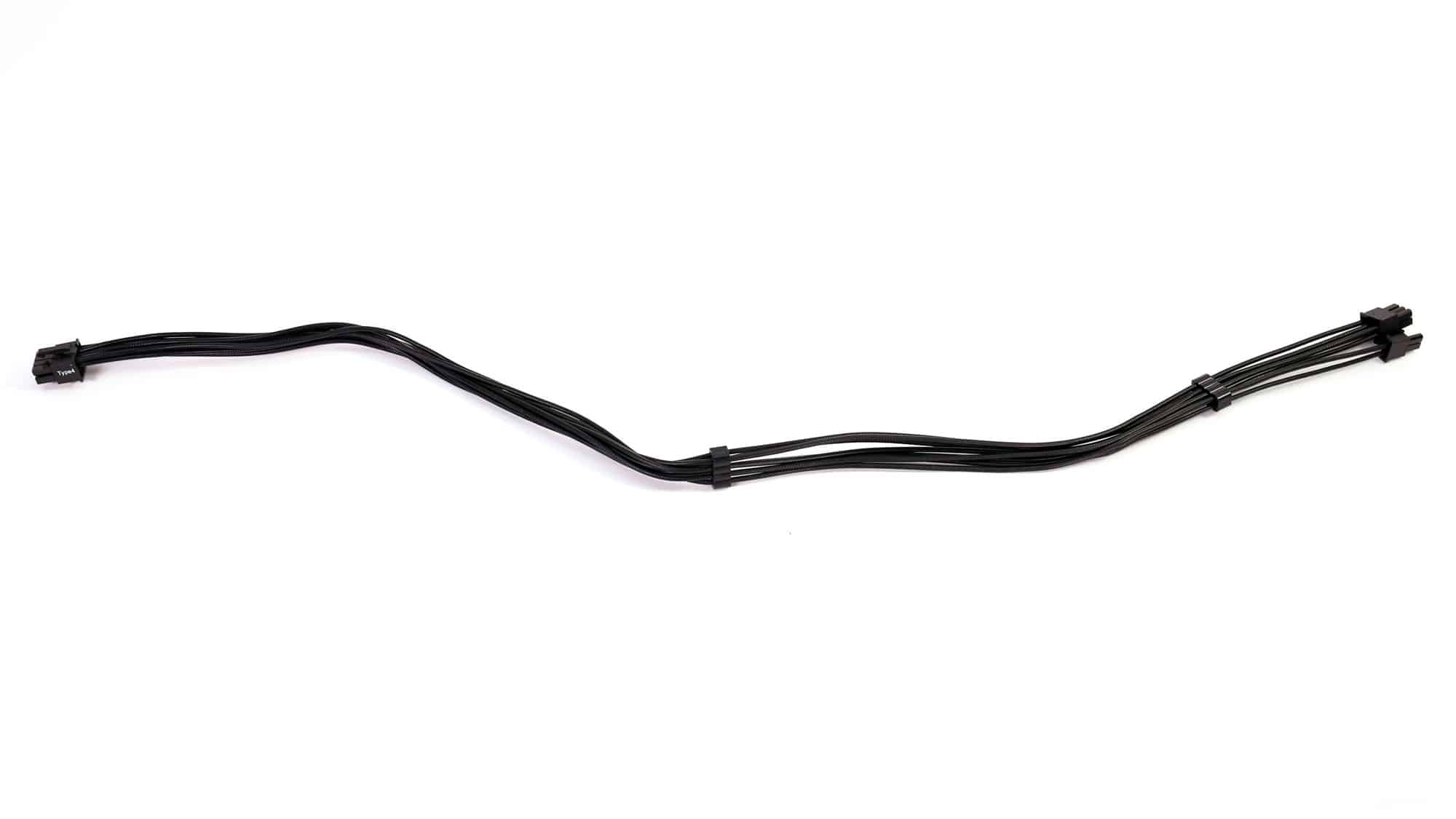

| 6+2 pin PCIe (650mm) | 5 | 5 | 16-18AWG | No |

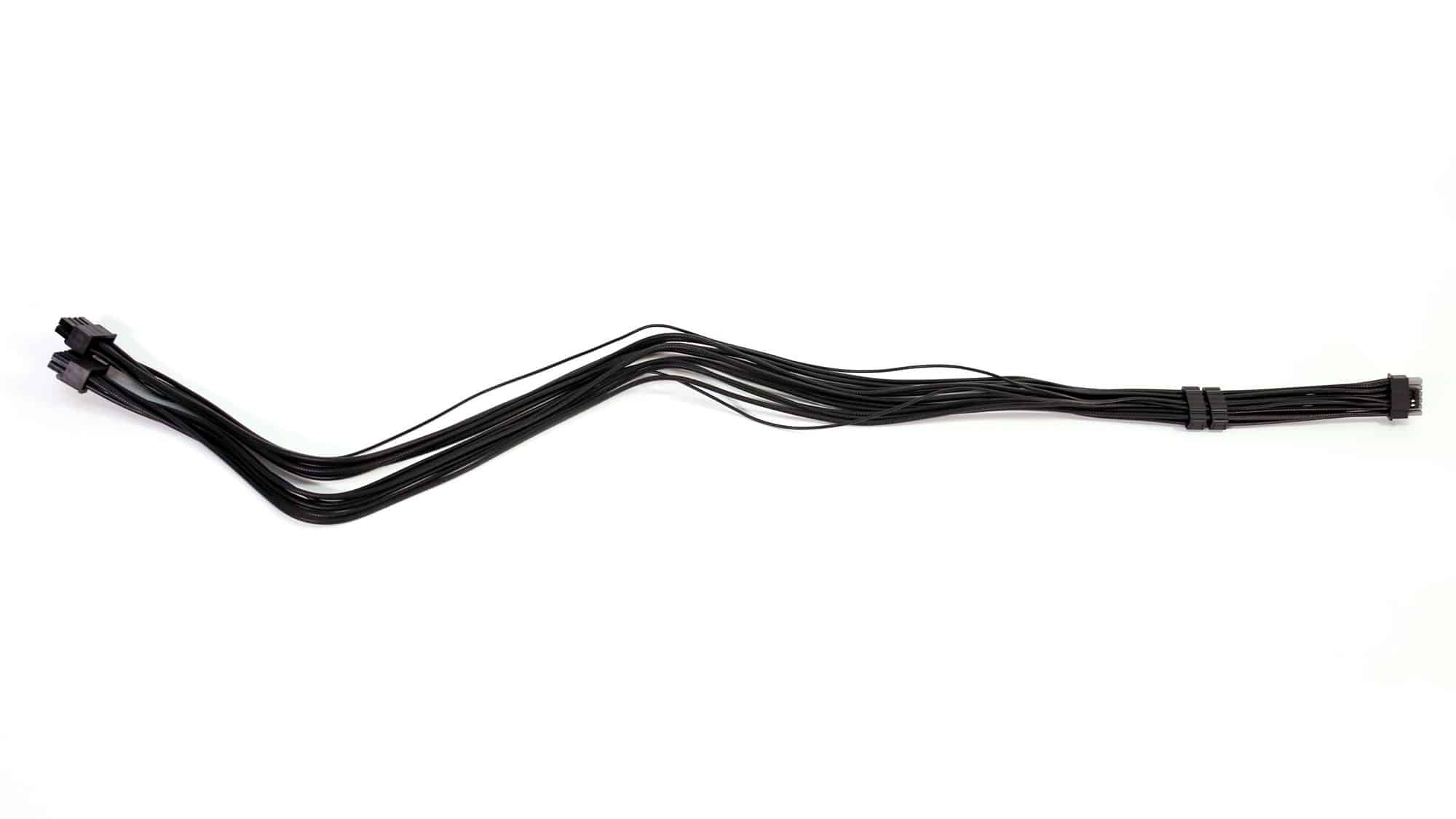

| 12+2 pin PCIe (650mm) (600W) | 2 | 2 | 16-24AWG | No |

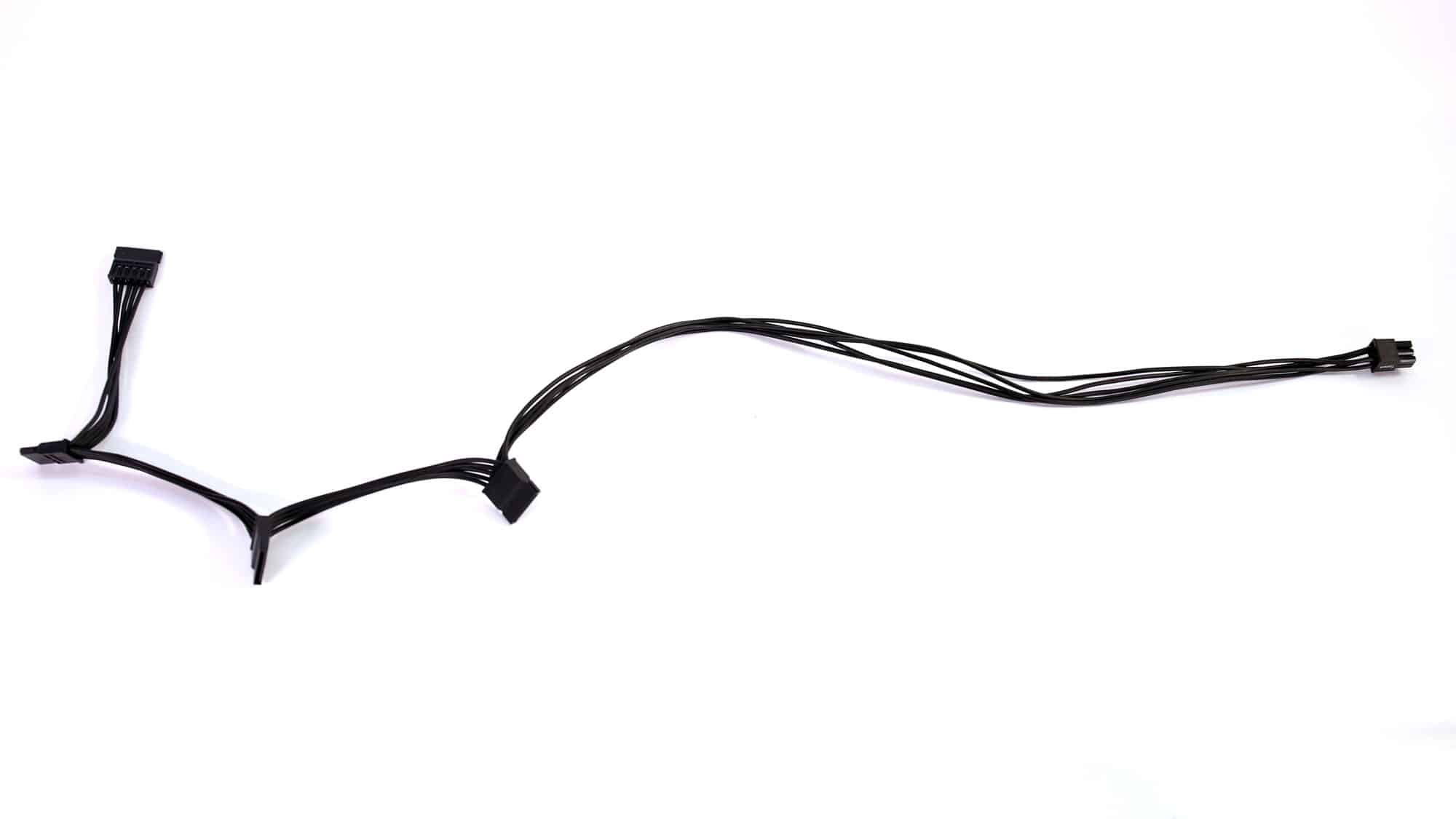

| SATA (505mm+110mm+110mm+110mm) | 2 | 8 | 18AWG | No |
| 4-pin Molex (550mm+100mm+100mm) | 2 | 6 | 18AWG | No |

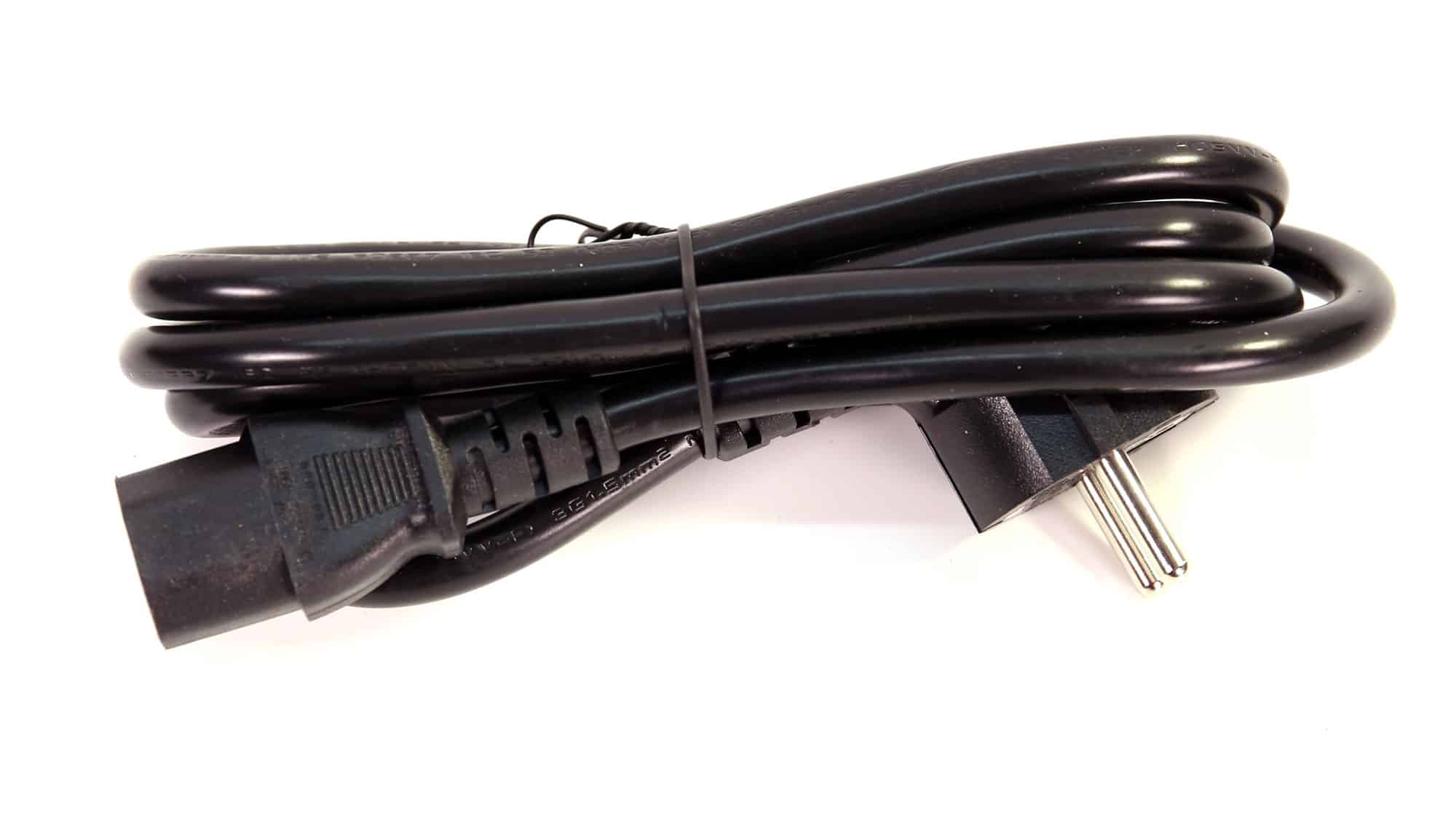

| AC Power Cord (1365mm) – C13 coupler | 1 | 1 | 16AWG | – |

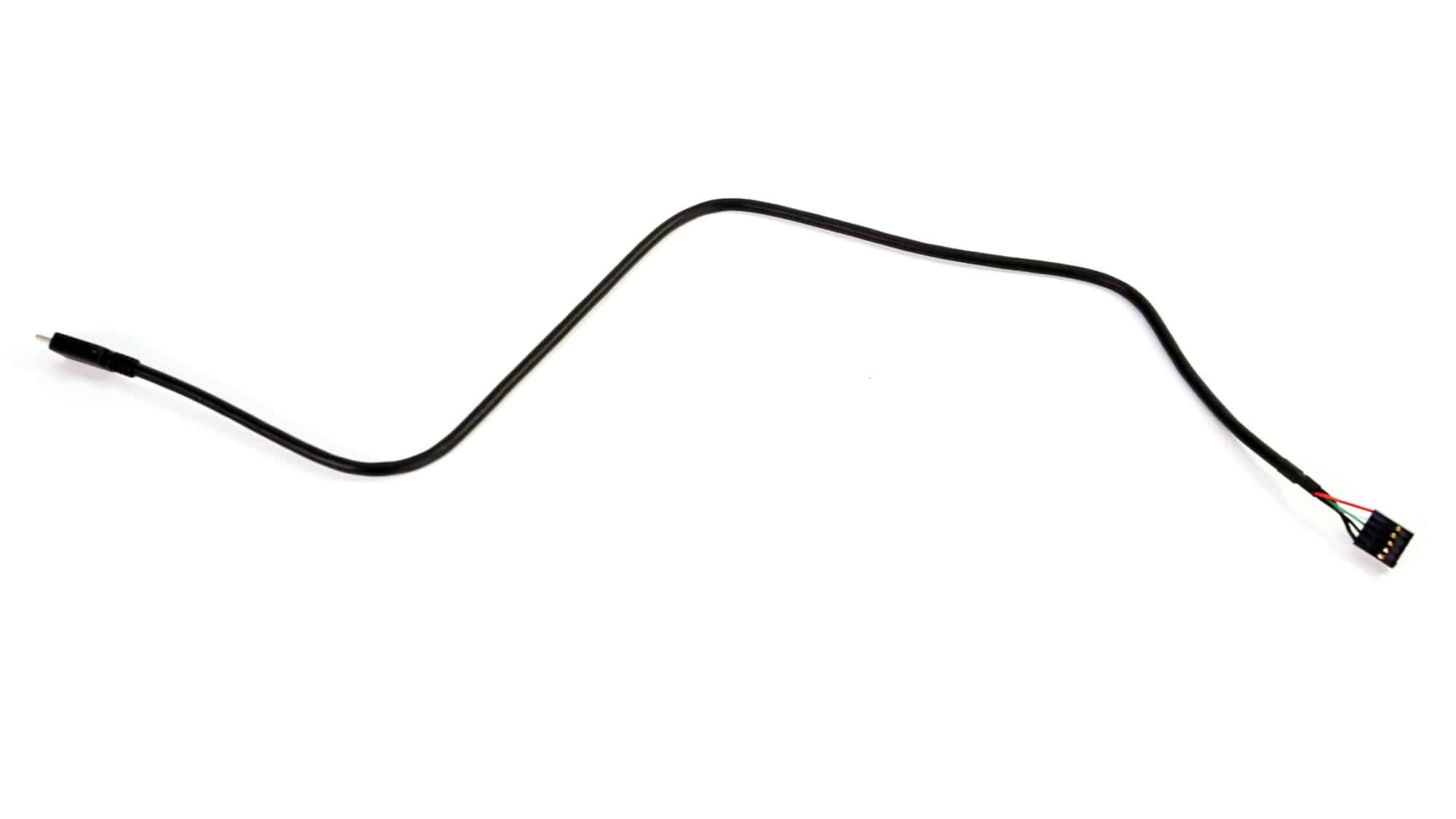

| USB 2.0 (525mm) | 1 | 1 | – | – |
As expected, many cables and connectors are available to deliver the PSU’s max power smoothly. The number of dedicated 6+2-pin PCIe connectors is enough to cover any AMD GPU, while the single 12+2-pin PCIe is set at 600W to meet the demands of the high-end NVIDIA GPUs. All cables are long enough, and the high-power ones use thicker, 16AWG gauges for lower voltage drops. Lastly, there are enough peripheral connectors, but typically the distance between them is short, at 100-110mm.
