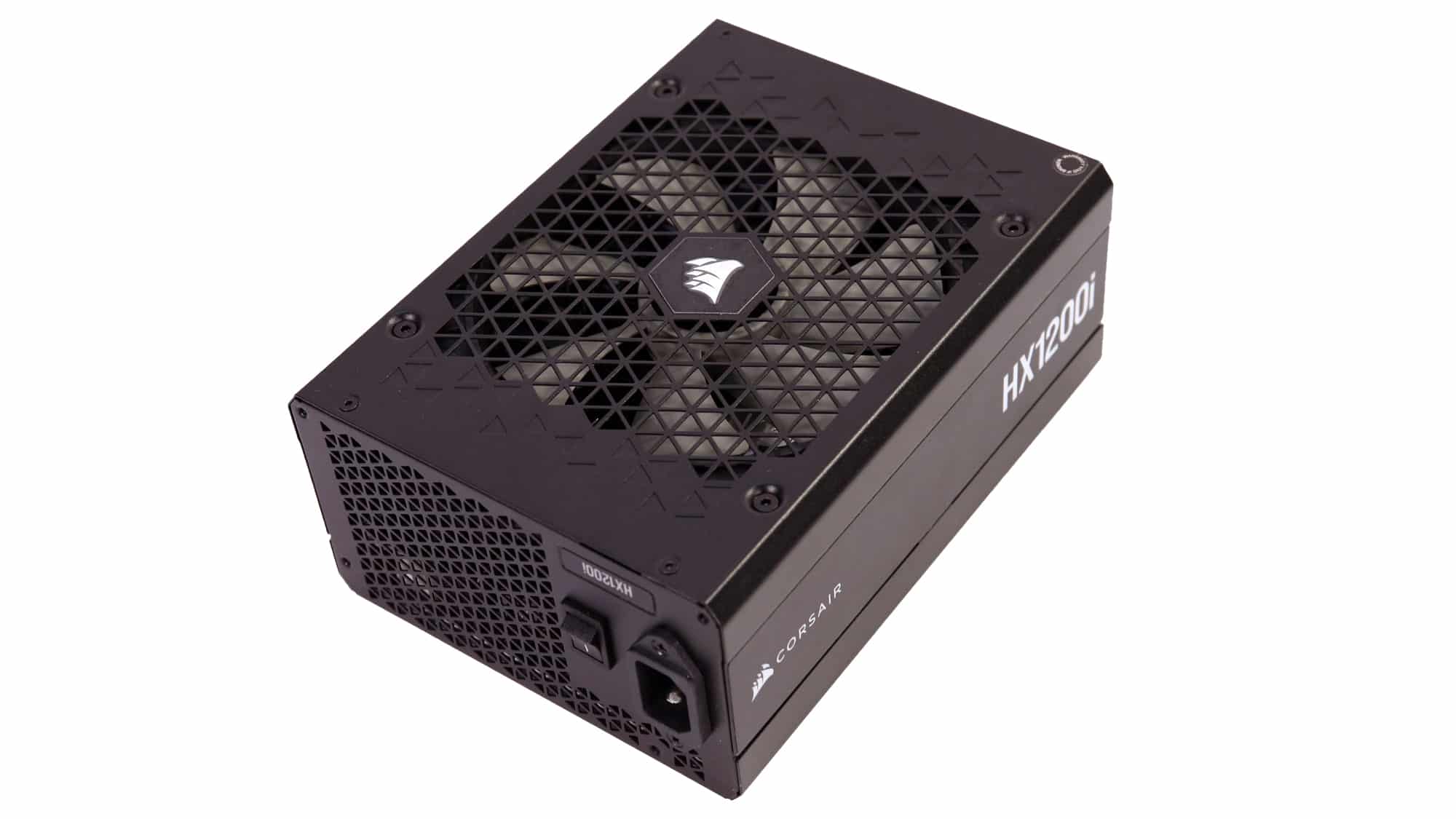

The Corsair HX1200i is a high-performance ATX v3.1 and PCIe 5.1 compatible power supply, destined for high-end systems equipped with power hungry components. Read the full review to learn more about it!
The Corsair HX1200i ATX v3.1 is (or will be) included in my best ATX v3.x & PCIe 5.x PSU picks article.
I want to start with this first. From now on, I won’t often do Corsair reviews since I don’t communicate with Corsair’s PR team.
The Corsair HXi line has three members, with 1500W, 1200W, and 1000W max power. In today’s review, I will evaluate the middle member, which is strong enough to power a high-end system equipped with an NVIDIA RTX 5090 and an AMD 9950X3D processor.
| Corsair HX1500i | $400 |
| Corsair HX1200i | $320 |
| Corsair HX1000i | $260 |
At $320, the HX1200i is far from affordable, so I expect a lot from it to justify the hefty price. According to Corsair, this unit is 50 series ready, meaning that it supports NVIDIA’s newest GPUs, including the super-expensive RTX 5090. The unit is Cybenetics Platinum certified in efficiency and has a Cybenetics-A noise rating, meaning it operates silently despite its high capacity. High max power and silent operation typically don’t go along unless the platform is highly efficient and has a large enough PCB to accommodate large heatsinks. A carefully tuned fan speed profile is also required. Lastly, I have to mention that Channel Well Technology manufactures this unit under the strict supervision of Corsair’s engineering team.
Look at our best ATX v3.1 PSU guide before buying your next PSU.
High-Capacity ATX v3.1 PSU Reviews:
- Asus Rog Strix 1200W Platinum ATX v3.1 PSU Review
- be quiet! Dark Power Pro 13 1600W PSU Review
- Cooler Master X Silent MAX Platinum 1300W
- Cooler Master GX III 1250W ATX v3.0 PSU Review
- darkFlash UPMOST 1250W ATX v3.0 PSU Review
- Lian Li EG1200G ATX v3.1 PSU Review
- MSI MAG A1250GL PCIE5 ATX v3.1 PSU Review
- Montech Titan PLA 1200W ATX v3.1 PSU Review
- NZXT C1500 ATX v3.1 PSU Review
- Seasonic Prime TX-1300 ATX v3.0 PSU Review
- Seasonic Prime PX-1600 ATX v3.0 PSU Review
- Seasonic Prime TX-1600 ATX v3.0 PSU Review
- Super Flower Leadex Titanium ATX v3.0 1600W PSU Review
- Super Flower Leadex III 1300W ATX v3.1 PSU Review
- Thermaltake Toughpower GF3 1350W ATX v3.0 PSU Review
- Thermaltake Toughpower GF3 1650W ATX v3.0 PSU Review
- XPG Fusion 1600W Titanium PSU Review
- XPG Cybercore II 1300 Platinum PSU Review
- Manufacturer (OEM): CWT
- Max Power: 1200W
- Cybenetics Efficiency: [115V] Cybenetics Platinum (89.650%), [230V] Cybenetics Platinum (91.473%)
- Noise: Cybenetics A+ (15-20 dB[A])
- Compliance: ATX v3.1, EPS 2.92
- Operating Temperature (Continuous Full Load): 0 – 50 °C
- Alternative Low Power Mode support: Yes
- Power 12V combined: 1200W
- Number of 12V rails: 1
- Power 5V + 3.3v: 150W
- Power 5VSB: 15W
- Cooling: 140mm Fluid Dynamic Bearing Fan (NR140HP)
- Semi-Passive Operation: ✓ (Selectable)
- Modular Design: Yes (Fully)
- High Power Connectors: 2x EPS (2x cables), 5x PCIe 6+2 pin (5x cables), 1x PCIe 12+2 pin (600W)
- Peripheral Connectors: 8x SATA (2x cables), 6x 4-pin Molex (2x cables)
- ATX Cable Length: 610mm
- EPS Cable Length: 650mm
- 12+2 pin PCIe Cable Length: 650mm
- 6+2 pin PCIe Cable Length: 650mm
- Distance between SATA/4-pin Molex: 110/100mm
- In-cable capacitors: No
- Dimensions (W x H x D): 150 mm x 85 mm x 200mm
- Weight: 2.44 kg (5.38 lb)
- Warranty: 10 years
- MSRP (excluding VAT): $320
Power Specifications
| Rail | 3.3V | 5V | 12V | 5VSB | -12V | |
| Max. Power | Amps | 25 | 25 | 100 | 3 | 0.3 |
| Watts | 150 | 1200 | 15 | 3.6 | ||
| Total Max. Power (W) | 1200 | |||||
