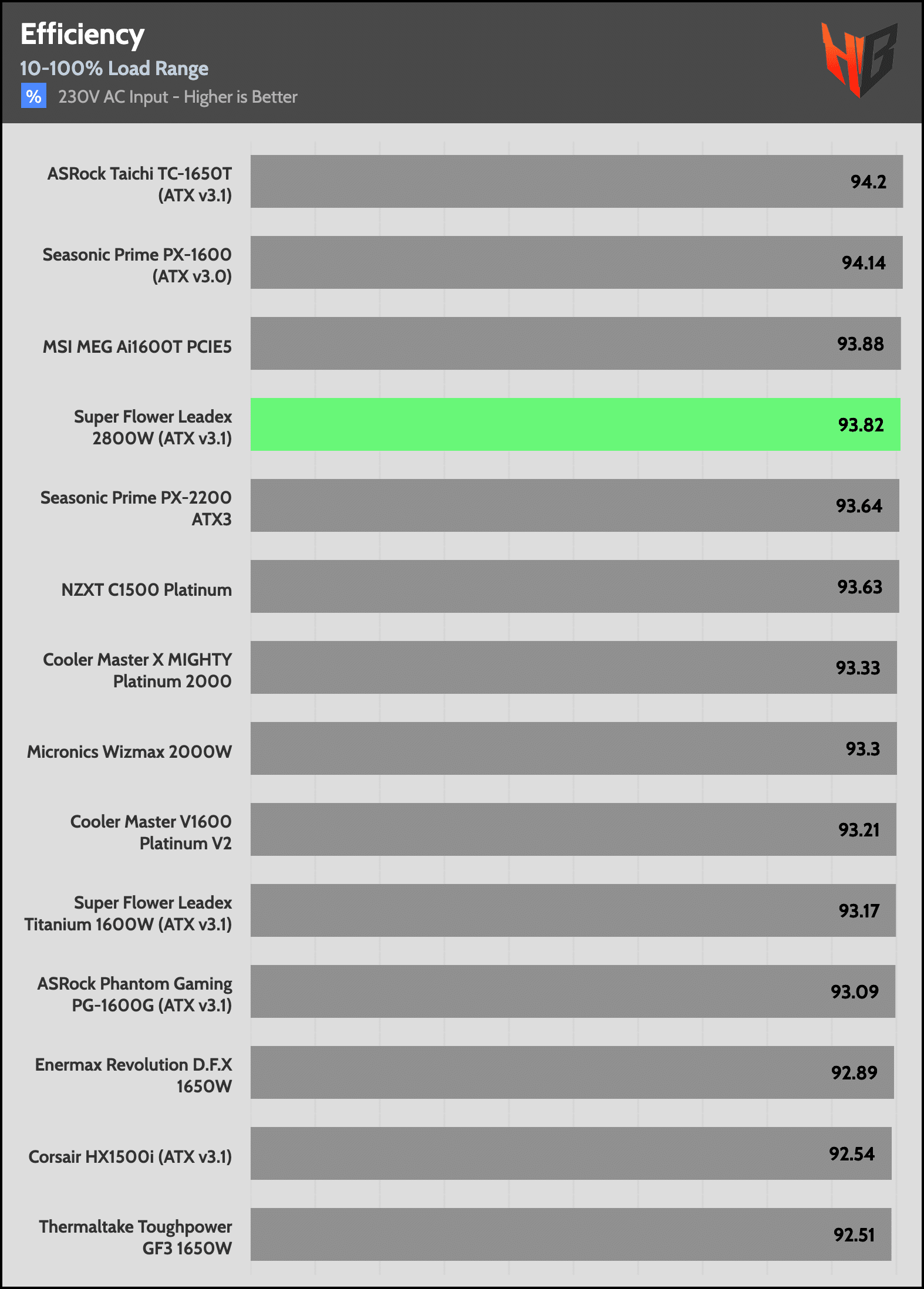

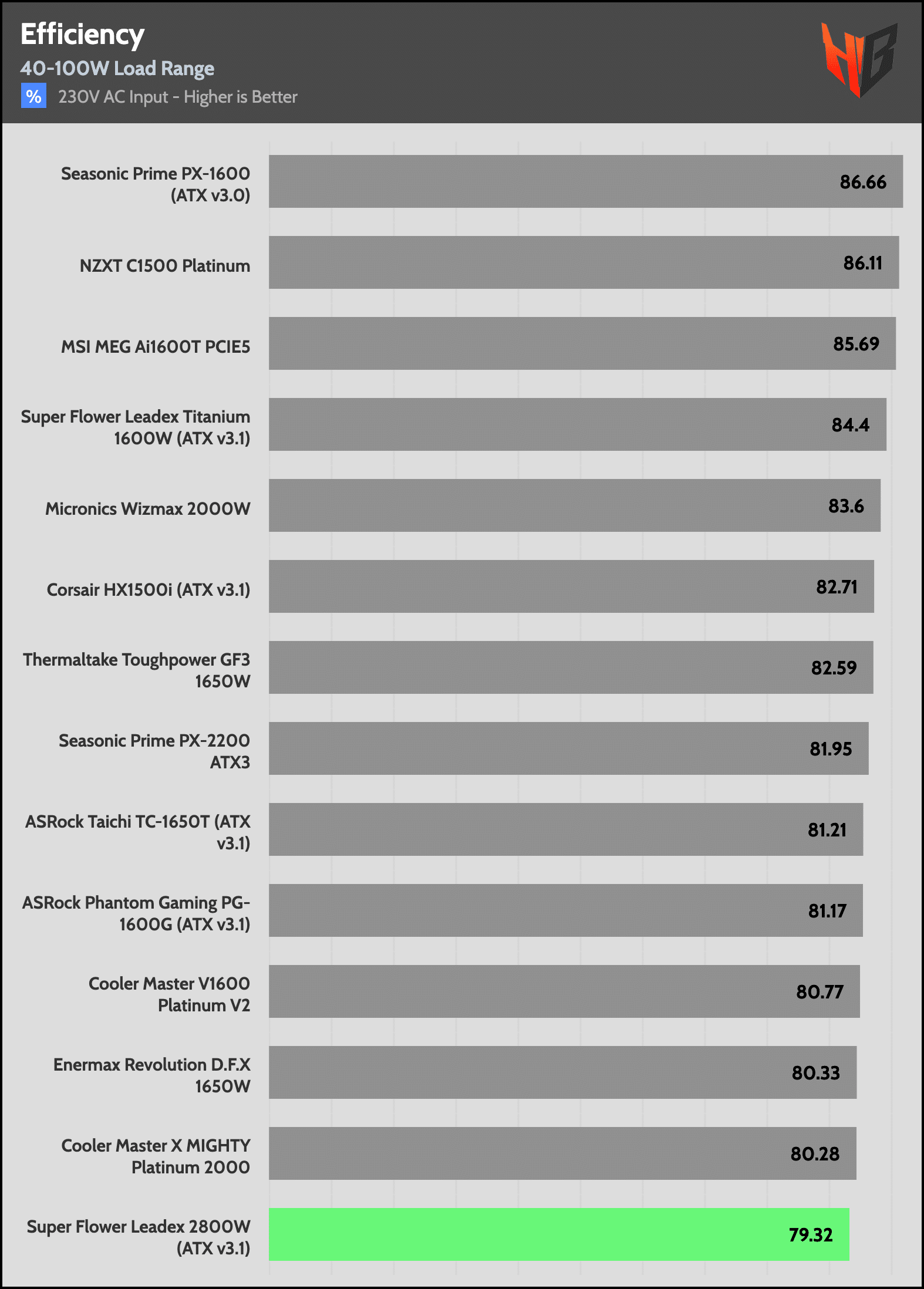

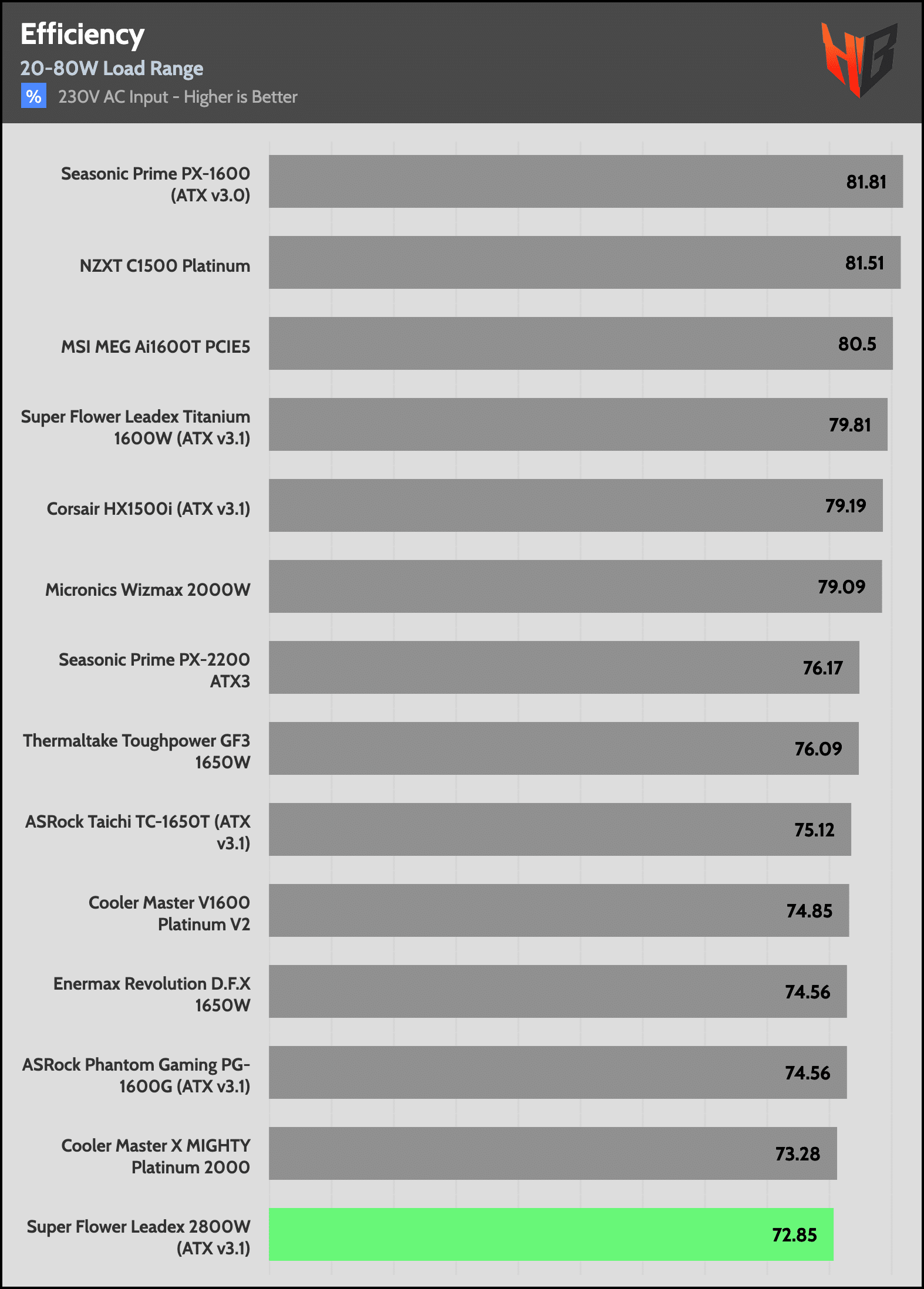

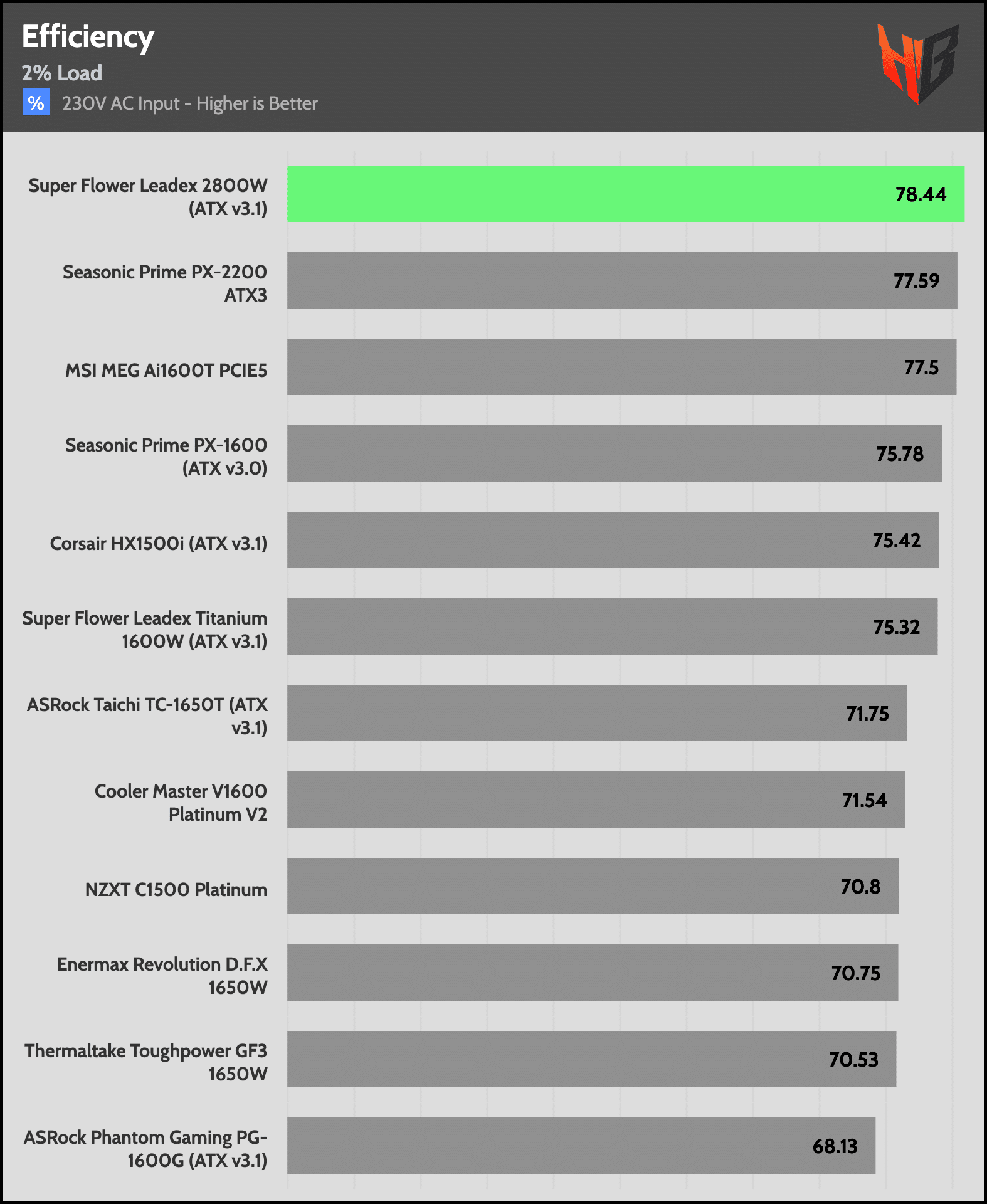

Efficiency Normal, Light & Super-Light Loads
Efficiency is high at normal and super-light loads, but the opposite applies at light loads.

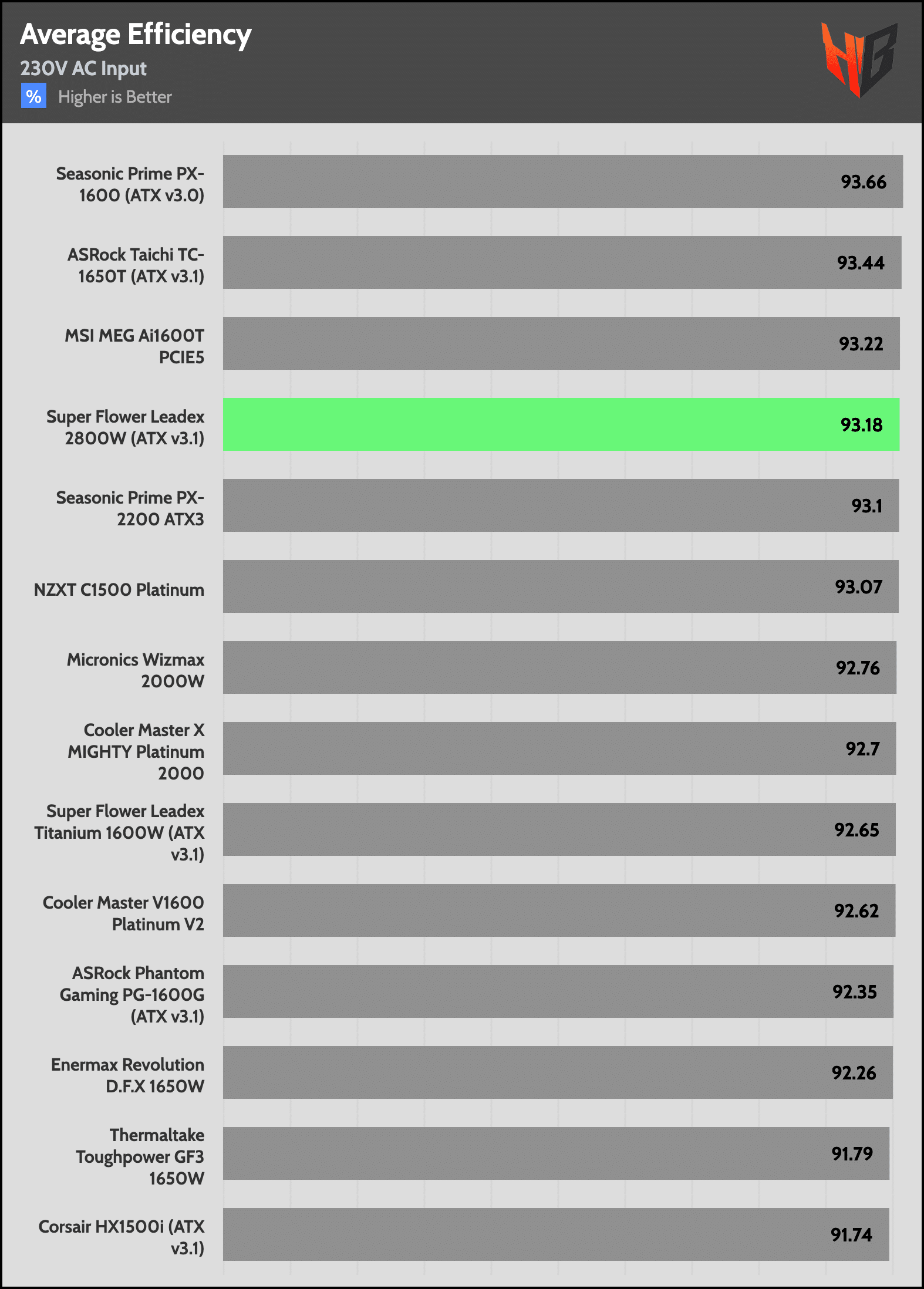

Average Efficiency
The average efficiency meets the Cybenetics Titanium criteria.

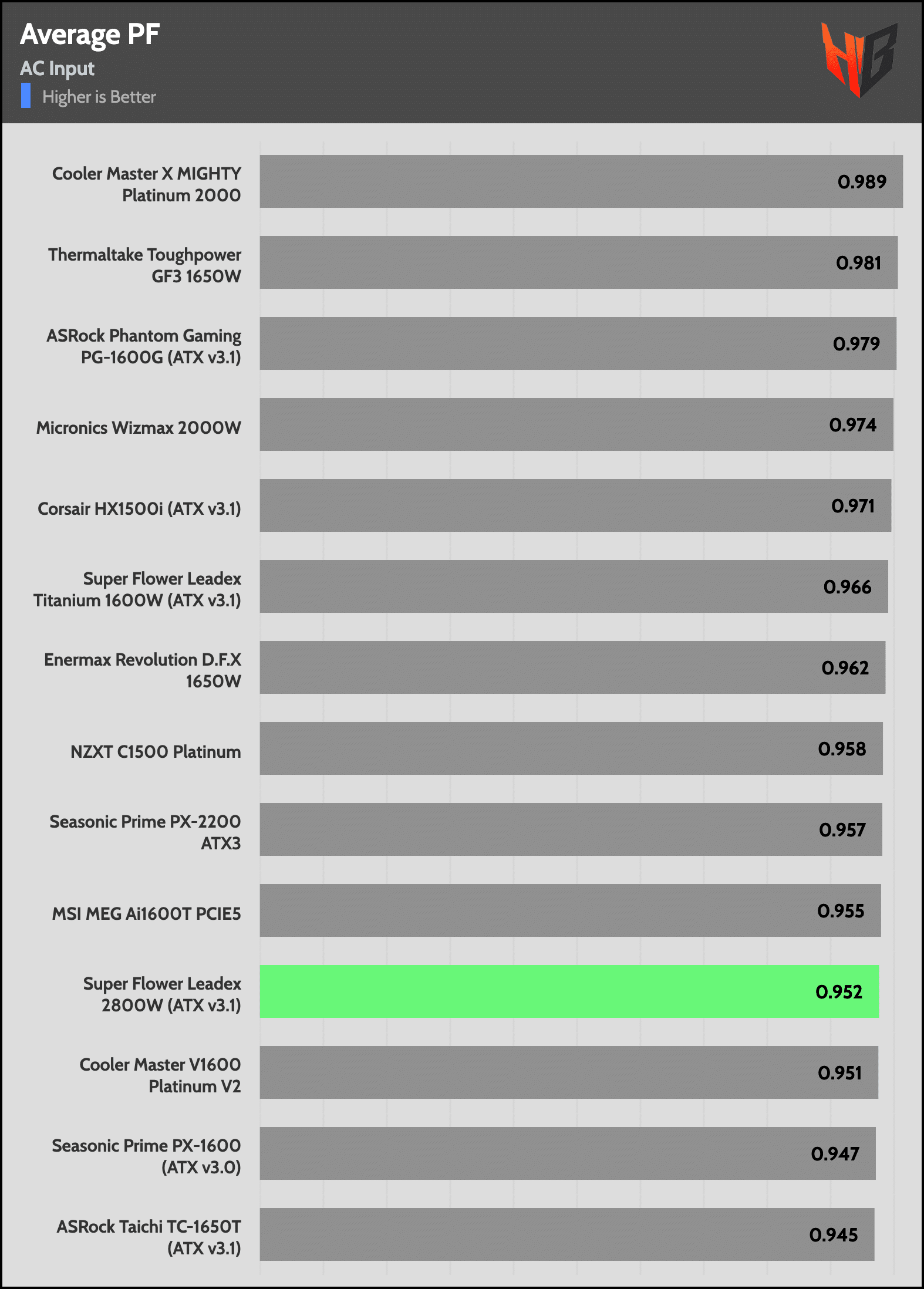

Average PF
I would like to see higher PF readings. At some point, once the PSU manufacturers decide to pay more attention to 230V PF readings, it is time for Cybenetics to tighten the 230V efficiency certification requirements in this aspect.

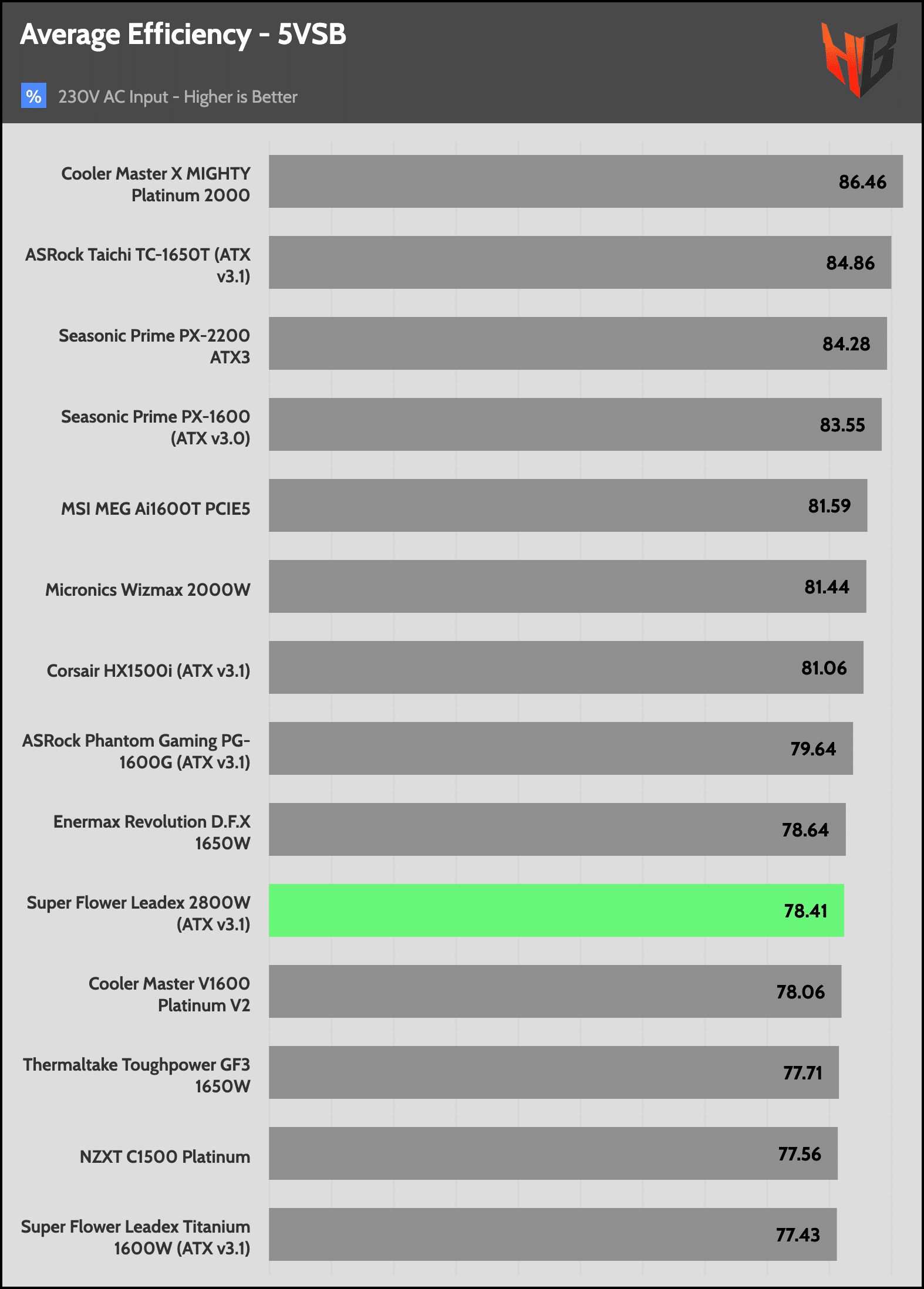

Average Efficiency 5VSB
The 5VSB rail’s efficiency is not high enough.
Vampire Power
Vampire power is increased. I would like to see below 0.1W on this rail.
