Transient Response
20% Load – 20ms
| Advanced Transient Response 20% - 50 Hz - No Caps | ||||
| Voltage | Before | After | Change | Pass/Fail |
| 12V | 12.076V | 12.014V | 0.51% | Pass |
| 5V | 5.021V | 4.890V | 2.61% | Pass |
| 3.3V | 3.305V | 3.205V | 3.03% | Pass |
| 5VSB | 5.056V | 5.018V | 0.74% | Pass |
50% Load -20ms
| Advanced Transient Response 50% - 50 Hz - No Caps | ||||
| Voltage | Before | After | Change | Pass/Fail |
| 12V | 12.044V | 11.993V | 0.42% | Pass |
| 5V | 5.017V | 4.890V | 2.54% | Pass |
| 3.3V | 3.299V | 3.196V | 3.13% | Pass |
| 5VSB | 5.018V | 4.977V | 0.82% | Pass |

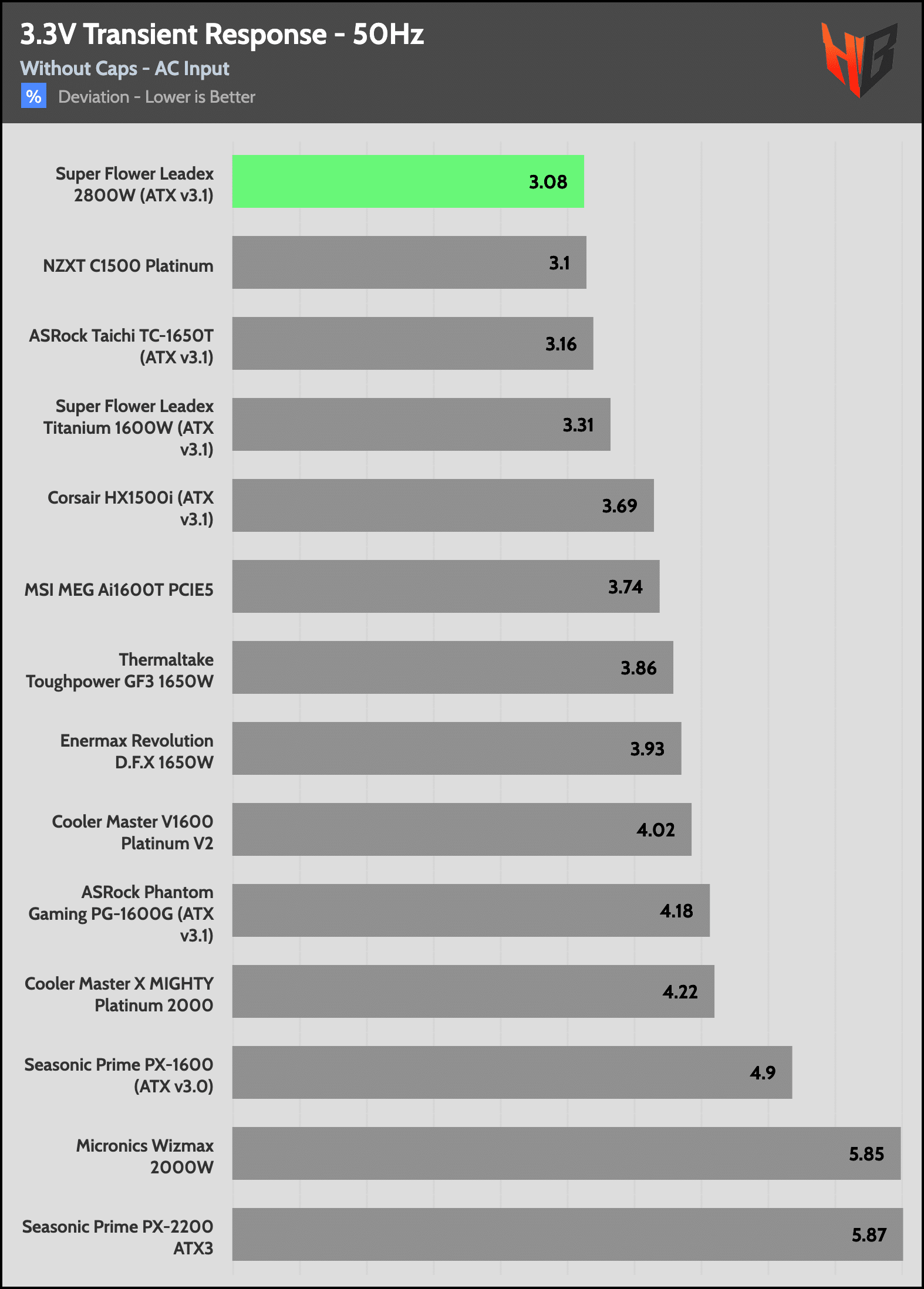

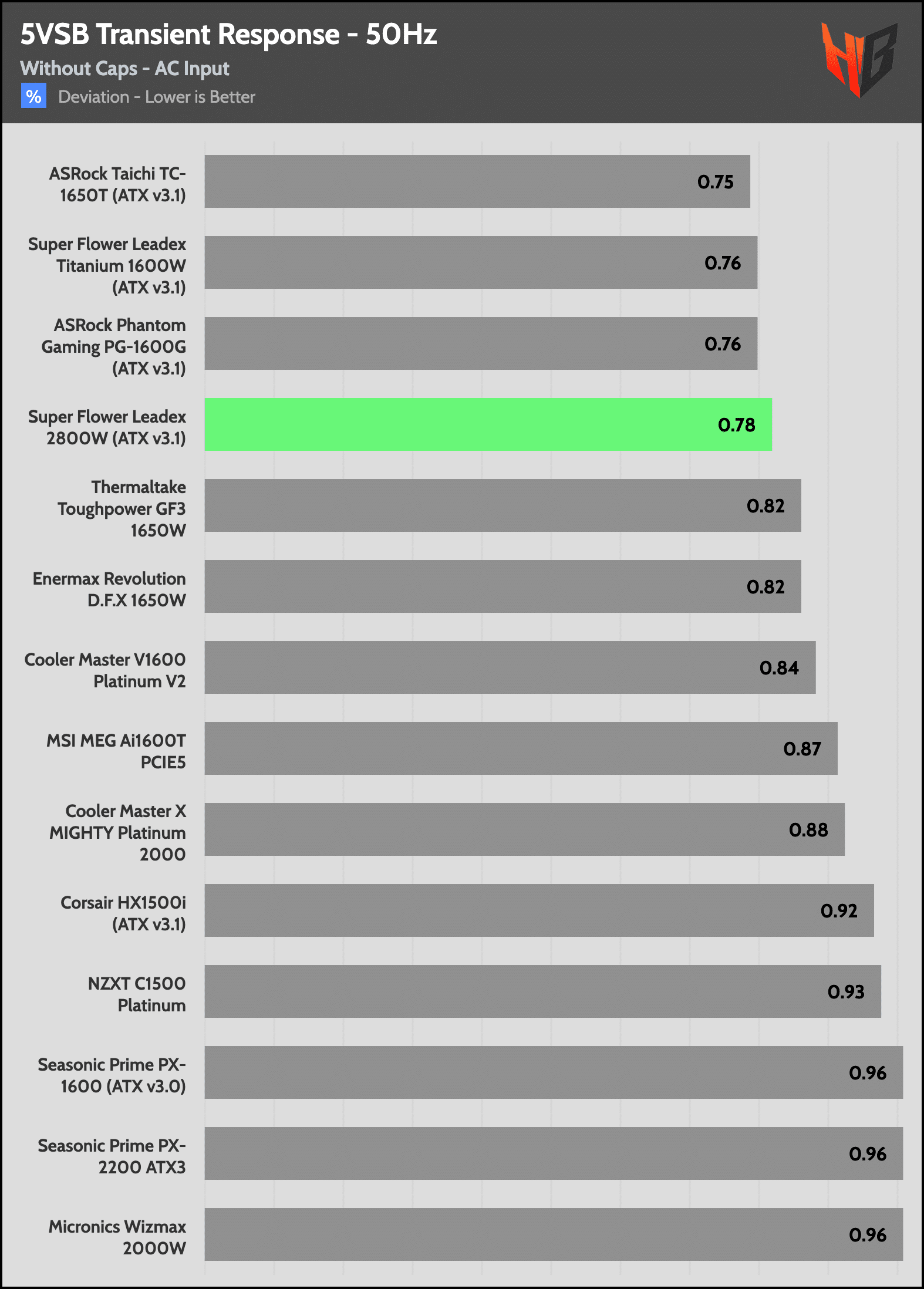

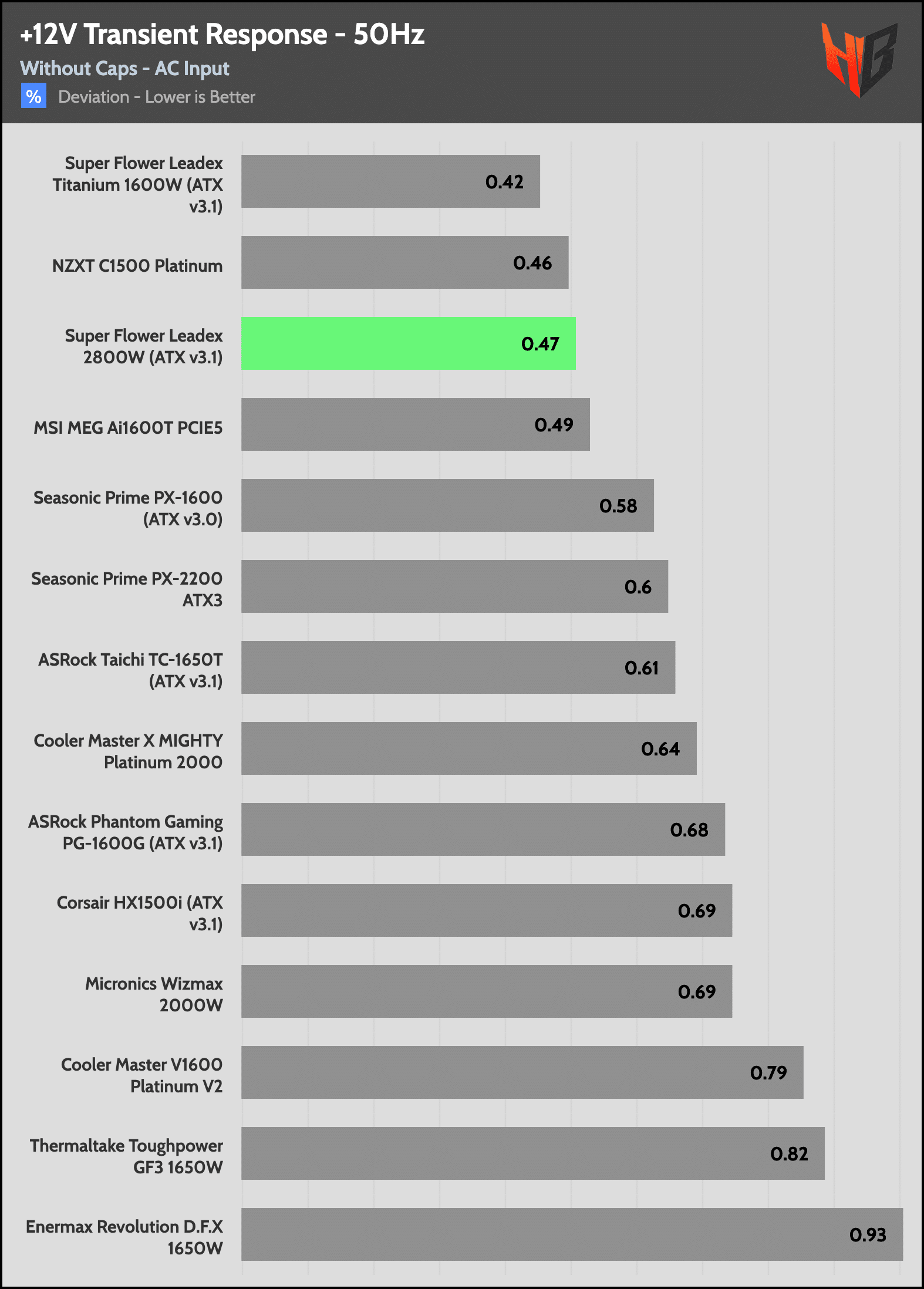

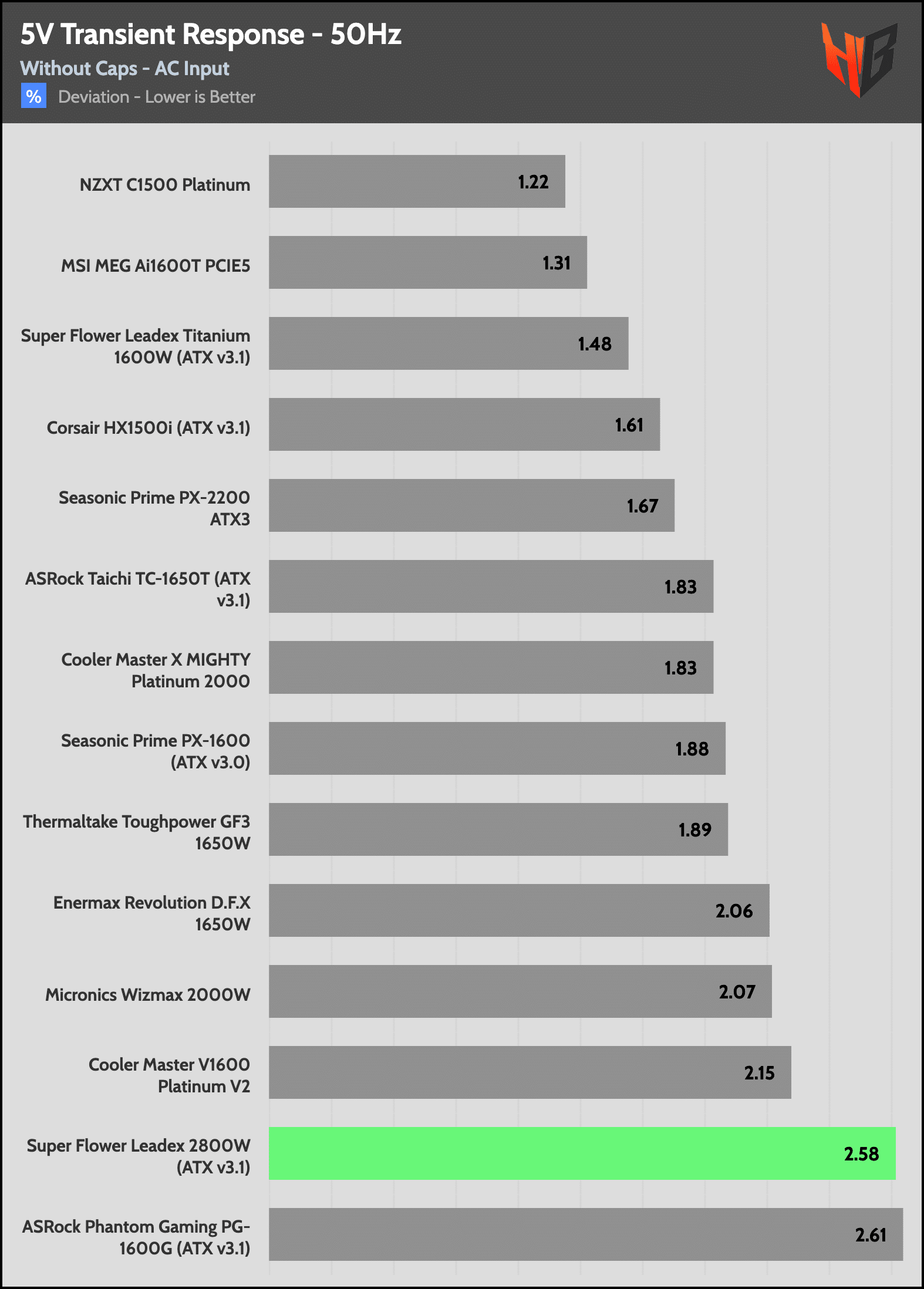

The transient response at 12V is excellent, but this is not true for the minor rails. At 5V, the deviation is high, while at 3.3V, the voltage level drops below 3.2V in the second test.

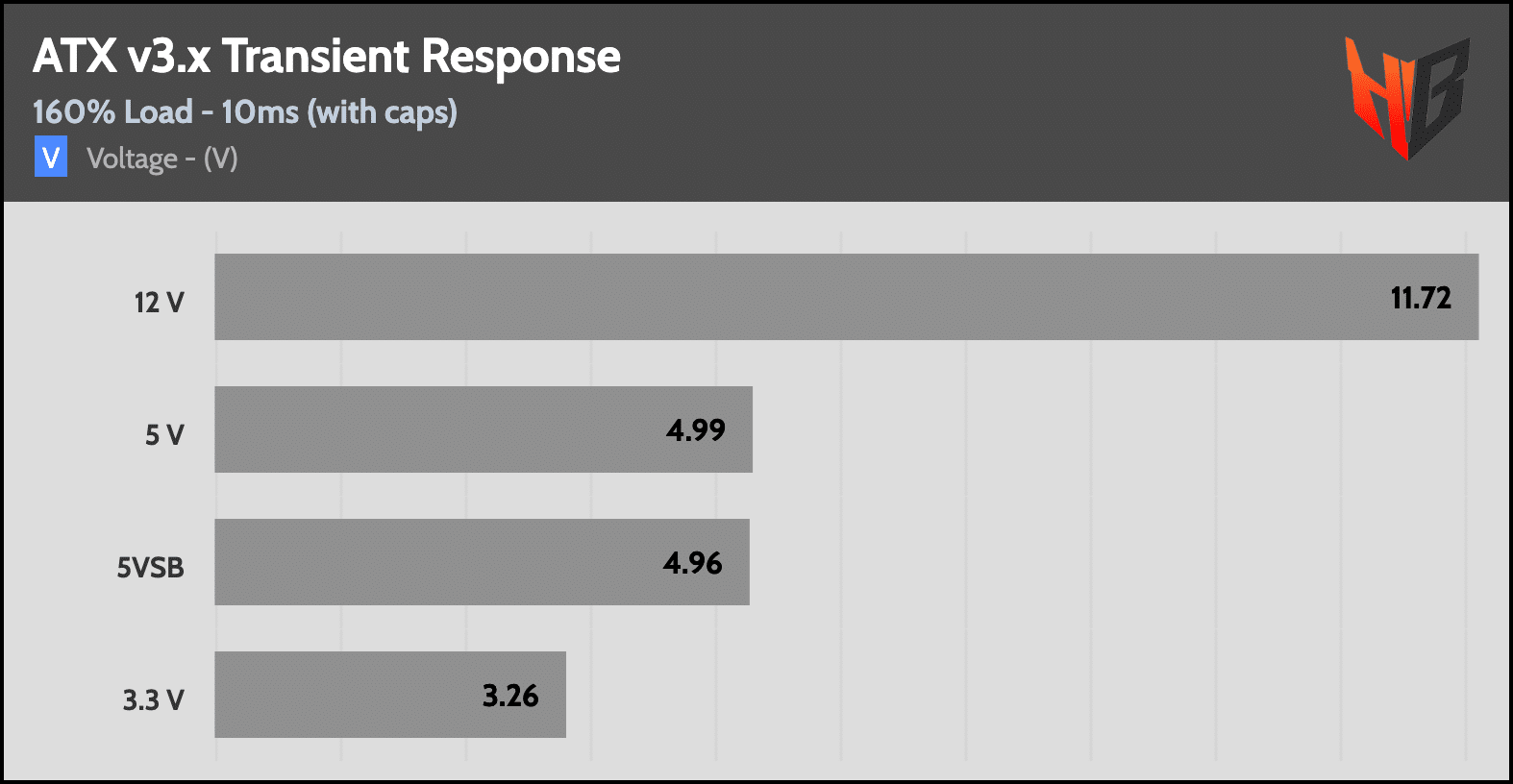

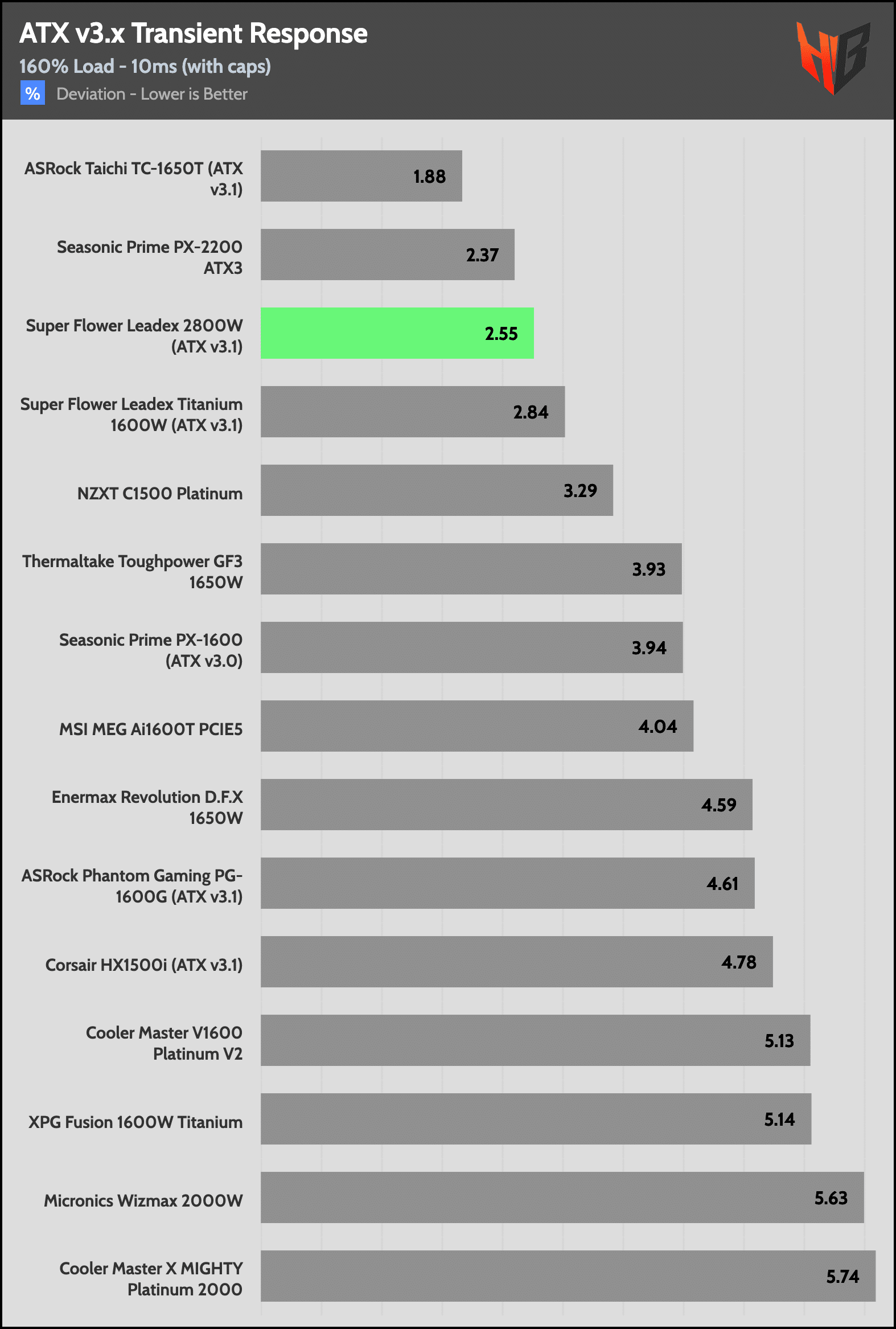

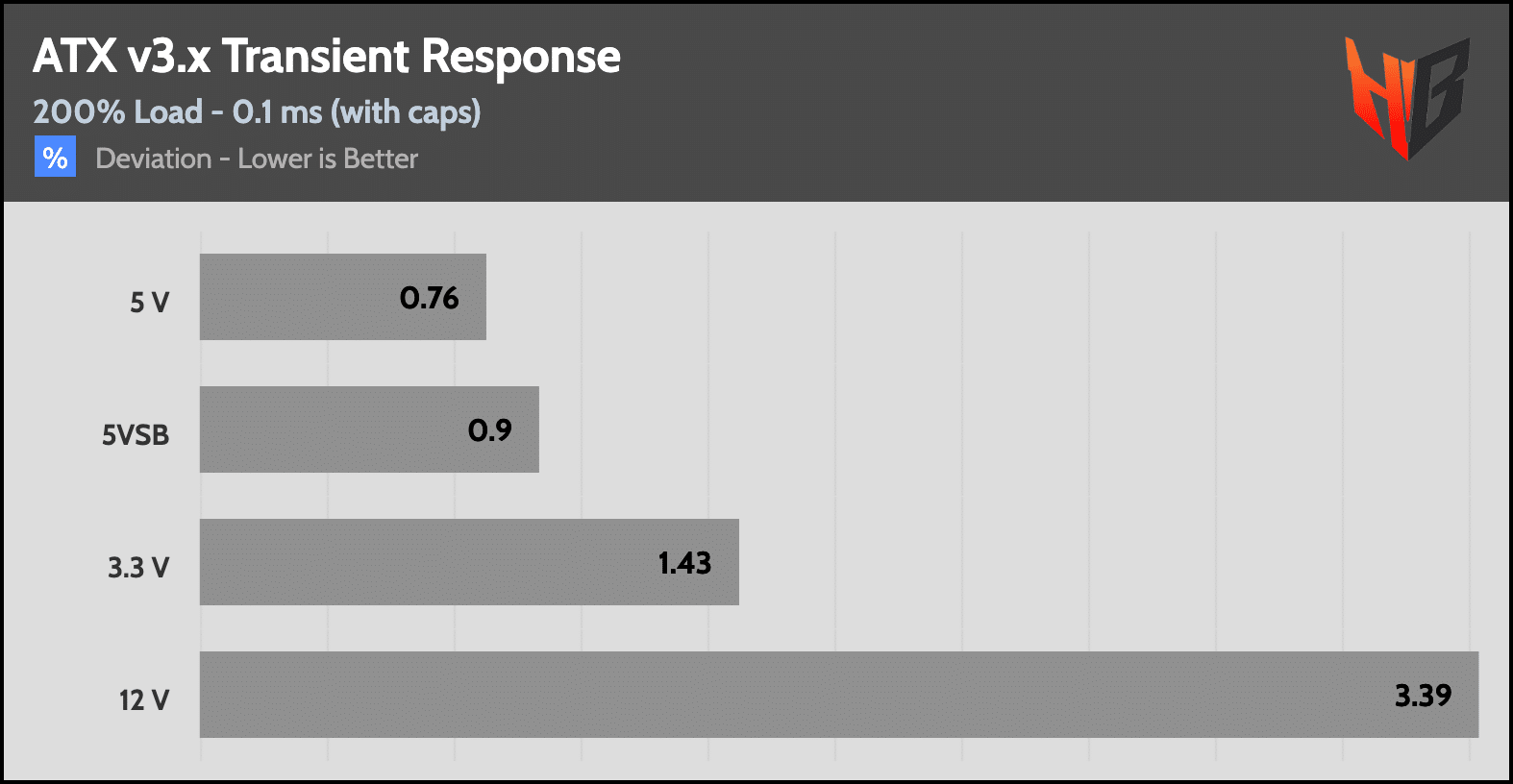

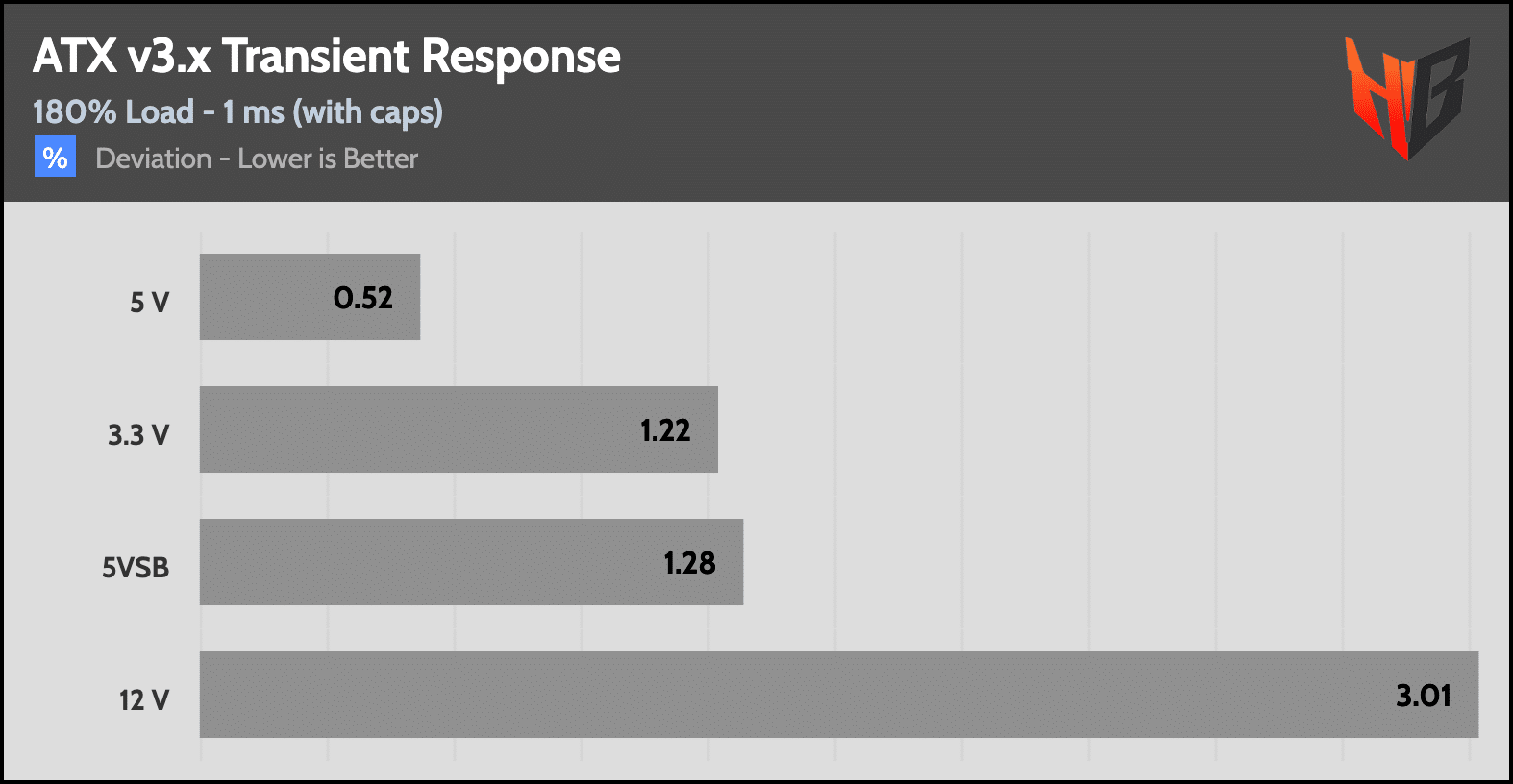

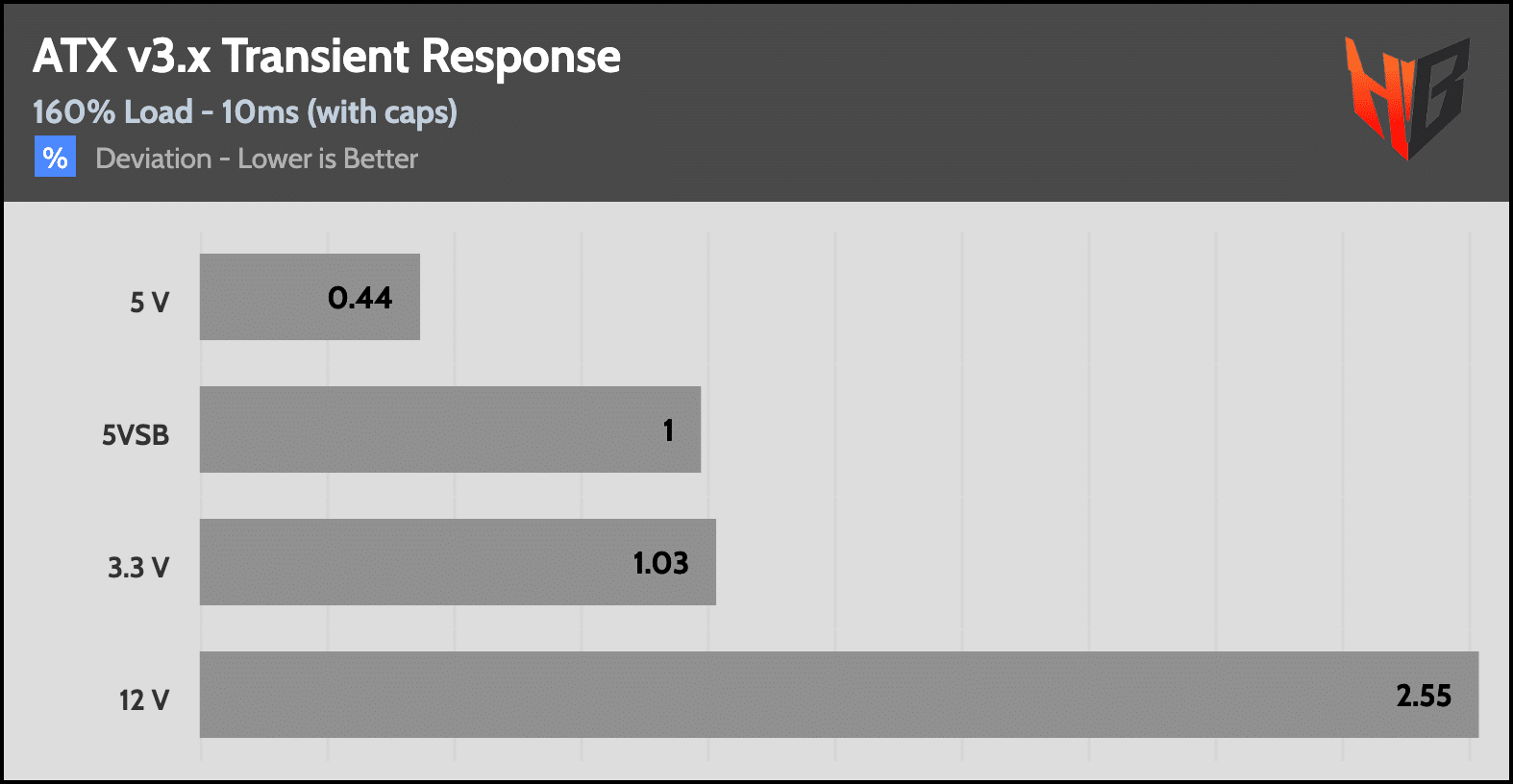

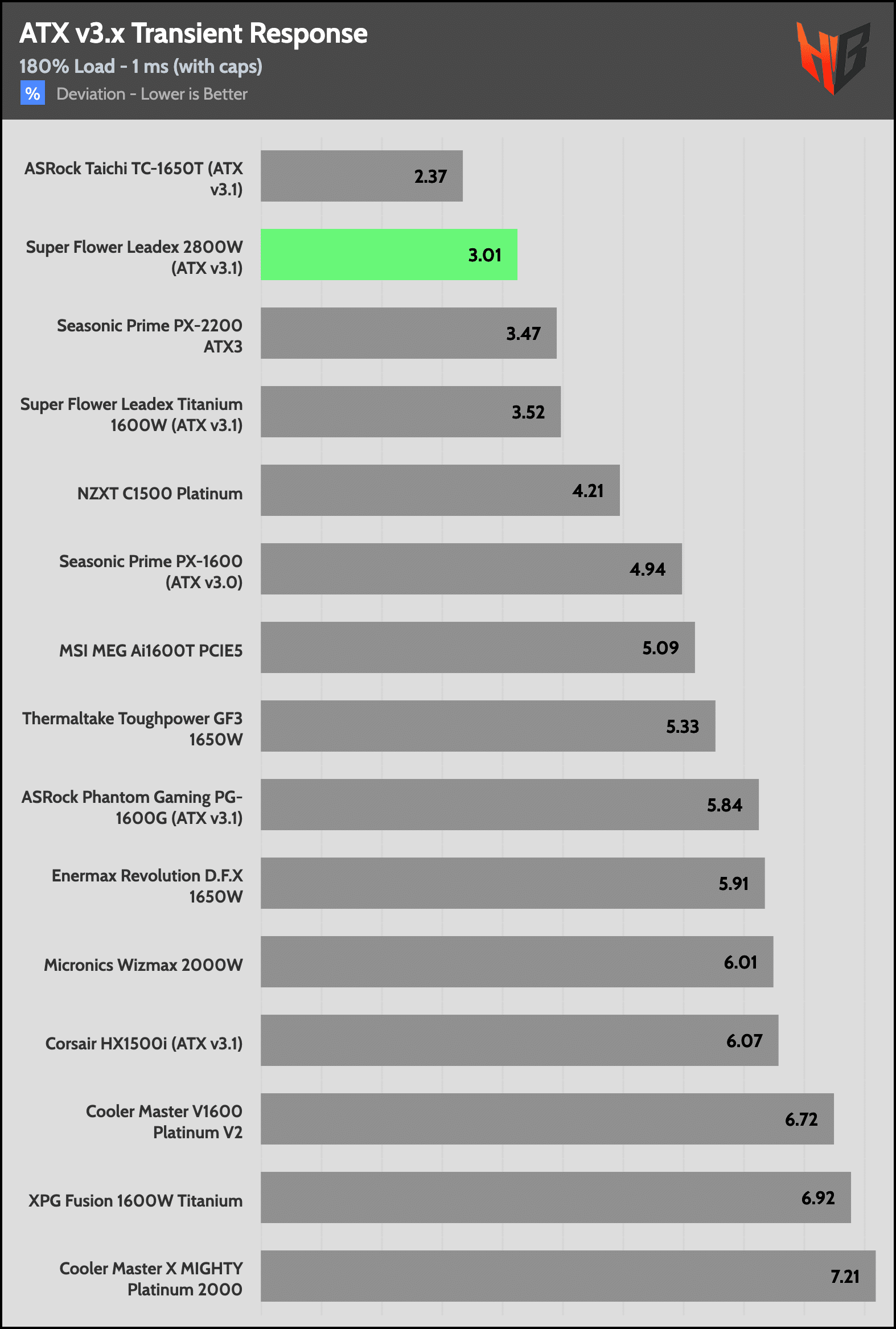

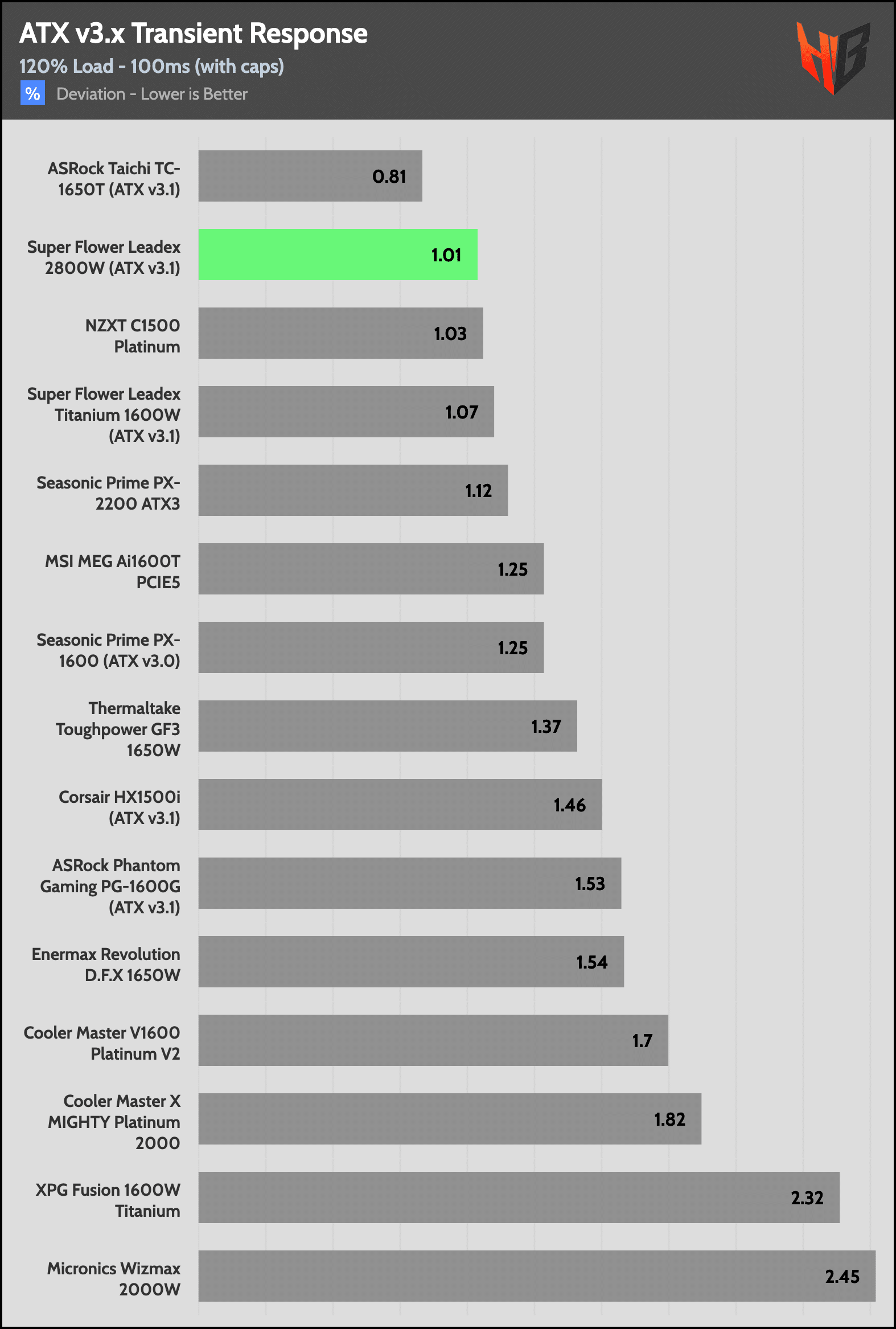

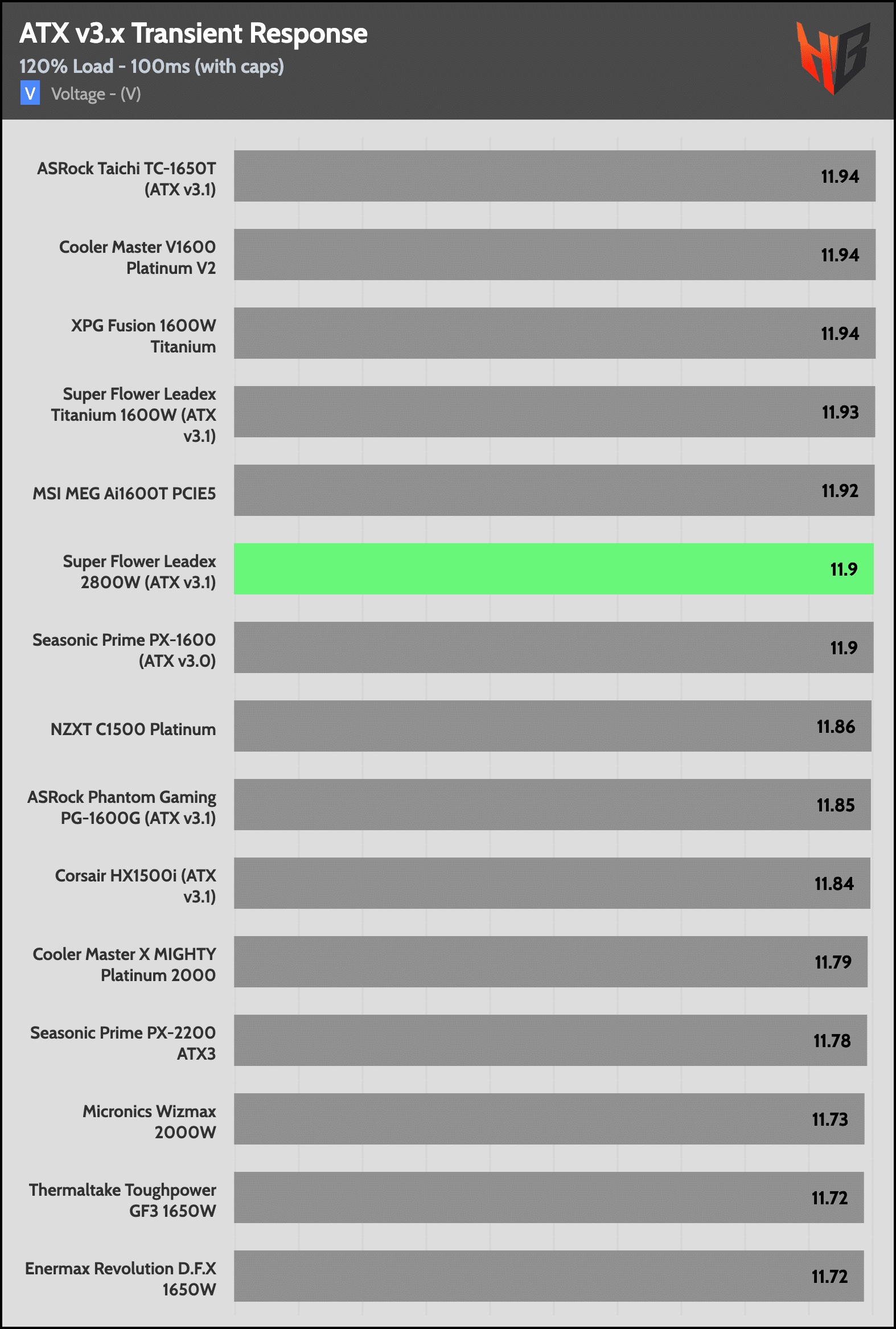

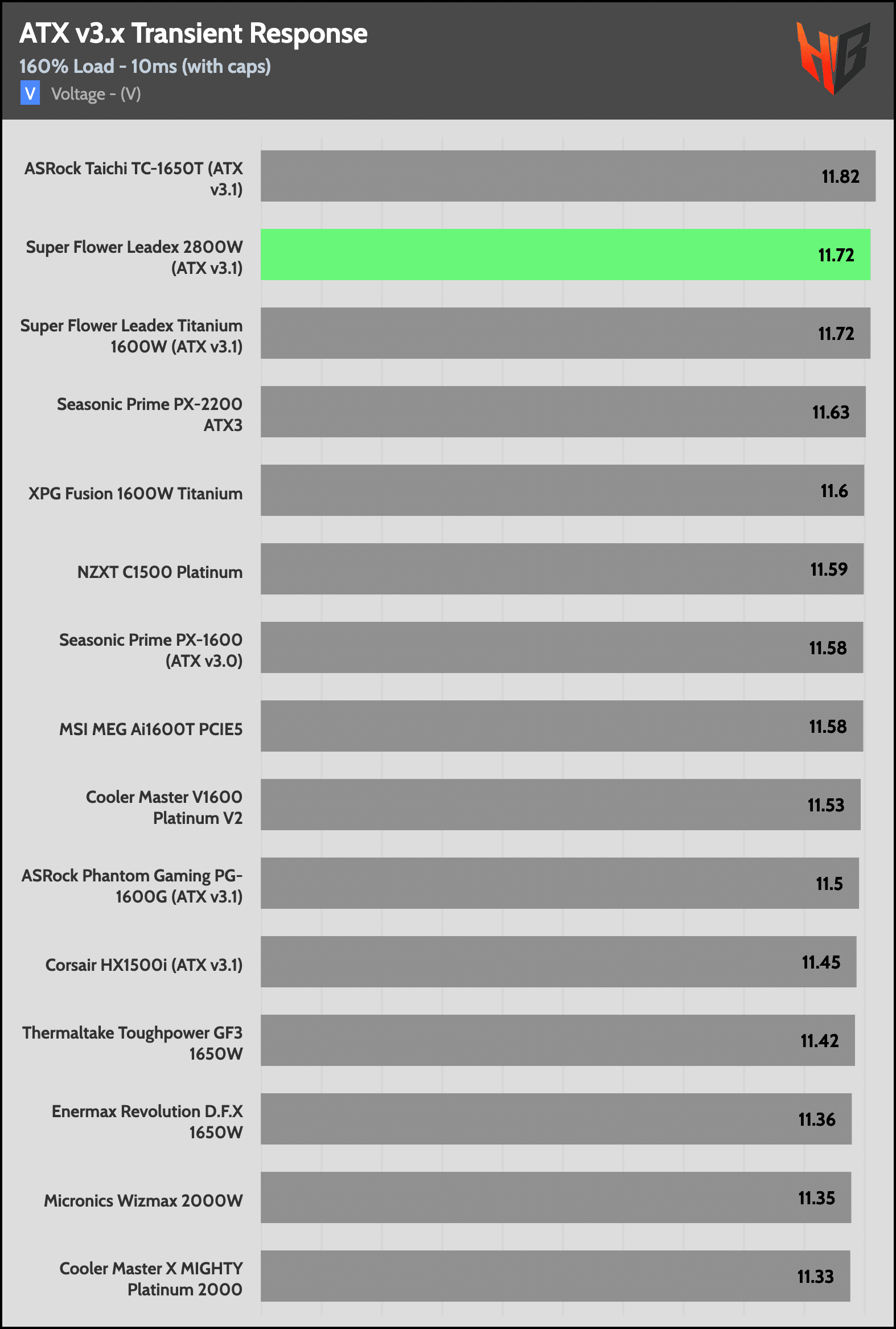

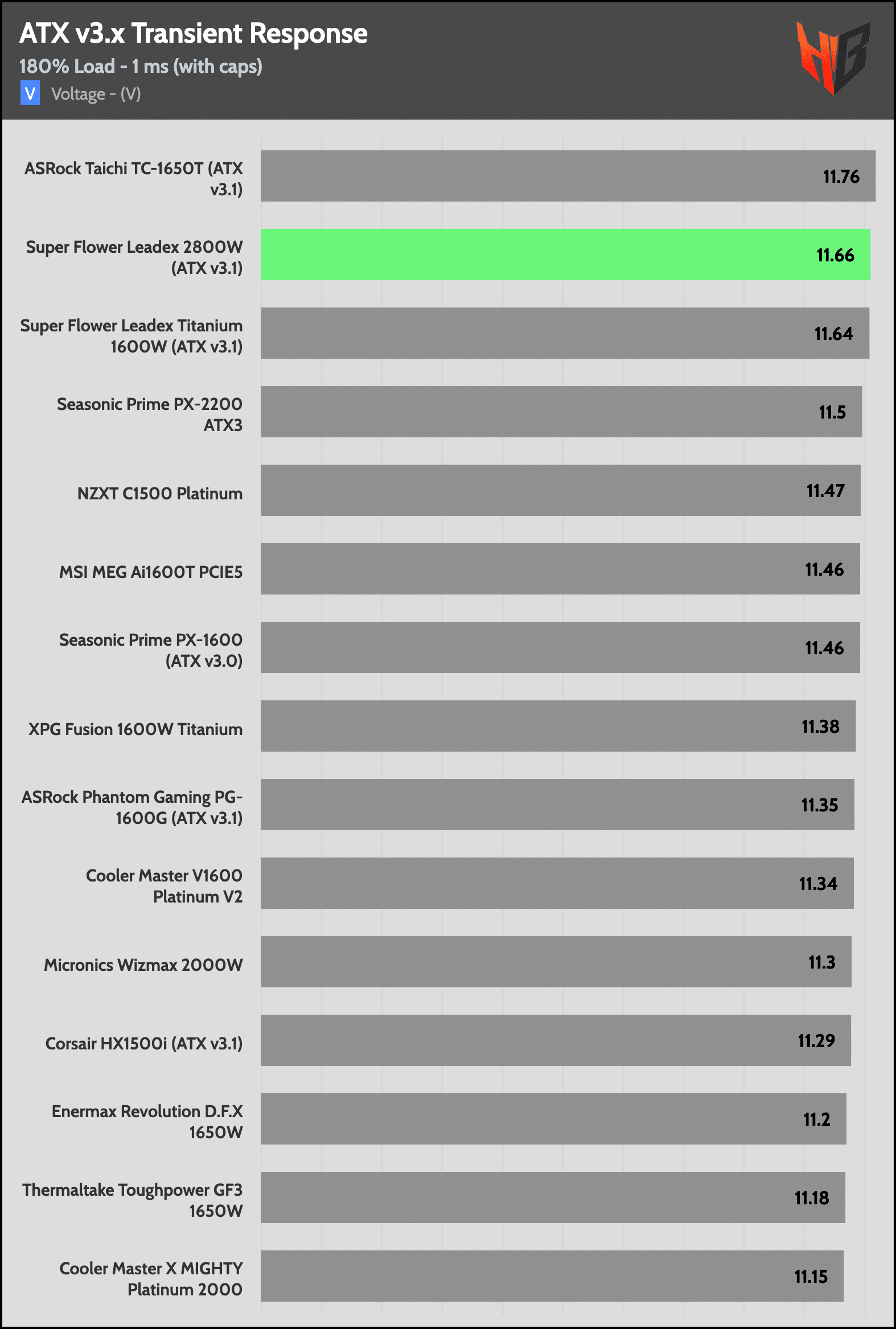

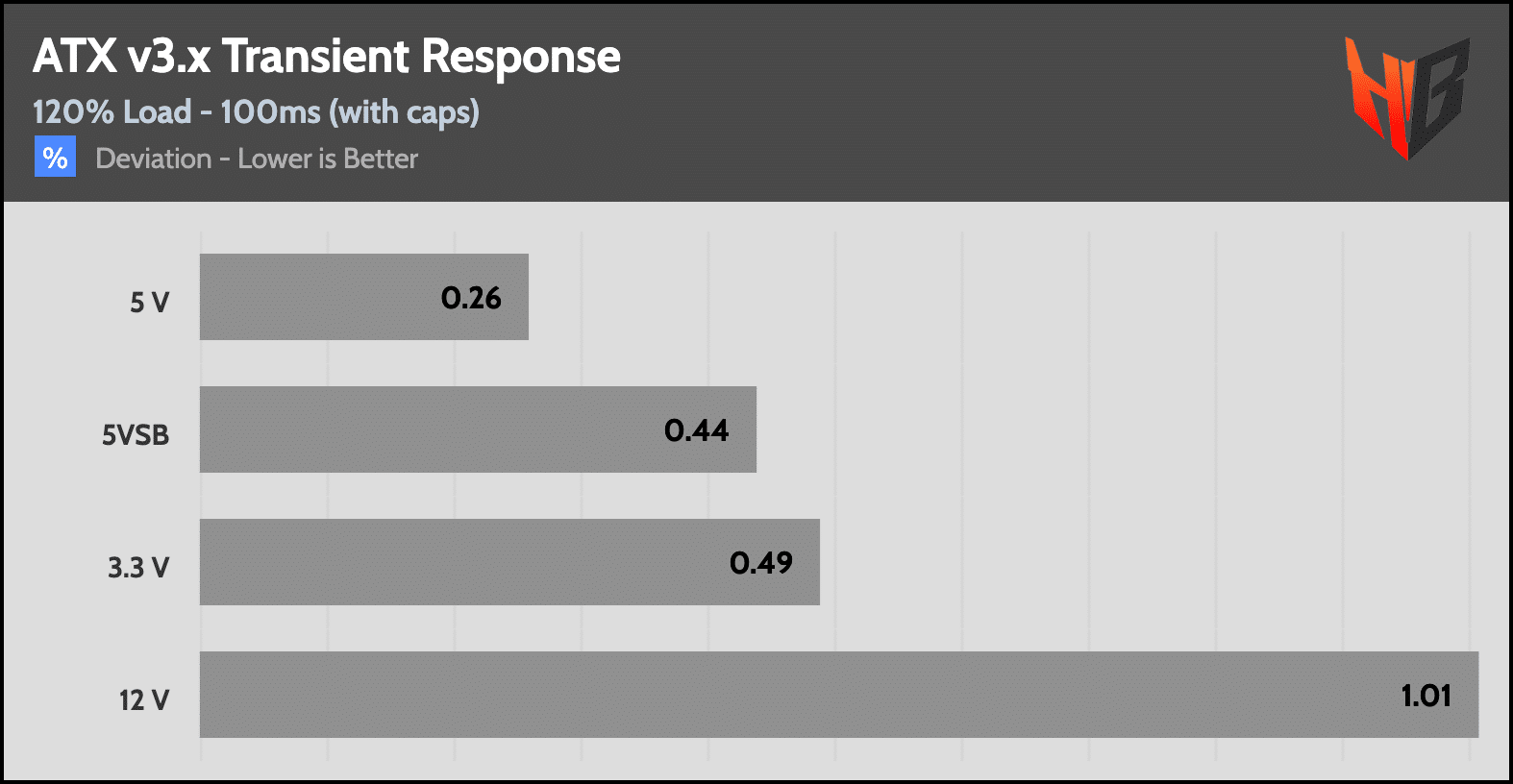

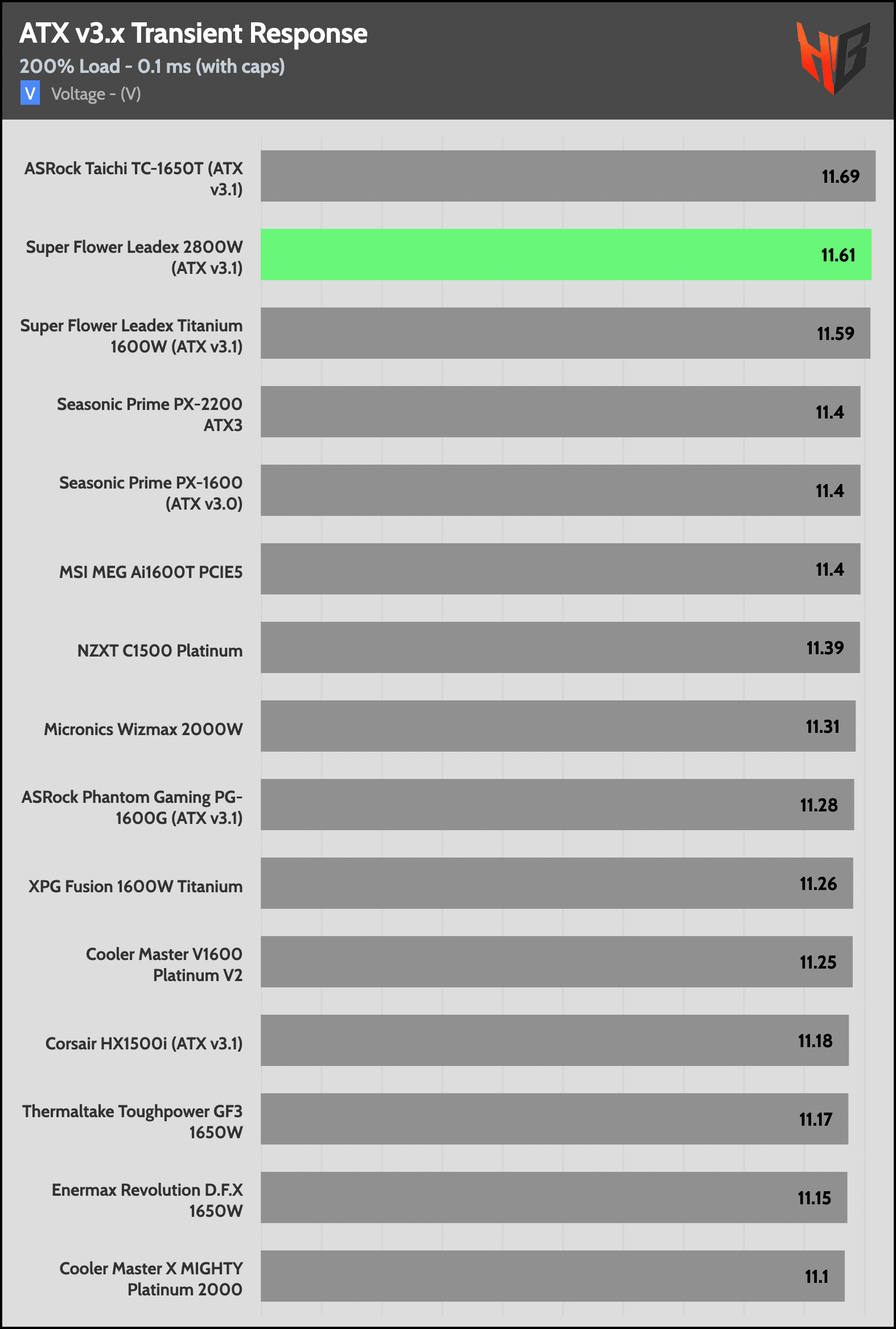

Transient Response ATX v3.1 Tests
The PSU passes all ATX v3.1 transient response tests.
The 12V rail’s performance is impressive!
