Load Regulation
| Test | 12V | 5V | 3.3V | 5VSB | DC/AC (Watts) | Efficiency | Fan Speed (RPM) | PSU Noise (dB[A]) | Temps (In/Out) | PF/AC Volts |
| 10% | 21.377A | 1.99A | 1.995A | 0.986A | 280.036 | 93.092% | 606 | 13.2 | 40.25°C | 0.847 |
| 12.089V | 5.025V | 3.308V | 5.069V | 300.834 | 44.32°C | 229.78V | ||||
| 20% | 43.778A | 2.986A | 2.994A | 1.187A | 559.71 | 94.766% | 609 | 13.3 | 40.86°C | 0.922 |
| 12.079V | 5.024V | 3.307V | 5.056V | 590.626 | 45.32°C | 229.73V | ||||
| 30% | 66.564A | 3.484A | 3.495A | 1.388A | 839.284 | 95.149% | 918 | 25.4 | 41.36°C | 0.956 |
| 12.067V | 5.023V | 3.305V | 5.043V | 882.079 | 46.33°C | 229.69V | ||||
| 40% | 89.464A | 3.983A | 3.996A | 1.591A | 1119.717 | 95.069% | 1165 | 33.6 | 41.64°C | 0.972 |
| 12.055V | 5.022V | 3.304V | 5.031V | 1177.789 | 46.34°C | 229.64V | ||||
| 50% | 111.974A | 4.98A | 4.998A | 1.793A | 1399.439 | 94.756% | 1558 | 41.2 | 42.12°C | 0.982 |
| 12.047V | 5.021V | 3.302V | 5.019V | 1476.891 | 47.59°C | 229.6V | ||||
| 60% | 134.549A | 5.978A | 6.001A | 1.998A | 1679.945 | 94.215% | 1881 | 45.0 | 42.56°C | 0.985 |
| 12.041V | 5.019V | 3.3V | 5.006V | 1783.104 | 47.63°C | 229.55V | ||||
| 70% | 157.102A | 6.976A | 7.004A | 2.204A | 1959.626 | 93.587% | 2231 | 48.9 | 43.2°C | 0.988 |
| 12.034V | 5.018V | 3.299V | 4.992V | 2093.917 | 48.88°C | 229.5V | ||||
| 80% | 179.740A | 7.973A | 8.008A | 2.31A | 2239.61 | 93.076% | 2483 | 51.6 | 43.82°C | 0.99 |
| 12.027V | 5.017V | 3.297V | 4.98V | 2406.228 | 50.2°C | 229.45V | ||||
| 90% | 202.734A | 8.473A | 8.497A | 2.416A | 2519.347 | 92.498% | 2714 | 53.6 | 44.26°C | 0.991 |
| 12.020V | 5.016V | 3.295V | 4.969V | 2723.677 | 51.8°C | 229.39V | ||||
| 100% | 225.563A | 8.974A | 9.018A | 3.032A | 2799.263 | 92.01% | 2997 | 56.3 | 45.51°C | 0.992 |
| 12.012V | 5.015V | 3.294V | 4.949V | 3042.363 | 53.36°C | 229.34V | ||||
| CL1 | 0.118A | 11.997A | 12.012A | 0A | 101.332 | 80.167% | 1587 | 41.3 | 42.08°C | 0.832 |
| 12.102V | 5.018V | 3.305V | 5.089V | 126.411 | 52.65°C | 229.8V | ||||
| CL2 | 0.116A | 19.917A | 0A | 0A | 101.369 | 79.611% | 1315 | 36.0 | 42.3°C | 0.832 |
| 12.100V | 5.019V | 3.298V | 5.09V | 127.331 | 51.56°C | 229.81V | ||||
| CL3 | 0.116A | 0A | 19.912A | 0A | 67.394 | 72.926% | 1073 | 30.7 | 42.87°C | 0.774 |
| 12.100V | 5.024V | 3.314V | 5.09V | 92.418 | 50.68°C | 229.81V | ||||
| CL4 | 233.156A | 0A | 0A | 0A | 2799.858 | 92.385% | 2694 | 53.5 | 44.65°C | 0.992 |
| 12.008V | 5.024V | 3.299V | 5.006V | 3030.642 | 50.43°C | 229.35V |

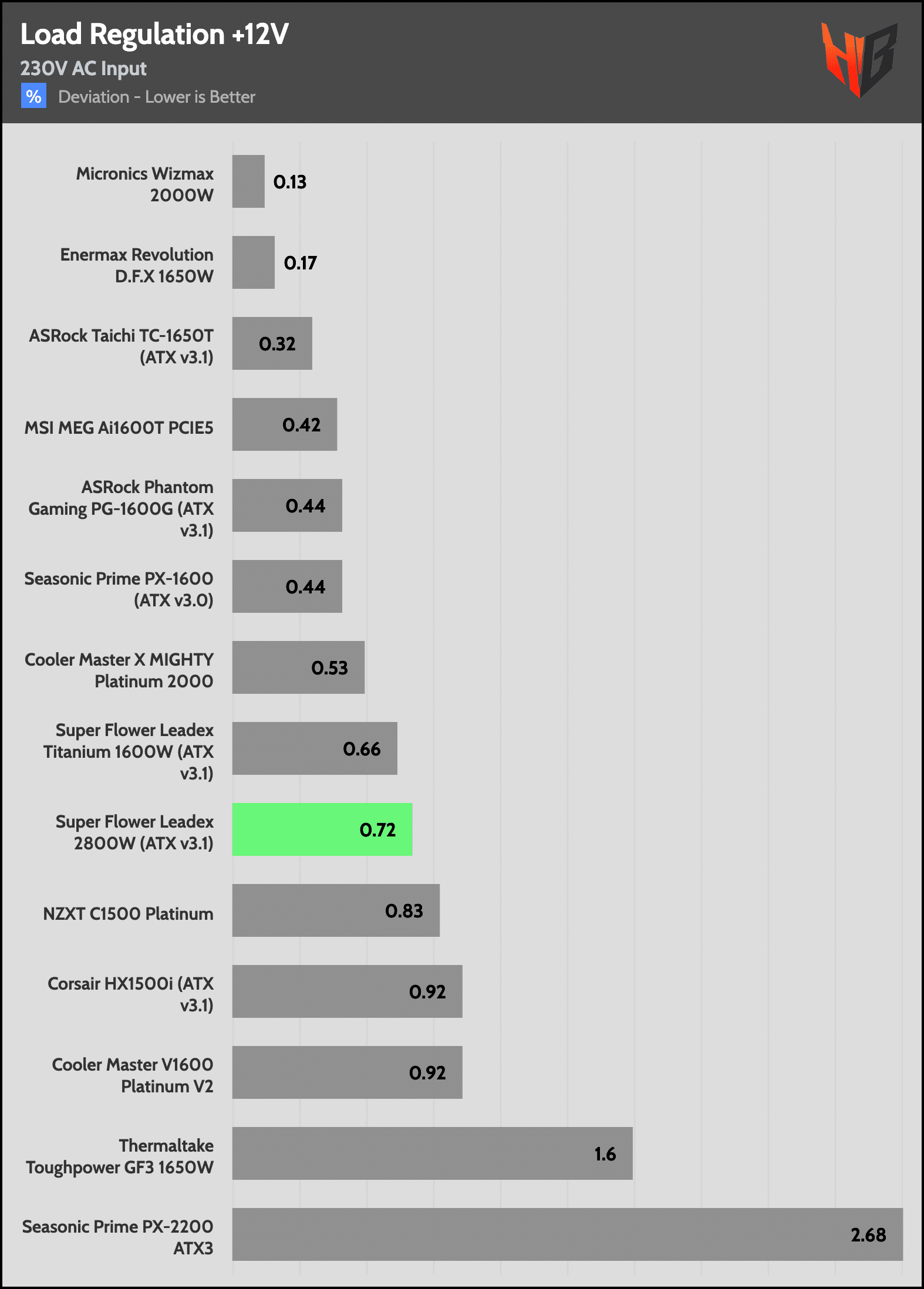

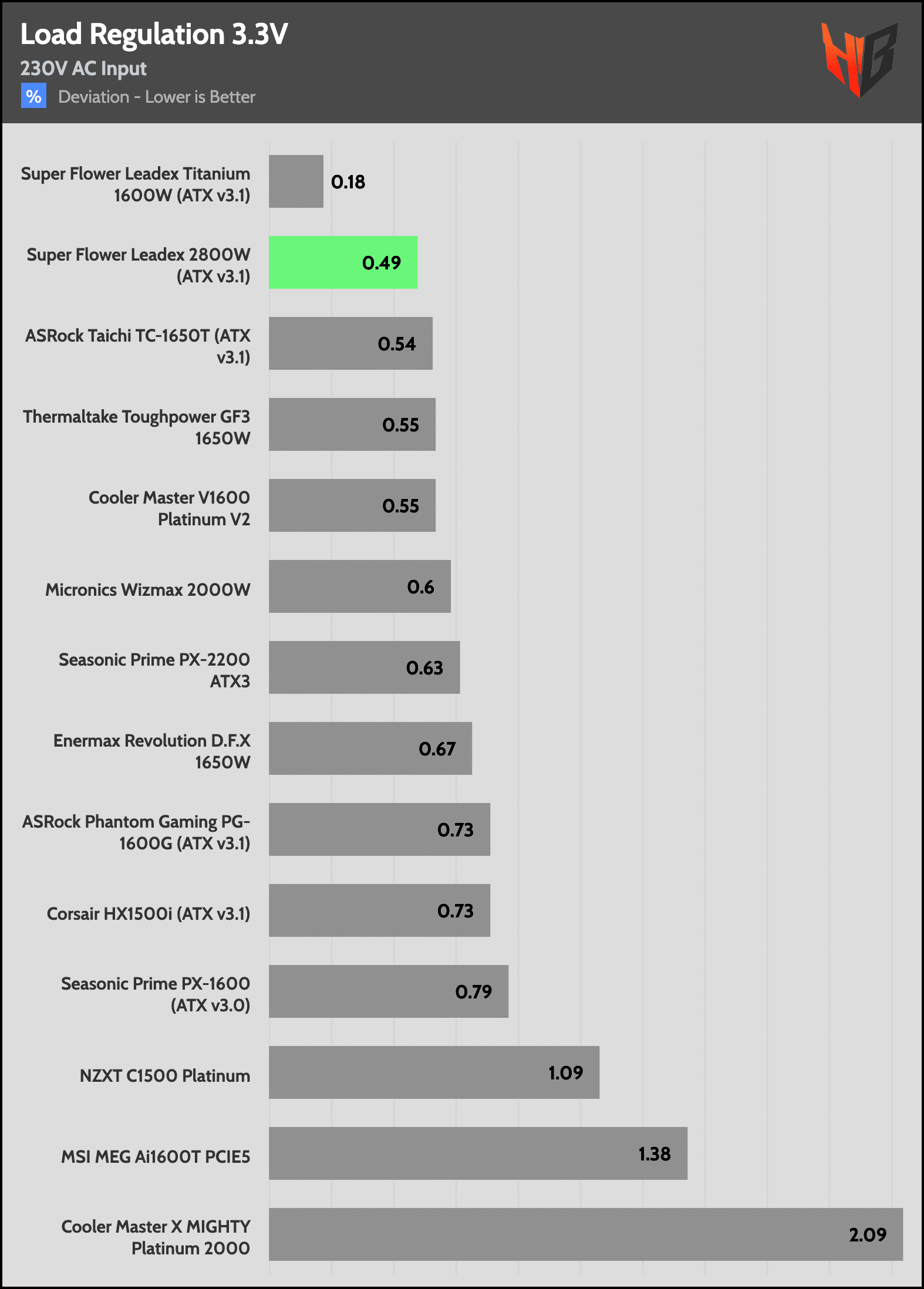

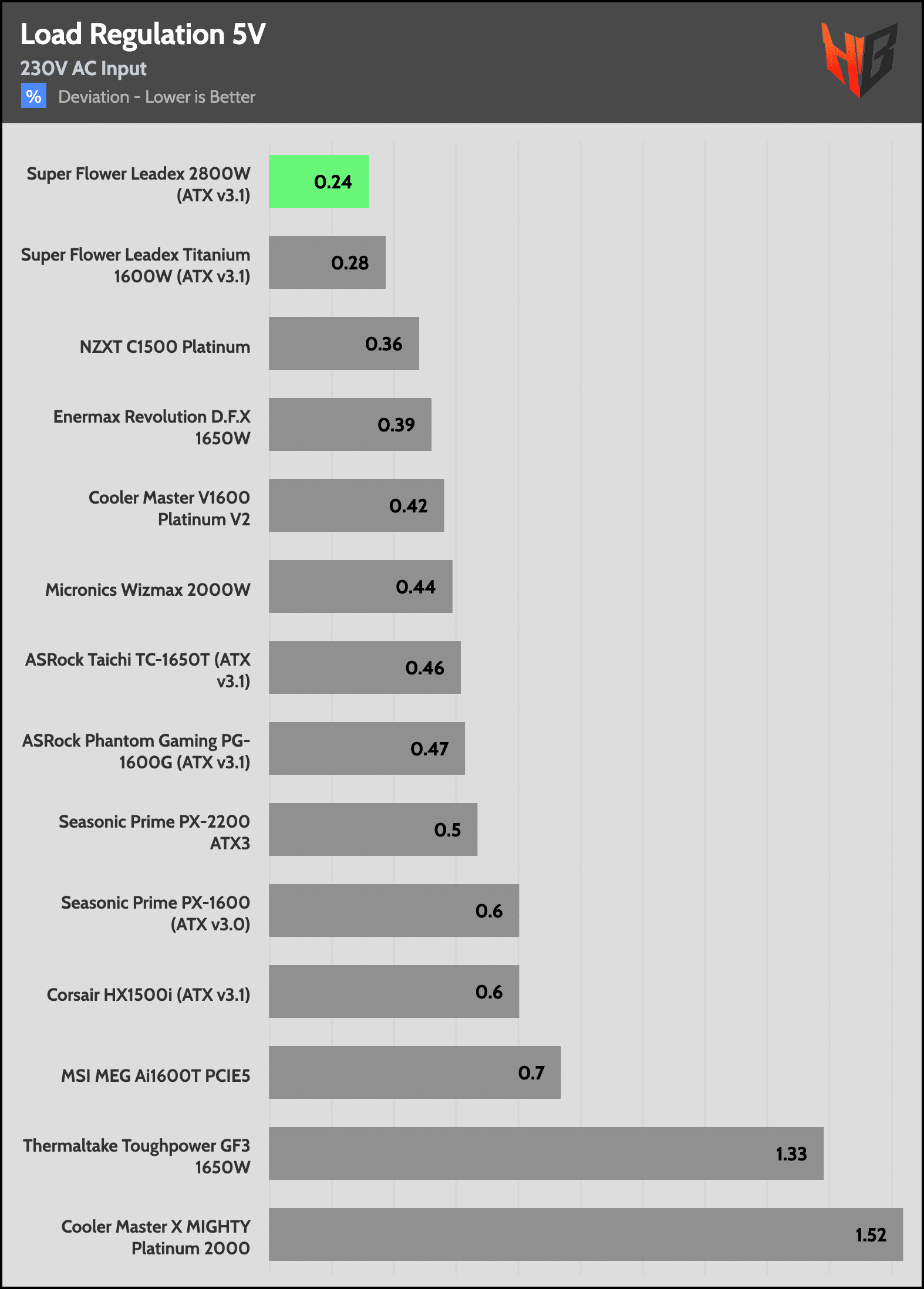

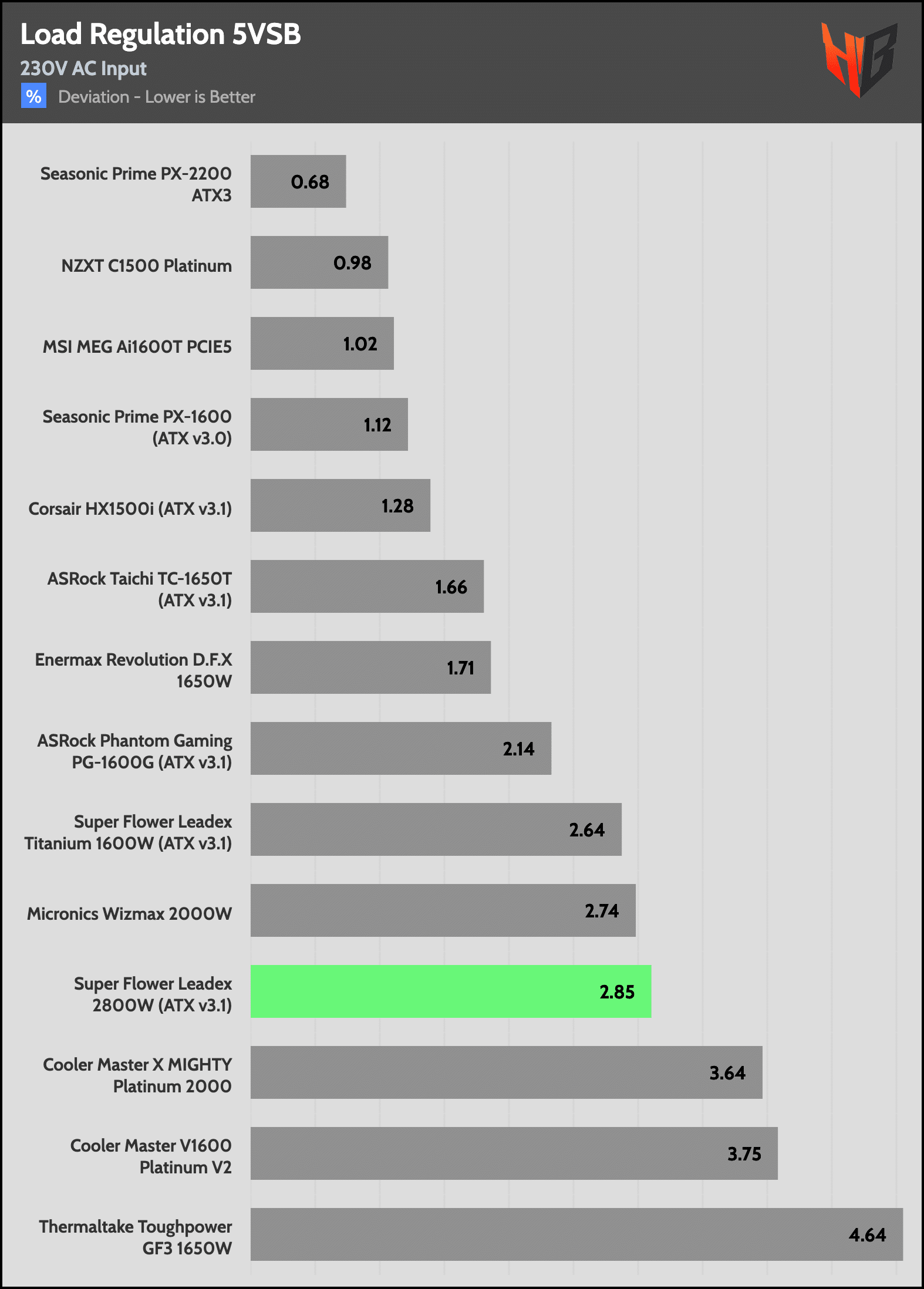

Load regulation is tight.
| Test | 12V | 5V | 3.3V | 5VSB | DC/AC (Watts) | Efficiency | Fan Speed (RPM) | PSU Noise (dB[A]) | Temps (In/Out) | PF/AC Volts |
| 20W | 1.227A | 0.497A | 0.498A | 0.196A | 19.994 | 59.187% | 587 | 12 | 36.03°C | 0.451 |
| 12.098V | 5.027V | 3.31V | 5.09V | 34.422 | 38.82°C | 229.82V | ||||
| 40W | 2.702A | 0.696A | 0.698A | 0.295A | 39.998 | 71.063% | 591 | 12.5 | 37.03°C | 0.639 |
| 12.099V | 5.027V | 3.31V | 5.088V | 56.29 | 36.75°C | 229.82V | ||||
| 60W | 4.176A | 0.895A | 0.897A | 0.393A | 59.998 | 78.815% | 596 | 13 | 38.27°C | 0.728 |
| 12.098V | 5.026V | 3.309V | 5.086V | 76.125 | 38.88°C | 229.82V | ||||
| 80W | 5.648A | 1.094A | 1.097A | 0.492A | 79.94 | 82.333% | 599 | 13.1 | 39.47°C | 0.784 |
| 12.096V | 5.025V | 3.309V | 5.084V | 97.095 | 40.67°C | 229.81V |
A look at the light loads table.
Ripple Suppression
| Test | 12V | 5V | 3.3V | 5VSB | Pass/Fail |
| 10% Load | 17.5 mV | 16.0 mV | 15.5 mV | 9.8 mV | Pass |
| 20% Load | 16.8 mV | 15.0 mV | 14.7 mV | 10.1 mV | Pass |
| 30% Load | 18.9 mV | 15.5 mV | 15.1 mV | 9.7 mV | Pass |
| 40% Load | 18.0 mV | 16.2 mV | 16.3 mV | 10.8 mV | Pass |
| 50% Load | 18.7 mV | 20.6 mV | 21.1 mV | 10.1 mV | Pass |
| 60% Load | 20.3 mV | 22.3 mV | 25.6 mV | 16.3 mV | Pass |
| 70% Load | 20.2 mV | 23.0 mV | 27.7 mV | 10.7 mV | Pass |
| 80% Load | 19.3 mV | 25.5 mV | 20.4 mV | 17.1 mV | Pass |
| 90% Load | 21.2 mV | 16.9 mV | 16.5 mV | 22.0 mV | Pass |
| 100% Load | 26.4 mV | 20.0 mV | 20.8 mV | 15.9 mV | Pass |
| Crossload 1 | 20.2 mV | 16.3 mV | 16.6 mV | 32.1 mV | Pass |
| Crossload 2 | 19.0 mV | 18.2 mV | 16.4 mV | 30.0 mV | Pass |
| Crossload 3 | 18.1 mV | 16.8 mV | 17.7 mV | 30.5 mV | Pass |
| Crossload 4 | 26.3 mV | 18.0 mV | 18.7 mV | 22.0 mV | Pass |

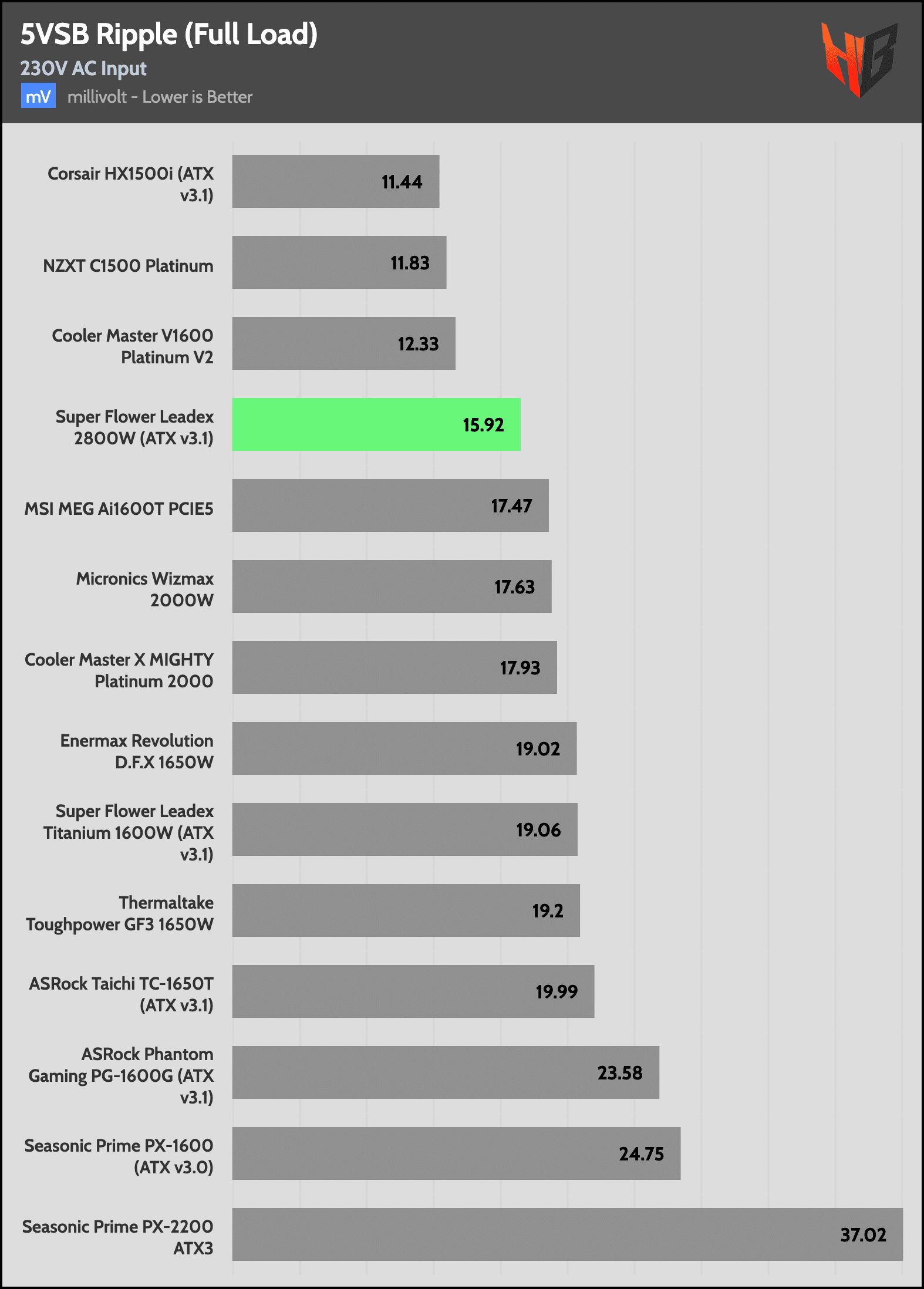

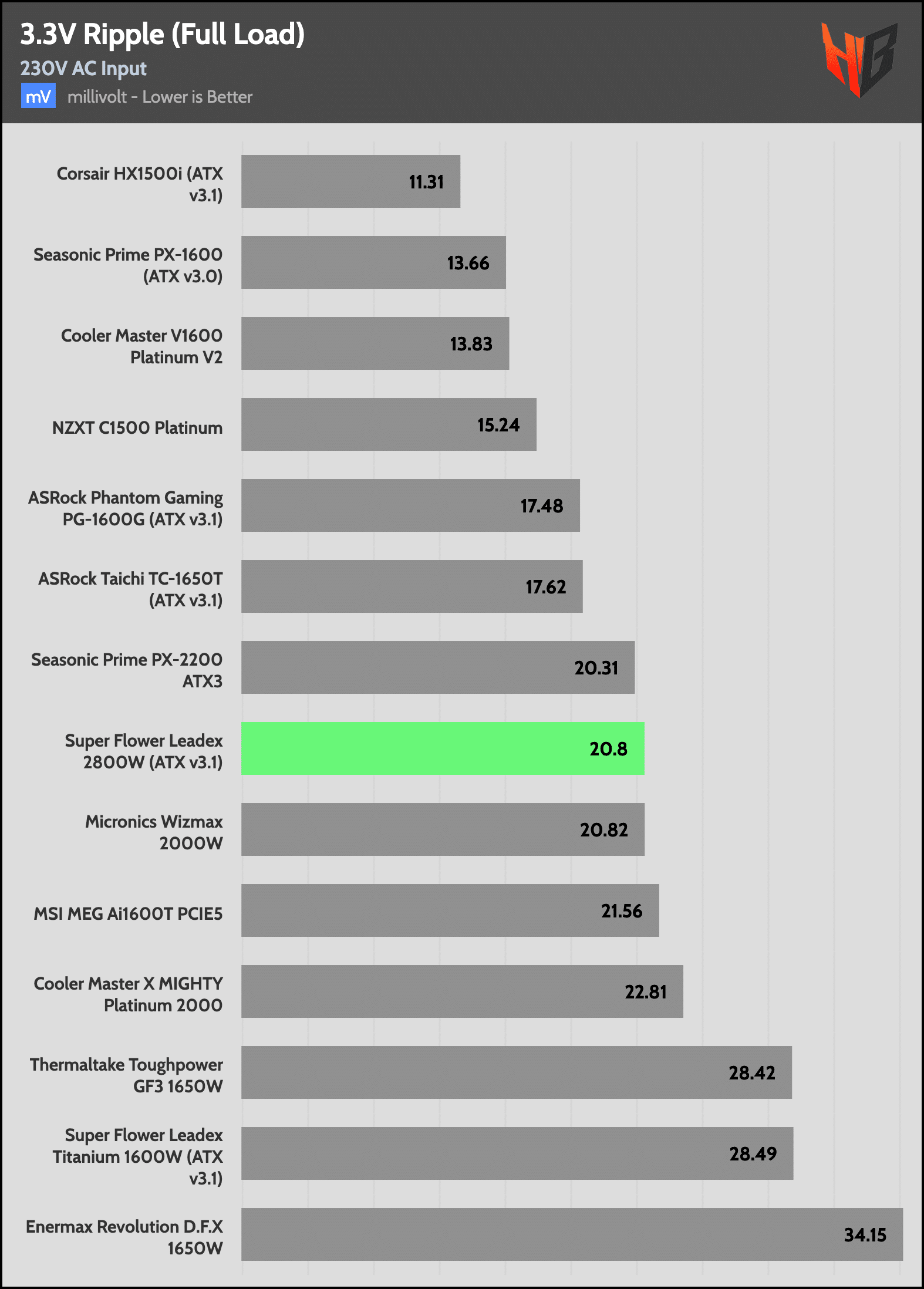

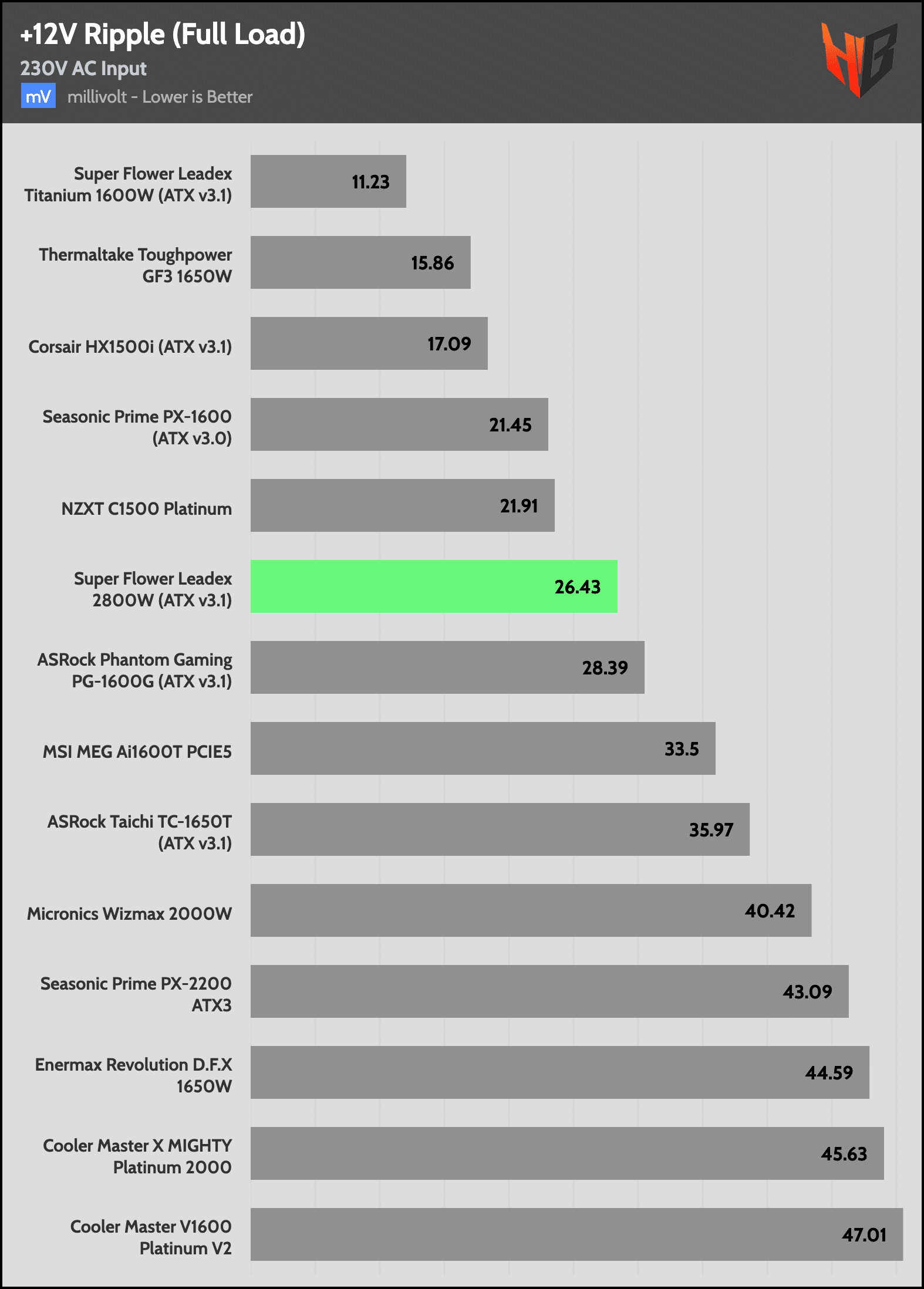

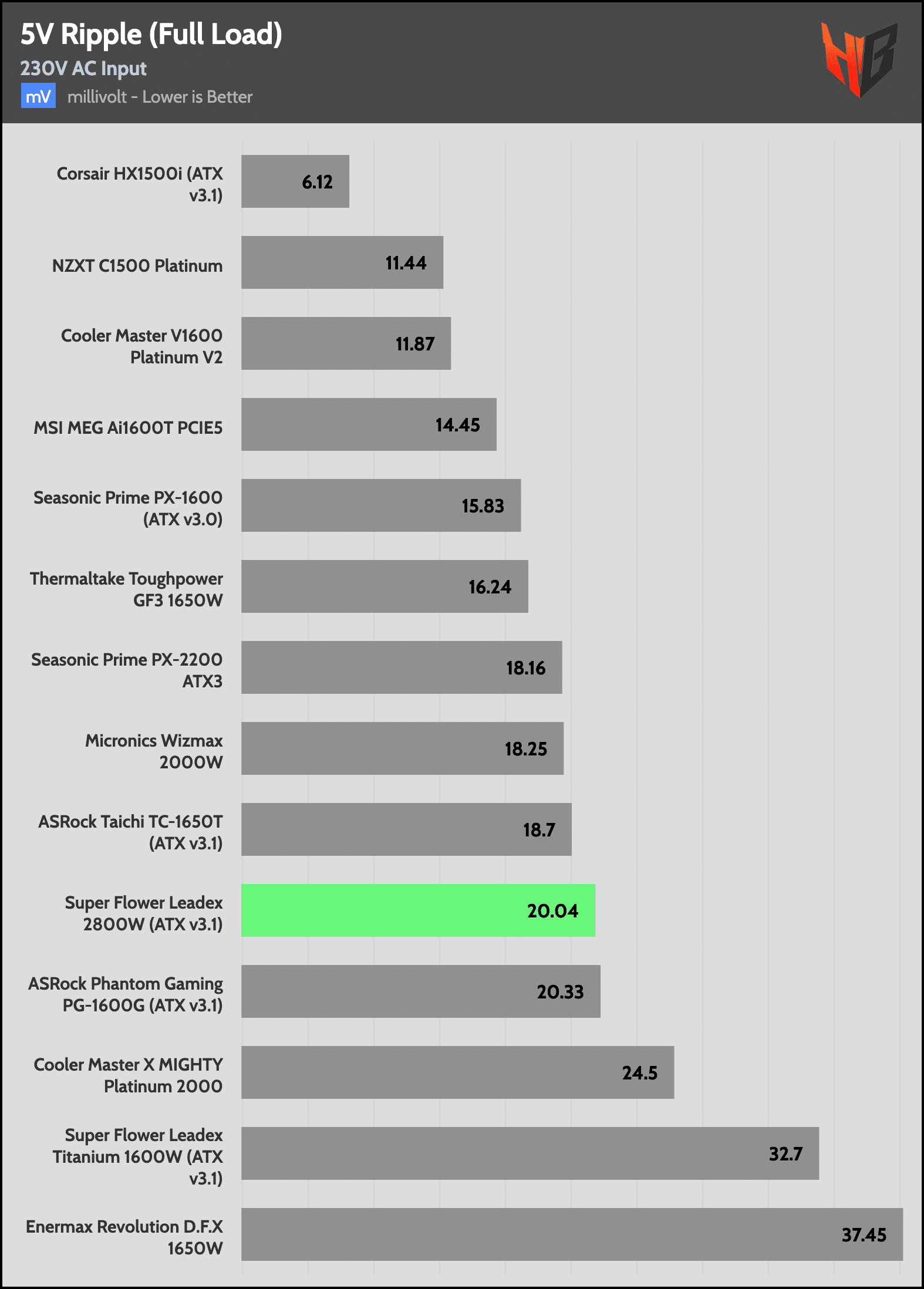

Ripple suppression is excellent for a unit of such high capacity.
