Box & Bundle (or something else..)
Super Flower sent us a pre-production unit, without the retail box, so here is a photo of Hazelnut learning how to use a MacBook.
Product Photos

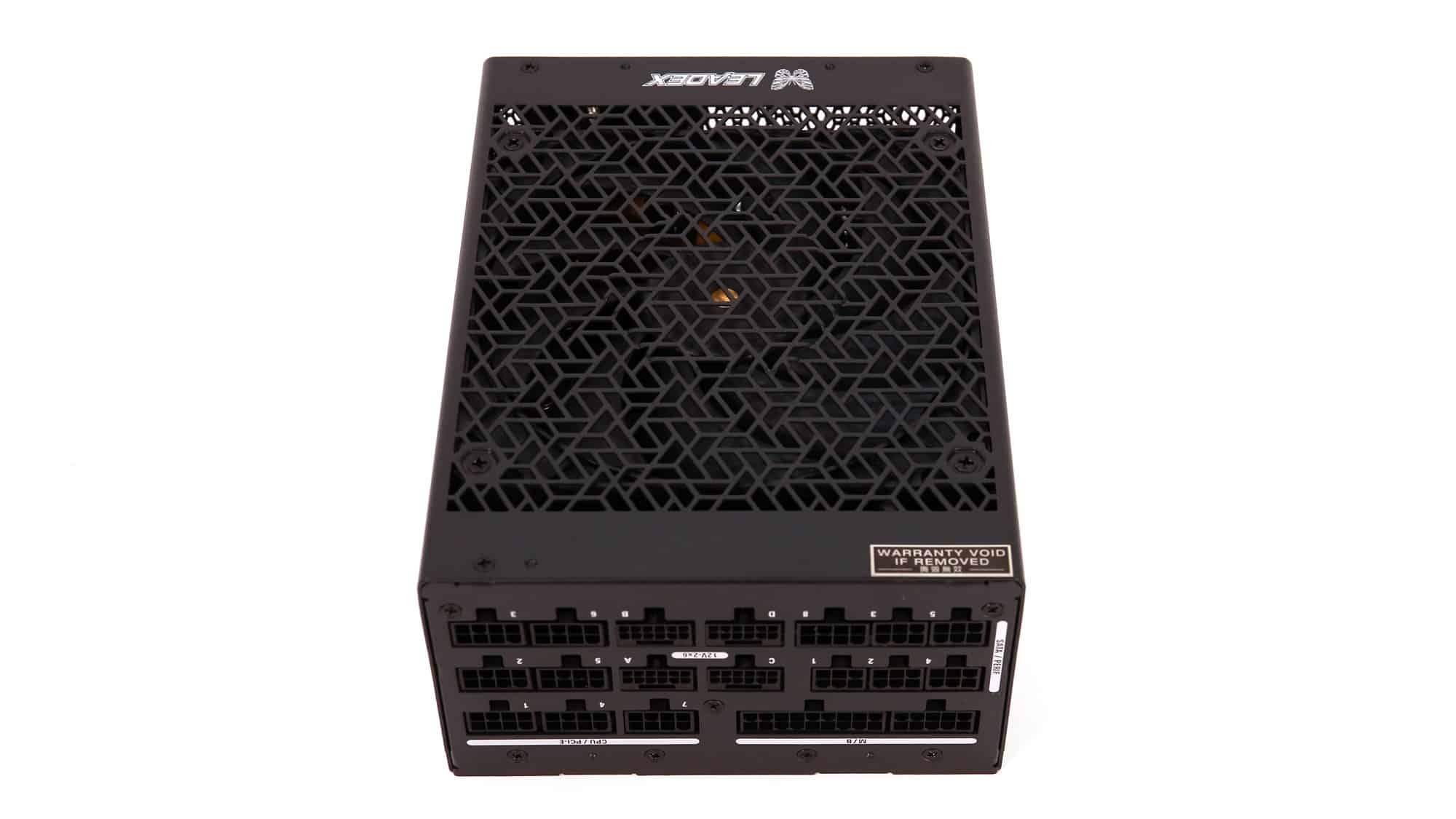

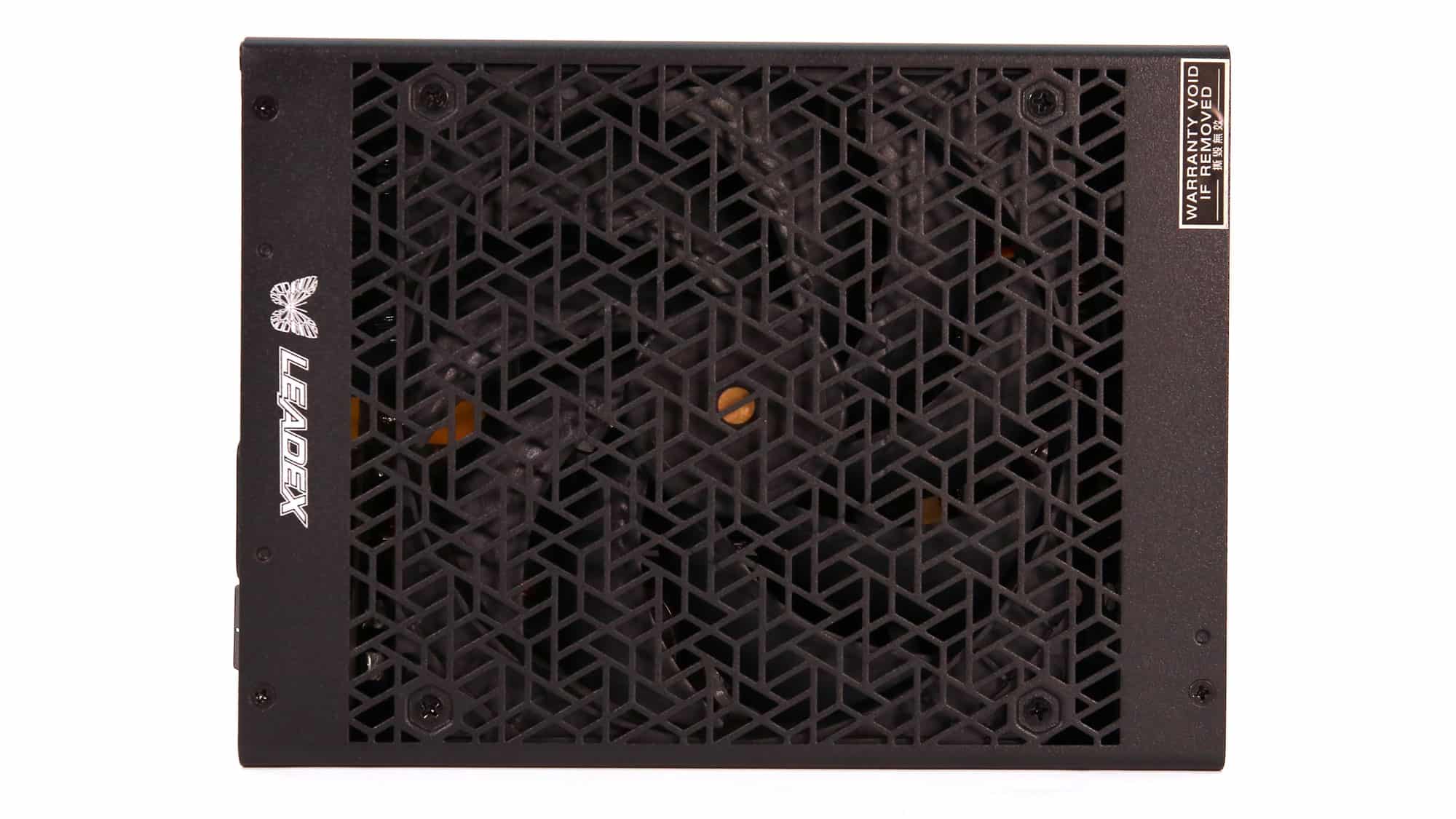

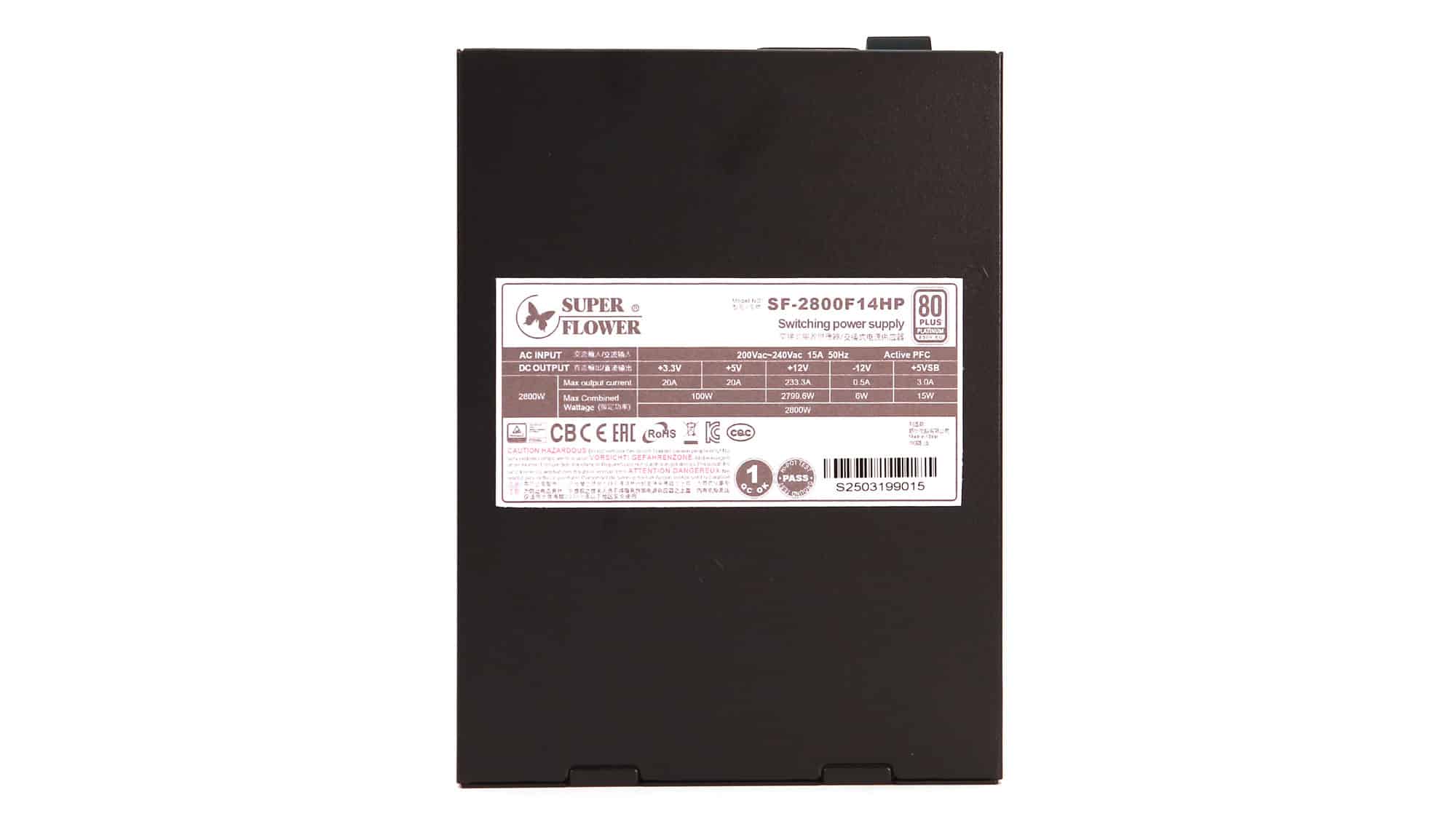

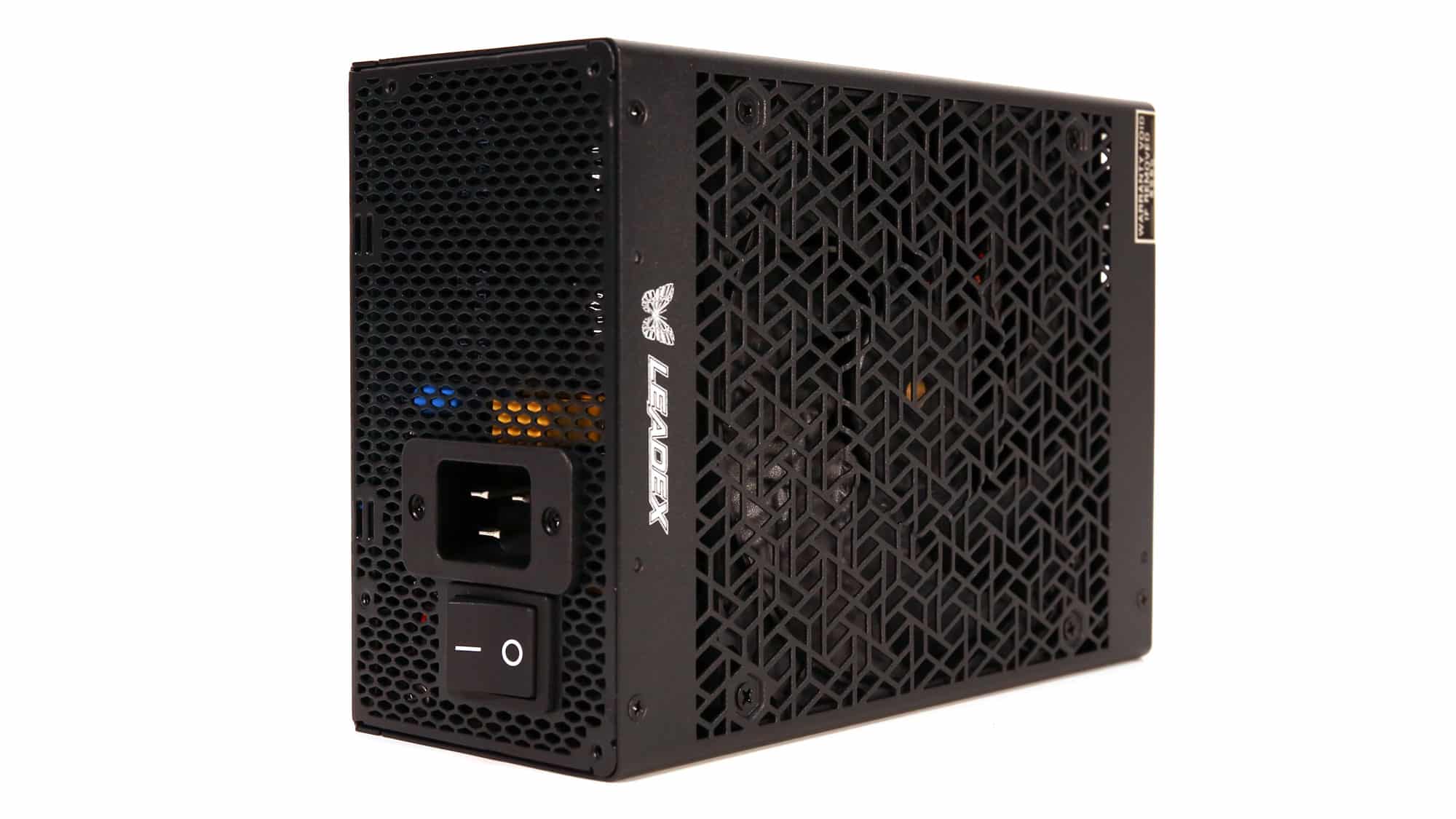

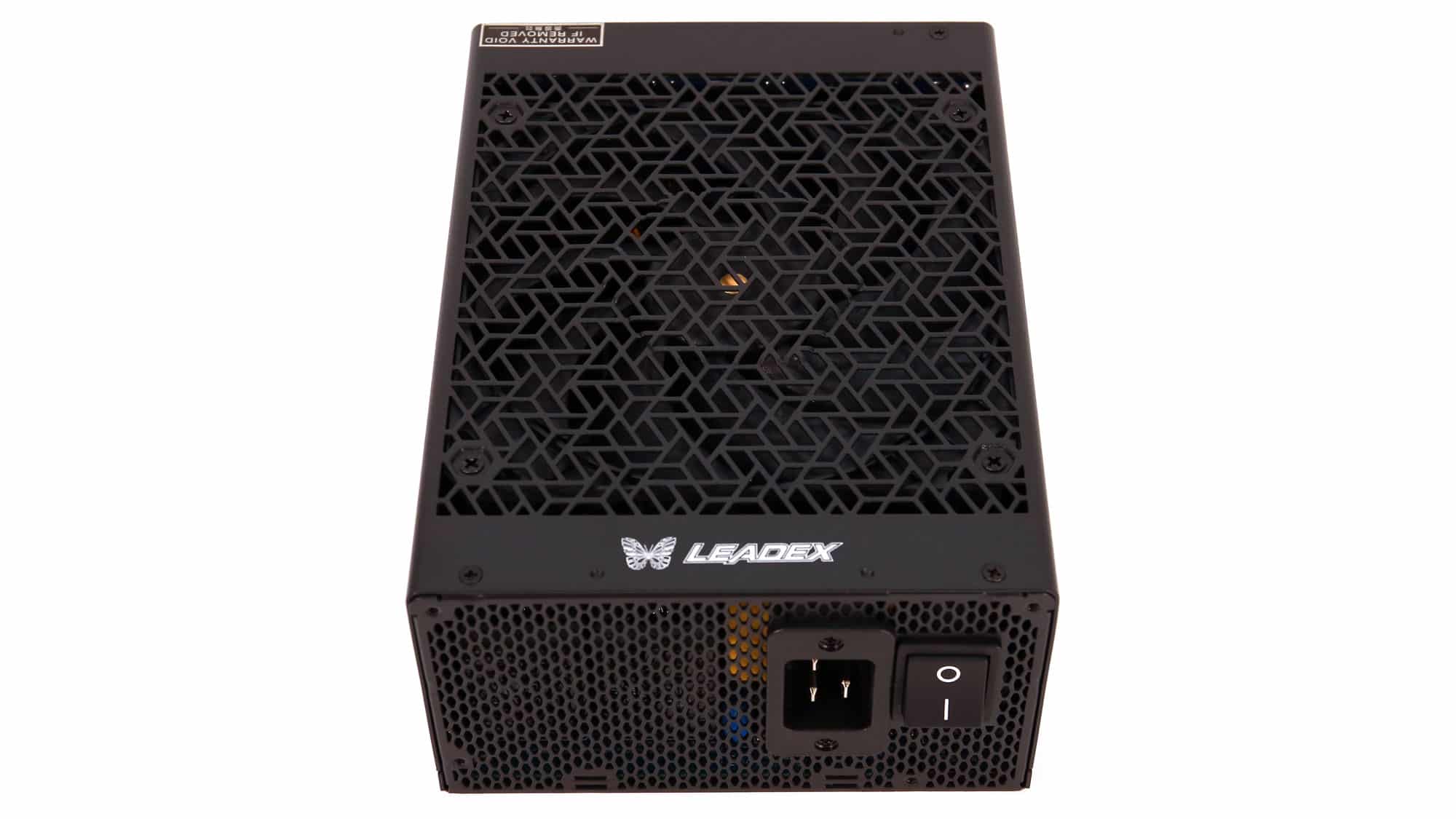

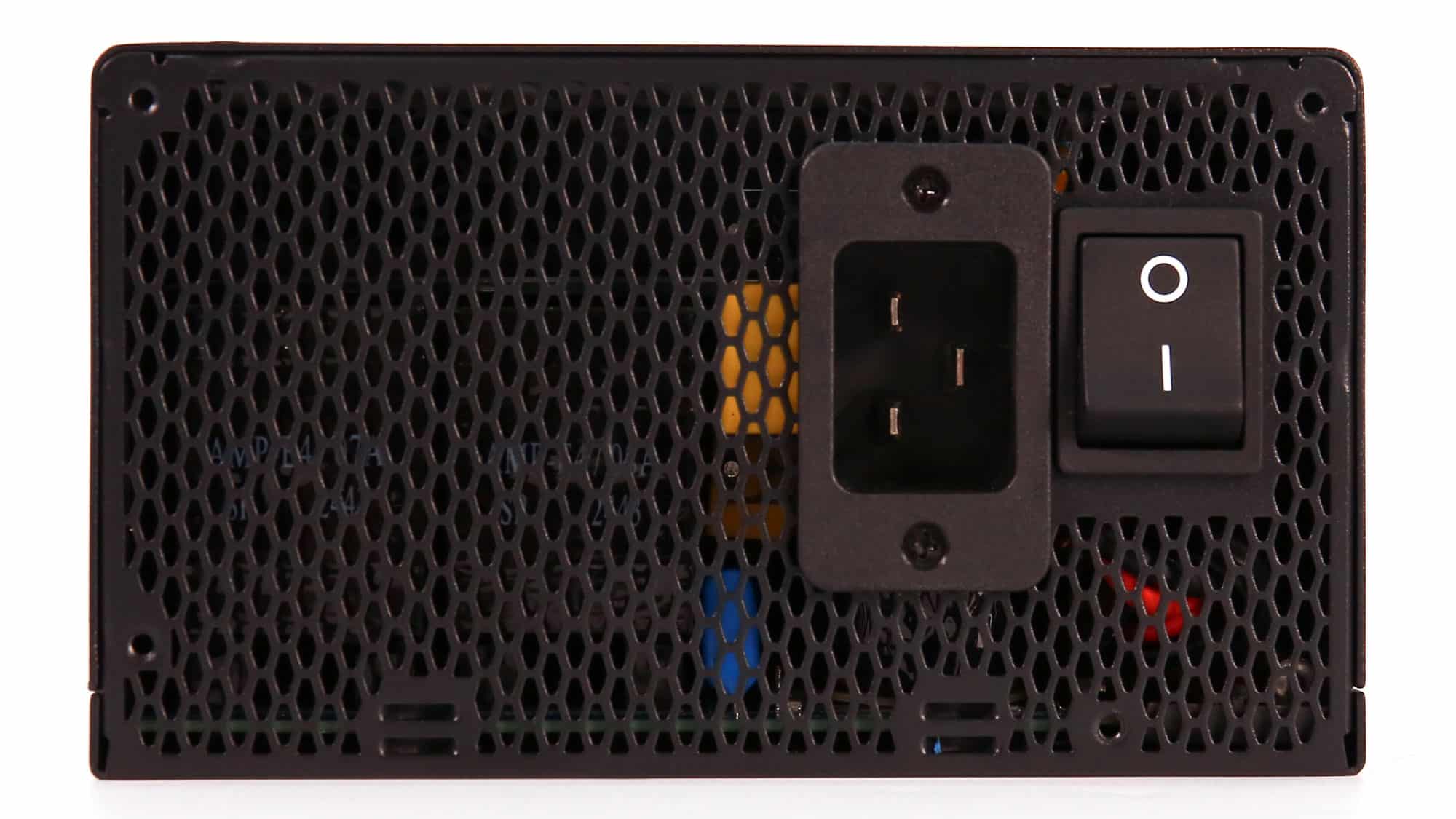

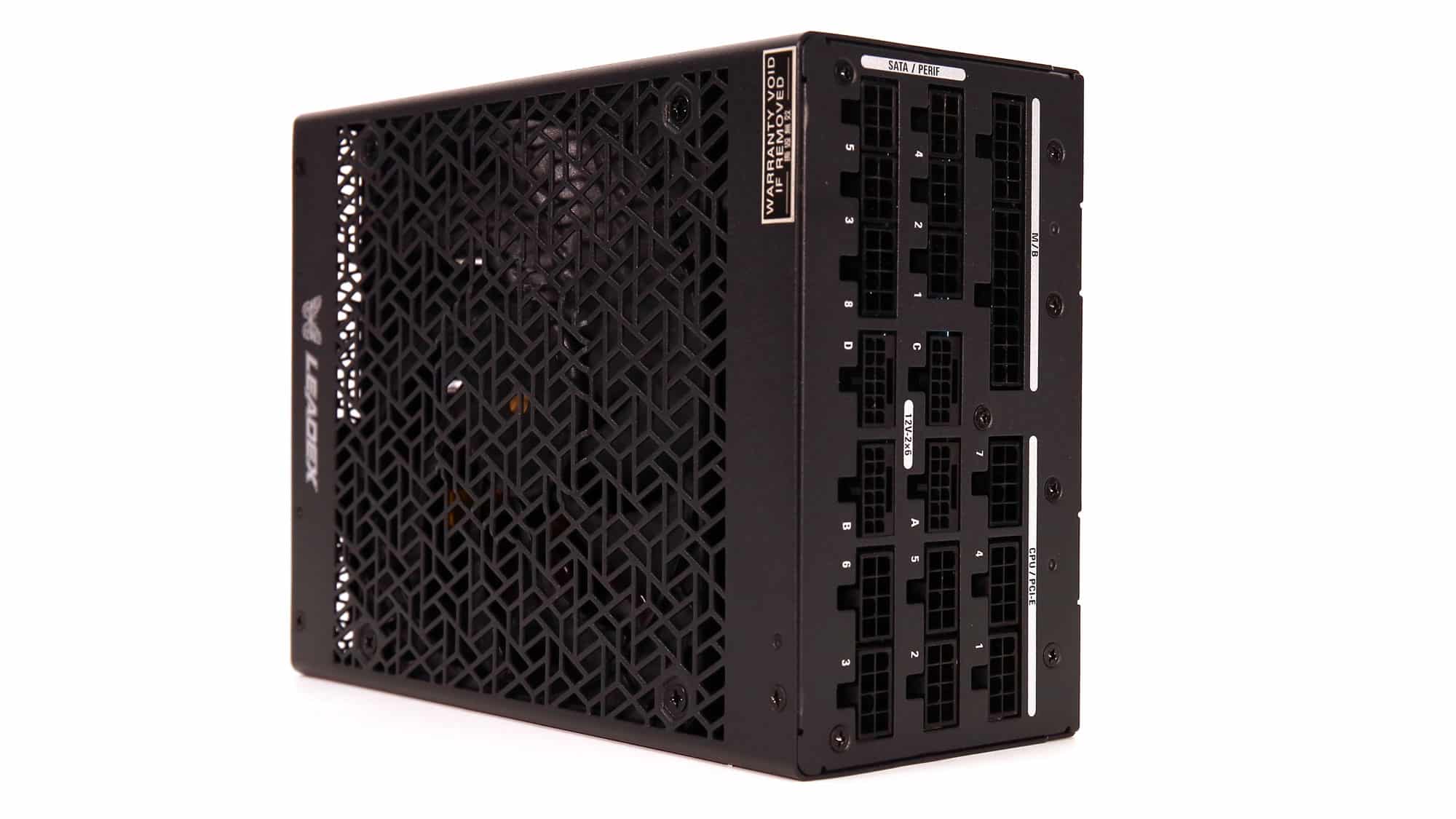

The PSU’s dimensions are enormous, since we are talking about 2800W here! The punched fan grille looks nice, and at the face of the unit, we find a heavy-duty power switch next to the IEC C20 receptacle.

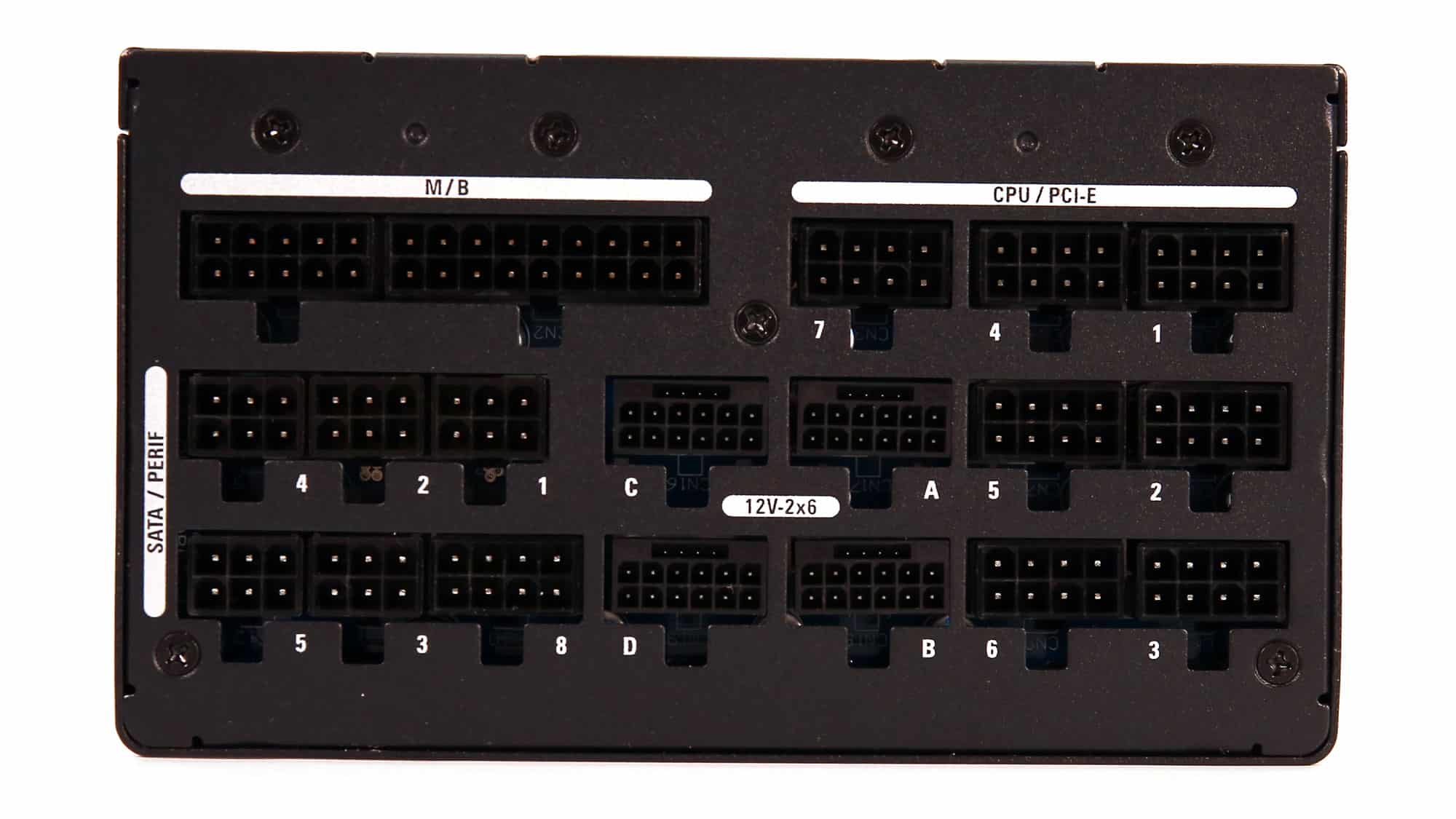

The modular panel around the back includes 15 sockets, two of which are of the 12V-2×6 type.
Cables
| Modular Cables | ||||
| Description | Cable Count | Connector Count (Total) | Gauge | In Cable Capacitors |
|---|---|---|---|---|

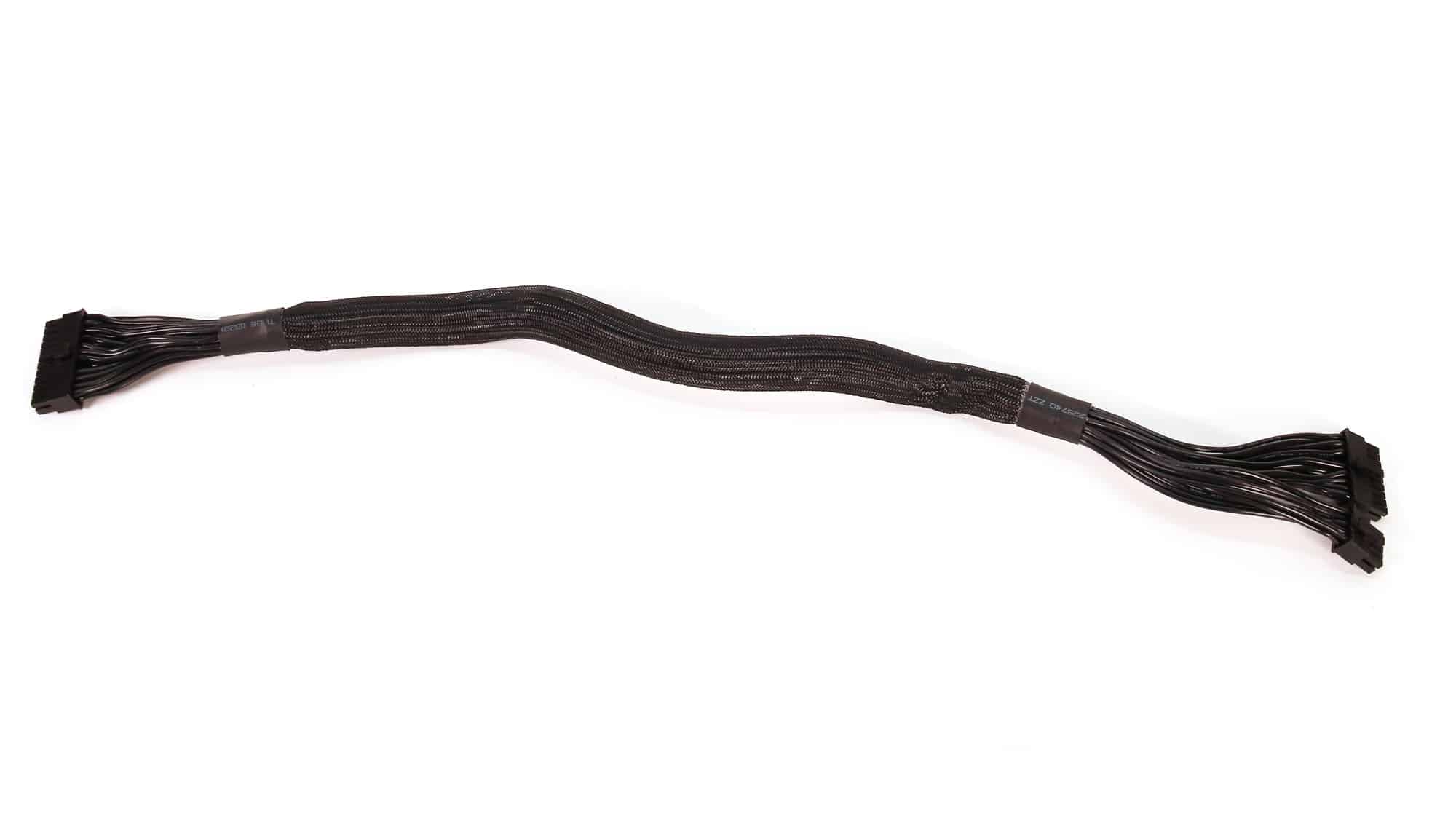

| ATX connector 24-pin (590mm) | 1 | 1 | 16-22AWG | No |
| 4+4 pin EPS12V (700mm) | 2 | 2 | 16AWG | No |
| 6+2 pin PCIe (700mm) | 6 | 6 | 16AWG | No |
| 12+4 pin PCIe (700mm) (600W) | 4 | 4 | 16-26AWG | No |
| SATA (550mm+110mm+110mm+110mm) | 4 | 16 | 18AWG | No |
| 4-pin Molex (550mm+100mm+100mm+100mm) | 1 | 4 | 18AWG | No |

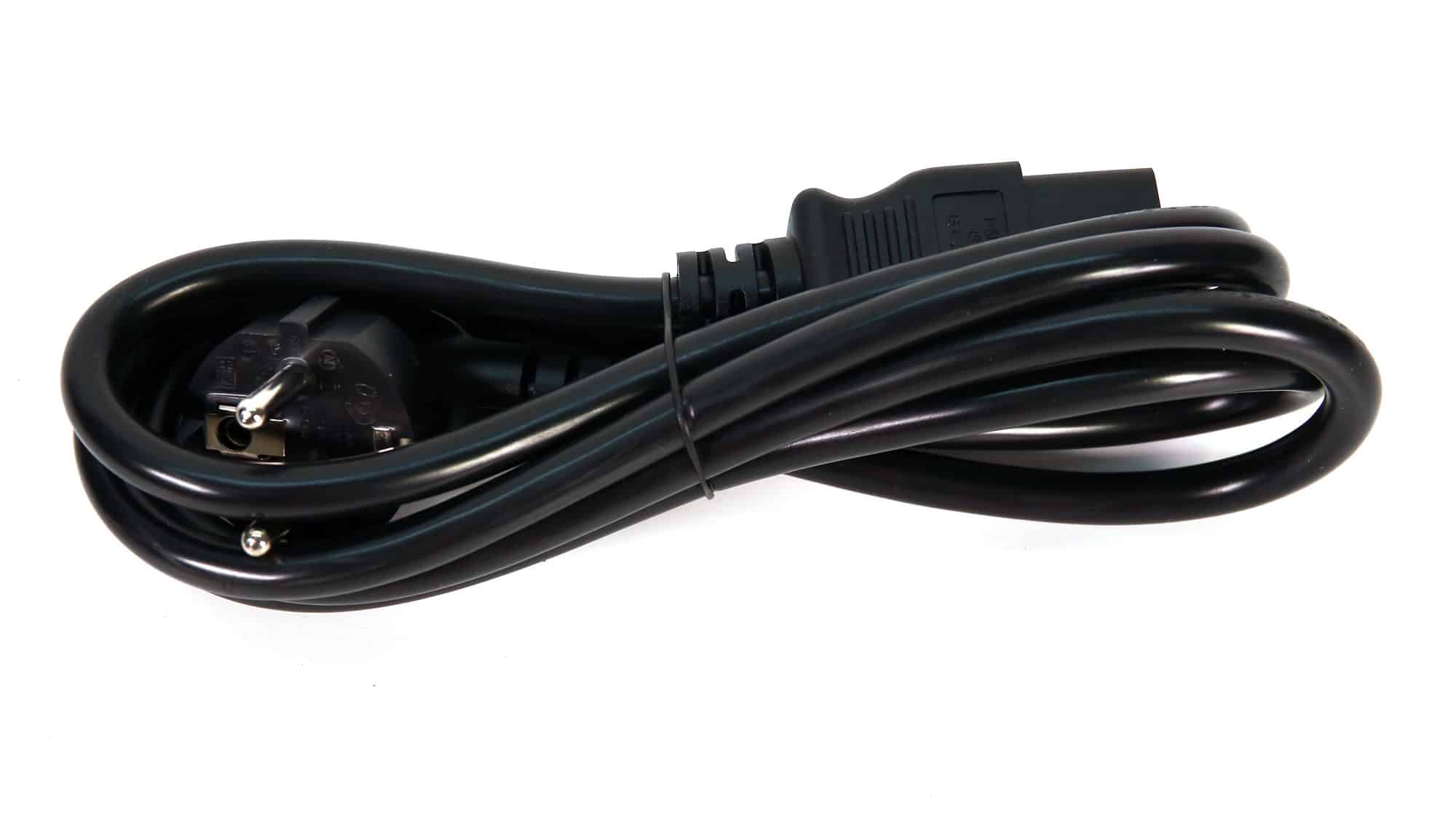

| AC Power Cord (1680mm) – C19 coupler | 1 | 1 | 16AWG | – |

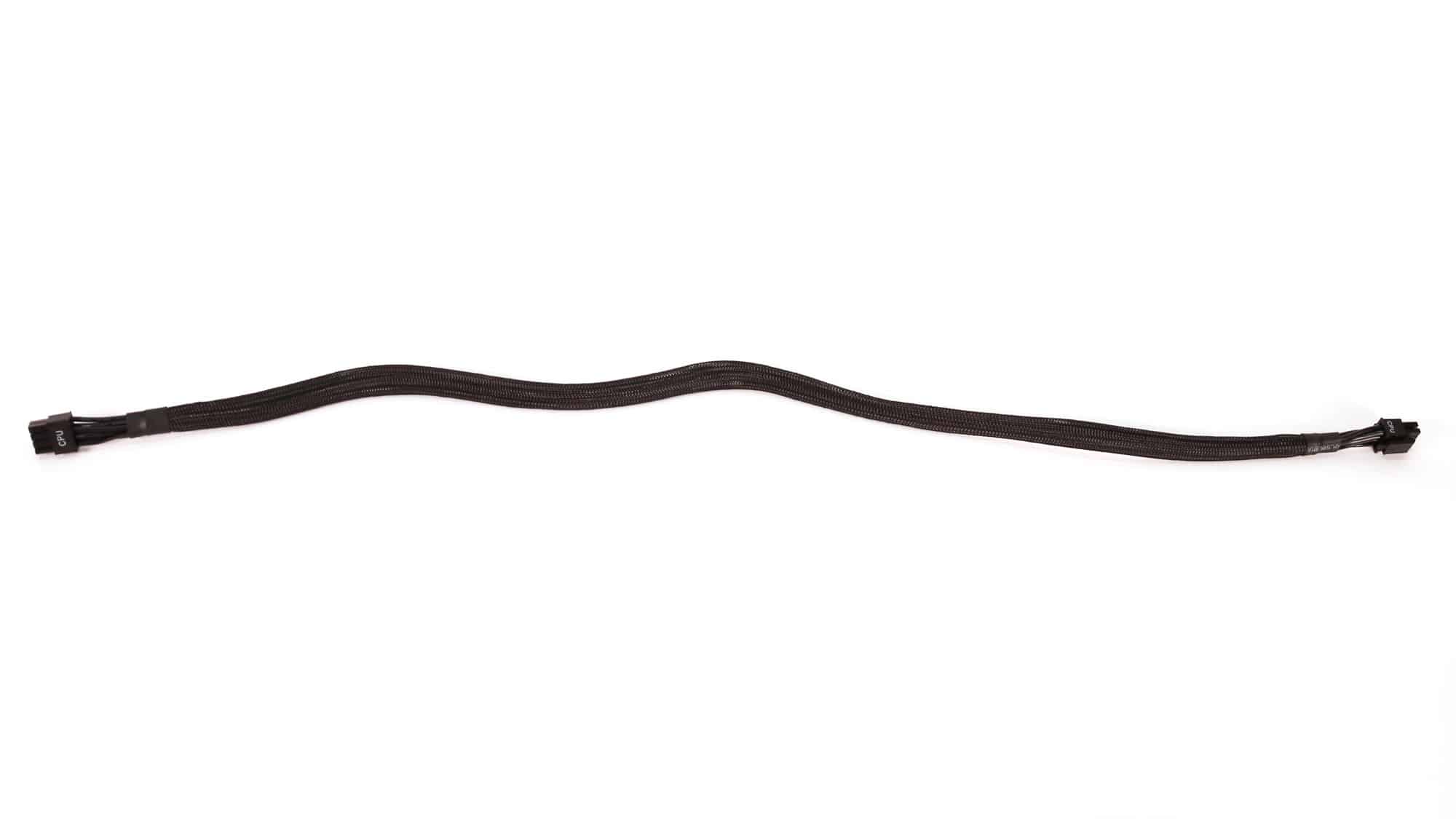

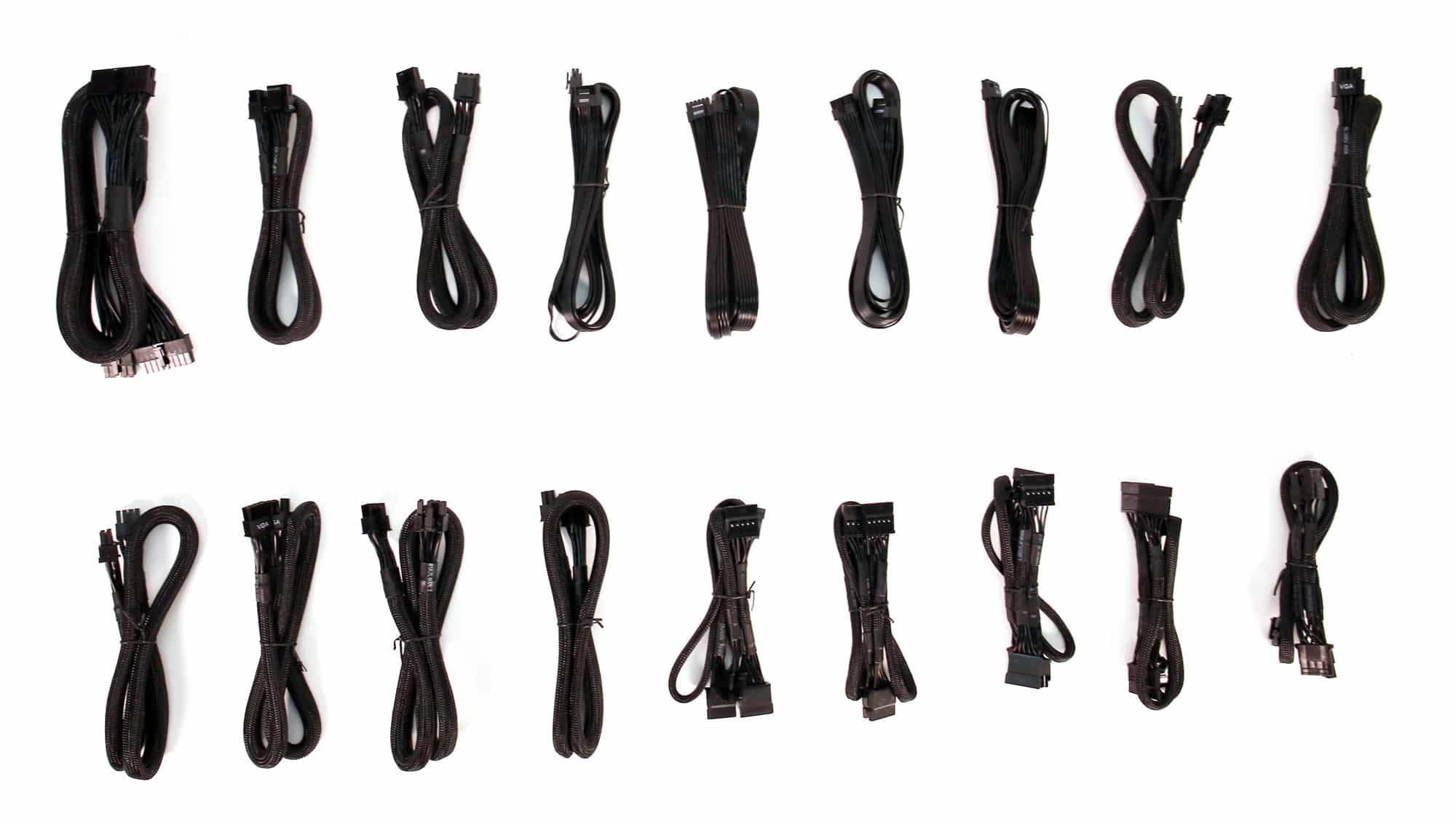

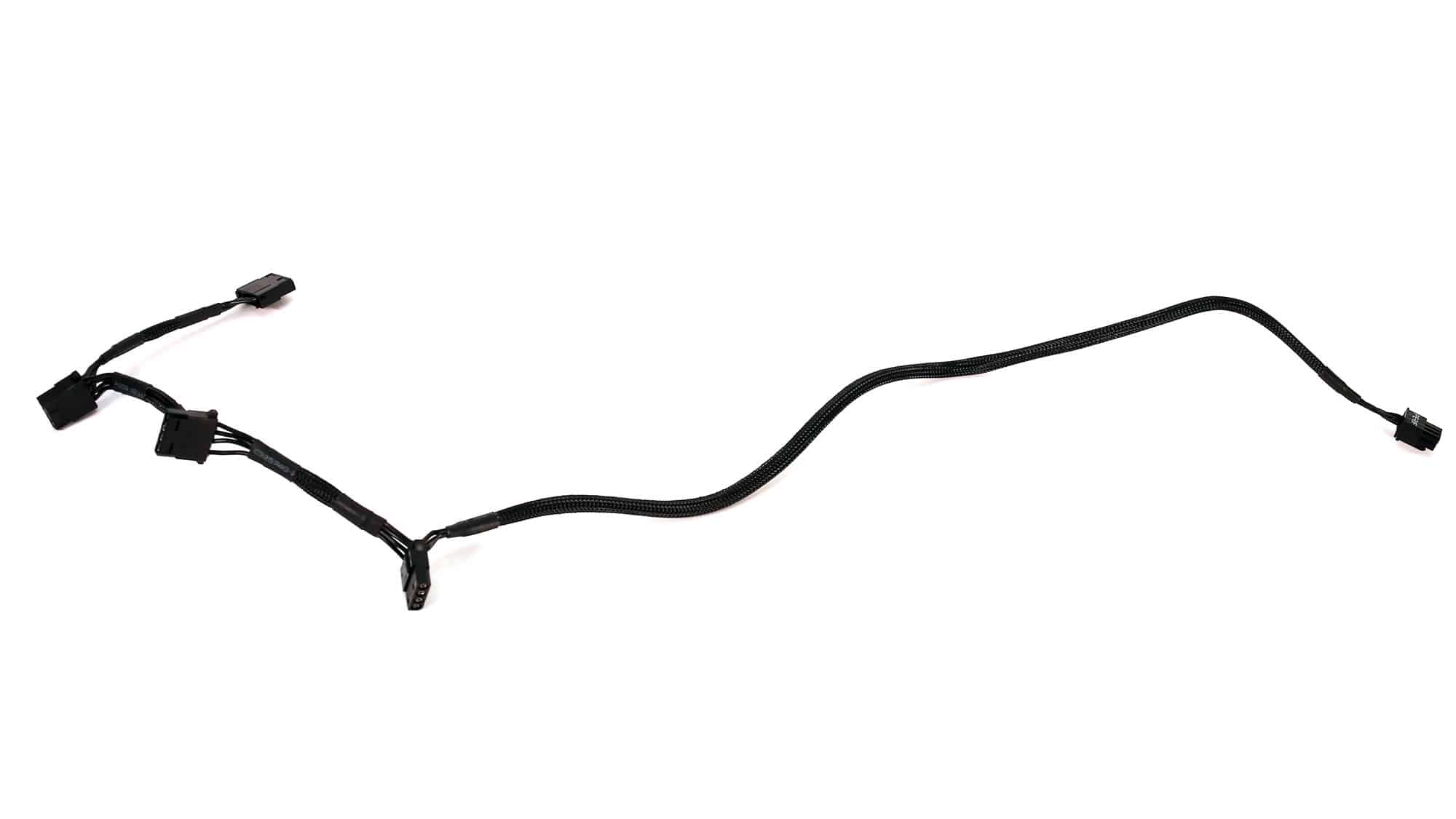

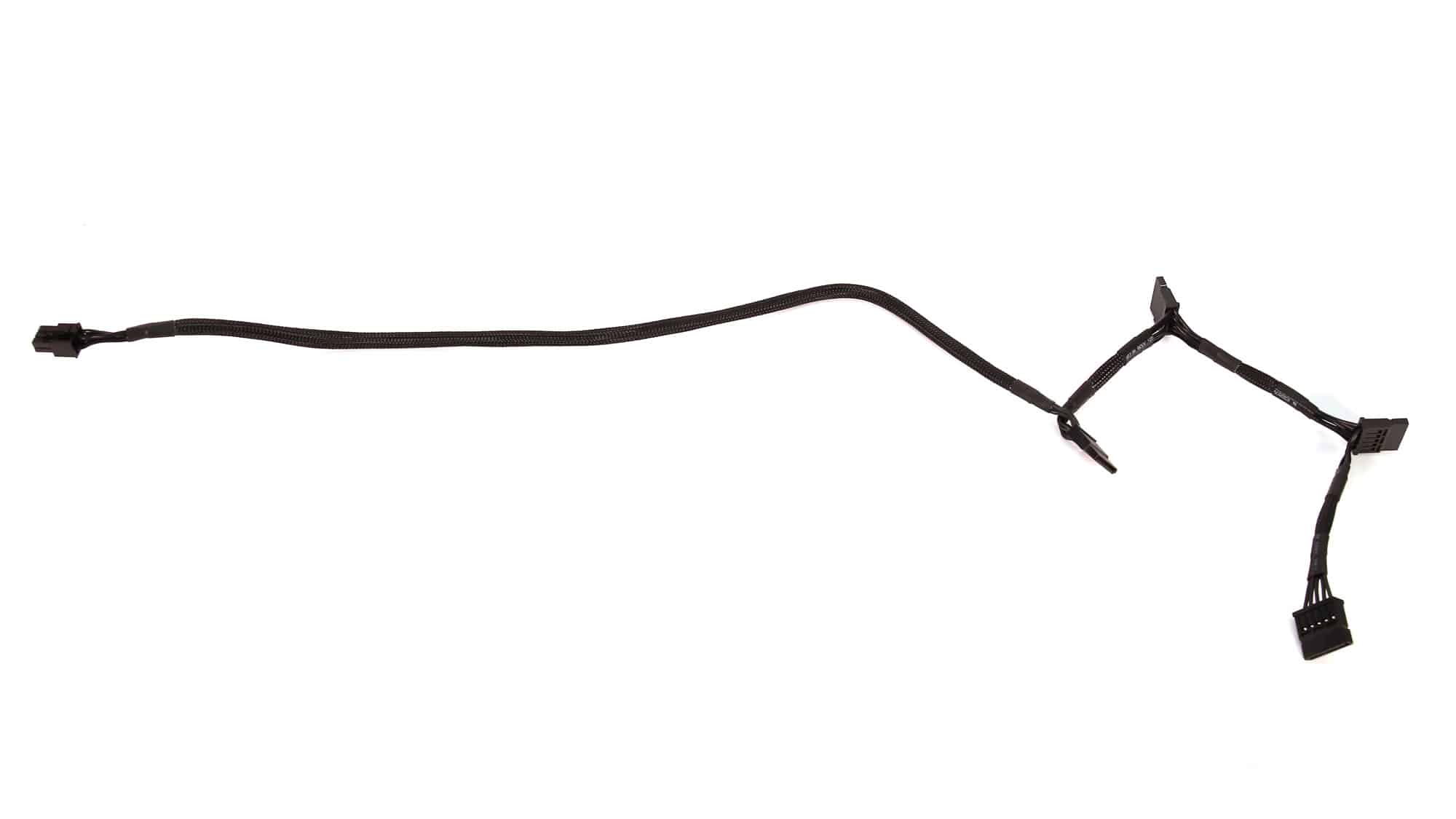

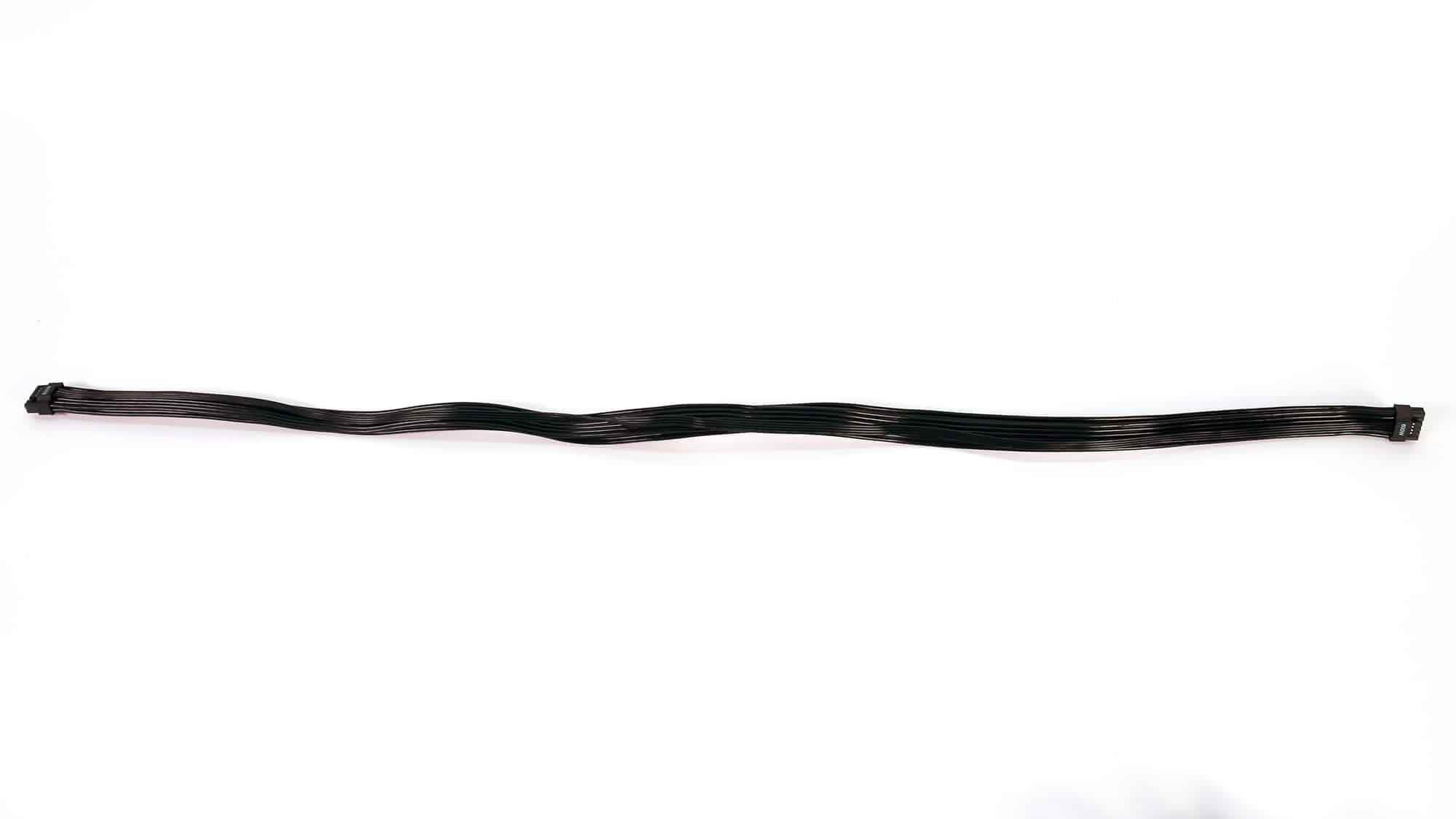

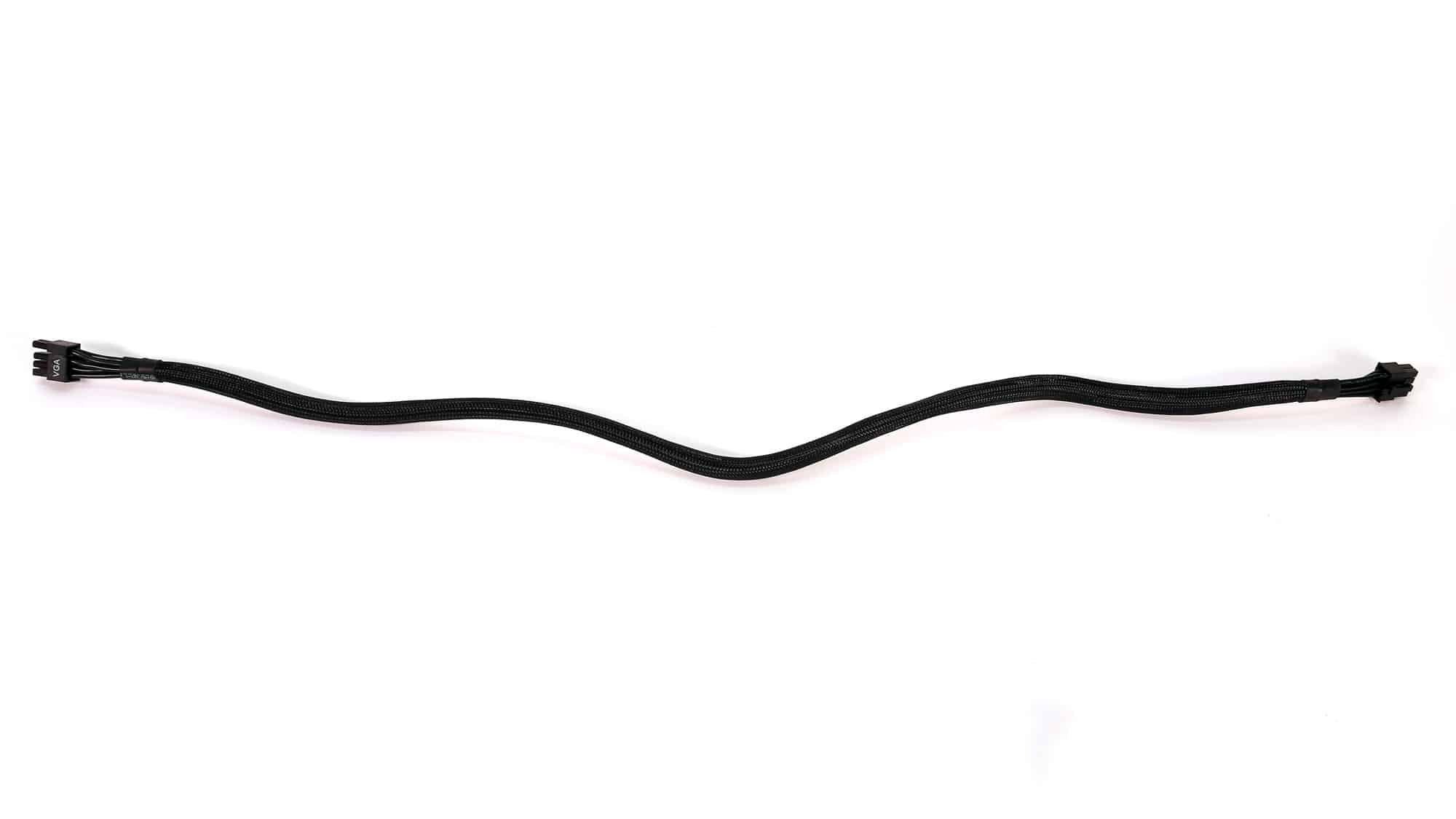

The PSU has many cables, including two EPS, two legacy PCIe, and four 12V-2×6! The last can deliver 2400W alone and 4800W under transient loads! All cables are long, with the only exception being the 24-pin cable, which ideally should reach 650mm. The number of peripheral connectors is large, but the distance between them is small.
Hello Aris. Thanks for amazing job here and on Cybenetics.com.
I have a question. How many Watts this psu can handle in 115/127V?!
Realistically, not more than 1600-1650W
Hello,
is there a place where we can view the 20, 50% load transients for power supplies not covered here on Hwbusters?
cybenetics PSU performance database includes them in the overall performance algorithm that it uses to classify the PSUs
hello Aris wanna ask about legality of cybenetics logo, i’ve seen FSP VITA GM product certified data was Platinum but in boxes it just showing Gold efficiency, it’s still allowed by laws to put Gold effficiency logo on Platinum product ?
Hi! “Downgrades” are permitted, but no upgrades!
