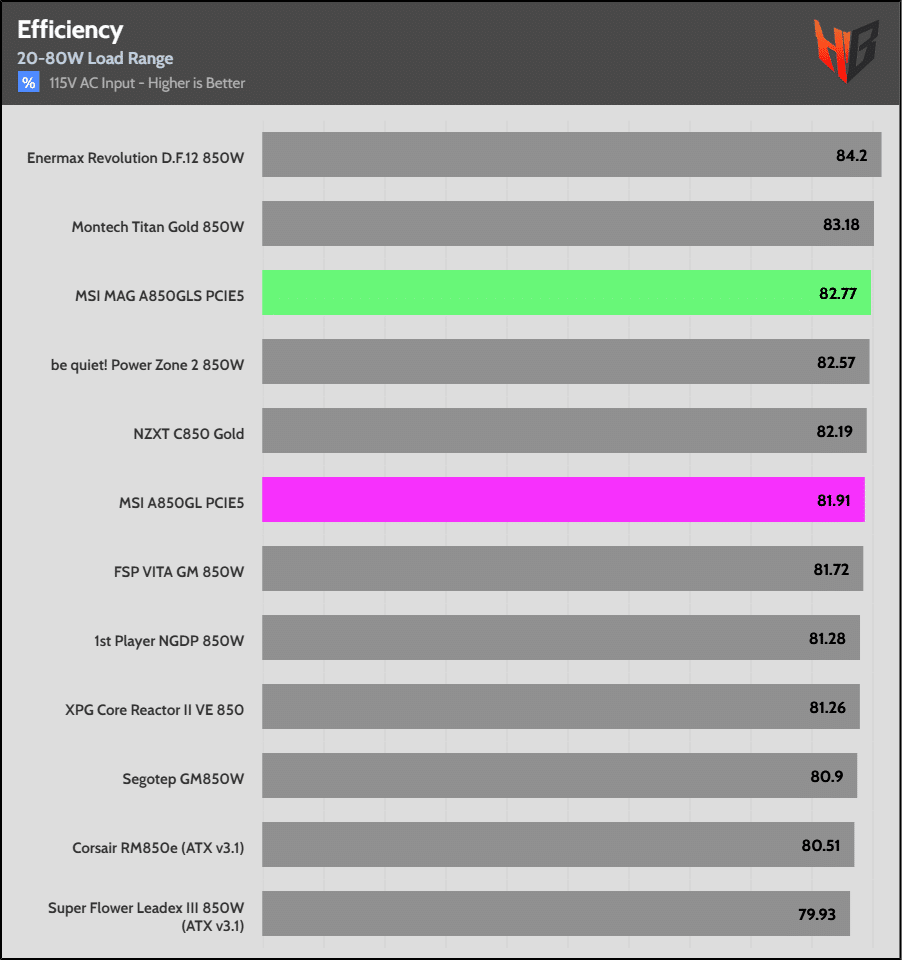

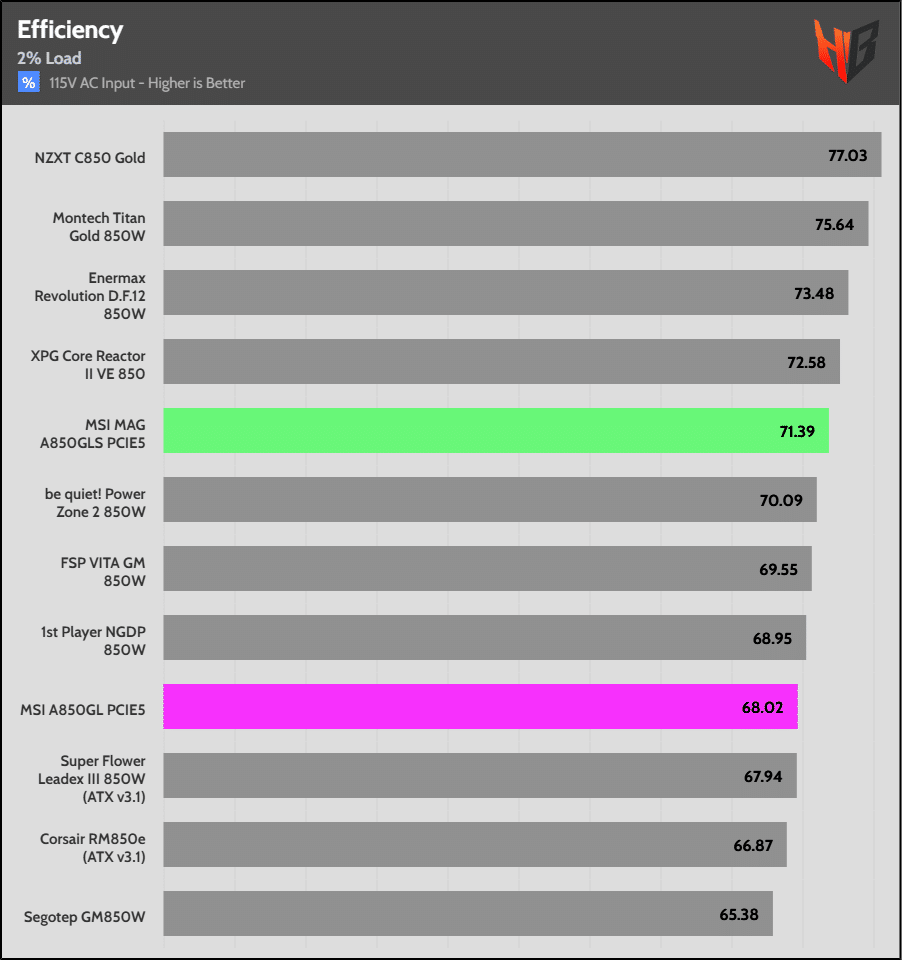

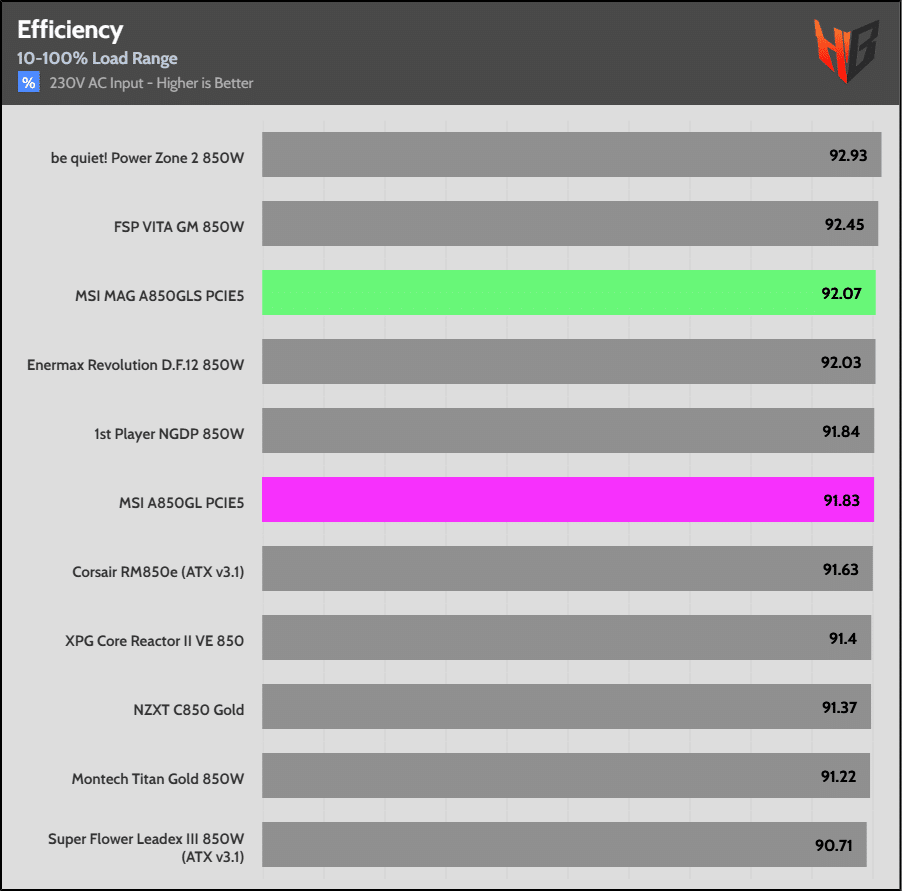

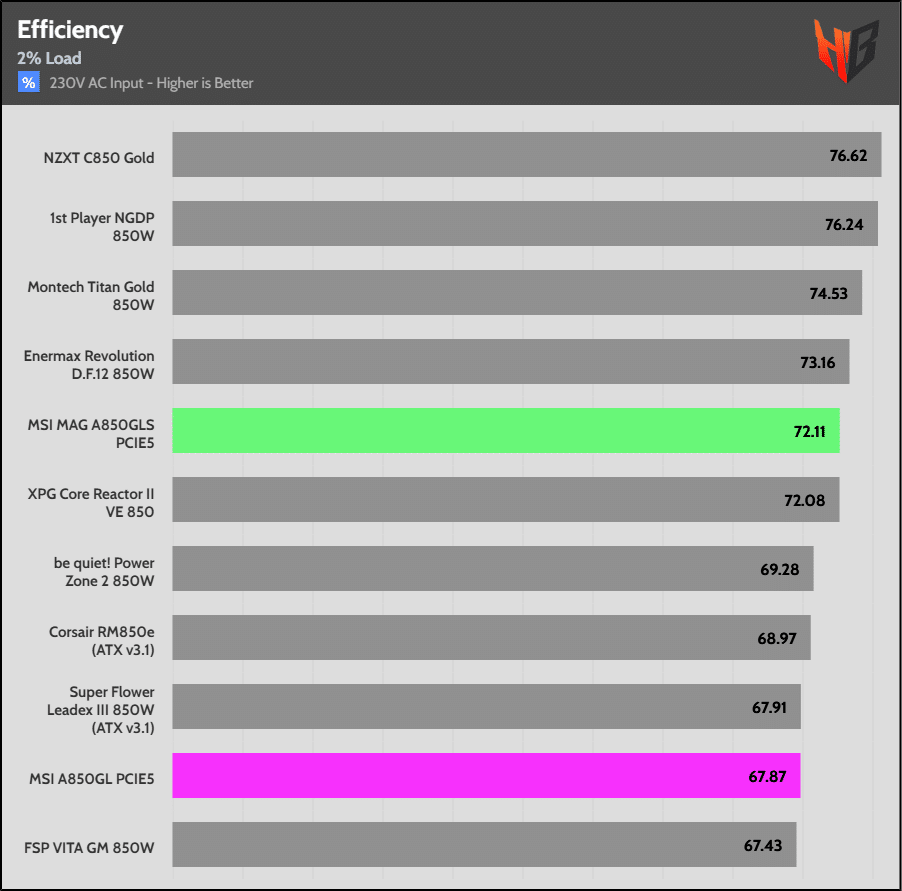

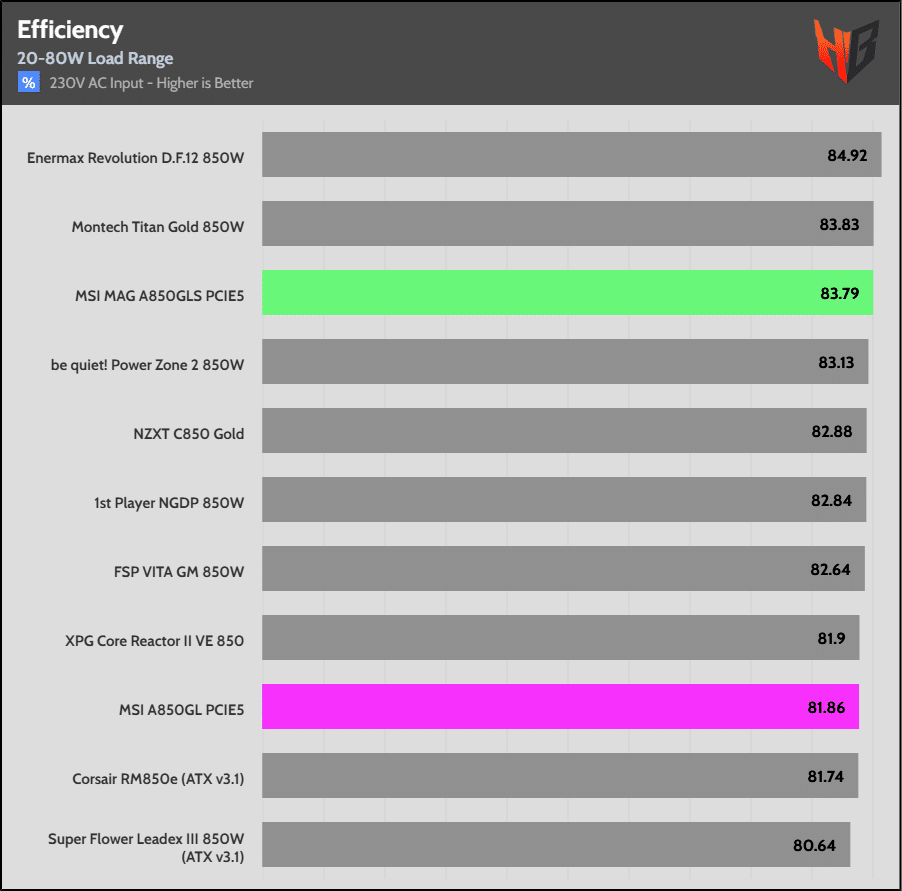

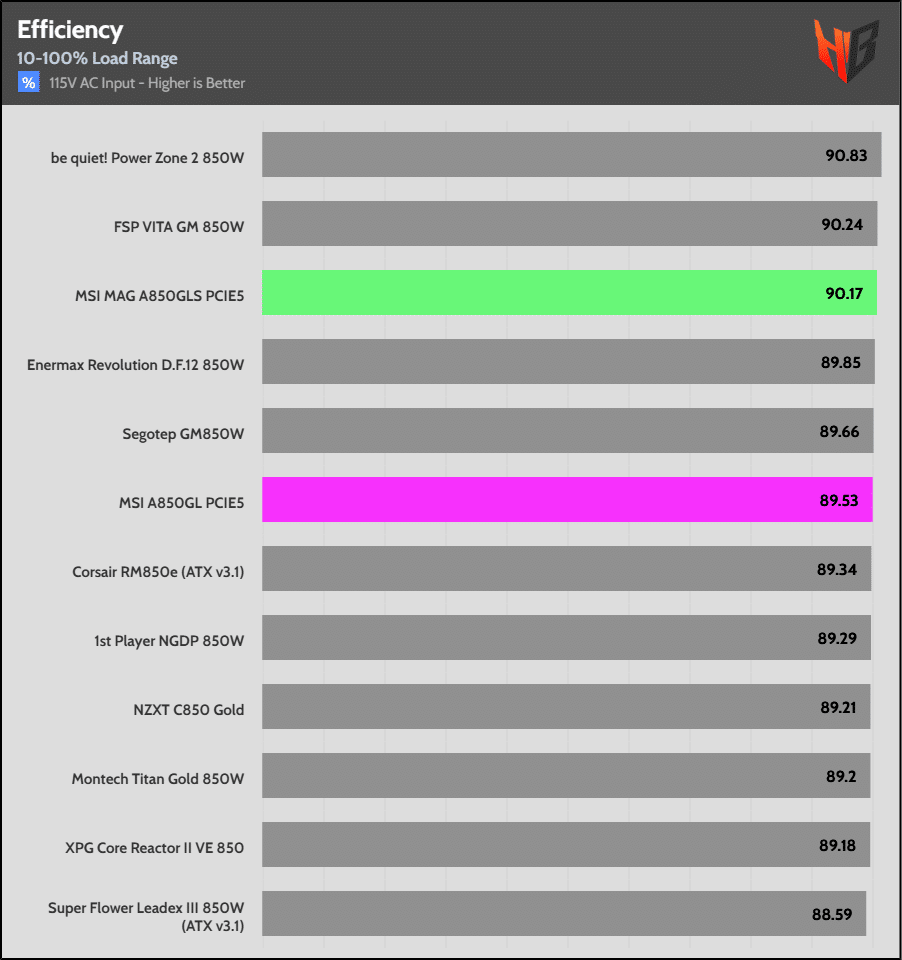

Efficiency Normal, Light & Super-Light Loads
Efficiency is high on all load ranges.

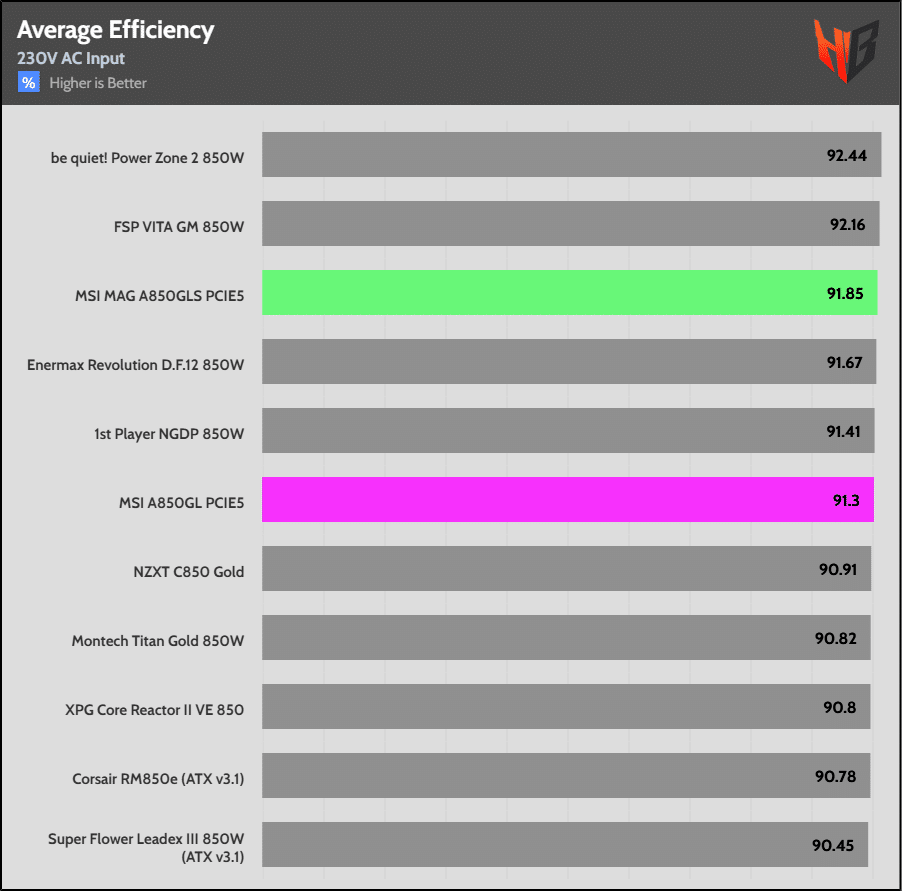

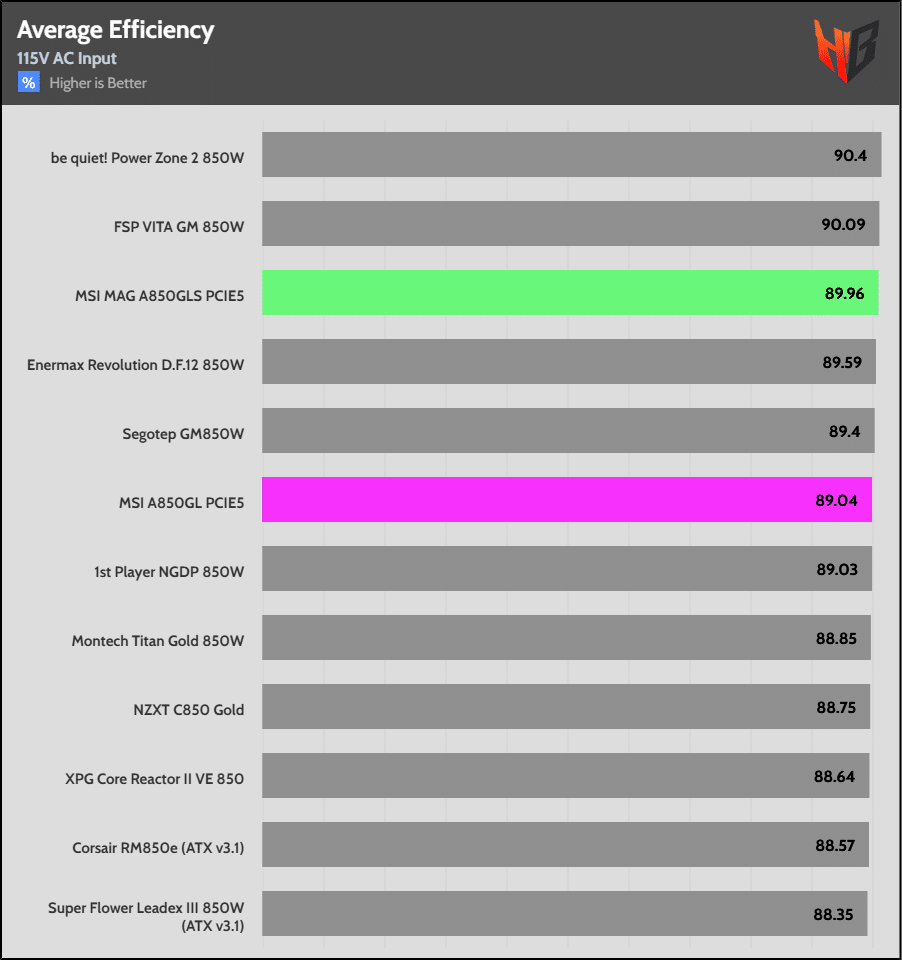

Average Efficiency
The average efficiency meets the Cybenetics Platinum criteria. Nonetheless, MSI decided to “downgrade” this badge to Gold.

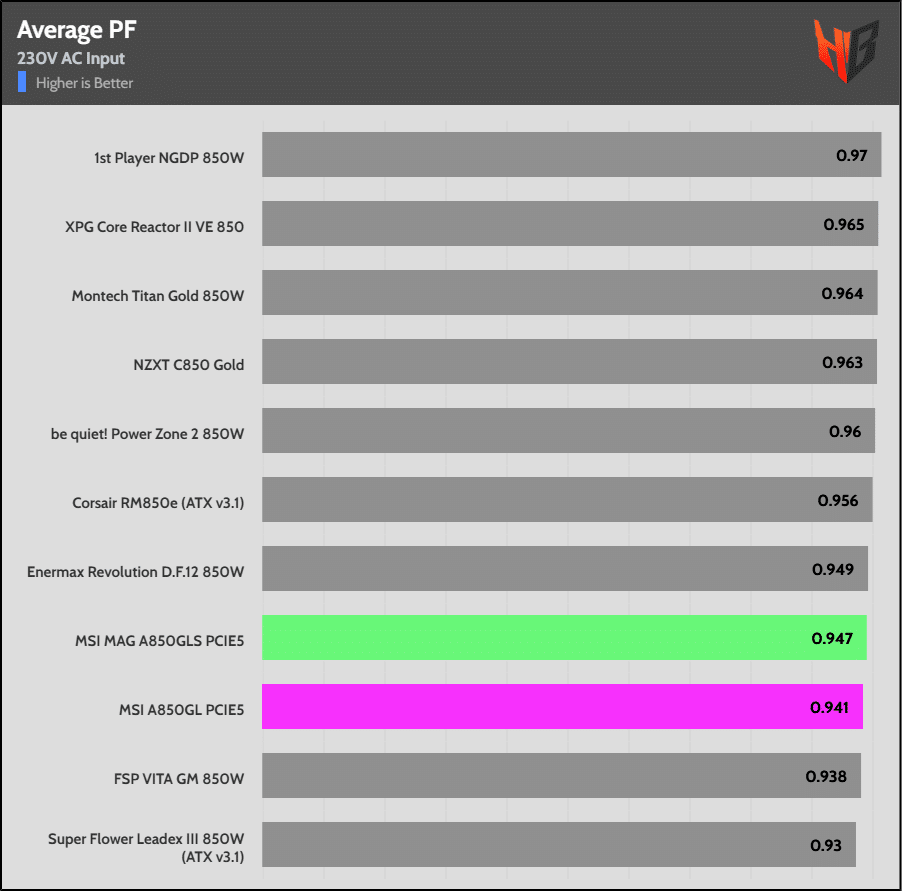

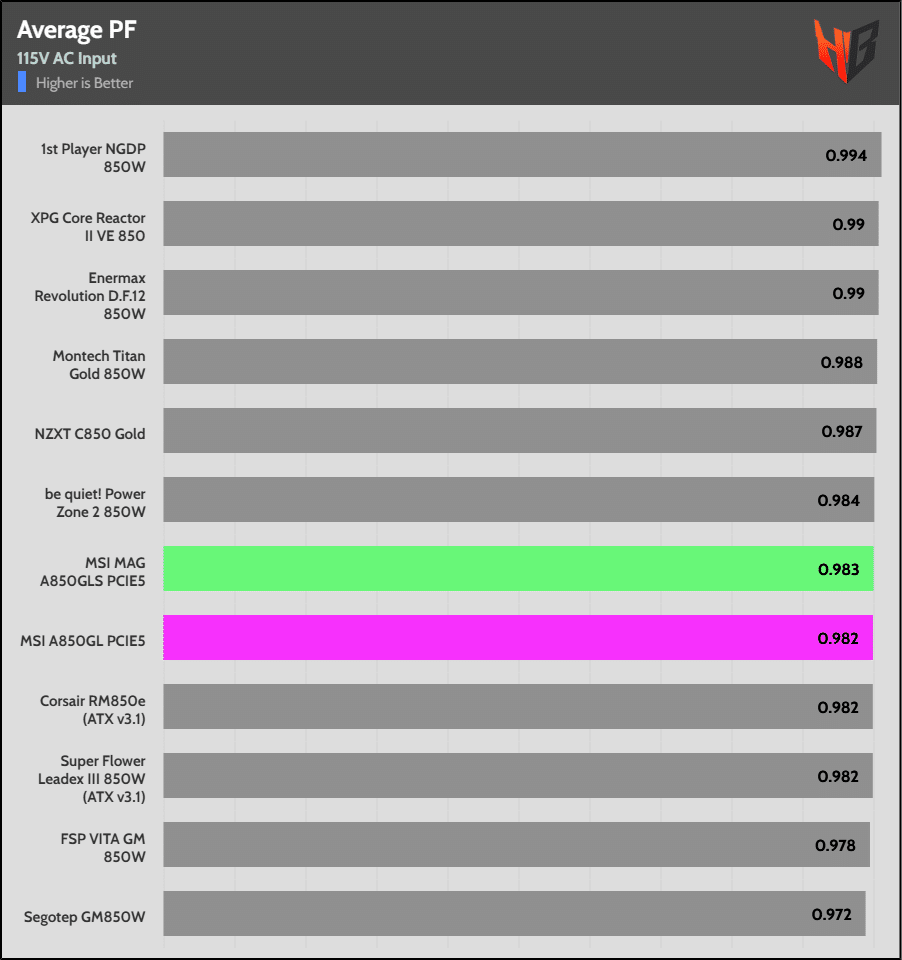

Average PF
The APFC converter requires tuning for higher power factor (PF) readings, particularly at 230V.

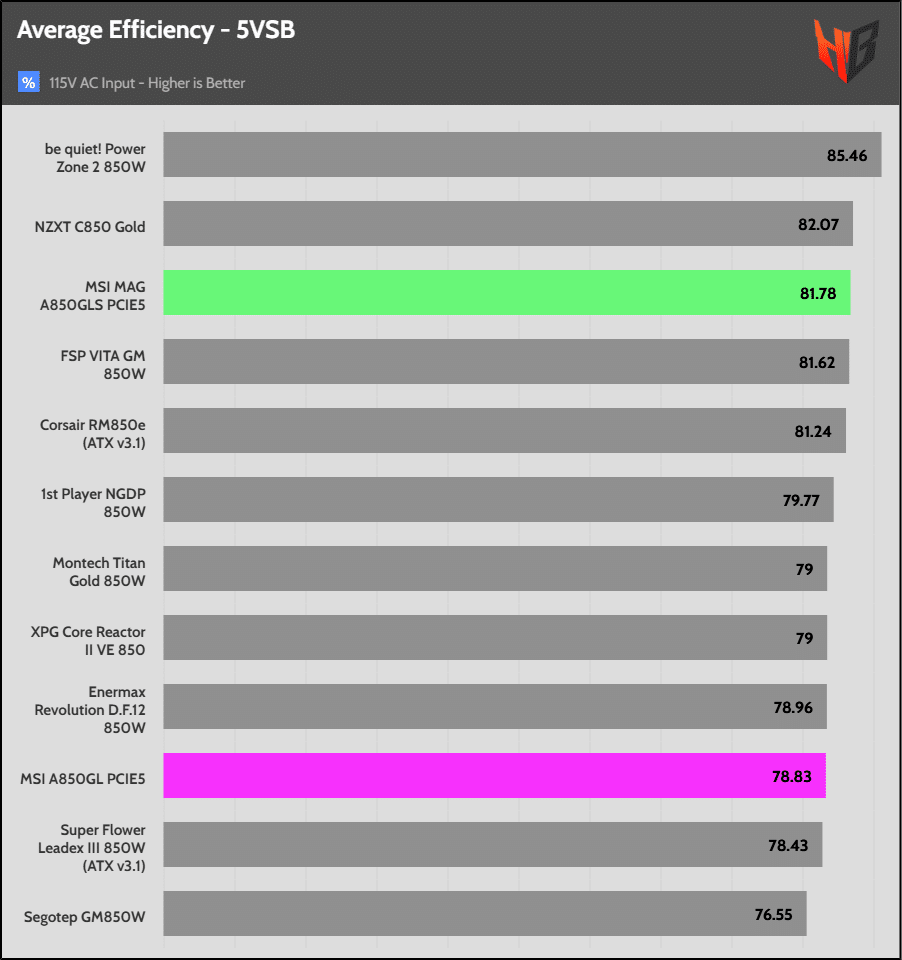

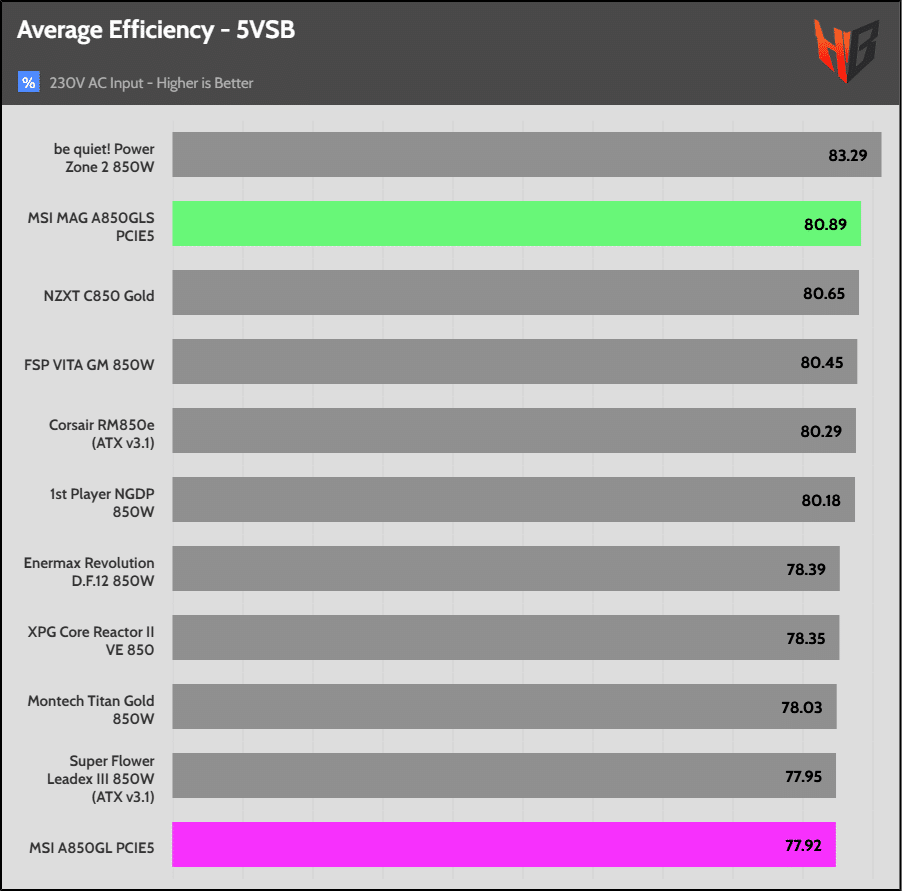

Average Efficiency 5VSB
The 5VSB rail’s efficiency exceeds 80% at both voltage inputs I tried.

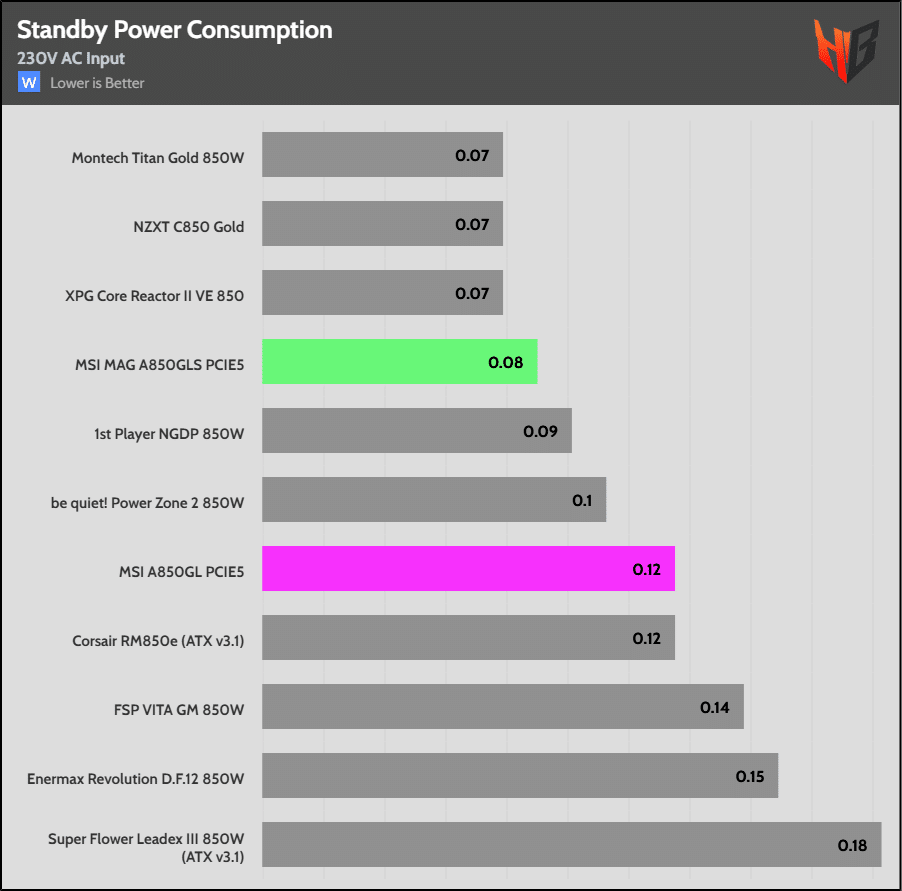

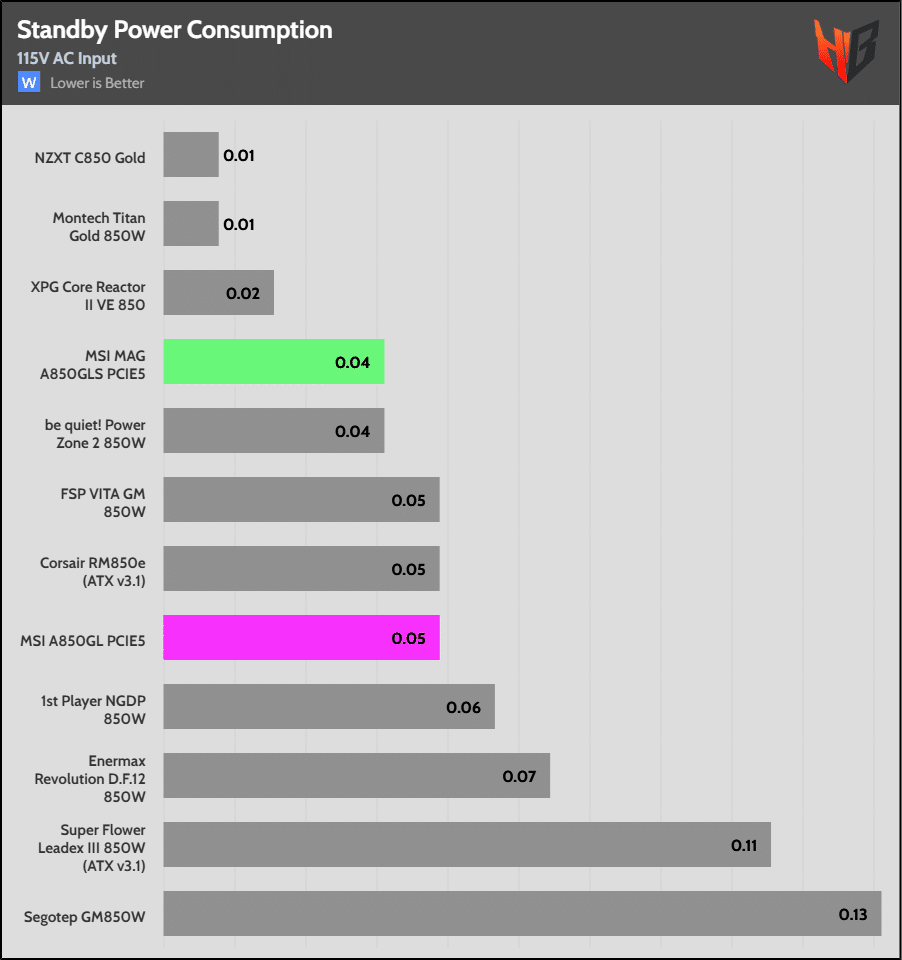

Vampire Power
Vampire power is low.
