Transient Response
20% Load – 20ms
| Advanced Transient Response 20% - 50 Hz - No Caps | ||||
| Voltage | Before | After | Change | Pass/Fail |
| 12V | 12.009V | 11.876V | 1.11% | Pass |
| 5V | 5.020V | 4.894V | 2.52% | Pass |
| 3.3V | 3.338V | 3.185V | 4.60% | Pass |
| 5VSB | 4.938V | 4.886V | 1.06% | Pass |
50% Load -20ms
| Advanced Transient Response 50% - 50 Hz - No Caps | ||||
| Voltage | Before | After | Change | Pass/Fail |
| 12V | 11.979V | 11.856V | 1.03% | Pass |
| 5V | 5.010V | 4.900V | 2.19% | Pass |
| 3.3V | 3.333V | 3.176V | 4.72% | Pass |
| 5VSB | 4.919V | 4.875V | 0.89% | Pass |

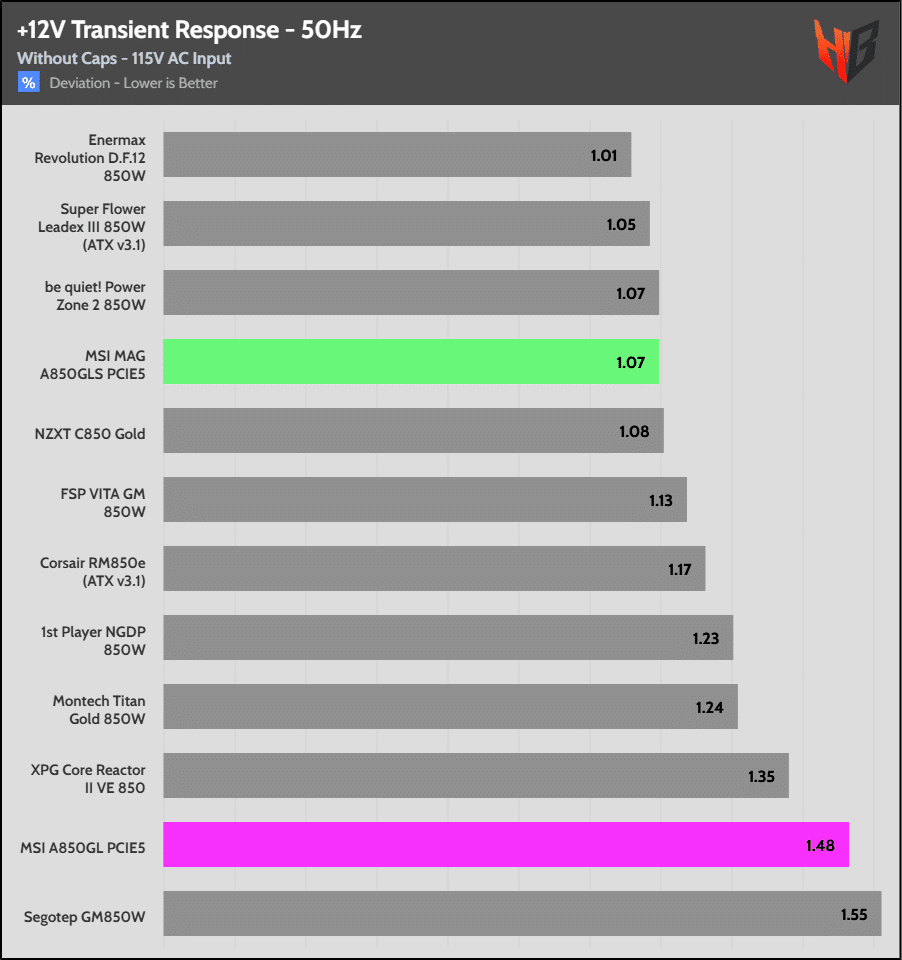

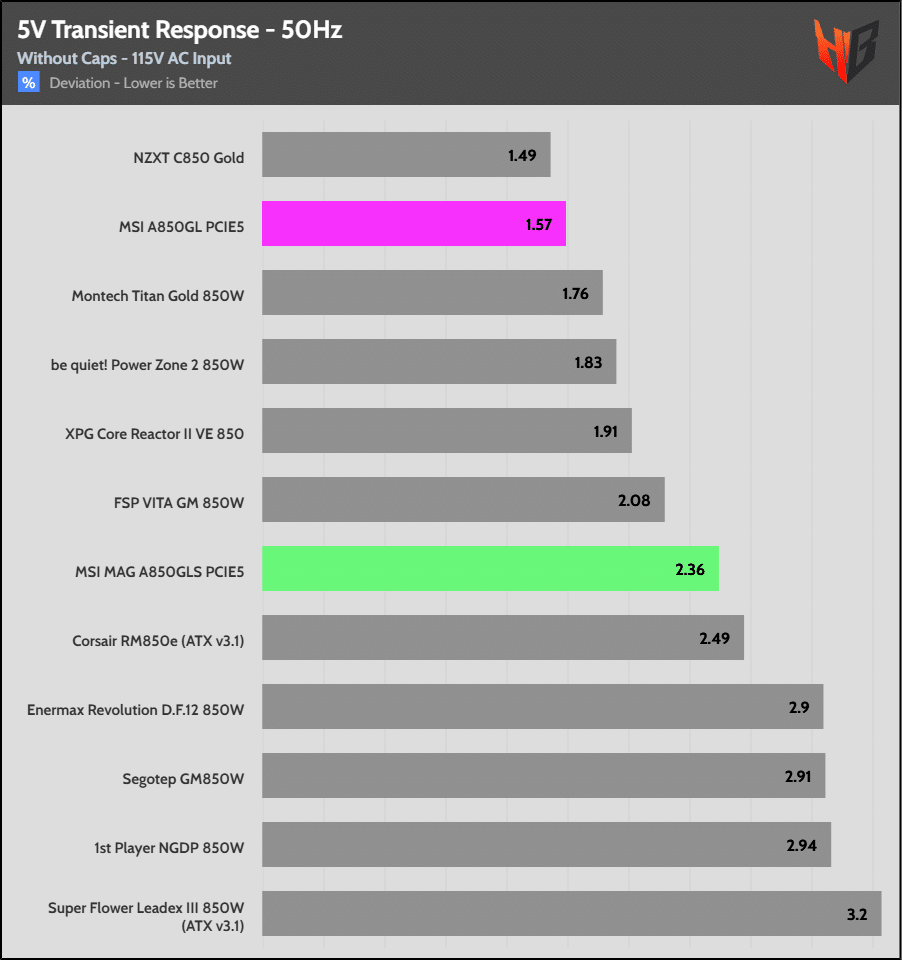

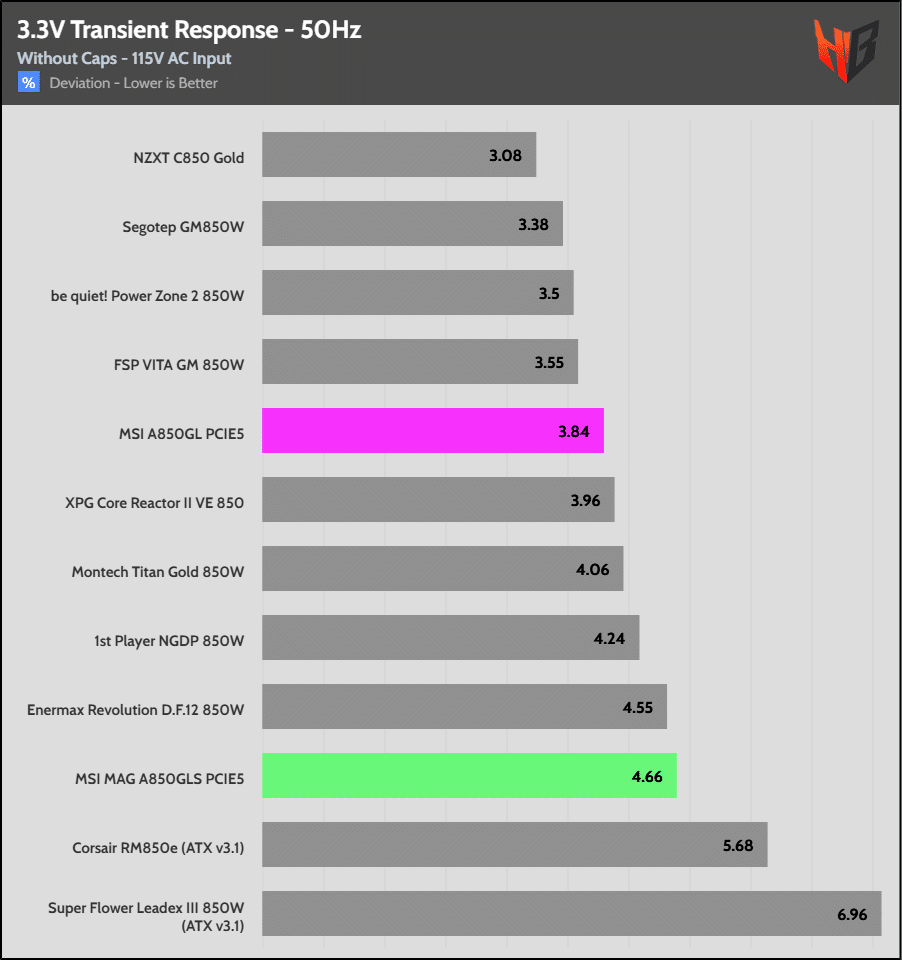

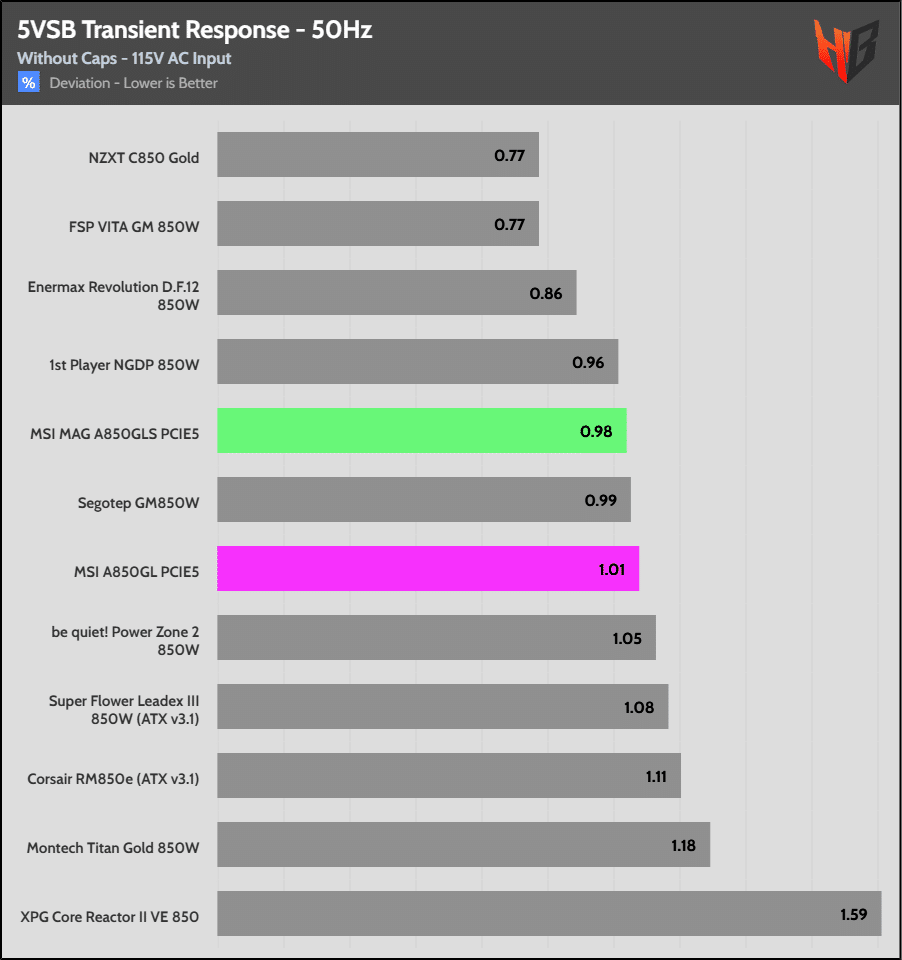

The transient response with normal loads is good at 12V, but mediocre on the minor rails, especially at 3.3V, where the voltage levels drop below 3.2V at both tests.

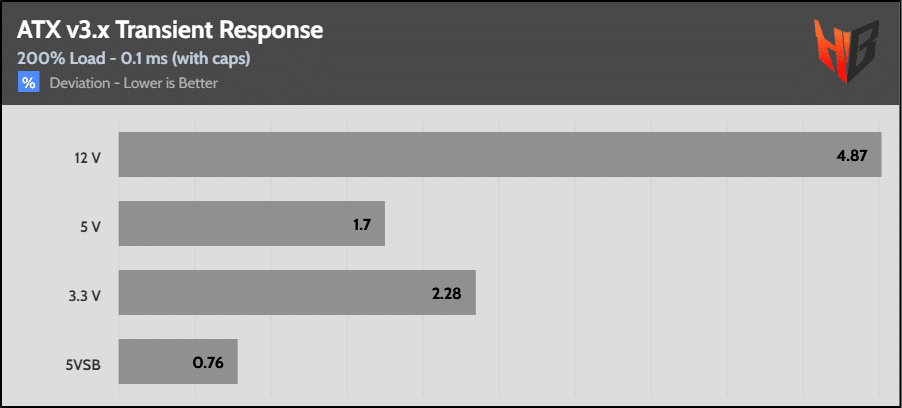

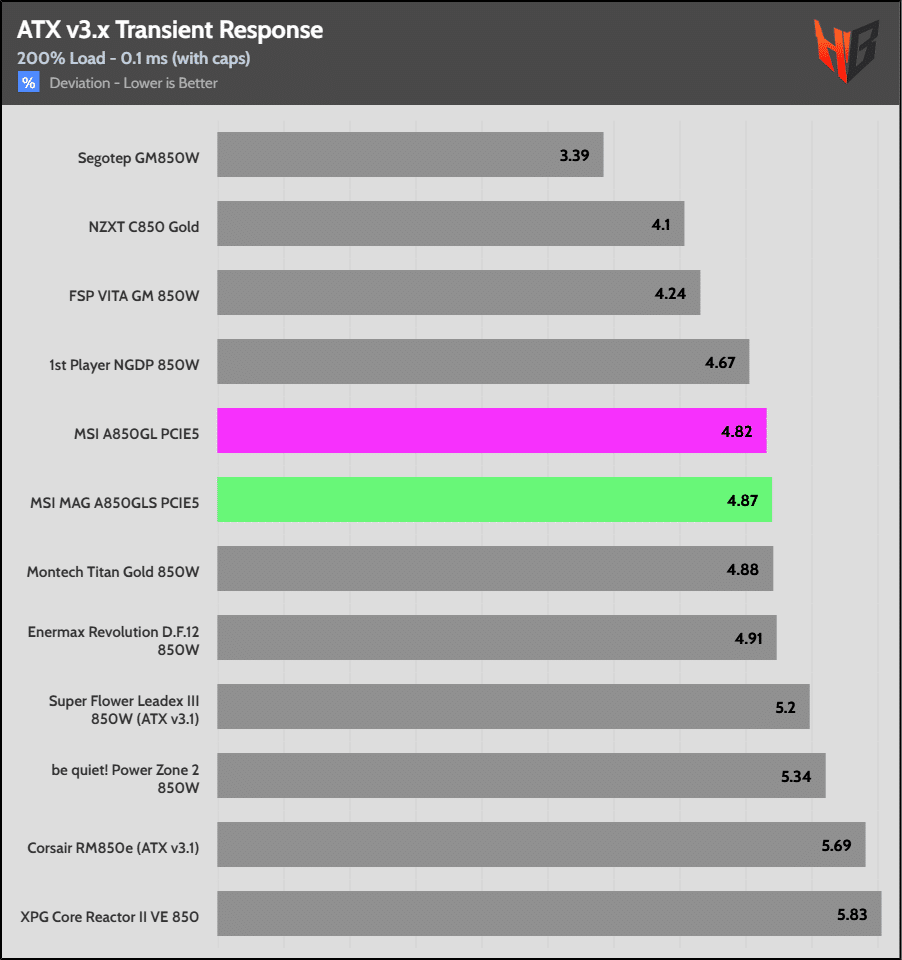

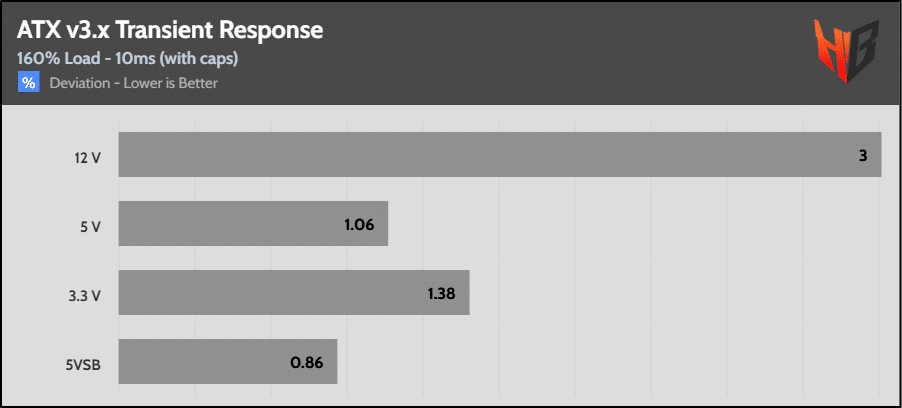

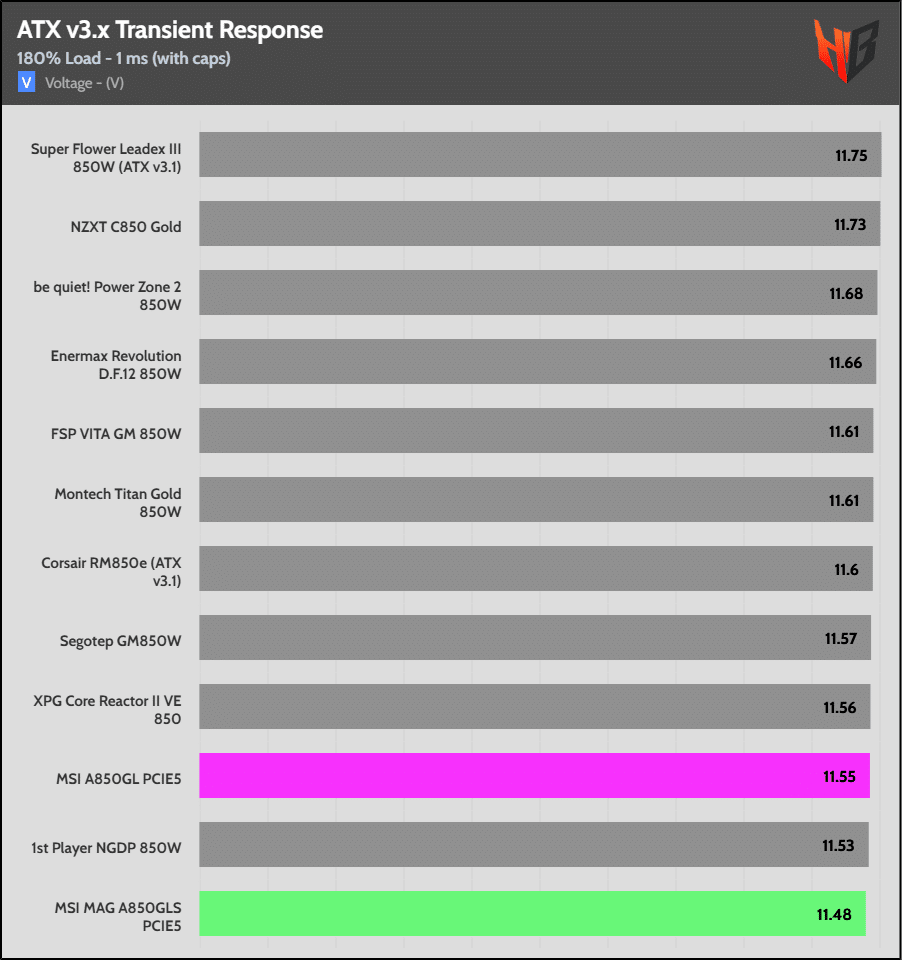

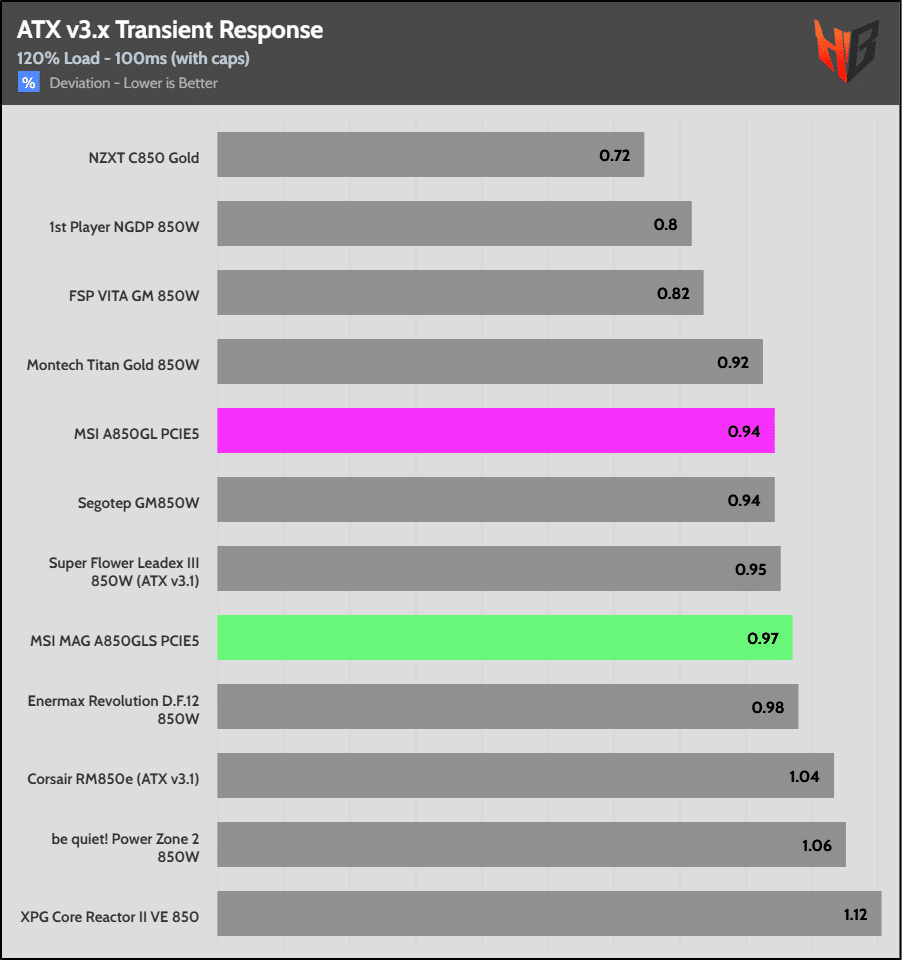

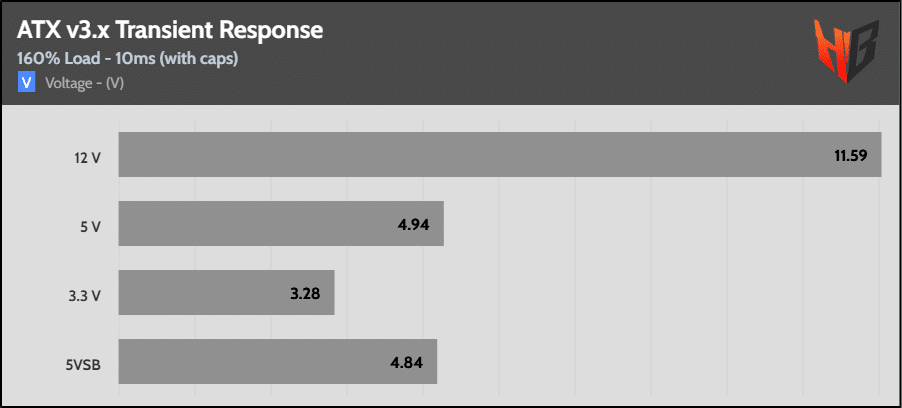

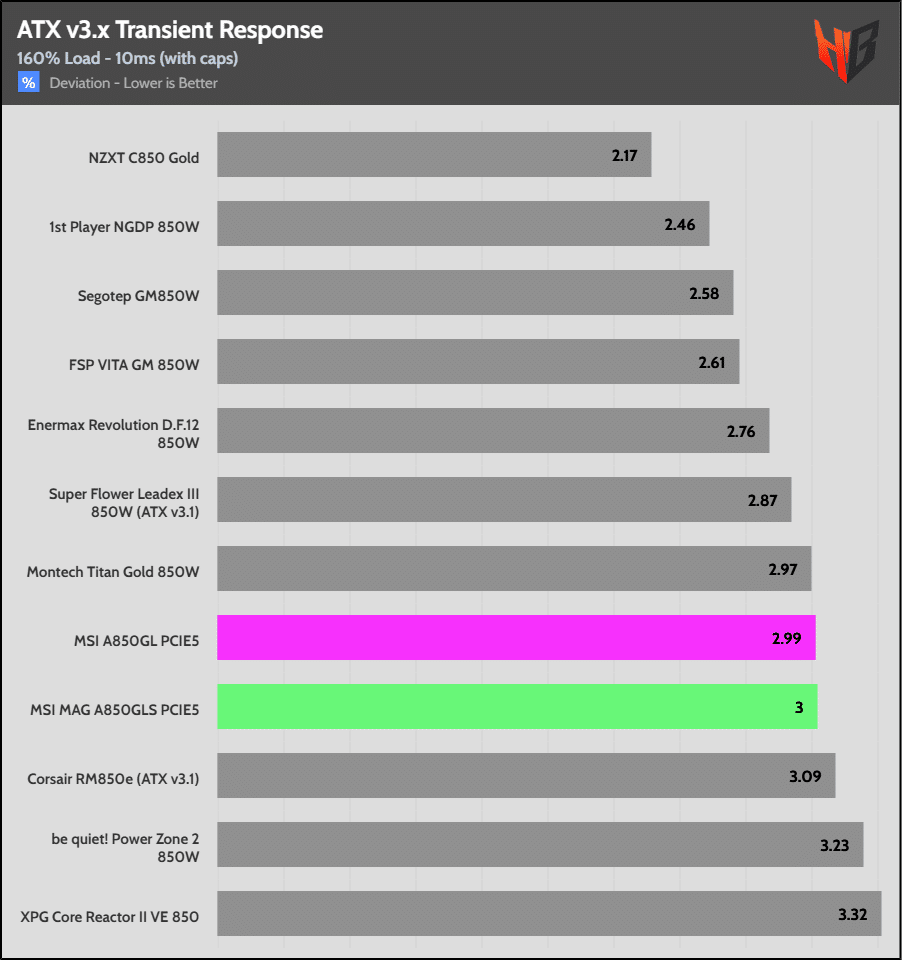

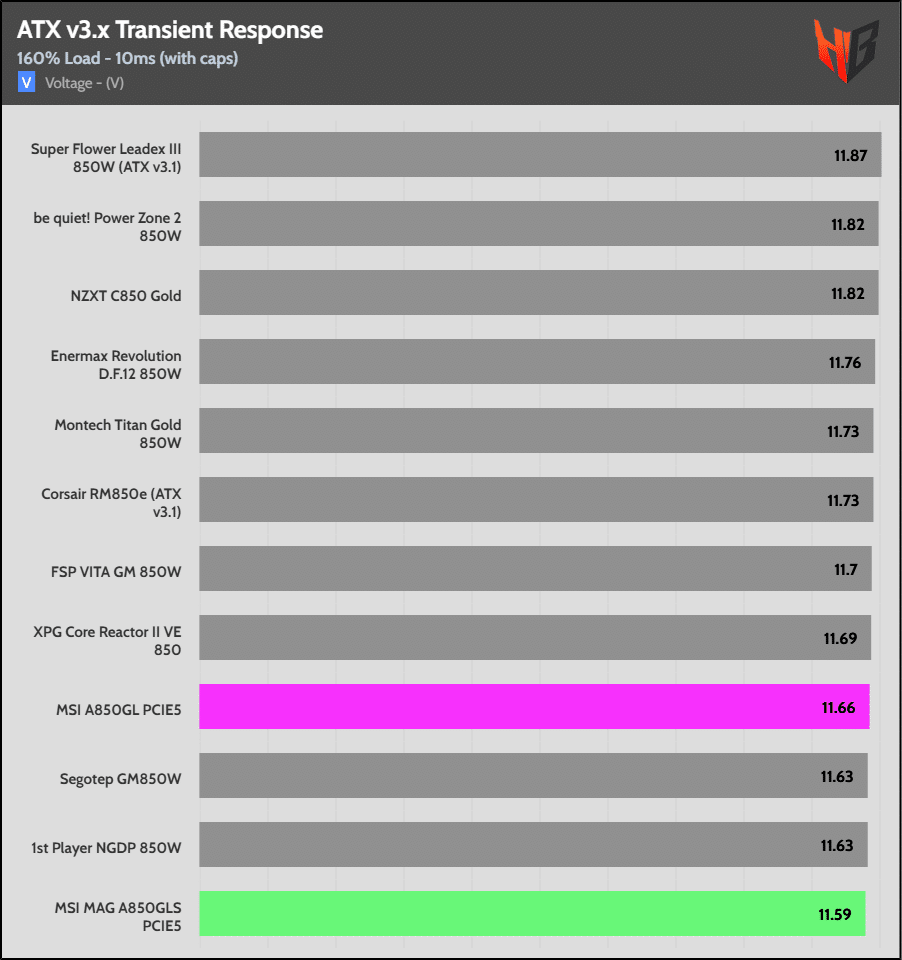

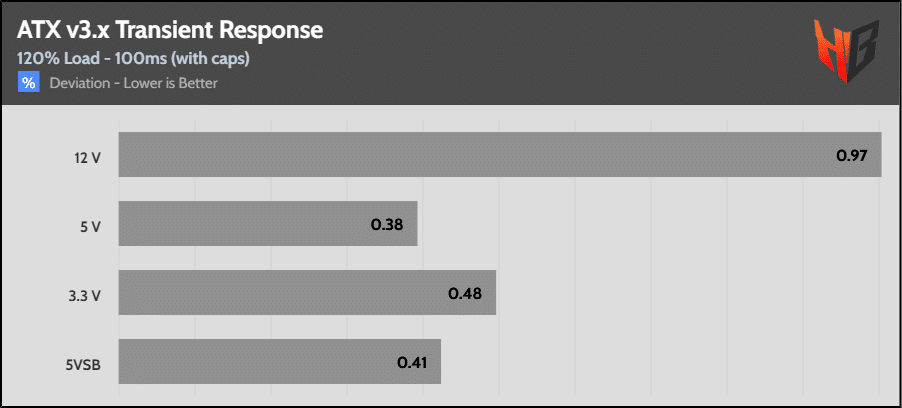

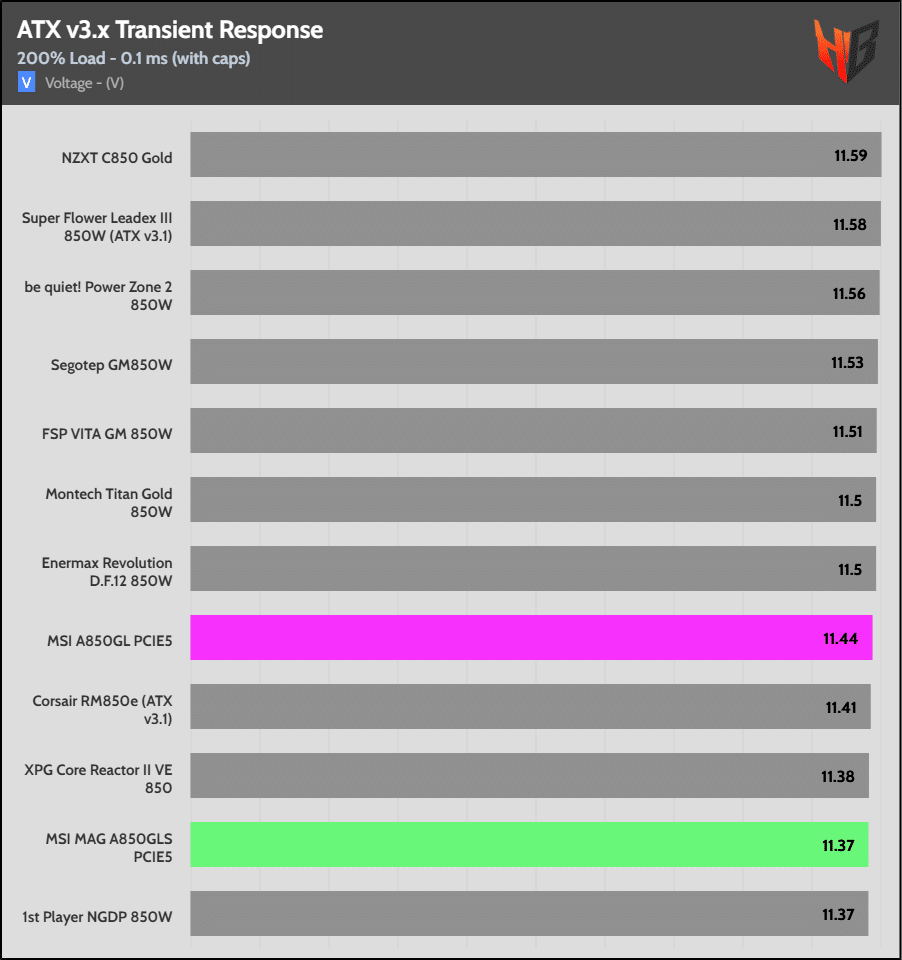

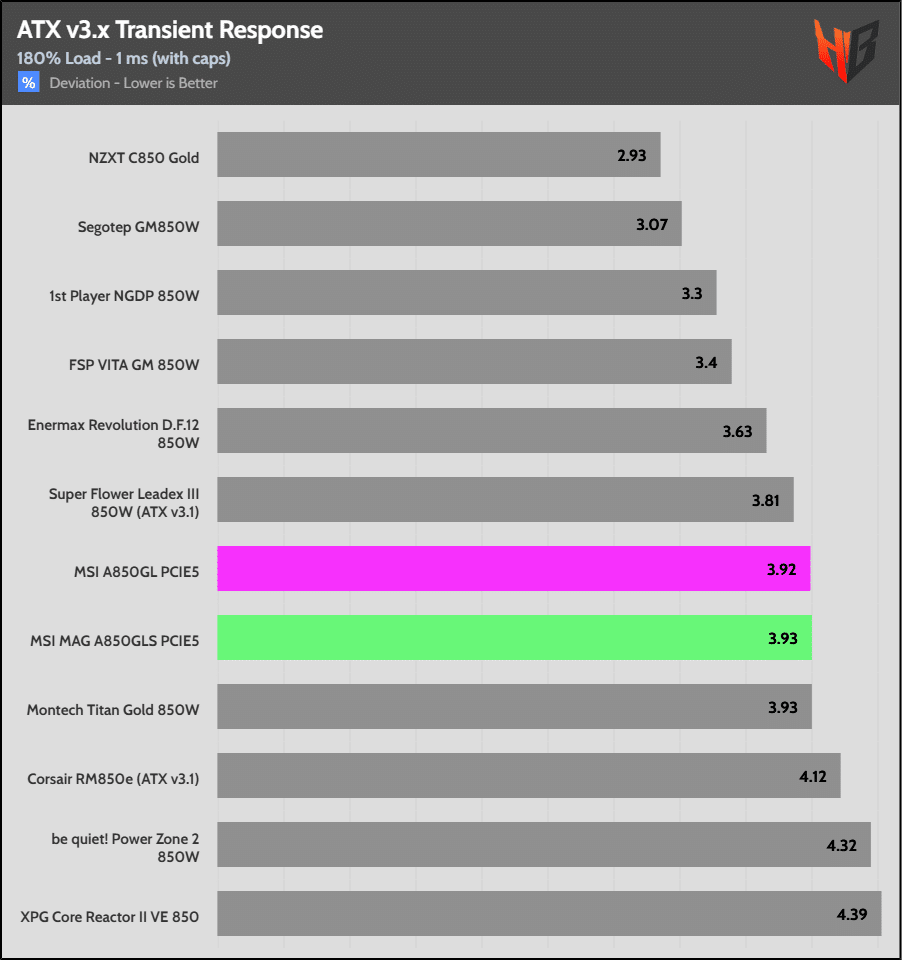

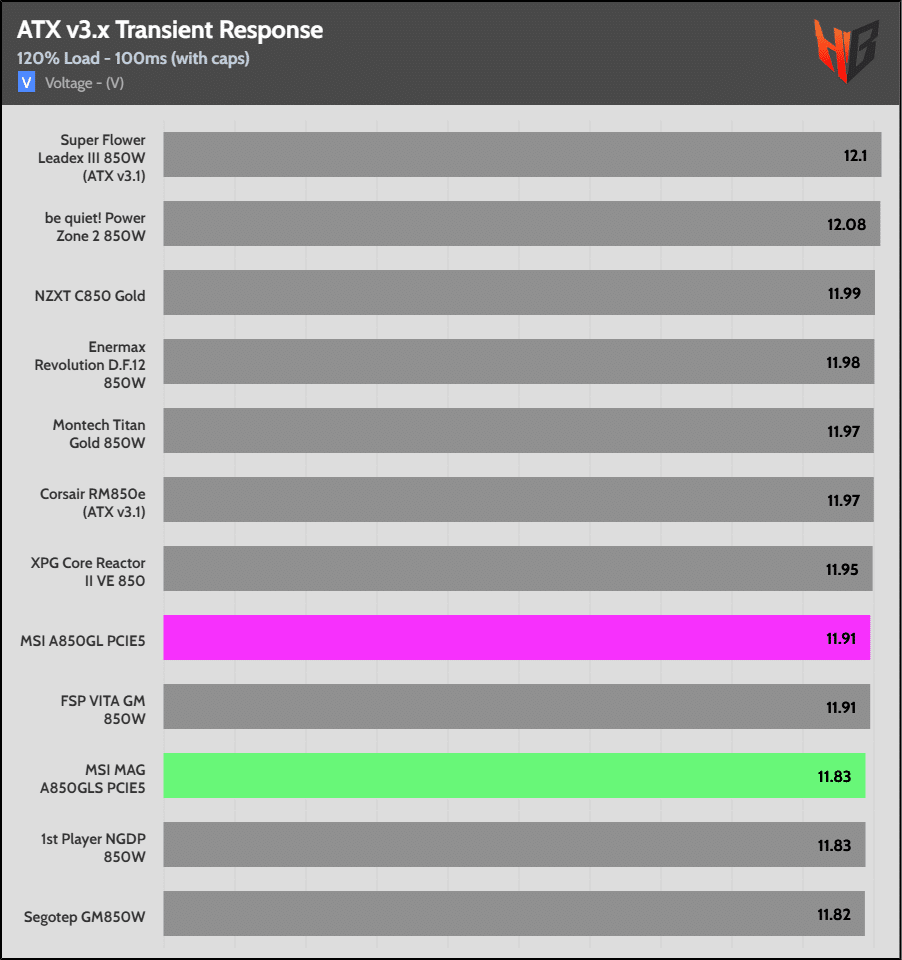

Transient Response ATX v3.1 Tests
The PSU passes all ATX v3.1 transient response tests.
The 12V rail’s performance is mediocre at high transient loads.
