Load Regulation
| Test | 12V | 5V | 3.3V | 5VSB | DC/AC (Watts) | Efficiency | Fan Speed (RPM) | PSU Noise (dB[A]) | Temps (In/Out) | PF/AC Volts |
| 10% | 5.274A | 1.99A | 1.976A | 1.011A | 85.007 | 88.53% | 413 | <6.0 | 40.22°C | 0.967 |
| 12.021V | 5.024V | 3.34V | 4.944V | 96.018 | 42.27°C | 114.81V | ||||
| 20% | 11.575A | 2.989A | 2.966A | 1.216A | 169.95 | 91.724% | 414 | <6.0 | 40.66°C | 0.978 |
| 12.013V | 5.019V | 3.338V | 4.936V | 185.288 | 43.59°C | 114.78V | ||||
| 30% | 18.235A | 3.489A | 3.463A | 1.42A | 254.959 | 92.162% | 416 | <6.0 | 41.48°C | 0.983 |
| 12.005V | 5.016V | 3.336V | 4.929V | 276.641 | 45.75°C | 114.75V | ||||
| 40% | 24.909A | 3.991A | 3.96A | 1.626A | 340.051 | 92.184% | 417 | <6.0 | 41.78°C | 0.982 |
| 11.998V | 5.012V | 3.334V | 4.921V | 368.883 | 47.61°C | 114.73V | ||||
| 50% | 31.226A | 4.993A | 4.954A | 1.832A | 424.886 | 91.776% | 419 | <6.0 | 42.36°C | 0.983 |
| 11.990V | 5.007V | 3.331V | 4.912V | 462.957 | 50.13°C | 114.69V | ||||
| 60% | 37.491A | 5.998A | 5.95A | 2A | 509.222 | 90.426% | 636 | 8.4 | 42.96°C | 0.987 |
| 11.992V | 5.002V | 3.328V | 4.902V | 563.134 | 52.72°C | 114.67V | ||||
| 70% | 43.862A | 7.005A | 6.95A | 2.249A | 594.77 | 89.824% | 1100 | 27.2 | 43.32°C | 0.989 |
| 11.984V | 4.997V | 3.324V | 4.891V | 662.15 | 53.2°C | 114.63V | ||||
| 80% | 50.243A | 8.013A | 7.949A | 2.356A | 679.578 | 89.135% | 1384 | 34 | 43.6°C | 0.99 |
| 11.975V | 4.992V | 3.321V | 4.882V | 762.415 | 53.93°C | 114.6V | ||||
| 90% | 57.032A | 8.521A | 8.432A | 2.463A | 765 | 88.398% | 1832 | 42 | 44.64°C | 0.991 |
| 11.967V | 4.988V | 3.321V | 4.873V | 865.402 | 54.7°C | 114.56V | ||||
| 100% | 63.565A | 9.029A | 8.95A | 3.084A | 849.825 | 87.532% | 2151 | 46.3 | 45.06°C | 0.992 |
| 11.958V | 4.984V | 3.318V | 4.865V | 970.874 | 54.88°C | 114.53V | ||||
| 110% | 69.979A | 10.043A | 10.048A | 3.089A | 934.411 | 86.639% | 2269 | 47.5 | 46.05°C | 0.993 |
| 11.949V | 4.978V | 3.314V | 4.858V | 1078.514 | 56.12°C | 114.5V | ||||
| CL1 | 0.117A | 12.052A | 11.915A | 0A | 101.305 | 85.668% | 438 | <6.0 | 42.01°C | 0.972 |
| 12.026V | 4.995V | 3.332V | 4.928V | 118.254 | 59.68°C | 114.79V | ||||
| CL2 | 0.117A | 20.031A | 0A | 0A | 101.348 | 84.329% | 435 | <6.0 | 42.92°C | 0.972 |
| 12.027V | 4.99V | 3.32V | 4.932V | 120.181 | 58.63°C | 114.8V | ||||
| CL3 | 0.115A | 0A | 19.735A | 0A | 67.389 | 80.593% | 433 | <6.0 | 42.32°C | 0.965 |
| 12.027V | 5.006V | 3.344V | 4.933V | 83.615 | 56.56°C | 114.81V | ||||
| CL4 | 71.030A | 0A | 0A | 0.001A | 849.584 | 88.328% | 1617 | 38.8 | 45.5°C | 0.992 |
| 11.961V | 5.009V | 3.321V | 4.883V | 961.85 | 52.94°C | 114.54V |

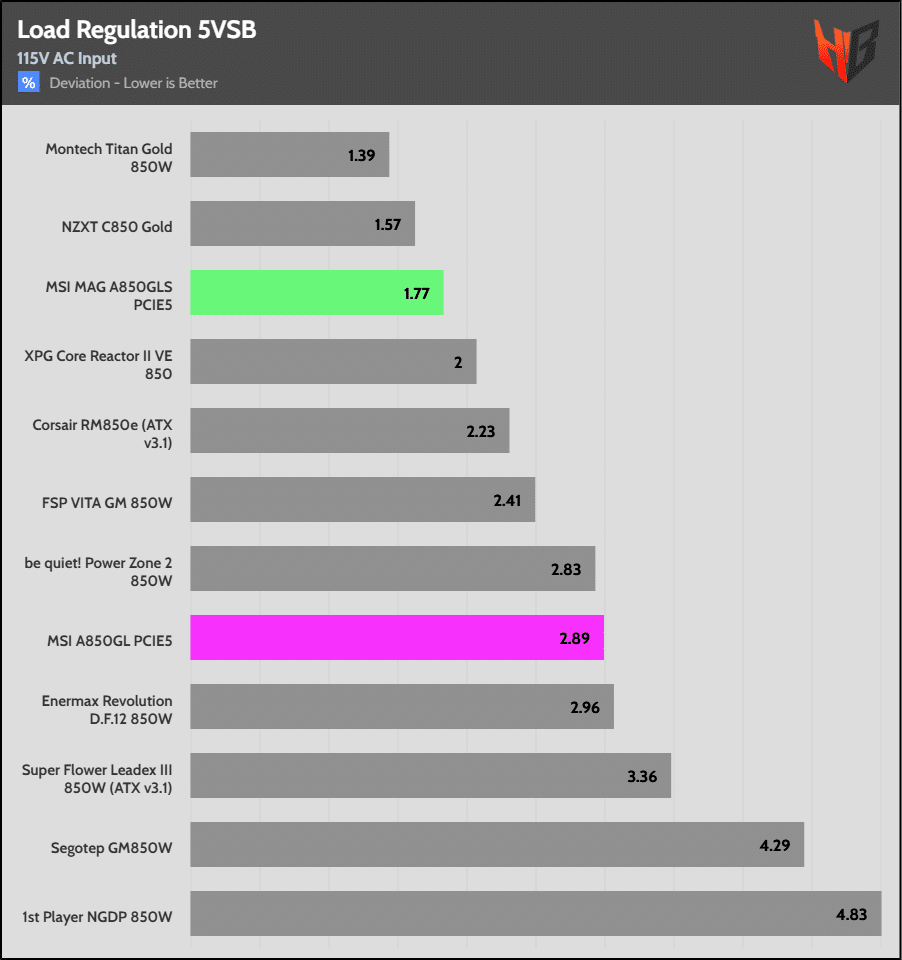

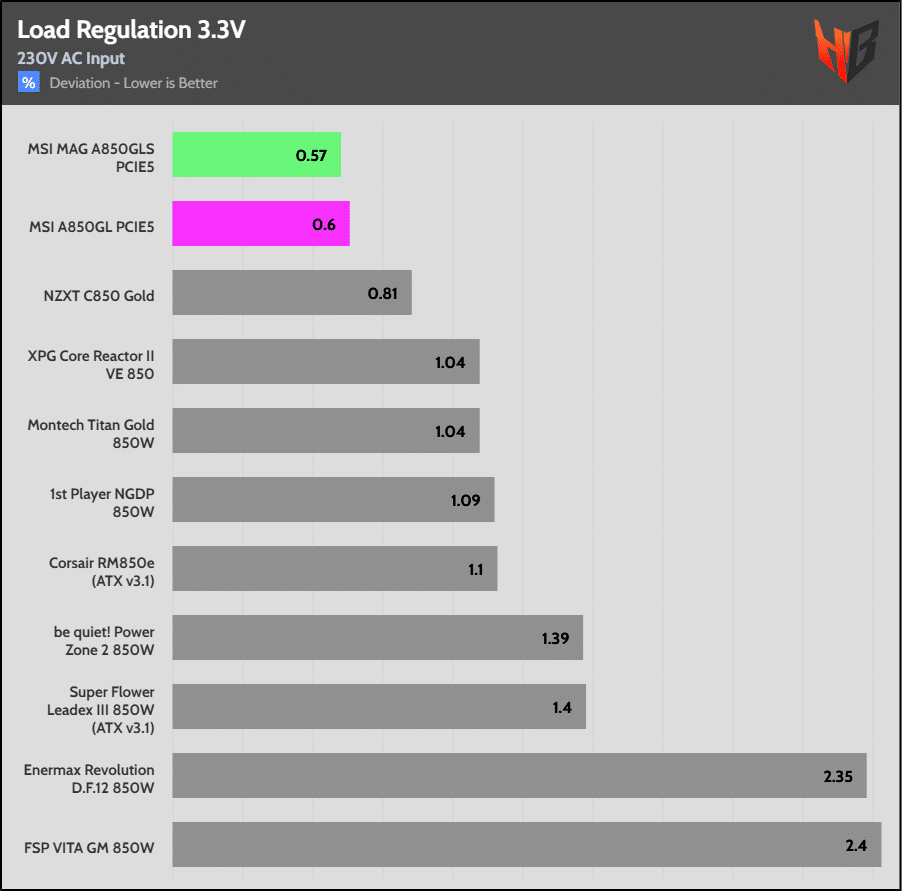

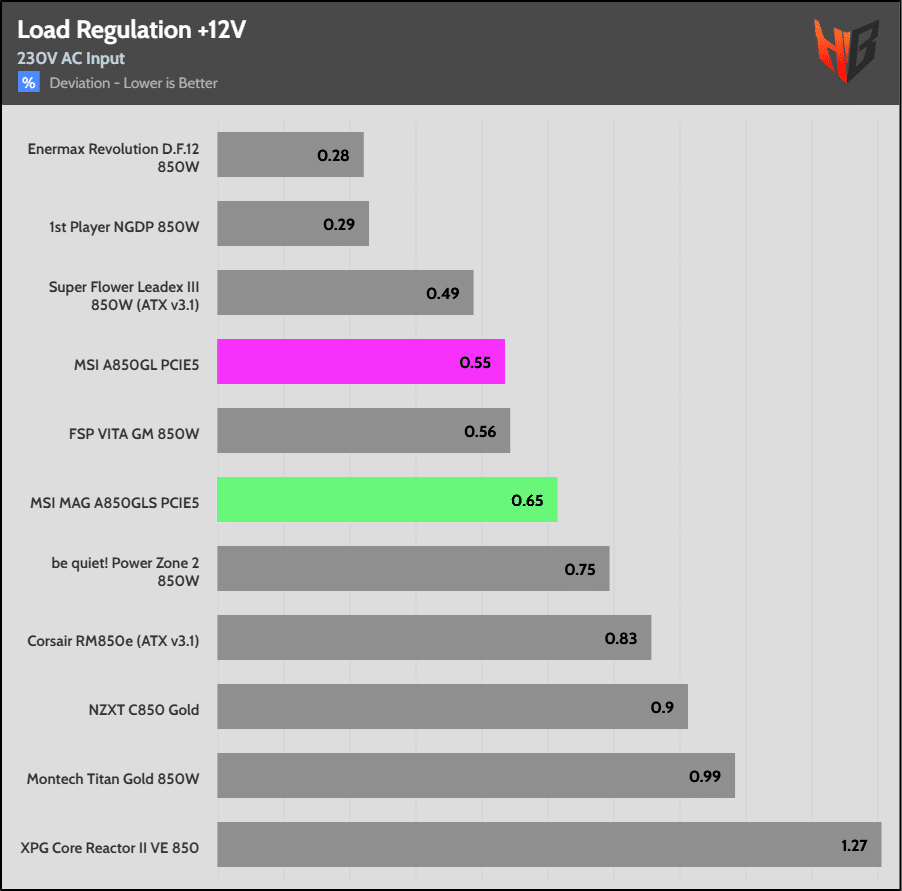

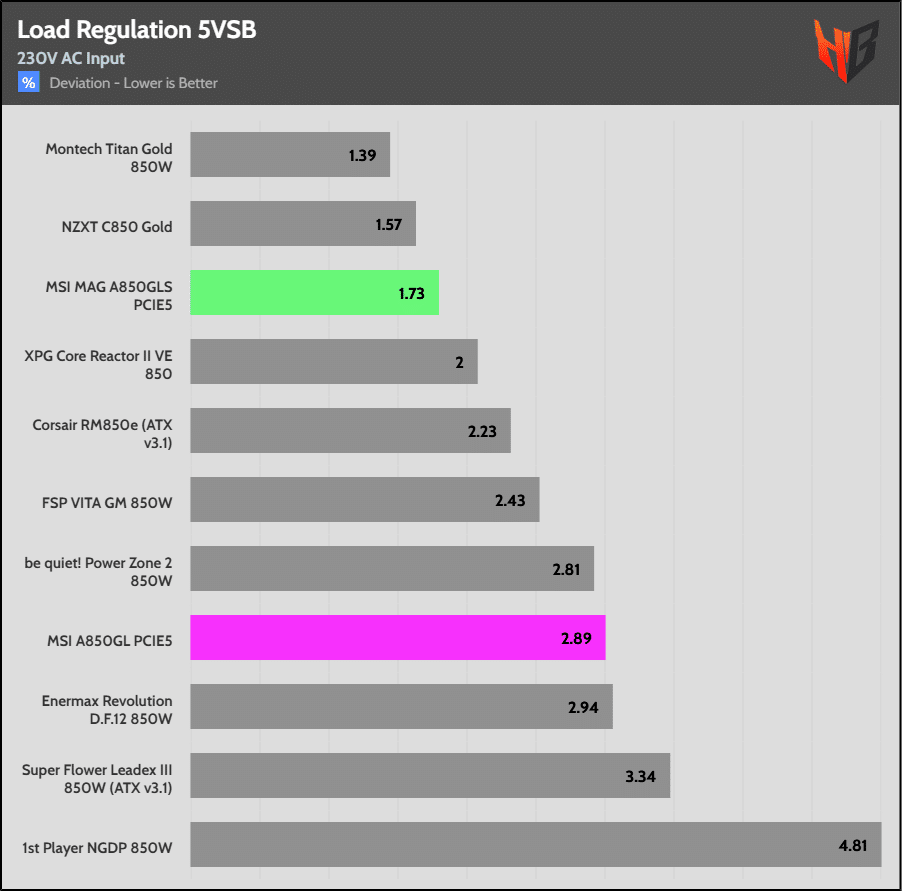

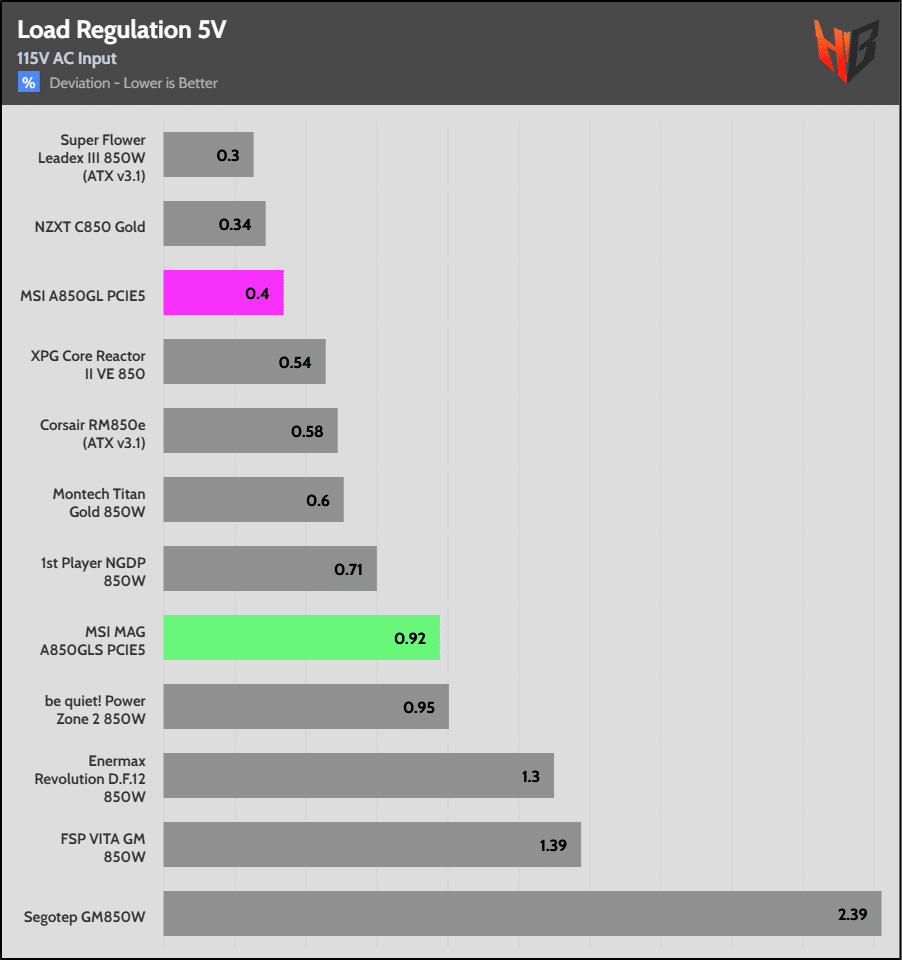

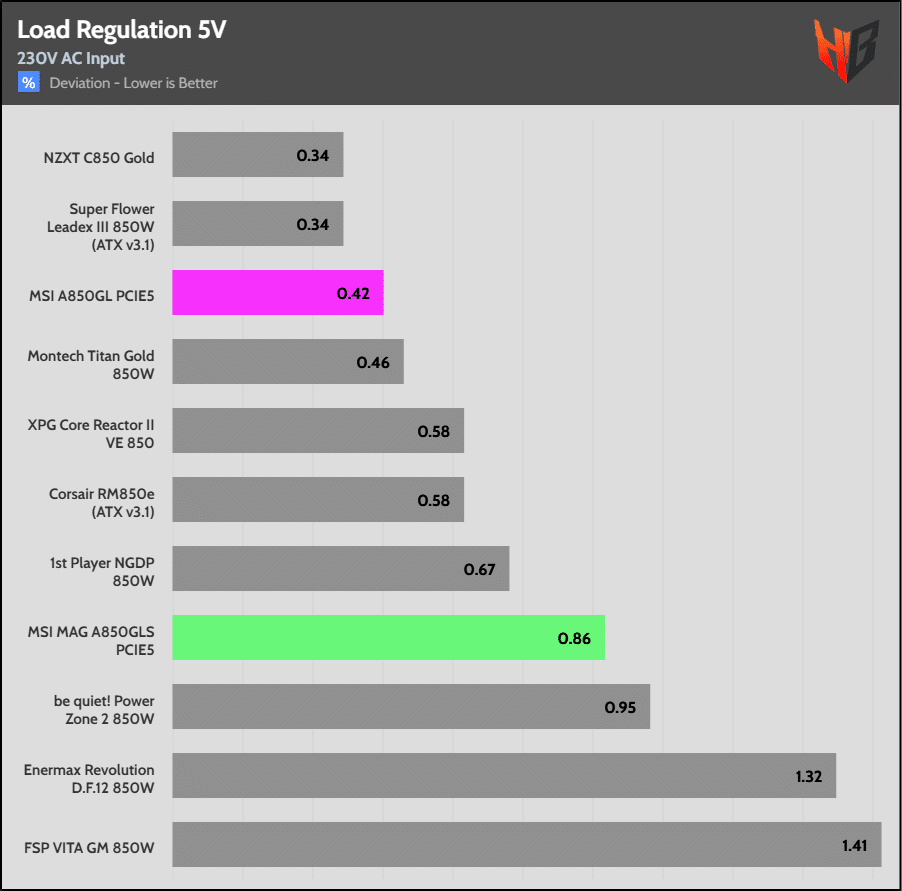

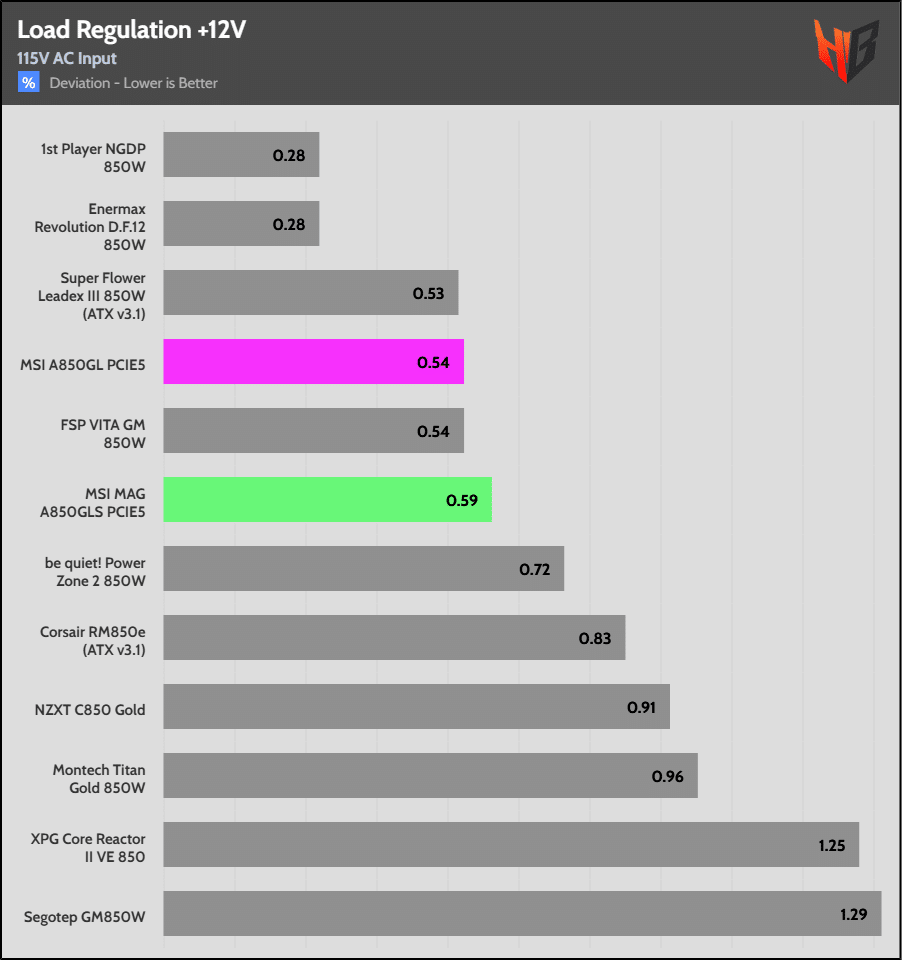

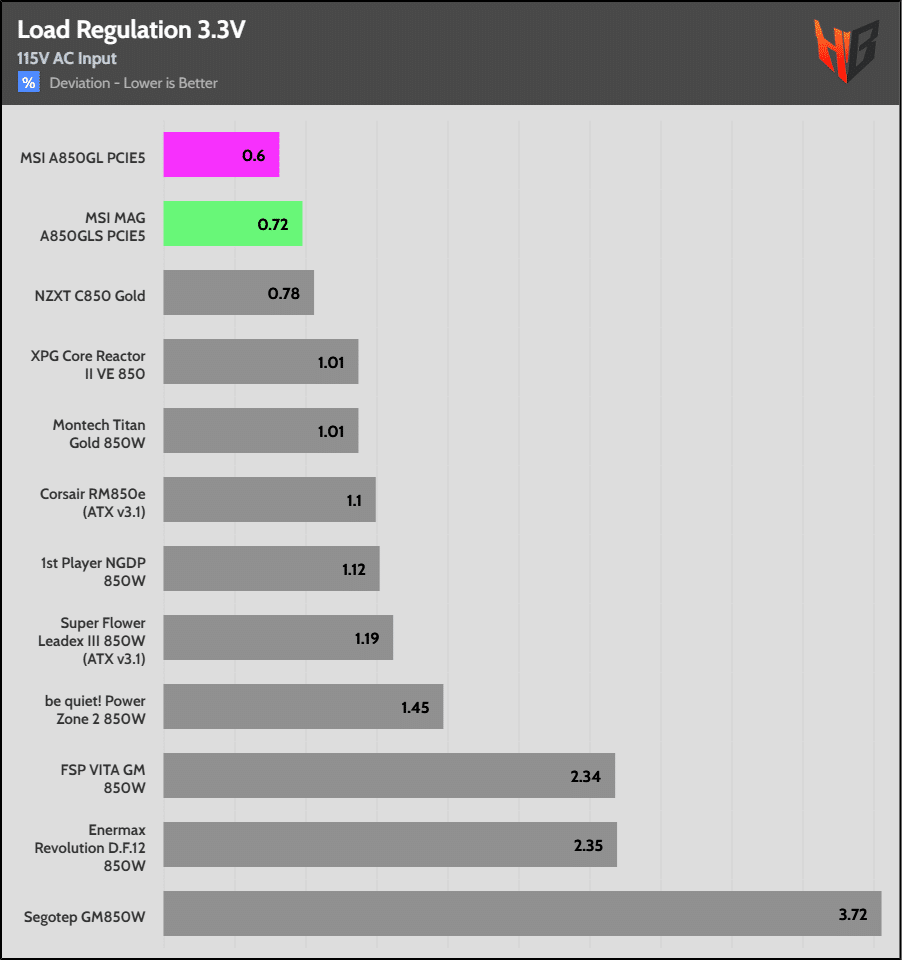

Load regulation is within 1% on all primary rails.
| Test | 12V | 5V | 3.3V | 5VSB | DC/AC (Watts) | Efficiency | Fan Speed (RPM) | PSU Noise (dB[A]) | Temps (In/Out) | PF/AC Volts |
| 20W | 1.234A | 0.497A | 0.494A | 0.2A | 19.99 | 73.143% | 405 | <6.0 | 36.67°C | 0.878 |
| 12.029V | 5.03V | 3.342V | 4.951V | 27.331 | 37.57°C | 114.84V | ||||
| 40W | 2.718A | 0.696A | 0.691A | 0.303A | 40.001 | 82.943% | 408 | <6.0 | 37.07°C | 0.931 |
| 12.025V | 5.028V | 3.342V | 4.949V | 48.228 | 38.22°C | 114.83V | ||||
| 60W | 4.203A | 0.895A | 0.889A | 0.404A | 60.002 | 86.23% | 410 | <6.0 | 38.05°C | 0.952 |
| 12.023V | 5.027V | 3.341V | 4.947V | 69.583 | 39.59°C | 114.82V | ||||
| 80W | 5.683A | 1.094A | 1.087A | 0.506A | 79.948 | 88.764% | 412 | <6.0 | 39.46°C | 0.966 |
| 12.022V | 5.026V | 3.341V | 4.946V | 90.066 | 41.15°C | 114.8V |
A glance at the light loads table is always useful, as the PSU will typically operate at light loads.
Ripple Suppression
| Test | 12V | 5V | 3.3V | 5VSB | Pass/Fail |
| 10% Load | 19.4 mV | 15.9 mV | 16.8 mV | 11.9 mV | Pass |
| 20% Load | 21.3 mV | 15.6 mV | 15.7 mV | 12.0 mV | Pass |
| 30% Load | 22.8 mV | 15.7 mV | 17.1 mV | 12.4 mV | Pass |
| 40% Load | 23.9 mV | 15.9 mV | 17.5 mV | 13.2 mV | Pass |
| 50% Load | 26.9 mV | 17.1 mV | 19.3 mV | 13.7 mV | Pass |
| 60% Load | 26.3 mV | 17.9 mV | 19.0 mV | 14.7 mV | Pass |
| 70% Load | 26.2 mV | 17.7 mV | 19.4 mV | 14.8 mV | Pass |
| 80% Load | 26.5 mV | 18.4 mV | 20.6 mV | 18.3 mV | Pass |
| 90% Load | 28.3 mV | 17.7 mV | 22.0 mV | 21.0 mV | Pass |
| 100% Load | 39.4 mV | 18.6 mV | 21.9 mV | 25.9 mV | Pass |
| 110% Load | 40.6 mV | 18.6 mV | 25.0 mV | 29.1 mV | Pass |
| Crossload 1 | 26.2 mV | 15.7 mV | 17.6 mV | 13.9 mV | Pass |
| Crossload 2 | 20.8 mV | 19.0 mV | 16.3 mV | 13.8 mV | Pass |
| Crossload 3 | 18.6 mV | 15.2 mV | 17.4 mV | 12.9 mV | Pass |
| Crossload 4 | 40.7 mV | 18.5 mV | 21.6 mV | 19.0 mV | Pass |

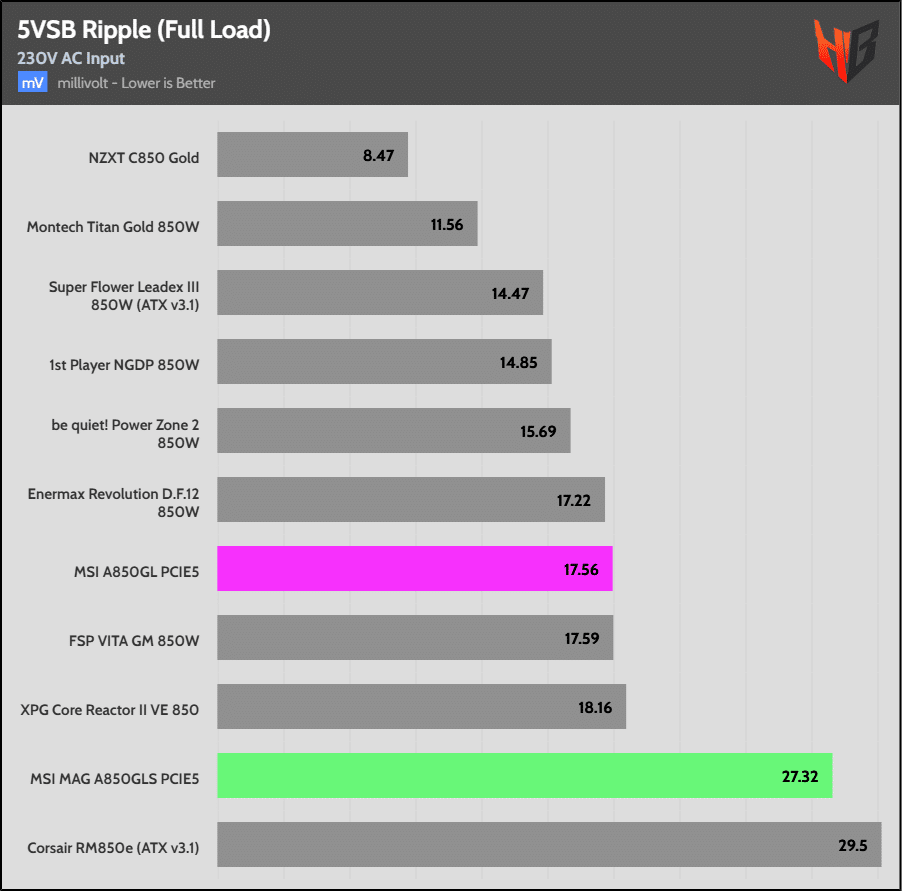

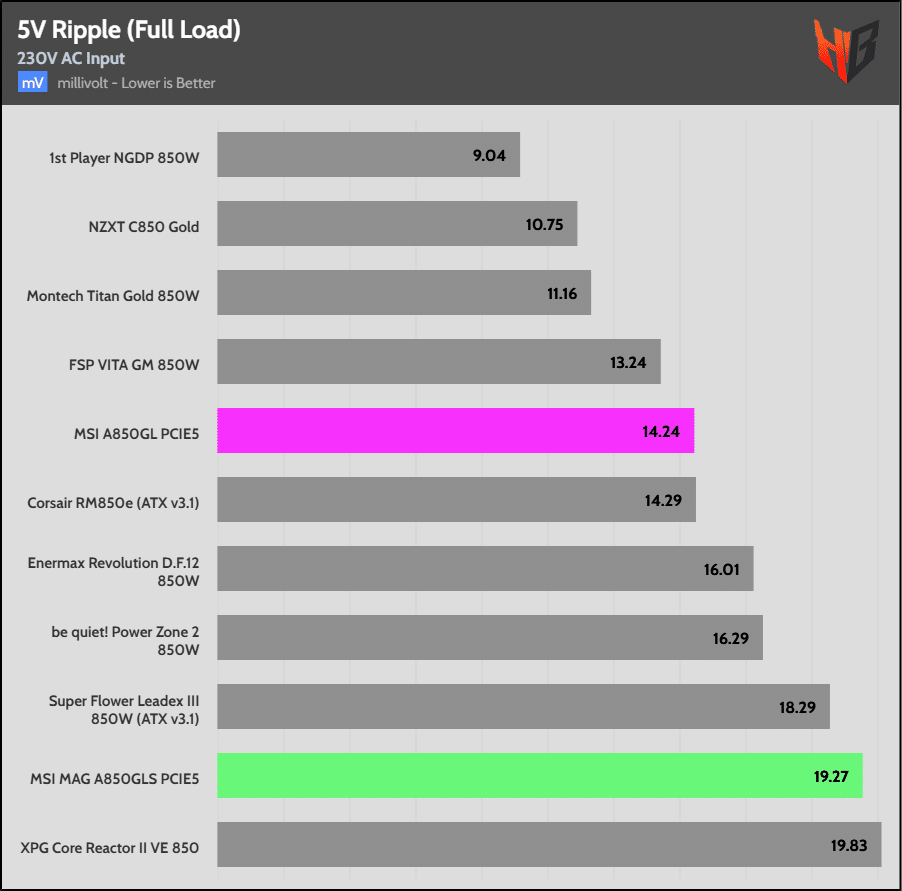

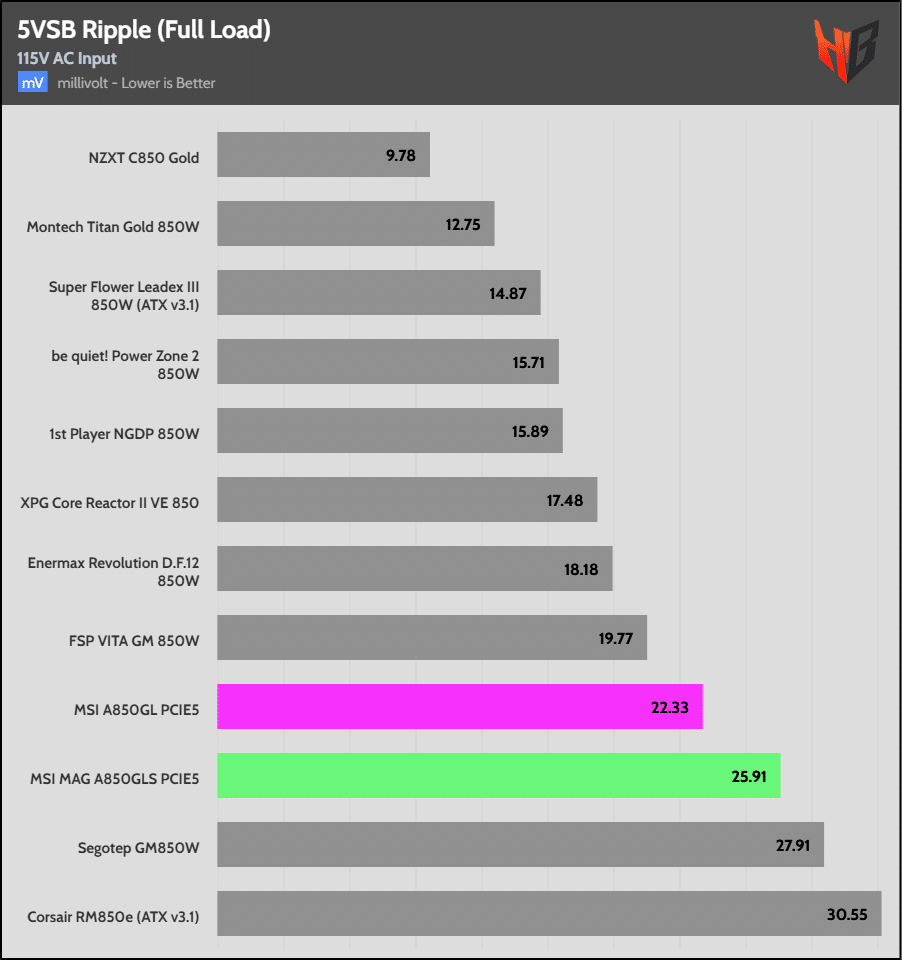

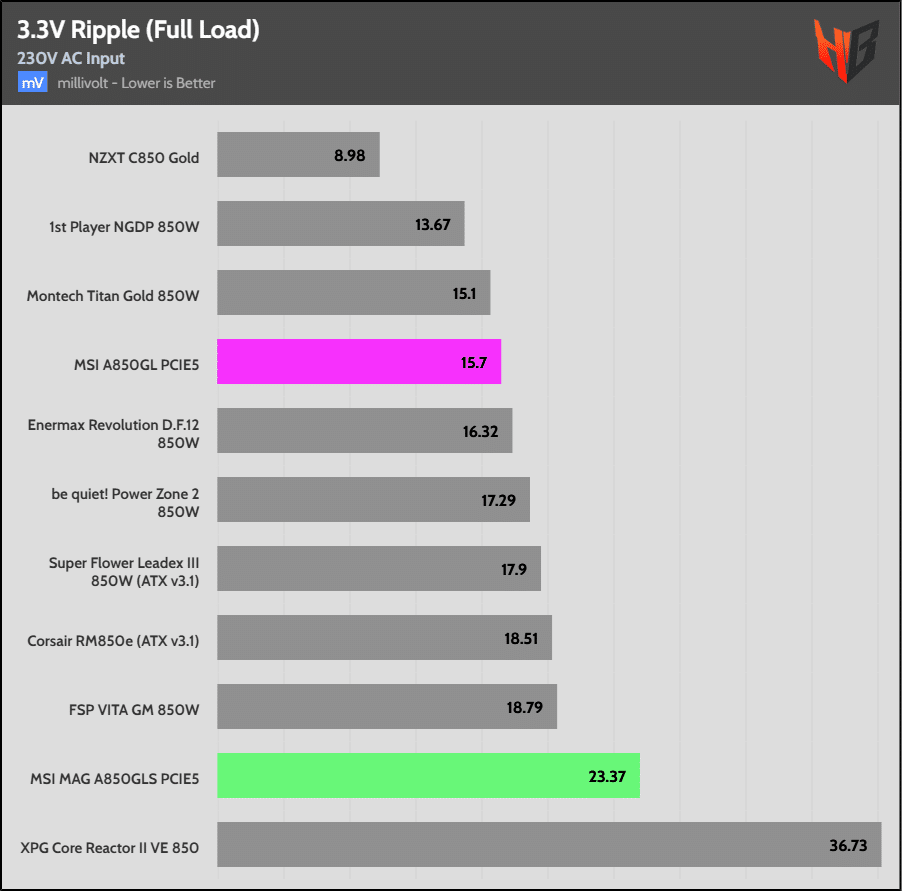

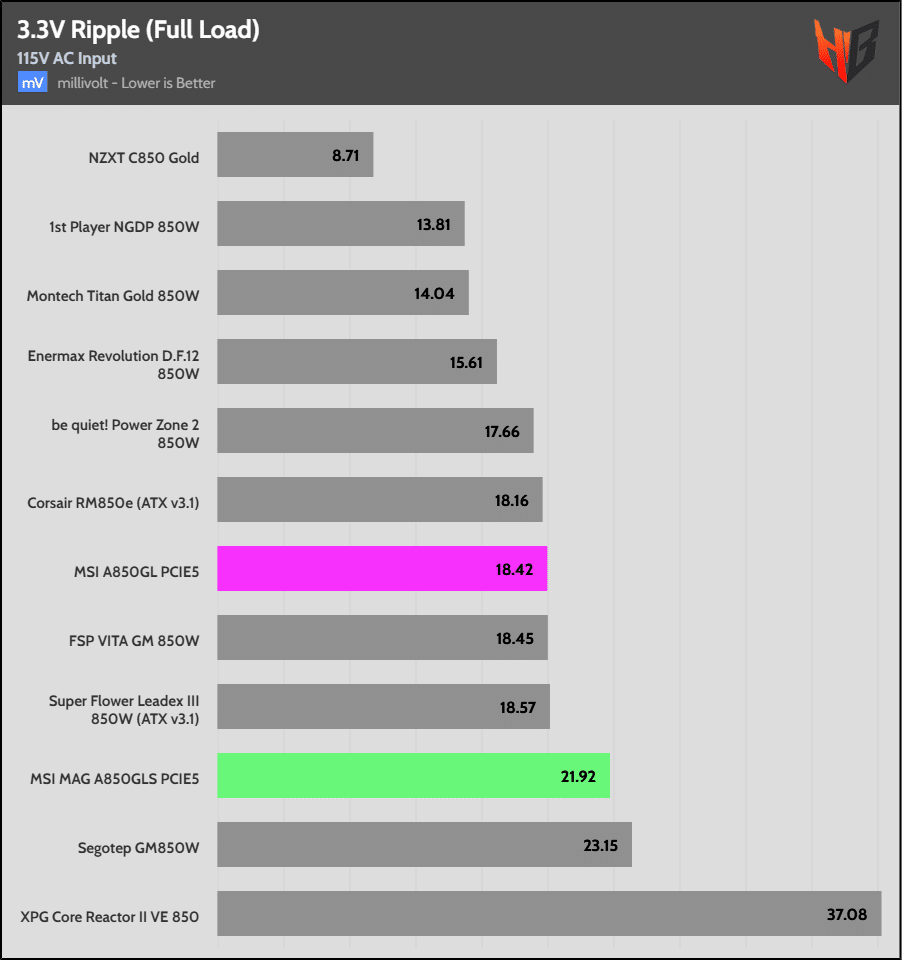

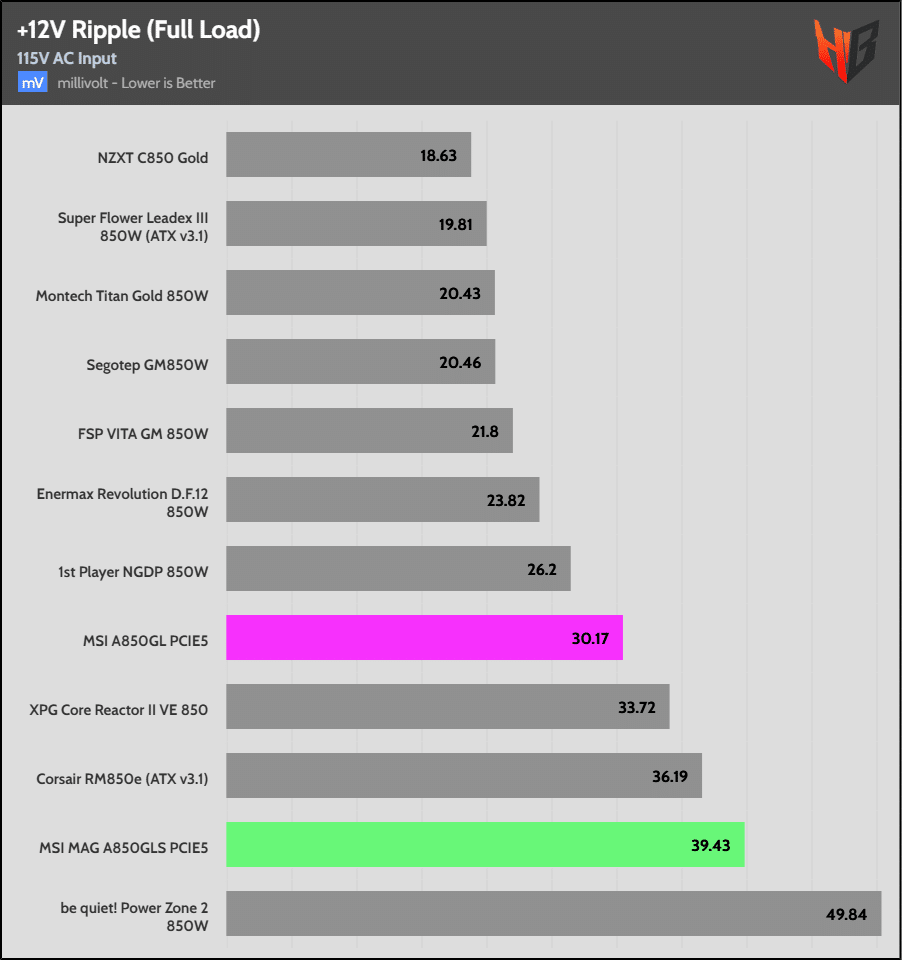

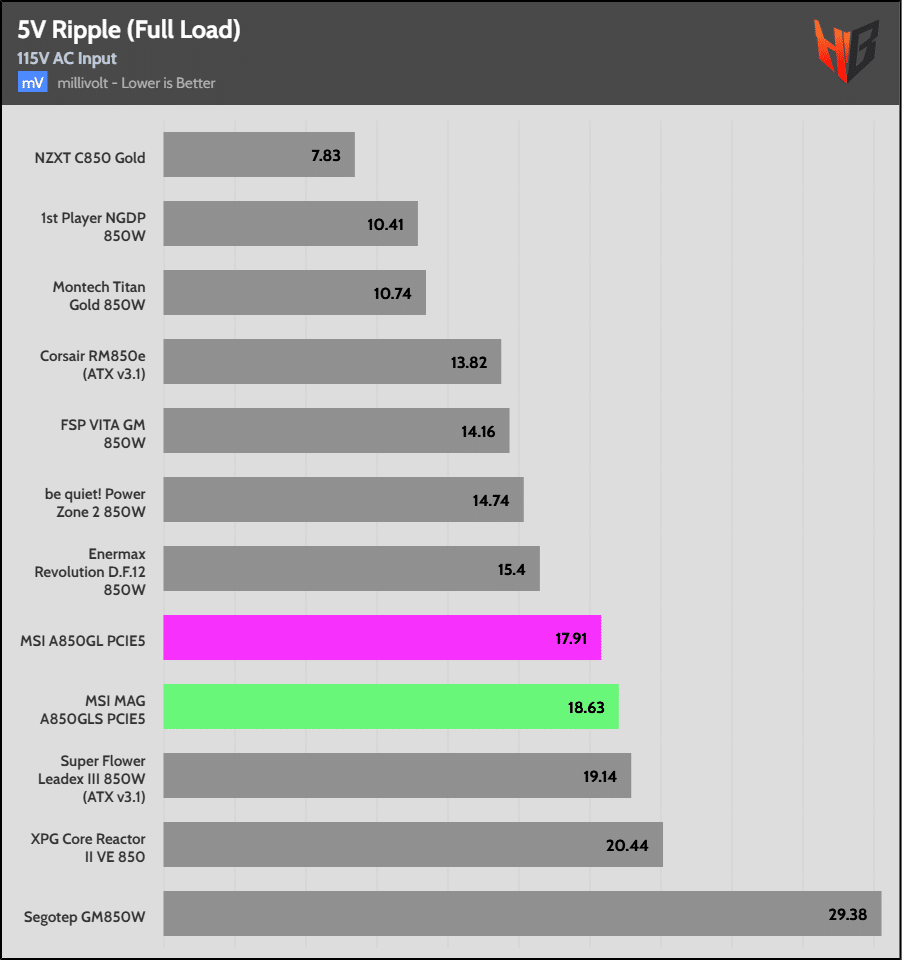

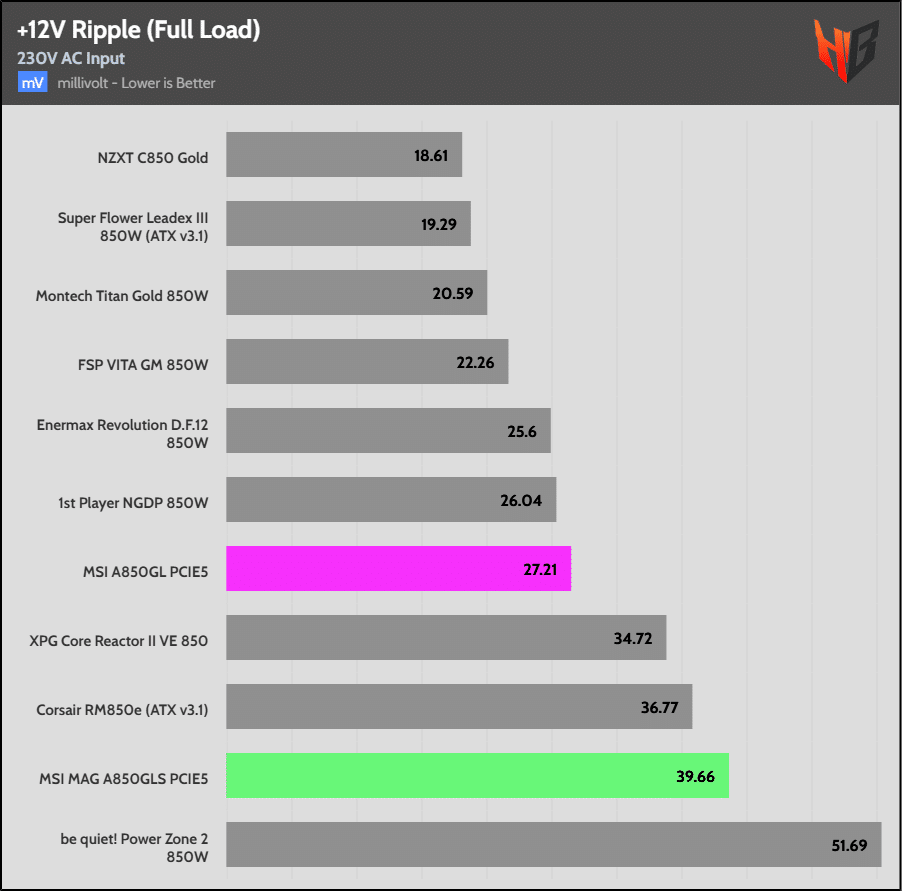

Ripple suppression could be a little better at 12V. It is satisfactory on the minor rails.
