MSI MAG A750GLS PCIE5 ATX v3.1 PSU Review

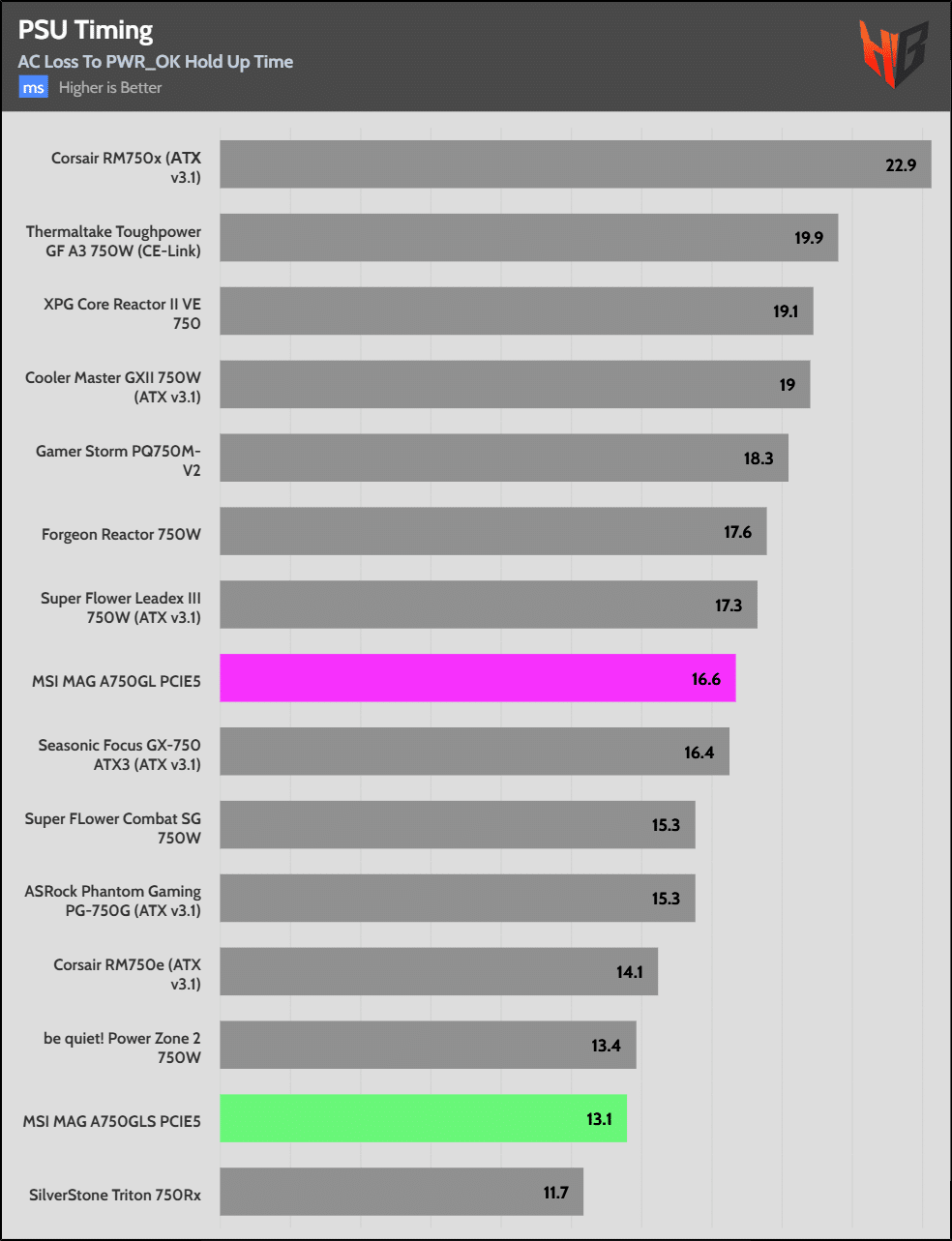

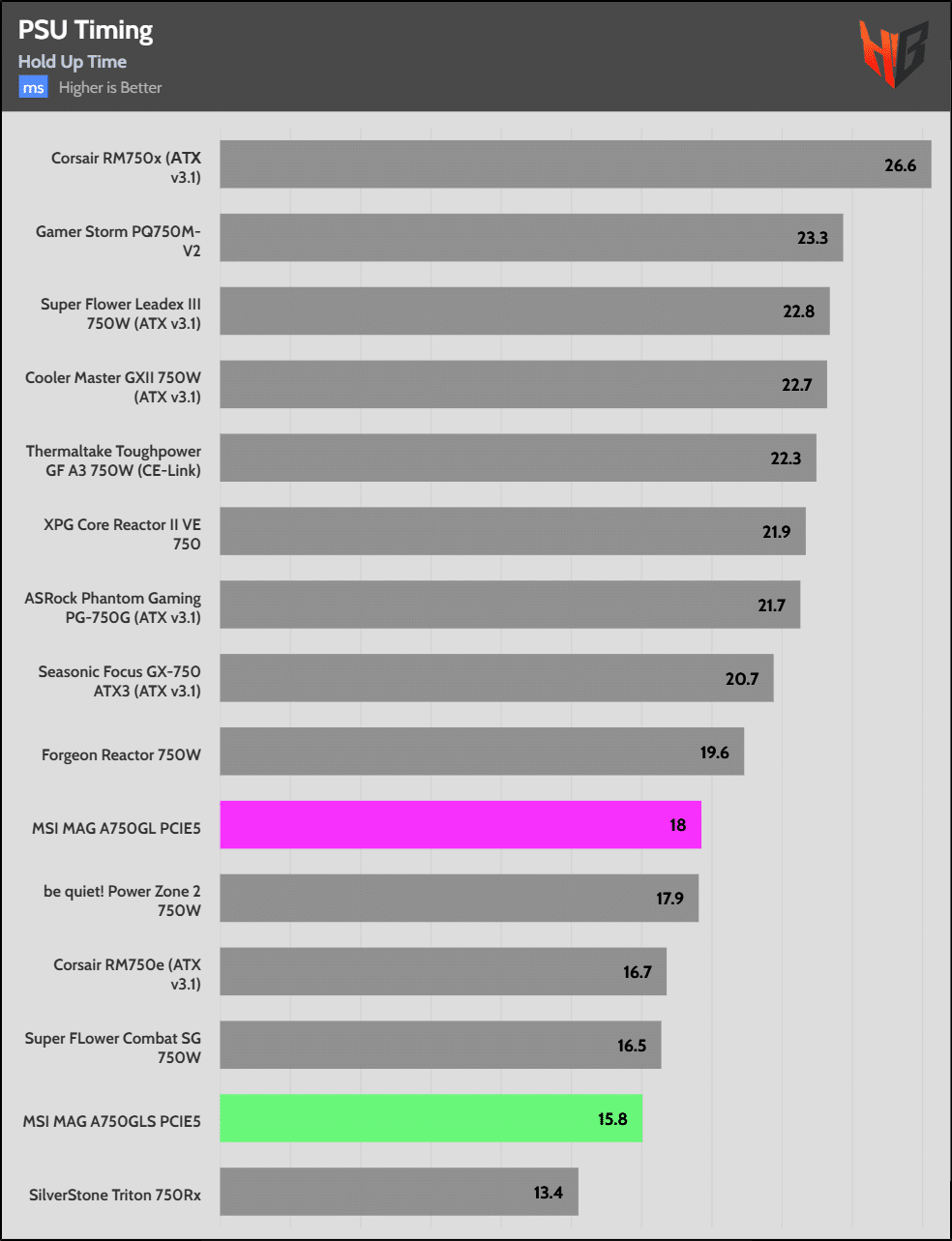

Hold Up Time

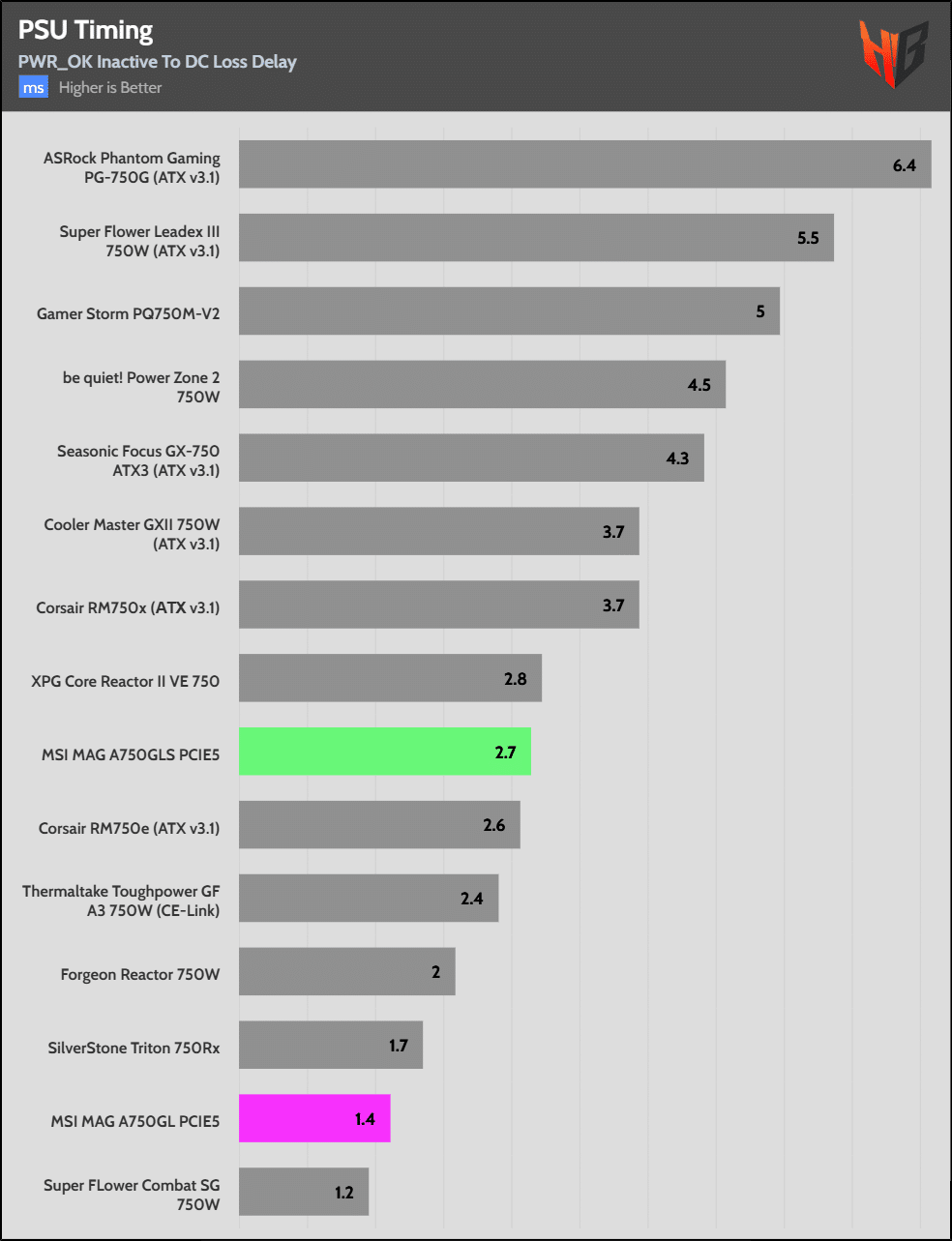

The hold-up time is lower than 17 ms. At least, the power OK signal is accurate but short.

Inrush Current

The inrush currents are so low that I couldn’t get a meaningful reading. This is good!

Leakage Current

Leakage current refers to the small amount of current that flows through an insulating material or a semiconductor device when it is ideally supposed to be non-conductive. It is typically seen in electronics, such as transistors, capacitors, and insulators, where the current leaks due to imperfections or unintended pathways, even when the device is “off.”

Leakage current in power circuits is an alternating current flowing through the earthing conductor caused mainly by the EMC filter’s Y capacitors (Cy). The more Y capacitors, the higher the leakage current can be!

The IEC 62368-1, which replaces the IEC 60950 OFF (Office Equipment) and IEC 60065 TRON (Electronics, entertainment), defines the limits for maximum leakage (touch) current.

  • Normal Condition: Maximum touch current = 3.5 mA
  • Single Fault Condition: Maximum touch current = 10 mA

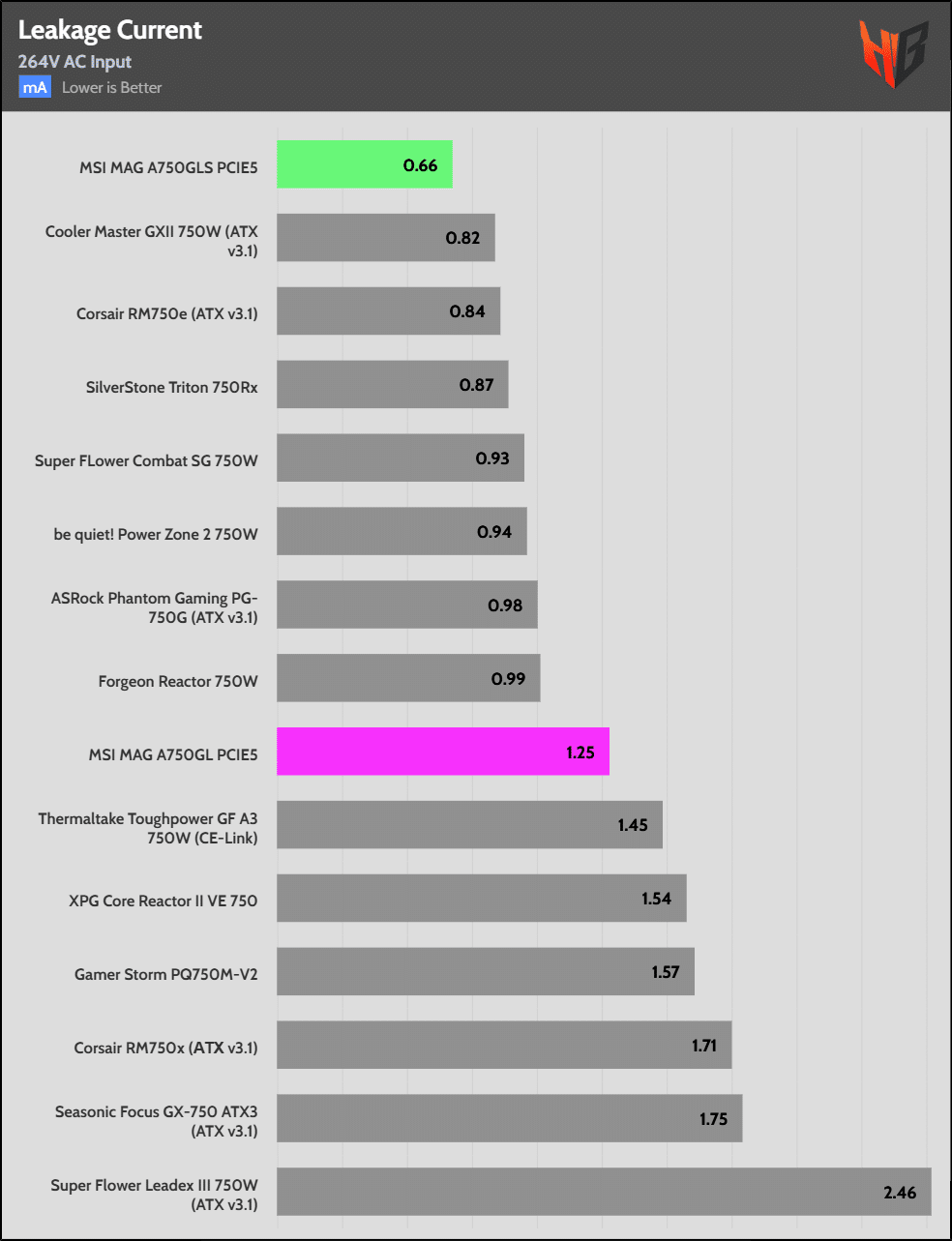

The leakage current is low, indicating that the transient filter’s Y caps have low capacity. The capacitance value of Y-capacitors influences leakage current; a larger capacitance value leads to higher leakage. The lower capacity doesn’t help, though, in restricting the conducted EMI emissions.

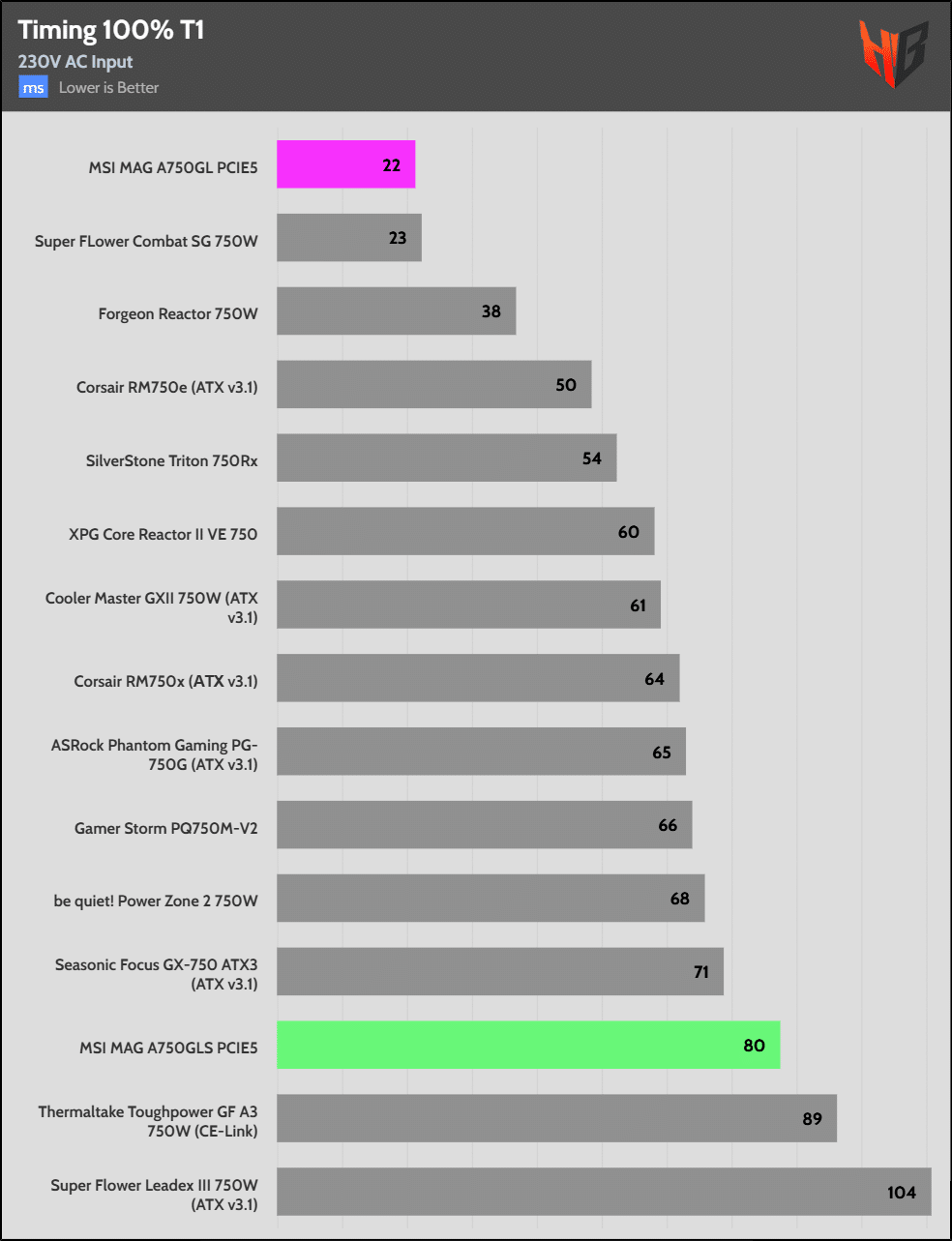

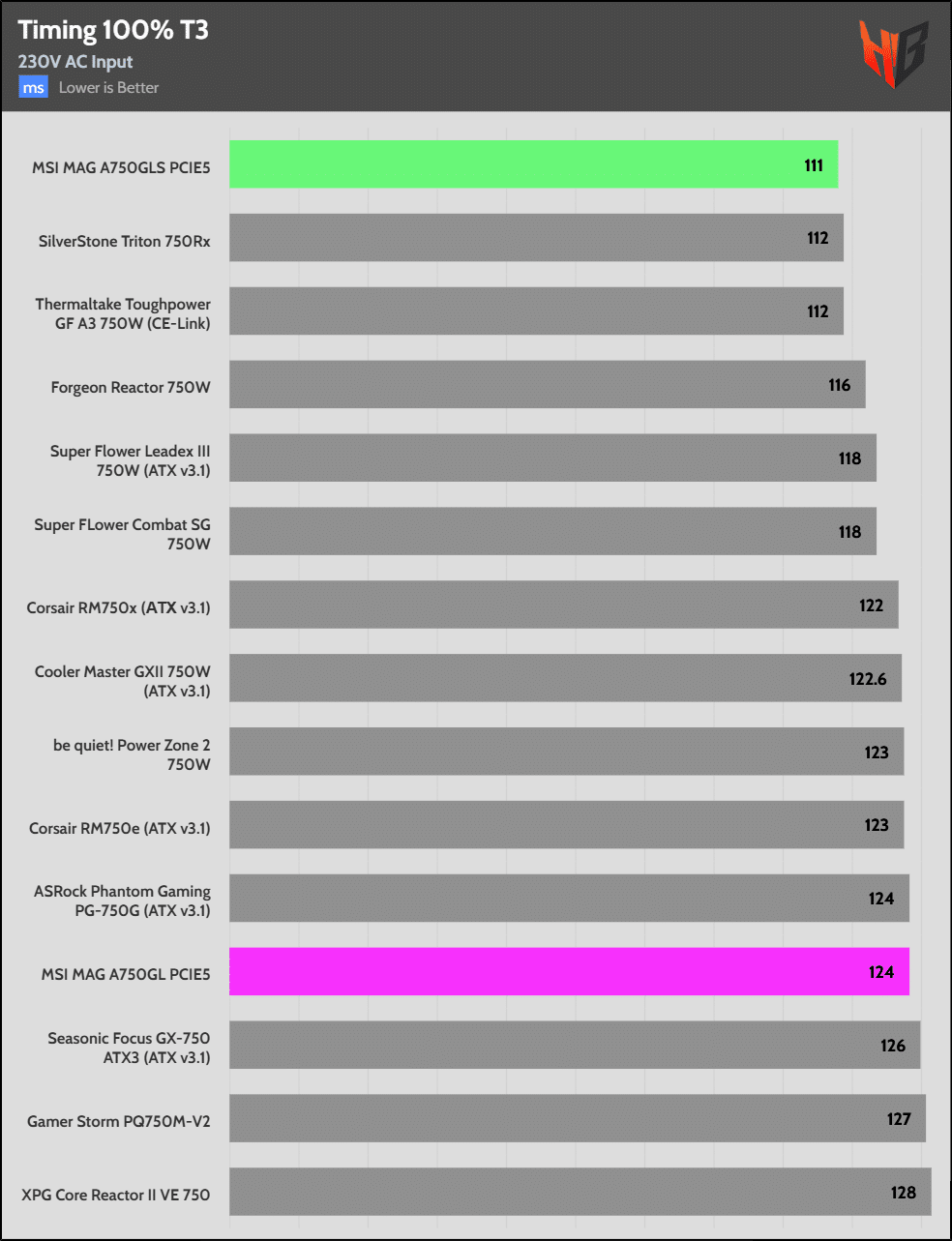

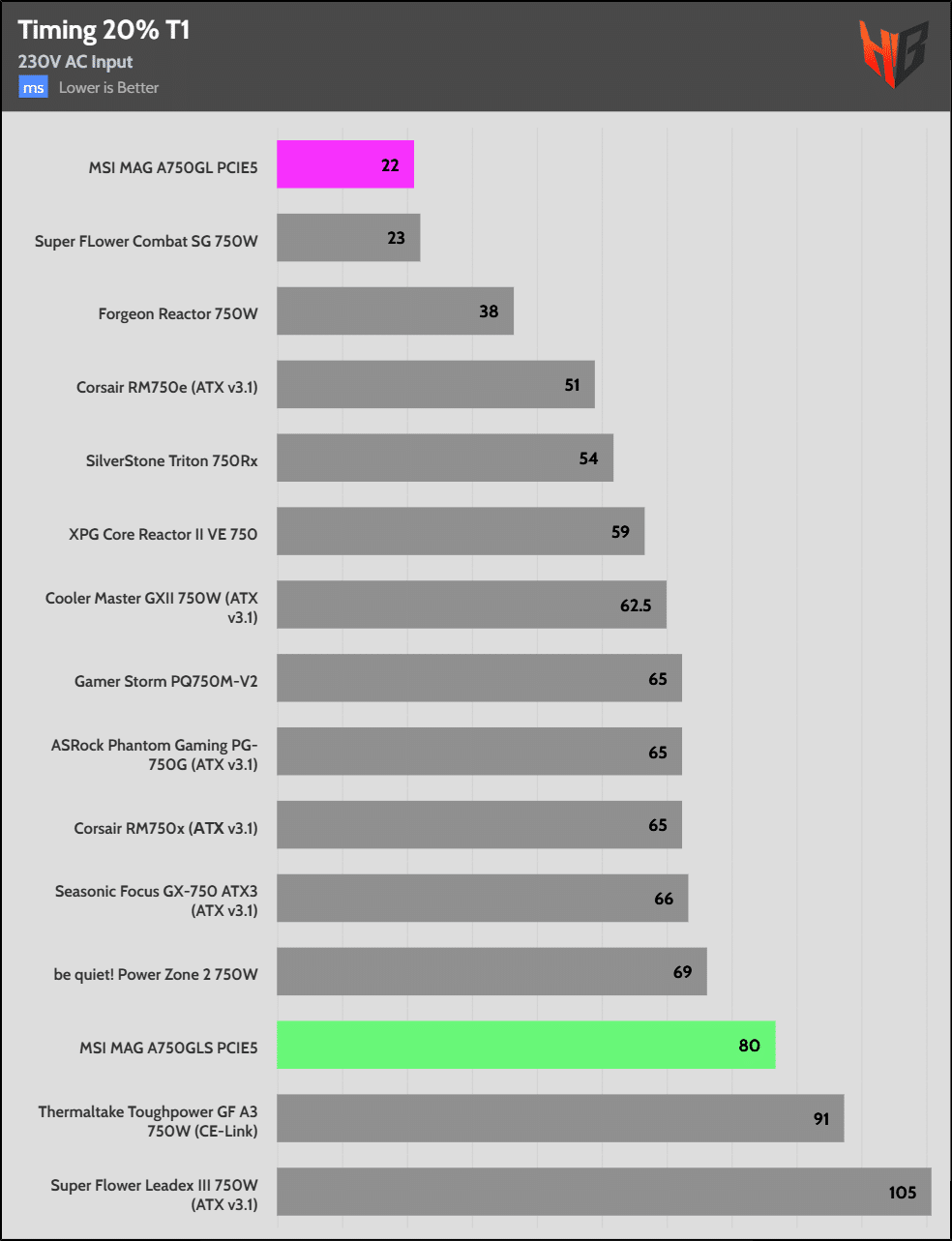

Timings

The PSU supports Alternative Low Power Modes.
