MSI MAG A750GLS PCIE5 ATX v3.1 PSU Review

Transient Response

20% Load – 20ms

Advanced Transient Response 20% - 50 Hz - No Caps
Voltage Before After Change Pass/Fail
12V 12.125V 11.933V 1.58% Pass
5V 5.097V 4.988V 2.14% Pass
3.3V 3.325V 3.171V 4.62% Pass
5VSB 5.003V 4.944V 1.18% Pass

50% Load -20ms

Advanced Transient Response 50% - 50 Hz - No Caps
Voltage Before After Change Pass/Fail
12V 12.105V 11.912V 1.59% Pass
5V 5.089V 4.974V 2.26% Pass
3.3V 3.318V 3.158V 4.83% Pass
5VSB 4.971V 4.909V 1.25% Pass

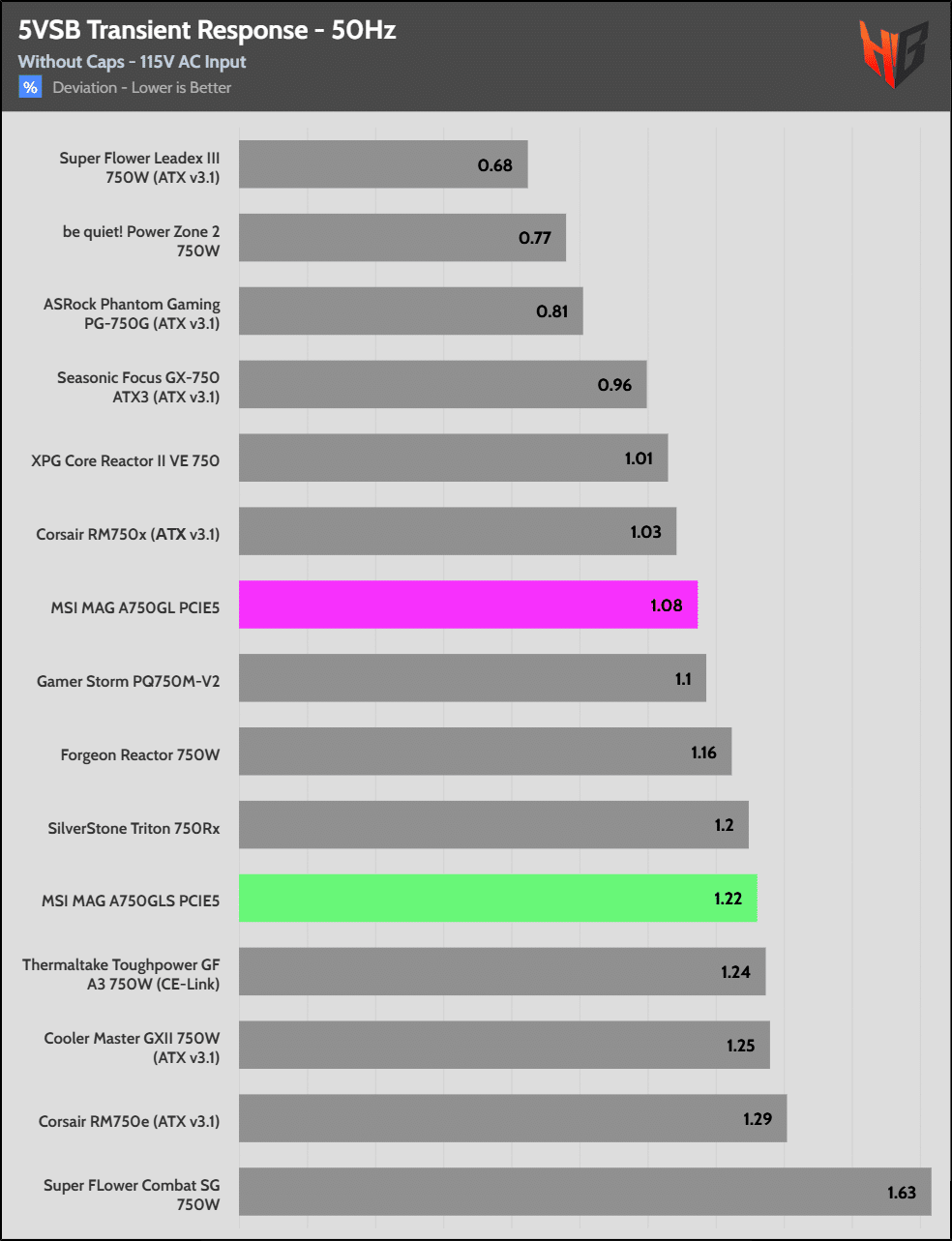

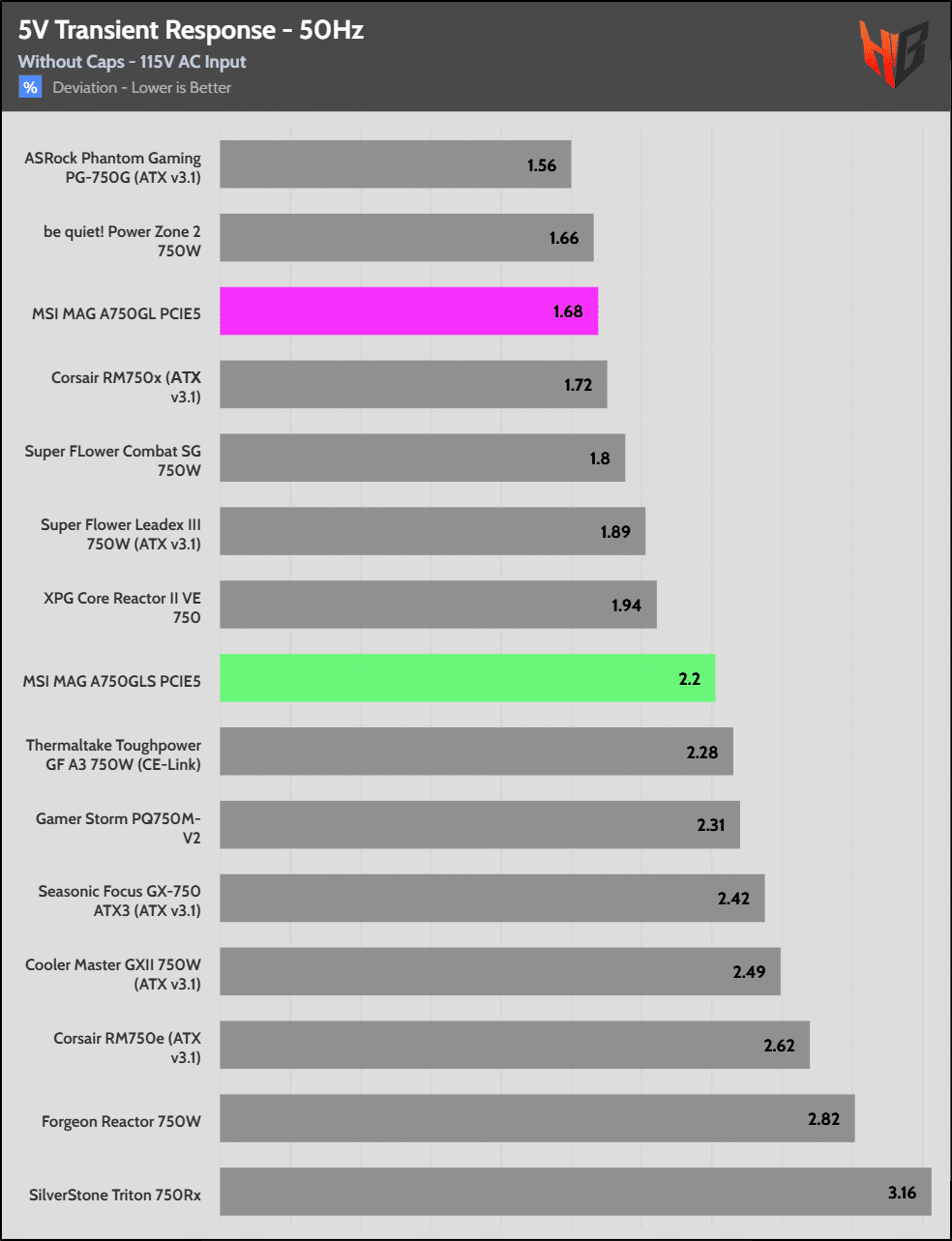

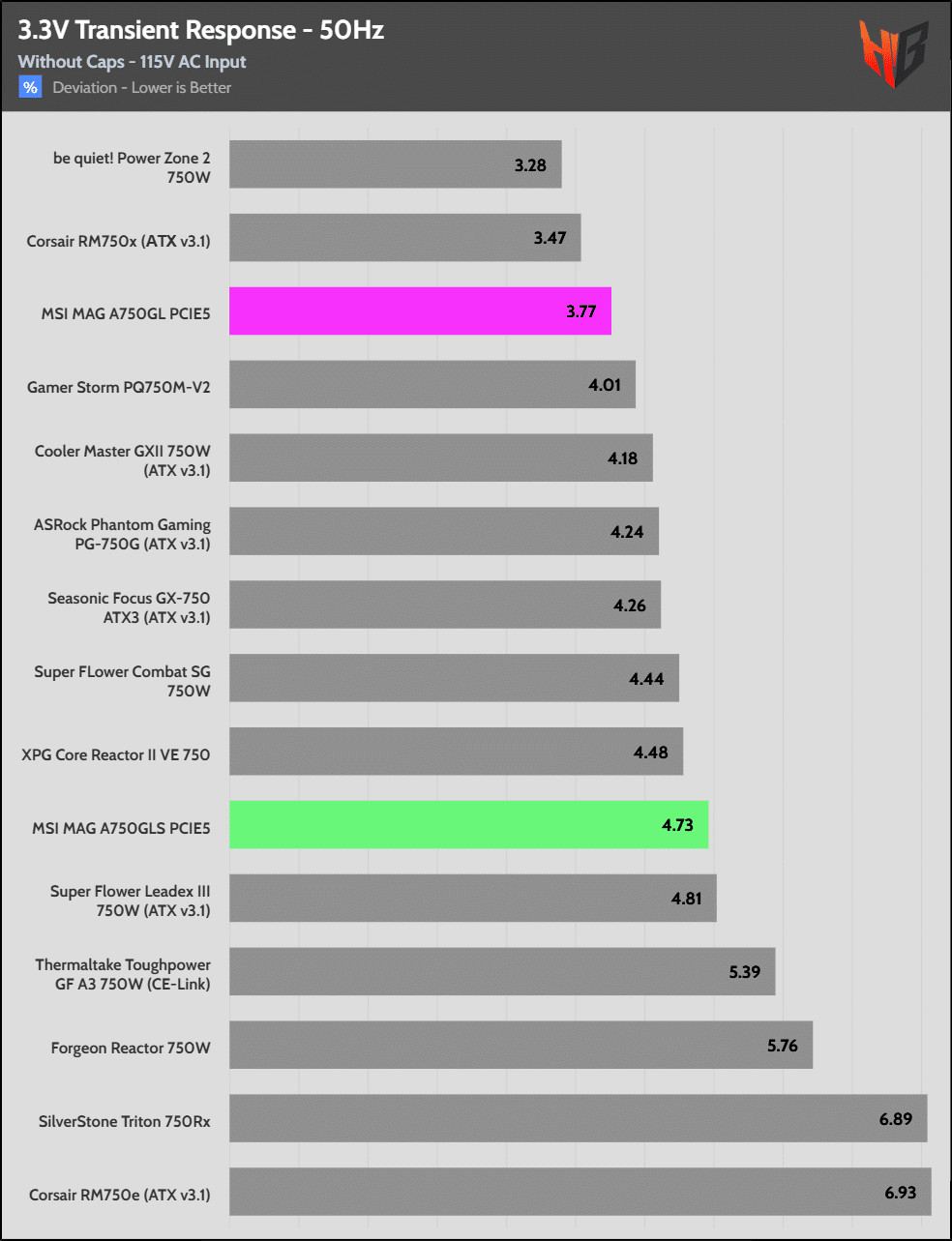

The transient response with normal loads is not competitive at 12V, the most critical rail, and the same applies to 3.3V. On the other hand, it is decent at 5V.

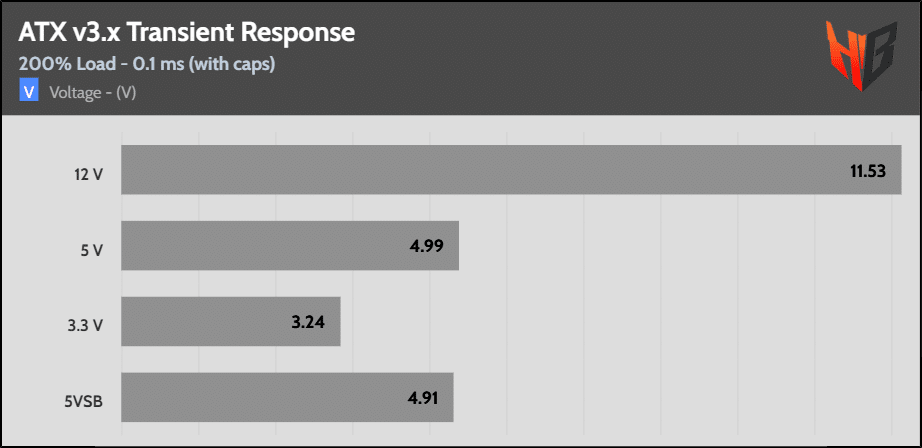

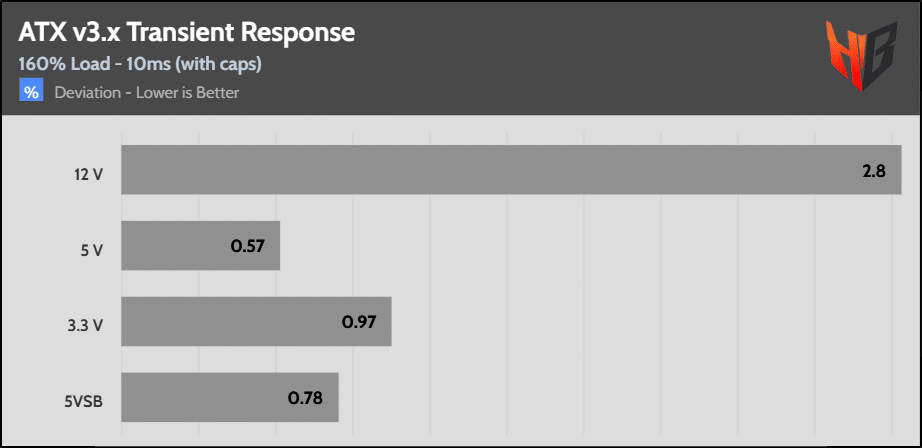

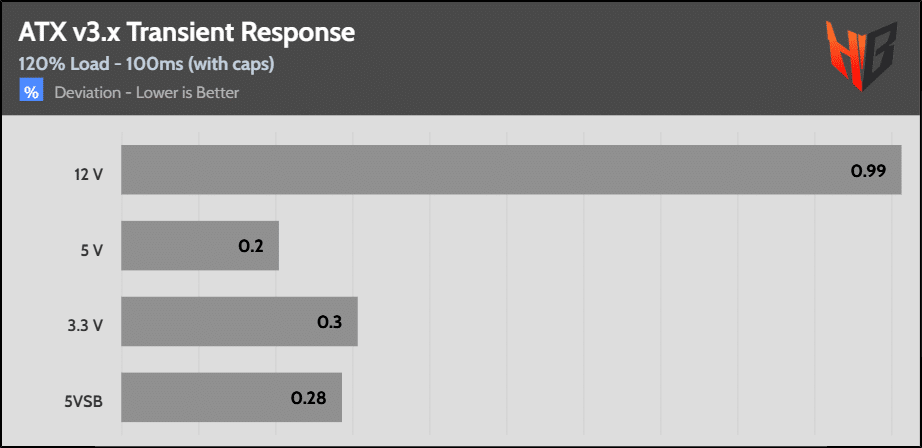

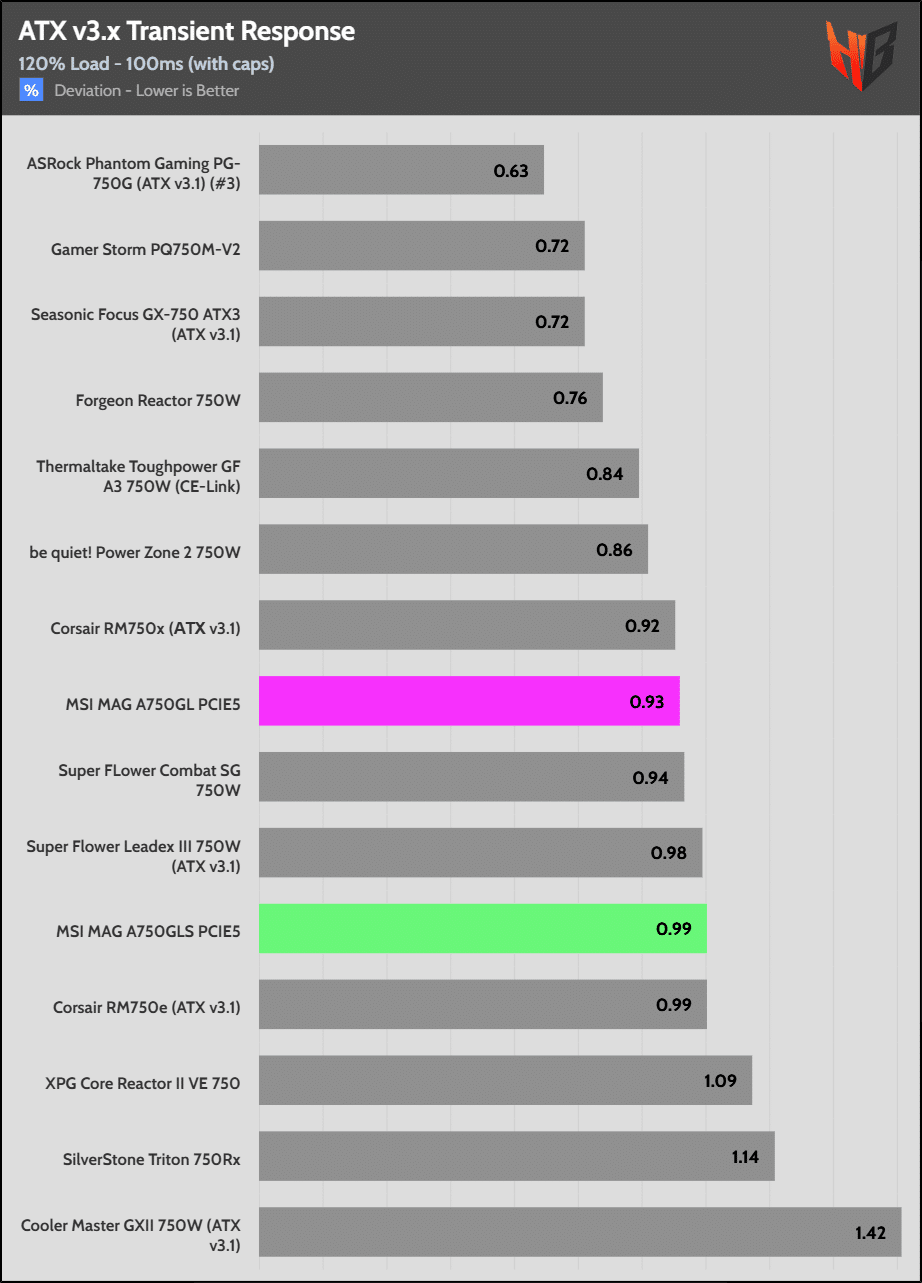

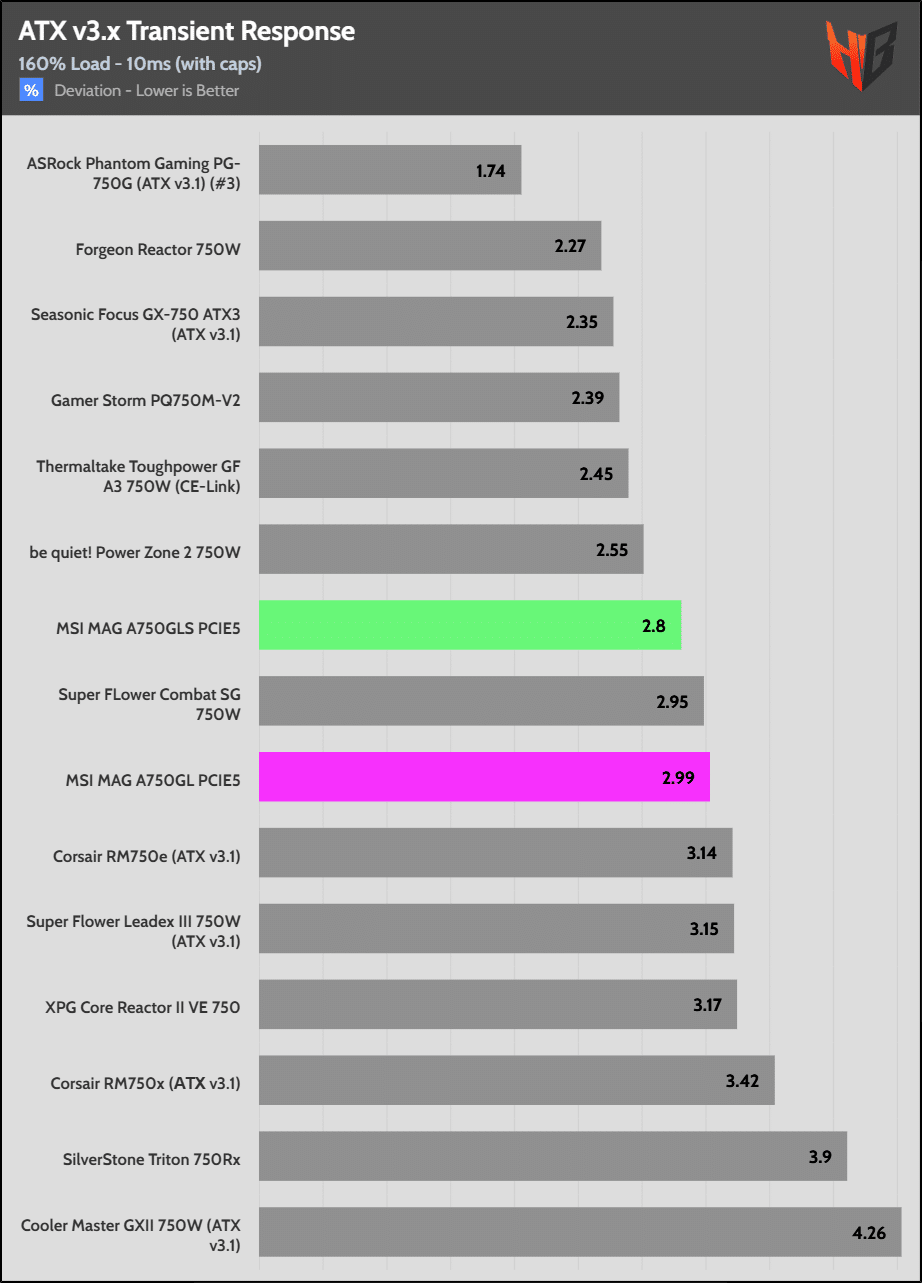

Transient Response ATX v3.1 Tests

The PSU passes all ATX v3.1 transient response tests.

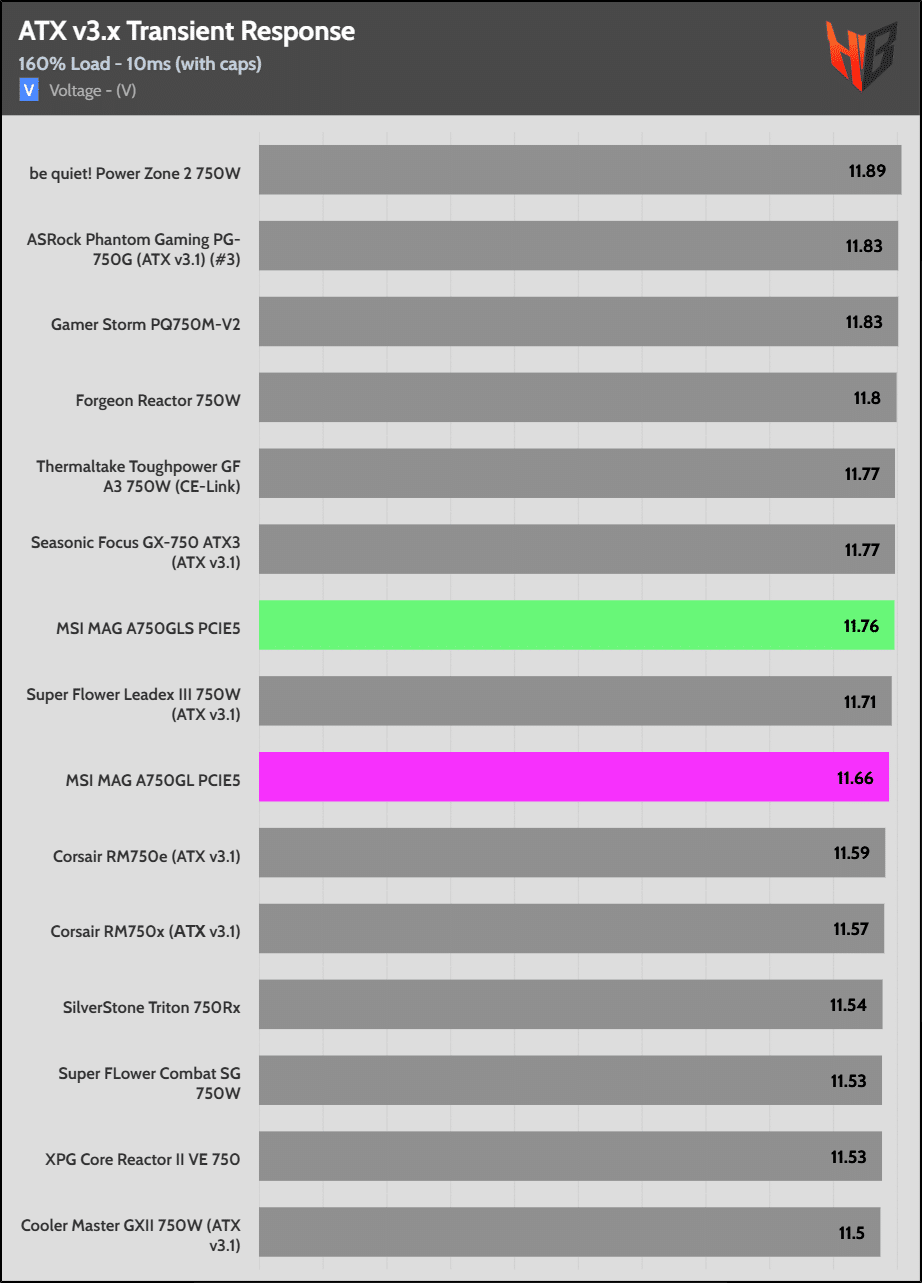

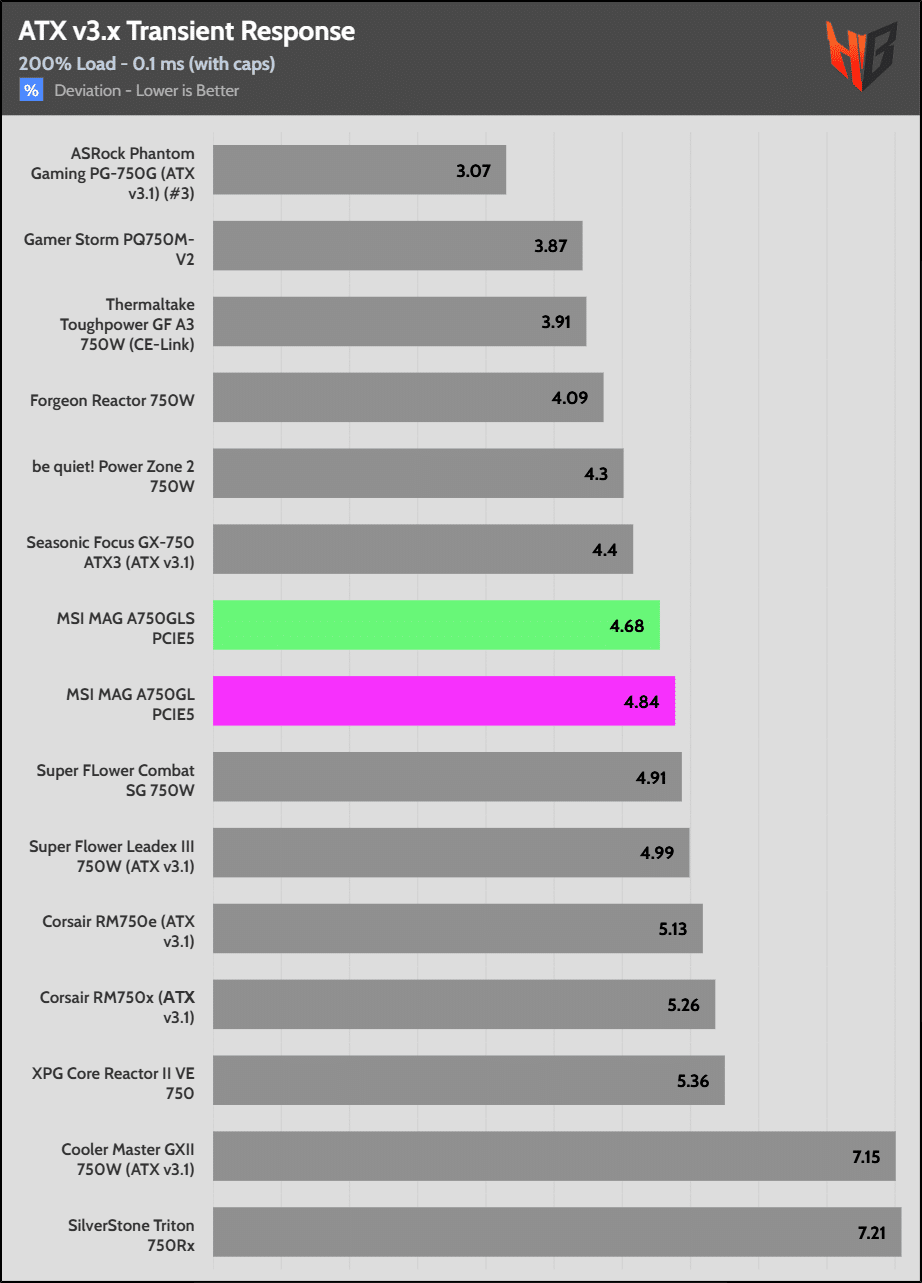

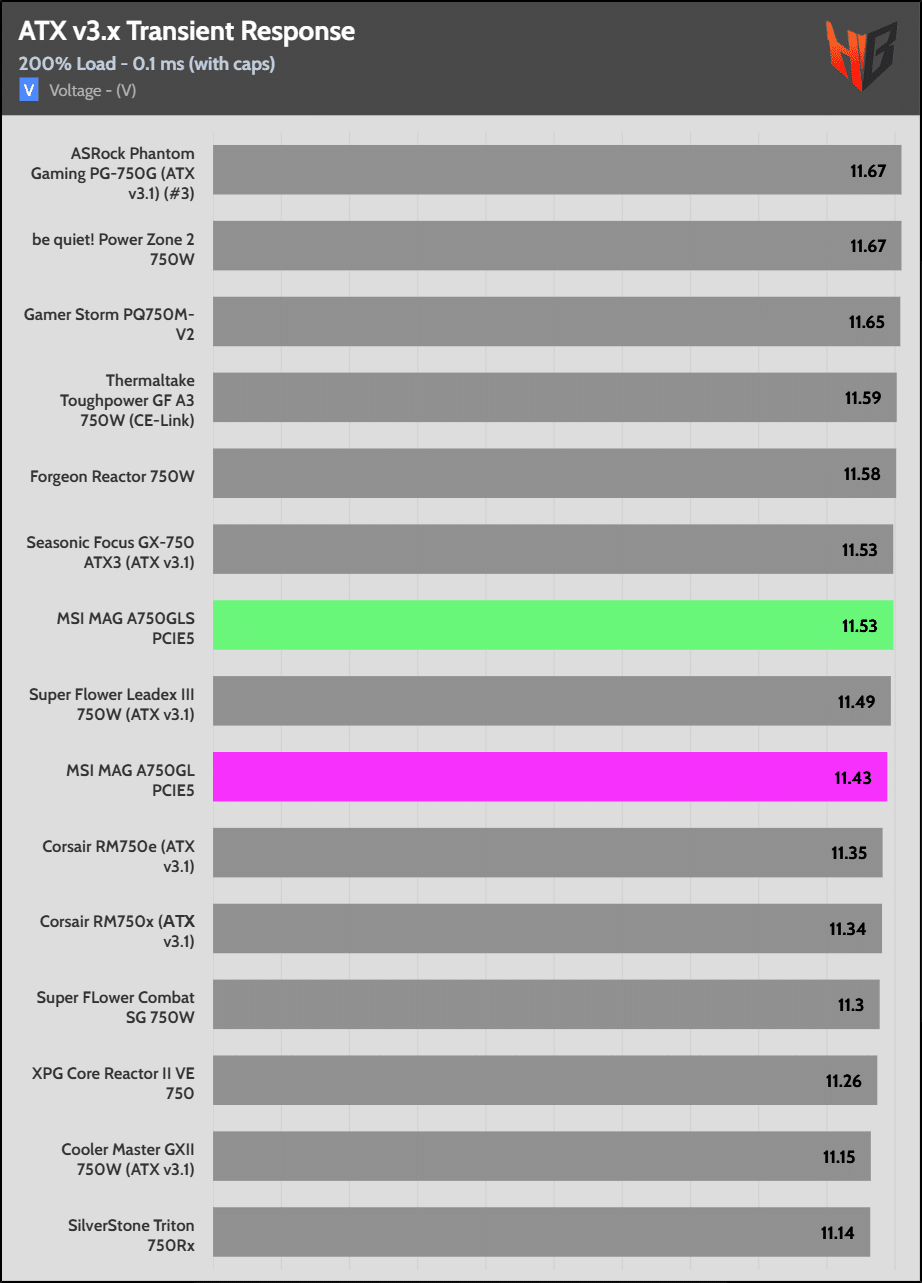

The 12V rail’s performance is decent at high transient loads.
