Load Regulation
| Test | 12V | 5V | 3.3V | 5VSB | DC/AC (Watts) | Efficiency | Fan Speed (RPM) | PSU Noise (dB[A]) | Temps (In/Out) | PF/AC Volts |
| 10% | 4.400A | 1.96A | 1.982A | 0.997A | 75.002 | 88.524% | 0 | <6.0 | 44.11°C | 0.936 |
| 12.135V | 5.103V | 3.33V | 5.016V | 84.76 | 40.46°C | 114.89V | ||||
| 20% | 9.814A | 2.941A | 2.975A | 1.199A | 149.937 | 91.055% | 0 | <6.0 | 42.7°C | 0.981 |
| 12.129V | 5.1V | 3.327V | 5.005V | 164.654 | 40.56°C | 114.87V | ||||
| 30% | 15.580A | 3.433A | 3.473A | 1.402A | 224.938 | 91.348% | 823 | 19.6 | 41.23°C | 0.979 |
| 12.123V | 5.098V | 3.325V | 4.995V | 246.245 | 44.88°C | 114.84V | ||||
| 40% | 21.362A | 3.926A | 3.973A | 1.605A | 300.025 | 91.367% | 834 | 20.1 | 41.71°C | 0.986 |
| 12.116V | 5.095V | 3.322V | 4.984V | 328.397 | 44.11°C | 114.82V | ||||
| 50% | 26.749A | 4.91A | 4.971A | 1.81A | 374.429 | 91.024% | 835 | 20.1 | 42.48°C | 0.989 |
| 12.110V | 5.092V | 3.319V | 4.973V | 411.345 | 45.97°C | 114.79V | ||||
| 60% | 32.180A | 5.895A | 5.969A | 2A | 449.249 | 90.516% | 963 | 24.2 | 42.58°C | 0.991 |
| 12.104V | 5.089V | 3.317V | 4.962V | 496.348 | 48.25°C | 114.76V | ||||
| 70% | 37.622A | 6.882A | 6.97A | 2.222A | 524.263 | 89.8% | 1354 | 34.9 | 43.3°C | 0.992 |
| 12.098V | 5.086V | 3.315V | 4.95V | 583.801 | 51.63°C | 114.74V | ||||
| 80% | 43.131A | 7.867A | 7.97A | 2.328A | 599.449 | 88.961% | 1658 | 39.5 | 43.75°C | 0.993 |
| 12.092V | 5.083V | 3.312V | 4.94V | 673.834 | 51.79°C | 114.7V | ||||
| 90% | 48.979A | 8.363A | 8.459A | 2.433A | 674.485 | 88.183% | 1797 | 42 | 44.44°C | 0.994 |
| 12.087V | 5.081V | 3.31V | 4.931V | 764.909 | 51.38°C | 114.68V | ||||
| 100% | 54.635A | 8.86A | 8.979A | 3.054A | 749.692 | 87.245% | 1968 | 44.5 | 45.83°C | 0.994 |
| 12.080V | 5.078V | 3.308V | 4.911V | 859.313 | 51.4°C | 114.65V | ||||
| 110% | 60.164A | 9.851A | 10.076A | 3.059A | 824.721 | 86.206% | 2135 | 46.2 | 46.58°C | 0.994 |
| 12.074V | 5.075V | 3.305V | 4.904V | 956.67 | 53.44°C | 114.63V | ||||
| CL1 | 0.114A | 11.837A | 11.976A | 0A | 101.285 | 84.945% | 838 | 20.2 | 40.2°C | 0.962 |
| 12.131V | 5.085V | 3.315V | 5.015V | 119.283 | 44.37°C | 114.88V | ||||
| CL2 | 0.114A | 17.7A | 0A | 0A | 91.374 | 84.461% | 837 | 20.2 | 40.81°C | 0.946 |
| 12.133V | 5.084V | 3.326V | 5.025V | 108.181 | 44.63°C | 114.88V | ||||
| CL3 | 0.114A | 0A | 17.923A | 0A | 60.788 | 80.1% | 835 | 20.1 | 39.52°C | 0.939 |
| 12.133V | 5.099V | 3.314V | 5.021V | 75.892 | 42.98°C | 114.9V | ||||
| CL4 | 62.026A | 0A | 0A | 0.001A | 749.555 | 88.128% | 1903 | 43.5 | 45.56°C | 0.994 |
| 12.084V | 5.095V | 3.321V | 4.997V | 850.548 | 50.22°C | 114.66V |

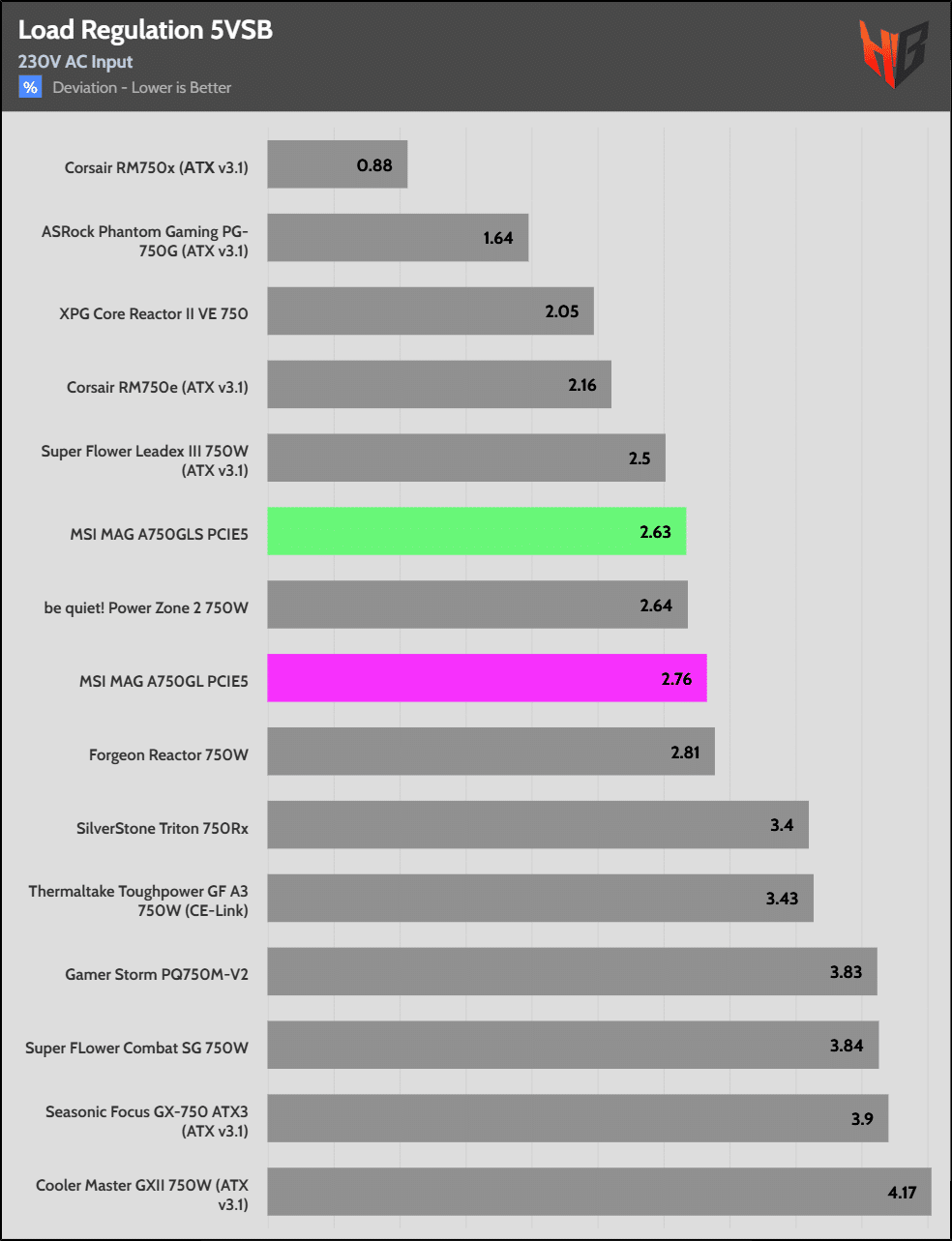

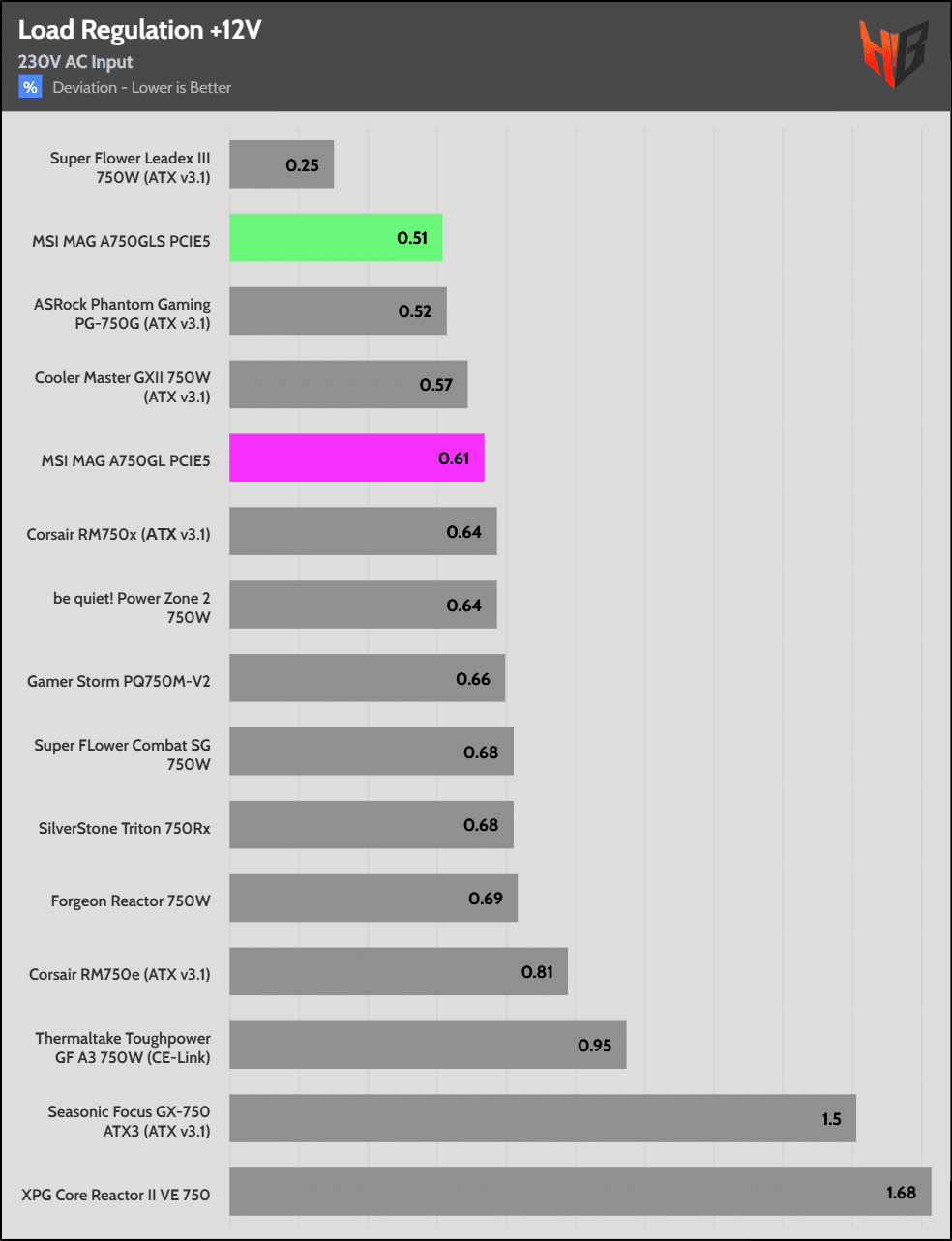

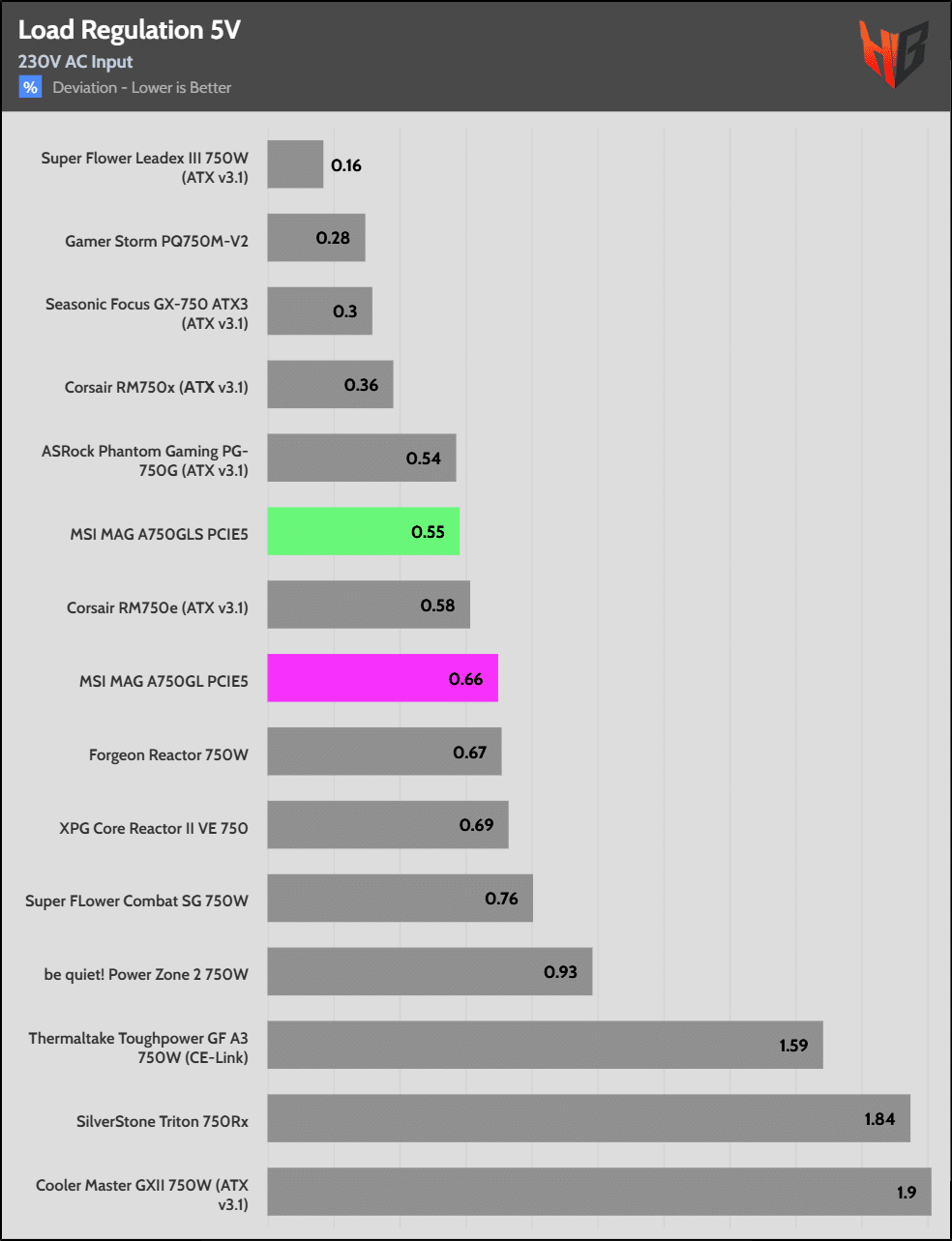

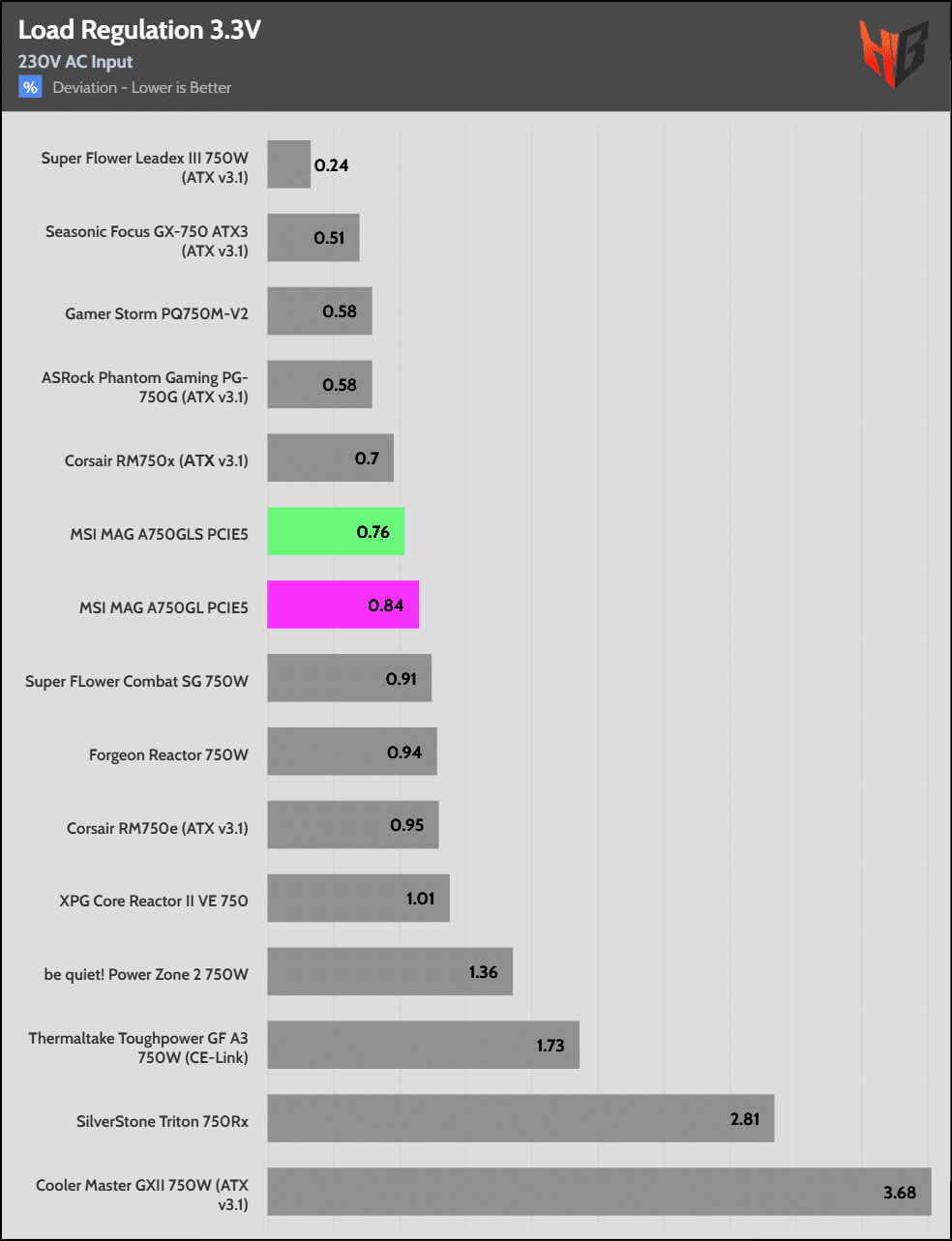

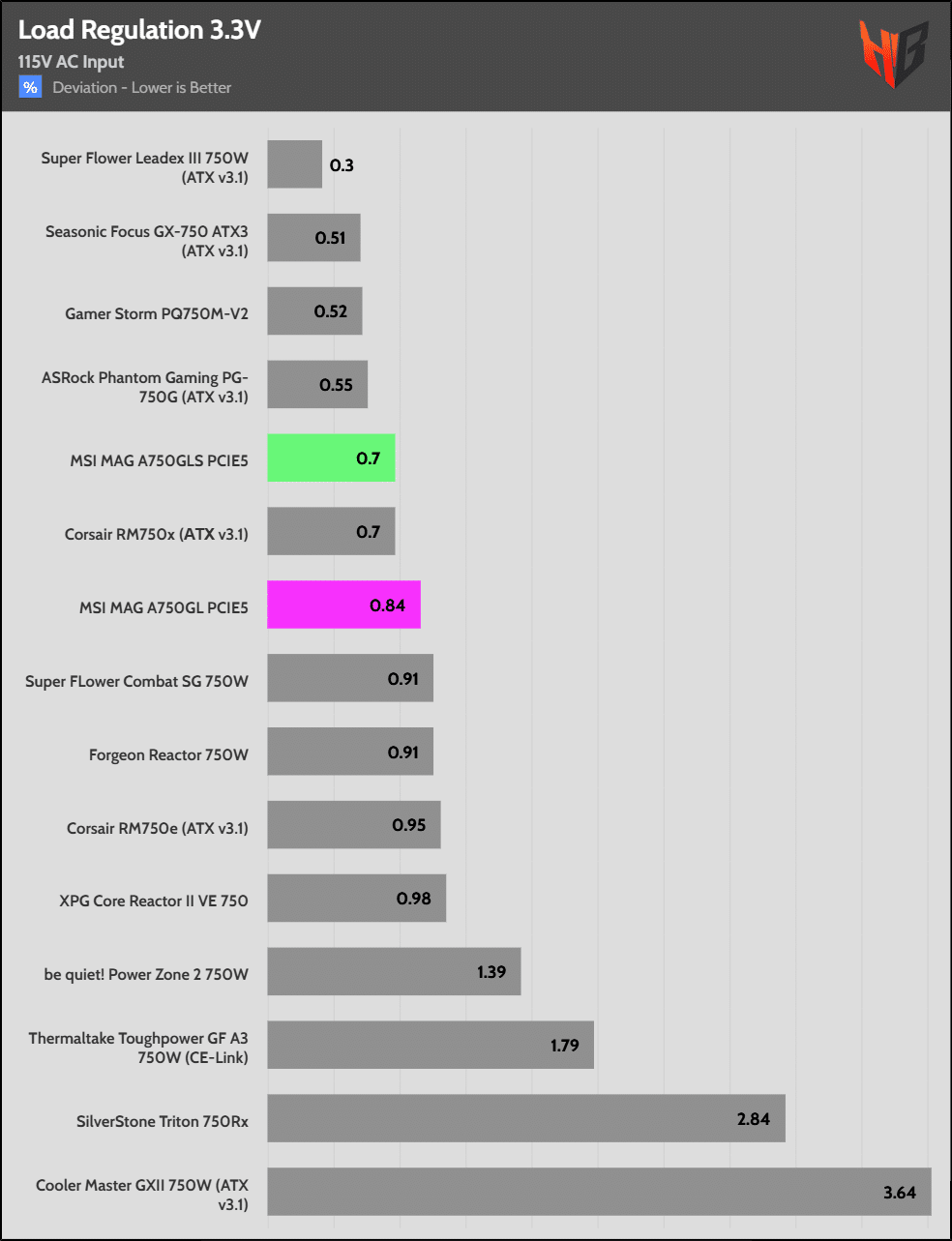

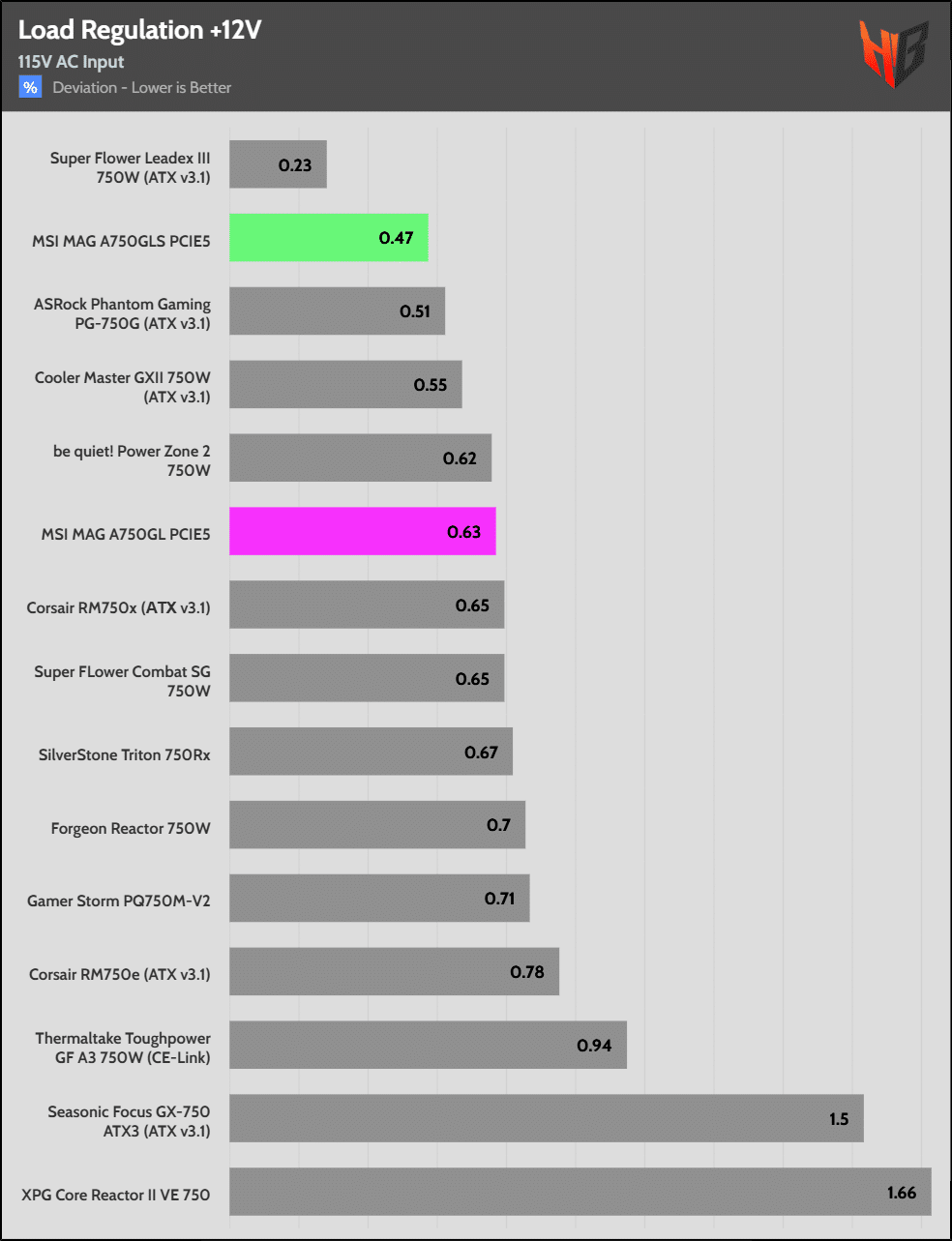

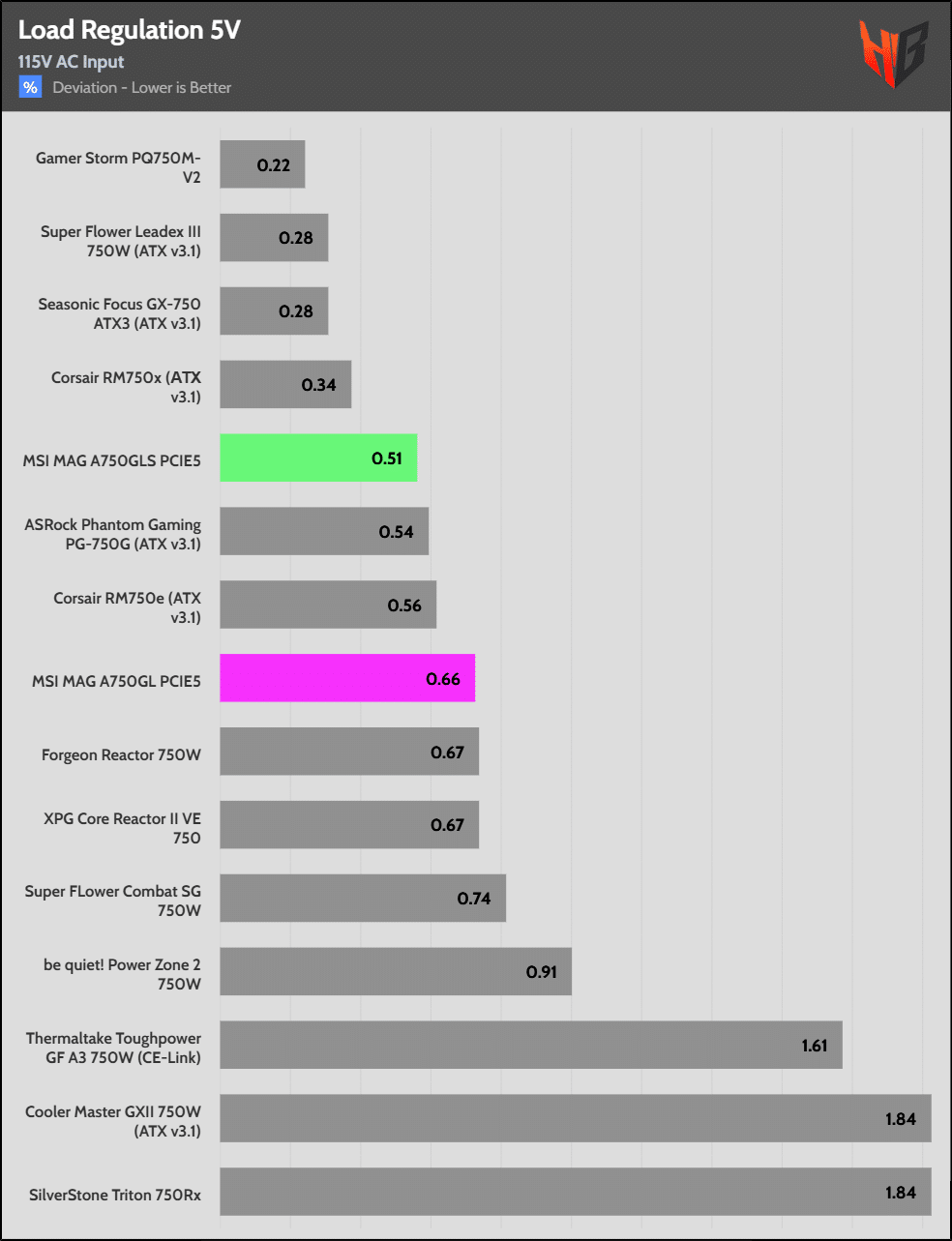

Load regulation is within 1% on all primary rails.
| Test | 12V | 5V | 3.3V | 5VSB | DC/AC (Watts) | Efficiency | Fan Speed (RPM) | PSU Noise (dB[A]) | Temps (In/Out) | PF/AC Volts |
| 20W | 1.224A | 0.49A | 0.495A | 0.199A | 20.007 | 79.385% | 0 | <6.0 | 37.29°C | 0.655 |
| 12.137V | 5.103V | 3.33V | 5.038V | 25.207 | 36.34°C | 114.91V | ||||
| 40W | 2.694A | 0.686A | 0.694A | 0.298A | 40.003 | 85.284% | 0 | <6.0 | 40.59°C | 0.914 |
| 12.136V | 5.104V | 3.331V | 5.035V | 46.935 | 37.67°C | 114.9V | ||||
| 60W | 4.164A | 0.882A | 0.892A | 0.398A | 60 | 87.951% | 0 | <6.0 | 42.35°C | 0.933 |
| 12.135V | 5.104V | 3.331V | 5.031V | 68.225 | 38.23°C | 114.89V | ||||
| 80W | 5.630A | 1.077A | 1.09A | 0.497A | 79.945 | 89.52% | 0 | <6.0 | 42.27°C | 0.941 |
| 12.134V | 5.104V | 3.331V | 5.028V | 89.331 | 39.26°C | 114.89V |
A glance at the light loads table is always useful, as the PSU will typically operate at light loads. As you can see, the fan doesn’t spin at light loads, despite the high ambient temperatures that I applied.

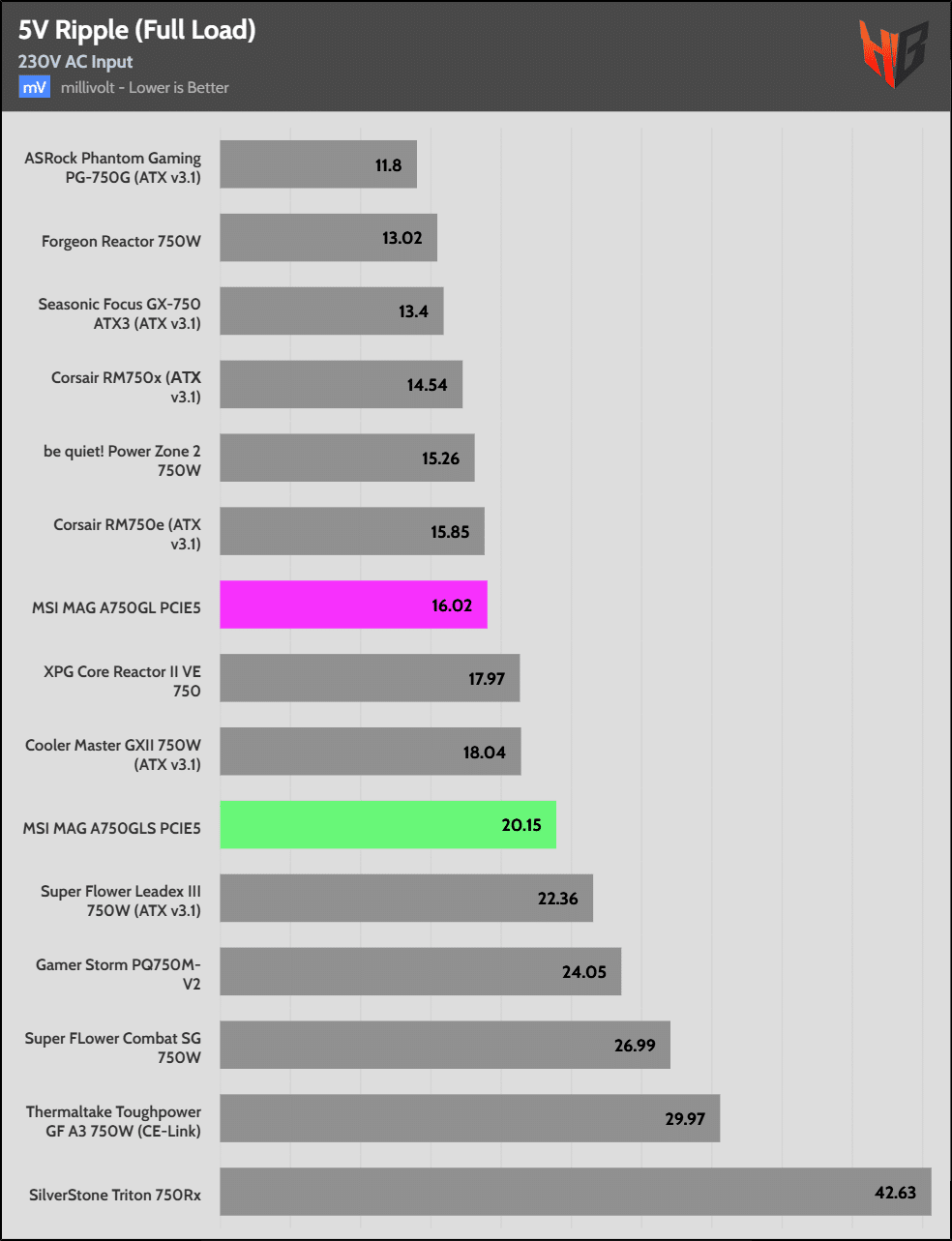

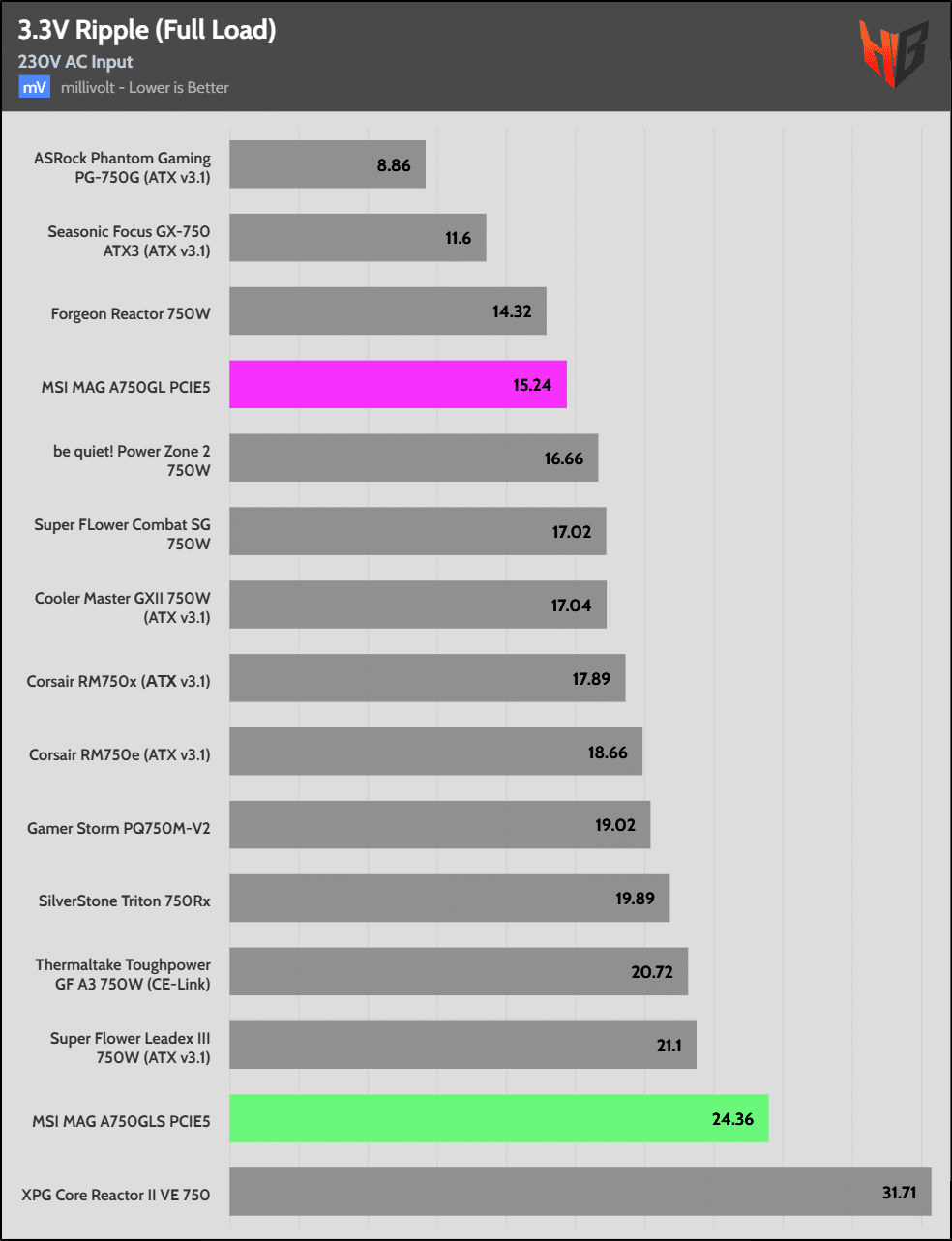

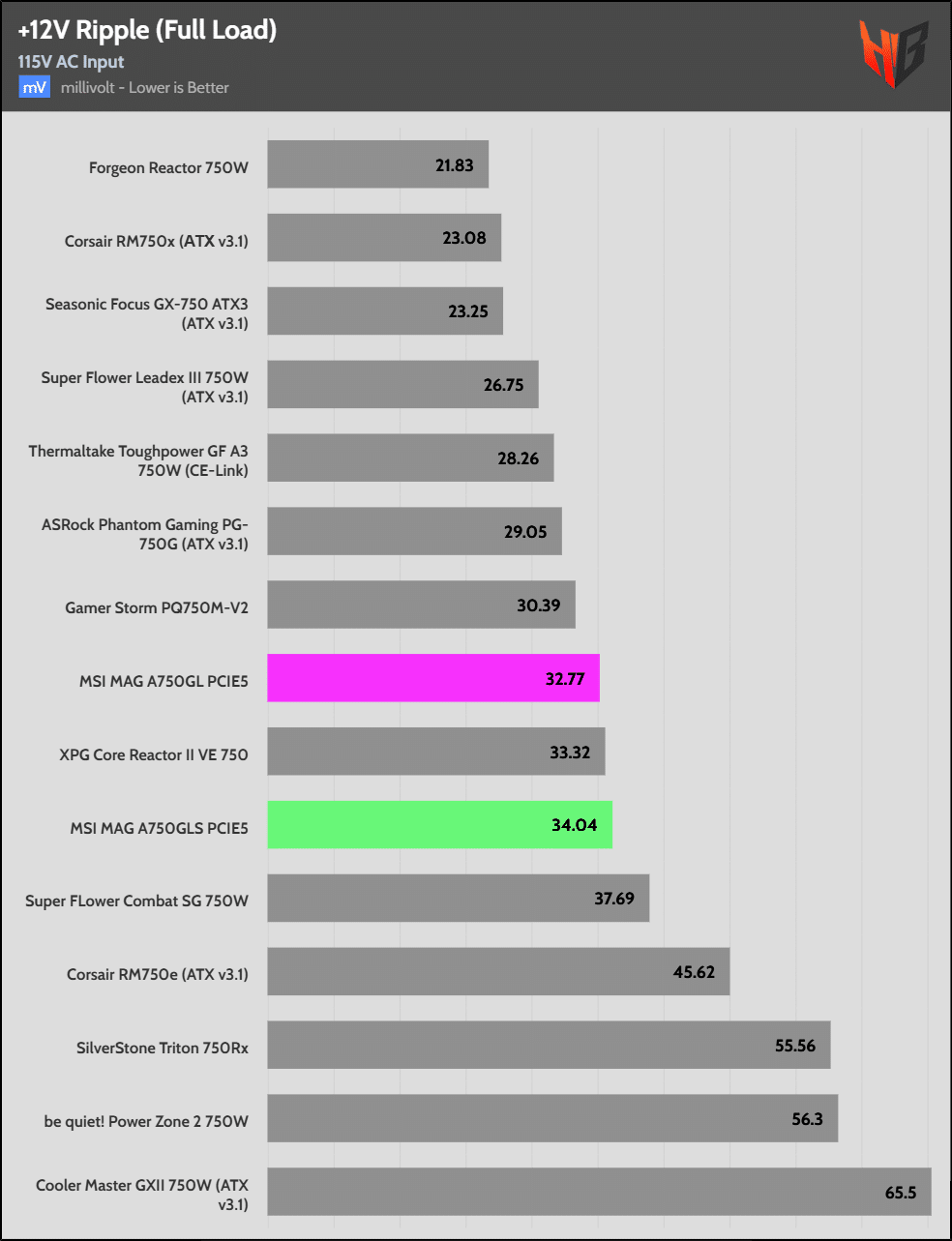

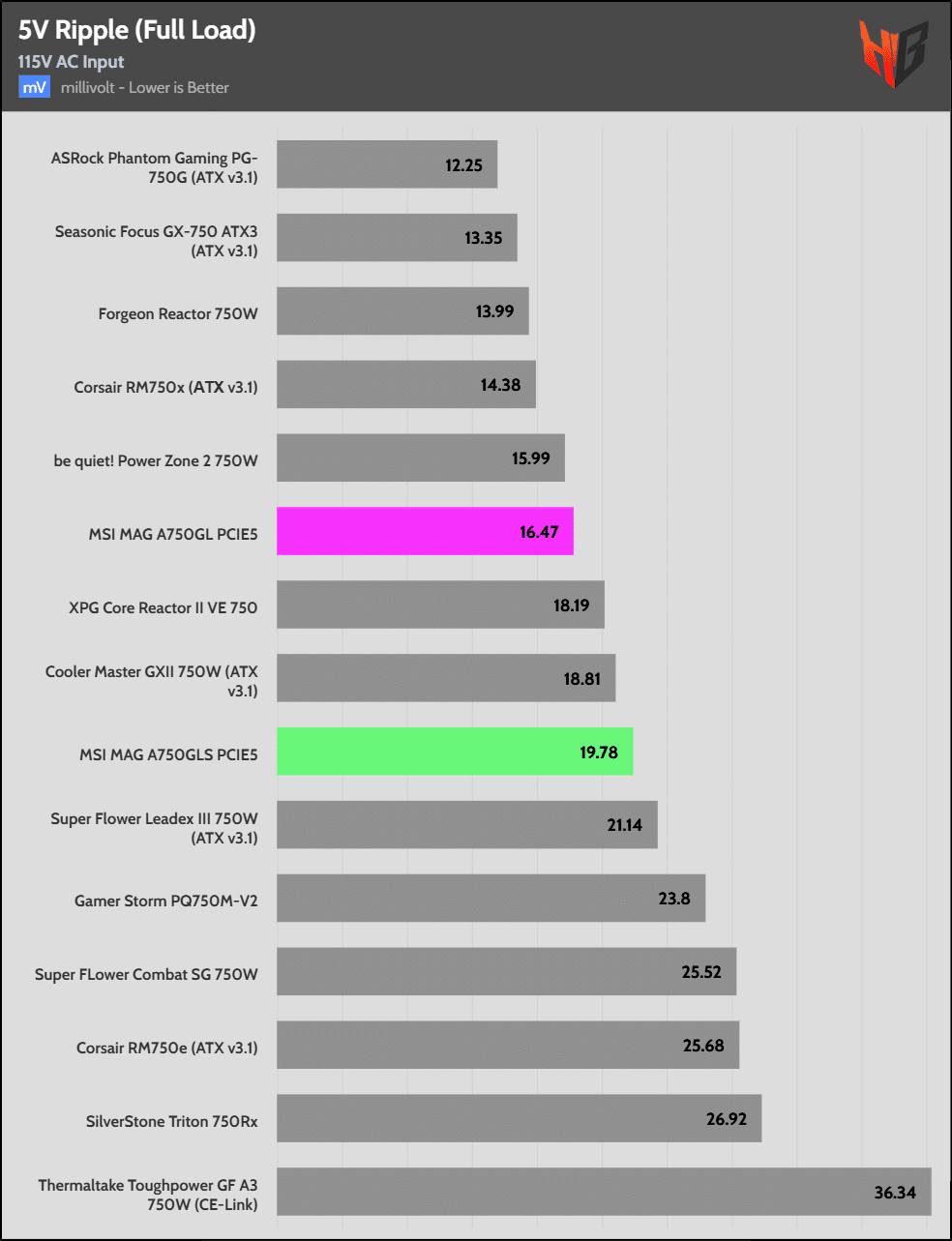

Ripple Suppression
| Test | 12V | 5V | 3.3V | 5VSB | Pass/Fail |
| 10% Load | 22.1 mV | 18.5 mV | 22.0 mV | 16.3 mV | Pass |
| 20% Load | 19.2 mV | 17.2 mV | 22.2 mV | 15.3 mV | Pass |
| 30% Load | 20.5 mV | 18.1 mV | 22.1 mV | 15.4 mV | Pass |
| 40% Load | 22.2 mV | 18.3 mV | 22.0 mV | 17.1 mV | Pass |
| 50% Load | 22.1 mV | 18.6 mV | 22.0 mV | 17.6 mV | Pass |
| 60% Load | 24.0 mV | 18.7 mV | 22.1 mV | 17.9 mV | Pass |
| 70% Load | 26.1 mV | 18.5 mV | 22.2 mV | 18.8 mV | Pass |
| 80% Load | 28.4 mV | 19.8 mV | 24.8 mV | 20.4 mV | Pass |
| 90% Load | 31.8 mV | 20.4 mV | 23.9 mV | 21.7 mV | Pass |
| 100% Load | 34.0 mV | 19.8 mV | 24.6 mV | 20.3 mV | Pass |
| 110% Load | 38.2 mV | 21.6 mV | 24.8 mV | 21.3 mV | Pass |
| Crossload 1 | 23.0 mV | 17.3 mV | 22.6 mV | 19.2 mV | Pass |
| Crossload 2 | 22.5 mV | 20.4 mV | 22.4 mV | 19.1 mV | Pass |
| Crossload 3 | 22.0 mV | 17.8 mV | 25.3 mV | 18.0 mV | Pass |
| Crossload 4 | 34.4 mV | 19.7 mV | 22.8 mV | 22.6 mV | Pass |

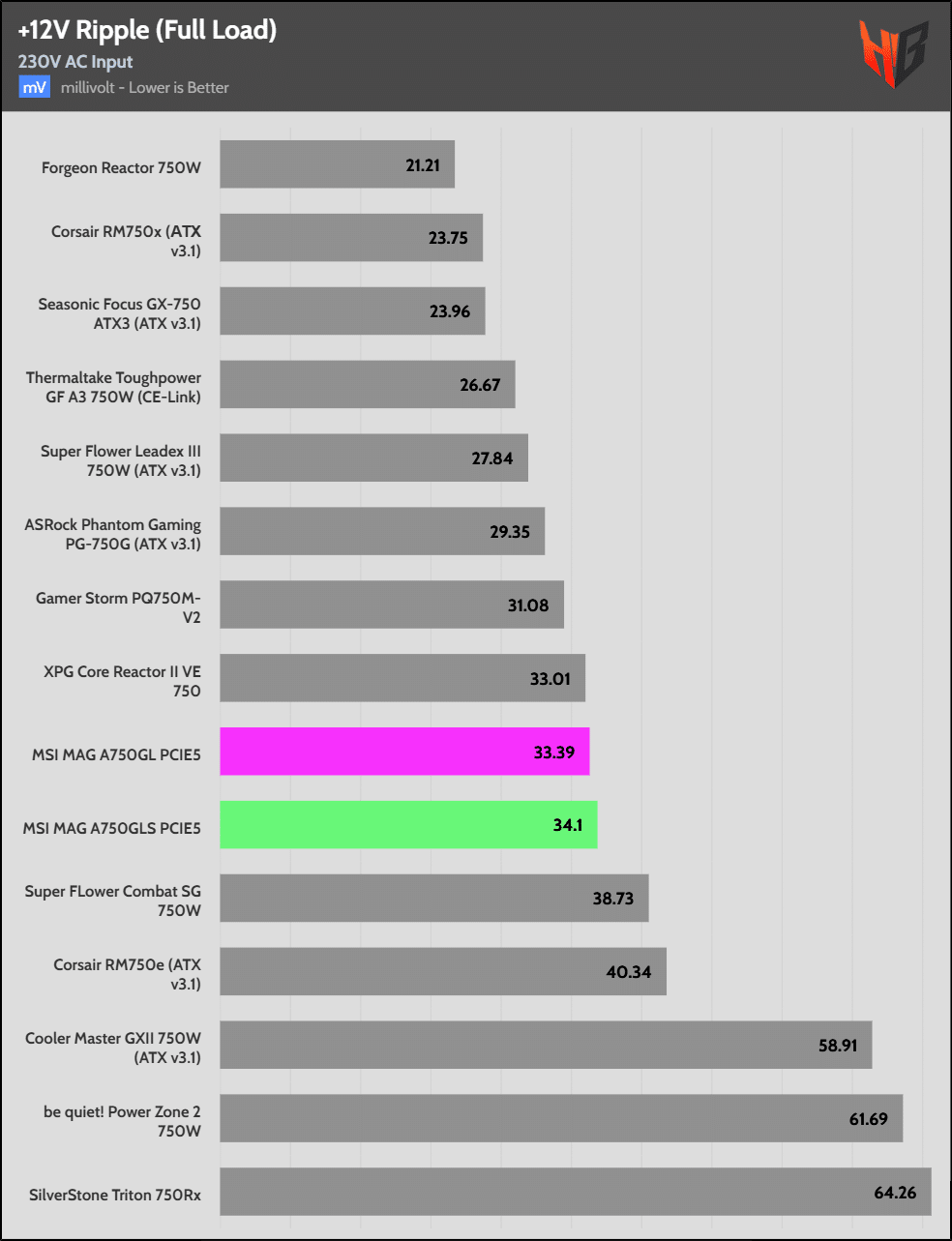

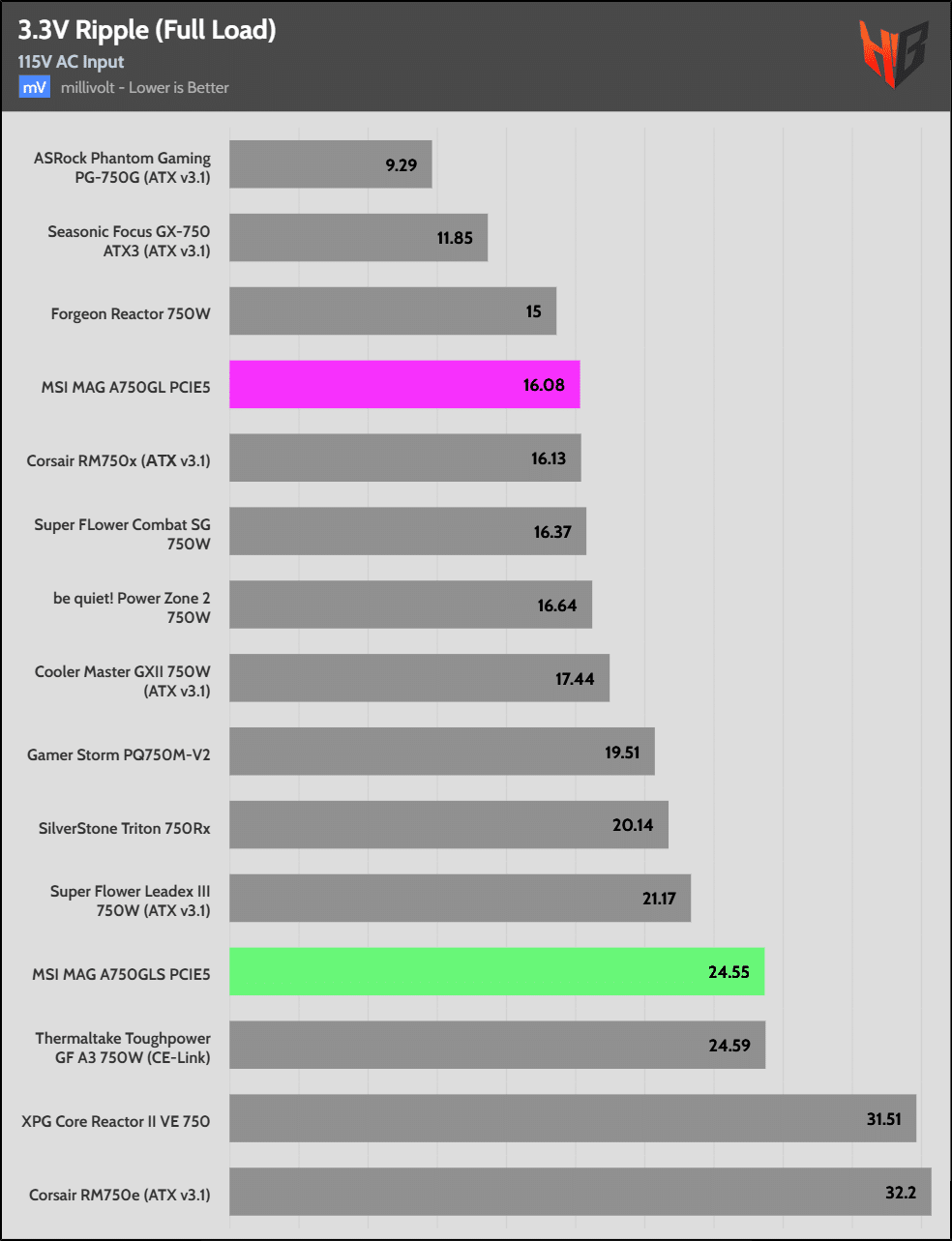

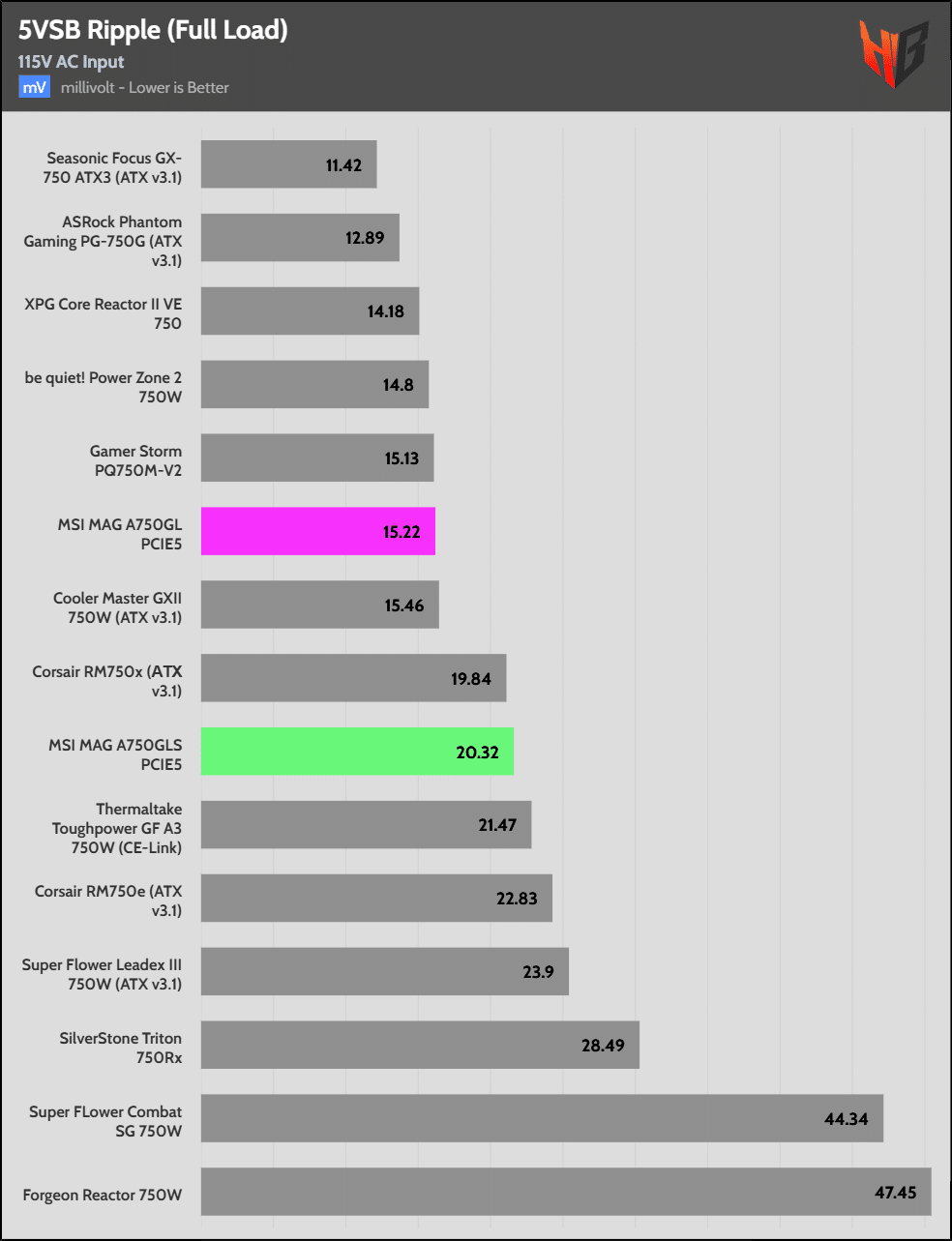

Ripple suppression is decent overall.
