Load Regulation
| Test | 12V | 5V | 3.3V | 5VSB | DC/AC (Watts) | Efficiency | Fan Speed (RPM) | PSU Noise (dB[A]) | Temps (In/Out) | PF/AC Volts |
| 10% | 6.464A | 1.978A | 1.986A | 1.007A | 99.996 | 89.122% | 417 | <6.0 | 40.35°C | 0.978 |
| 12.127V | 5.056V | 3.323V | 4.965V | 112.202 | 42.8°C | 115.03V | ||||
| 20% | 13.952A | 2.969A | 2.983A | 1.21A | 199.947 | 91.772% | 418 | <6.0 | 40.68°C | 0.988 |
| 12.116V | 5.053V | 3.318V | 4.957V | 217.875 | 45.04°C | 115V | ||||
| 30% | 21.804A | 3.465A | 3.484A | 1.414A | 300.001 | 92.101% | 431 | <6.0 | 41.48°C | 0.979 |
| 12.105V | 5.051V | 3.315V | 4.95V | 325.731 | 47.77°C | 114.95V | ||||
| 40% | 29.633A | 3.962A | 3.987A | 1.619A | 399.583 | 91.842% | 432 | <6.0 | 41.67°C | 0.981 |
| 12.094V | 5.048V | 3.311V | 4.942V | 435.076 | 50.87°C | 114.91V | ||||
| 50% | 37.142A | 4.956A | 4.99A | 1.824A | 499.3 | 91.394% | 433 | <6.0 | 42.11°C | 0.984 |
| 12.083V | 5.046V | 3.307V | 4.934V | 546.315 | 54.7°C | 114.87V | ||||
| 60% | 44.705A | 5.951A | 5.996A | 2A | 599.661 | 90.033% | 488 | <6.0 | 42.67°C | 0.989 |
| 12.079V | 5.043V | 3.303V | 4.923V | 666.048 | 57°C | 114.84V | ||||
| 70% | 52.245A | 6.947A | 7.003A | 2.239A | 699.548 | 89.315% | 780 | 15.7 | 43.09°C | 0.991 |
| 12.067V | 5.04V | 3.299V | 4.913V | 783.234 | 54.83°C | 114.8V | ||||
| 80% | 59.866A | 7.942A | 8.012A | 2.345A | 799.549 | 88.576% | 1040 | 25.1 | 43.97°C | 0.992 |
| 12.054V | 5.036V | 3.295V | 4.904V | 902.667 | 56.71°C | 114.76V | ||||
| 90% | 67.833A | 8.443A | 8.508A | 2.452A | 899.334 | 87.761% | 1265 | 31.6 | 44.9°C | 0.993 |
| 12.042V | 5.034V | 3.291V | 4.894V | 1024.755 | 59.55°C | 114.71V | ||||
| 100% | 75.619A | 8.944A | 9.036A | 3.071A | 999.349 | 86.845% | 1956 | 43.8 | 46.25°C | 0.993 |
| 12.030V | 5.031V | 3.287V | 4.885V | 1150.723 | 62.63°C | 114.67V | ||||
| 110% | 83.352A | 9.944A | 10.143A | 3.075A | 1099.947 | 85.673% | 2251 | 47.4 | 47.18°C | 0.994 |
| 12.017V | 5.028V | 3.283V | 4.878V | 1283.891 | 62.51°C | 114.62V | ||||
| CL1 | 0.116A | 11.941A | 12.004A | 0A | 101.301 | 84.797% | 439 | <6.0 | 41.71°C | 0.978 |
| 12.125V | 5.041V | 3.307V | 4.944V | 119.48 | 57.81°C | 115.03V | ||||
| CL2 | 0.115A | 19.874A | 0A | 0A | 101.393 | 84.066% | 437 | <6.0 | 41.63°C | 0.978 |
| 12.129V | 5.032V | 3.318V | 4.952V | 120.608 | 55.89°C | 115.03V | ||||
| CL3 | 0.114A | 0A | 20.031A | 0A | 67.386 | 78.718% | 434 | <6.0 | 40°C | 0.965 |
| 12.126V | 5.051V | 3.295V | 4.948V | 85.607 | 52.94°C | 115.04V | ||||
| CL4 | 83.107A | 0A | 0A | 0.001A | 999.997 | 87.164% | 2262 | 47.5 | 43.39°C | 0.993 |
| 12.032V | 5.045V | 3.301V | 4.894V | 1147.27 | 55.51°C | 114.67V |

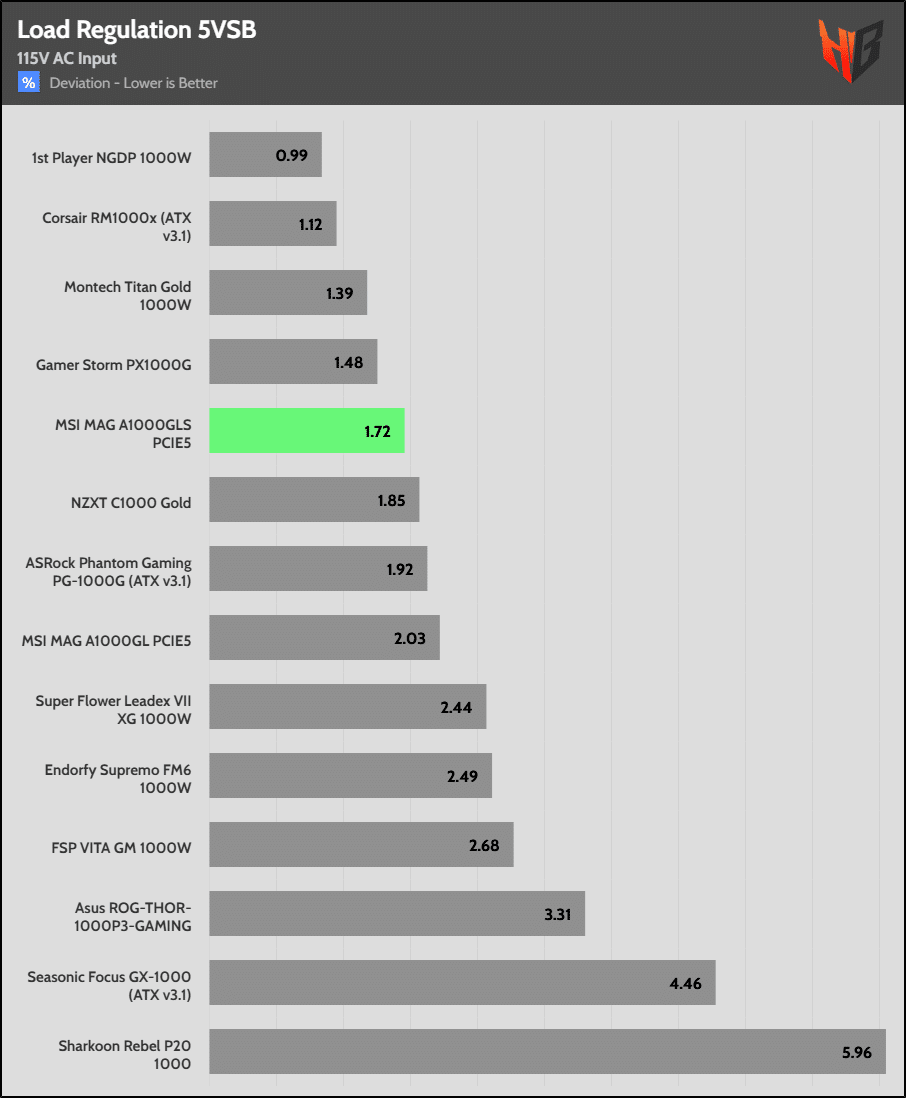

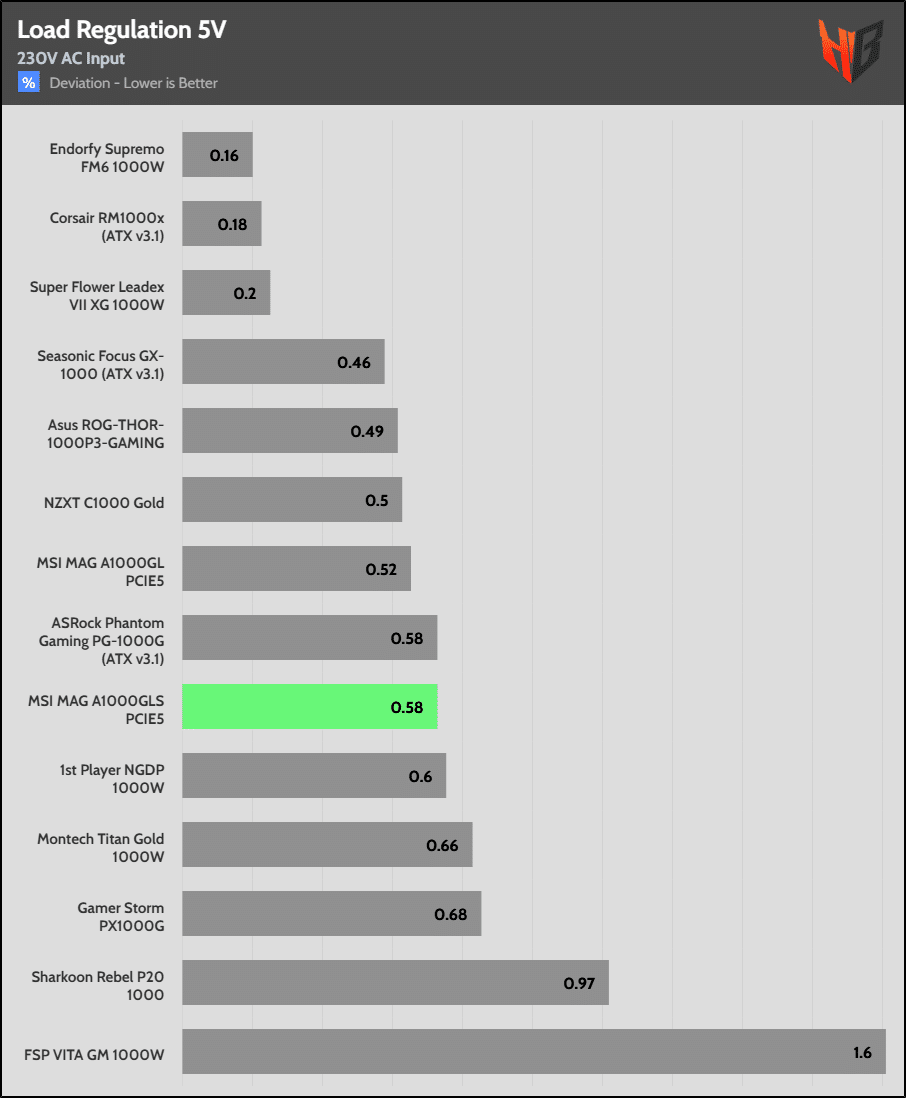

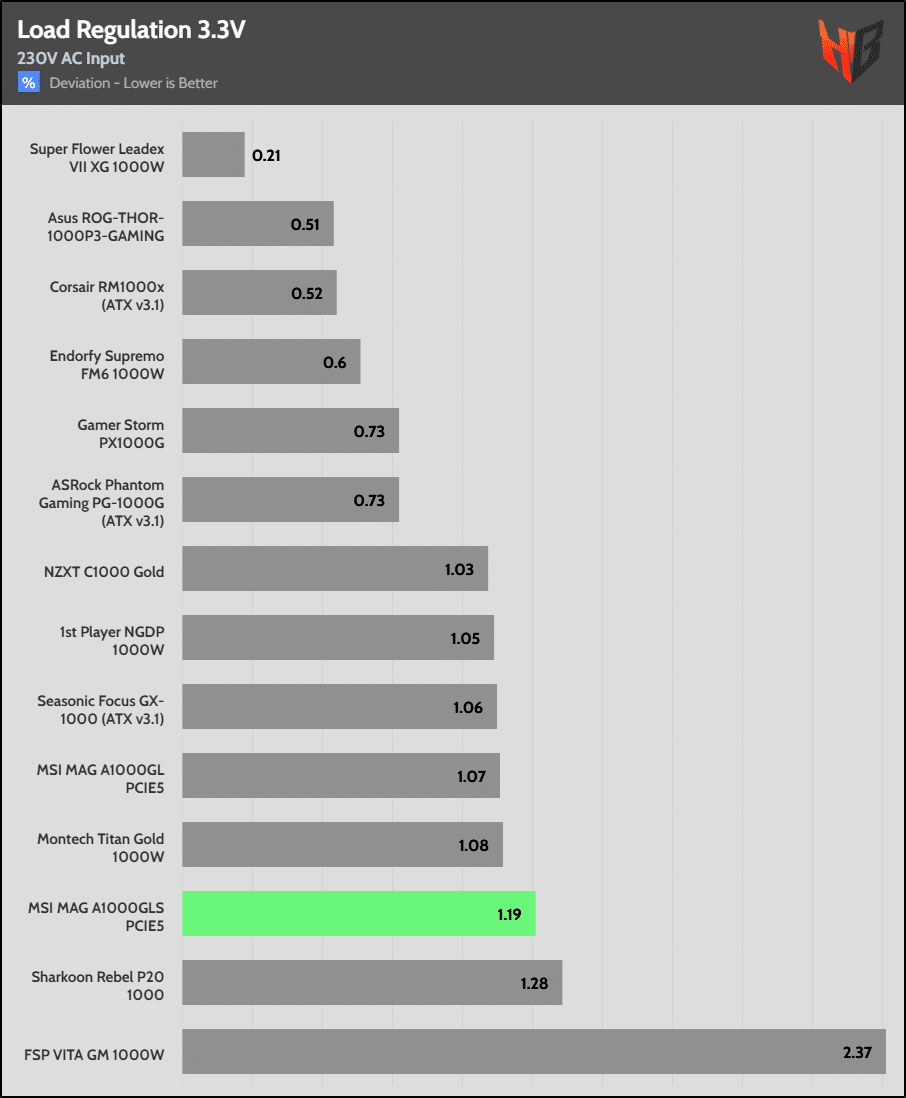

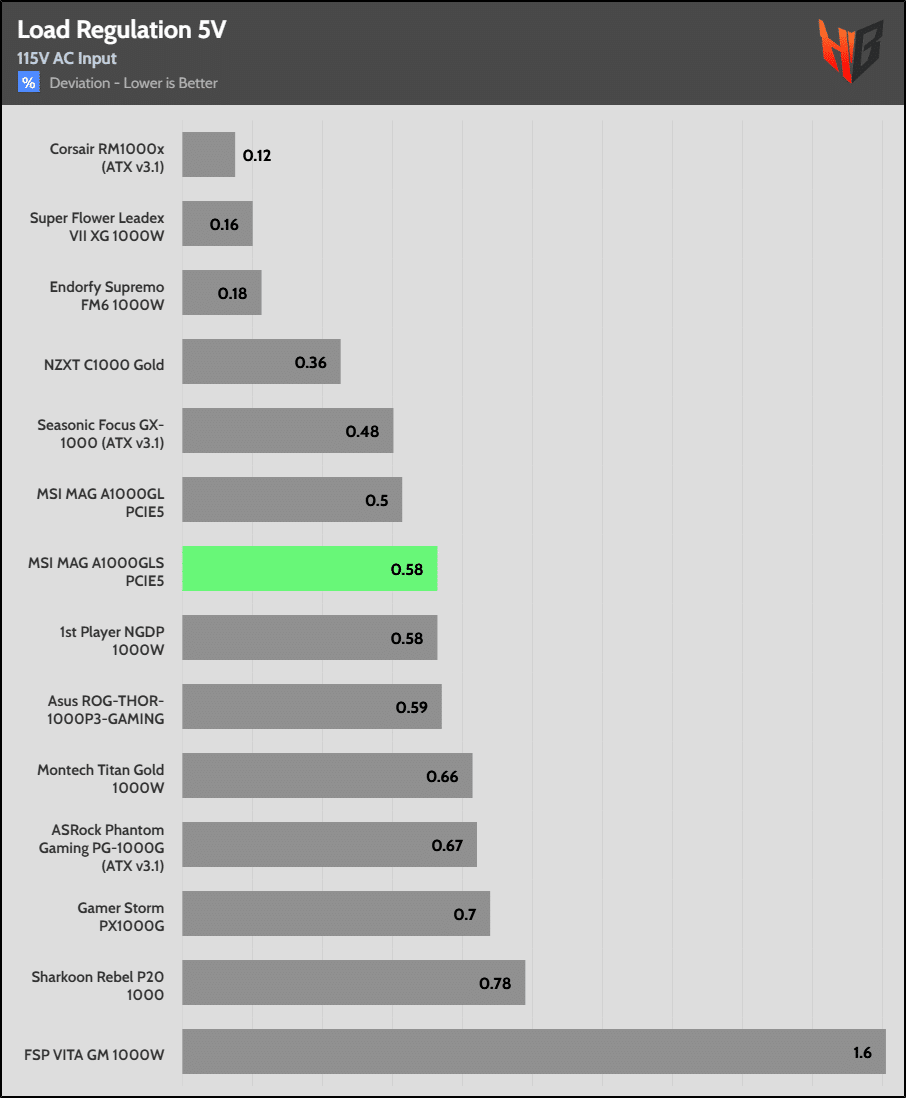

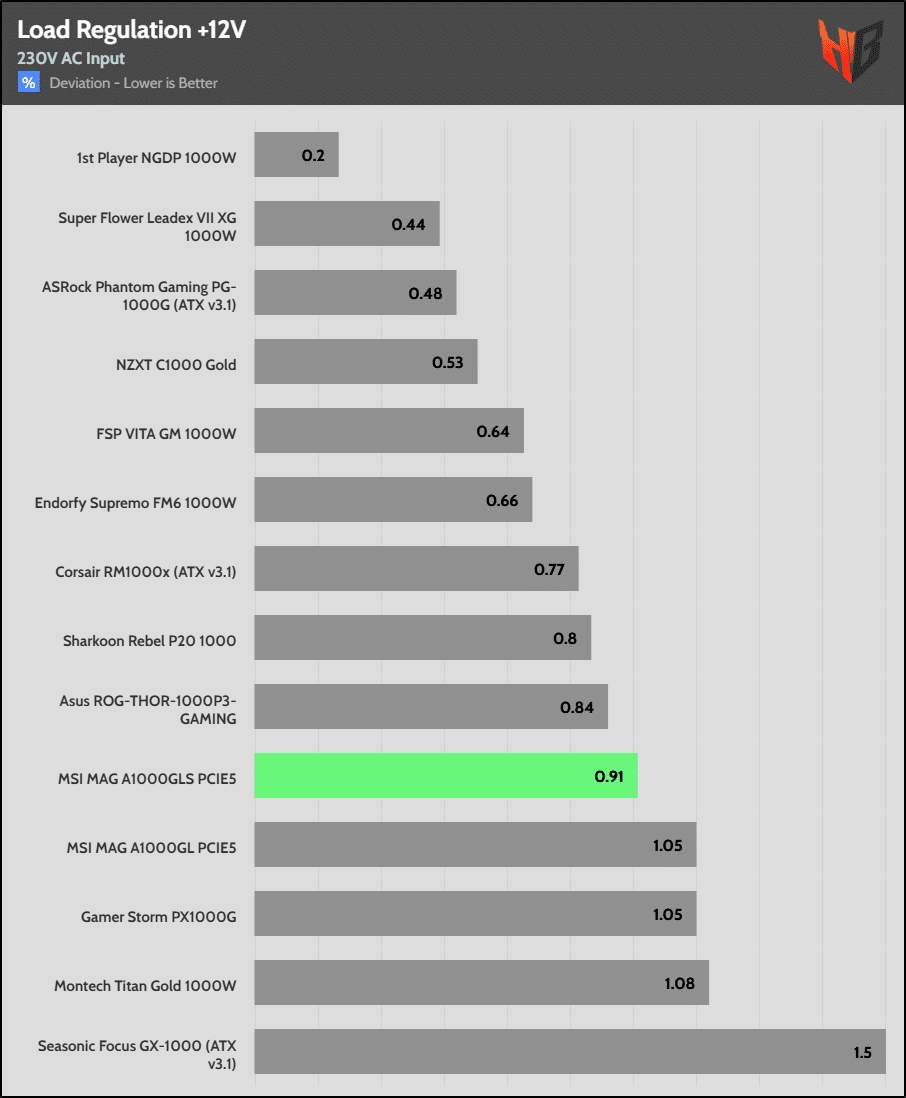

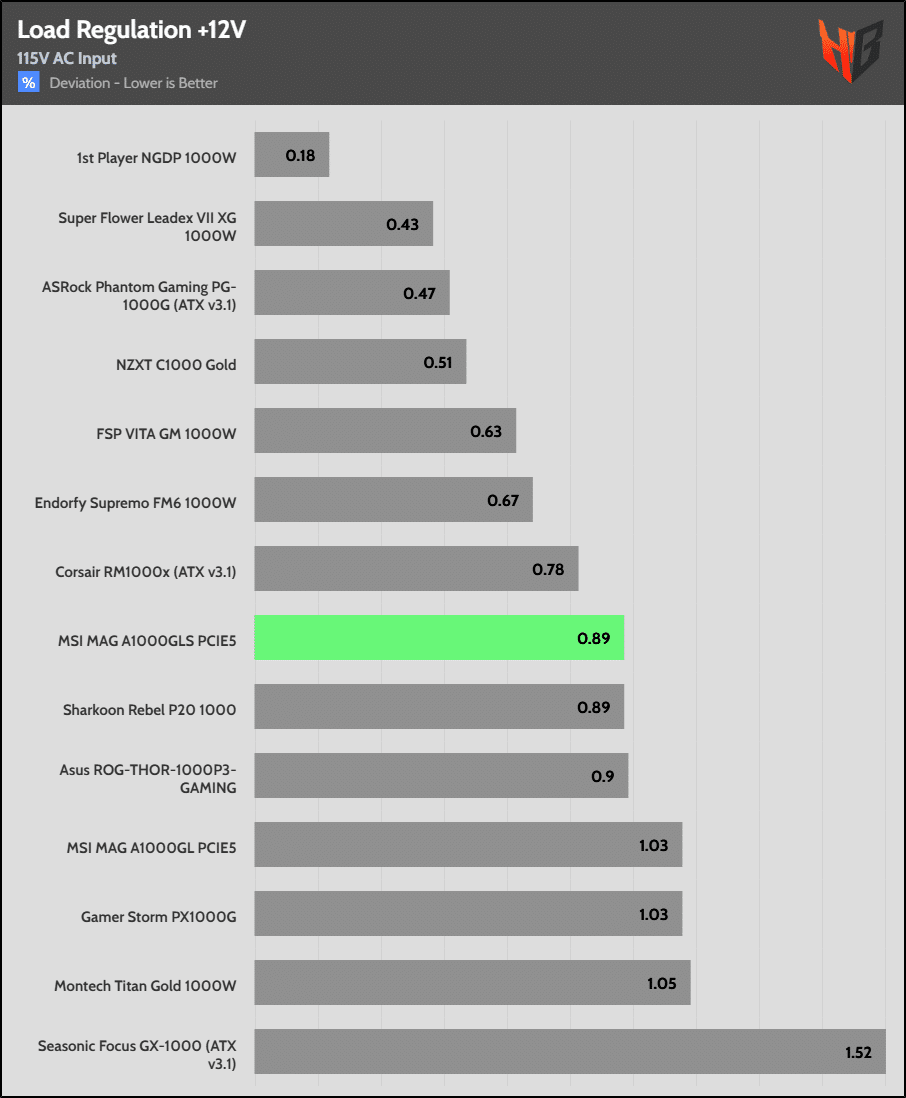

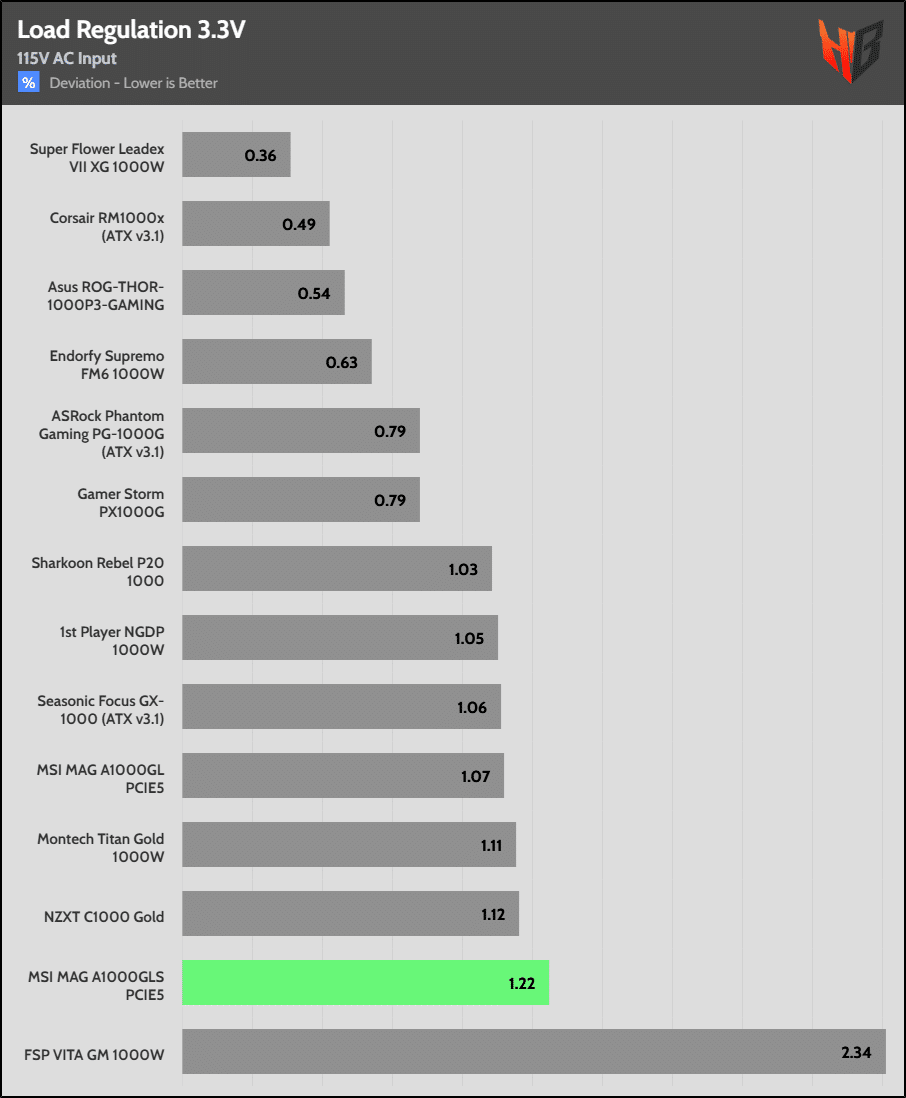

Load regulation is within 1% at 12V and 5V, but it exceeds this mark at 3.3V.
| Test | 12V | 5V | 3.3V | 5VSB | DC/AC (Watts) | Efficiency | Fan Speed (RPM) | PSU Noise (dB[A]) | Temps (In/Out) | PF/AC Volts |
| 20W | 1.224A | 0.494A | 0.496A | 0.2A | 19.995 | 70.539% | 401 | <6.0 | 36.44°C | 0.814 |
| 12.137V | 5.06V | 3.327V | 4.969V | 28.349 | 41.32°C | 115.07V | ||||
| 40W | 2.694A | 0.692A | 0.694A | 0.302A | 40.001 | 80.454% | 408 | <6.0 | 37.73°C | 0.919 |
| 12.134V | 5.059V | 3.326V | 4.968V | 49.719 | 39.61°C | 115.06V | ||||
| 60W | 4.166A | 0.89A | 0.893A | 0.403A | 60 | 85.2% | 412 | <6.0 | 38.28°C | 0.958 |
| 12.132V | 5.058V | 3.325V | 4.967V | 70.419 | 40.11°C | 115.05V | ||||
| 80W | 5.632A | 1.088A | 1.092A | 0.503A | 79.944 | 87.359% | 415 | <6.0 | 39.52°C | 0.967 |
| 12.129V | 5.058V | 3.325V | 4.966V | 91.51 | 41.41°C | 115.04V |
A glance at the light loads table is always useful, as the PSU will typically operate at light loads.
Ripple Suppression
| Test | 12V | 5V | 3.3V | 5VSB | Pass/Fail |
| 10% Load | 17.7 mV | 13.2 mV | 13.2 mV | 10.7 mV | Pass |
| 20% Load | 21.6 mV | 14.0 mV | 13.9 mV | 11.7 mV | Pass |
| 30% Load | 25.5 mV | 14.0 mV | 14.0 mV | 11.8 mV | Pass |
| 40% Load | 27.4 mV | 14.0 mV | 15.4 mV | 13.1 mV | Pass |
| 50% Load | 30.0 mV | 14.8 mV | 16.6 mV | 14.6 mV | Pass |
| 60% Load | 28.4 mV | 17.3 mV | 20.4 mV | 15.5 mV | Pass |
| 70% Load | 29.4 mV | 15.4 mV | 18.1 mV | 18.9 mV | Pass |
| 80% Load | 29.9 mV | 16.1 mV | 19.3 mV | 20.3 mV | Pass |
| 90% Load | 32.0 mV | 19.4 mV | 20.7 mV | 21.9 mV | Pass |
| 100% Load | 33.7 mV | 20.0 mV | 21.7 mV | 27.6 mV | Pass |
| 110% Load | 36.0 mV | 21.0 mV | 24.1 mV | 28.0 mV | Pass |
| Crossload 1 | 16.7 mV | 13.6 mV | 13.8 mV | 13.3 mV | Pass |
| Crossload 2 | 17.4 mV | 15.2 mV | 13.4 mV | 13.1 mV | Pass |
| Crossload 3 | 16.5 mV | 13.7 mV | 14.9 mV | 13.5 mV | Pass |
| Crossload 4 | 35.6 mV | 18.1 mV | 20.6 mV | 18.2 mV | Pass |

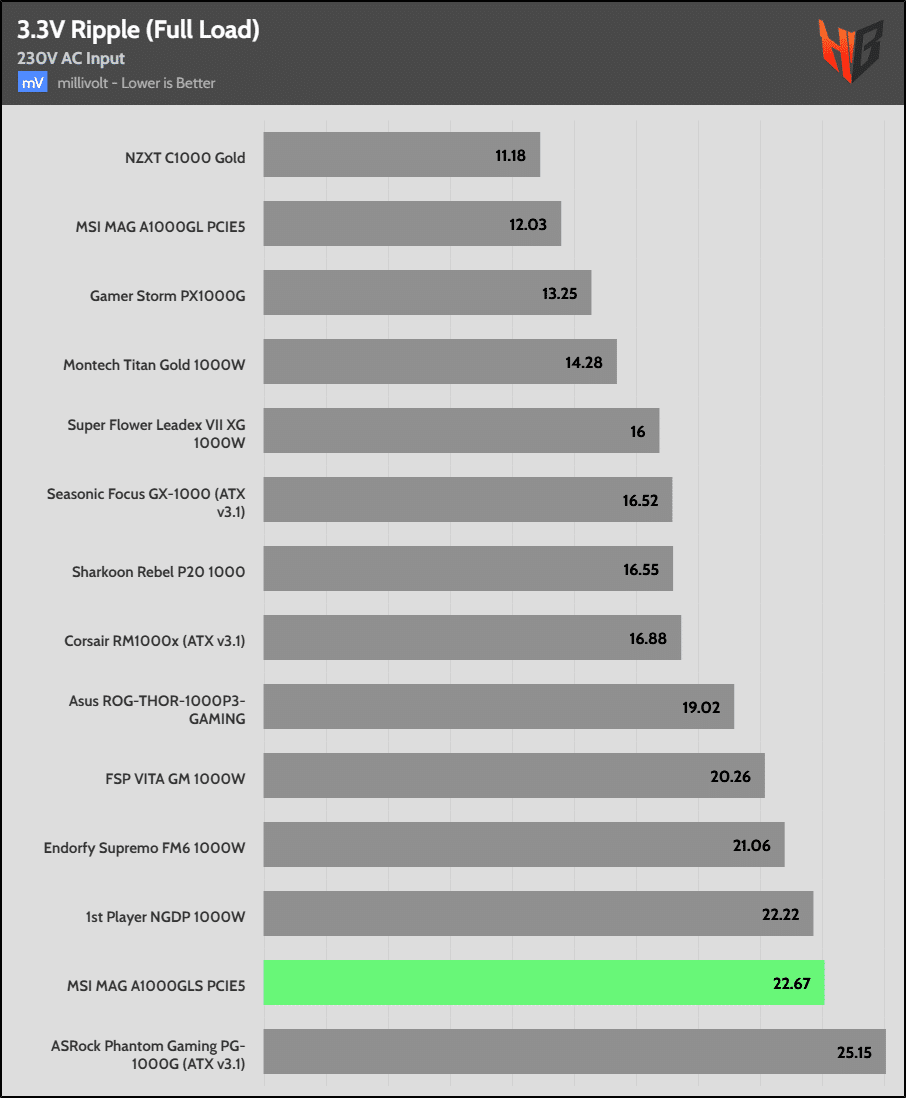

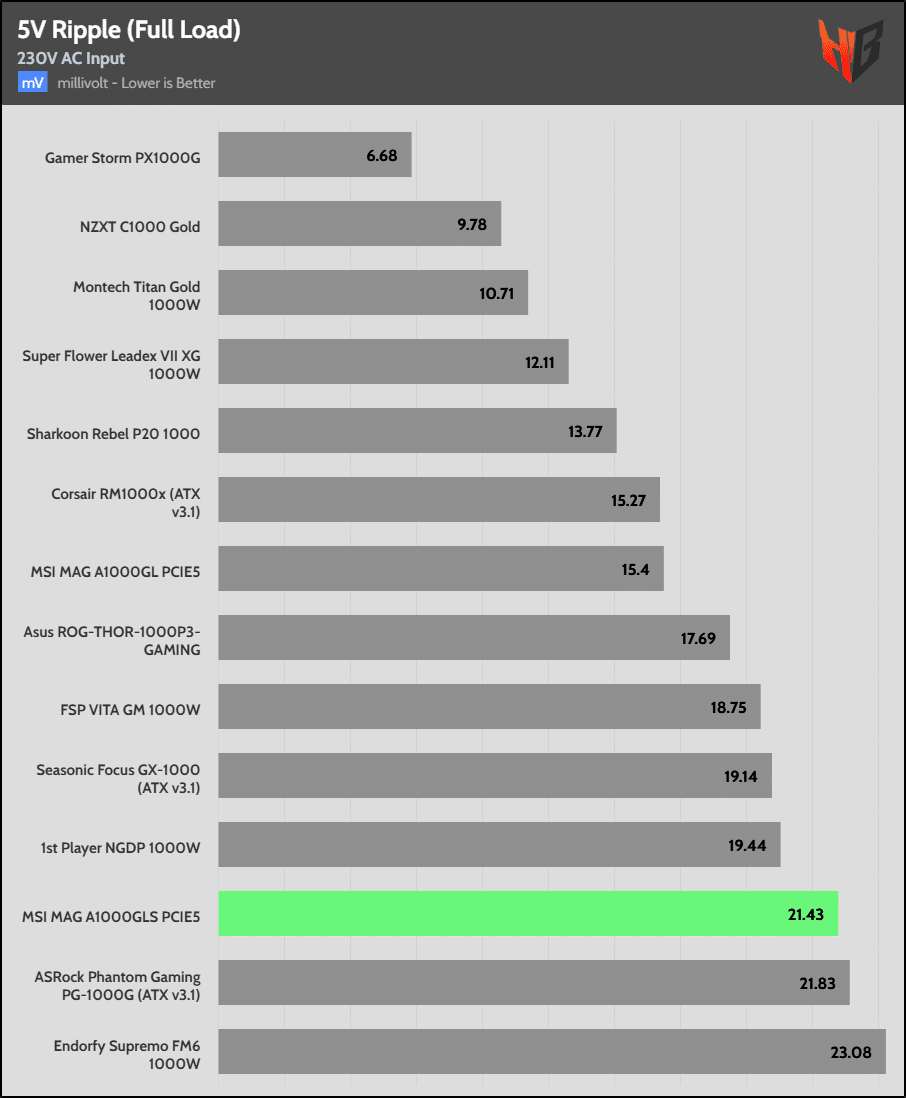

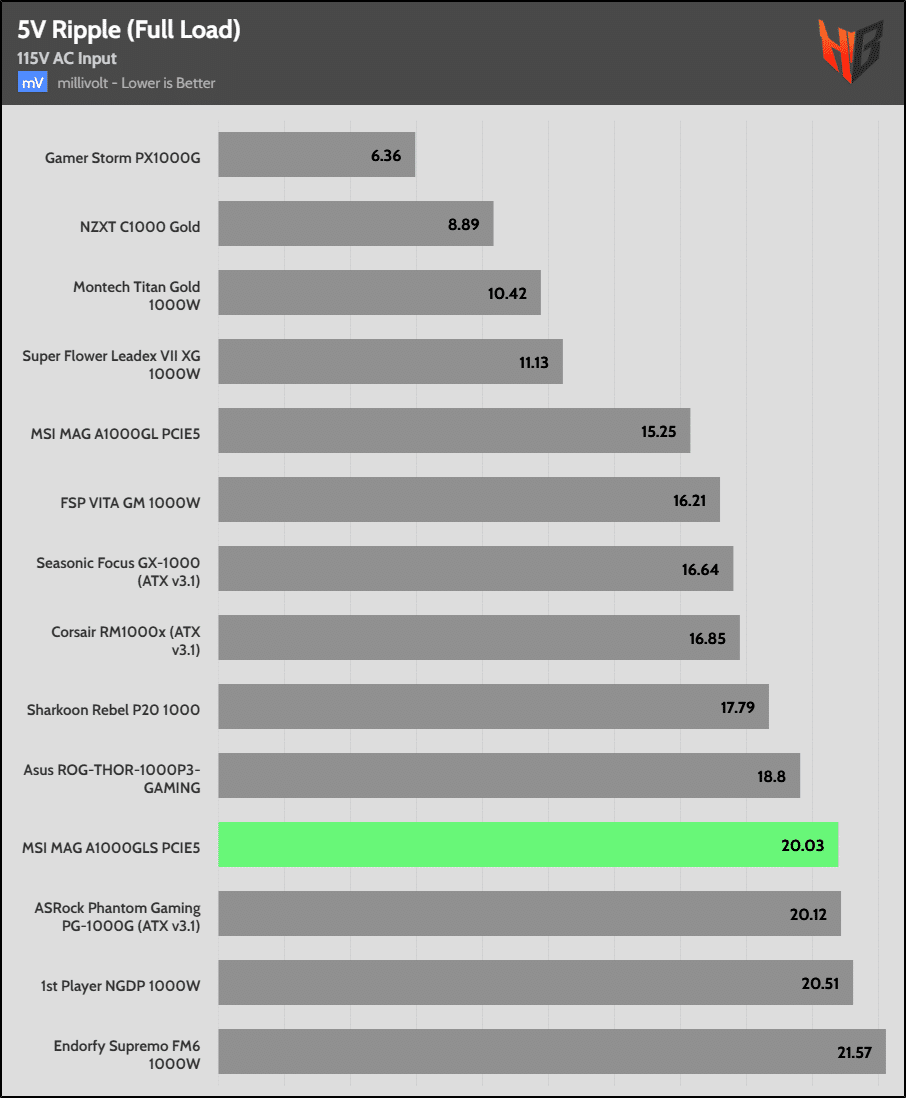

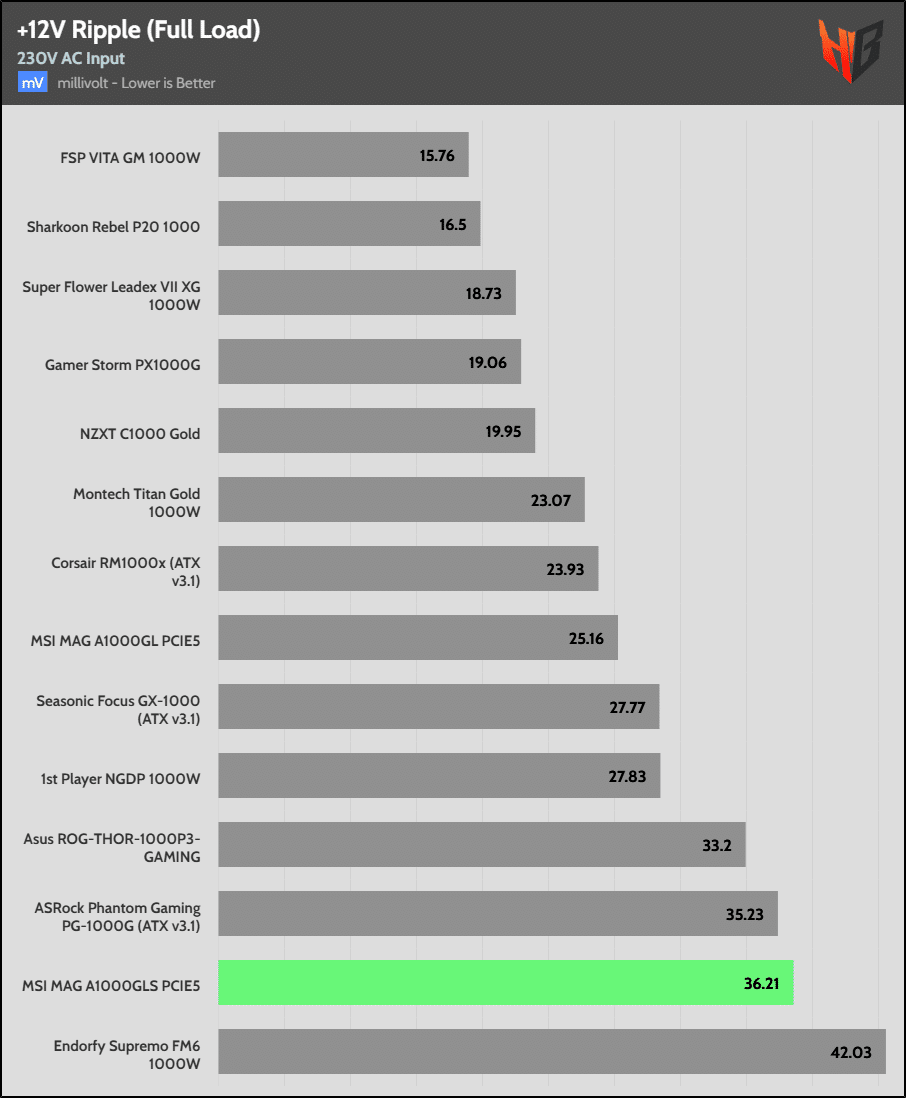

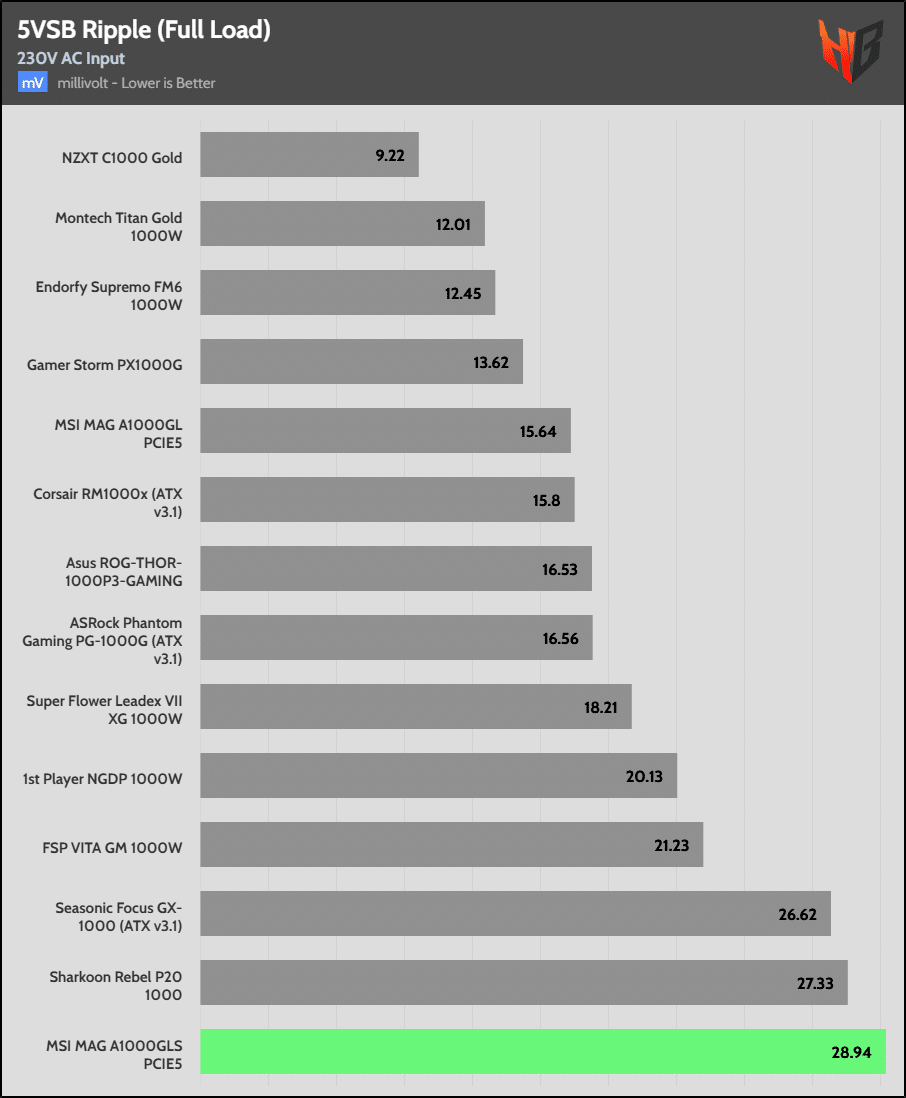

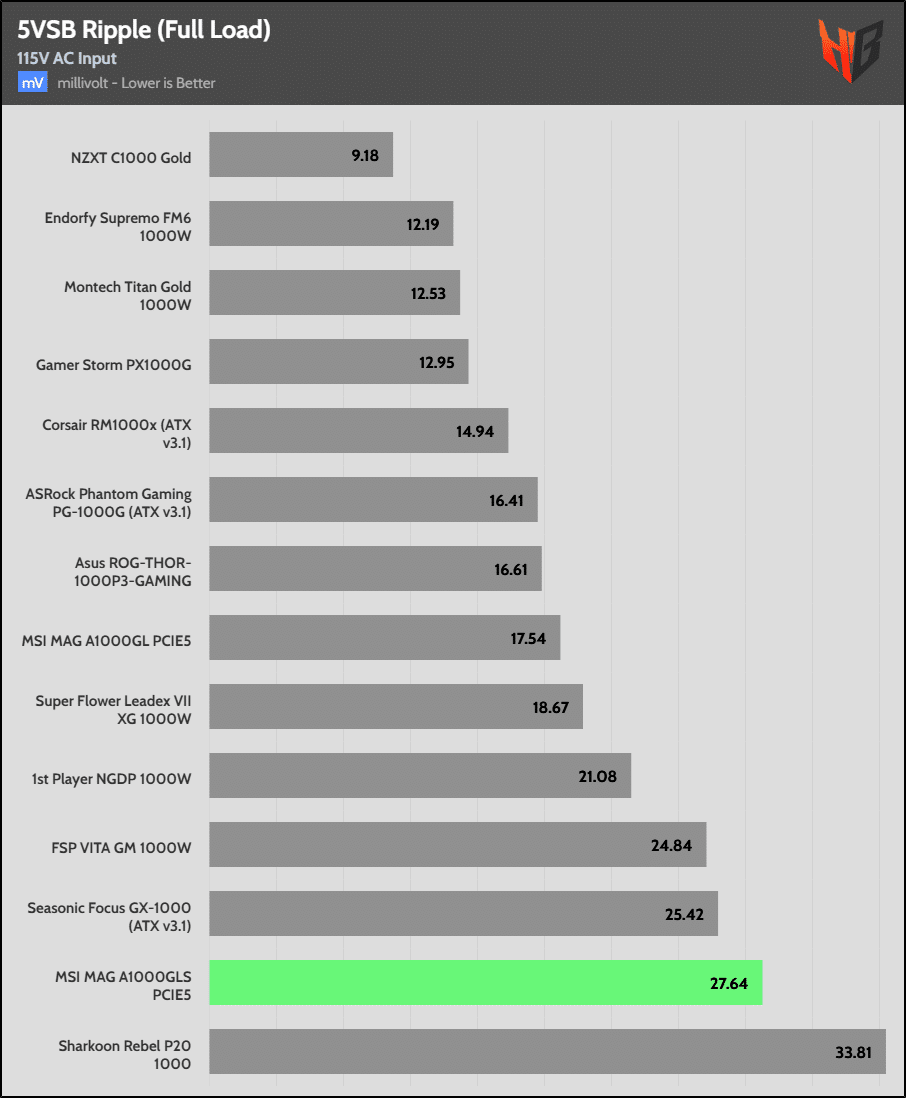

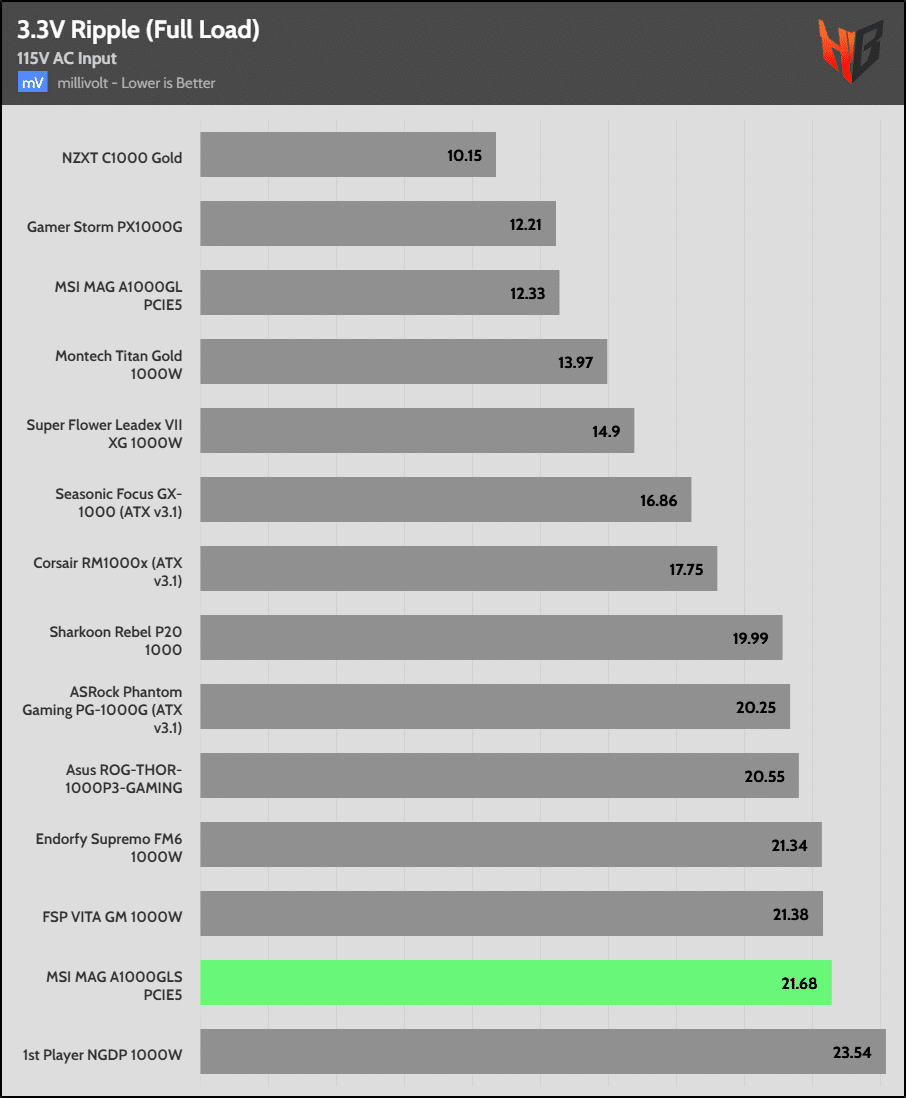

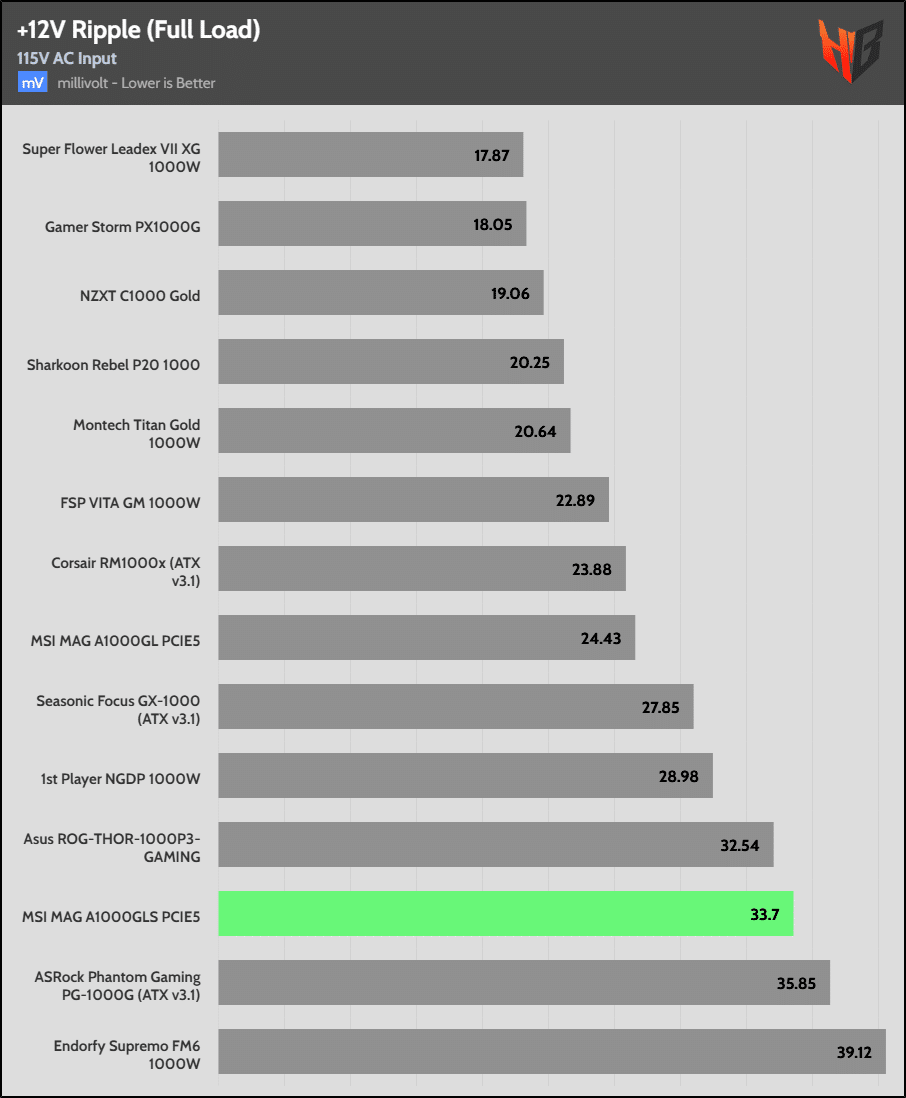

Ripple suppression is decent but not competitive.
