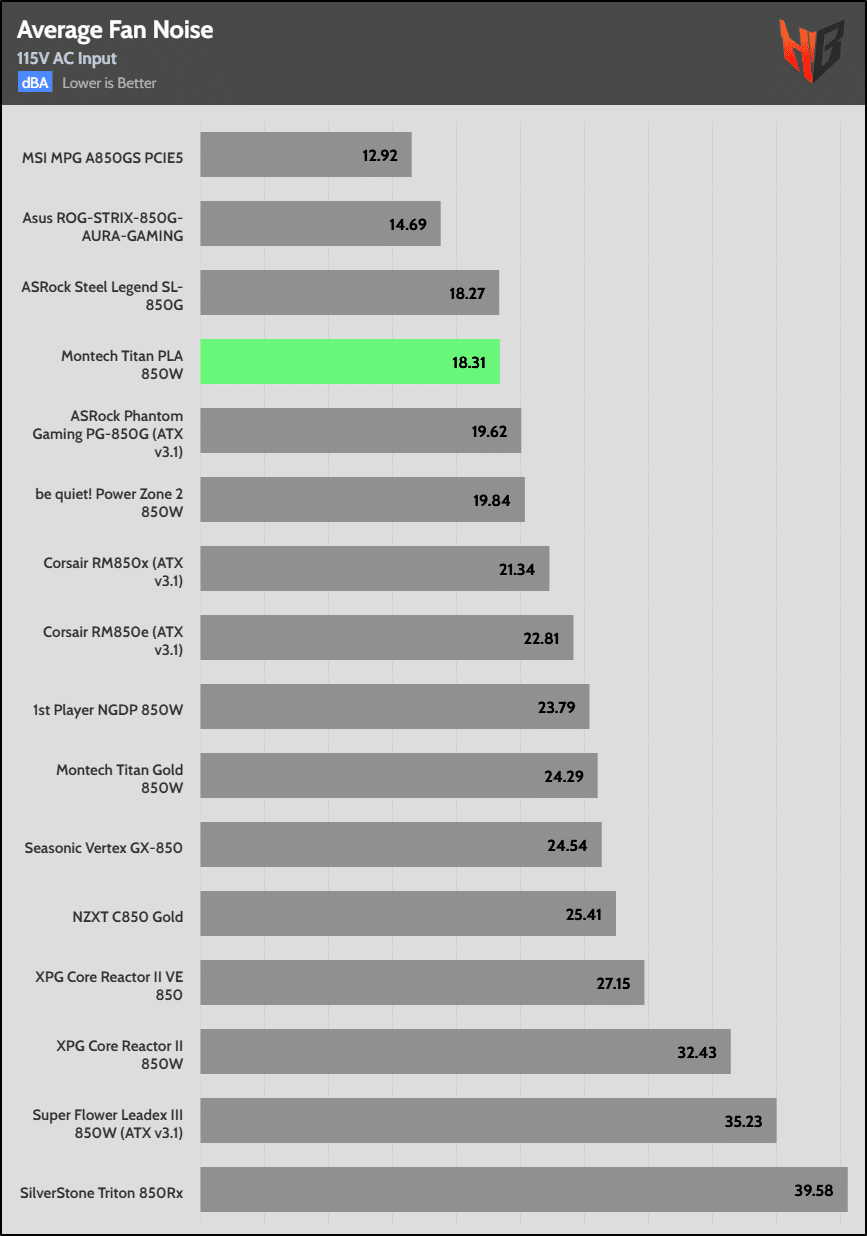

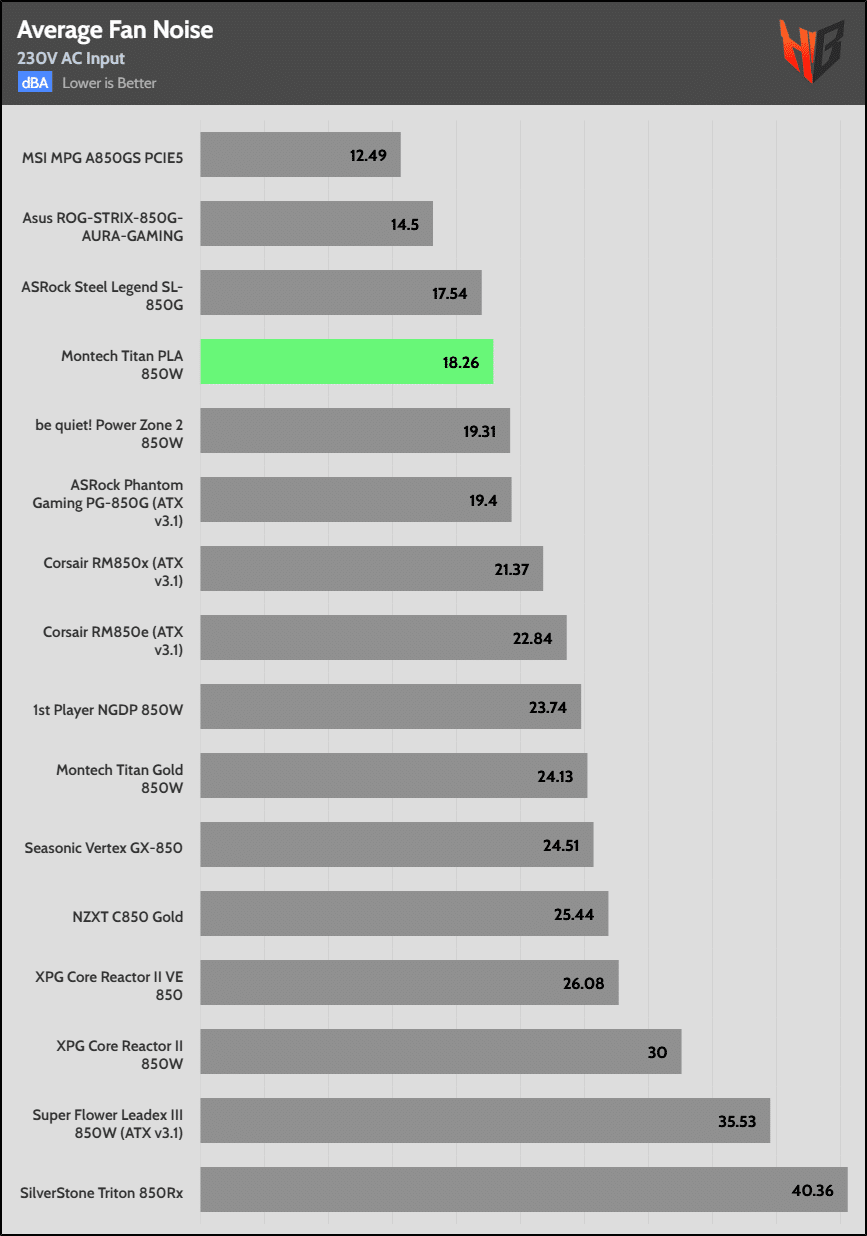

Average Noise
The PSU’s average noise output is low, not exceeding 19 dBA.

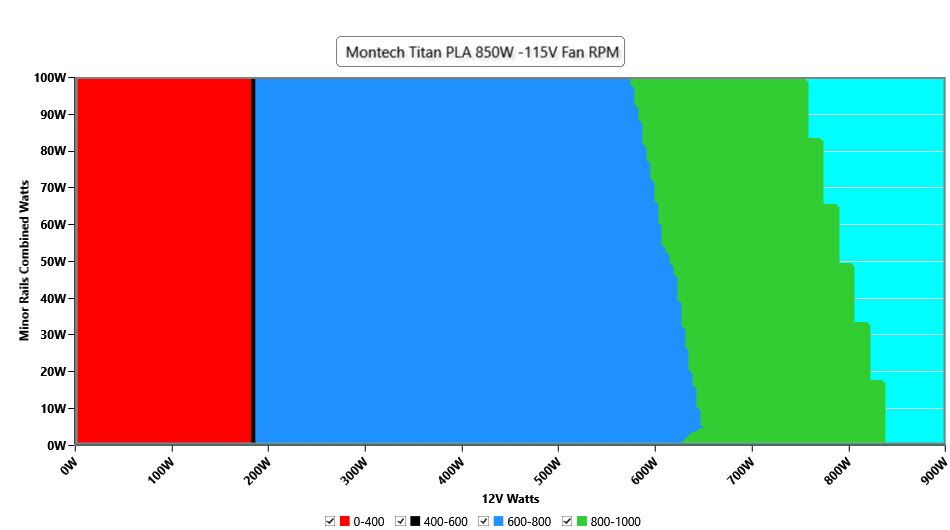

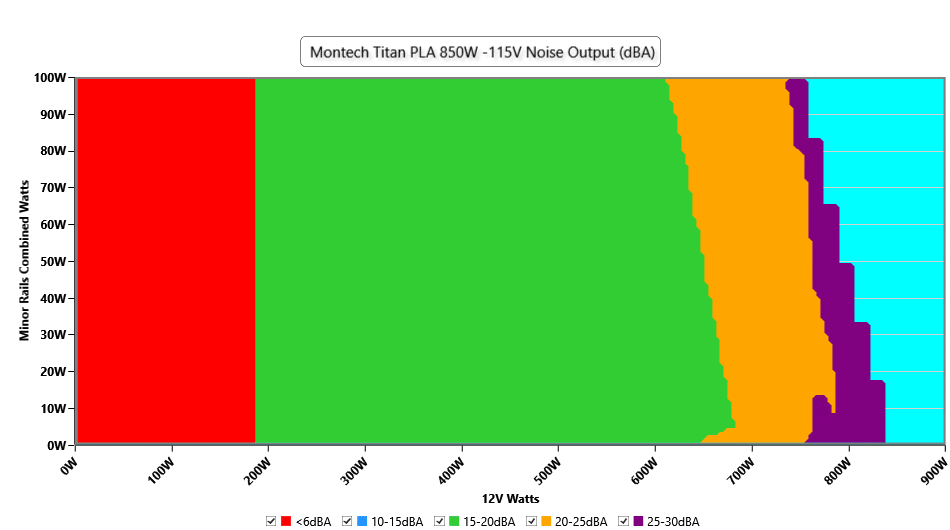

Fan Noise & Speed Maps @ 28-32 °C – 115V
The semi-passive mode lasts much longer than the higher-capacity models of the line, and it is not affected by the load on the minor rails. Up to around 190W at 12V, the fan doesn’t spin under normal operating temperatures. At around 660W at 12V, the fan’s noise exceeds 20 dBA and goes over 25 dBA with more than 760W at 12V. It never exceeds the 30 dBA mark. All in all, the fan speed profile is relaxed.

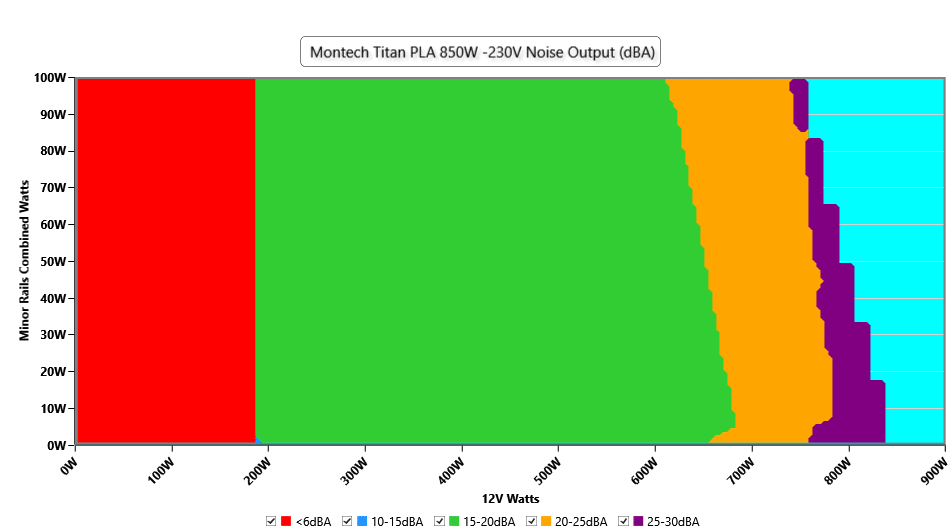

Fan Noise & Speed Maps @ 28-32 °C – 230V
The 230V fan speed profile is identical to the 115V one.
