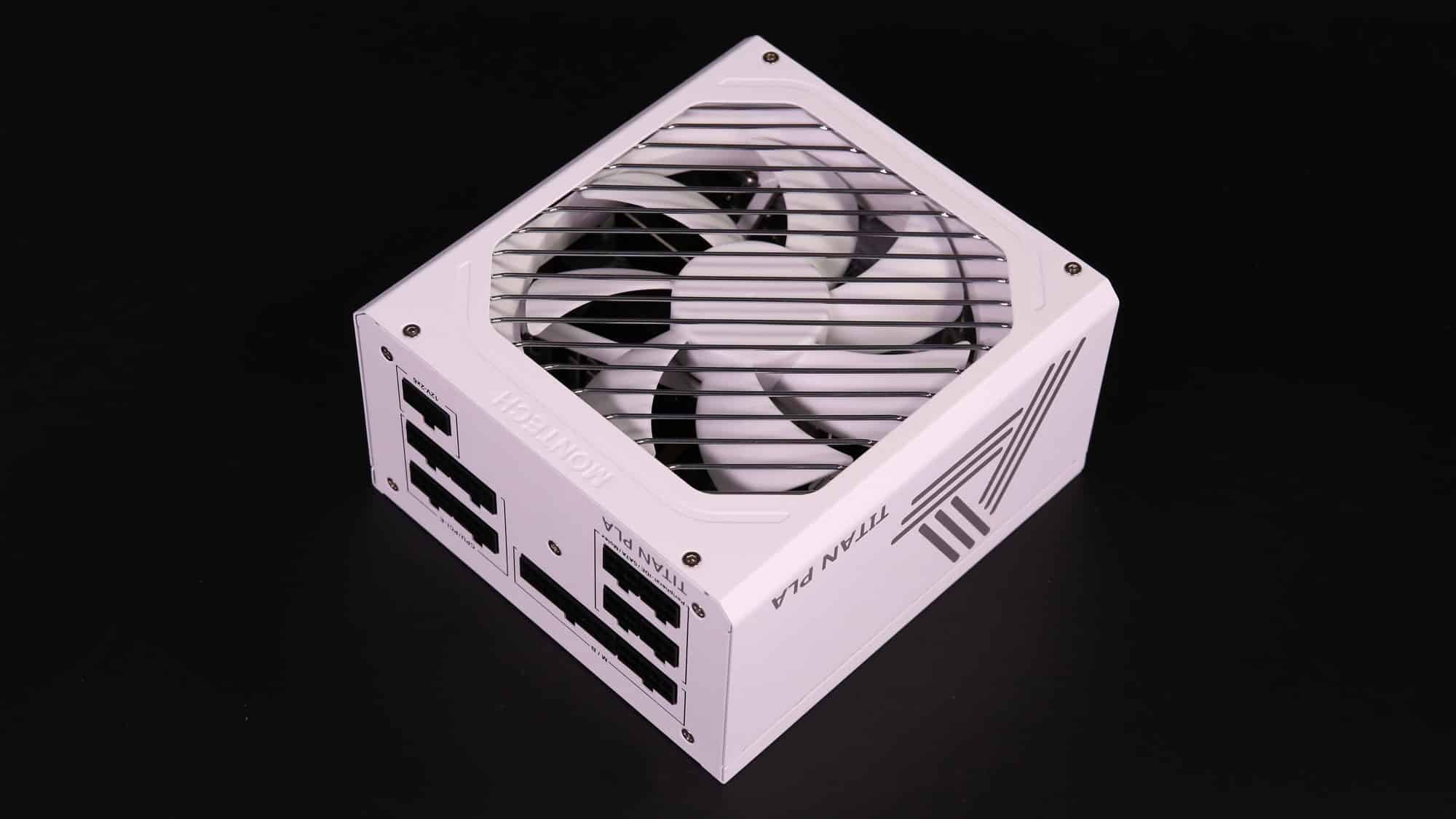

Montech’s Titan PLA series is based on the Seasonic Vertex platform. In today’s review I will look at the smallest member of the line with 750W max power. This PSU is also ATX v3.1 and PCIe 5.1 compatible.
The Montech Titan PLA 750W ATX v3.1 is (or will be) included in my best ATX v3.x & PCIe 5.x PSU picks article.
Montech’s high-end PSU line is called Titan PLA and uses Seasonic Vertex platforms. In today’s review, I will examine the smallest line member with a max power output of 750W.
| Montech TITAN PLA 1200W | $229 |
| Montech TITAN PLA 1000W | $199 |
| Montech TITAN PLA 850W | $179 |
| Montech TITAN PLA 750W | $159 |
The Titan PLA 750W is Cybenetics Platinum certified and has quiet operation, as depicted by its Cybenetics A+ noise badge. Seasonic is the OEM of this unit, utilizing the Vertex platform. This is an ATX v3.1 PSU, meaning that it comes with a 12V-2×6 connector, set at 600W max power output to support all NVIDIA GPUs. It uses Japanese capacitors and an FDB fan for increased reliability.
Look at our best ATX v3.1 PSU guide before buying your next PSU.
ATX v3.1 750W PSU Reviews:
- 1st Player NGDP 750W PSU Review
- ASUS TUF Gaming 750W Bronze PSU Review
- be quiet! Power Zone 2 750W ATX v3.1 PSU Review
- Cooler Master GX III 750W ATX v3.0 PSU Review
- DeepCool PN750D ATX v3.1 PSU Review
- Enermax Revolution D.F.12 750W PSU Review
- Sharkoon Rebel P20 750W ATX v3.1 PSU Review
- Thermaltake Toughpower PF3 750W PSU Review
- Thermaltake Toughpower GF A3 750W PSU Review
- Thermaltake Toughpower GF3 ARGB 750W PSU Review
- Thermaltake Toughpower SFX 750W Gold PSU Review
- Thermaltake Toughpower GF3 750W ATX v3.0 PSU Review
- XPG Core Reactor II VE 650W PSU Review
- XPG KYBER 750W ATX v3.1 PSU Review
- XPG Core Reactor II VE 750W PSU Review
- FSP VITA GM 750W ATX v3.1 PSU Review
- Manufacturer (OEM): Seasonic
- Max Power: 750W
- Cybenetics Efficiency: [115V] Cybenetics Platinum (90.326%), [230V] Cybenetics Platinum (92.284%)
- Noise: Cybenetics A+ (15-20 dB[A])
- Compliance: ATX v3.1, EPS 2.92
- Operating Temperature (Continuous Full Load): 0 – 50 °C
- Alternative Low Power Mode support: Yes
- Power 12V combined: 744W
- Number of 12V rails: 1
- Power 5V + 3.3v: 100W
- Power 5VSB: 15W
- Cooling: 135mm Fluid Dynamic Bearing Fan (HA13525H12F-Z)
- Semi-Passive Operation: ✓ (selectable)
- Modular Design: Yes (Fully)
- High Power Connectors: 2x EPS (2x cables), 3x PCIe 6+2 pin (3x cables), 1x PCIe 12+4 pin (600W)
- Peripheral Connectors: 10x SATA (3x cables), 4x 4-pin Molex (1x cable)
- ATX Cable Length: 615mm
- EPS Cable Length: 710mm
- 12+4 pin PCIe Cable Length: 760mm
- 6+2 pin PCIe Cable Length: 760mm
- Distance between SATA/4-pin Molex: 160mm
- In-cable capacitors: No
- Dimensions (W x H x D): 150 mm x 85 mm x 160mm
- Weight: 1.88 kg (4.14 lb)
- Warranty: 10 years
- MSRP (excluding VAT): $159
Power Specifications
| Rail | 3.3V | 5V | 12V | 5VSB | -12V | |
| Max. Power | Amps | 20 | 20 | 62 | 3 | 0.3 |
| Watts | 100 | 744 | 15 | 3.6 | ||
| Total Max. Power (W) | 750 | |||||
