Montech Titan PLA 850W ATX v3.1 PSU Review

crmaris

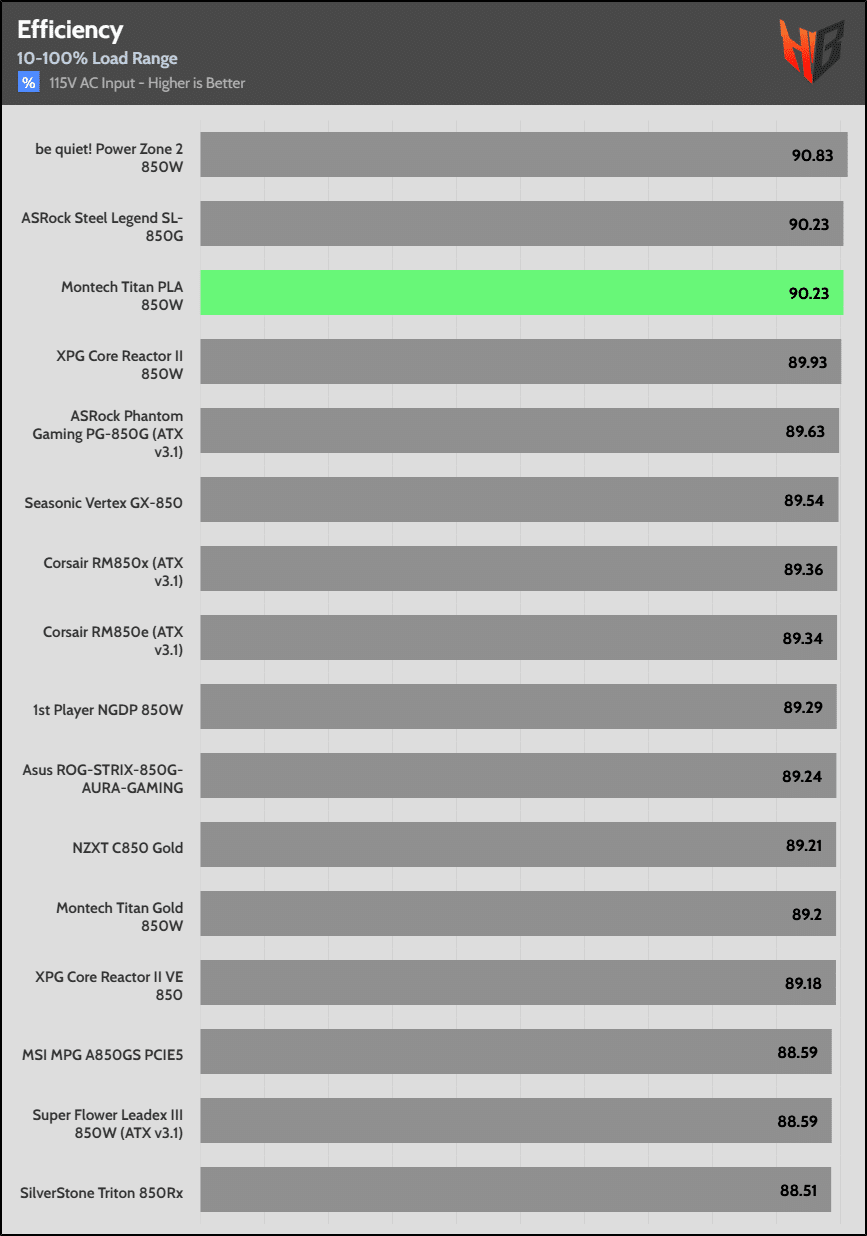

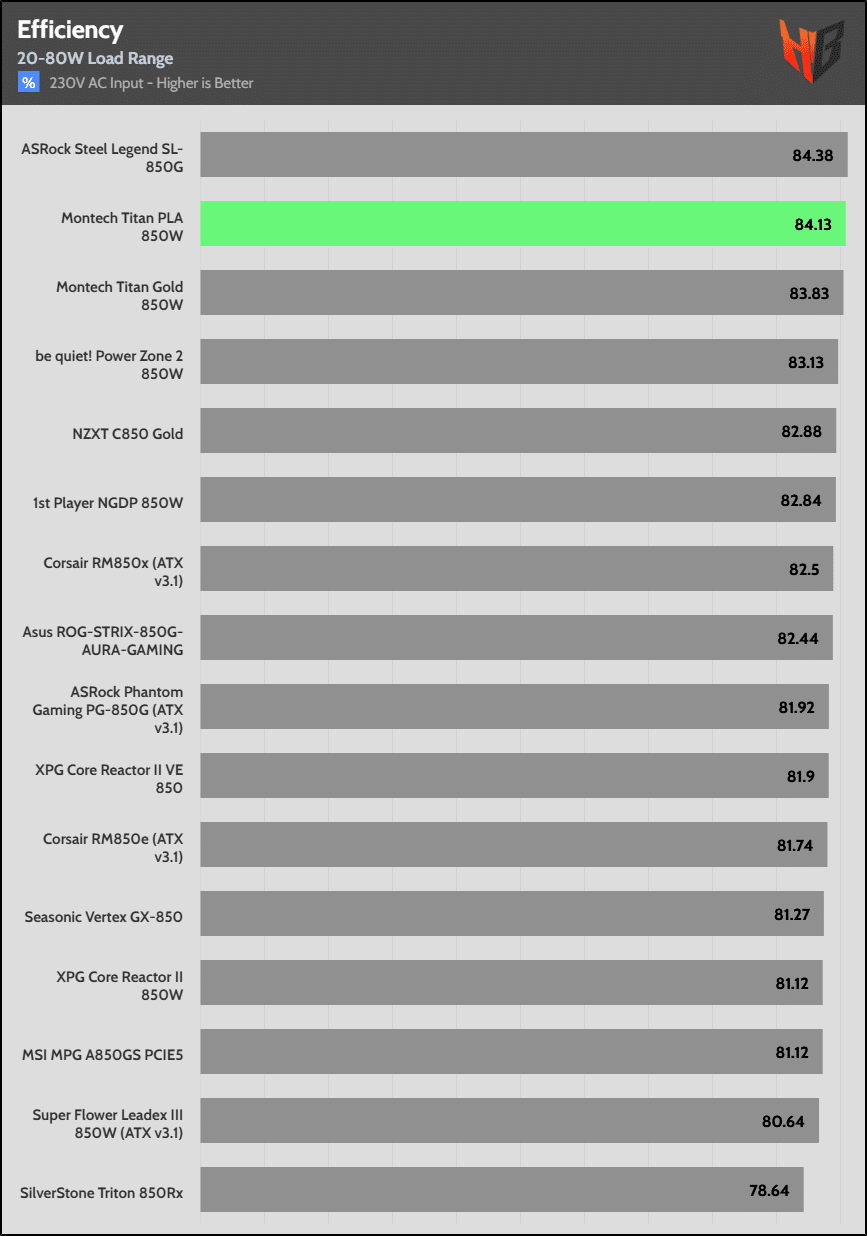

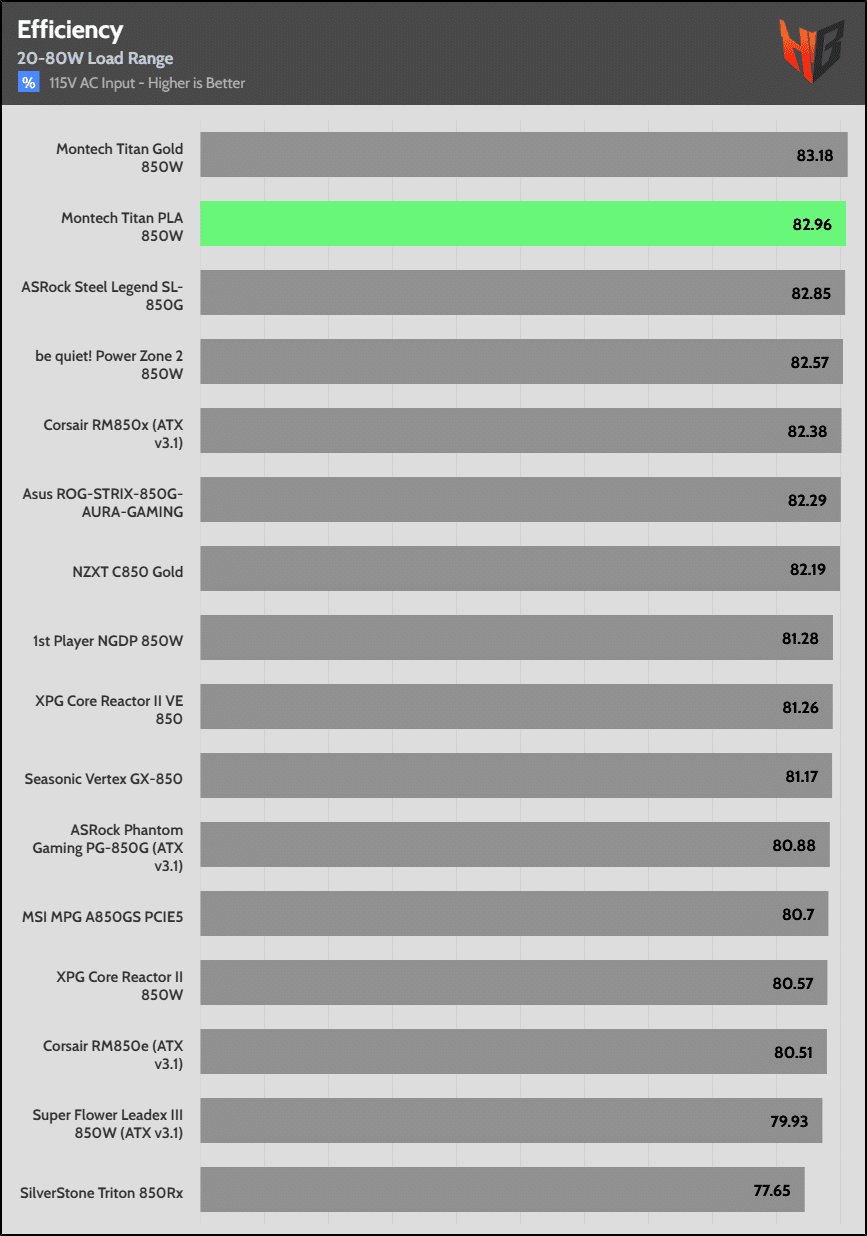

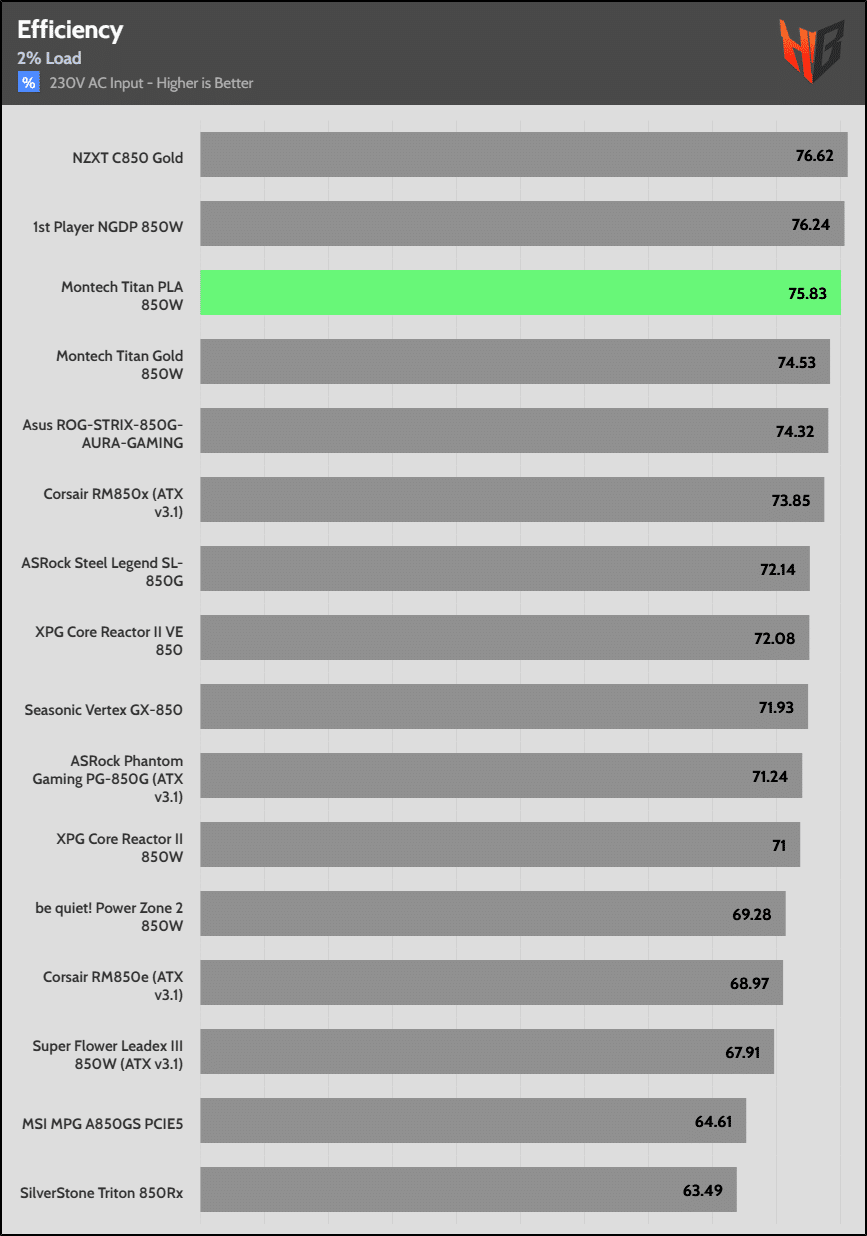

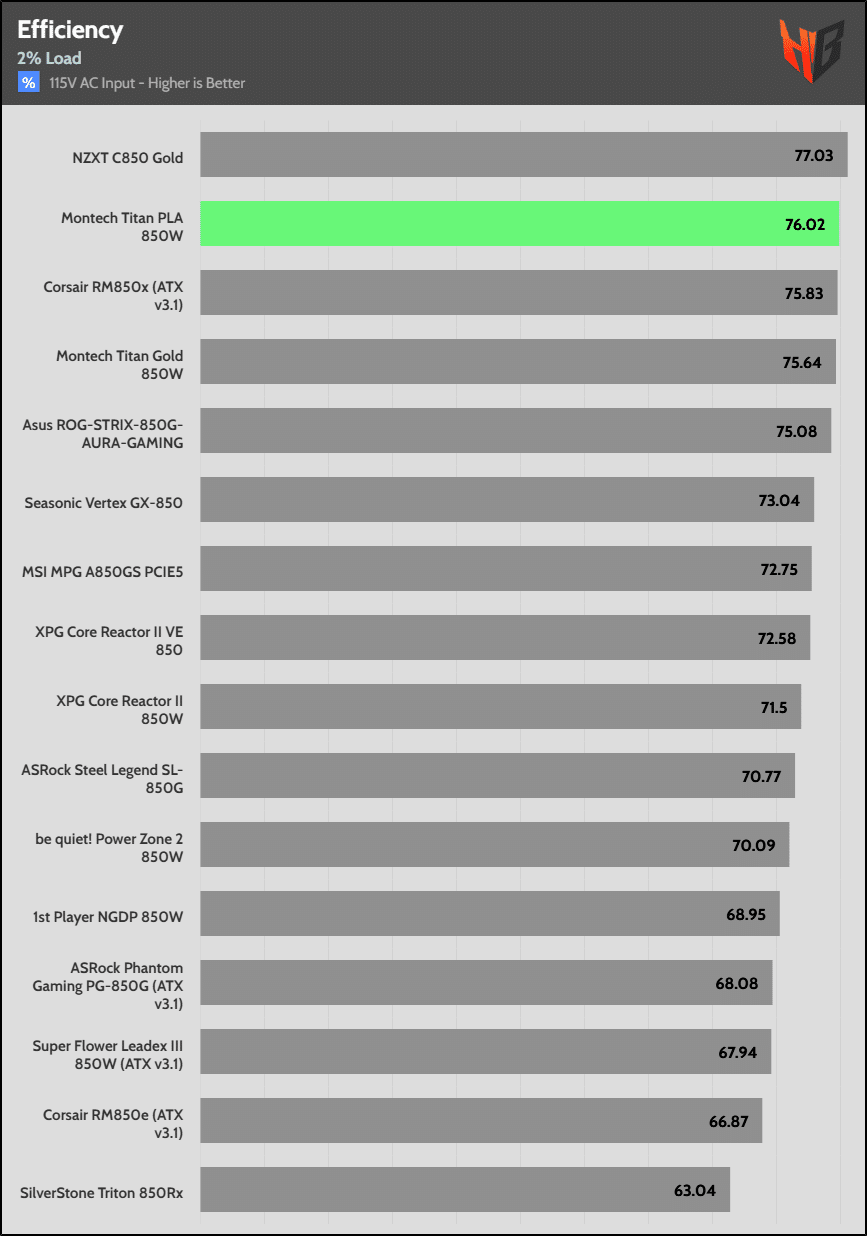

Efficiency Normal, Light & Super-Light Loads

Efficiency is high on all load ranges, from normal ones to super-light.

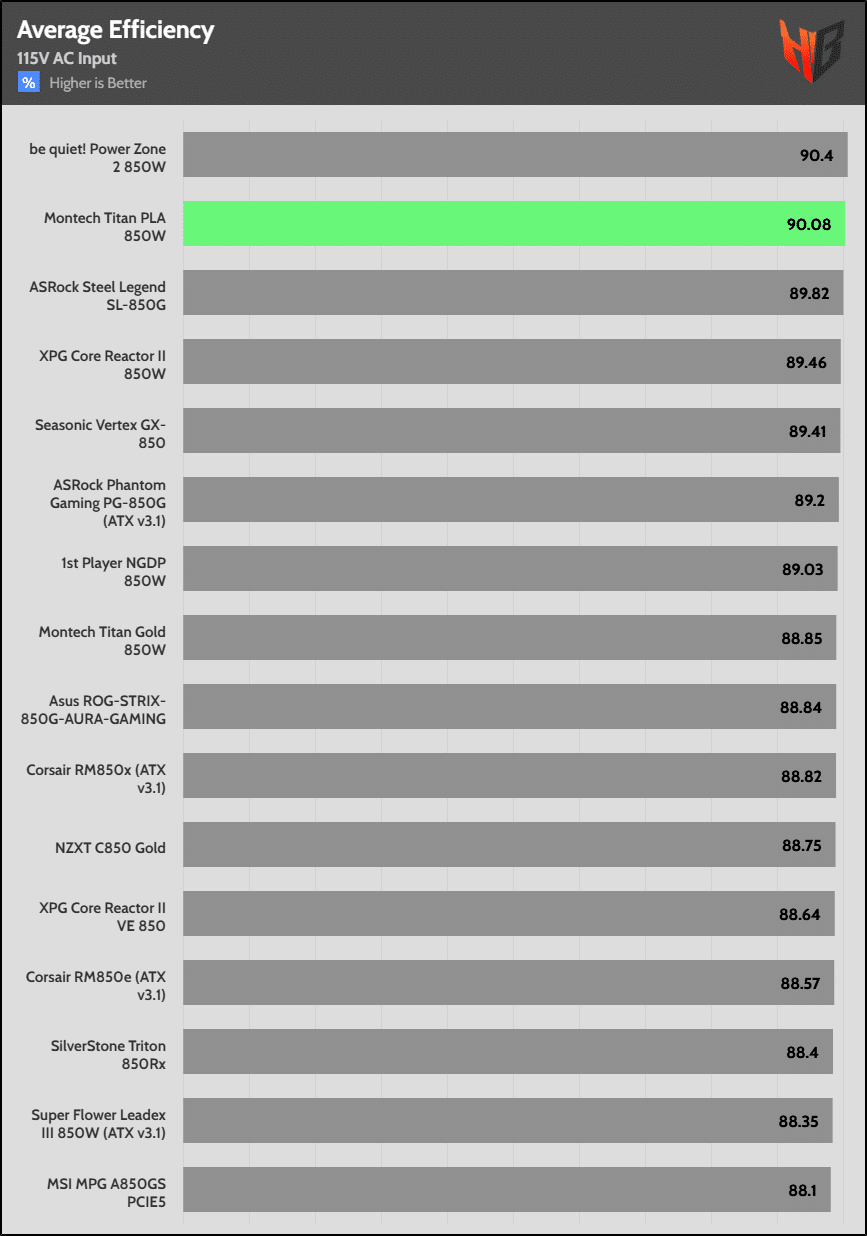

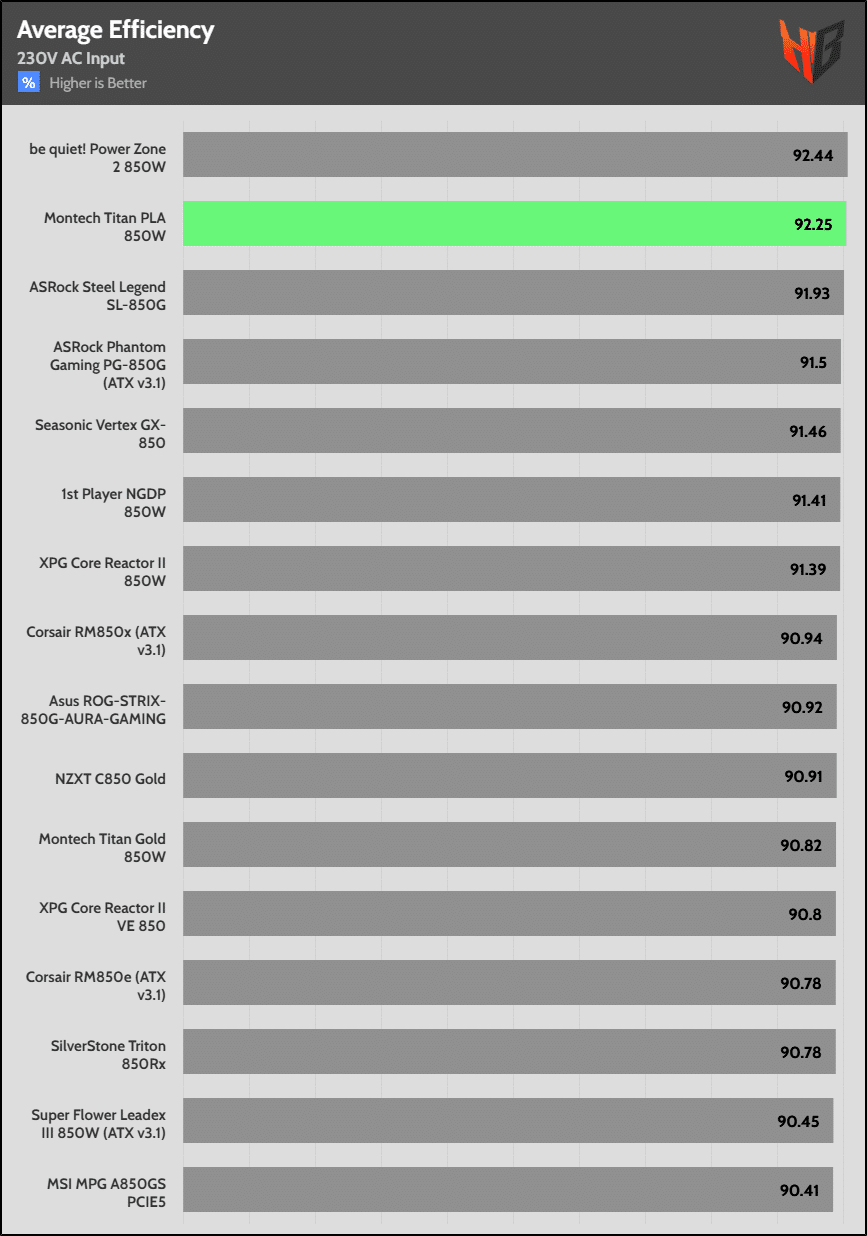

Average Efficiency

The average efficiency meets the Cybenetics Platinum criteria.

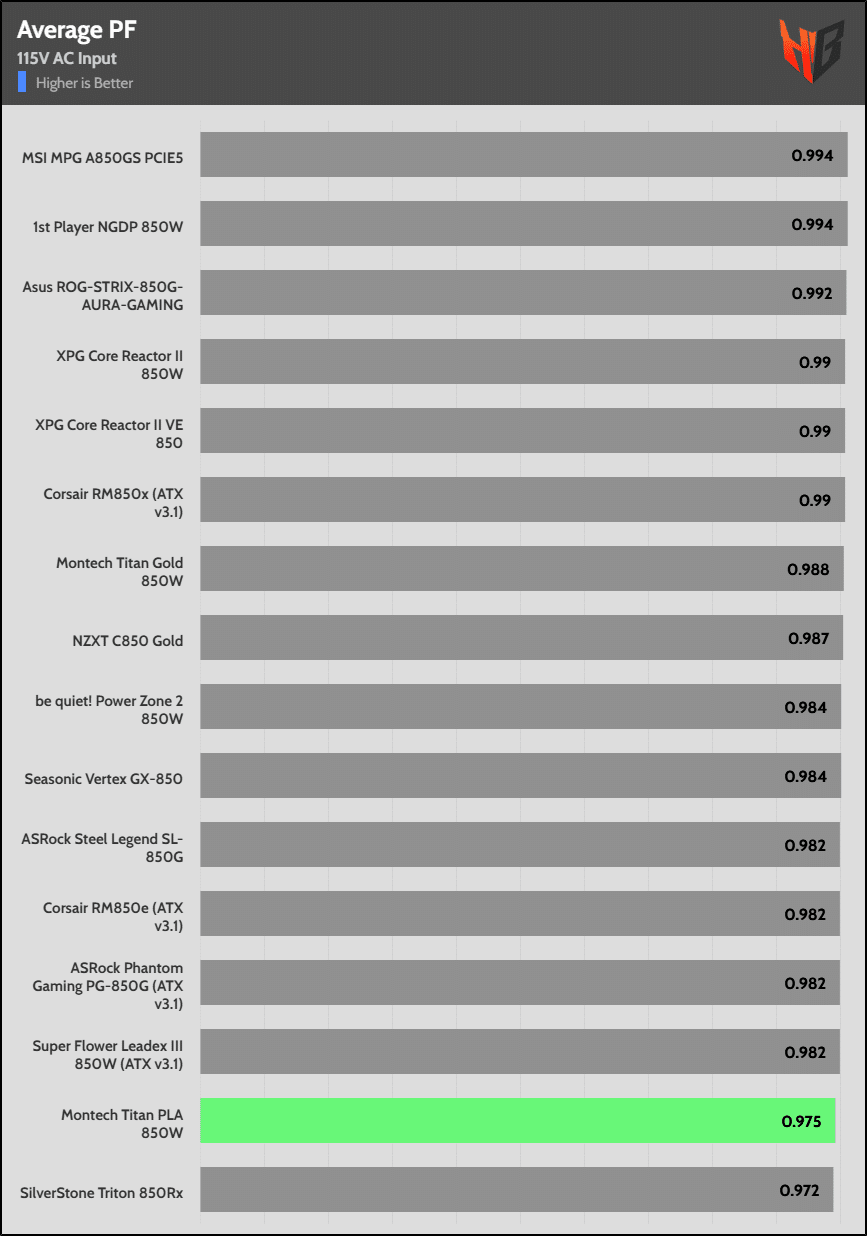

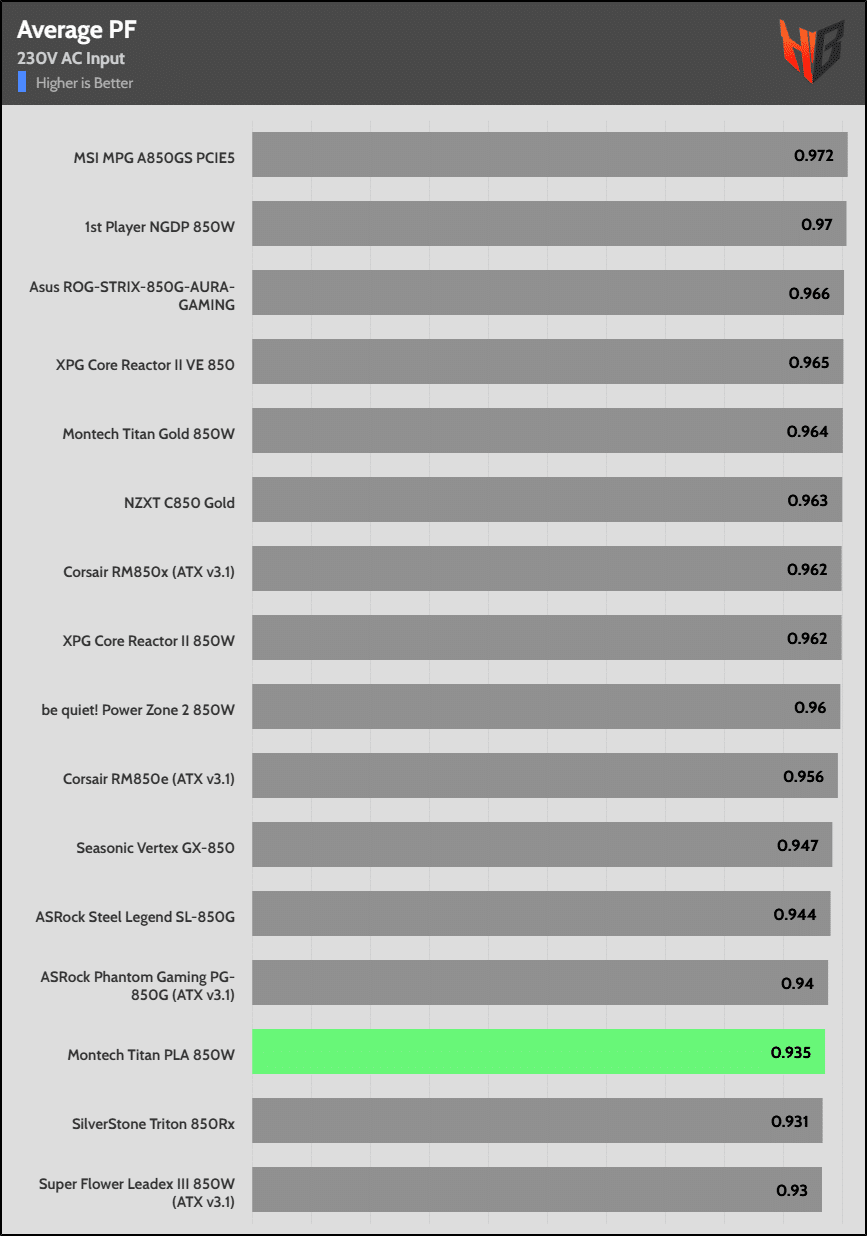

Average PF

The APFC converter doesn’t perform well.

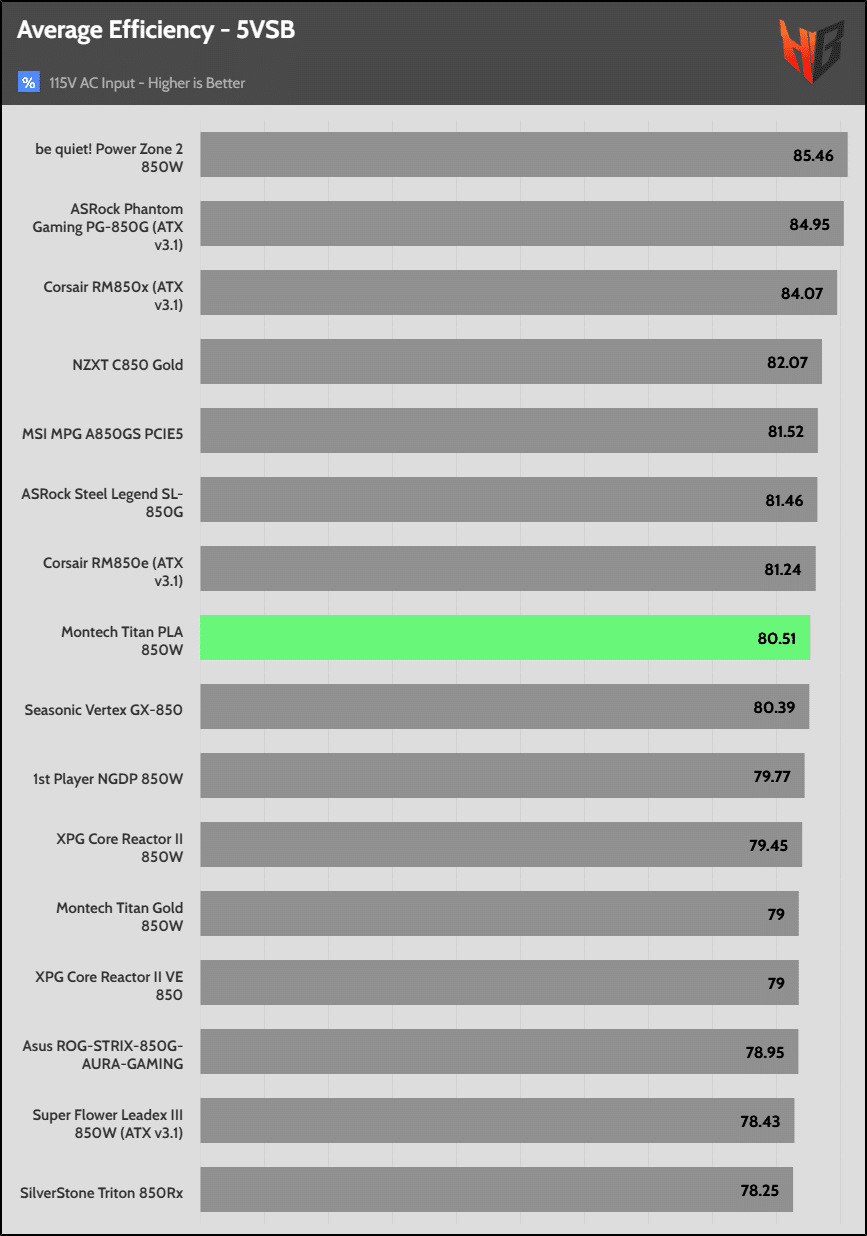

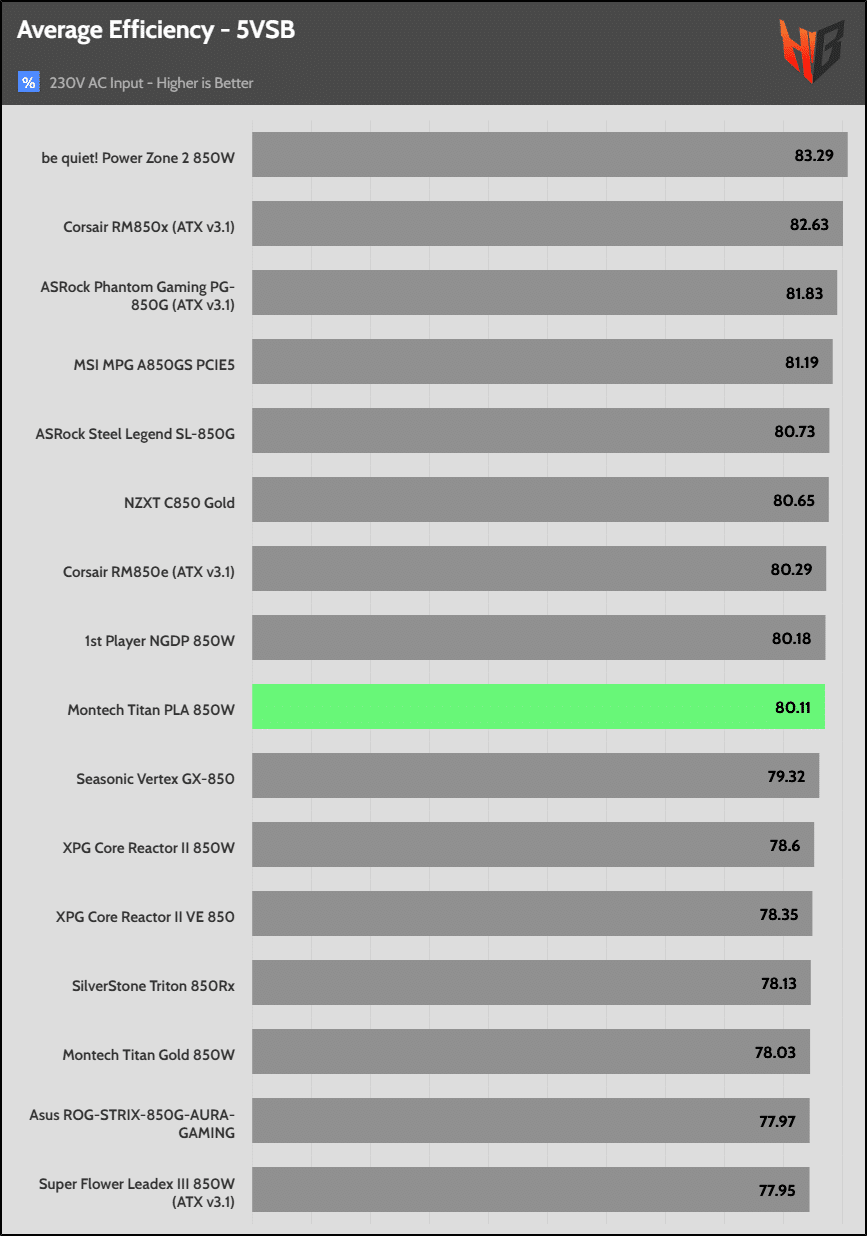

Average Efficiency 5VSB

The 5VSB rail’s efficiency is high enough.

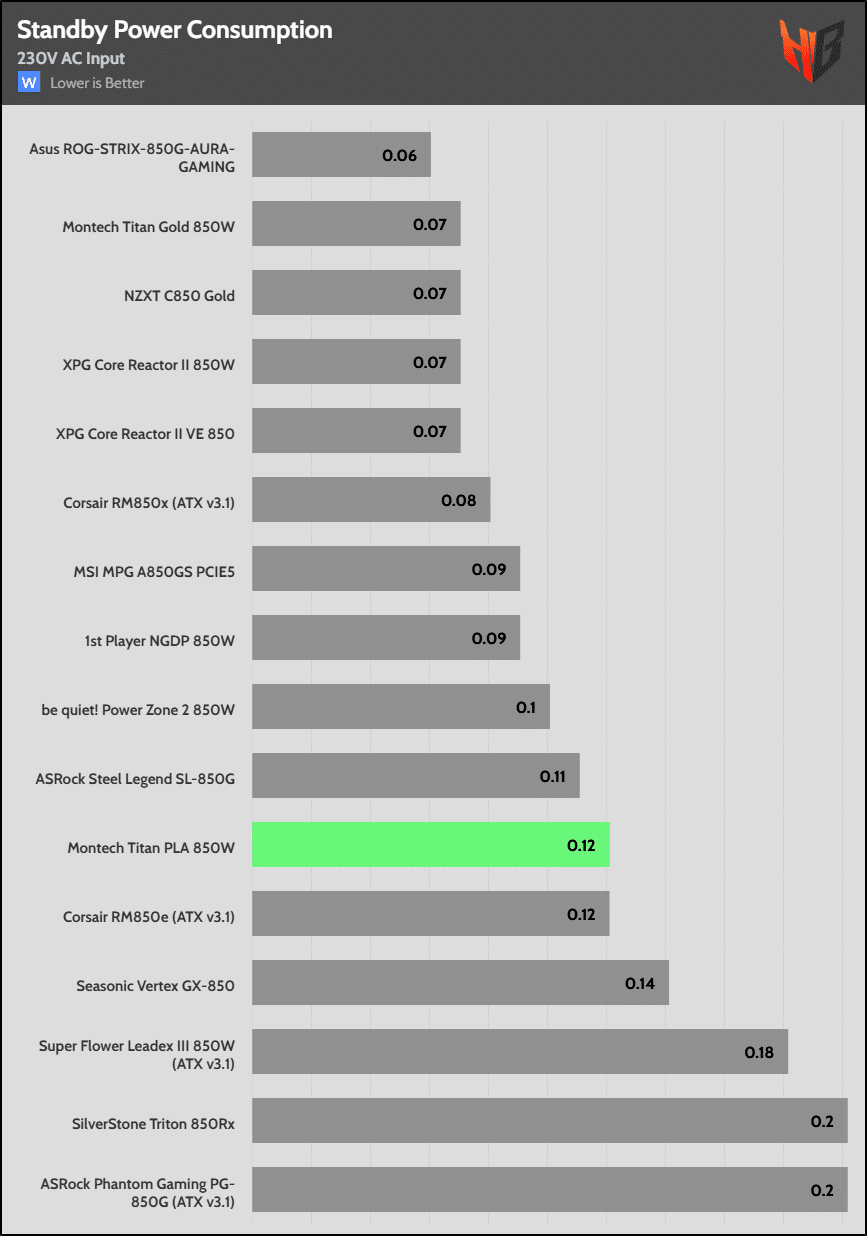

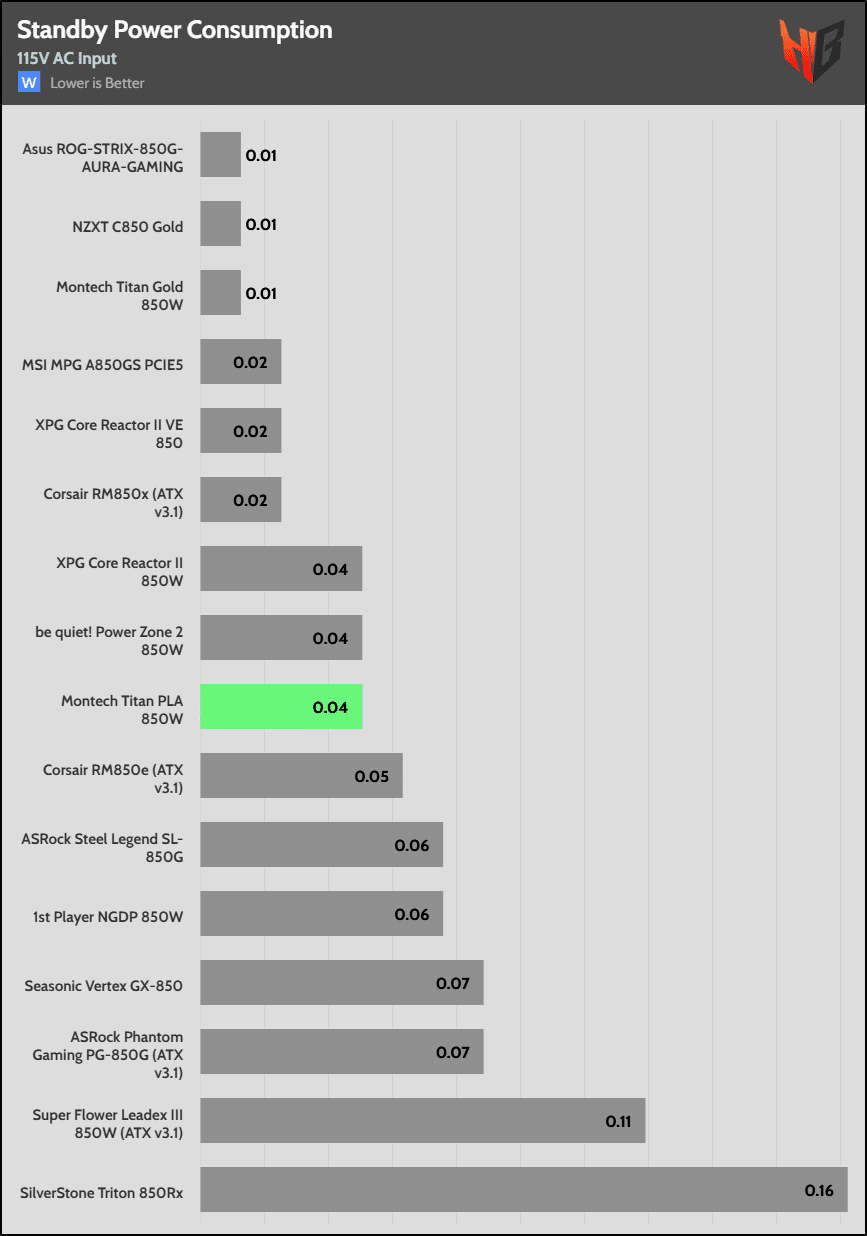

Vampire Power

Vampire power is increased at 230V.
