Epilogue
Micronics’ partnership with the seasoned Chinese OEM Great Wall begins with the Wizmax G series, and the initial impressions are promising. Voltage regulation is tight enough at 12V and 5V, with good ripple suppression. The 12V rail maintains its voltage above the respective limits under a 200% load, as dictated by the ATX v3.1 standard. That said, the transient response is not competitive at 12V and requires improvement at 3.3V, as many similar capacity units perform better in these tests. On the other hand, the hold-up time is extended, the APFC converter delivers high PF readings under both voltage inputs I tried (115V and 230V), and the PSU’s noise output is kept low. Moreover, the 5VSB rail has decent efficiency, and vampire power at 115V is low.
This is a platform destined for Gold level; it barely meets the Cybenetics Platinum efficiency requirements, especially at 115V, so it isn’t competitive when compared with more competitive platforms. I also have to take into account the asking price, which is relatively high at $210, placing this product on the same playing field as more efficient platforms/PSUs. Moreover, GW needs to address the high inrush currents and also minimize vampire power at 230V to below 0.1W.
In the protection features section, which is among the most important, the OCP triggering points need to be tuned on the minor rails, as they are relatively high and close between hot and cold conditions. The same applies to the over power protection triggering points under normal and hot temperatures, which need to be further apart, although they are conservative. Moreover, it would be nice to see a fan failure protection feature implemented. Unfortunately, most PSU platforms don’t have fan failure protection, but it is time to help change that.

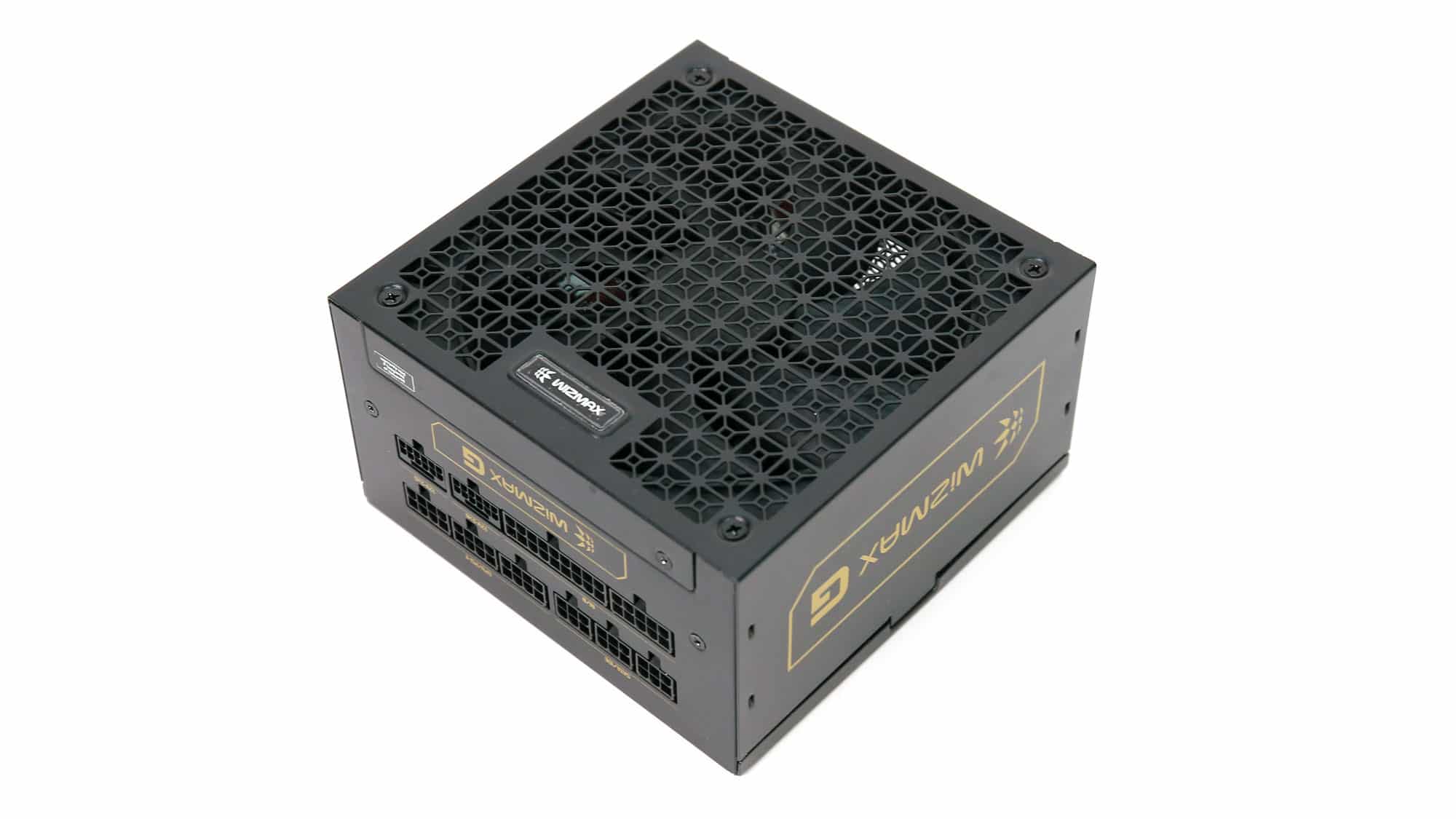

All in all, the Micronics Wizmax G 1200W is a decent-performing PSU, but it faces intense competition at its current price point.
Before investing in a new power supply, read my Best ATX v3.x PSUs article to check all alternative PSU offerings. You help me a lot by using my affiliate links, which don’t increase the price of the product. I receive a commission from Amazon every time you do it, which can make a significant difference for me, especially now that I am working independently, exclusively for my media, rather than for someone else.
- Delivered full power at 46°C
- ATX v3.1 and PCIe CEM 5.1 compliant
- Properly set 12V OCP triggering points
- Good parts used
- Quiet operation under light and mid loads
- Within 1% load regulation at 12V and 5V
- Good ripple suppression
- Well-performing APFC converter
- Long hold-up time
- Alternative Low Power Mode (ALPM) compatible
- FDB (Hong Hua) fan
- 12+4-pin PCIe connector set at 600W
- OCP on the minor rails and OPP triggering points need adjustments
- 12V and 3.3V transient response is mediocre
- Not competitive efficiency levels compared to similar Wattage units
- Relatively loose load regulation at 3.3V
- High inrush currents
- Increased vampire power consumption at 230V
- No fan failure protection
