Transient Response
20% Load – 20ms
| Advanced Transient Response 20% - 50 Hz - No Caps | ||||
| Voltage | Before | After | Change | Pass/Fail |
| 12V | 12.068V | 11.964V | 0.86% | Pass |
| 5V | 5.002V | 4.892V | 2.20% | Pass |
| 3.3V | 3.338V | 3.168V | 5.09% | Pass |
| 5VSB | 5.066V | 5.027V | 0.77% | Pass |
50% Load -20ms
| Advanced Transient Response 50% - 50 Hz - No Caps | ||||
| Voltage | Before | After | Change | Pass/Fail |
| 12V | 12.045V | 11.956V | 0.74% | Pass |
| 5V | 4.999V | 4.892V | 2.13% | Pass |
| 3.3V | 3.330V | 3.153V | 5.31% | Pass |
| 5VSB | 5.035V | 4.999V | 0.71% | Pass |

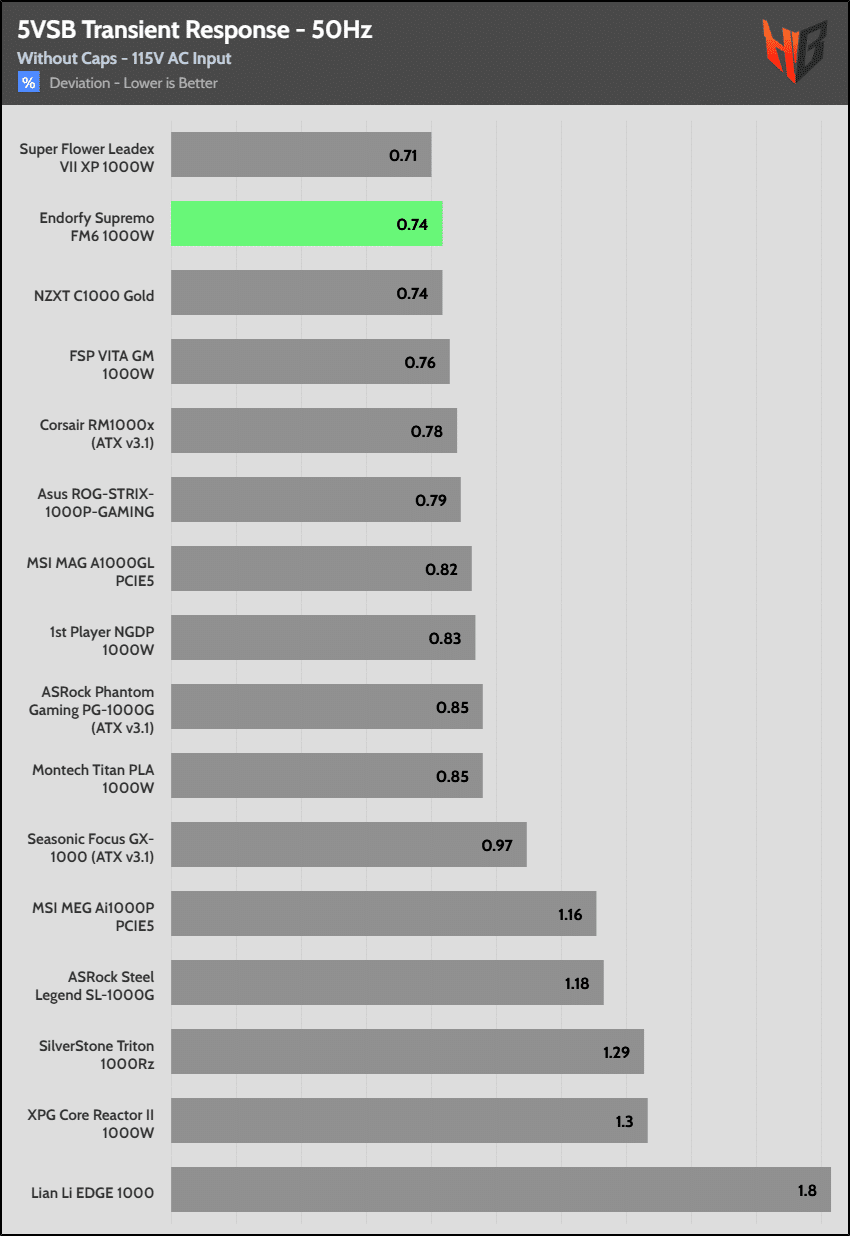

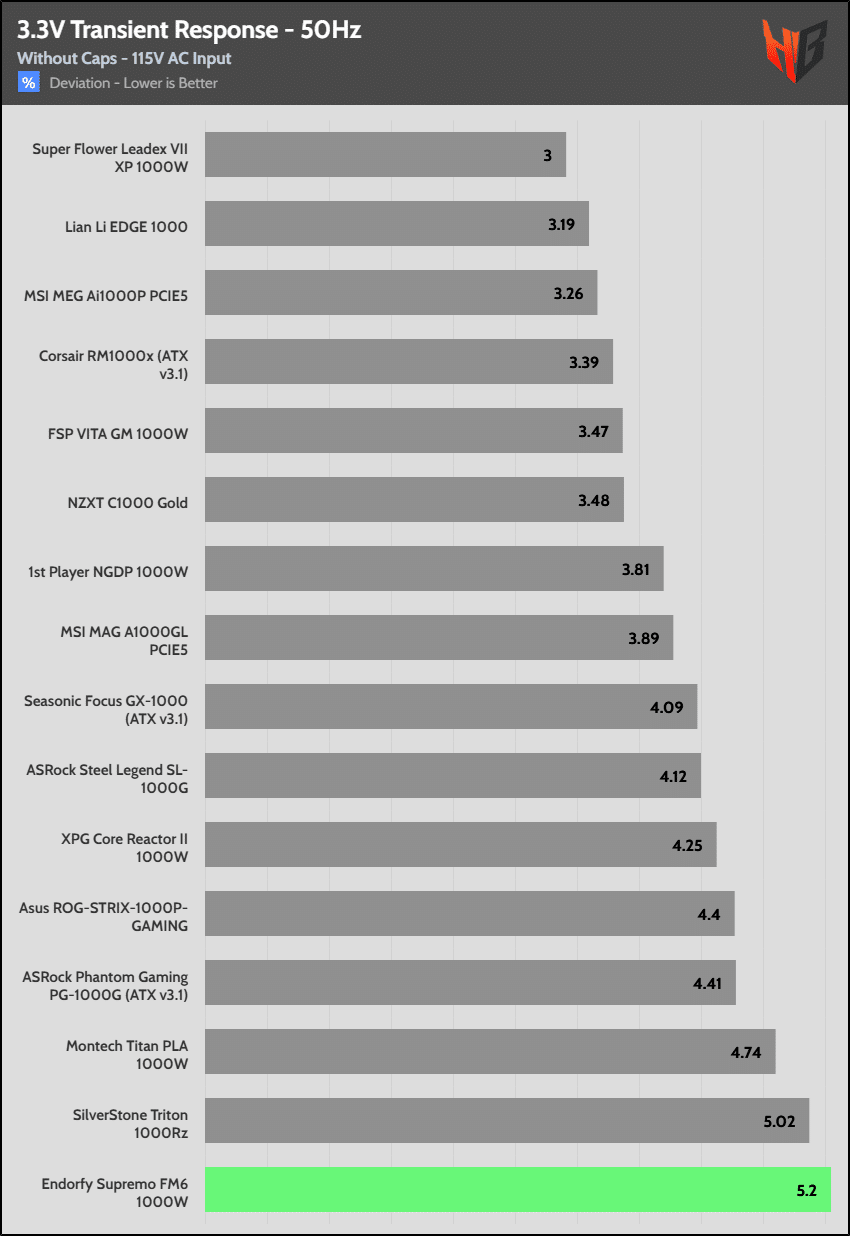

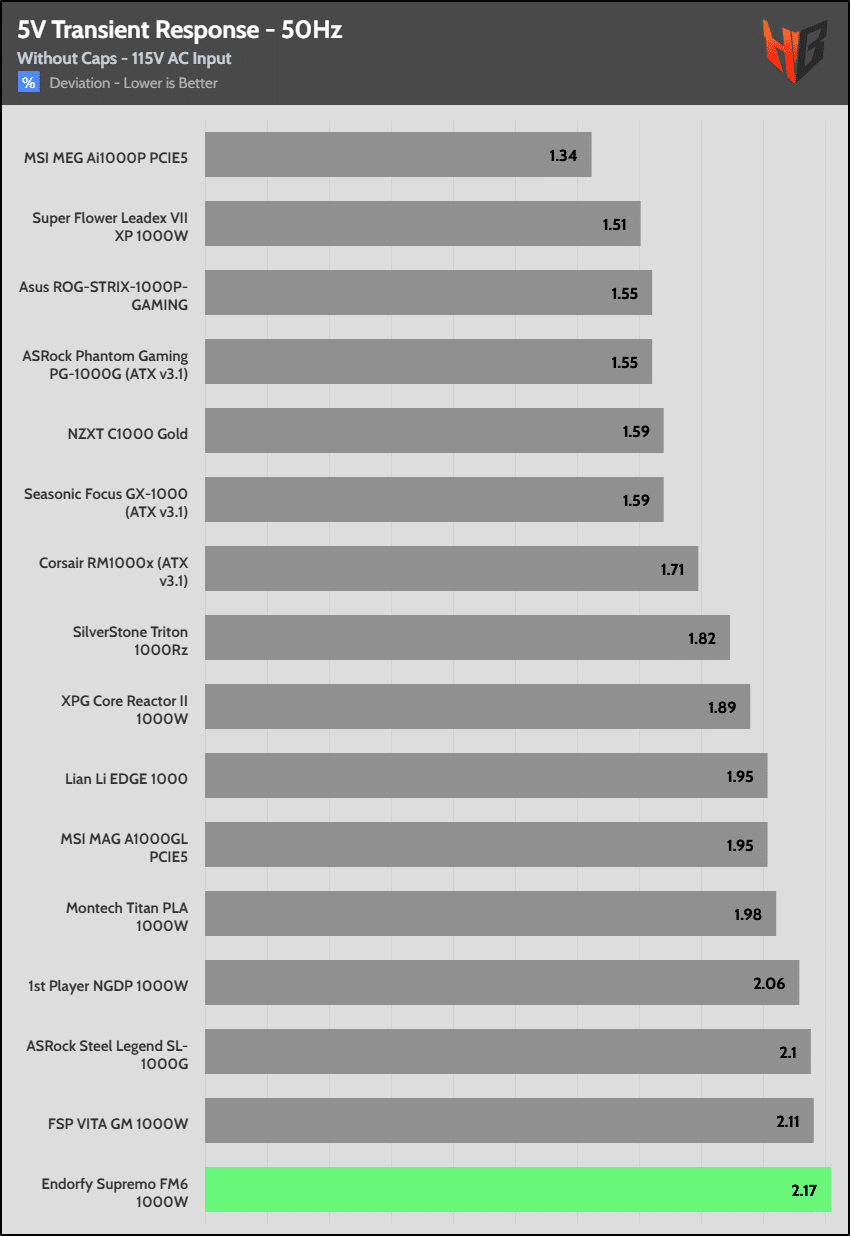

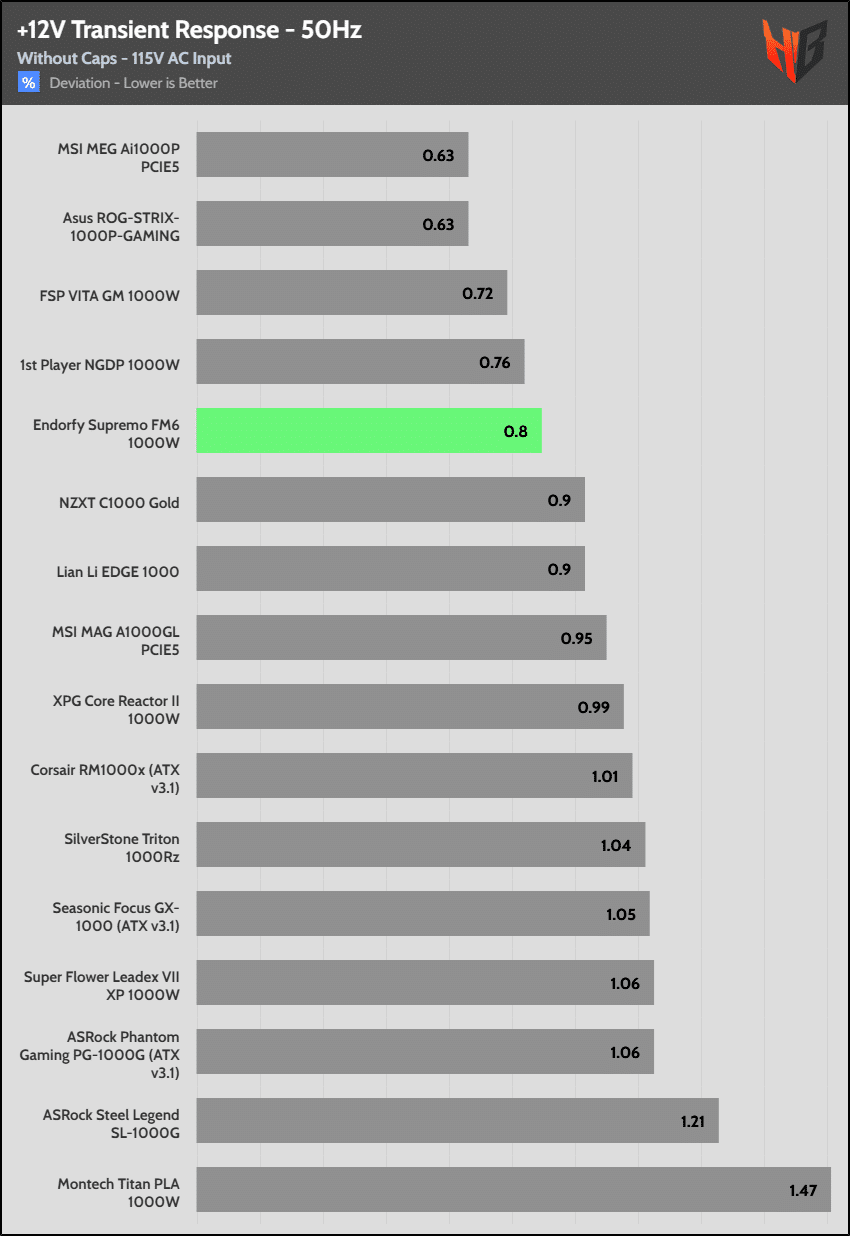

The transient response is good at 12V but mediocre on the minor rails.

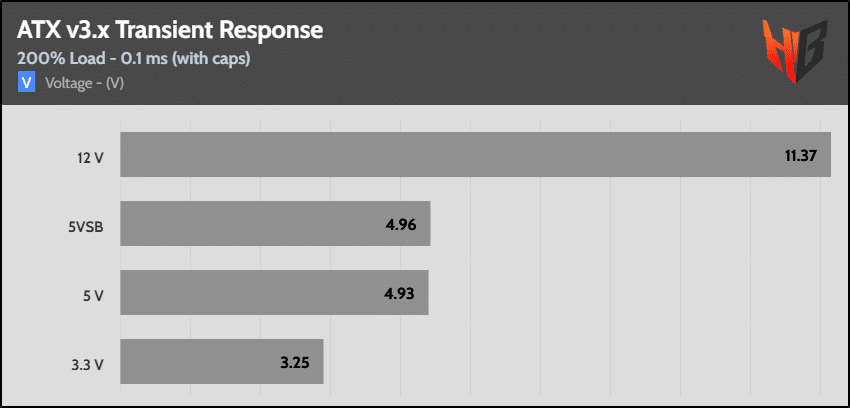

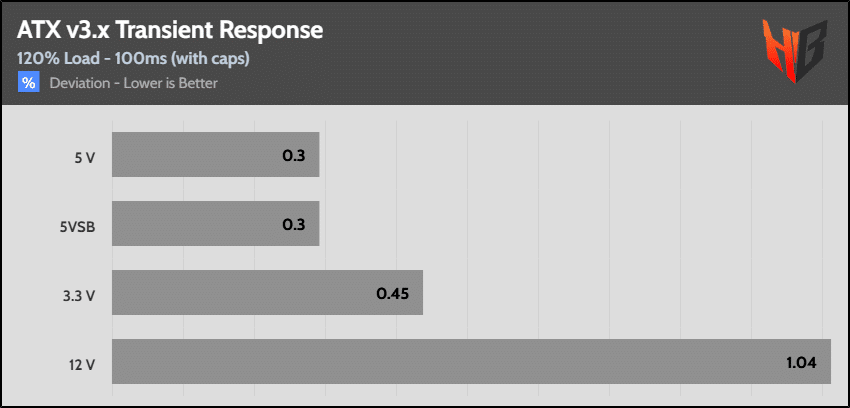

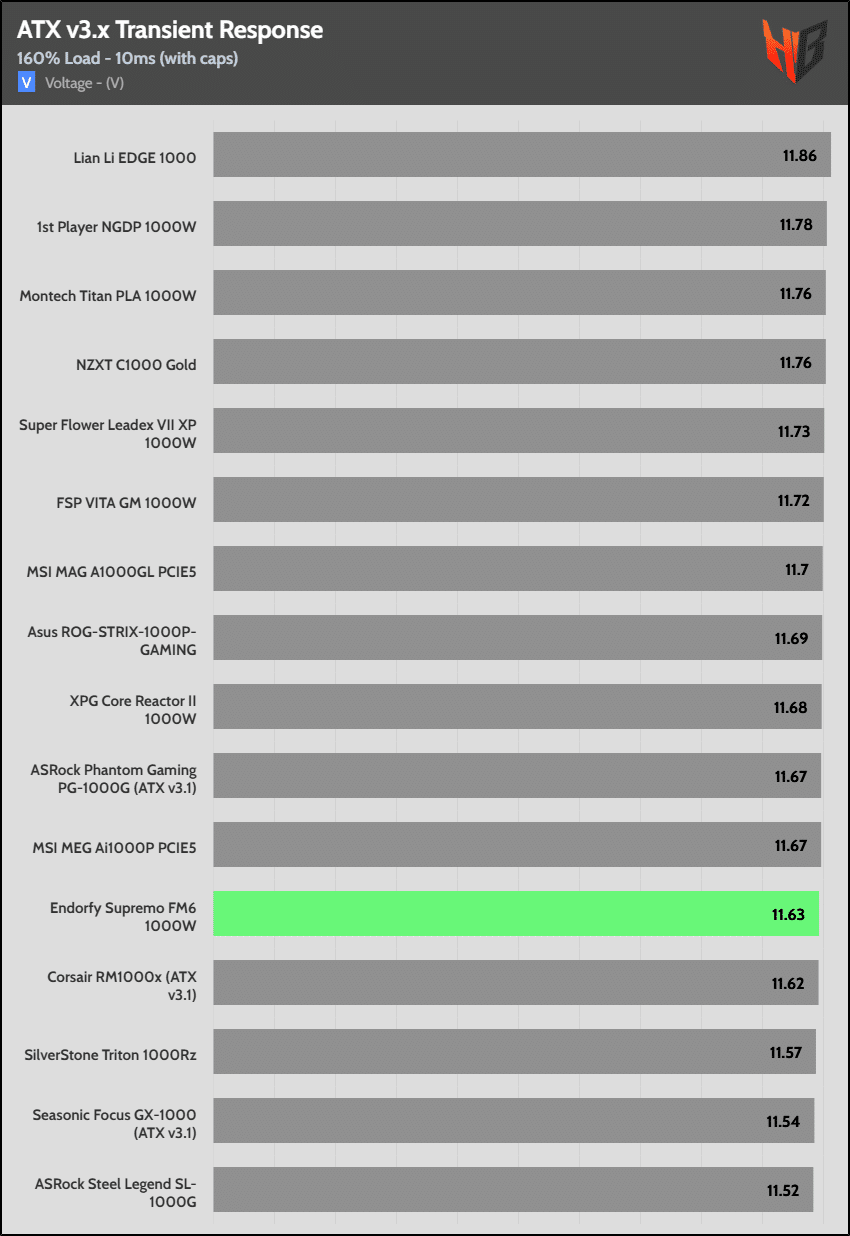

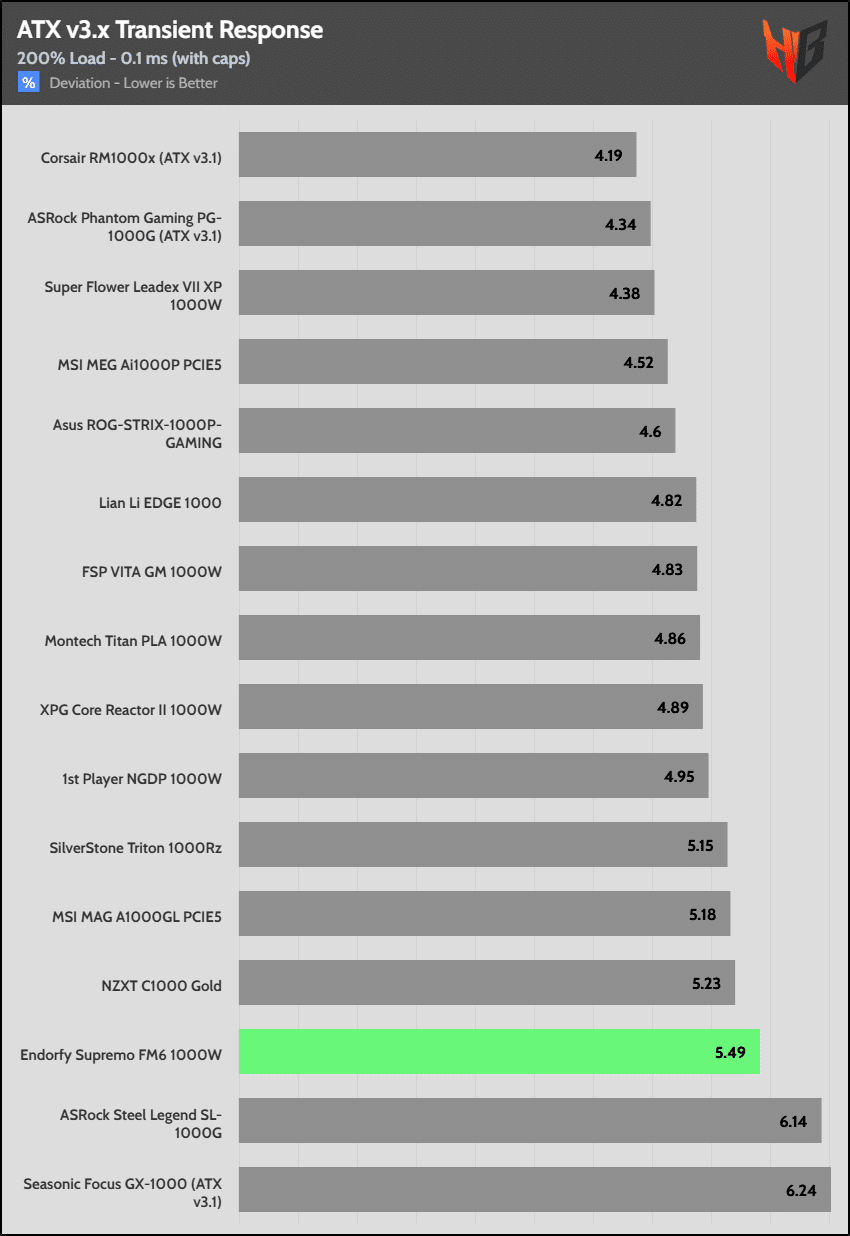

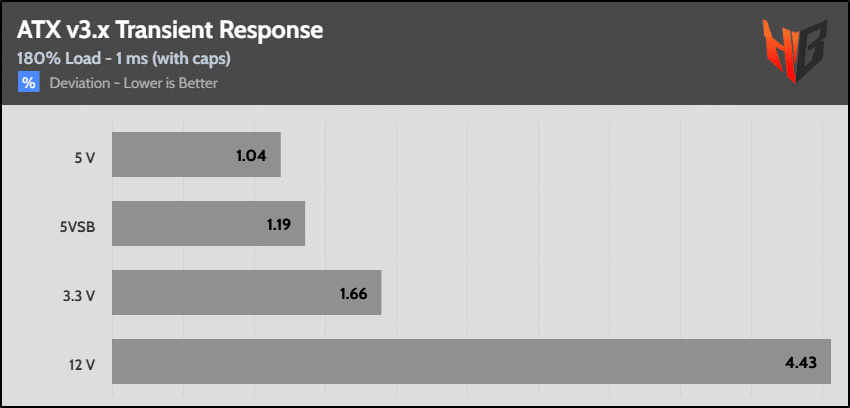

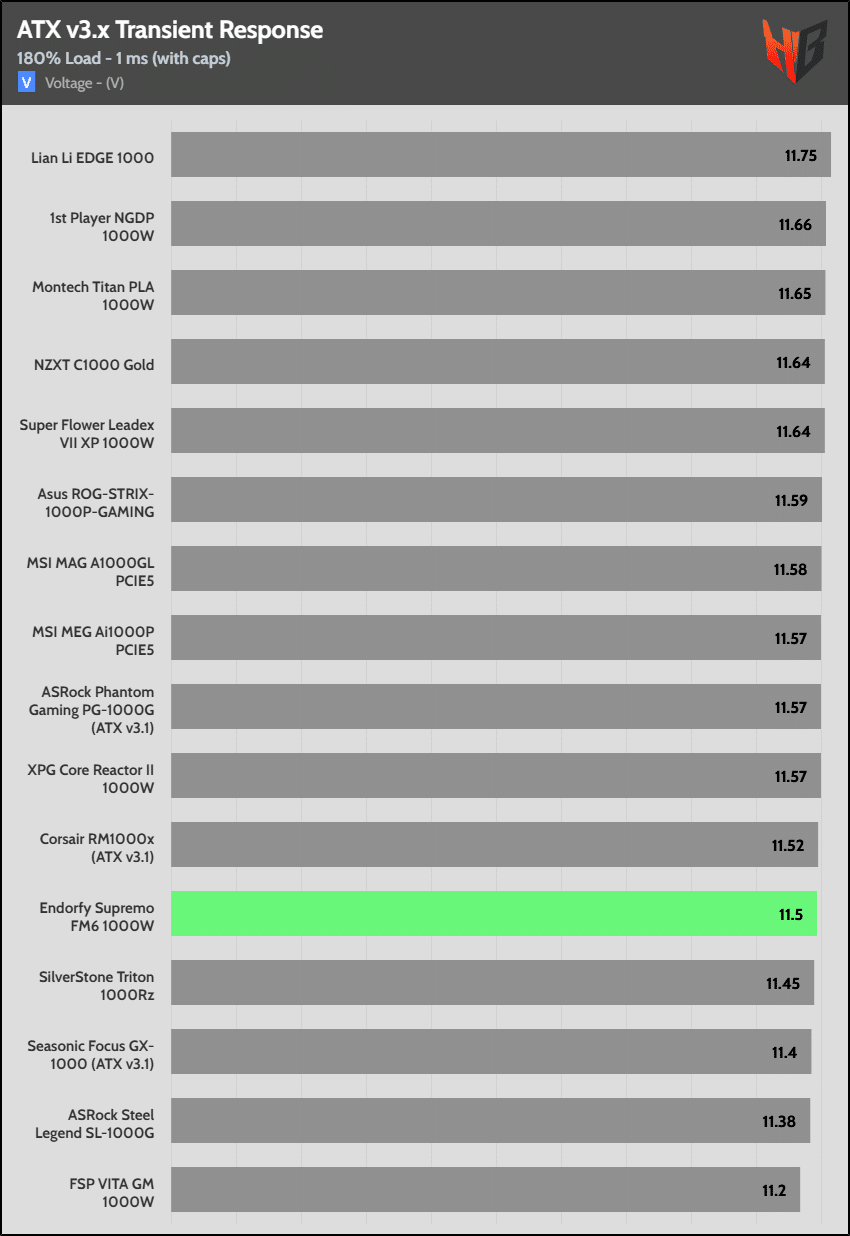

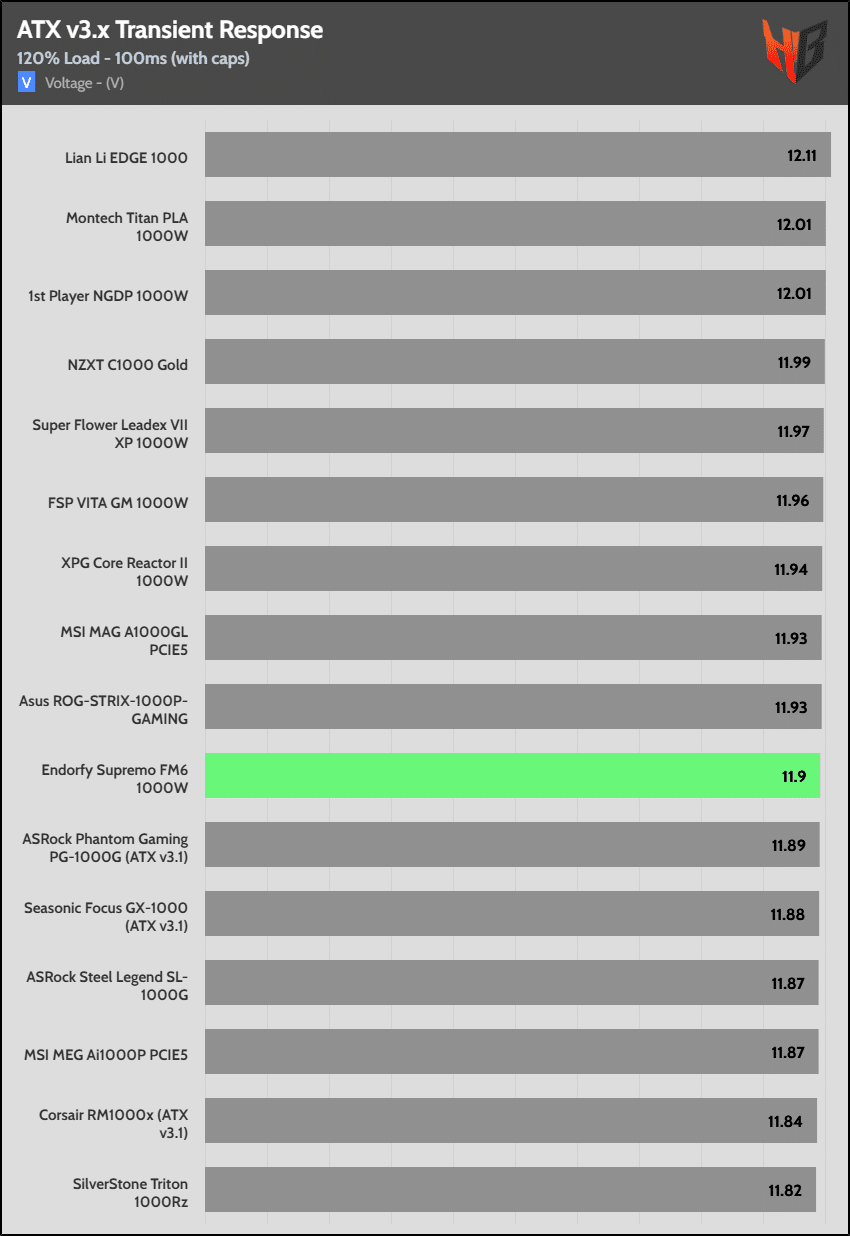

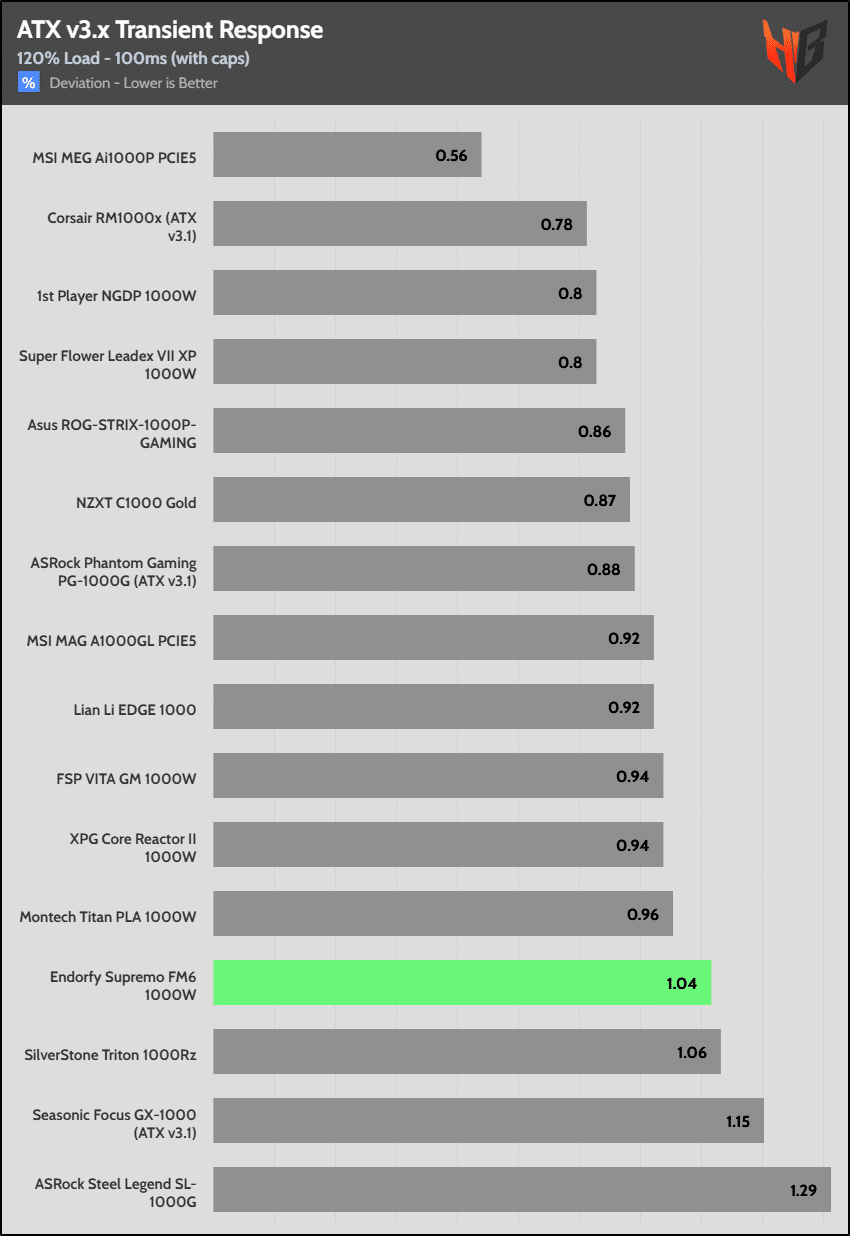

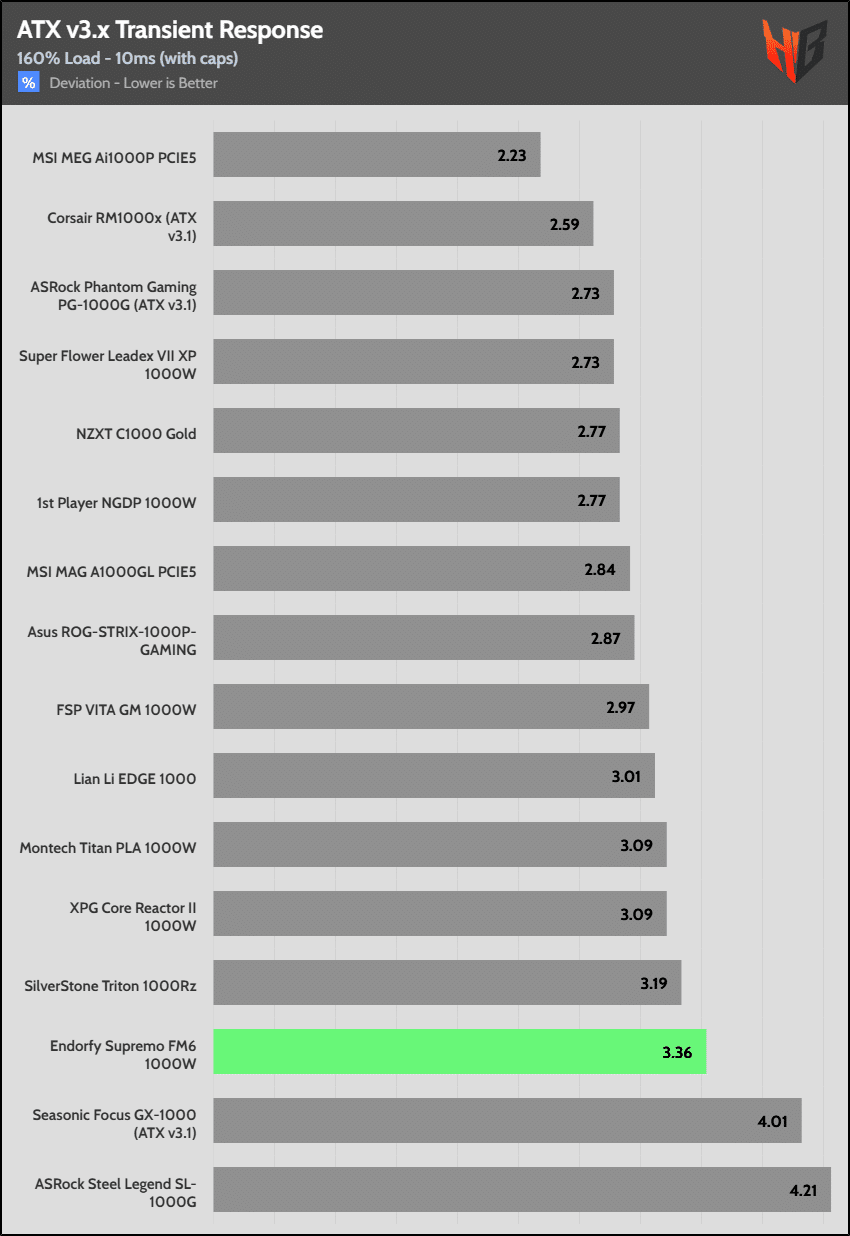

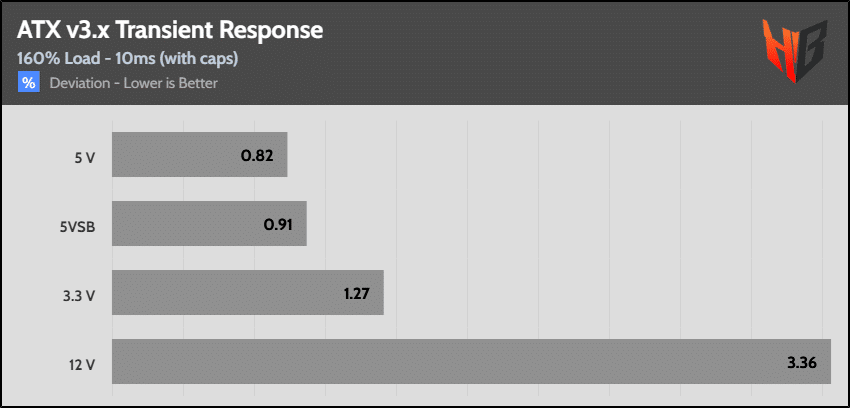

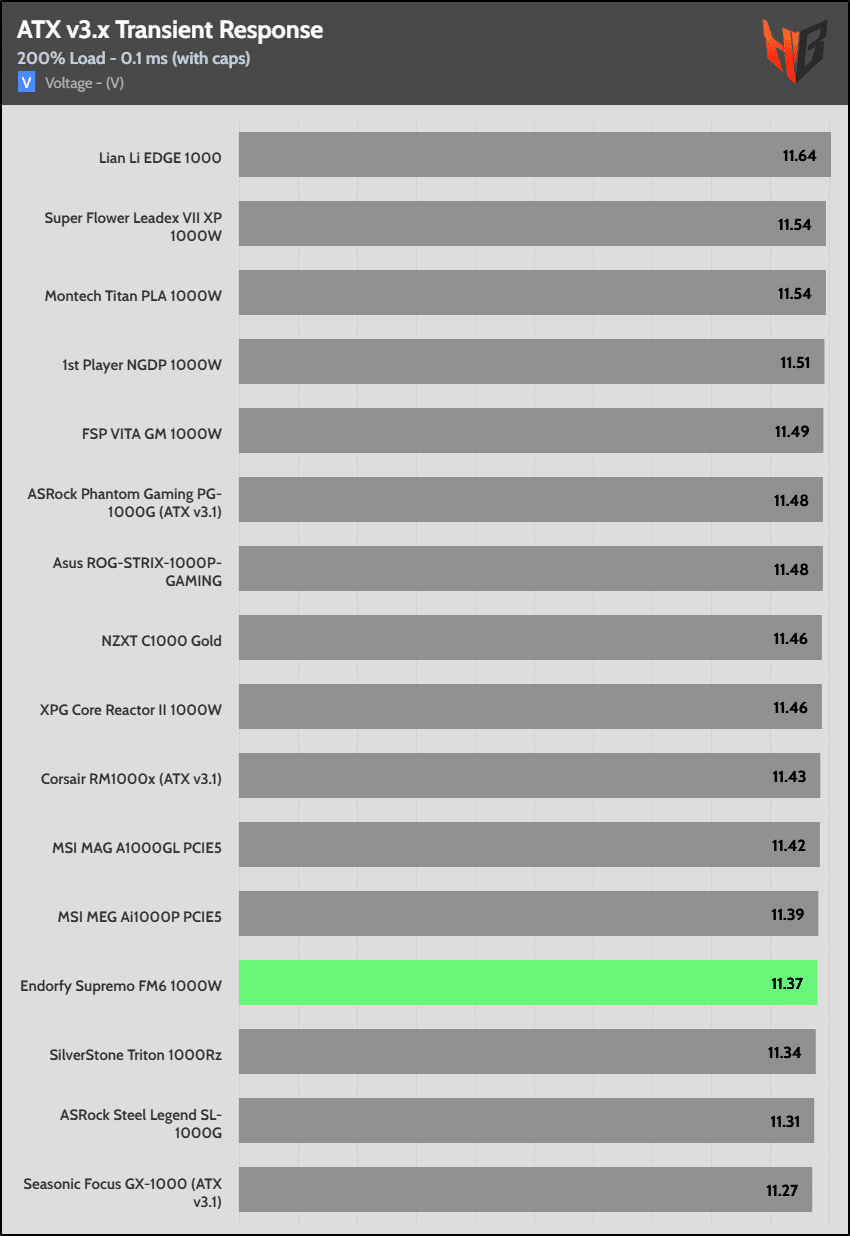

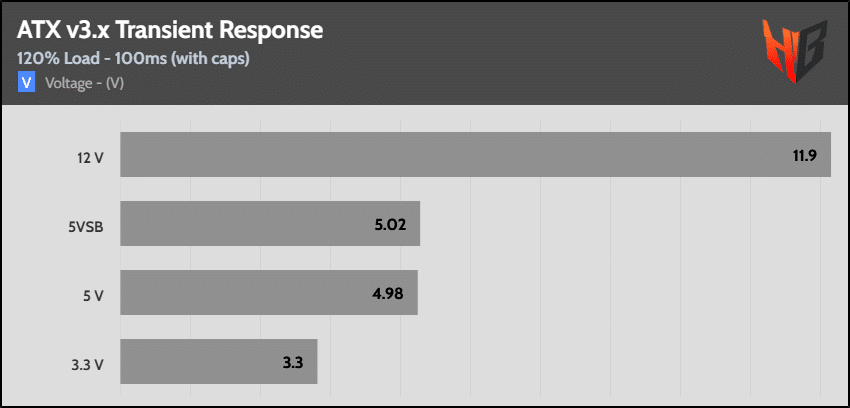

Transient Response ATX v3.1 Tests
The PSU passes all ATX v3.1 transient response tests.
I cannot call the 12V rail’s performance mediocre at high loads, but I cannot call it competitive, either.
