Load Regulation
| Test | 12V | 5V | 3.3V | 5VSB | DC/AC (Watts) | Efficiency | Fan Speed (RPM) | PSU Noise (dB[A]) | Temps (In/Out) | PF/AC Volts |
| 10% | 5.231A | 1.987A | 1.982A | 0.986A | 85.008 | 88.051% | 714 | 11.4 | 40.3°C | 0.98 |
| 12.121V | 5.034V | 3.331V | 5.071V | 96.544 | 41.61°C | 114.89V | ||||
| 20% | 11.477A | 2.984A | 2.977A | 1.185A | 169.959 | 91.665% | 716 | 11.3 | 40.7°C | 0.983 |
| 12.115V | 5.028V | 3.326V | 5.062V | 185.412 | 41.7°C | 114.86V | ||||
| 30% | 18.075A | 3.483A | 3.477A | 1.385A | 254.967 | 92.514% | 718 | 11.4 | 41.03°C | 0.989 |
| 12.111V | 5.025V | 3.322V | 5.053V | 275.597 | 43.13°C | 114.83V | ||||
| 40% | 24.686A | 3.983A | 3.977A | 1.586A | 340.052 | 92.63% | 721 | 11.9 | 41.76°C | 0.993 |
| 12.106V | 5.022V | 3.319V | 5.044V | 367.111 | 44.5°C | 114.8V | ||||
| 50% | 30.937A | 4.983A | 4.978A | 1.788A | 424.869 | 92.369% | 724 | 12.2 | 42.21°C | 0.995 |
| 12.101V | 5.018V | 3.315V | 5.034V | 459.965 | 46.41°C | 114.77V | ||||
| 60% | 37.174A | 5.985A | 5.982A | 1.99A | 509.415 | 92.034% | 726 | 12.4 | 42.6°C | 0.996 |
| 12.095V | 5.013V | 3.31V | 5.025V | 553.513 | 47.68°C | 114.74V | ||||
| 70% | 43.477A | 6.988A | 6.989A | 2.193A | 594.734 | 91.562% | 729 | 12.9 | 43.15°C | 0.997 |
| 12.089V | 5.009V | 3.306V | 5.016V | 649.545 | 49.45°C | 114.7V | ||||
| 80% | 49.788A | 7.99A | 7.998A | 2.297A | 679.545 | 90.954% | 732 | 13.4 | 43.87°C | 0.997 |
| 12.084V | 5.005V | 3.301V | 5.007V | 747.134 | 52.73°C | 114.67V | ||||
| 90% | 56.500A | 8.495A | 8.492A | 2.4A | 764.967 | 90.3% | 961 | 20.2 | 44.7°C | 0.998 |
| 12.079V | 5.002V | 3.297V | 4.999V | 847.145 | 53.82°C | 114.65V | ||||
| 100% | 62.956A | 9.002A | 9.017A | 3.01A | 849.778 | 89.573% | 1164 | 26.6 | 45.16°C | 0.998 |
| 12.073V | 4.998V | 3.294V | 4.983V | 948.694 | 55.3°C | 114.6V | ||||
| 110% | 69.284A | 10.012A | 10.126A | 3.014A | 934.362 | 88.795% | 1363 | 31.7 | 46.14°C | 0.998 |
| 12.068V | 4.993V | 3.289V | 4.976V | 1052.272 | 57.49°C | 114.57V | ||||
| CL1 | 0.116A | 14.422A | 14.456A | 0A | 121.293 | 85.467% | 731 | 13.4 | 40.02°C | 0.986 |
| 12.115V | 5.005V | 3.3V | 5.079V | 141.921 | 45.18°C | 114.86V | ||||
| CL2 | 0.114A | 21.941A | 0A | 0A | 111.308 | 83.441% | 725 | 12.3 | 40.15°C | 0.988 |
| 12.117V | 5.01V | 3.317V | 5.084V | 133.396 | 44.46°C | 114.87V | ||||
| CL3 | 0.114A | 0A | 21.995A | 0A | 73.995 | 78.33% | 724 | 12.2 | 40.14°C | 0.98 |
| 12.119V | 5.026V | 3.301V | 5.085V | 94.468 | 44.49°C | 114.88V | ||||
| CL4 | 70.350A | 0A | 0A | 0A | 849.658 | 90.094% | 1016 | 22.3 | 45.21°C | 0.998 |
| 12.078V | 5.021V | 3.316V | 5.04V | 943.072 | 56.95°C | 114.61V |

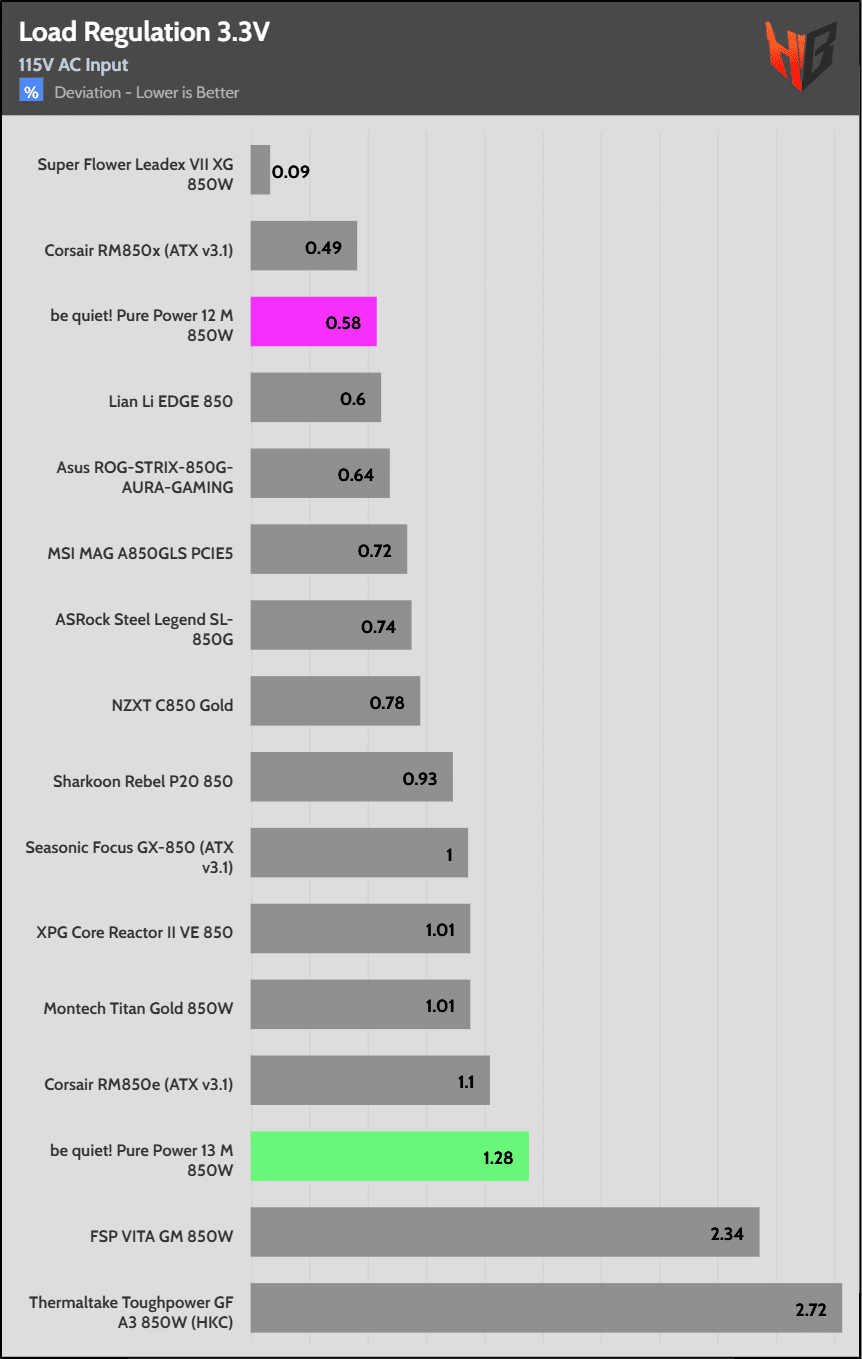

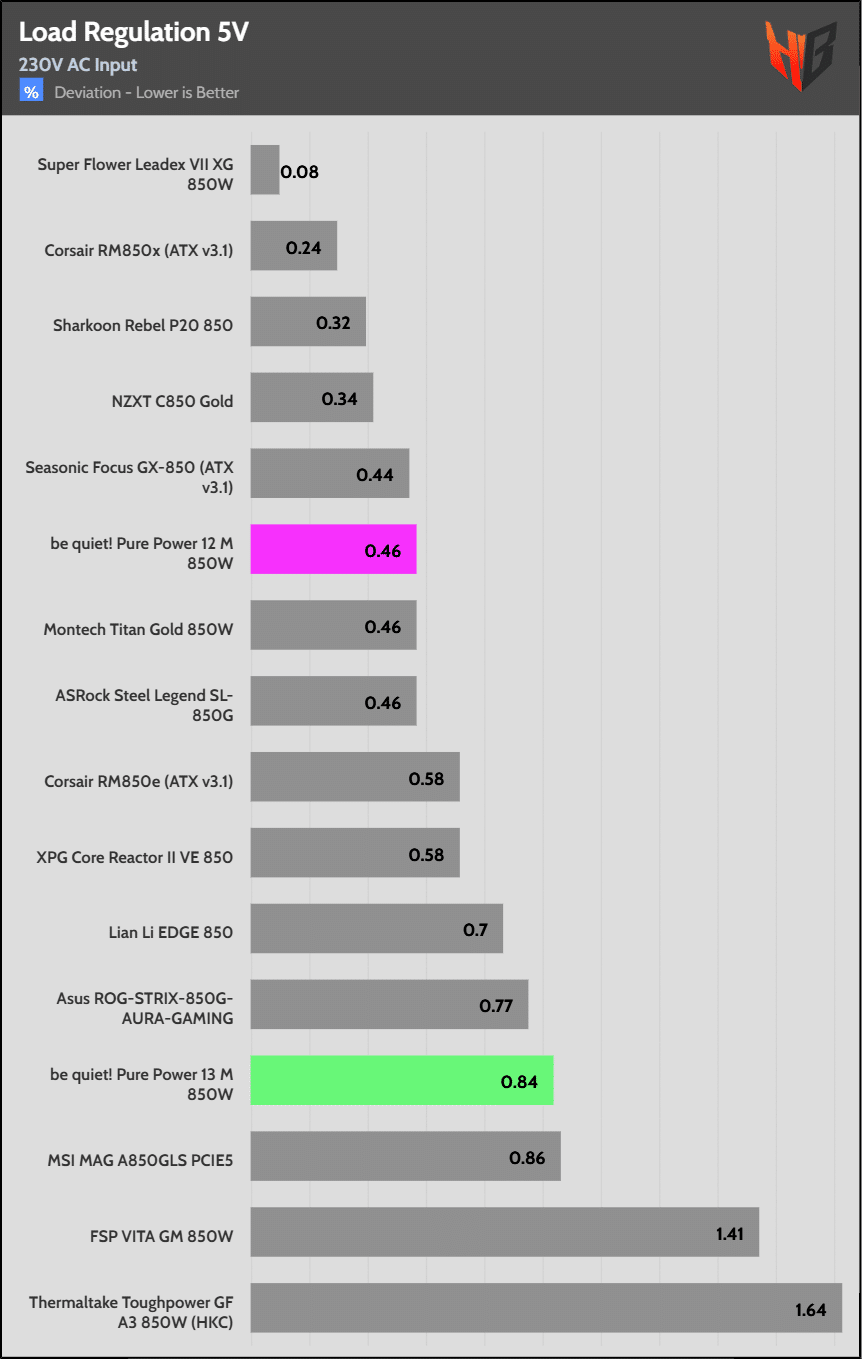

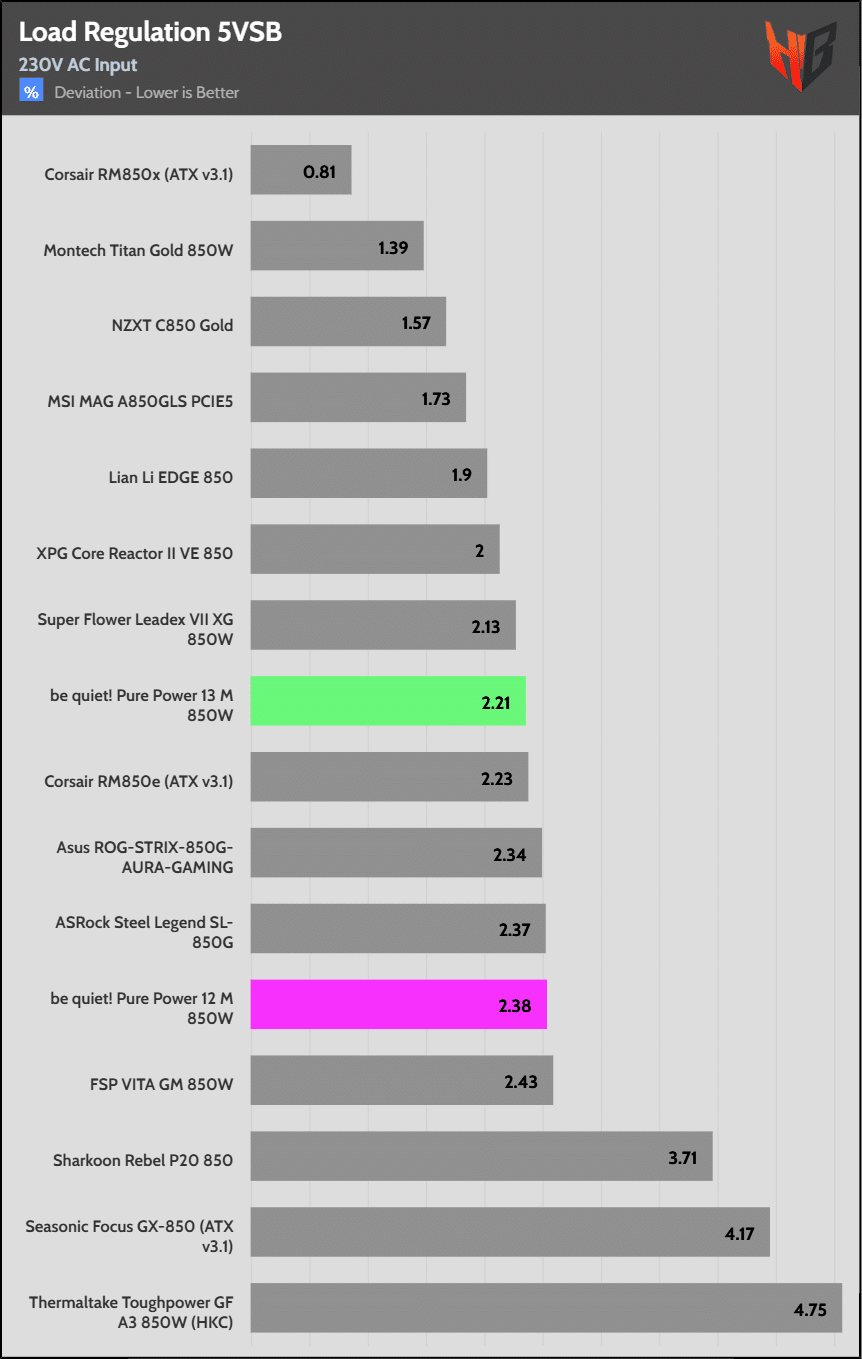

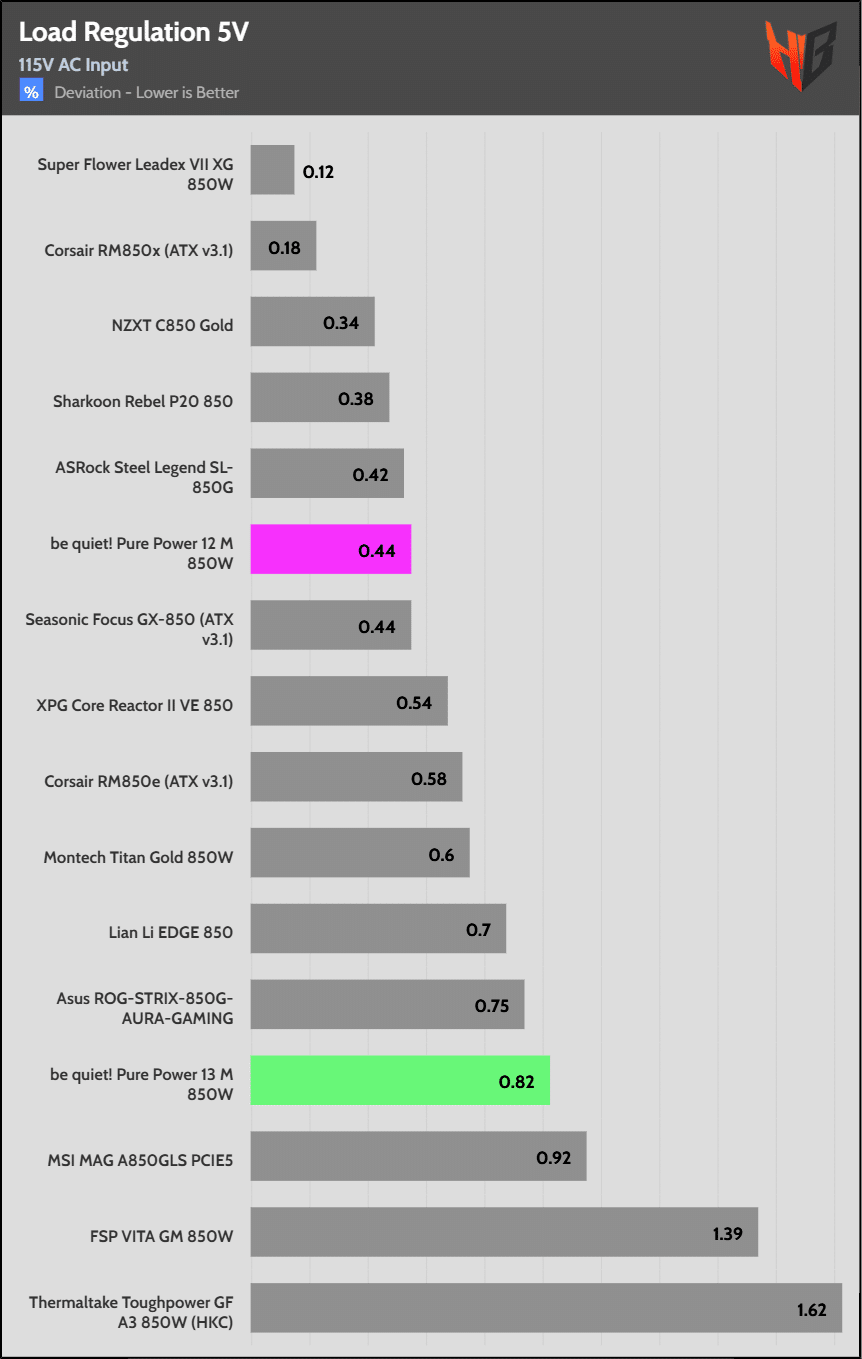

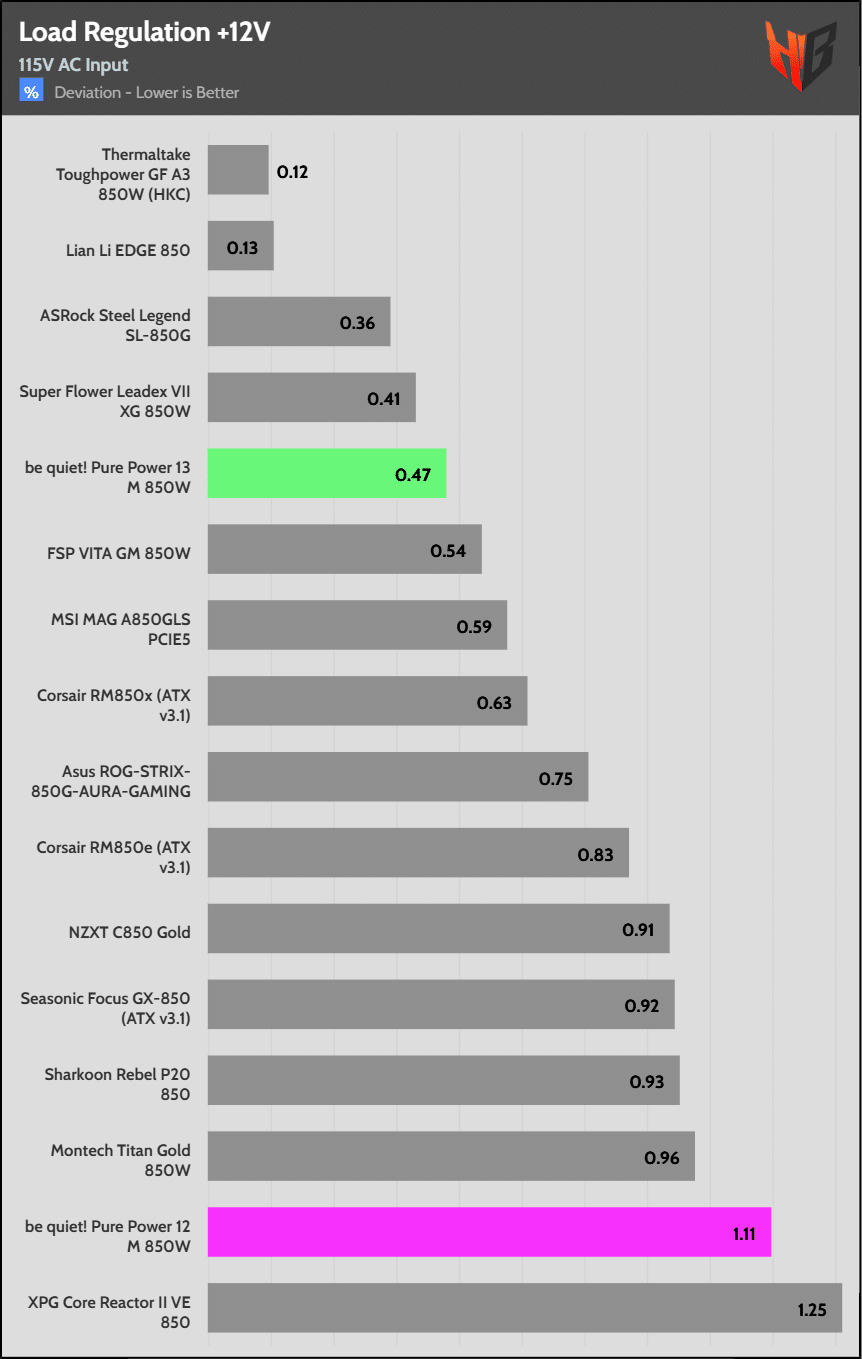

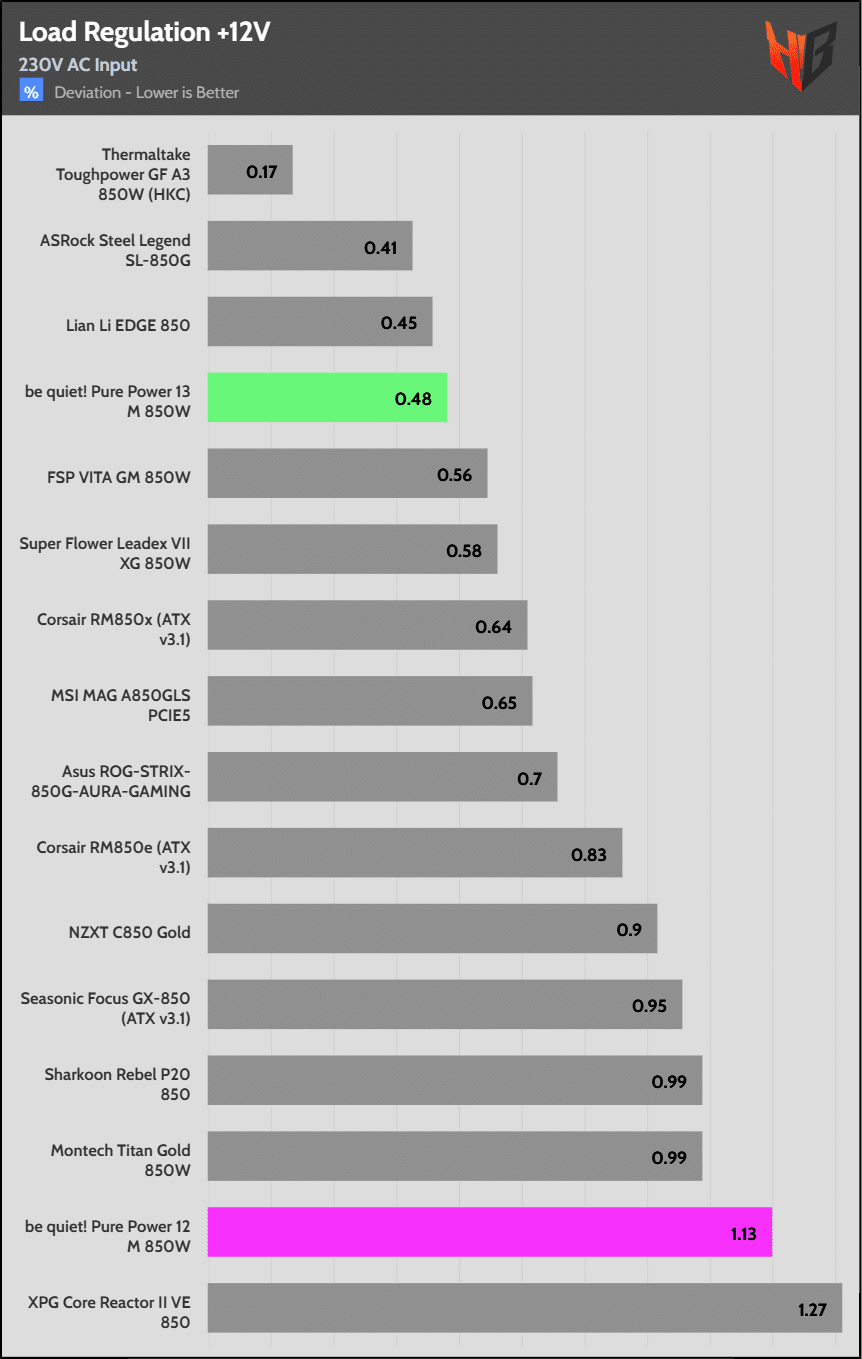

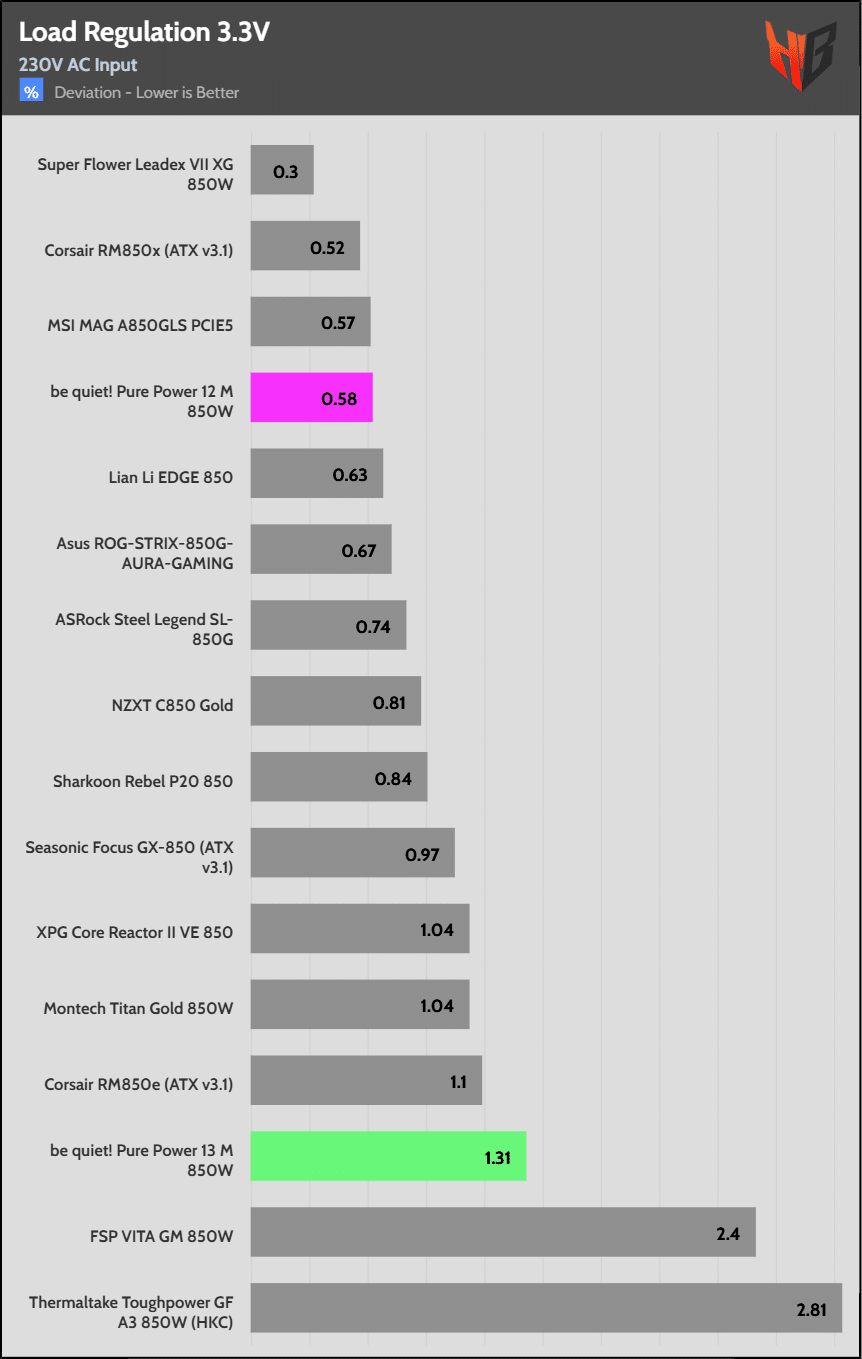

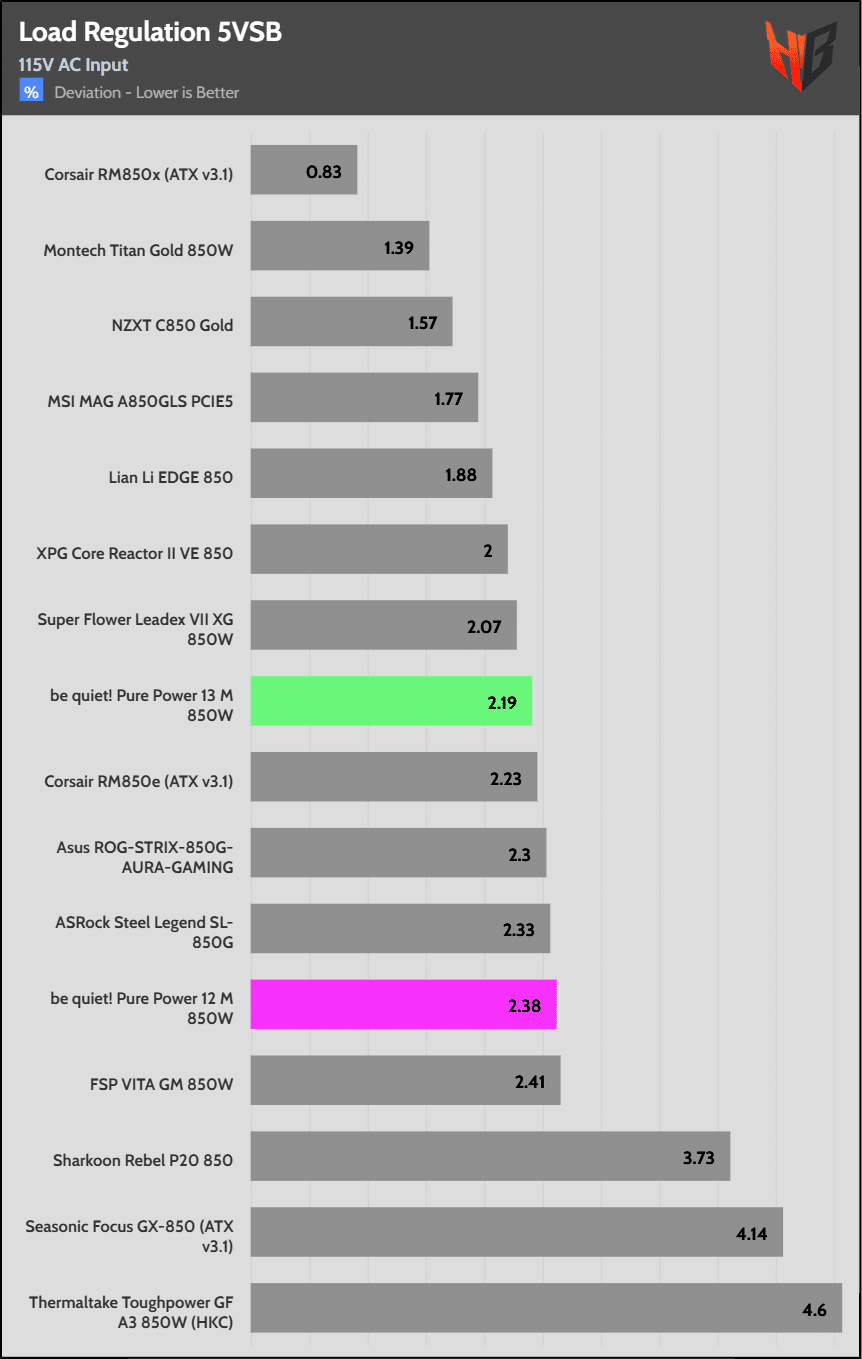

Load regulation is within 1% at 12V and 5V, but loose at 3.3V. It is improved at 12V, which is the most crucial rail. The same was true for the 1000W model compared to the previous one.
| Test | 12V | 5V | 3.3V | 5VSB | DC/AC (Watts) | Efficiency | Fan Speed (RPM) | PSU Noise (dB[A]) | Temps (In/Out) | PF/AC Volts |
| 20W | 1.224A | 0.496A | 0.495A | 0.196A | 20.001 | 75.005% | 0 | <6.0 | 41.08°C | 0.819 |
| 12.130V | 5.039V | 3.336V | 5.092V | 26.665 | 36.69°C | 114.9V | ||||
| 40W | 2.696A | 0.695A | 0.693A | 0.295A | 40 | 83.707% | 0 | <6.0 | 42.16°C | 0.932 |
| 12.125V | 5.039V | 3.336V | 5.089V | 47.786 | 37.12°C | 114.89V | ||||
| 60W | 4.168A | 0.893A | 0.891A | 0.393A | 59.999 | 87.245% | 0 | <6.0 | 44.51°C | 0.964 |
| 12.125V | 5.038V | 3.335V | 5.085V | 68.772 | 38.53°C | 114.88V | ||||
| 80W | 5.635A | 1.092A | 1.089A | 0.492A | 79.951 | 88.812% | 0 | <6.0 | 47.24°C | 0.978 |
| 12.124V | 5.037V | 3.333V | 5.082V | 90.025 | 39.63°C | 114.88V |
A glance at the light loads table is always useful, as the PSU will typically operate at light loads.

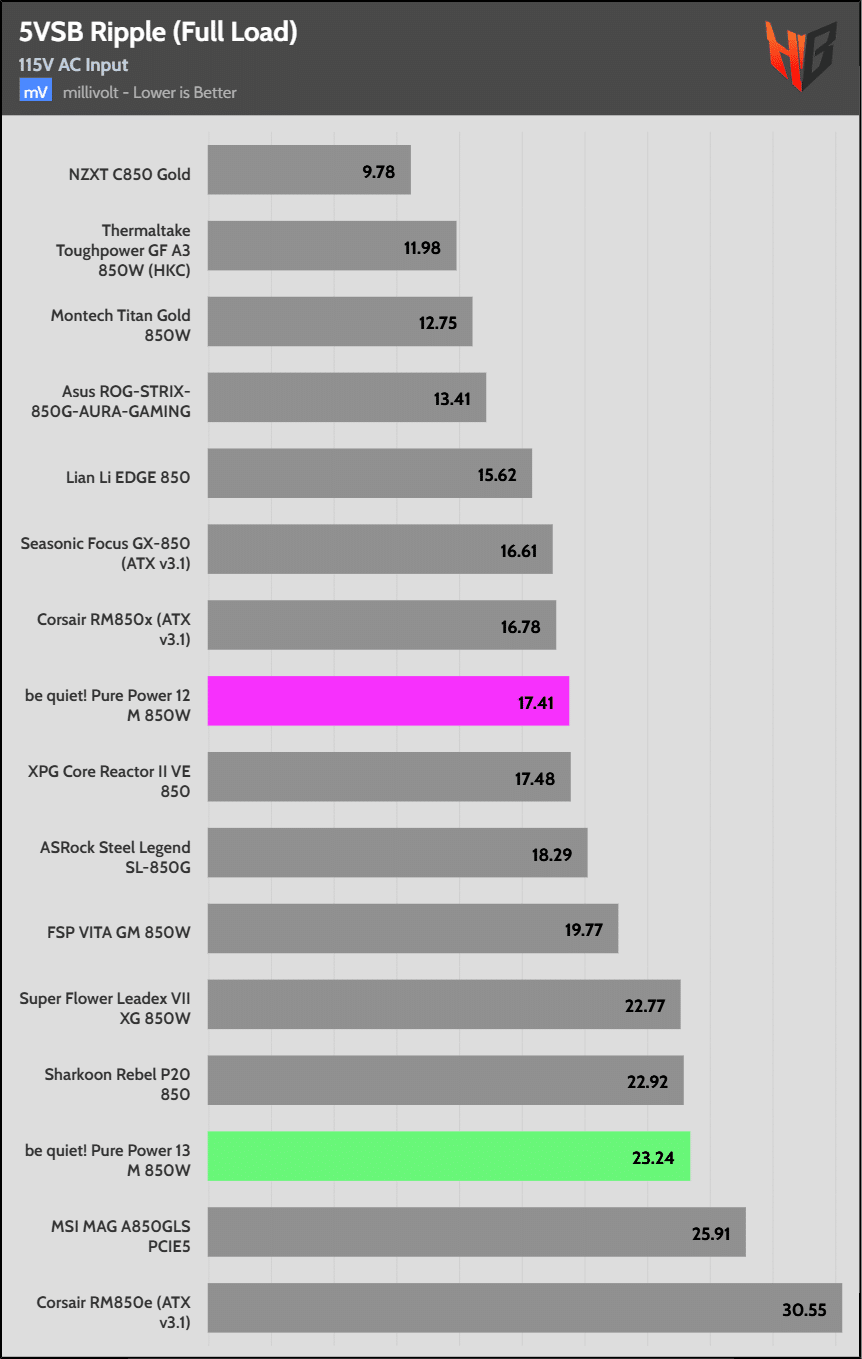

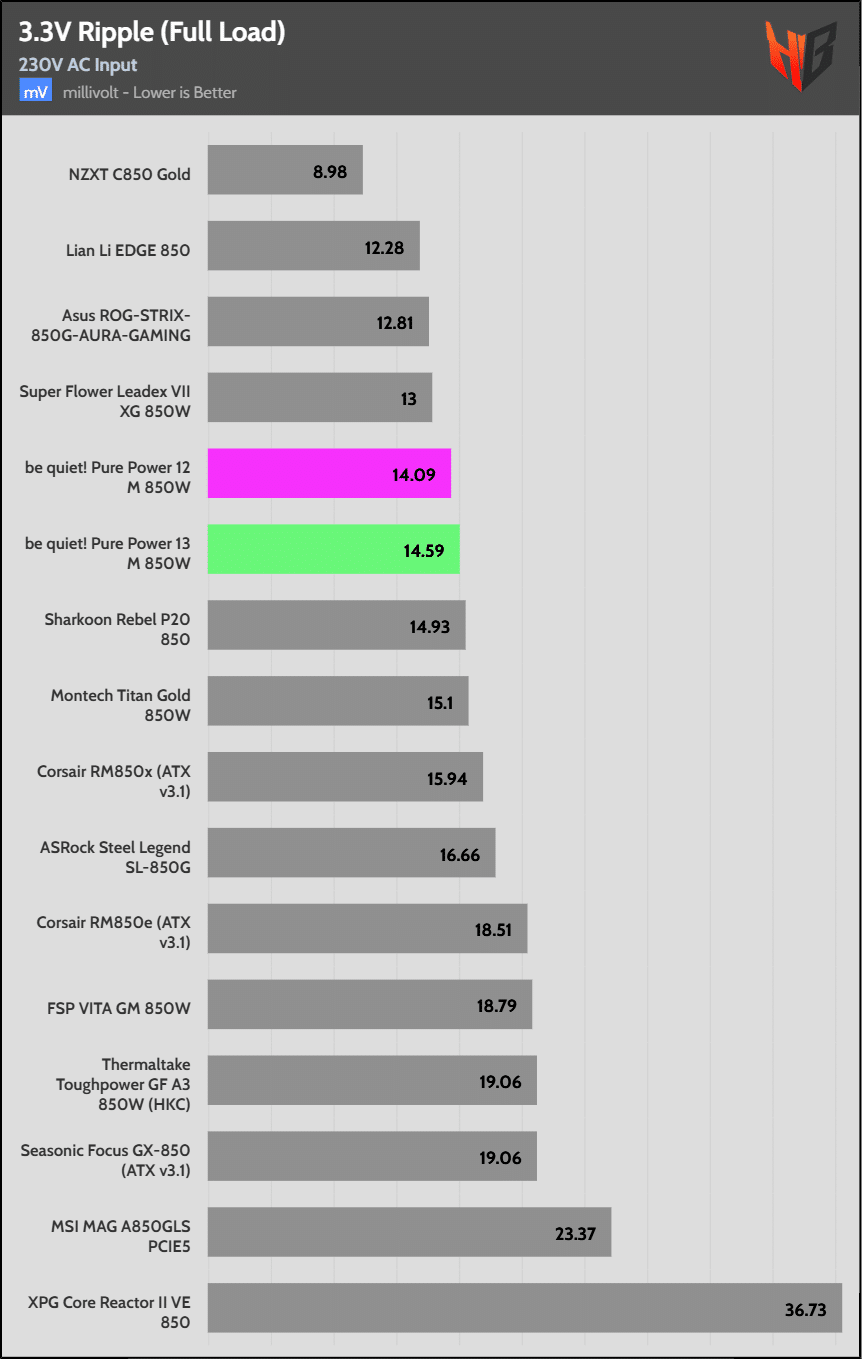

Ripple Suppression
| Test | 12V | 5V | 3.3V | 5VSB | Pass/Fail |
| 10% Load | 28.4 mV | 13.8 mV | 14.7 mV | 14.9 mV | Pass |
| 20% Load | 27.0 mV | 13.4 mV | 14.6 mV | 16.0 mV | Pass |
| 30% Load | 31.0 mV | 13.9 mV | 22.2 mV | 16.3 mV | Pass |
| 40% Load | 24.1 mV | 13.5 mV | 14.0 mV | 15.8 mV | Pass |
| 50% Load | 24.5 mV | 13.8 mV | 14.7 mV | 17.2 mV | Pass |
| 60% Load | 25.7 mV | 14.4 mV | 15.3 mV | 18.6 mV | Pass |
| 70% Load | 25.9 mV | 14.0 mV | 15.0 mV | 19.6 mV | Pass |
| 80% Load | 26.9 mV | 14.4 mV | 16.0 mV | 20.5 mV | Pass |
| 90% Load | 27.3 mV | 14.2 mV | 14.9 mV | 20.8 mV | Pass |
| 100% Load | 27.3 mV | 13.7 mV | 14.8 mV | 23.2 mV | Pass |
| 110% Load | 28.1 mV | 13.8 mV | 14.8 mV | 23.6 mV | Pass |
| Crossload 1 | 27.5 mV | 14.8 mV | 15.1 mV | 18.5 mV | Pass |
| Crossload 2 | 29.8 mV | 17.1 mV | 15.7 mV | 18.9 mV | Pass |
| Crossload 3 | 28.1 mV | 13.8 mV | 16.2 mV | 18.8 mV | Pass |
| Crossload 4 | 27.4 mV | 13.1 mV | 13.7 mV | 20.2 mV | Pass |

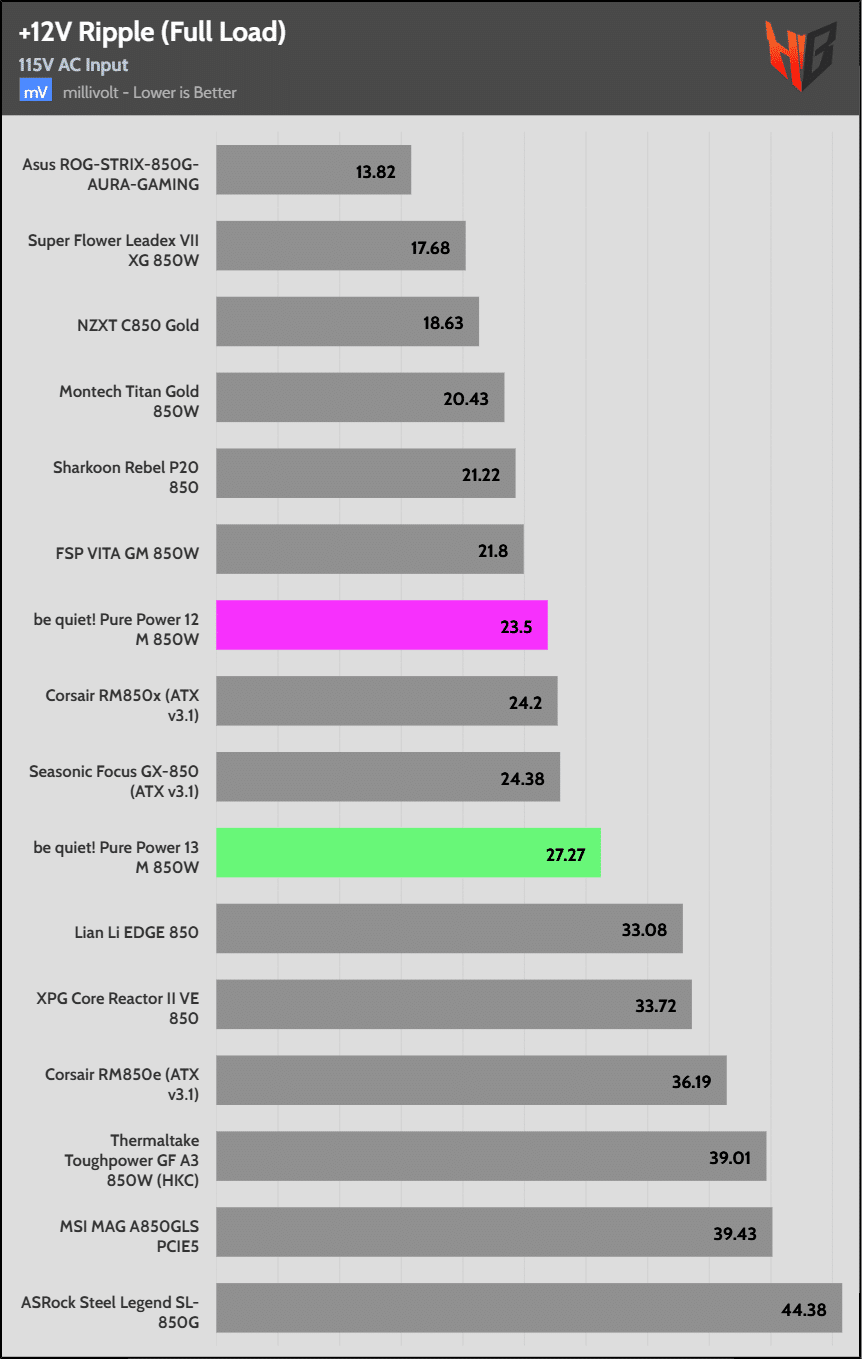

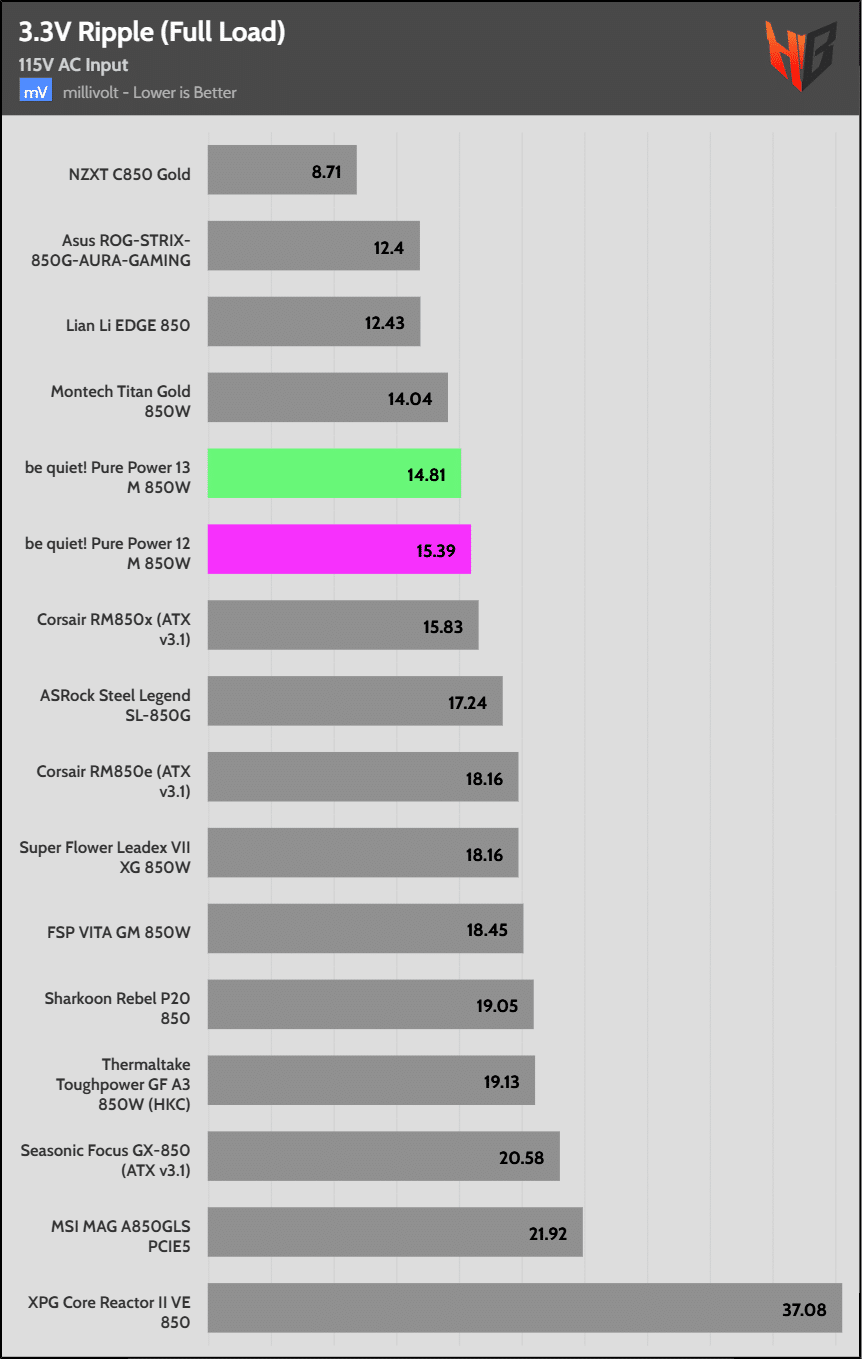

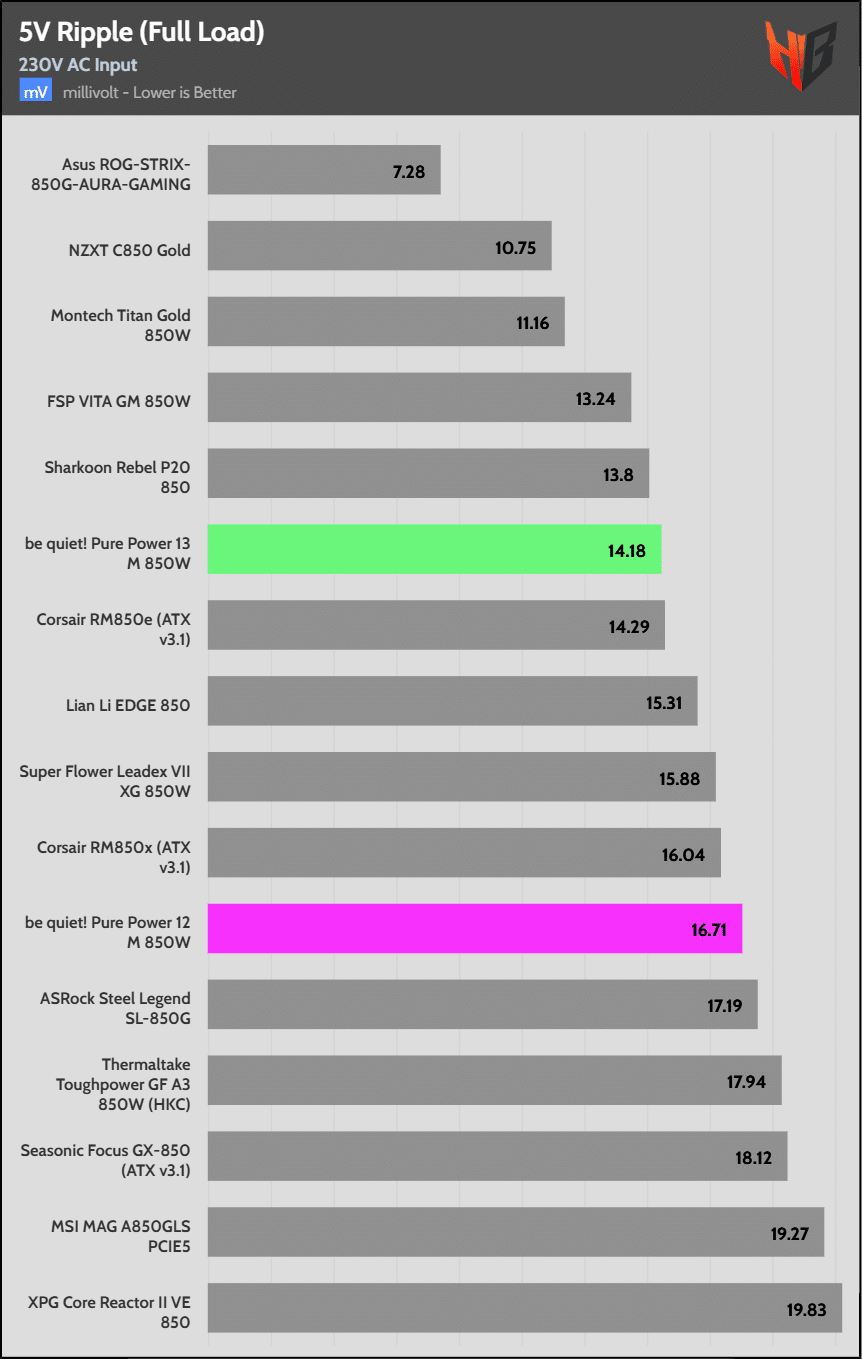

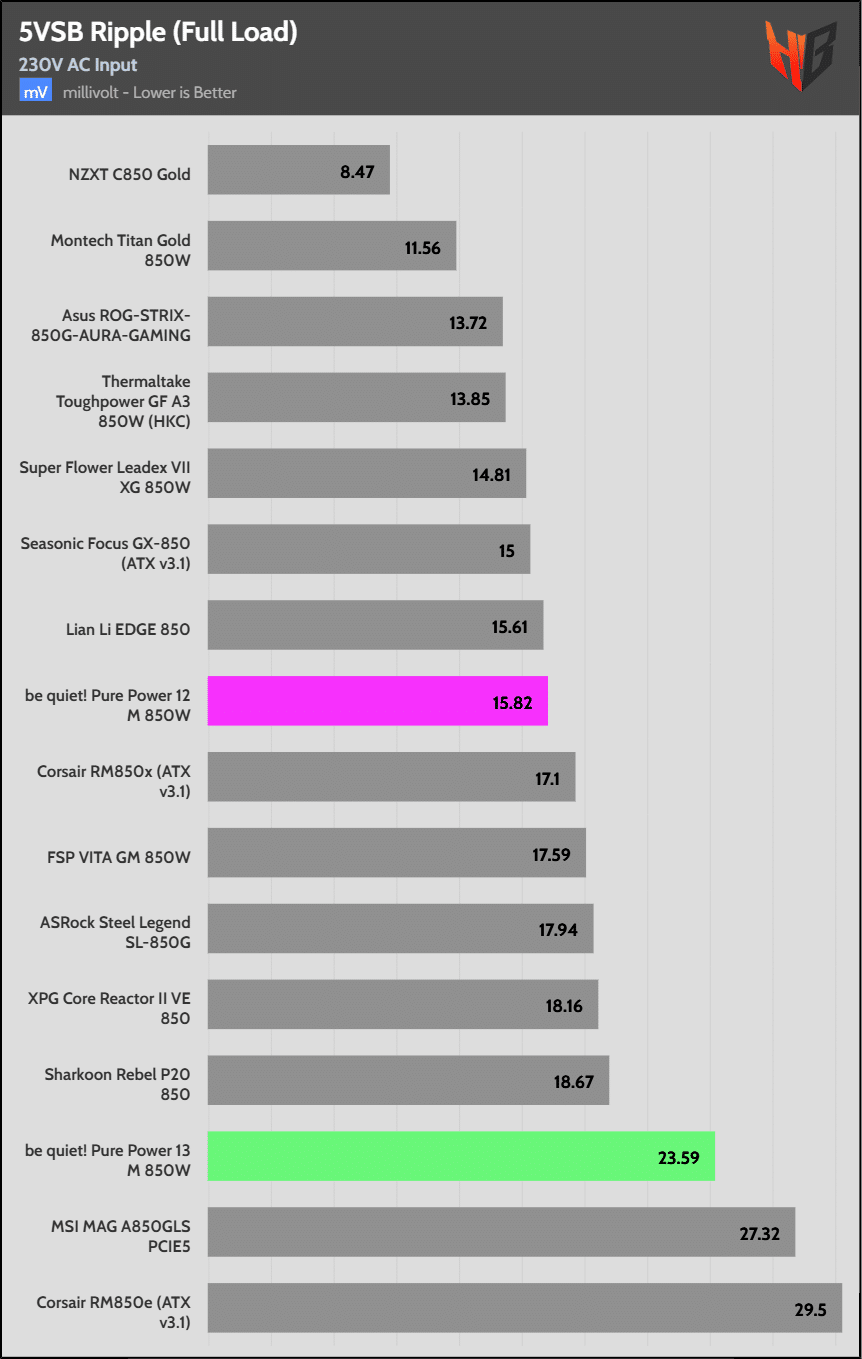

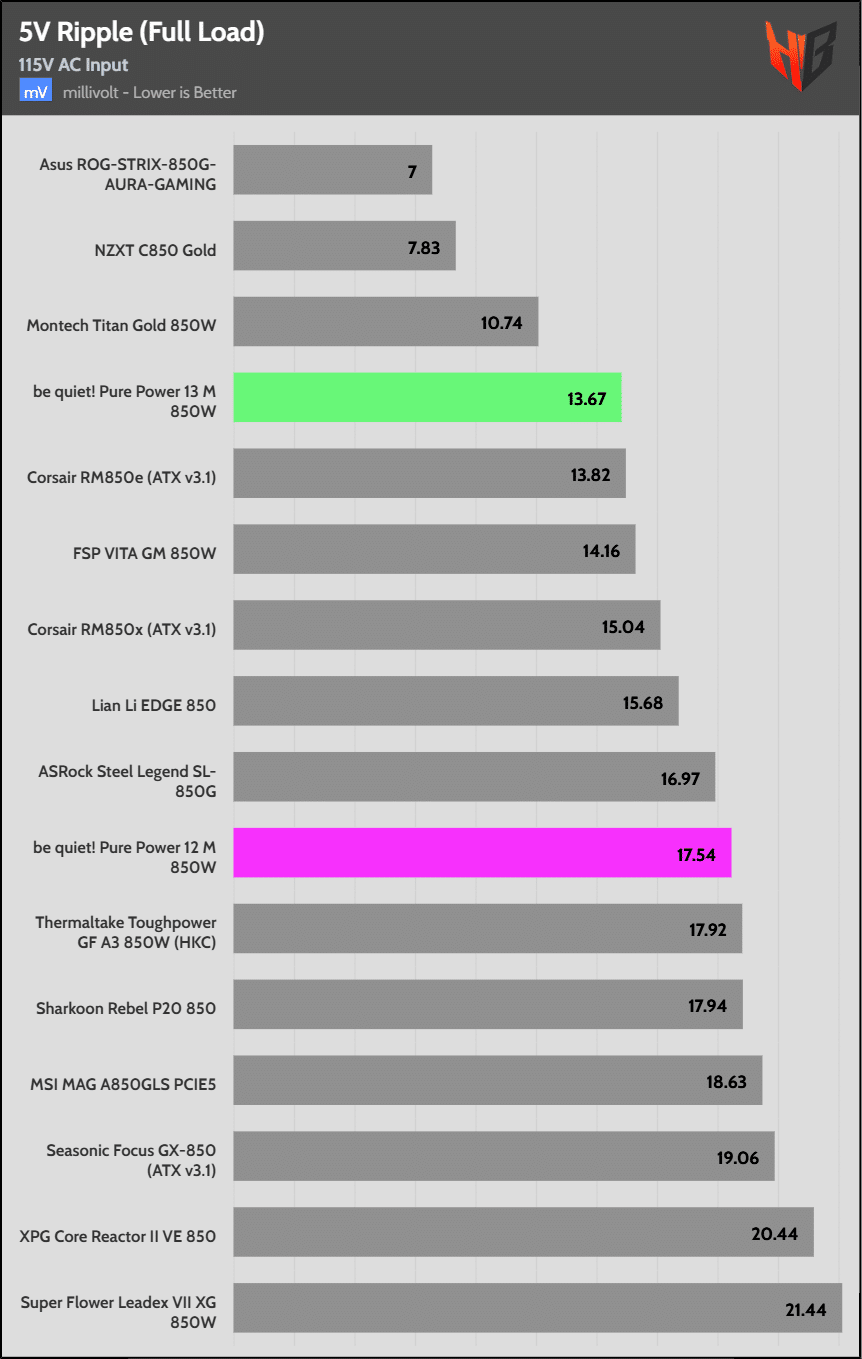

Ripple suppression is good overall.
