be quiet! Pure Power 13 M 1000W ATX v3.1 PSU Review

Transient Response

20% Load – 20ms

Advanced Transient Response 20% - 50 Hz - No Caps
Voltage Before After Change Pass/Fail
12V 12.035V 11.926V 0.90% Pass
5V 5.104V 5.022V 1.62% Pass
3.3V 3.363V 3.228V 4.00% Pass
5VSB 5.077V 5.006V 1.39% Pass

50% Load -20ms

Advanced Transient Response 50% - 50 Hz - No Caps
Voltage Before After Change Pass/Fail
12V 12.015V 11.930V 0.71% Pass
5V 5.090V 5.010V 1.57% Pass
3.3V 3.349V 3.211V 4.12% Pass
5VSB 5.047V 5.003V 0.88% Pass

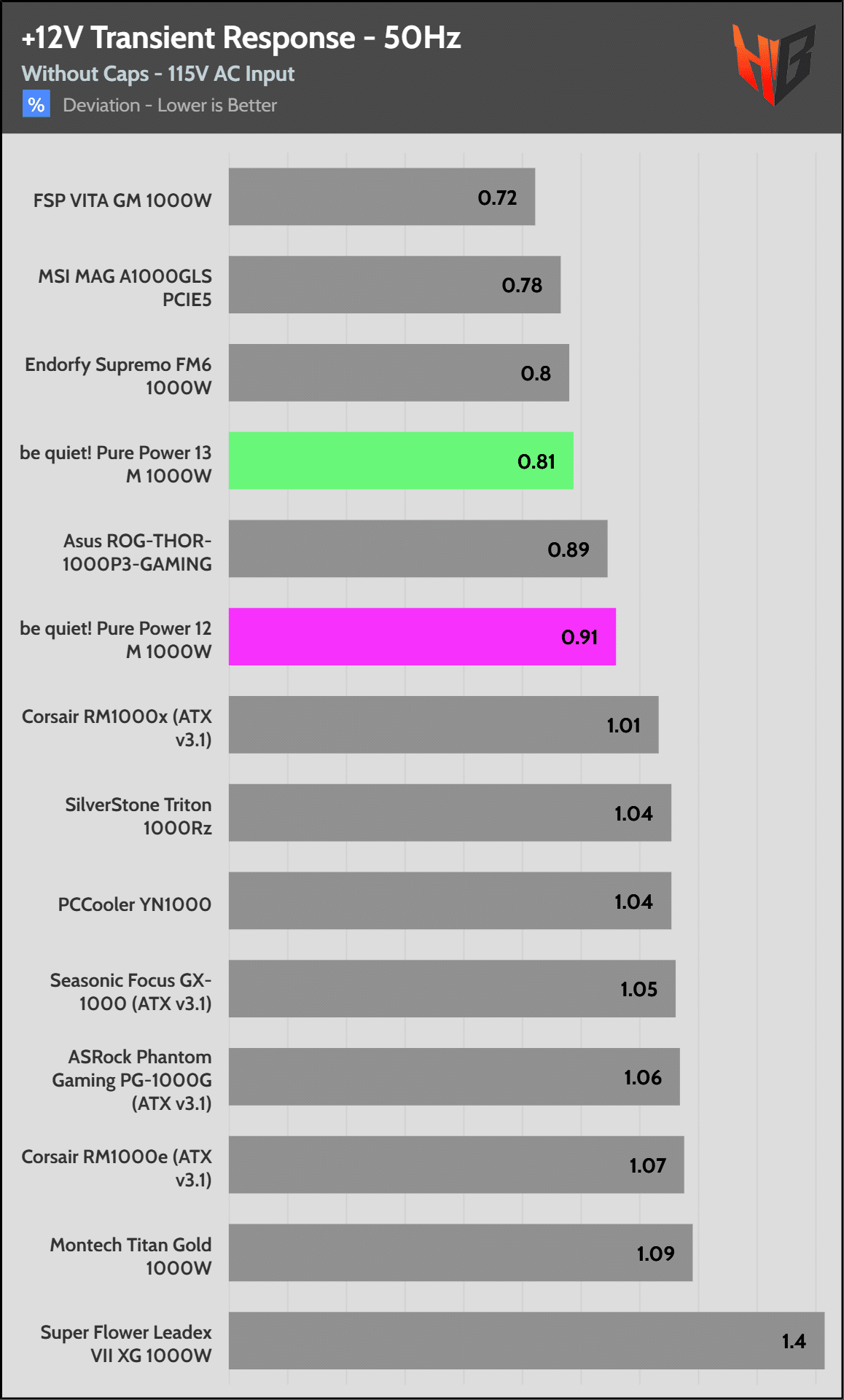

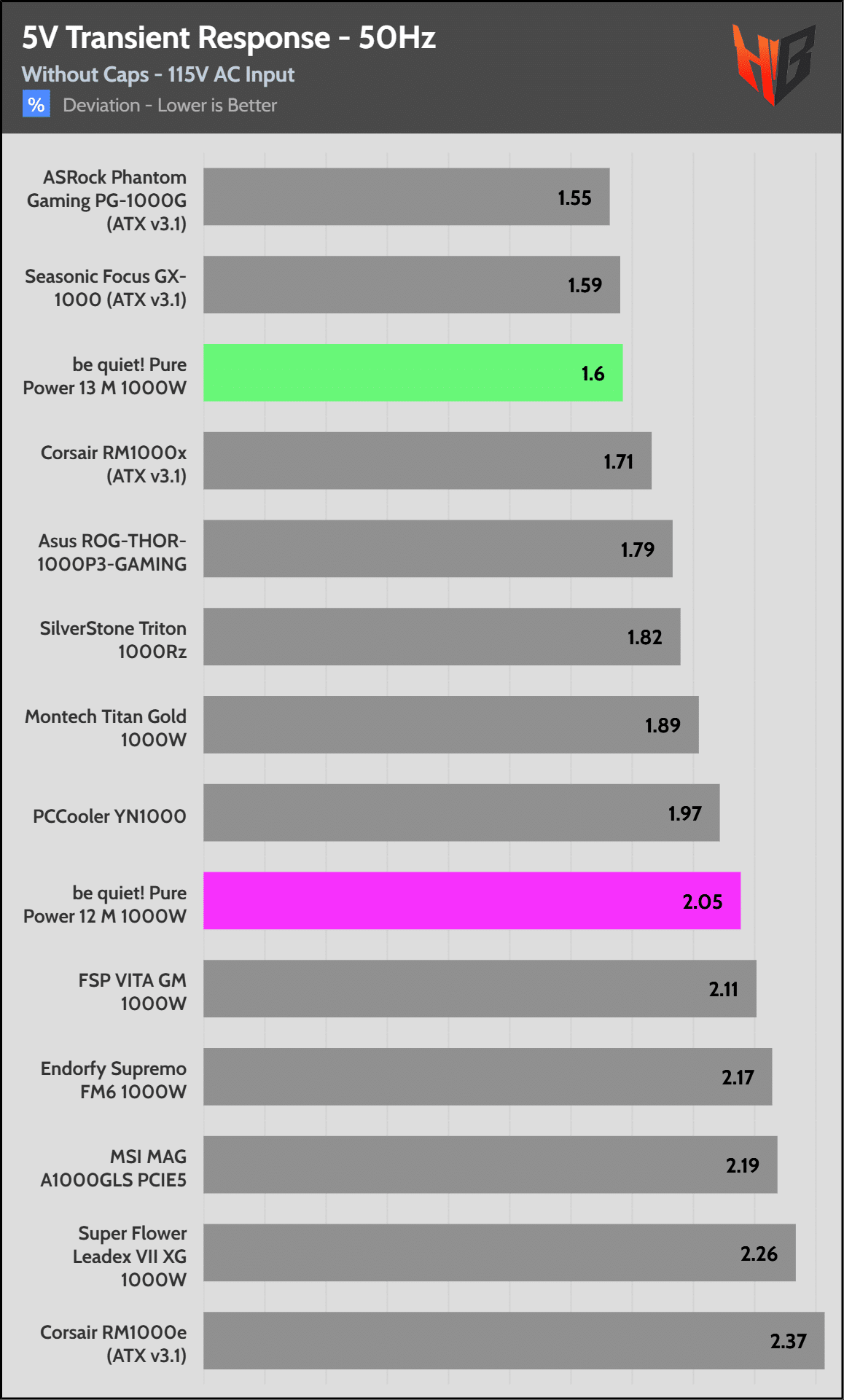

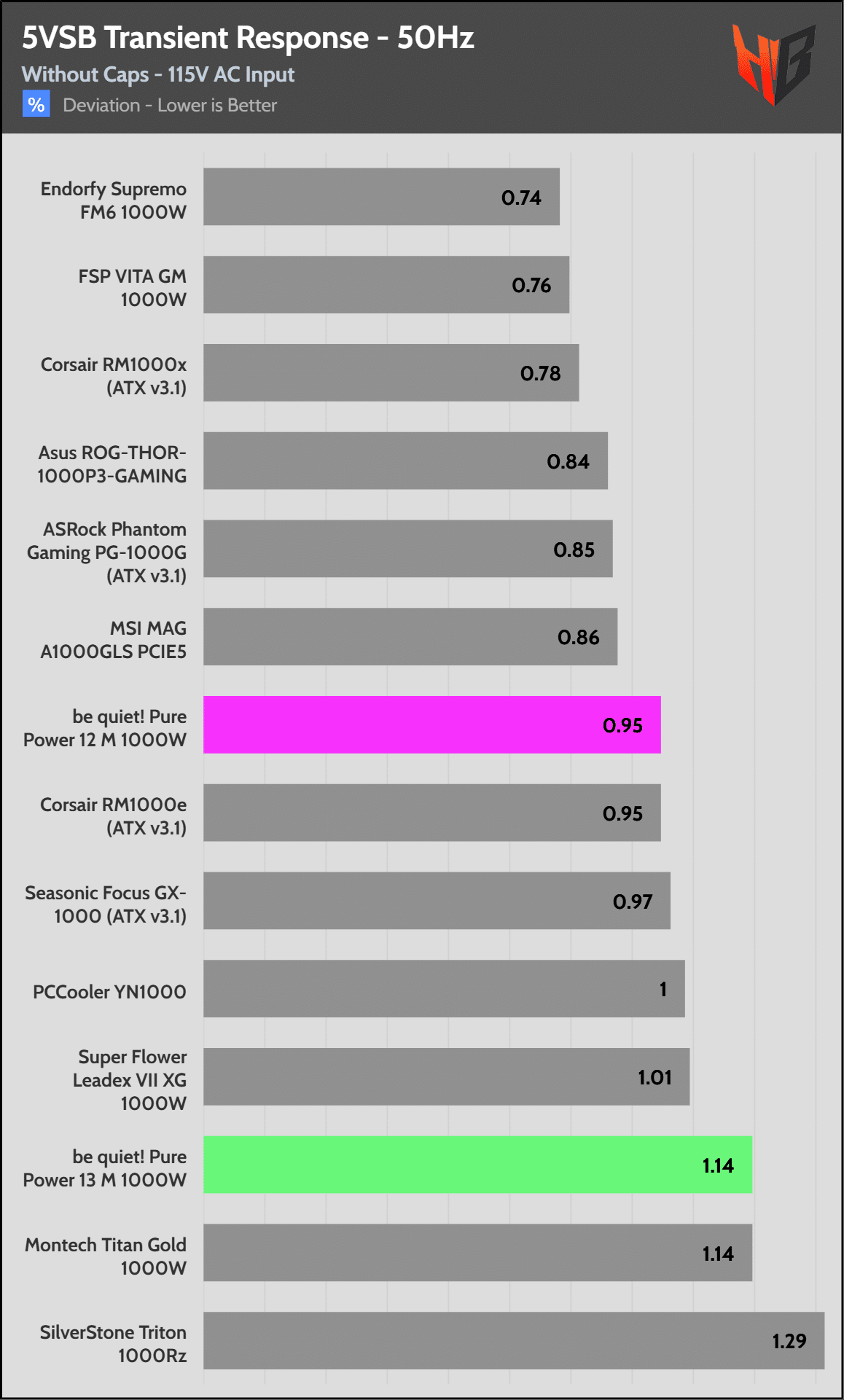

The transient response is good on all rails.

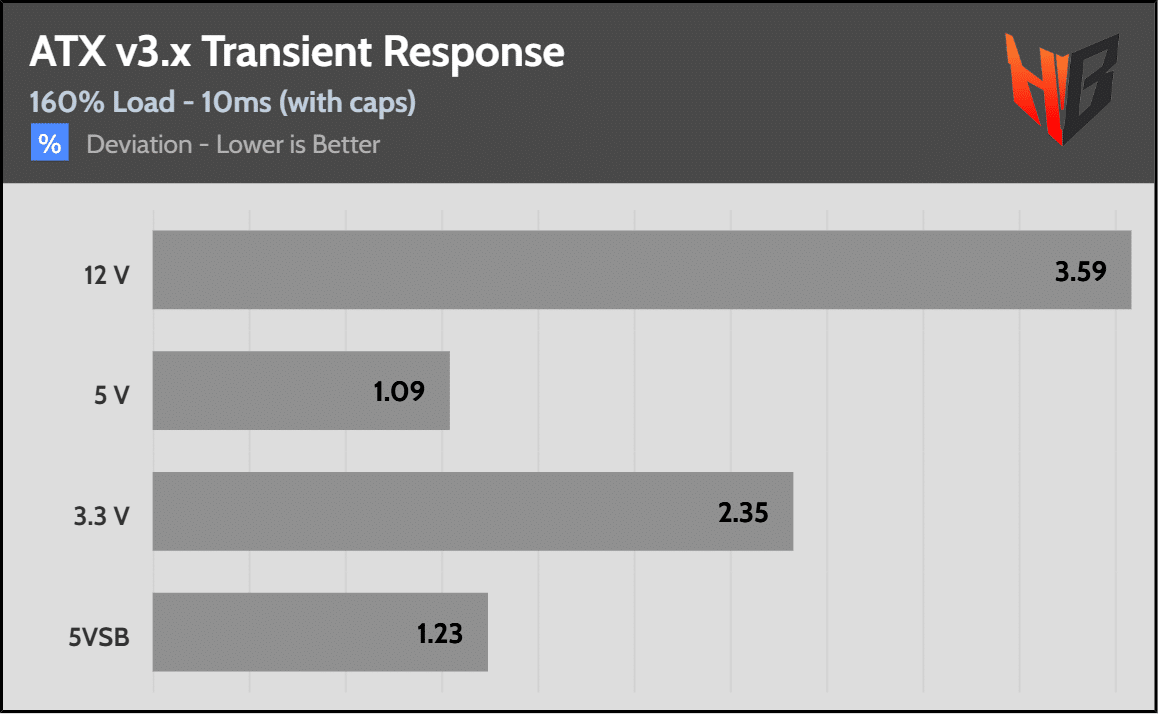

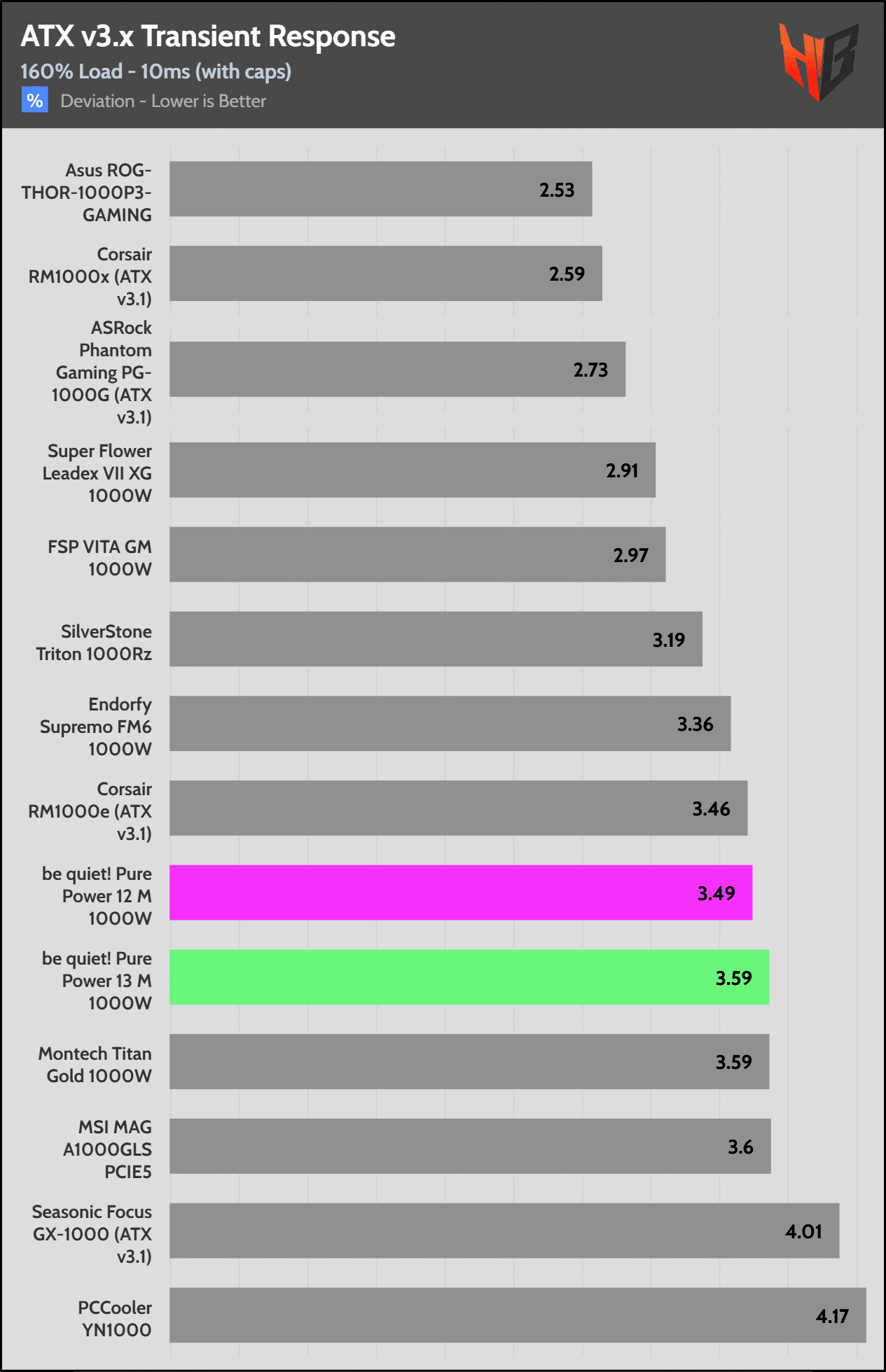

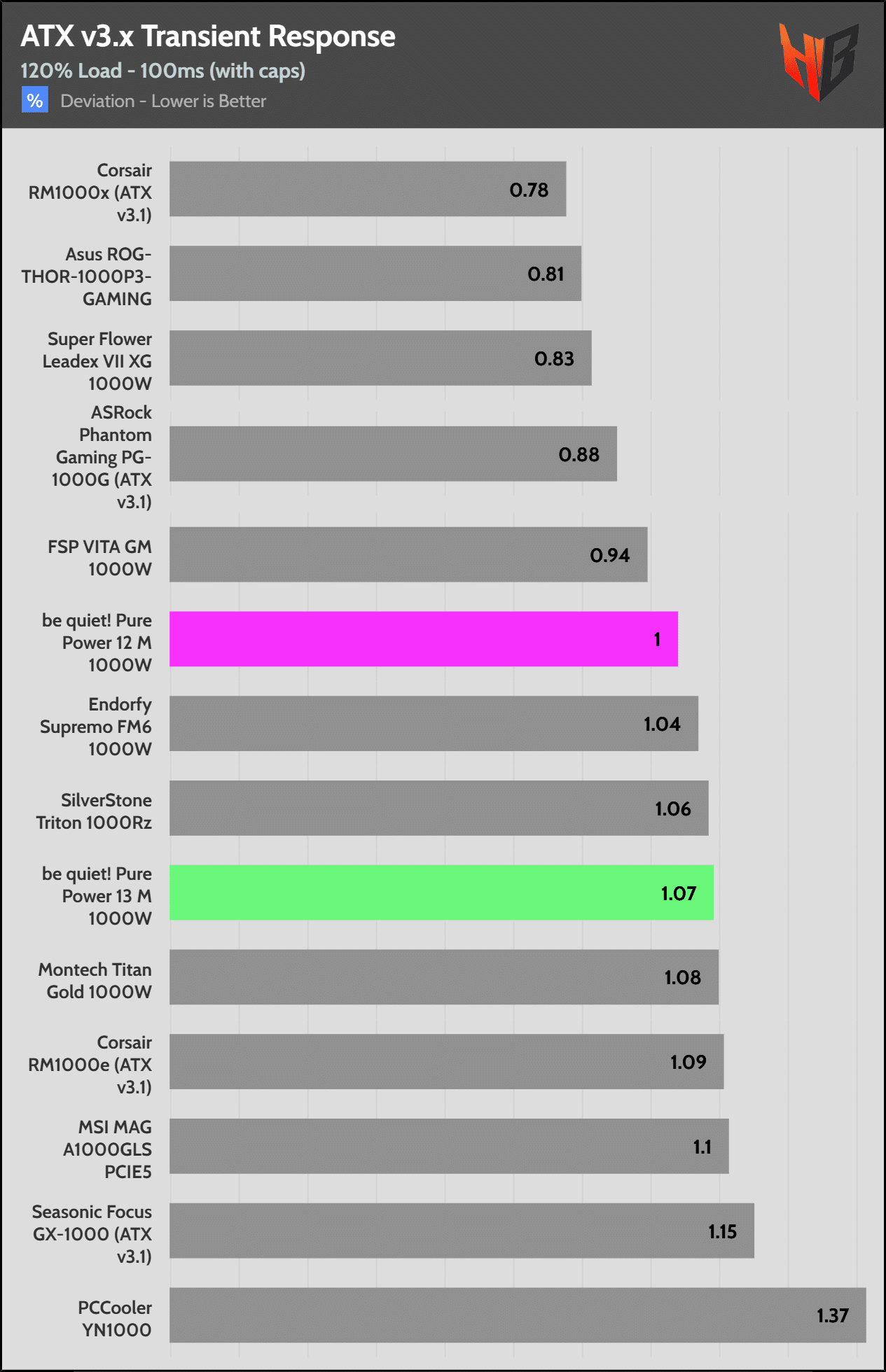

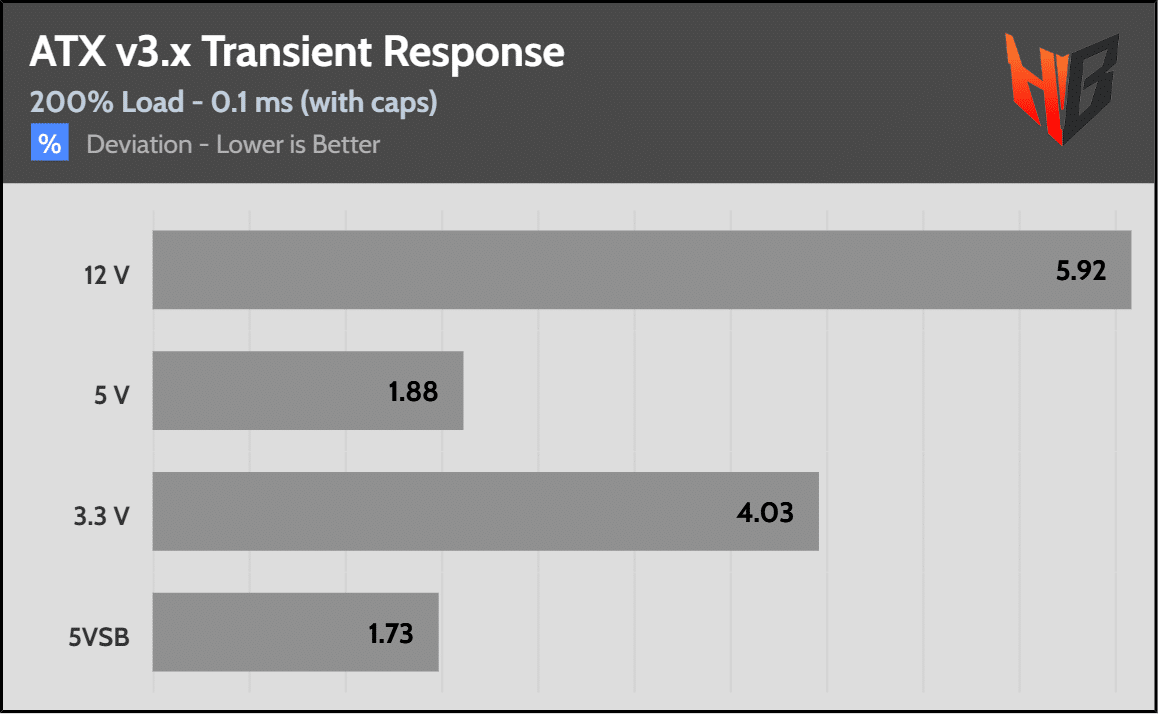

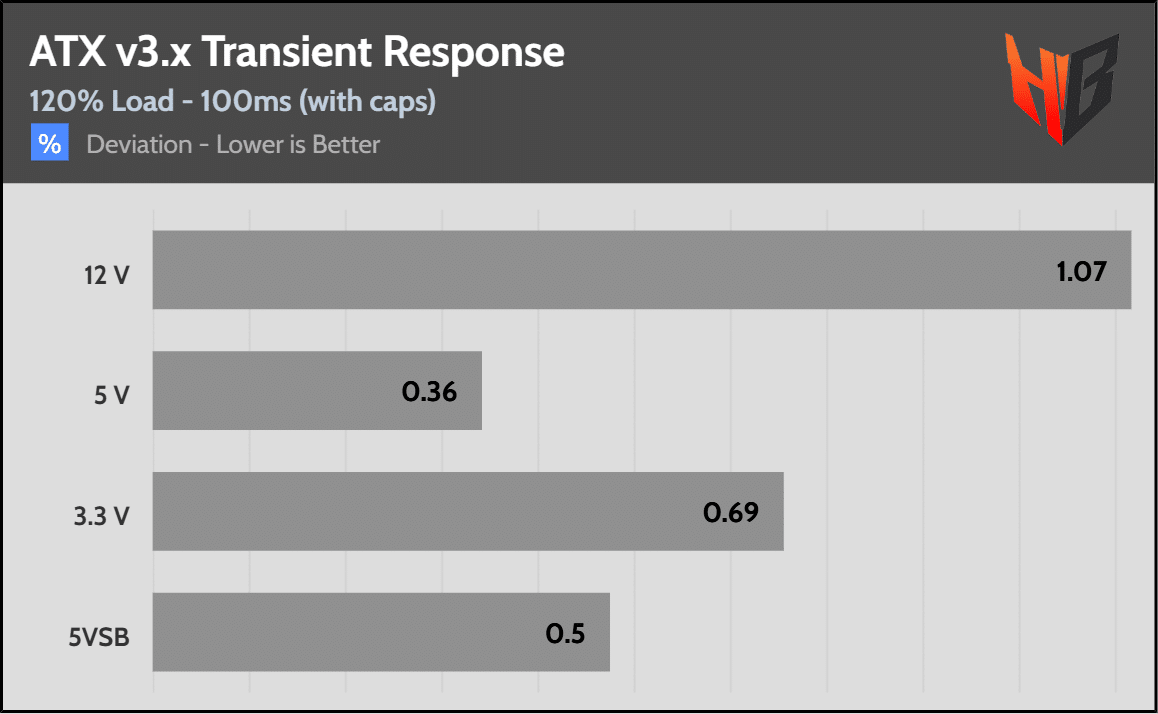

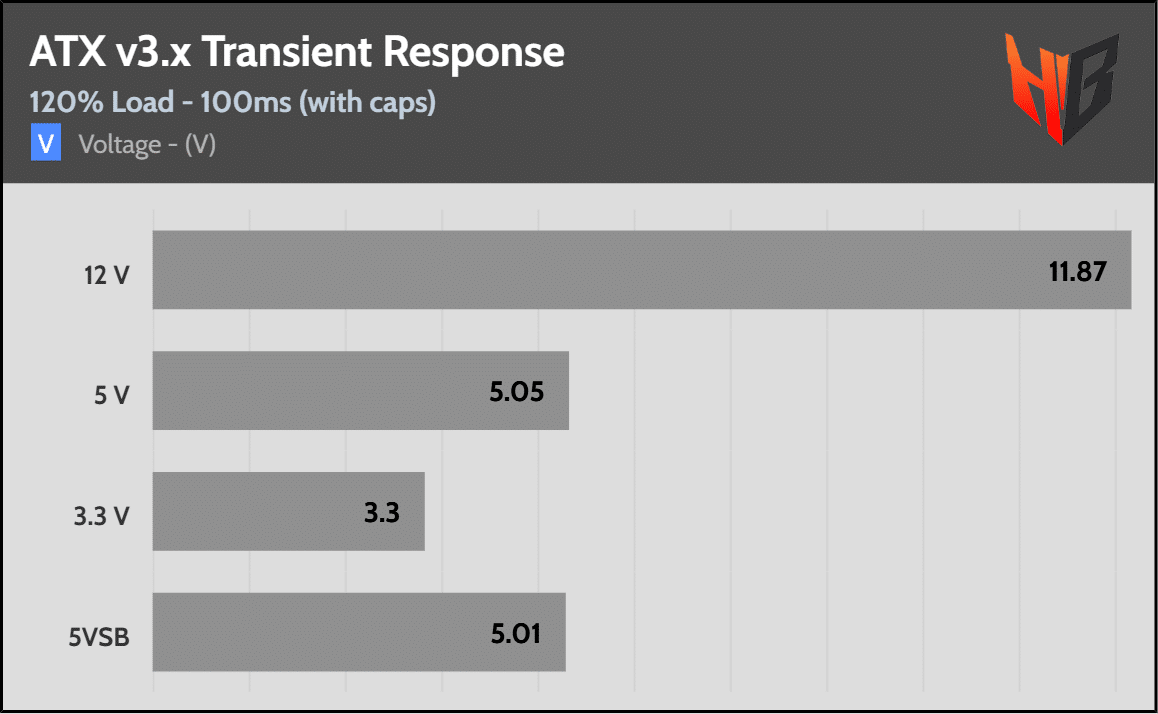

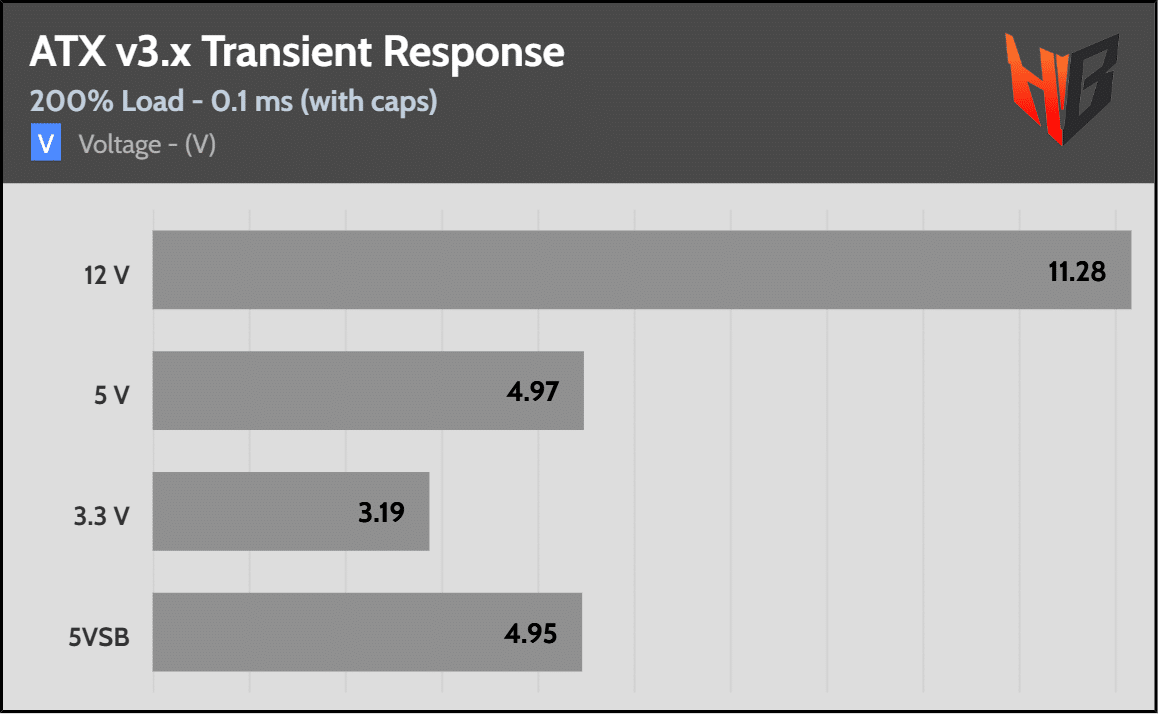

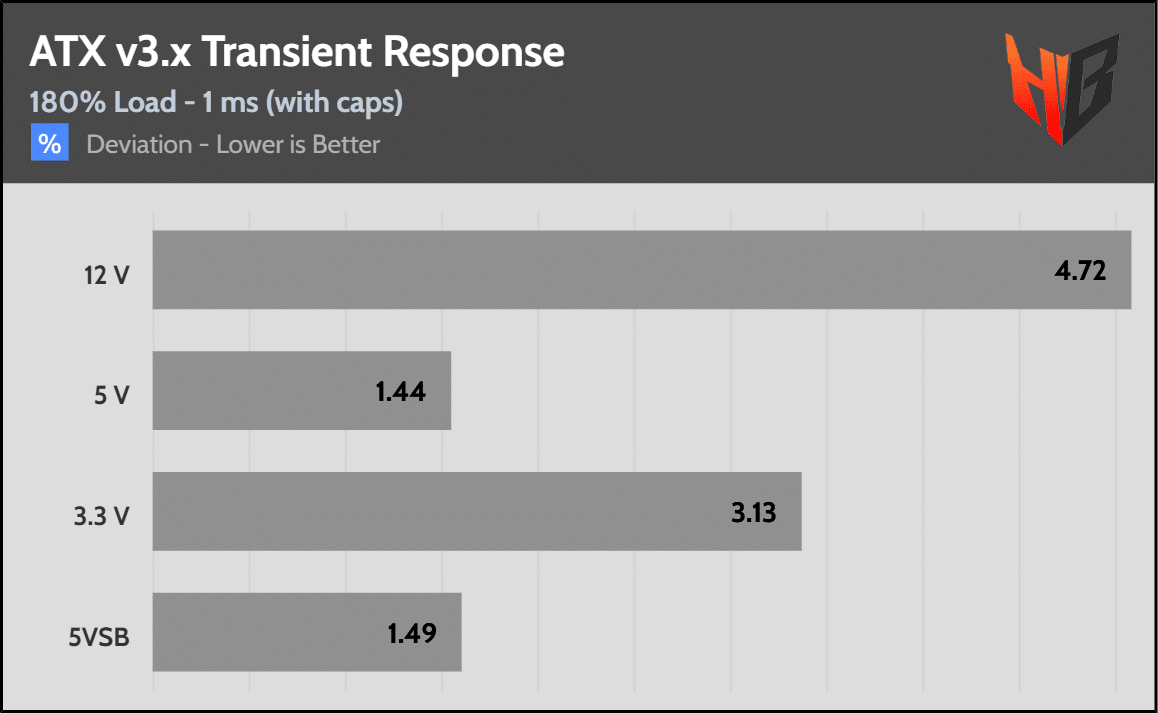

Transient Response ATX v3.1 Tests

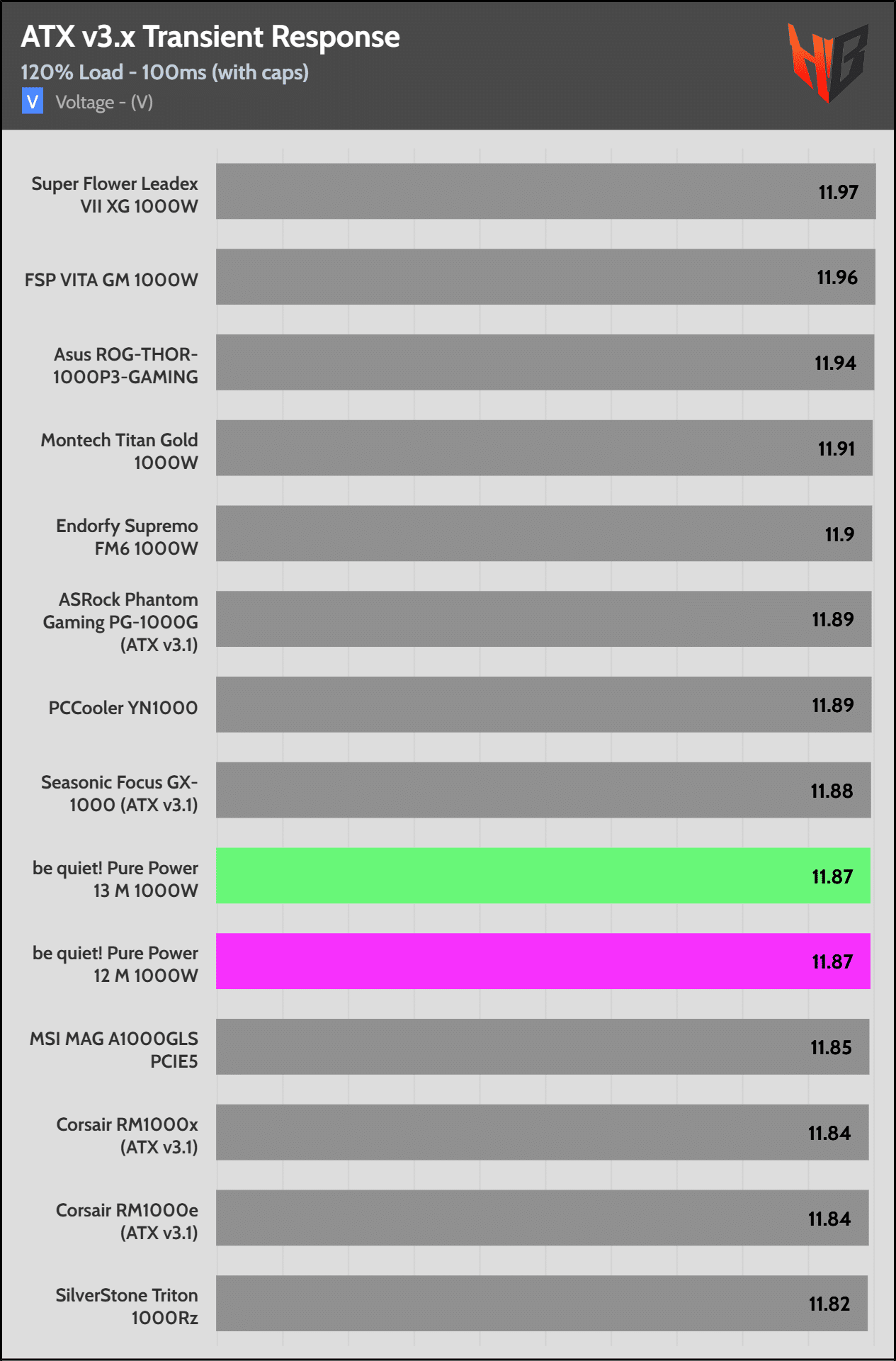

The PSU passes all ATX v3.1 transient response tests. Nonetheless, I would like to see higher voltage levels at 12V and 3.3V.

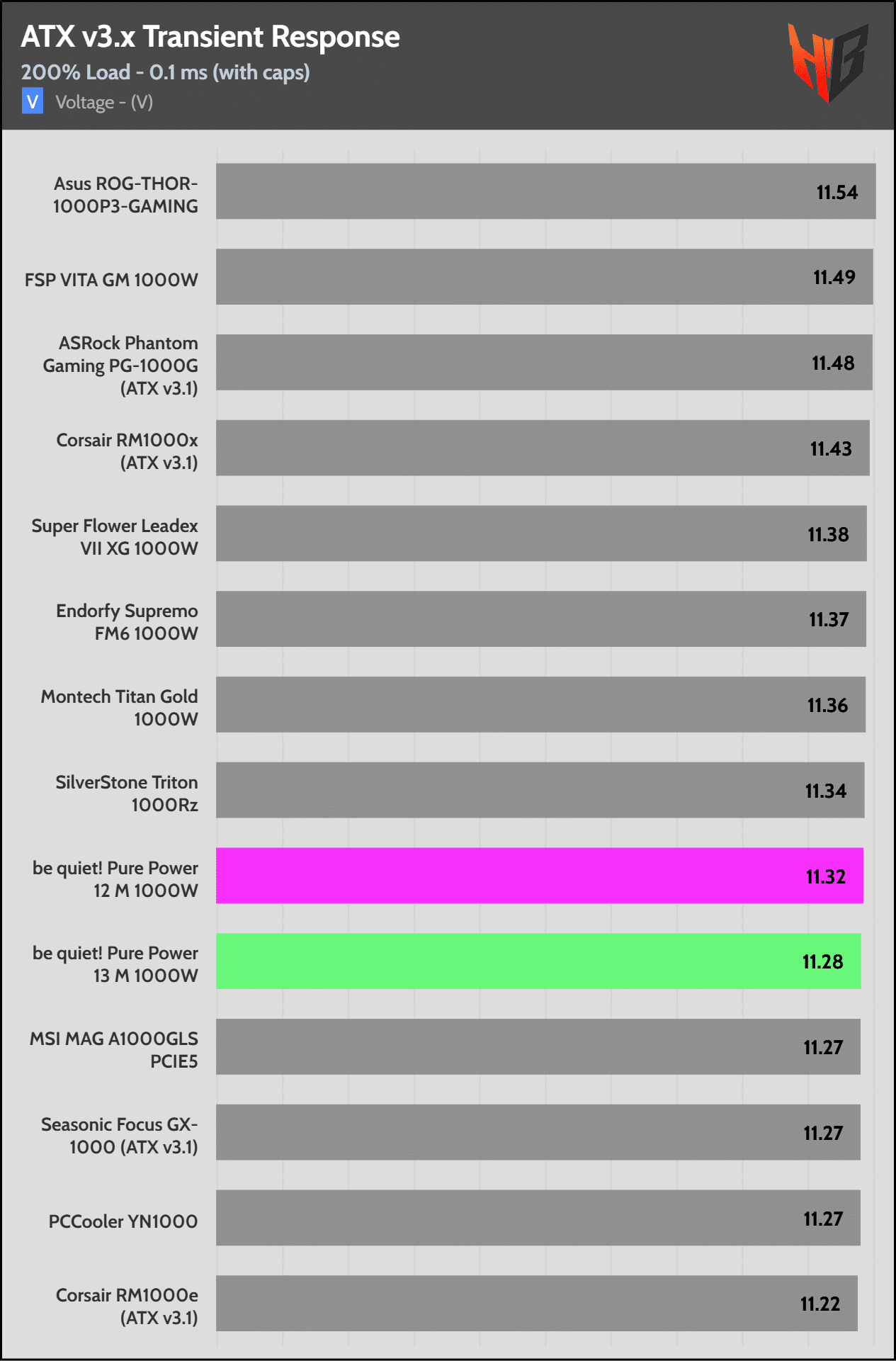

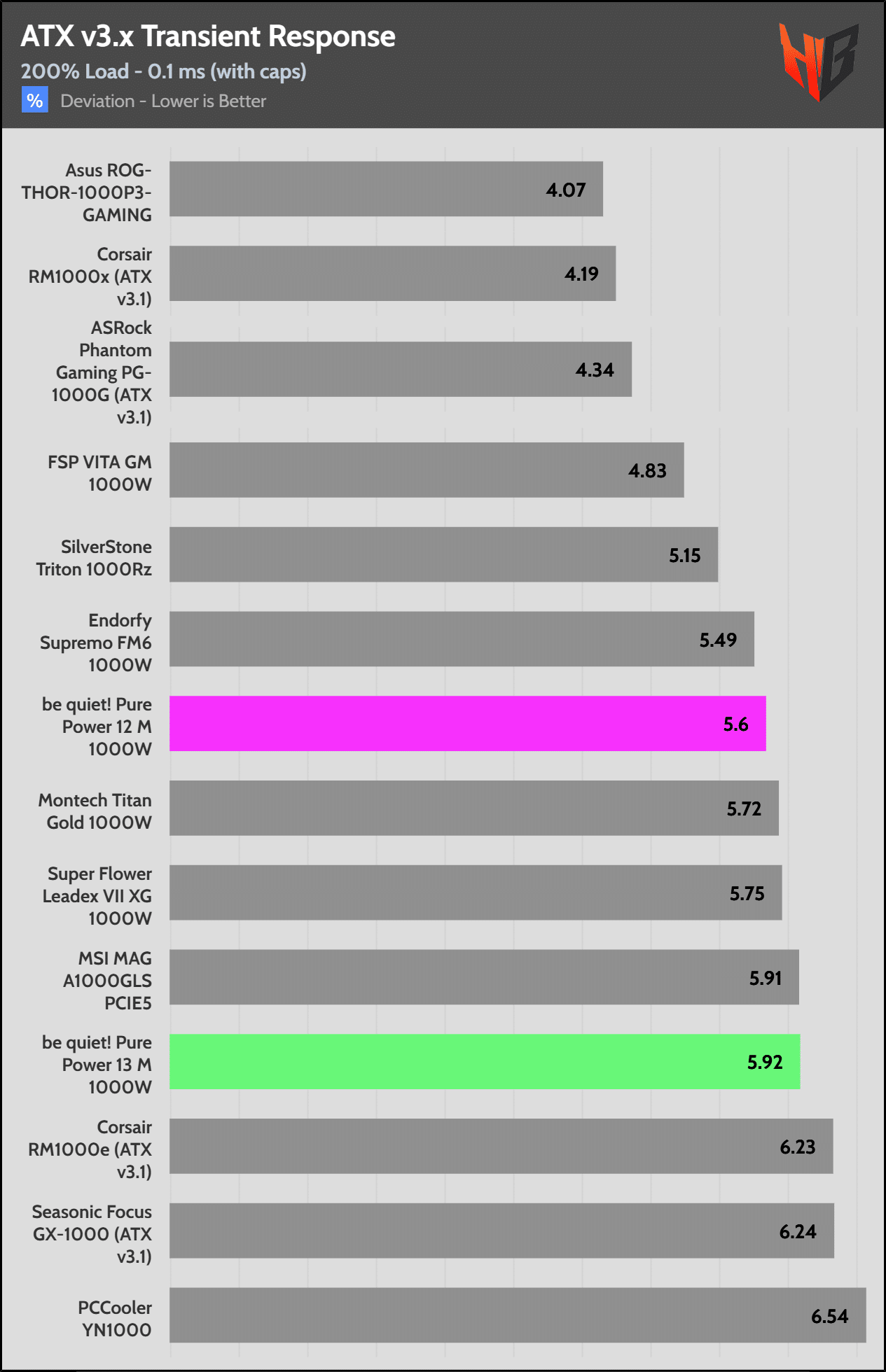

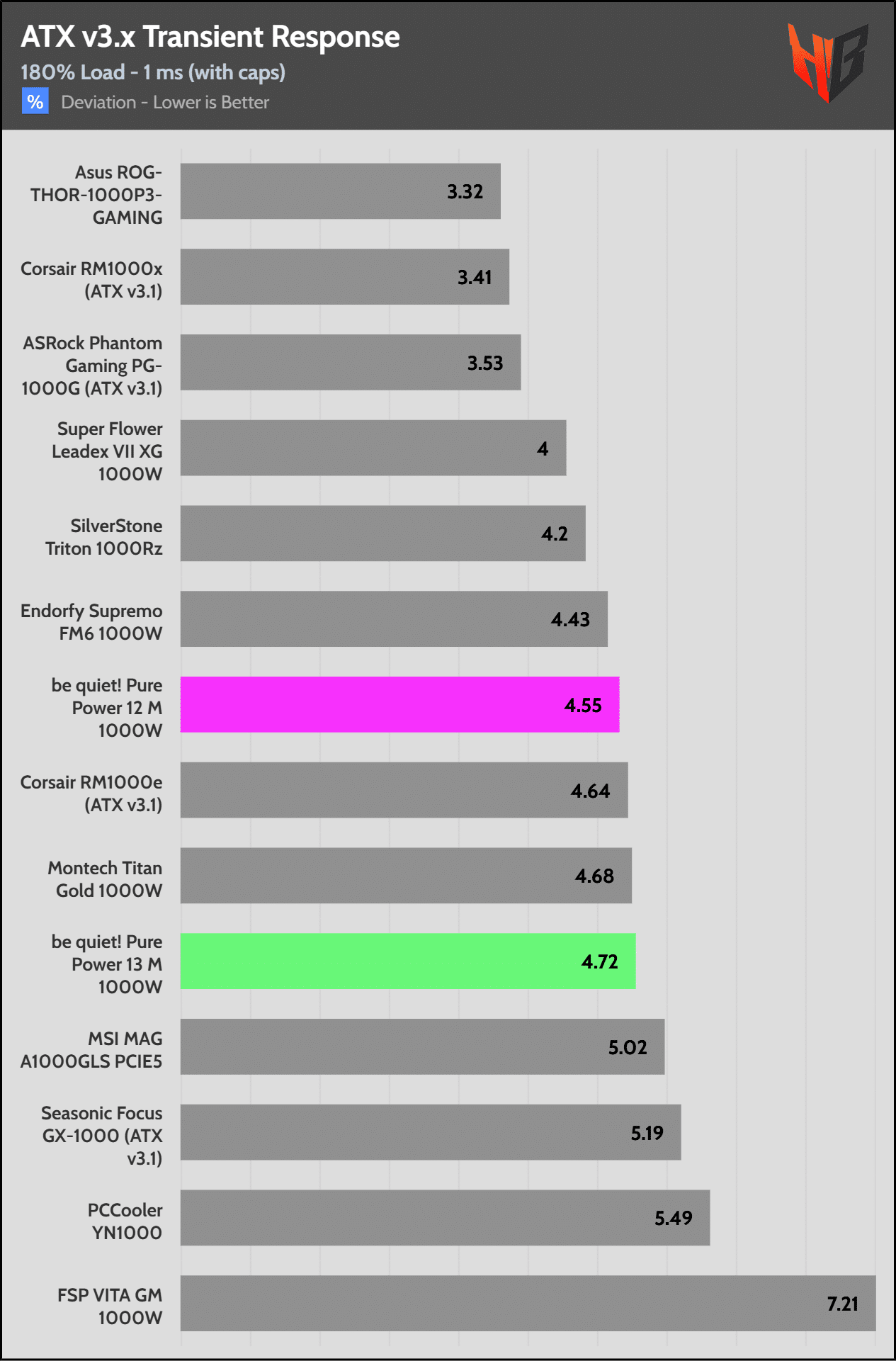

The 12V rail’s performance remains at the same level as the previous model; hence, it is not highly competitive. That said, the PSU achieves better performance than Corsair’s and MSI’s affordable options in this category.
