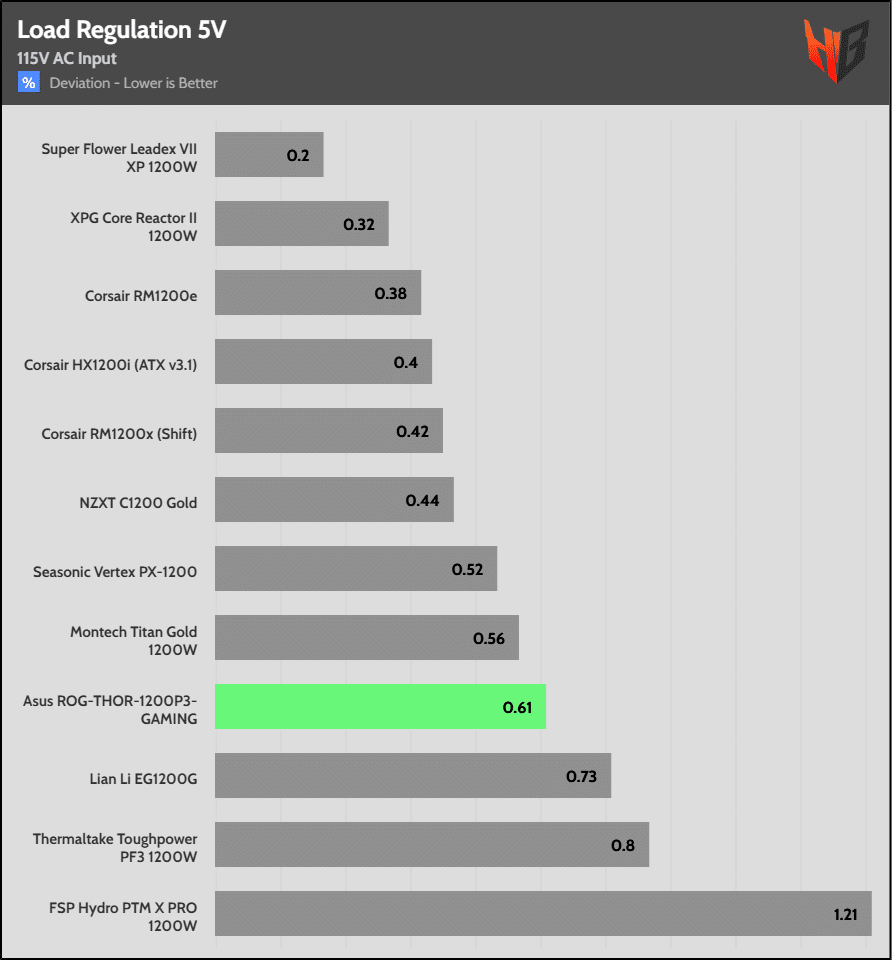

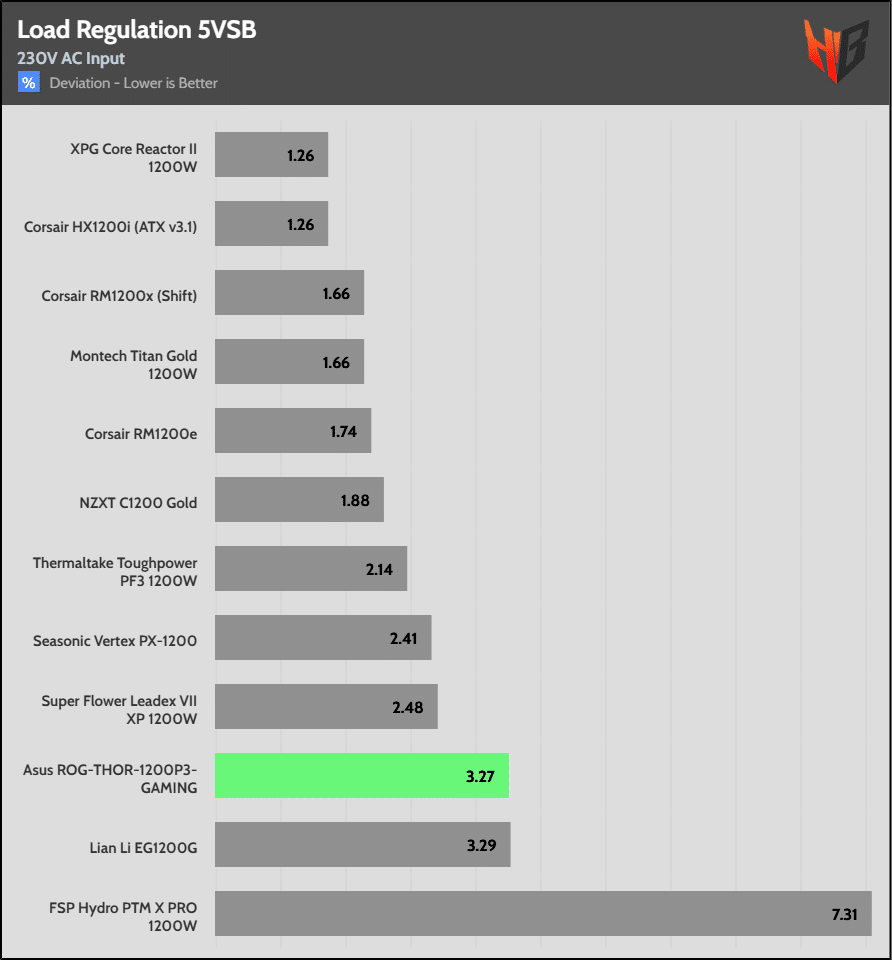

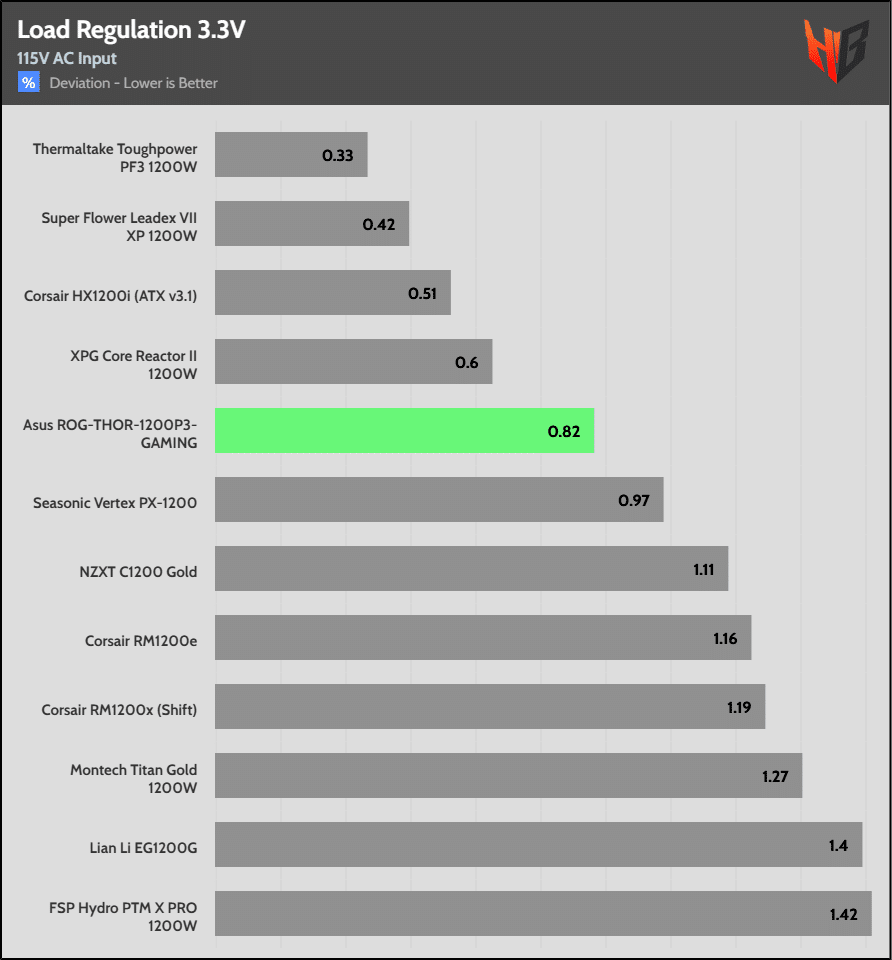

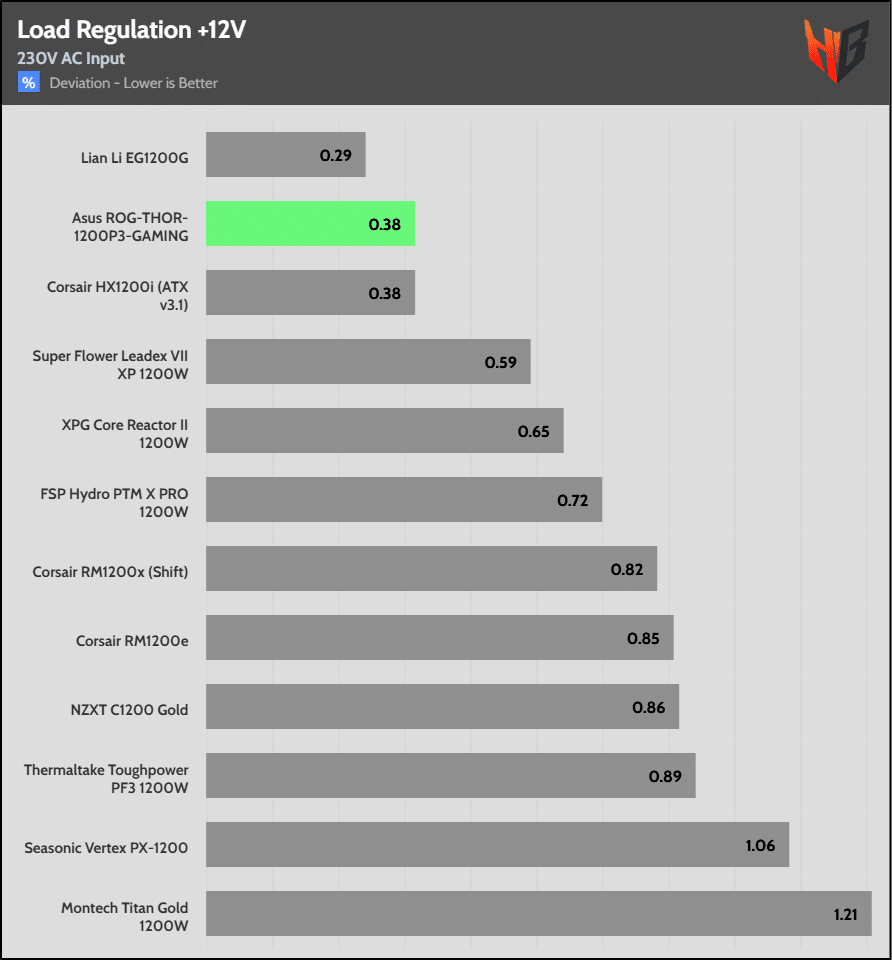

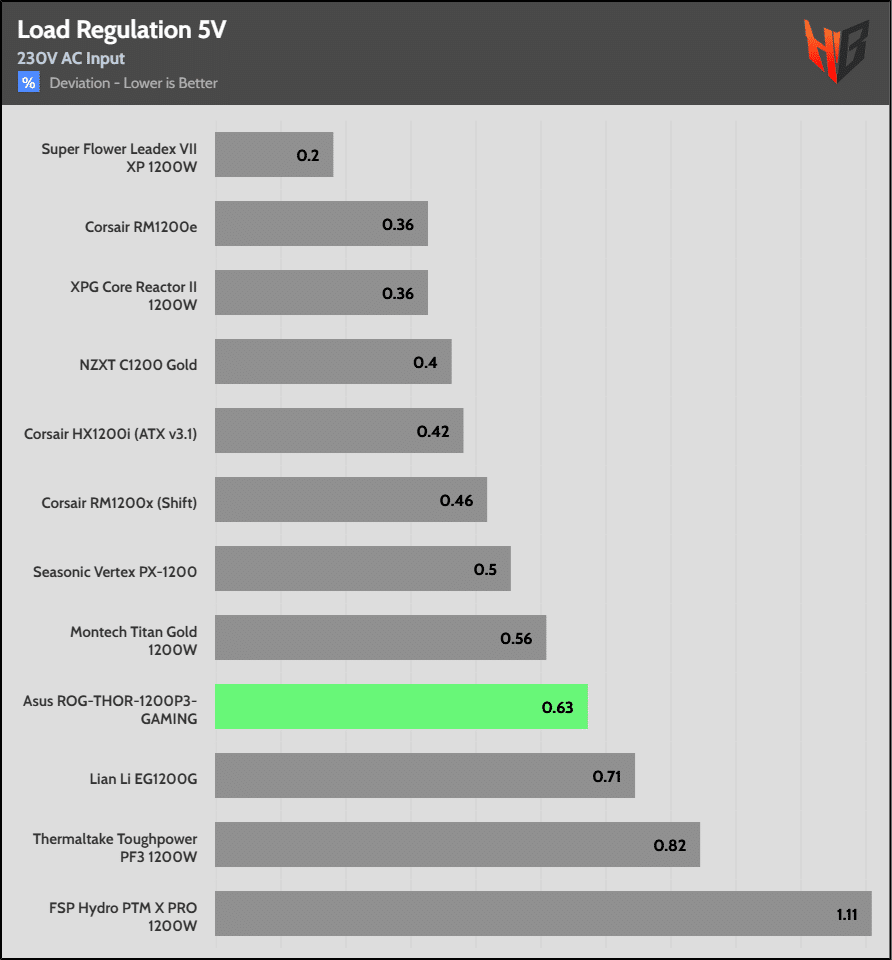

Load Regulation
| Test | 12V | 5V | 3.3V | 5VSB | DC/AC (Watts) | Efficiency | Fan Speed (RPM) | PSU Noise (dB[A]) | Temps (In/Out) | PF/AC Volts |
| 10% | 8.188A | 1.967A | 1.987A | 0.971A | 120.005 | 88.166% | 0 | <6.0 | 46.66°C | 0.975 |
| 12.019V | 5.085V | 3.322V | 5.152V | 136.115 | 40.46°C | 114.8V | ||||
| 20% | 17.391A | 2.952A | 2.983A | 1.168A | 239.971 | 92.193% | 0 | <6.0 | 47.48°C | 0.993 |
| 12.022V | 5.081V | 3.319V | 5.139V | 260.291 | 40.96°C | 114.76V | ||||
| 30% | 26.893A | 3.446A | 3.483A | 1.366A | 359.222 | 92.858% | 0 | <6.0 | 47.93°C | 0.996 |
| 12.017V | 5.078V | 3.316V | 5.126V | 386.851 | 41.41°C | 114.72V | ||||
| 40% | 36.497A | 3.941A | 3.984A | 1.565A | 479.584 | 92.797% | 0 | <6.0 | 48.78°C | 0.992 |
| 12.011V | 5.076V | 3.314V | 5.111V | 516.809 | 41.56°C | 114.68V | ||||
| 50% | 45.716A | 4.929A | 4.985A | 1.765A | 599.352 | 92.574% | 0 | <6.0 | 49.93°C | 0.993 |
| 12.005V | 5.072V | 3.311V | 5.099V | 647.433 | 42.29°C | 114.63V | ||||
| 60% | 54.988A | 5.919A | 5.987A | 1.969A | 719.882 | 92.177% | 493 | 9.8 | 42.91°C | 0.994 |
| 12.004V | 5.069V | 3.308V | 5.079V | 780.973 | 59.99°C | 114.59V | ||||
| 70% | 64.197A | 6.909A | 6.989A | 2.173A | 839.618 | 91.732% | 493 | 9.8 | 43.16°C | 0.994 |
| 12.002V | 5.067V | 3.306V | 5.063V | 915.298 | 61.36°C | 114.55V | ||||
| 80% | 73.488A | 7.898A | 7.992A | 2.277A | 959.601 | 91.175% | 674 | 18.0 | 43.67°C | 0.995 |
| 11.998V | 5.064V | 3.303V | 5.051V | 1052.493 | 61.4°C | 114.51V | ||||
| 90% | 83.115A | 8.396A | 8.482A | 2.381A | 1079.401 | 90.591% | 954 | 28.4 | 44.62°C | 0.995 |
| 11.994V | 5.062V | 3.301V | 5.041V | 1191.508 | 60.88°C | 114.46V | ||||
| 100% | 92.560A | 8.894A | 9.003A | 2.993A | 1199.439 | 89.904% | 1208 | 34.7 | 45.57°C | 0.996 |
| 11.989V | 5.059V | 3.299V | 5.012V | 1334.129 | 61.31°C | 114.41V | ||||
| 110% | 101.951A | 9.892A | 10.106A | 2.998A | 1320.046 | 89.133% | 1208 | 34.7 | 46.75°C | 0.996 |
| 11.983V | 5.054V | 3.295V | 5.005V | 1480.985 | 64.83°C | 114.36V | ||||
| CL1 | 0.117A | 14.884A | 15.018A | 0A | 126.308 | 83.87% | 0 | <6.0 | 45.91°C | 0.979 |
| 12.013V | 5.059V | 3.302V | 5.188V | 150.602 | 40.24°C | 114.79V | ||||
| CL2 | 0.117A | 24.625A | 0A | 0A | 126.238 | 82.806% | 780 | 23.4 | 40.26°C | 0.98 |
| 12.018V | 5.07V | 3.299V | 5.186V | 152.451 | 50.73°C | 114.78V | ||||
| CL3 | 0.115A | 0A | 29.896A | 0A | 100.383 | 75.836% | 611 | 15.7 | 42.59°C | 0.975 |
| 12.022V | 5.055V | 3.311V | 5.182V | 132.37 | 51.74°C | 114.79V | ||||
| CL4 | 100.105A | 0A | 0A | 0.001A | 1199.99 | 90.538% | 847 | 25.1 | 44.45°C | 0.996 |
| 11.987V | 5.071V | 3.308V | 5.124V | 1325.403 | 59.64°C | 114.43V |

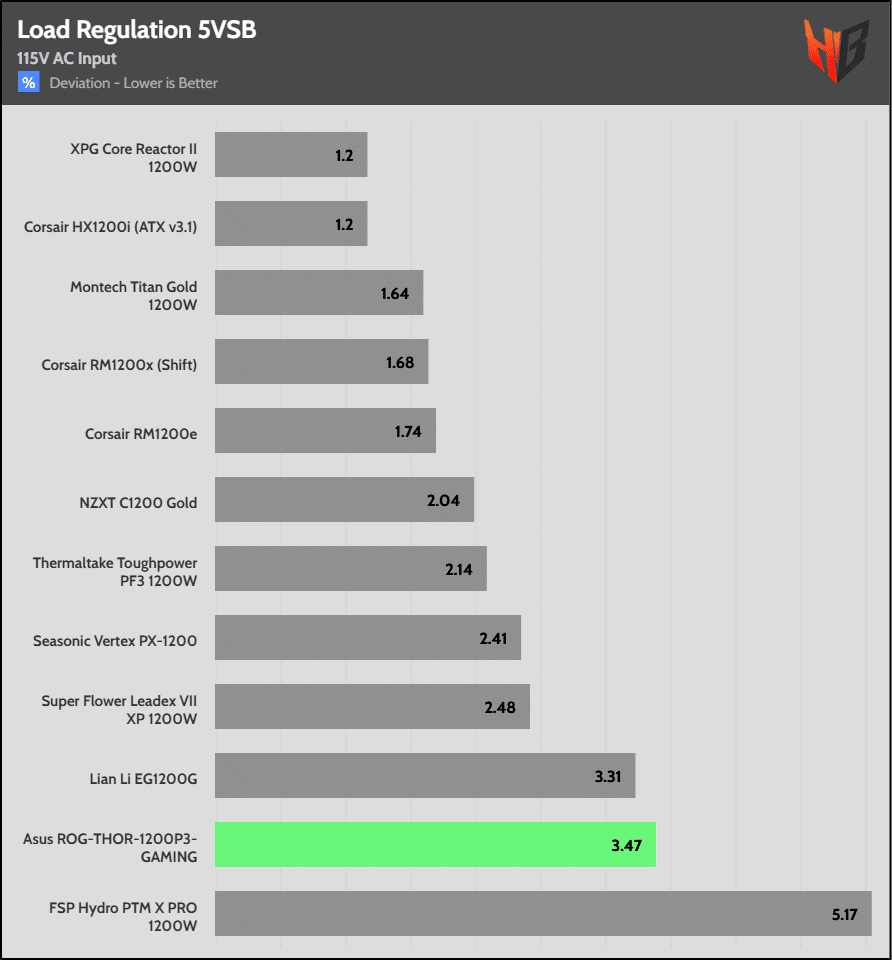

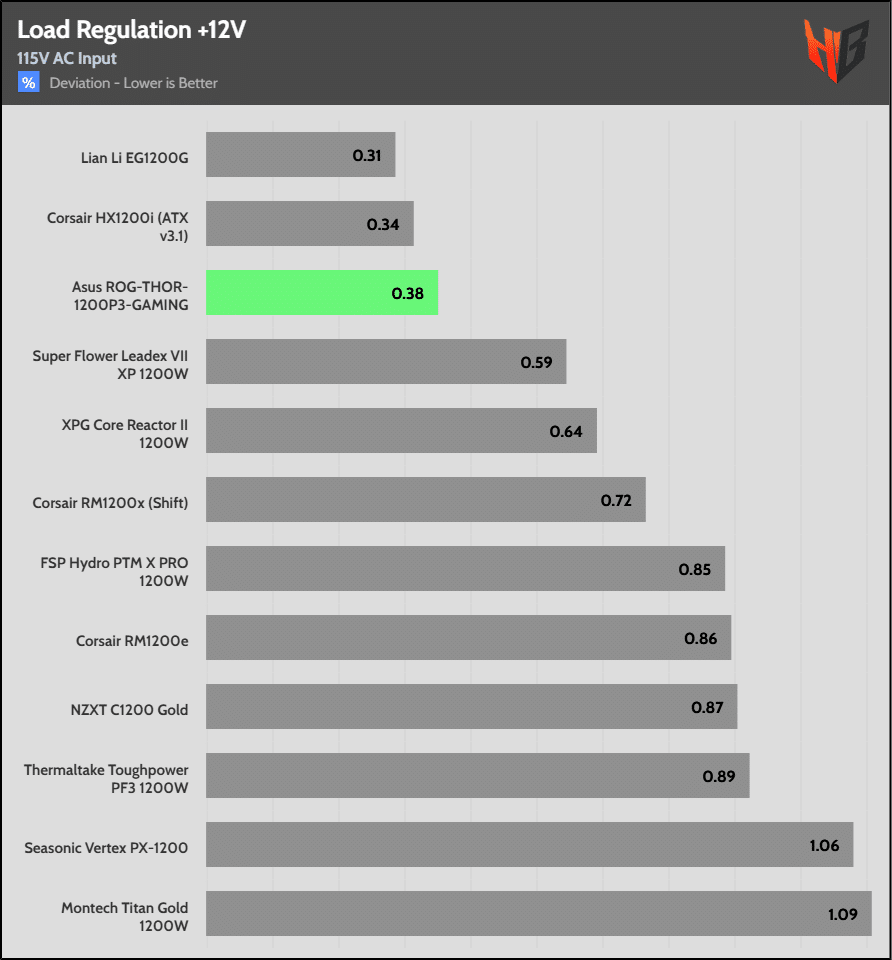

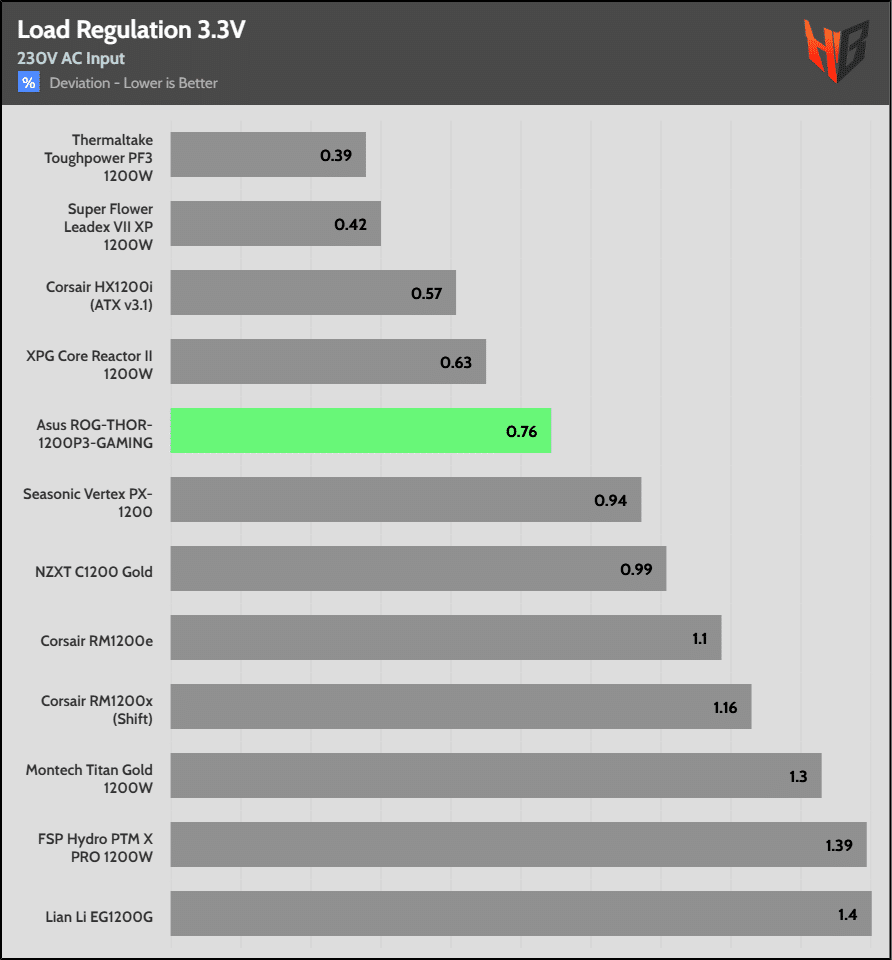

Load regulation is tight on all rails.
| Test | 12V | 5V | 3.3V | 5VSB | DC/AC (Watts) | Efficiency | Fan Speed (RPM) | PSU Noise (dB[A]) | Temps (In/Out) | PF/AC Volts |
| 20W | 1.234A | 0.491A | 0.496A | 0.193A | 20.002 | 62.558% | 0 | <6.0 | 43.37°C | 0.841 |
| 12.035V | 5.09V | 3.326V | 5.186V | 31.972 | 36.81°C | 114.82V | ||||
| 40W | 2.719A | 0.688A | 0.695A | 0.29A | 40.003 | 75.392% | 0 | <6.0 | 44.3°C | 0.915 |
| 12.024V | 5.089V | 3.325V | 5.18V | 53.059 | 37.27°C | 114.83V | ||||
| 60W | 4.204A | 0.884A | 0.893A | 0.386A | 60.004 | 81.715% | 0 | <6.0 | 44.77°C | 0.953 |
| 12.021V | 5.088V | 3.324V | 5.177V | 73.431 | 38.66°C | 114.81V | ||||
| 80W | 5.684A | 1.081A | 1.092A | 0.483A | 79.951 | 84.57% | 0 | <6.0 | 45.75°C | 0.961 |
| 12.021V | 5.088V | 3.324V | 5.173V | 94.538 | 39.45°C | 114.81V |
A look at the light loads table is always useful, because the PSU will usually operate at light loads.

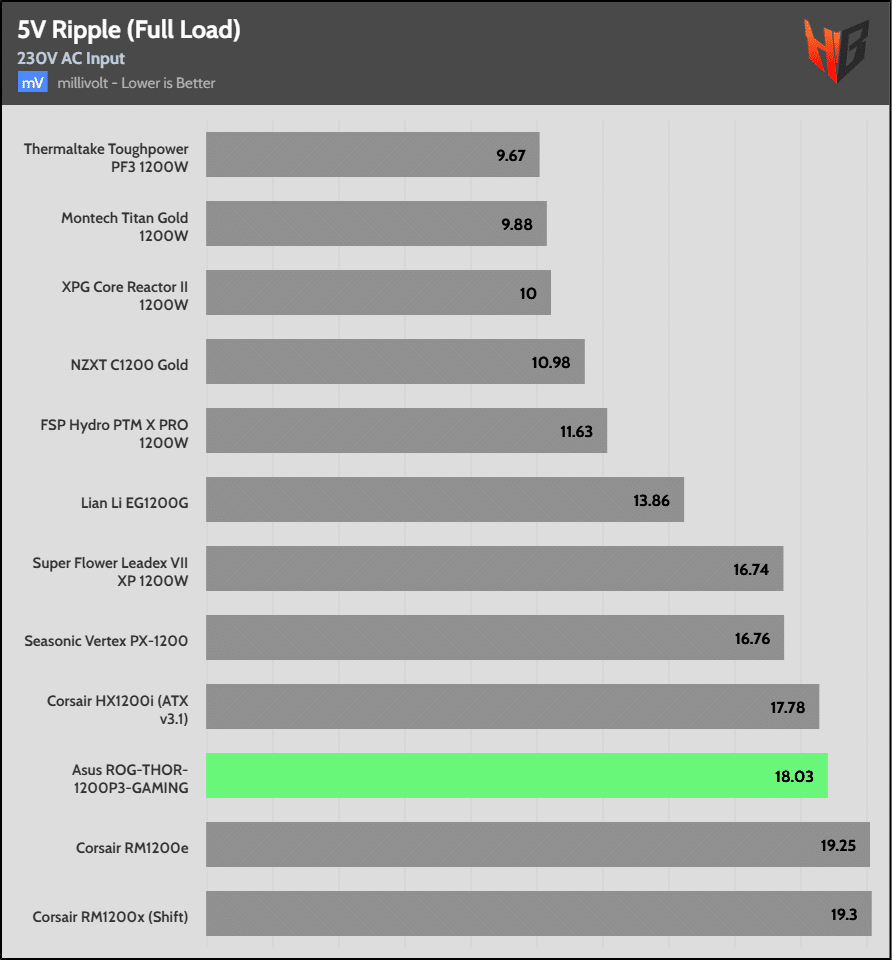

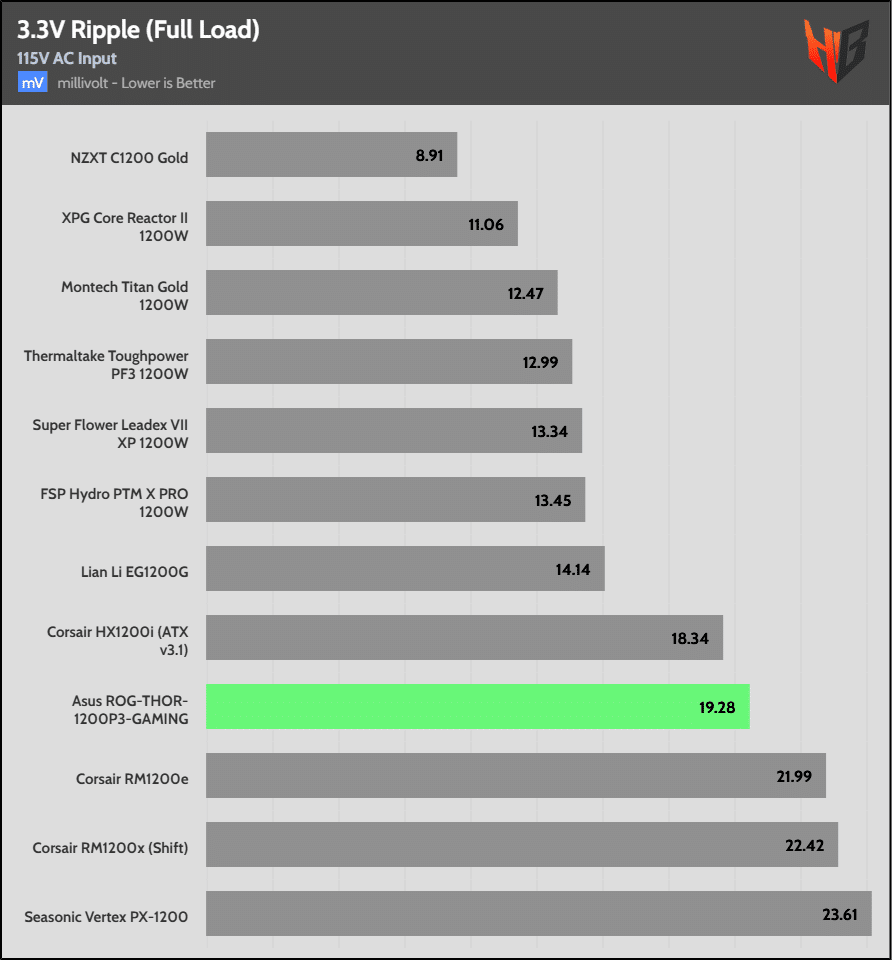

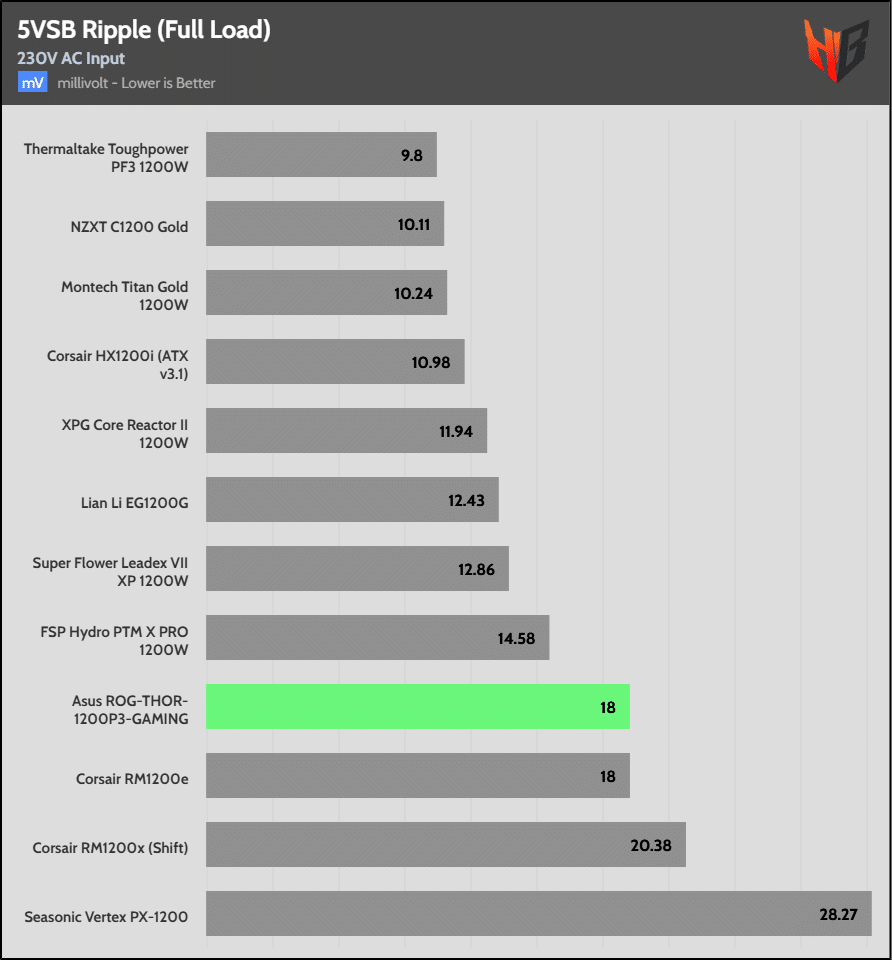

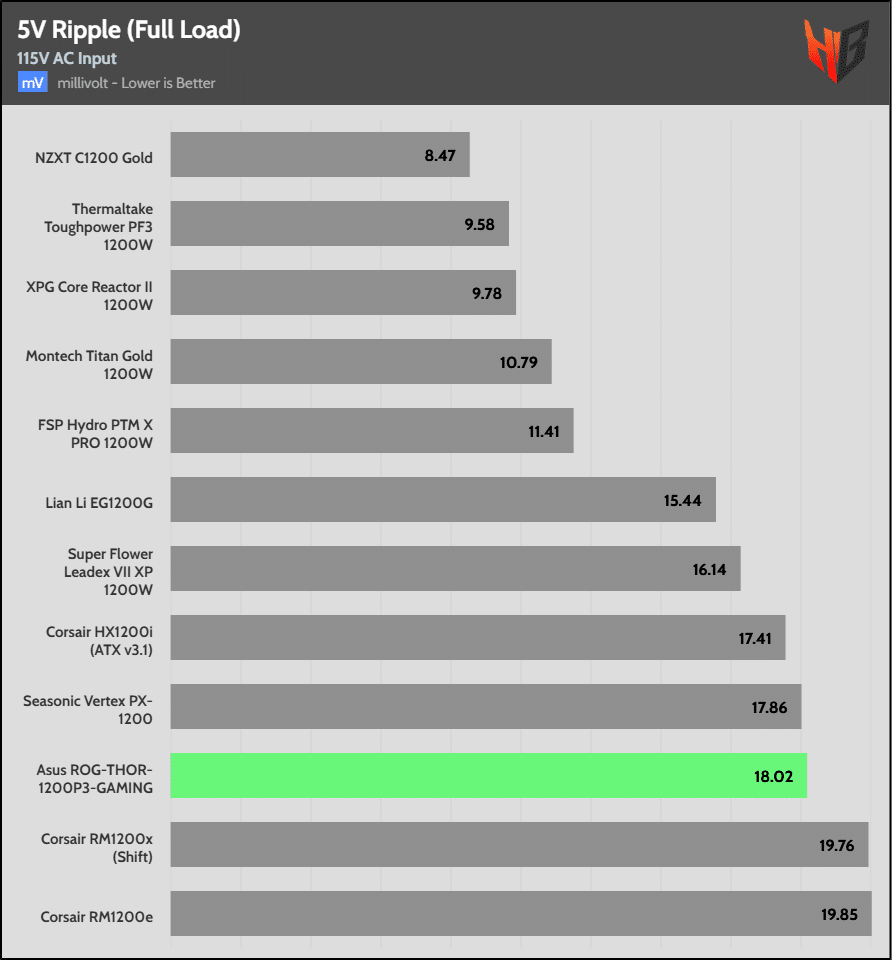

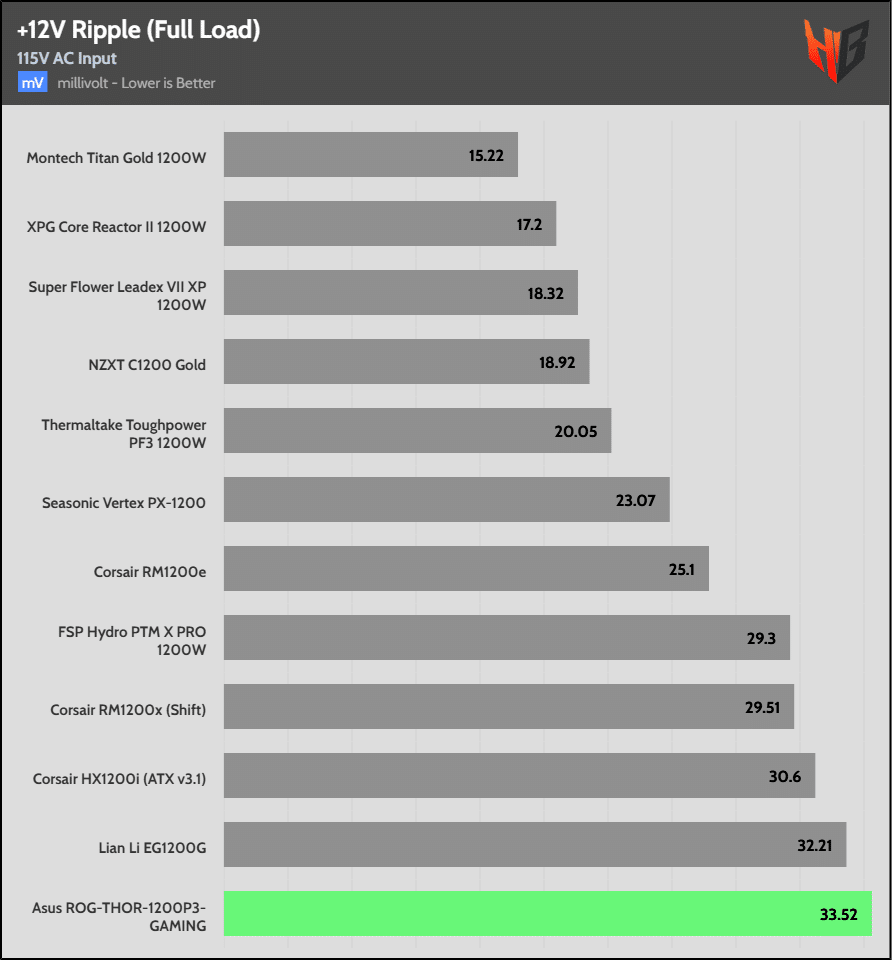

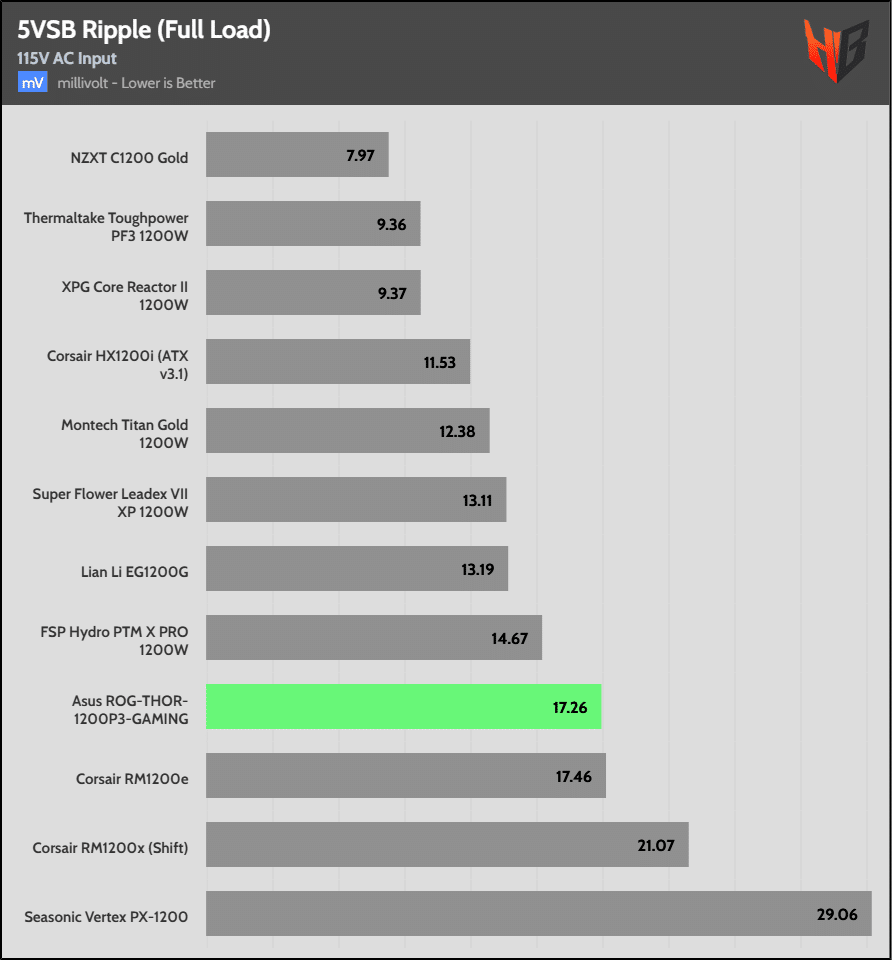

Ripple Suppression
| Test | 12V | 5V | 3.3V | 5VSB | Pass/Fail |
| 10% Load | 17.4 mV | 15.5 mV | 16.3 mV | 10.9 mV | Pass |
| 20% Load | 19.3 mV | 18.0 mV | 16.2 mV | 11.7 mV | Pass |
| 30% Load | 20.8 mV | 15.7 mV | 15.6 mV | 11.4 mV | Pass |
| 40% Load | 21.1 mV | 16.8 mV | 17.2 mV | 11.9 mV | Pass |
| 50% Load | 20.8 mV | 16.8 mV | 17.3 mV | 12.7 mV | Pass |
| 60% Load | 19.6 mV | 16.0 mV | 17.3 mV | 14.2 mV | Pass |
| 70% Load | 20.1 mV | 16.9 mV | 18.7 mV | 14.1 mV | Pass |
| 80% Load | 19.7 mV | 17.2 mV | 18.1 mV | 15.1 mV | Pass |
| 90% Load | 20.7 mV | 16.8 mV | 18.6 mV | 17.8 mV | Pass |
| 100% Load | 33.5 mV | 18.0 mV | 19.3 mV | 17.3 mV | Pass |
| 110% Load | 34.1 mV | 20.3 mV | 20.5 mV | 18.0 mV | Pass |
| Crossload 1 | 18.9 mV | 14.8 mV | 18.2 mV | 11.0 mV | Pass |
| Crossload 2 | 18.6 mV | 21.4 mV | 19.4 mV | 10.3 mV | Pass |
| Crossload 3 | 17.6 mV | 14.9 mV | 20.7 mV | 10.0 mV | Pass |
| Crossload 4 | 32.8 mV | 17.6 mV | 17.6 mV | 18.1 mV | Pass |
Ripple suppression is good.
