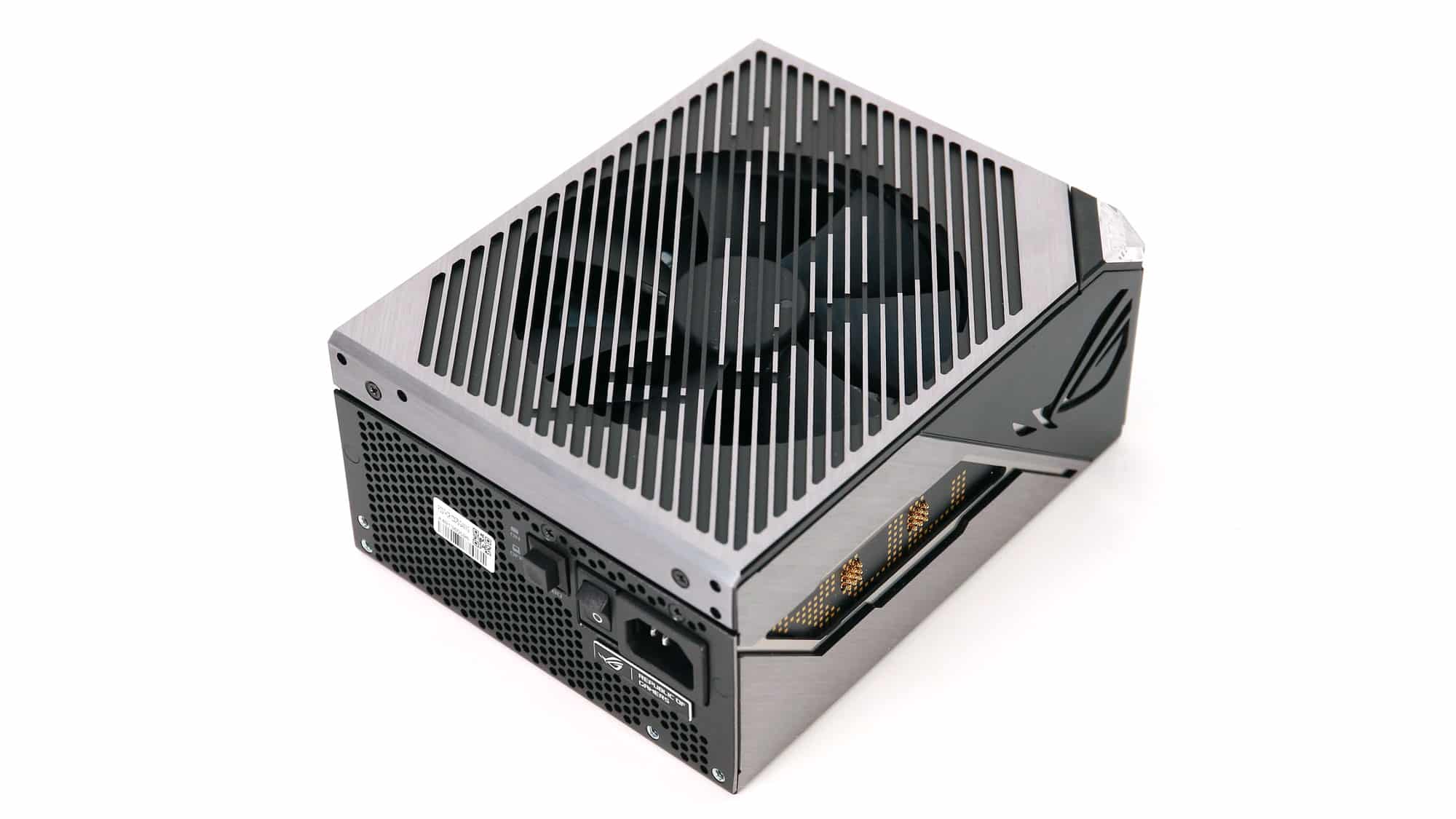

The ASUS ROG Thor 1200W Platinum III is a high-end PSU using a Seasonic platform. It features GaN MODFETs so it will be interesting to see how it performs. There is also a magnetic-mount OLED display showing real-time power draw. The cool fact with this display is that it can be swapped to either side of the PSU.
The ASUS ROG Thor 1200W Platinum III is (or will be) included in my best ATX v3.x & PCIe 5.x PSU picks article.
The ASUS ROG Thor 1200W Platinum III is an expensive, high-end ATX v3.1 compliant PSU using a Seasonic platform with MODFETs on its APFC converter. This PSU also has an OLED display that can be mounted on either side, showing real-time power draw from the wall. The rest of the features of this PSU include etched modular cables, large heatsinks at its internals to minimize the fan’s workload and noise, a turbo mode switch at its front side for spinning the fan at high speeds and a voltage sensing system for its 12V-2×6 connector which promises a tighter load regulation under high transient loads.
Look at our best ATX v3.1 PSU guide before buying your next PSU.
High-Capacity ATX v3.1 PSU Reviews:
- Asus Rog Strix 1200W Platinum ATX v3.1 PSU Review
- be quiet! Dark Power Pro 13 1600W PSU Review
- Cooler Master X Silent MAX Platinum 1300W
- Cooler Master GX III 1250W ATX v3.0 PSU Review
- Corsair HX1200i ATX v3.1 (2025) PSU Review
- darkFlash UPMOST 1250W ATX v3.0 PSU Review
- Lian Li EG1200G ATX v3.1 PSU Review
- MSI MAG A1250GL PCIE5 ATX v3.1 PSU Review
- Montech Titan PLA 1200W ATX v3.1 PSU Review
- NZXT C1500 ATX v3.1 PSU Review
- Seasonic Prime TX-1300 ATX v3.0 PSU Review
- Seasonic Prime PX-1600 ATX v3.0 PSU Review
- Seasonic Prime TX-1600 ATX v3.0 PSU Review
- Super Flower Leadex Titanium ATX v3.0 1600W PSU Review
- Super Flower Leadex III 1300W ATX v3.1 PSU Review
- Thermaltake Toughpower GF3 1350W ATX v3.0 PSU Review
- Thermaltake Toughpower GF3 1650W ATX v3.0 PSU Review
- XPG Fusion 1600W Titanium PSU Review
- XPG Cybercore II 1300 Platinum PSU Review
- Manufacturer (OEM): Seasonic
- Max Power: 1200W
- Cybenetics Efficiency: [115V] Cybenetics Platinum (90.809%), [230V] Cybenetics Platinum (92.608%)
- Noise: Cybenetics A++ (<15 dB[A])
- Compliance: ATX v3.1, EPS 2.92
- Operating Temperature (Continuous Full Load): 0 – 50 °C
- Alternative Low Power Mode support: Yes
- Power 12V combined: 1200W
- Number of 12V rails: 1
- Power 5V + 3.3v: 125W
- Power 5VSB: 15W
- Cooling: 135mm Dual Ball Bearing Fan (F1214025BL)
- Semi-Passive Operation: ✓ (Selectable)
- Modular Design: Yes (Fully)
- High Power Connectors: 2x EPS (2x cables), 4x PCIe 6+2 pin (4x cables), 1x PCIe 12+2 pin (600W)
- Peripheral Connectors: 7x SATA (2x cables), 6x 4-pin Molex (2x cables)
- ATX Cable Length: 610mm
- EPS Cable Length: 1000mm
- 12+4 pin PCIe Cable Length: 740mm
- 6+2 pin PCIe Cable Length: 750mm
- Distance between SATA/4-pin Molex: 120/135mm
- Distance between 4-pin Molex: 165mm
- In-cable capacitors: No
- Dimensions (W x H x D): 150 mm x 85 mm x 190mm
- Weight: 2.43 kg (5.36 lb)
- Warranty: 10 years
- MSRP (excluding VAT): $500
Power Specifications
| Rail | 3.3V | 5V | 12V | 5VSB | -12V | |
| Max. Power | Amps | 30 | 25 | 100 | 3 | 0.3 |
| Watts | 125 | 1200 | 15 | 3.6 | ||
| Total Max. Power (W) | 1200 | |||||
