Load Regulation
| Test | 12V | 5V | 3.3V | 5VSB | DC/AC (Watts) | Efficiency | Fan Speed (RPM) | PSU Noise (dB[A]) | Temps (In/Out) | PF/AC Volts |
| 10% | 6.482A | 1.965A | 1.985A | 0.972A | 99.996 | 88.245% | 0 | <6.0 | 44.23°C | 0.974 |
| 12.095V | 5.089V | 3.324V | 5.145V | 113.317 | 40.02°C | 114.81V | ||||
| 20% | 13.988A | 2.95A | 2.98A | 1.17A | 199.948 | 91.732% | 0 | <6.0 | 45.74°C | 0.991 |
| 12.085V | 5.085V | 3.322V | 5.13V | 217.974 | 40.79°C | 114.78V | ||||
| 30% | 21.861A | 3.443A | 3.478A | 1.368A | 299.999 | 92.977% | 0 | <6.0 | 47.16°C | 0.997 |
| 12.074V | 5.083V | 3.321V | 5.118V | 322.66 | 41.25°C | 114.74V | ||||
| 40% | 29.708A | 3.936A | 3.977A | 1.568A | 399.552 | 92.834% | 0 | <6.0 | 48.54°C | 0.993 |
| 12.062V | 5.081V | 3.319V | 5.104V | 430.396 | 41.93°C | 114.72V | ||||
| 50% | 37.238A | 4.924A | 4.974A | 1.768A | 499.274 | 92.601% | 0 | <6.0 | 51.49°C | 0.993 |
| 12.051V | 5.078V | 3.317V | 5.091V | 539.164 | 42.05°C | 114.67V | ||||
| 60% | 44.843A | 5.912A | 5.973A | 1.971A | 599.806 | 92.227% | 494 | 9.9 | 42.56°C | 0.994 |
| 12.042V | 5.075V | 3.315V | 5.075V | 650.36 | 58.01°C | 114.64V | ||||
| 70% | 52.404A | 6.902A | 6.972A | 2.173A | 699.569 | 91.767% | 680 | 18.2 | 43.26°C | 0.995 |
| 12.031V | 5.072V | 3.314V | 5.062V | 762.327 | 58.42°C | 114.61V | ||||
| 80% | 60.039A | 7.891A | 7.971A | 2.276A | 799.56 | 91.255% | 966 | 28.7 | 43.61°C | 0.996 |
| 12.020V | 5.069V | 3.312V | 5.052V | 876.188 | 57.79°C | 114.57V | ||||
| 90% | 68.024A | 8.387A | 8.458A | 2.38A | 899.336 | 90.7% | 1223 | 35.4 | 44.72°C | 0.996 |
| 12.008V | 5.067V | 3.31V | 5.042V | 991.549 | 58.9°C | 114.54V | ||||
| 100% | 75.836A | 8.886A | 8.976A | 2.992A | 999.375 | 90.061% | 1224 | 35.4 | 45.02°C | 0.996 |
| 11.996V | 5.064V | 3.309V | 5.014V | 1109.659 | 62.37°C | 114.5V | ||||
| 110% | 83.593A | 9.879A | 10.069A | 2.997A | 1099.994 | 89.382% | 1224 | 35.4 | 46.37°C | 0.997 |
| 11.983V | 5.061V | 3.307V | 5.006V | 1230.685 | 66.24°C | 114.47V | ||||
| CL1 | 0.116A | 14.888A | 14.988A | 0A | 126.301 | 84.928% | 0 | <6.0 | 52.68°C | 0.985 |
| 12.092V | 5.058V | 3.309V | 5.172V | 148.717 | 42.07°C | 114.79V | ||||
| CL2 | 0.114A | 24.646A | 0A | 0A | 126.221 | 83.881% | 617 | 16.3 | 40.27°C | 0.987 |
| 12.101V | 5.065V | 3.303V | 5.176V | 150.476 | 49.82°C | 114.81V | ||||
| CL3 | 0.114A | 0A | 29.854A | 0A | 100.377 | 76.313% | 617 | 16.3 | 41.54°C | 0.979 |
| 12.101V | 5.059V | 3.316V | 5.174V | 131.535 | 49.48°C | 114.81V | ||||
| CL4 | 83.390A | 0A | 0A | 0A | 999.893 | 90.839% | 854 | 25.3 | 44.25°C | 0.996 |
| 11.990V | 5.079V | 3.315V | 5.129V | 1100.729 | 58.44°C | 114.5V |

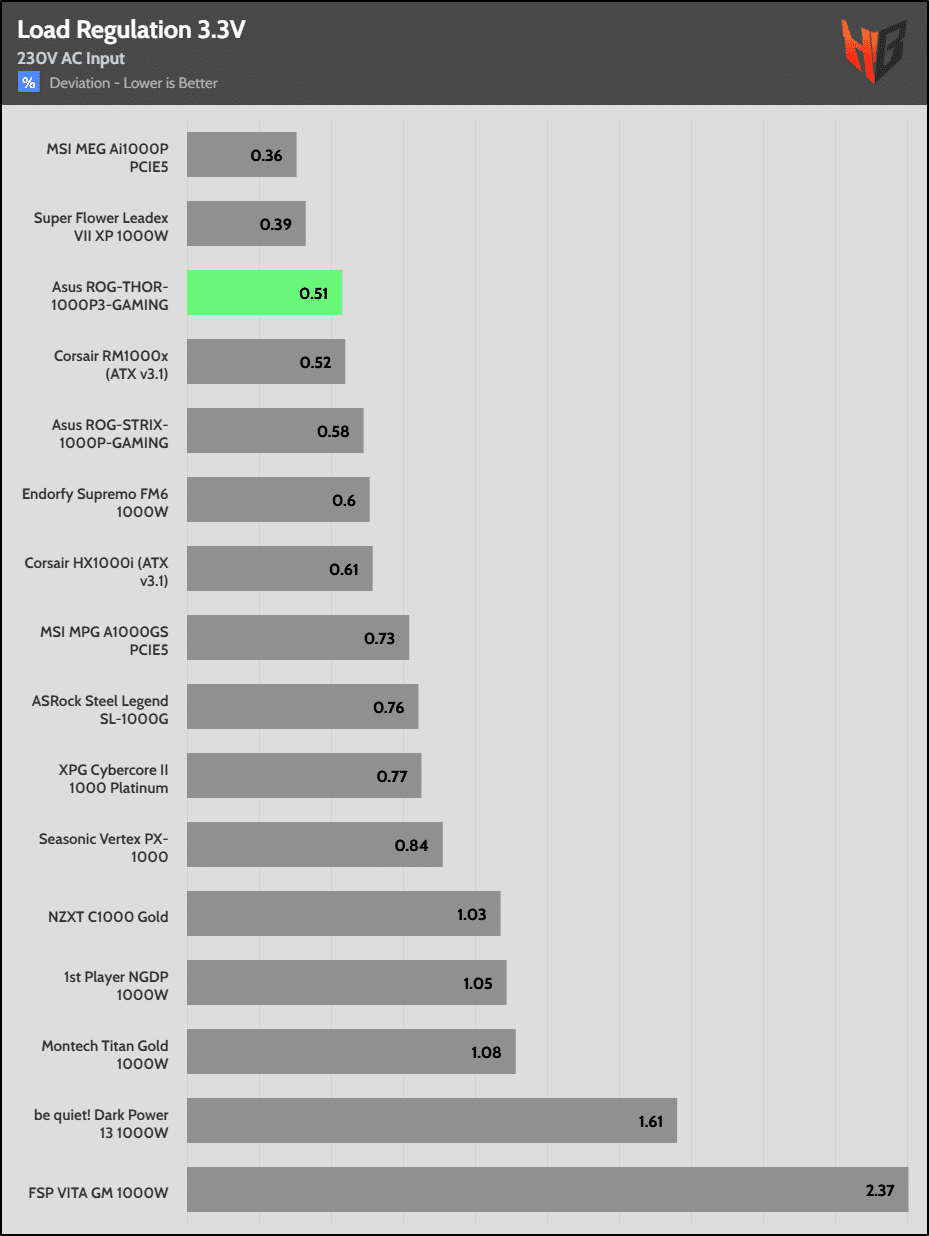

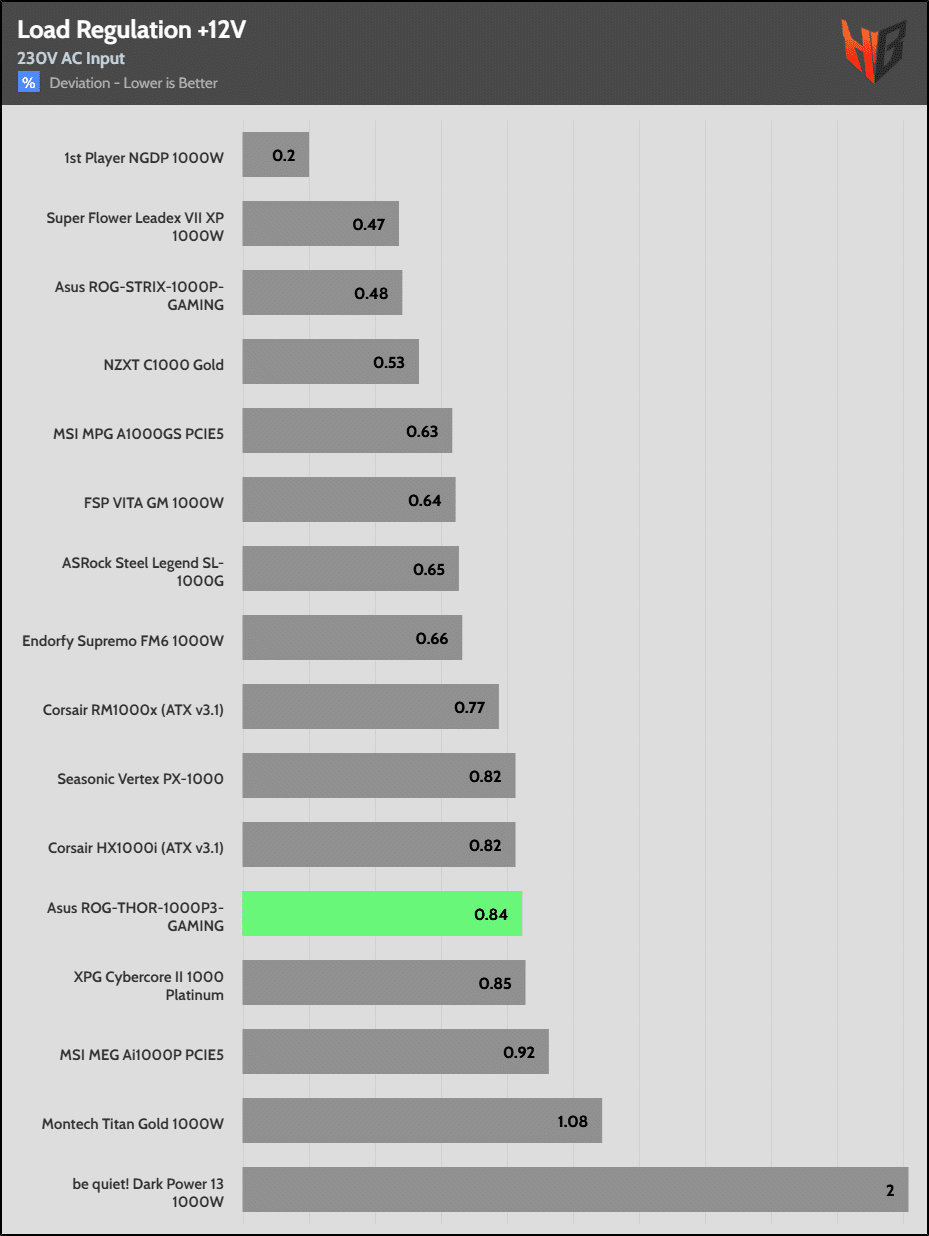

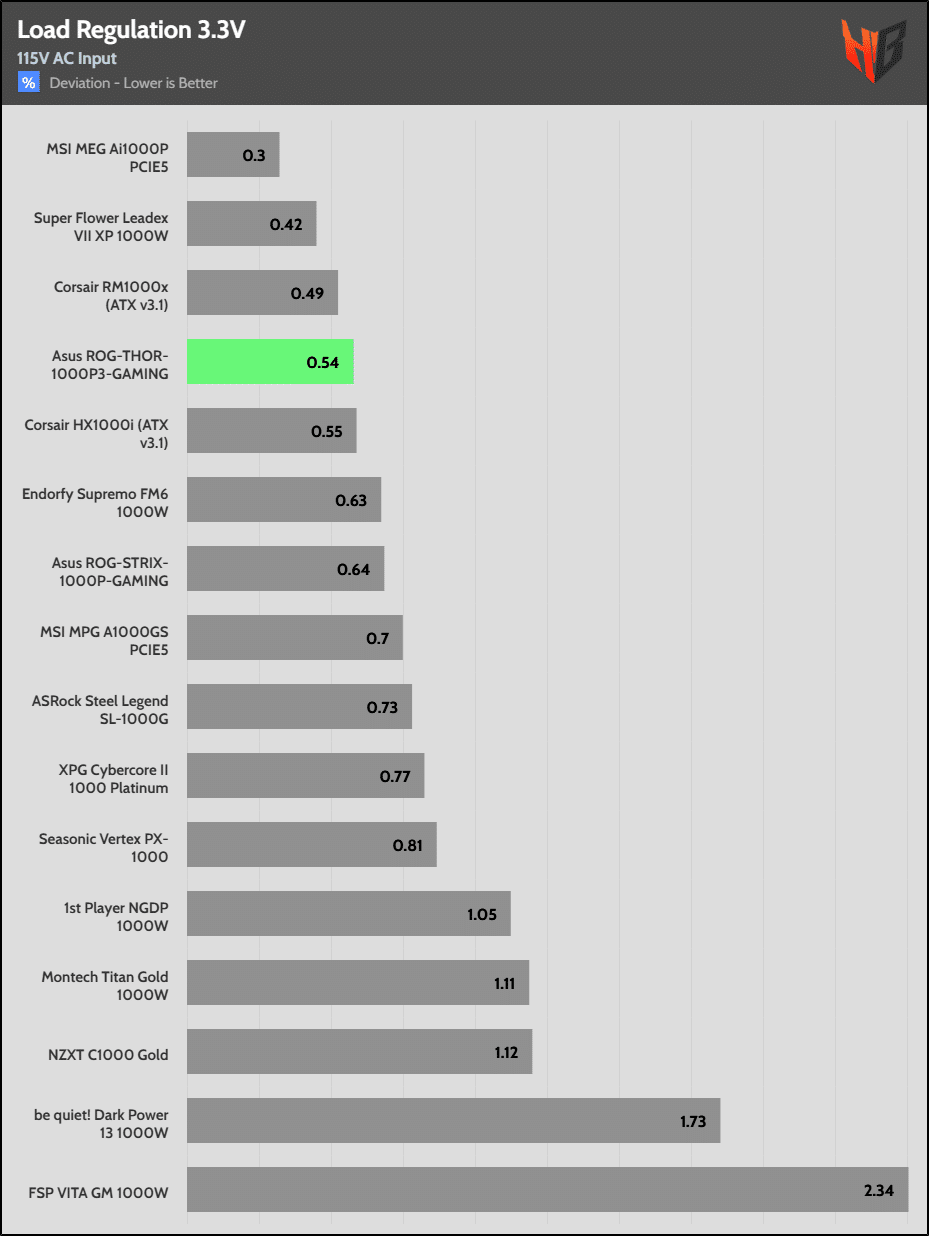

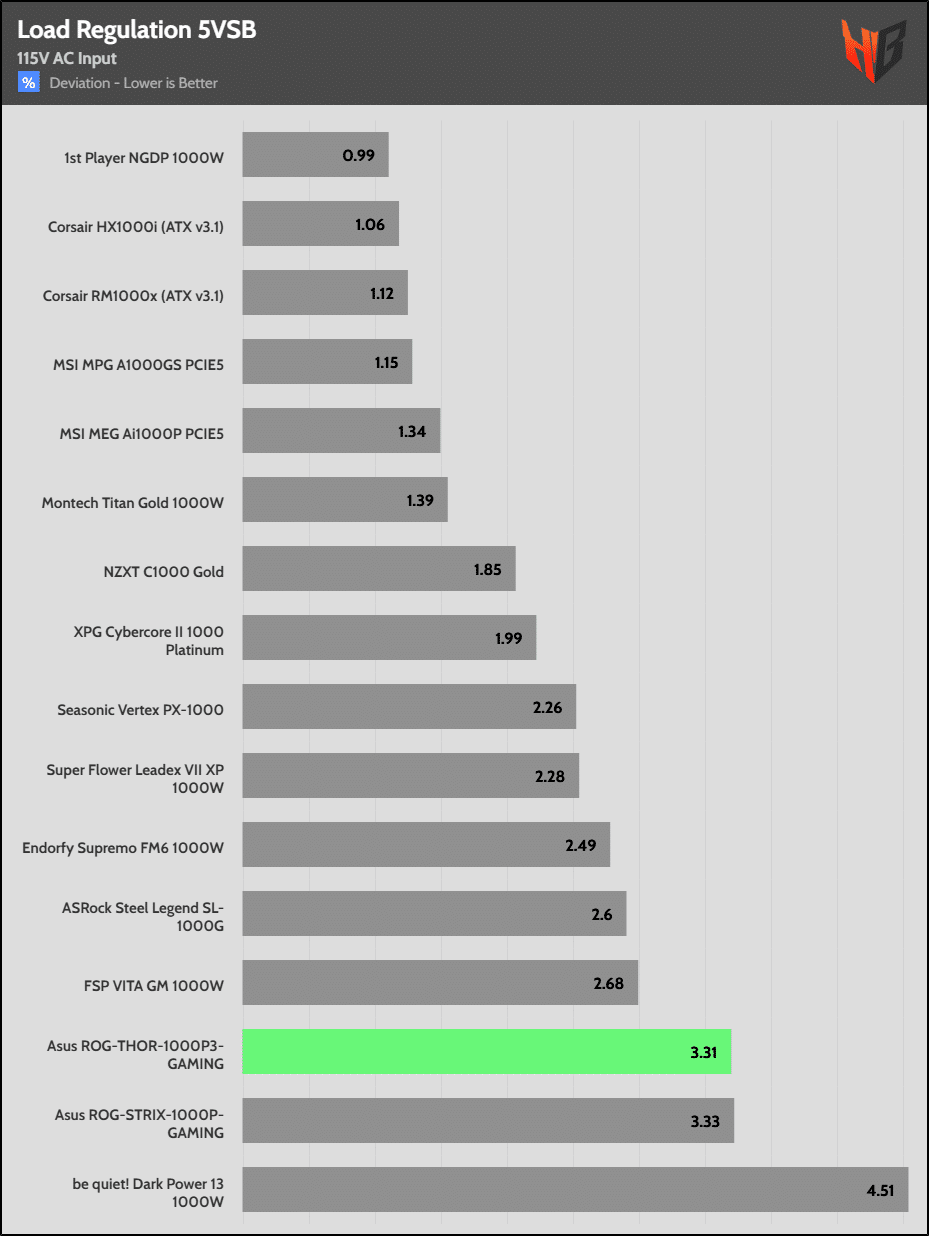

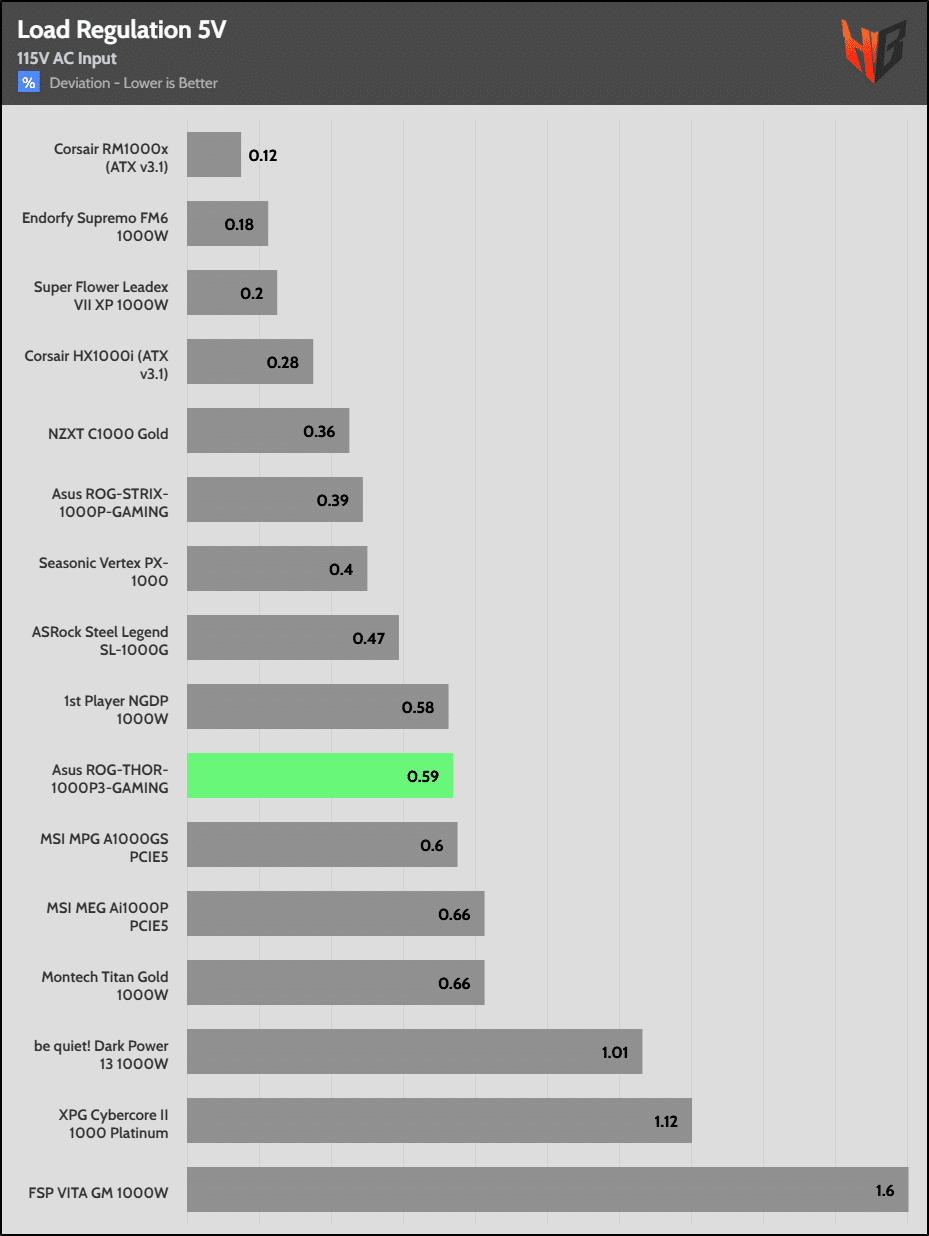

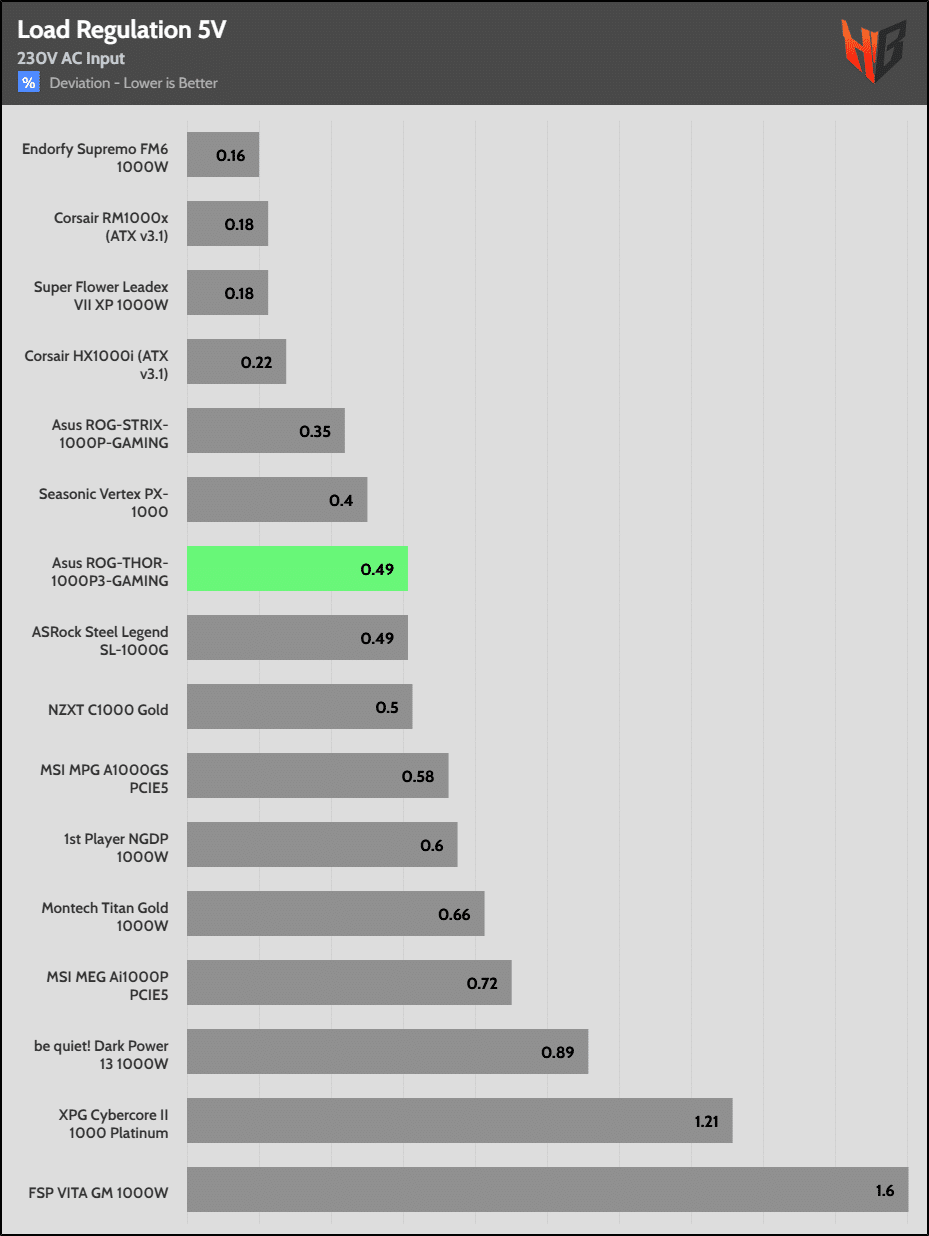

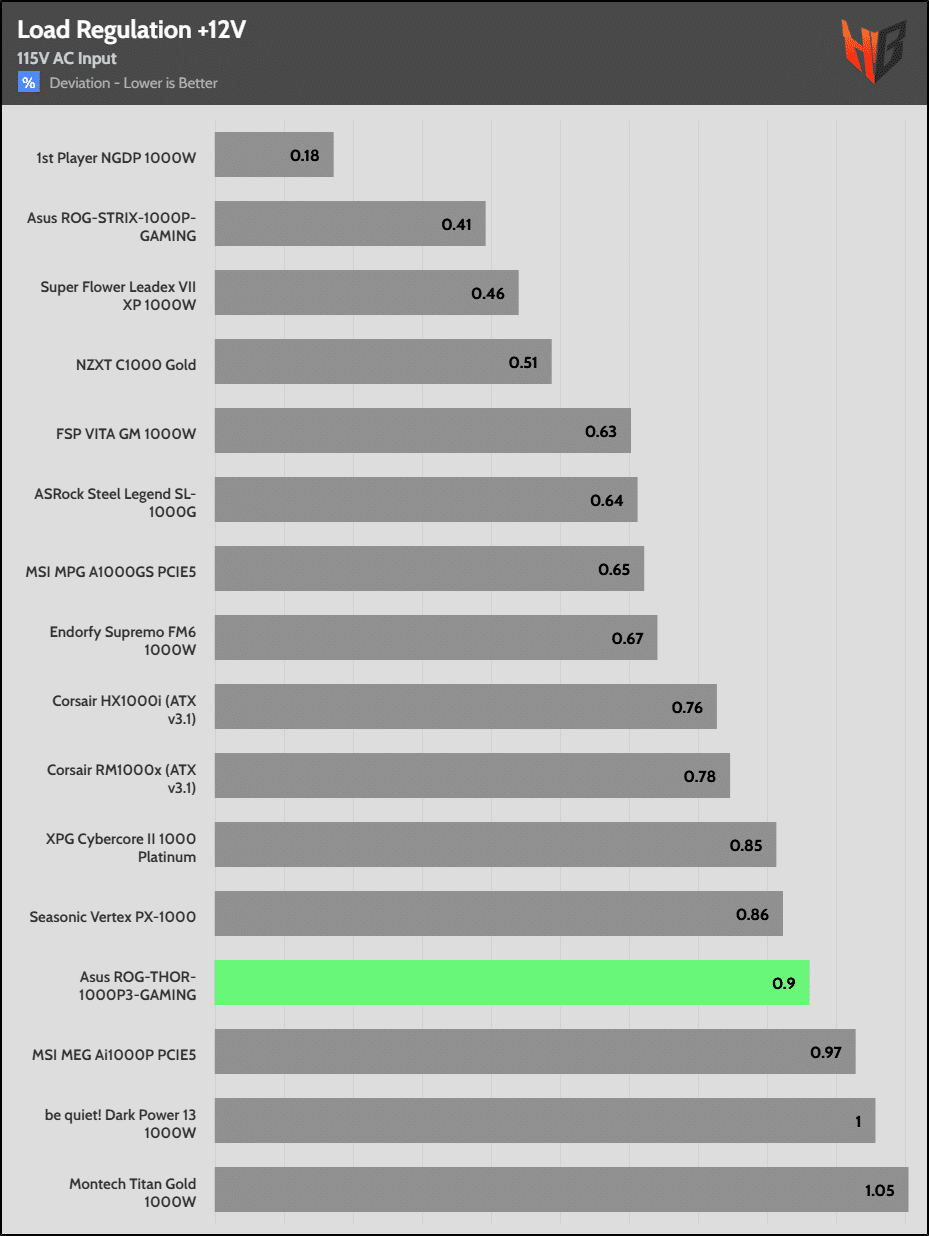

Load regulation is within 1% on all rails, but I would like it tighter at 12V.
| Test | 12V | 5V | 3.3V | 5VSB | DC/AC (Watts) | Efficiency | Fan Speed (RPM) | PSU Noise (dB[A]) | Temps (In/Out) | PF/AC Volts |
| 20W | 1.226A | 0.491A | 0.496A | 0.193A | 19.997 | 67.316% | 0 | <6.0 | 37.8°C | 0.836 |
| 12.103V | 5.094V | 3.327V | 5.18V | 29.708 | 36.54°C | 114.85V | ||||
| 40W | 2.702A | 0.687A | 0.694A | 0.29A | 39.999 | 79.343% | 0 | <6.0 | 39.3°C | 0.931 |
| 12.101V | 5.093V | 3.326V | 5.176V | 50.418 | 37.63°C | 114.83V | ||||
| 60W | 4.176A | 0.883A | 0.893A | 0.387A | 60 | 83.961% | 0 | <6.0 | 40.7°C | 0.95 |
| 12.099V | 5.092V | 3.326V | 5.171V | 71.463 | 38.34°C | 114.83V | ||||
| 80W | 5.648A | 1.08A | 1.091A | 0.484A | 79.943 | 87.018% | 0 | <6.0 | 42.62°C | 0.972 |
| 12.096V | 5.091V | 3.326V | 5.167V | 91.871 | 39.06°C | 114.82V |
A look at the light loads table is always useful, because the PSU will usually operate at light loads.

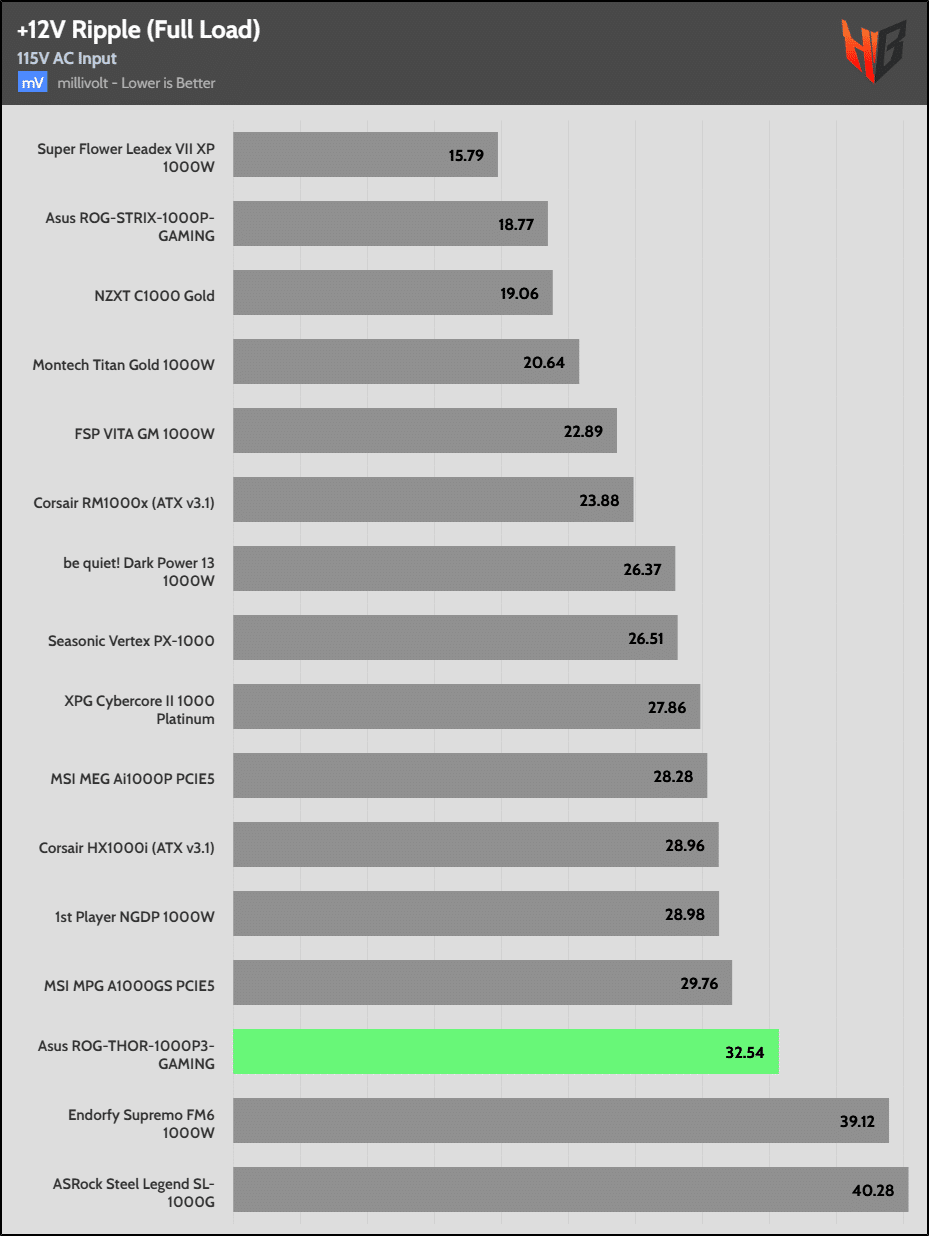

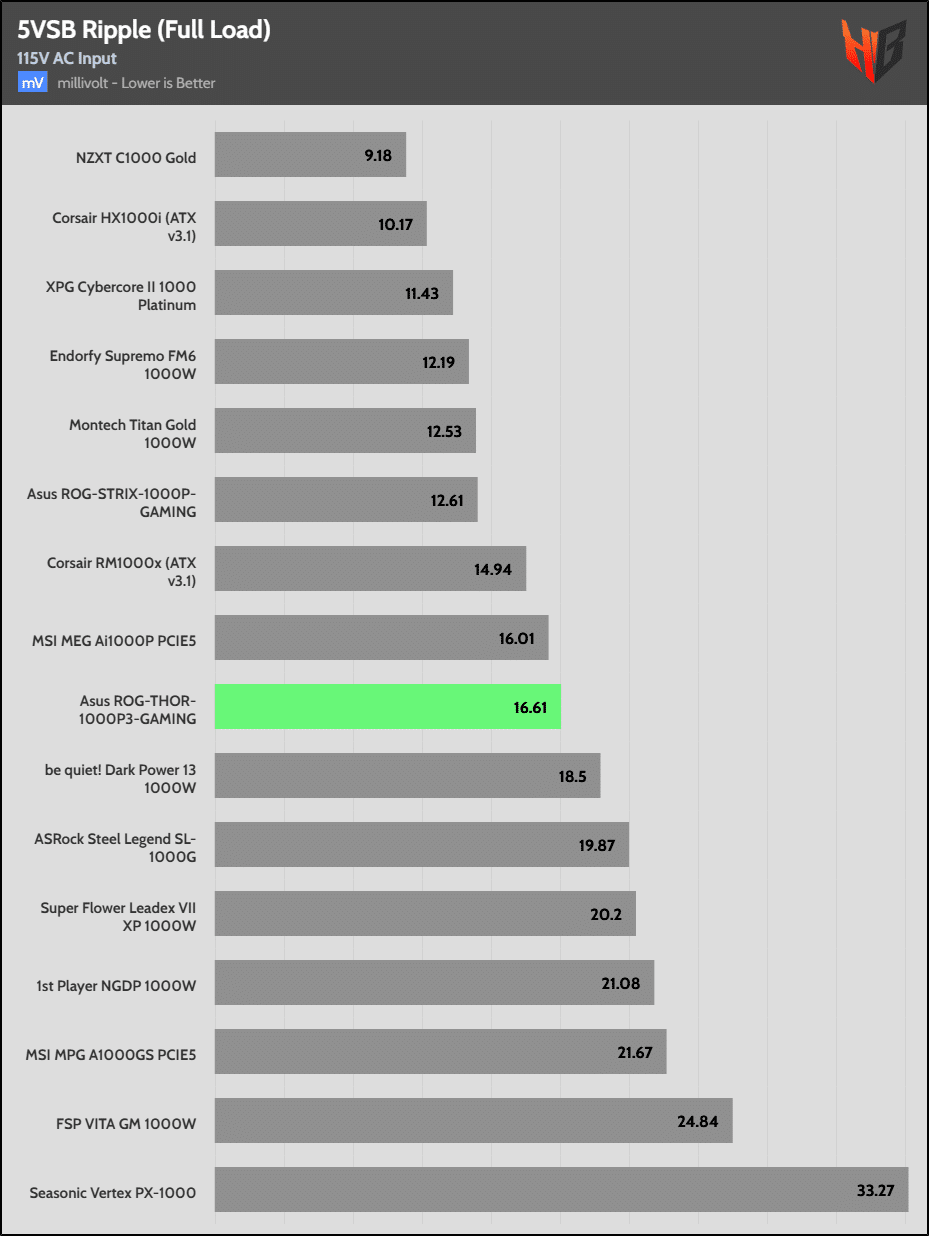

Ripple Suppression
| Test | 12V | 5V | 3.3V | 5VSB | Pass/Fail |
| 10% Load | 17.3 mV | 15.5 mV | 16.4 mV | 11.1 mV | Pass |
| 20% Load | 18.0 mV | 19.5 mV | 19.6 mV | 10.5 mV | Pass |
| 30% Load | 22.3 mV | 16.8 mV | 20.9 mV | 11.0 mV | Pass |
| 40% Load | 19.1 mV | 16.4 mV | 17.8 mV | 13.2 mV | Pass |
| 50% Load | 19.8 mV | 16.4 mV | 17.3 mV | 13.8 mV | Pass |
| 60% Load | 19.1 mV | 16.0 mV | 16.4 mV | 13.4 mV | Pass |
| 70% Load | 20.9 mV | 17.5 mV | 18.2 mV | 14.1 mV | Pass |
| 80% Load | 19.5 mV | 16.7 mV | 18.5 mV | 15.3 mV | Pass |
| 90% Load | 20.6 mV | 17.5 mV | 18.2 mV | 15.1 mV | Pass |
| 100% Load | 32.5 mV | 18.8 mV | 20.6 mV | 16.6 mV | Pass |
| 110% Load | 33.8 mV | 19.2 mV | 20.0 mV | 17.7 mV | Pass |
| Crossload 1 | 25.4 mV | 15.6 mV | 18.7 mV | 11.0 mV | Pass |
| Crossload 2 | 19.1 mV | 22.6 mV | 17.9 mV | 10.6 mV | Pass |
| Crossload 3 | 17.9 mV | 17.2 mV | 22.8 mV | 10.5 mV | Pass |
| Crossload 4 | 32.2 mV | 17.3 mV | 19.0 mV | 17.0 mV | Pass |

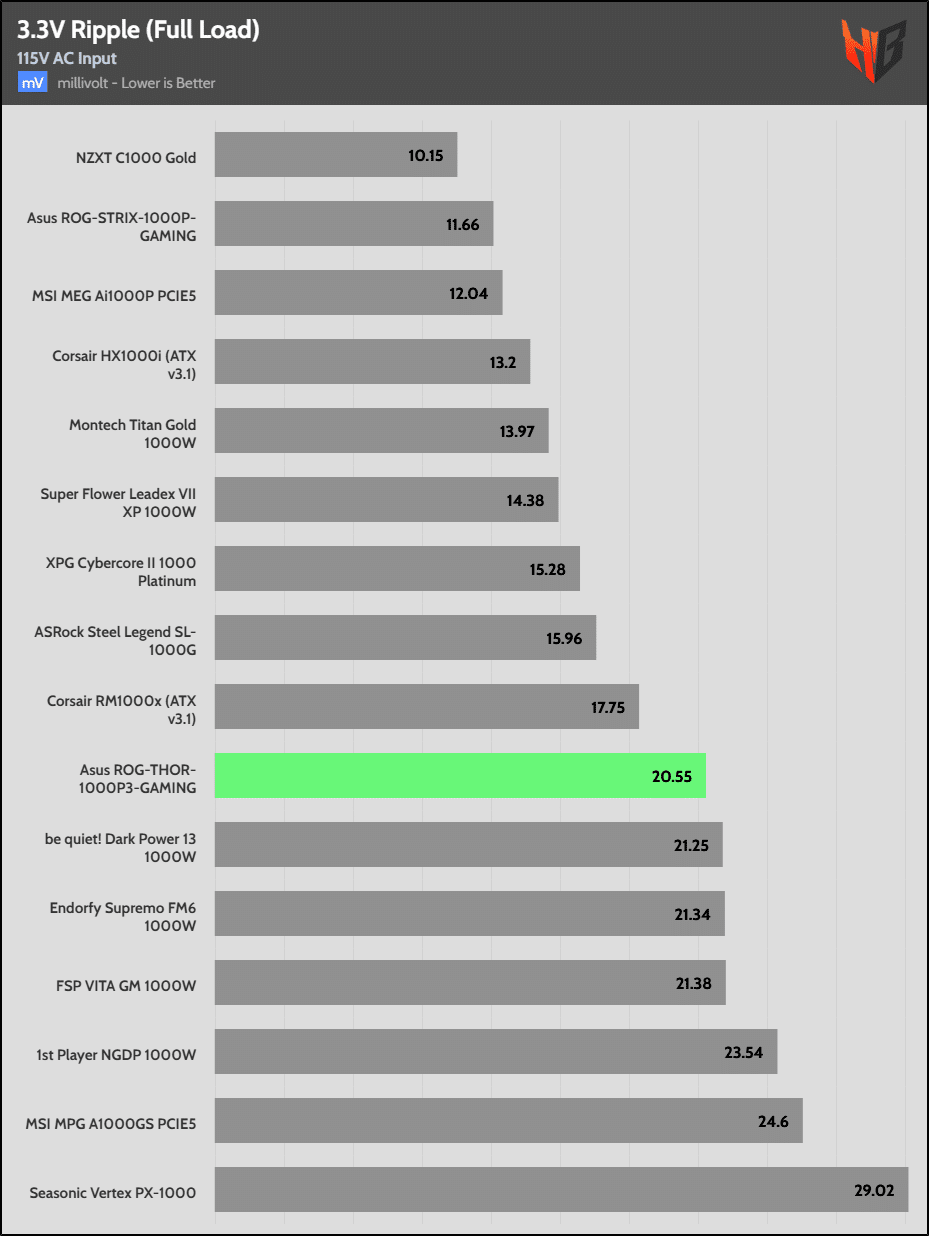

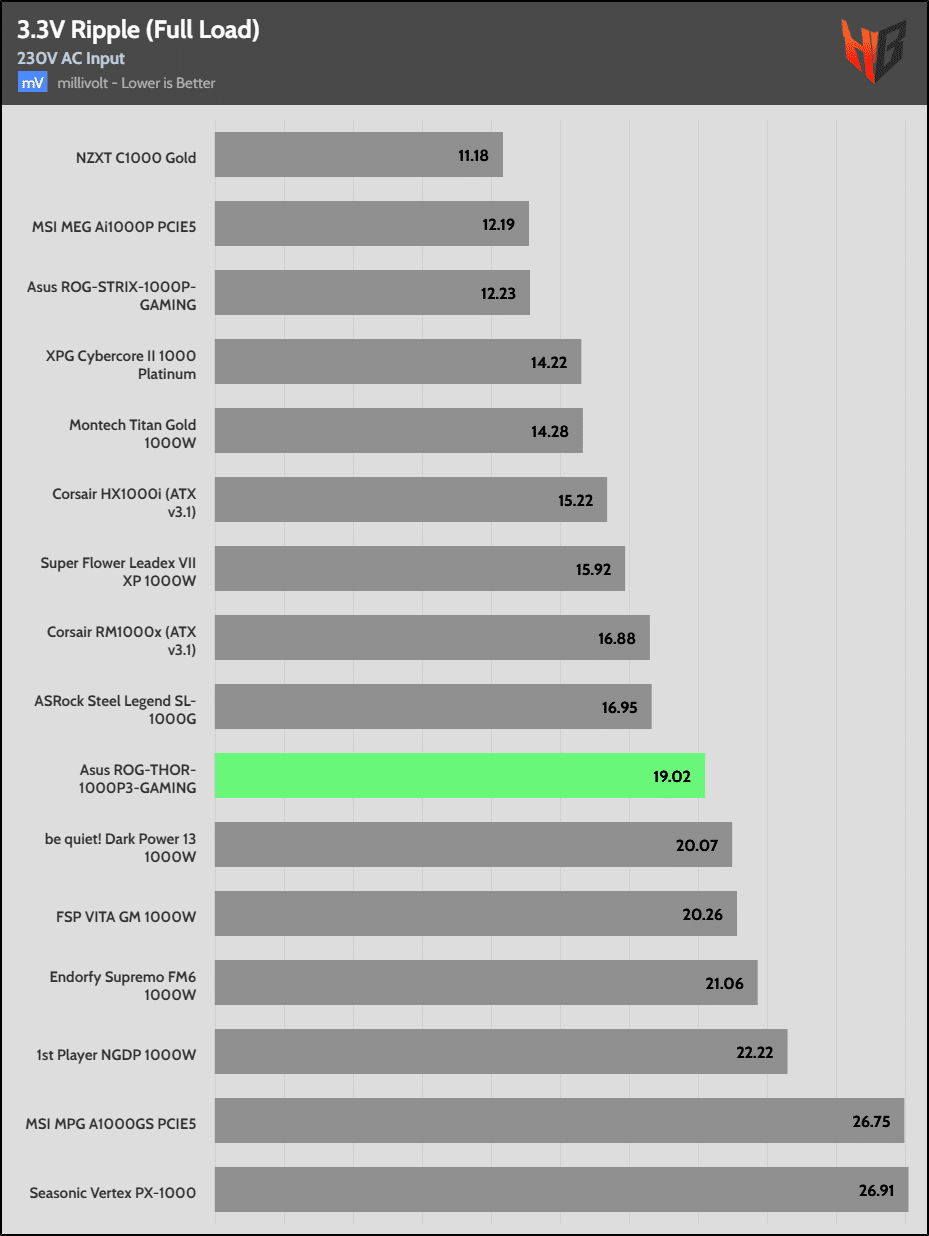

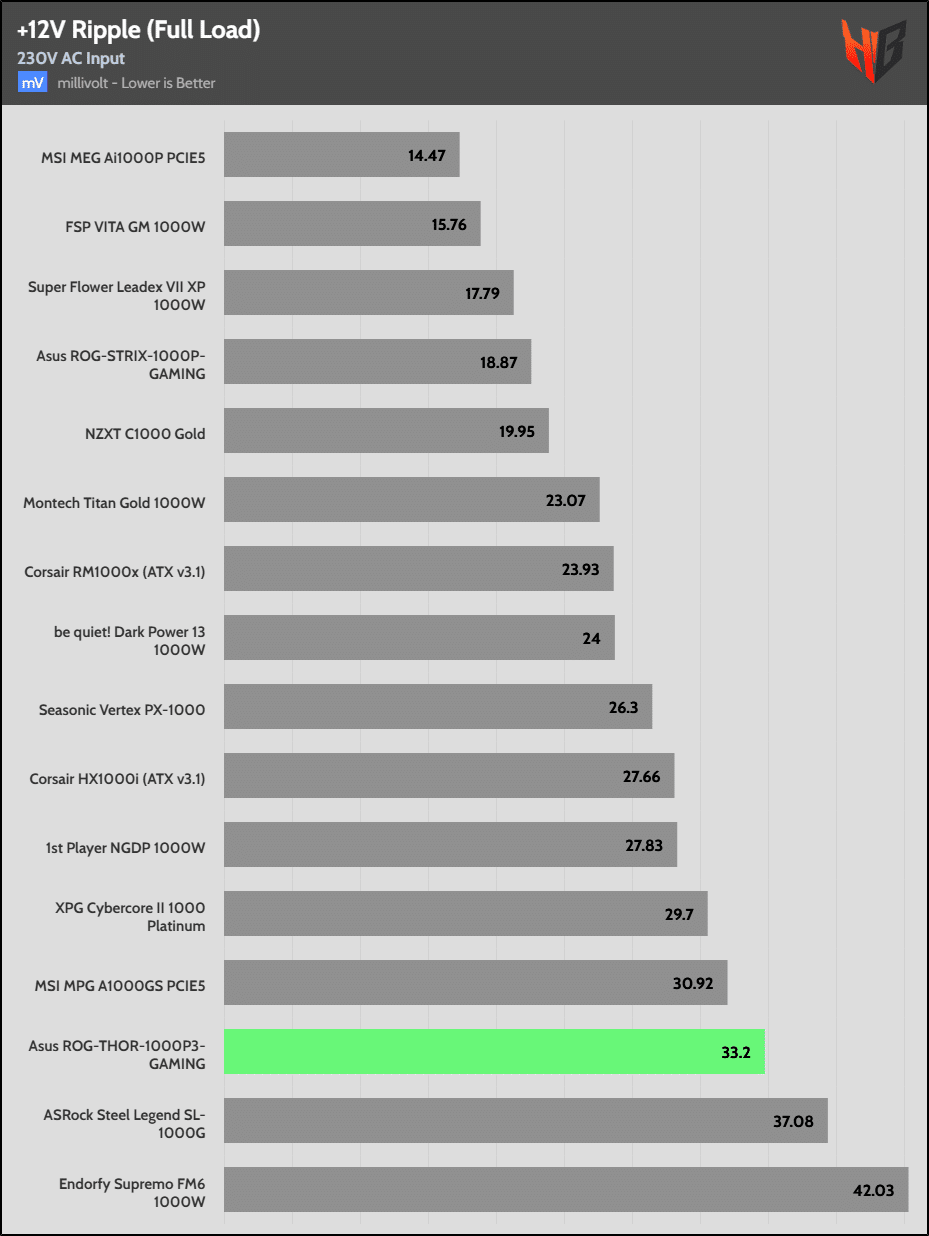

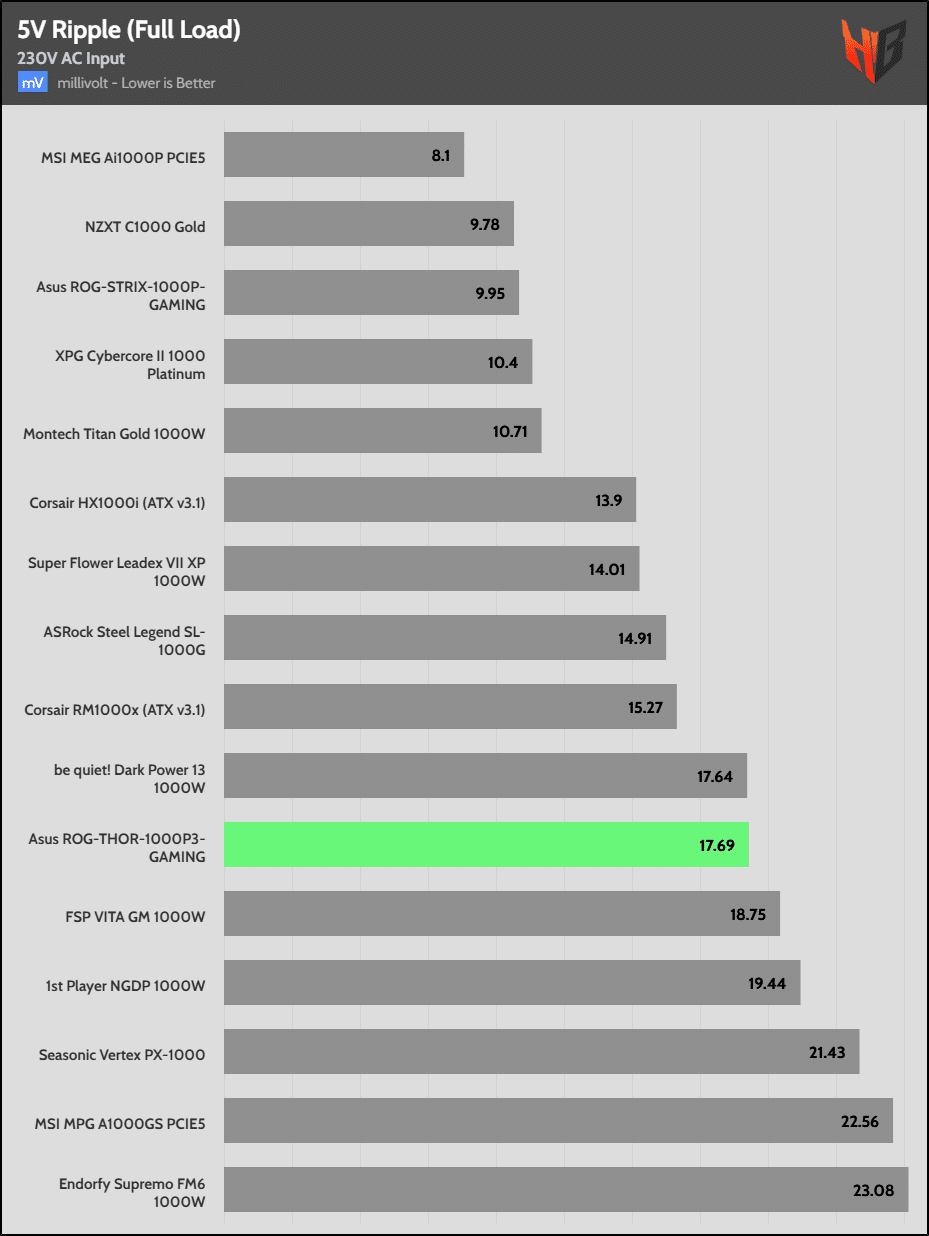

Ripple suppression is good, but not competitive.
