Frequency Plots: Cooler Master V4 Alpha 3DHP Black
| Fan Speed (PWM) | Peak Frequency |
|---|---|
| 20% | 4 kHz |
| 30% | 1.25 kHz |
| 40% | 1 kHz |
| 50% | 1 kHz |
| 60% | 1 kHz |
| 70% | 630 Hz |
| 80% | 160 Hz |
| 90% | 500 Hz |
| 100% | 1.25 kHz |

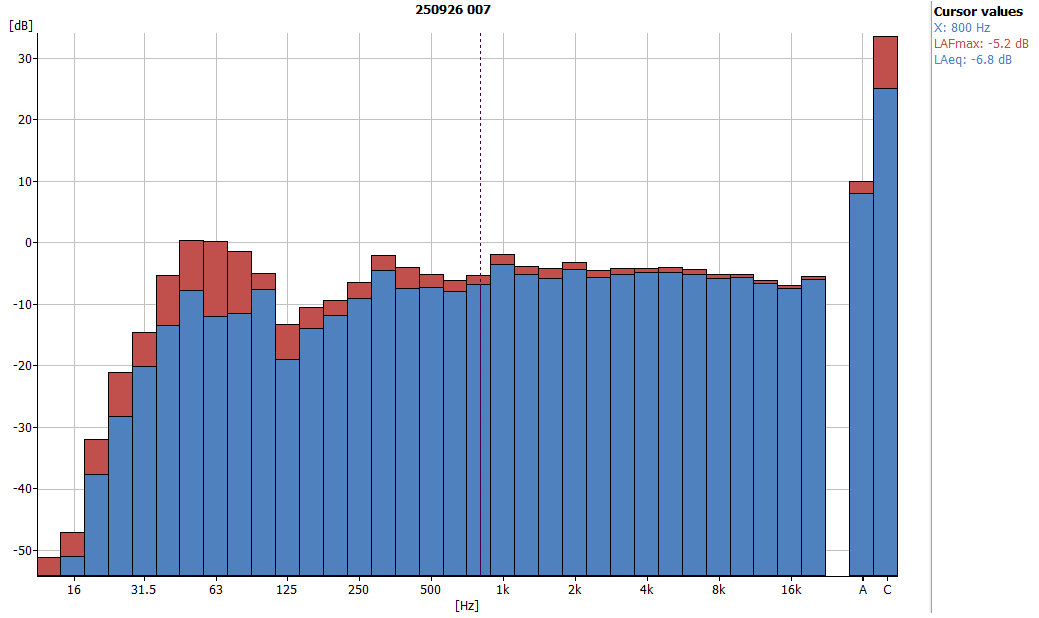

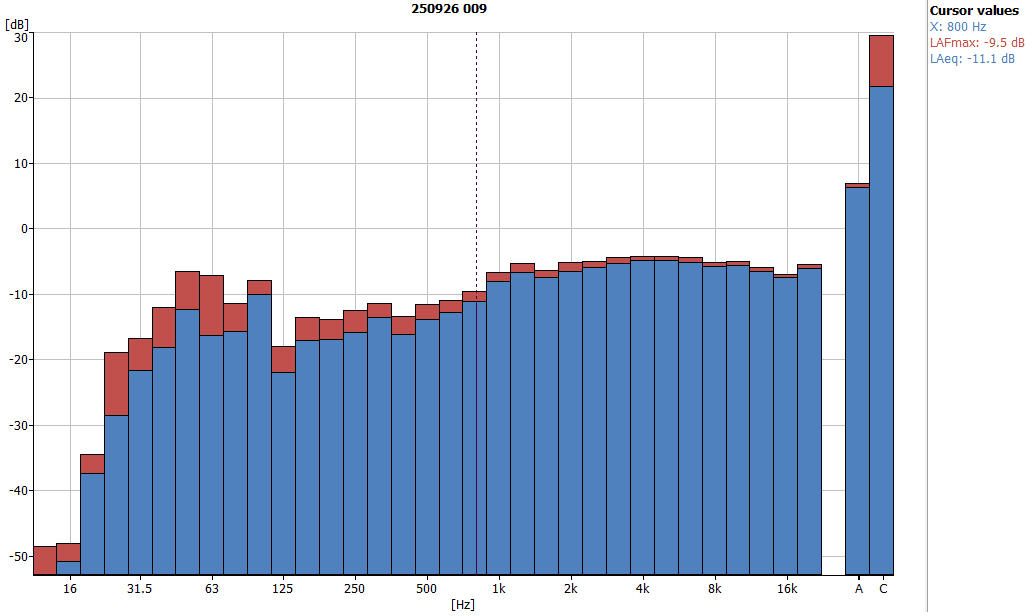

20% Fan Speed
- Peak frequency: 4 kHz

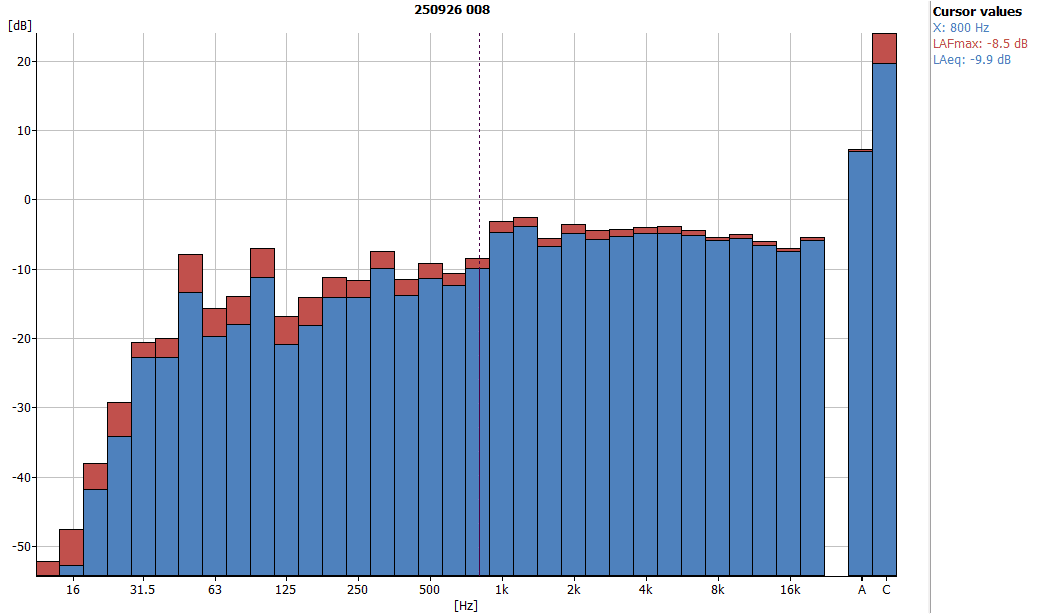

30% Fan Speed
- Peak frequency: 1.25 kHz
40% Fan Speed
- Peak frequency: 1 kHz

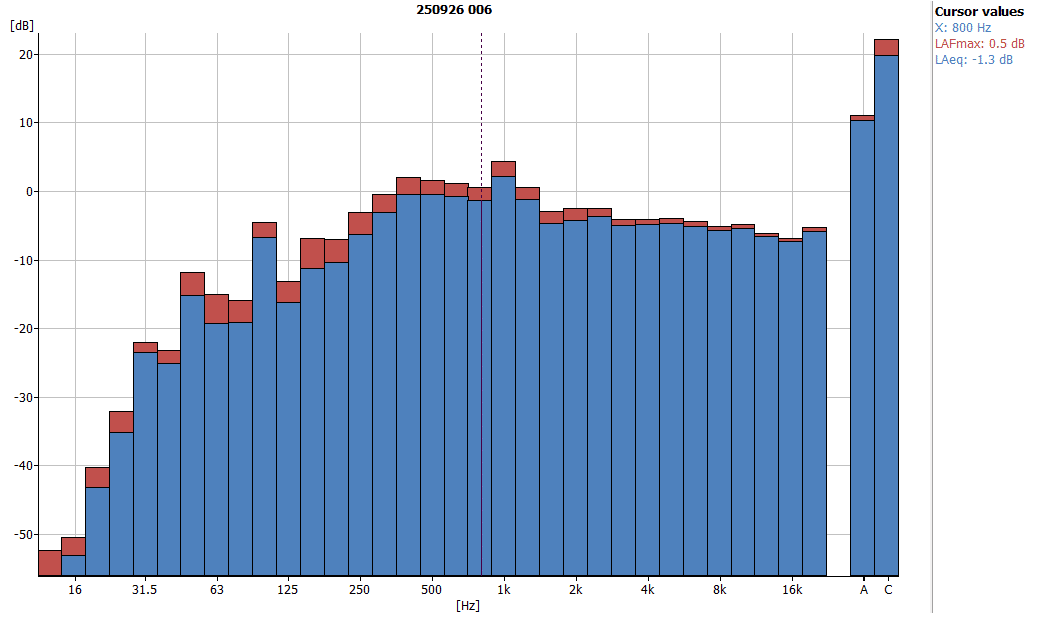

50% Fan Speed
- Peak frequency: 1 kHz

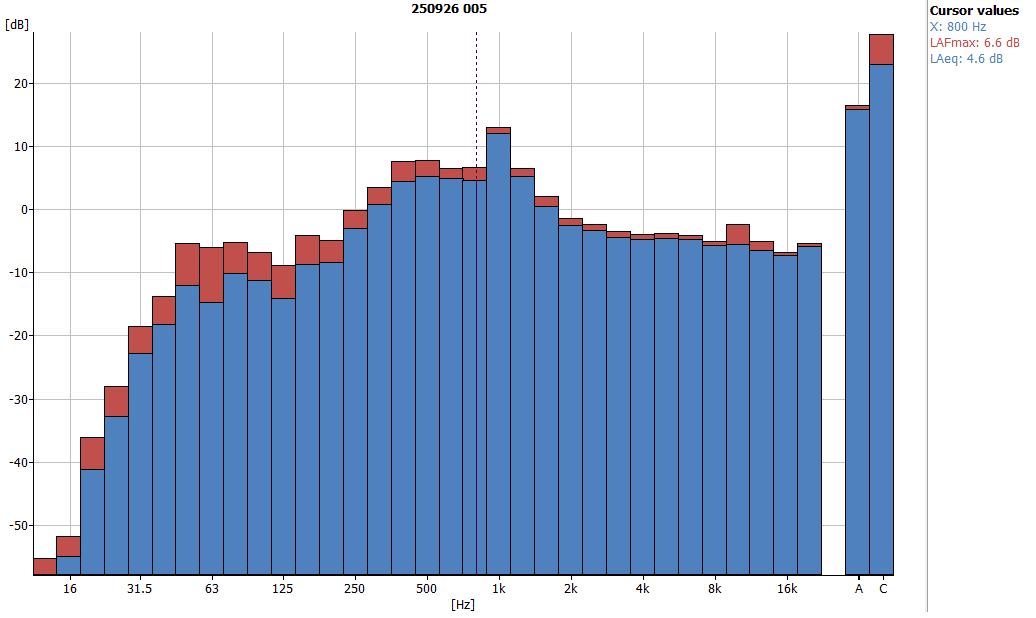

60% Fan Speed
- Peak frequency: 1 kHz

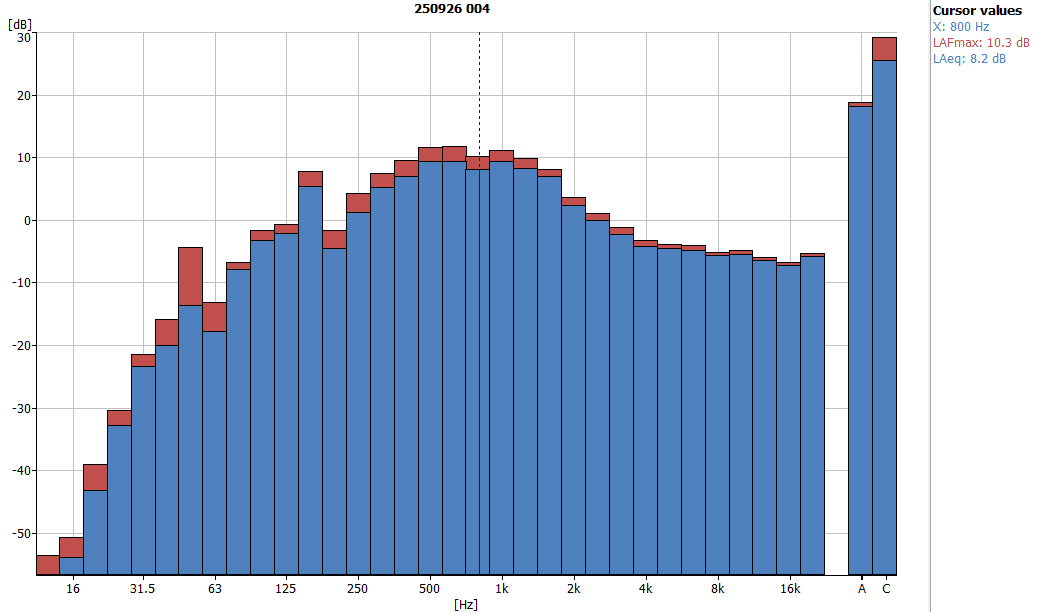

70% Fan Speed
- Peak frequency: 630 Hz

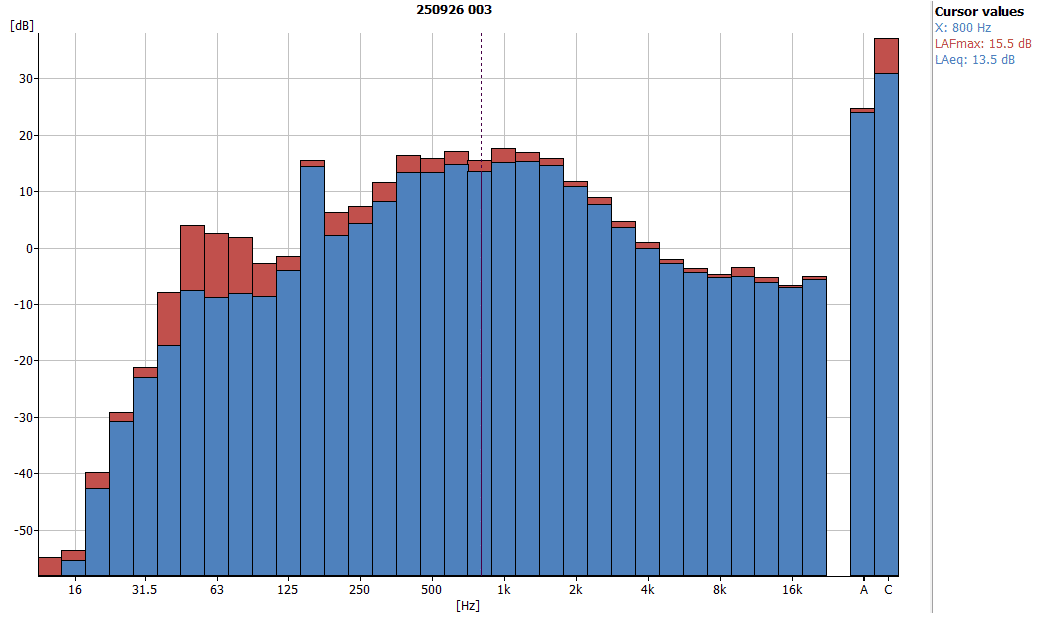

80% Fan Speed
- Peak frequency: 160 Hz

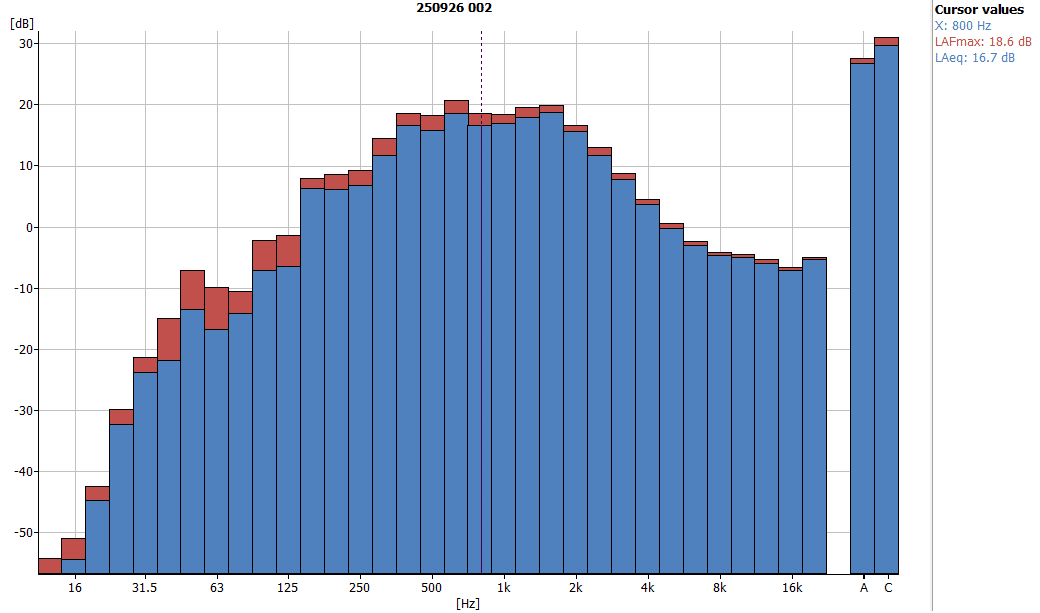

90% Fan Speed
- Peak frequency: 630 Hz

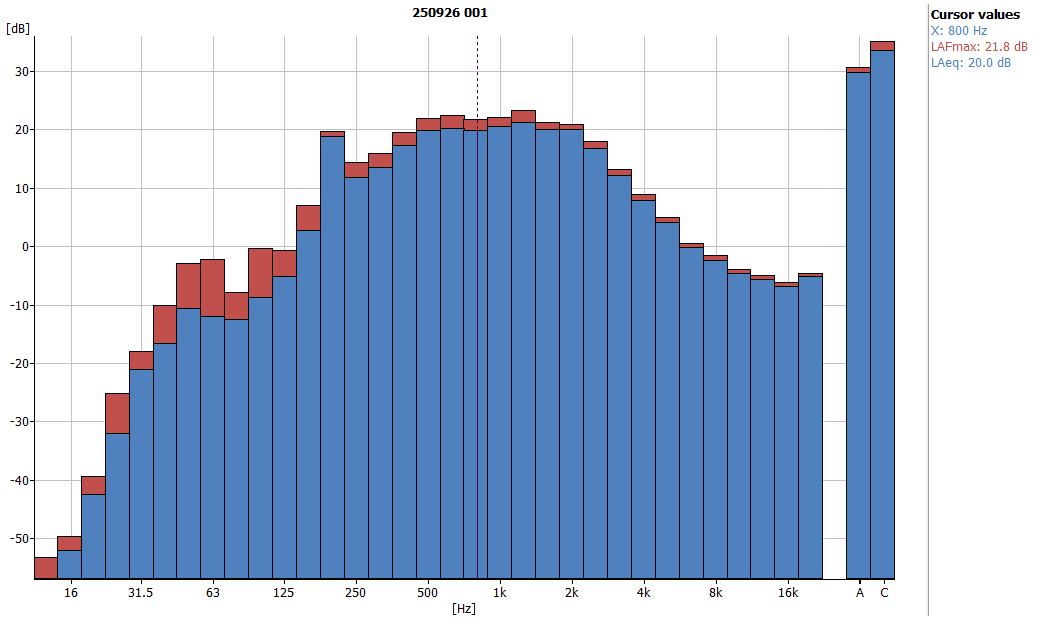

100% Fan Speed
- Peak frequency: 1.25 kHz
Signal Recordings
I’ve recorded the signals shown above, but please note that I’ve enabled Automatic Gain Control (AGC) to facilitate their reproduction. The provided recordings are intended for aural identification purposes only.
20% Fan Speed
30% Fan Speed
40% Fan Speed
50% Fan Speed
60% Fan Speed
70% Fan Speed
80% Fan Speed
90% Fan Speed
100% Fan Speed
