Load Regulation
It measures the stability of the output voltage when the load connected to the power supply varies.
| Test | 12V | 5V | 3.3V | 5VSB | DC/AC (Watts) | Efficiency | Fan Speed (RPM) | PSU Noise (dB[A]) | Temps (In/Out) | PF/AC Volts |
| 10% | 5.258A | 1.994A | 1.982A | 0.991A | 85.003 | 88.034% | 397 | <6.0 | 40.1°C | 0.98 |
| 12.060V | 5.015V | 3.33V | 5.047V | 96.54 | 45.49°C | 115.06V | ||||
| 20% | 11.536A | 2.993A | 2.976A | 1.193A | 169.938 | 91.547% | 396 | <6.0 | 40.63°C | 0.99 |
| 12.051V | 5.012V | 3.326V | 5.03V | 185.629 | 47.39°C | 115.02V | ||||
| 30% | 18.174A | 3.493A | 3.476A | 1.396A | 254.938 | 92.28% | 396 | <6.0 | 41.29°C | 0.993 |
| 12.044V | 5.01V | 3.323V | 5.014V | 276.263 | 50.41°C | 115V | ||||
| 40% | 24.827A | 3.994A | 3.976A | 1.601A | 340.028 | 92.465% | 398 | <6.0 | 41.88°C | 0.993 |
| 12.036V | 5.009V | 3.32V | 4.997V | 367.735 | 54.05°C | 114.97V | ||||
| 50% | 31.120A | 4.994A | 4.975A | 1.808A | 424.828 | 92.158% | 400 | <6.0 | 42.06°C | 0.993 |
| 12.028V | 5.006V | 3.317V | 4.98V | 460.977 | 58.21°C | 114.93V | ||||
| 60% | 37.401A | 5.996A | 5.976A | 2A | 509.288 | 91.782% | 400 | <6.0 | 42.5°C | 0.995 |
| 12.020V | 5.004V | 3.313V | 4.962V | 554.889 | 63.01°C | 114.91V | ||||
| 70% | 43.753A | 6.999A | 6.98A | 2.226A | 594.679 | 91.283% | 449 | <6.0 | 43.43°C | 0.996 |
| 12.012V | 5.002V | 3.31V | 4.942V | 651.467 | 68.34°C | 114.88V | ||||
| 80% | 50.142A | 7.994A | 7.981A | 2.334A | 679.547 | 90.783% | 469 | <6.0 | 39.18°C | 0.997 |
| 11.999V | 5.004V | 3.308V | 4.927V | 748.536 | 65.56°C | 114.82V | ||||
| 90% | 56.908A | 8.493A | 8.473A | 2.44A | 764.848 | 89.871% | 839 | 20.6 | 39.18°C | 0.997 |
| 11.991V | 5.004V | 3.304V | 4.917V | 851.054 | 65.23°C | 114.82V | ||||
| 100% | 63.440A | 8.994A | 8.994A | 3.075A | 849.68 | 89.186% | 951 | 24.2 | 40.01°C | 0.998 |
| 11.979V | 5.003V | 3.302V | 4.878V | 952.698 | 67.4°C | 114.78V | ||||
| 110% | 69.805A | 9.995A | 10.094A | 3.082A | 934.243 | 88.546% | 1033 | 27.3 | 40.91°C | 0.998 |
| 11.976V | 5.002V | 3.299V | 4.868V | 1055.092 | 69.96°C | 114.75V | ||||
| CL1 | 0.116A | 13.229A | 13.174A | 0A | 111.29 | 82.901% | 641 | 13 | 41.85°C | 0.986 |
| 12.056V | 5.004V | 3.317V | 5.068V | 134.246 | 56.11°C | 115.05V | ||||
| CL2 | 0.115A | 19.986A | 0A | 0A | 101.368 | 81.23% | 1646 | 39.8 | 40.43°C | 0.985 |
| 12.060V | 5.002V | 3.331V | 5.078V | 124.791 | 45.9°C | 115.05V | ||||
| CL3 | 0.115A | 0A | 19.921A | 0A | 67.379 | 74.646% | 1585 | 40 | 41.44°C | 0.978 |
| 12.057V | 5.014V | 3.313V | 5.075V | 90.266 | 45.41°C | 115.06V | ||||
| CL4 | 70.822A | 0A | 0A | 0A | 849.461 | 84.119% | 1110 | 29 | 46.03°C | 0.981 |
| 11.995V | 5.005V | 3.311V | 5.028V | 943.7 | 65.1°C | 114.78V |

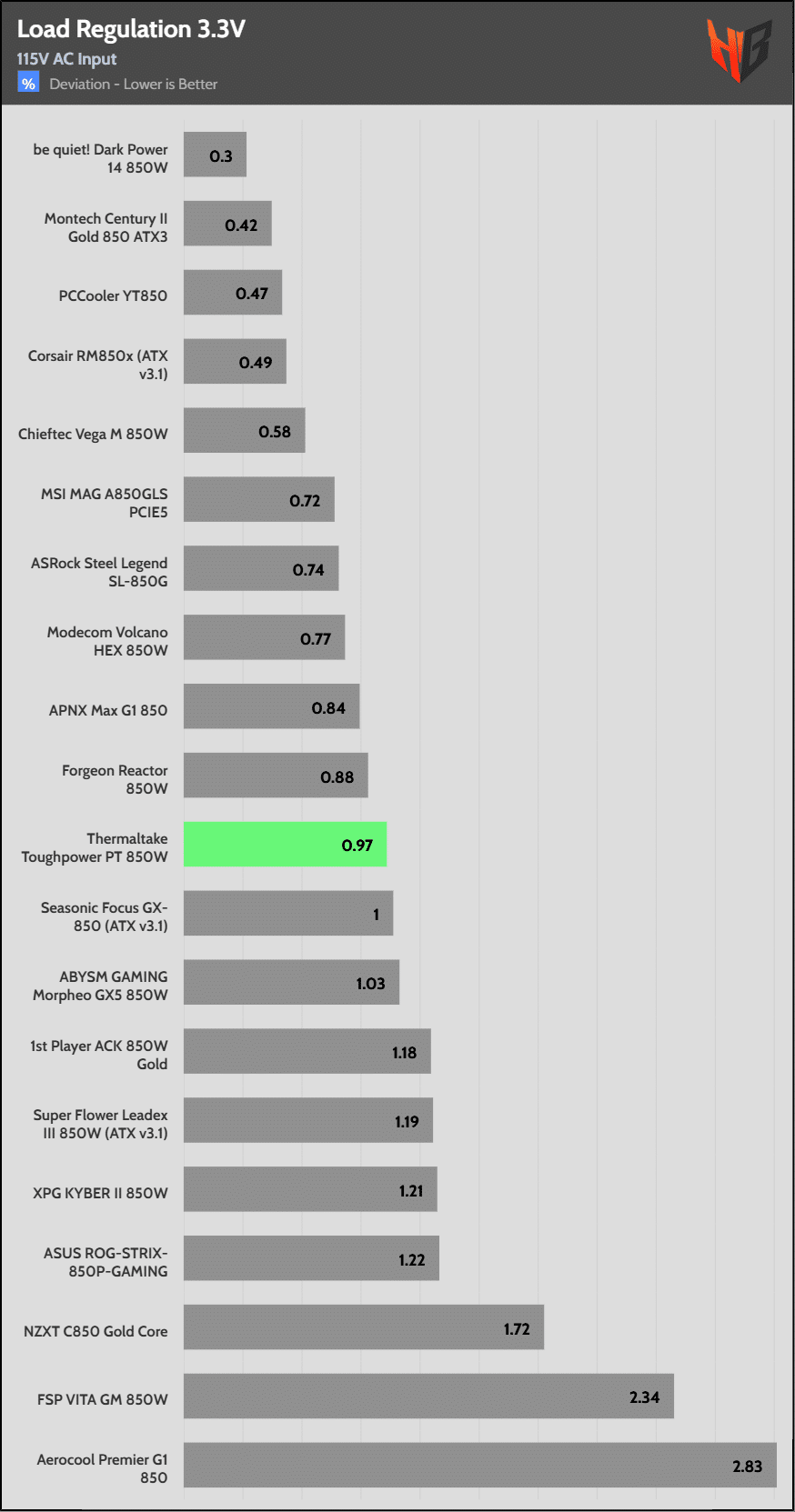

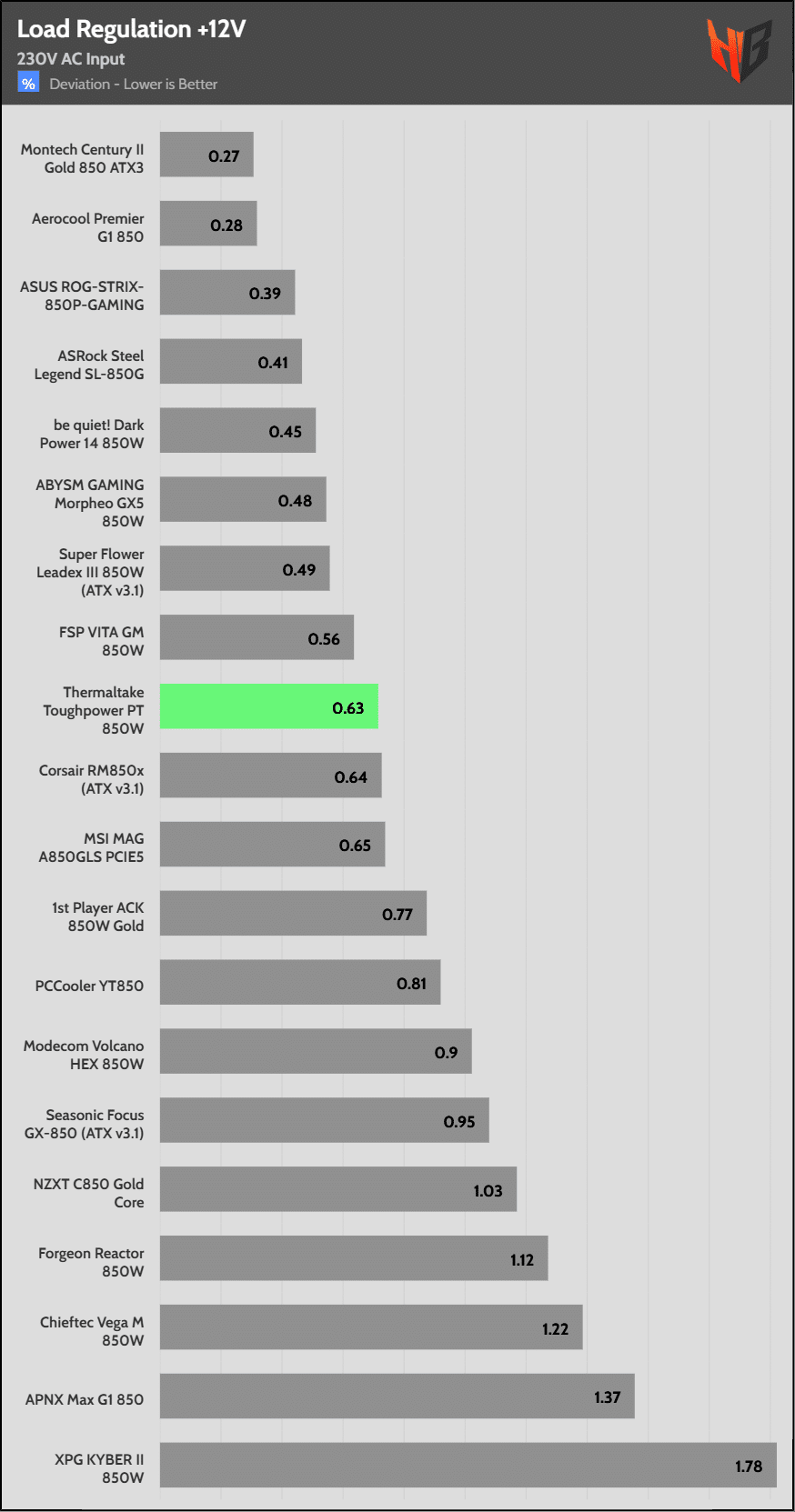

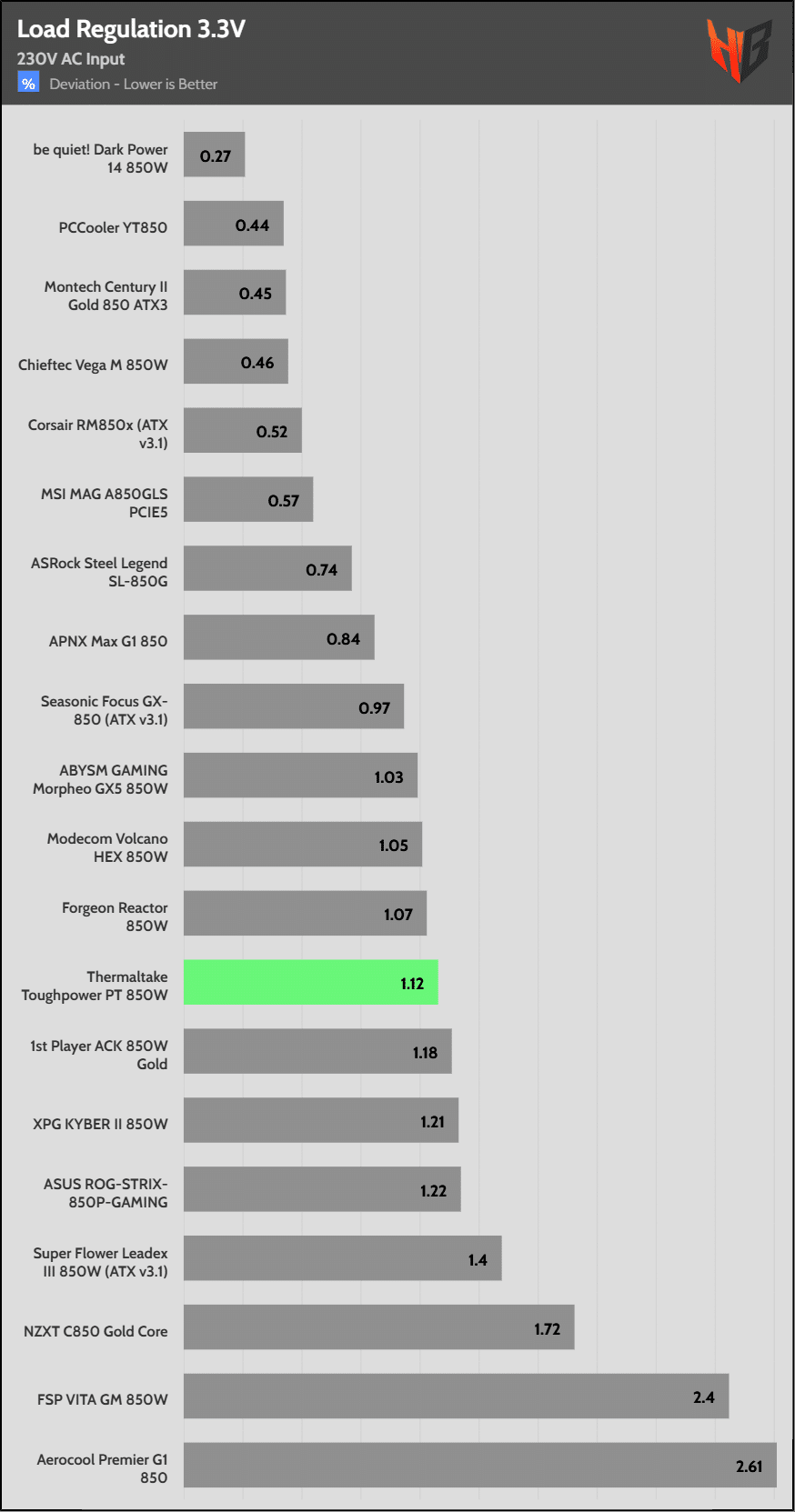

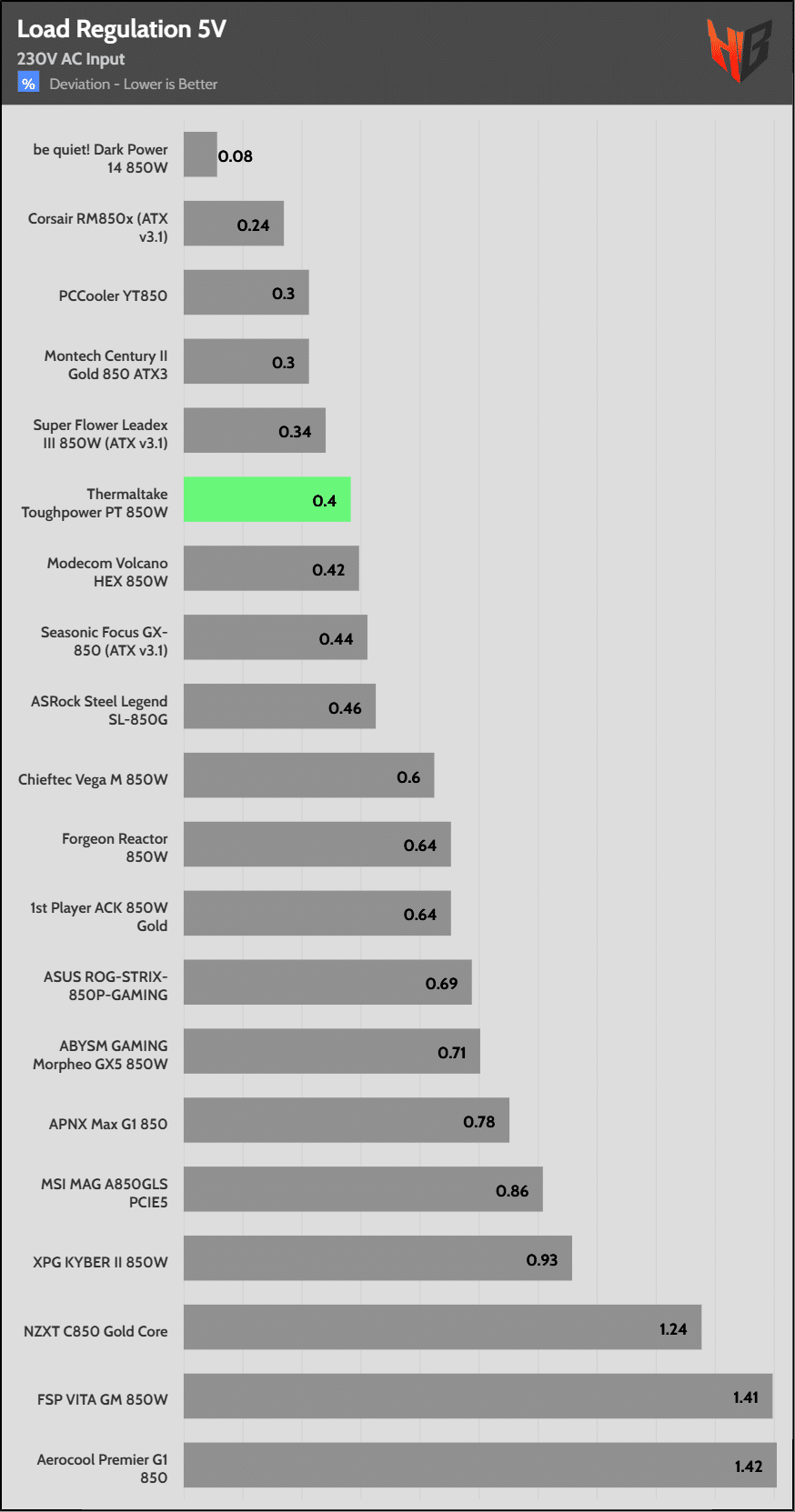

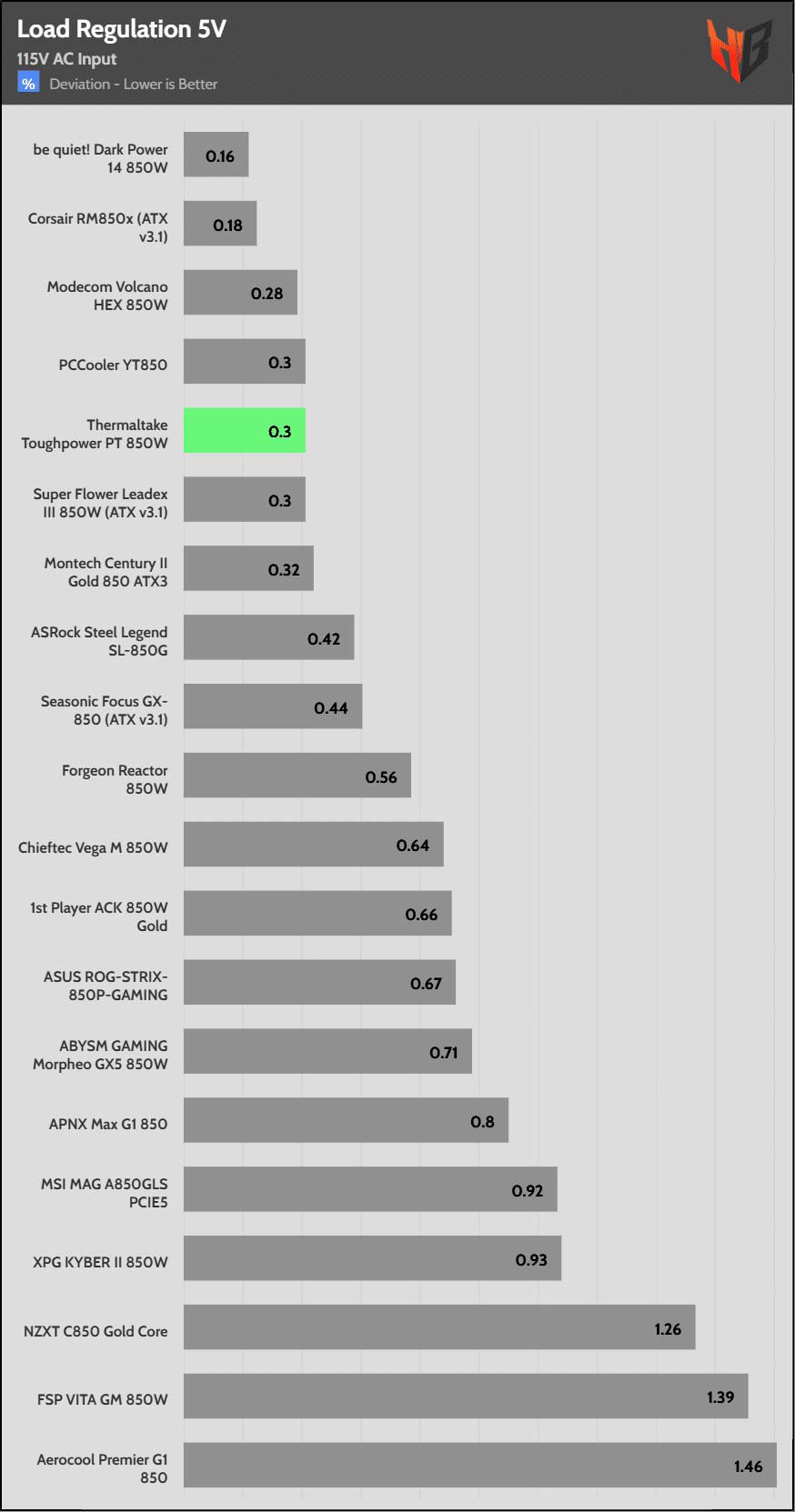

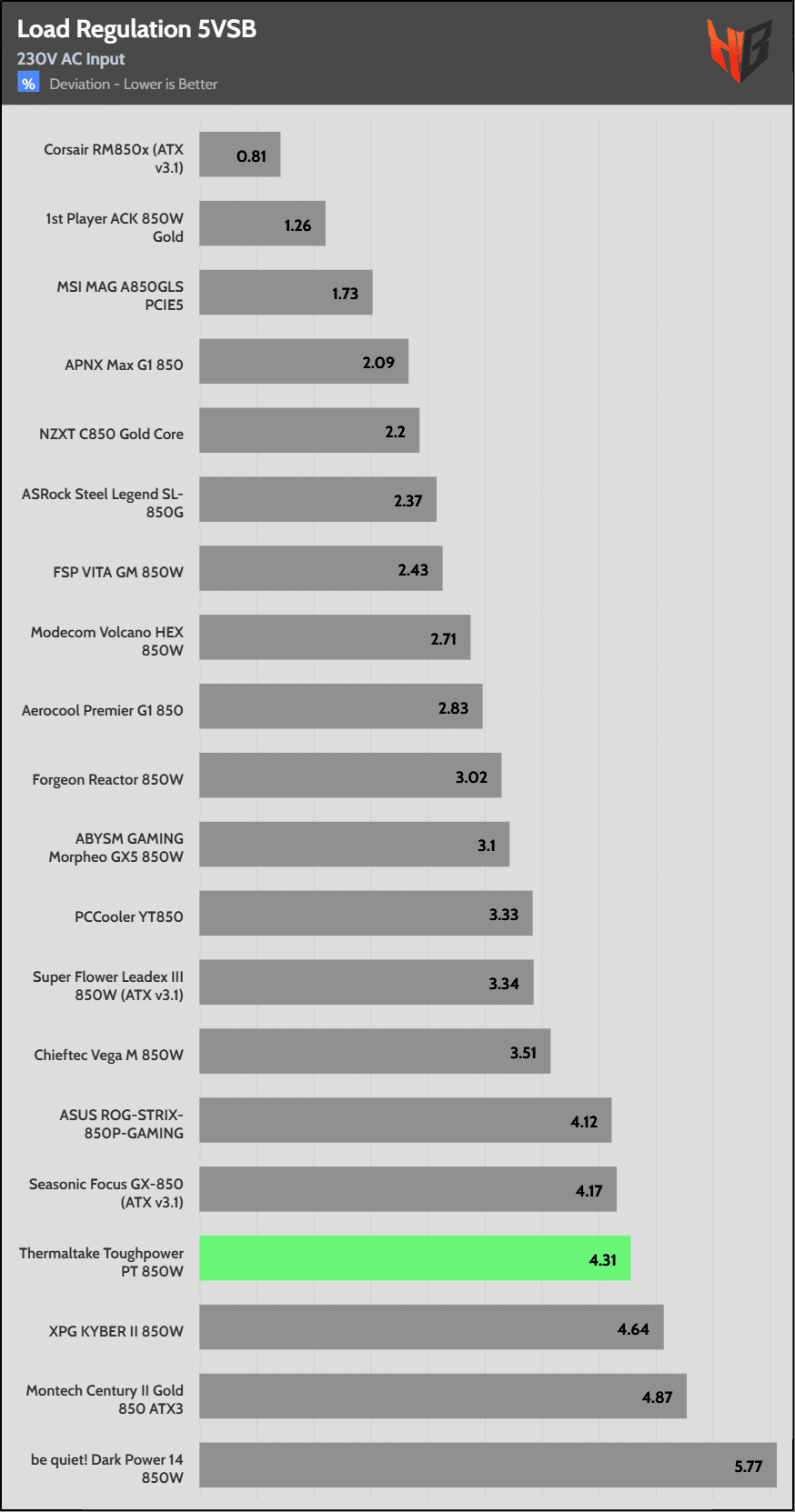

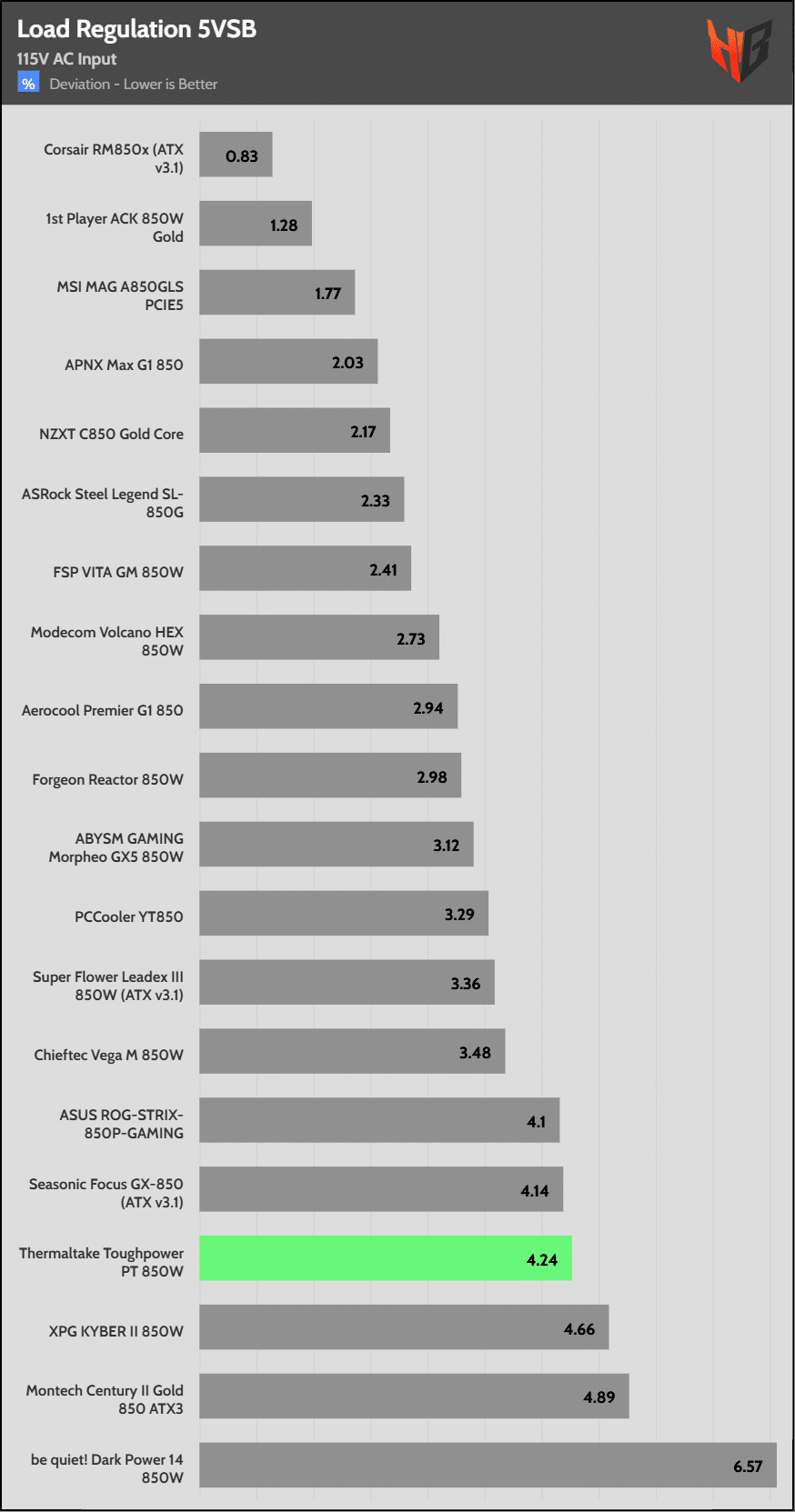

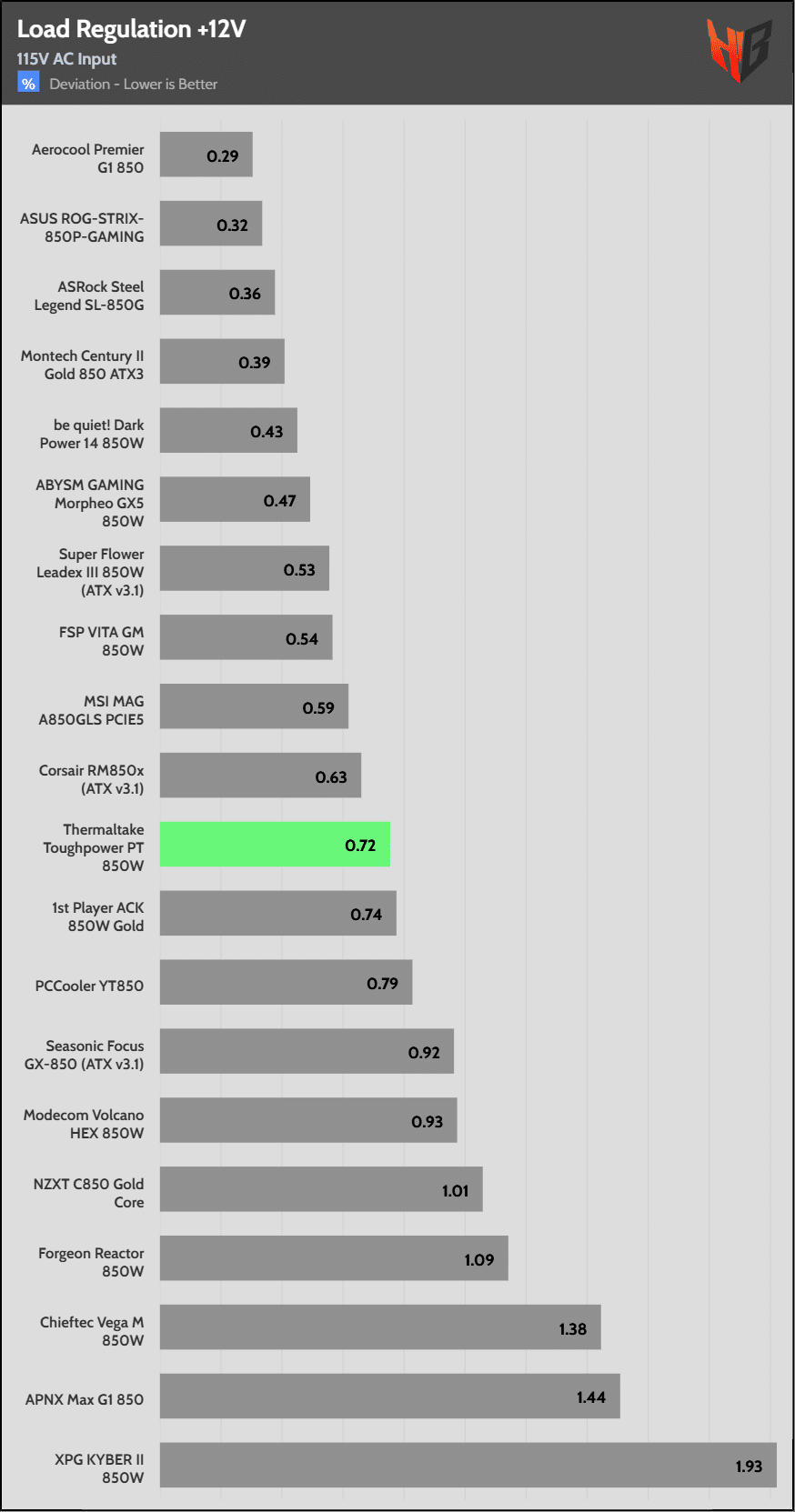

Load regulation is within tight enough at 12V and 5V, but loose at 3.3V.
| Test | 12V | 5V | 3.3V | 5VSB | DC/AC (Watts) | Efficiency | Fan Speed (RPM) | PSU Noise (dB[A]) | Temps (In/Out) | PF/AC Volts |
| 20W | 1.232A | 0.498A | 0.495A | 0.197A | 20.006 | 72.205% | 391 | <6.0 | 36°C | 0.898 |
| 12.065V | 5.017V | 3.334V | 5.085V | 27.708 | 45.79°C | 115.08V | ||||
| 40W | 2.710A | 0.698A | 0.693A | 0.295A | 40.002 | 82.701% | 393 | <6.0 | 37.12°C | 0.951 |
| 12.064V | 5.016V | 3.333V | 5.08V | 48.367 | 43.76°C | 115.07V | ||||
| 60W | 4.190A | 0.897A | 0.891A | 0.394A | 60 | 86.446% | 397 | <6.0 | 38.44°C | 0.967 |
| 12.062V | 5.015V | 3.332V | 5.075V | 69.405 | 43.77°C | 115.06V | ||||
| 80W | 5.664A | 1.097A | 1.09A | 0.493A | 79.943 | 88.311% | 397 | <6.0 | 39.14°C | 0.978 |
| 12.060V | 5.015V | 3.331V | 5.069V | 90.526 | 44.56°C | 115.06V |
A glance at the light-load table is always useful, as the PSU typically operates at light loads.

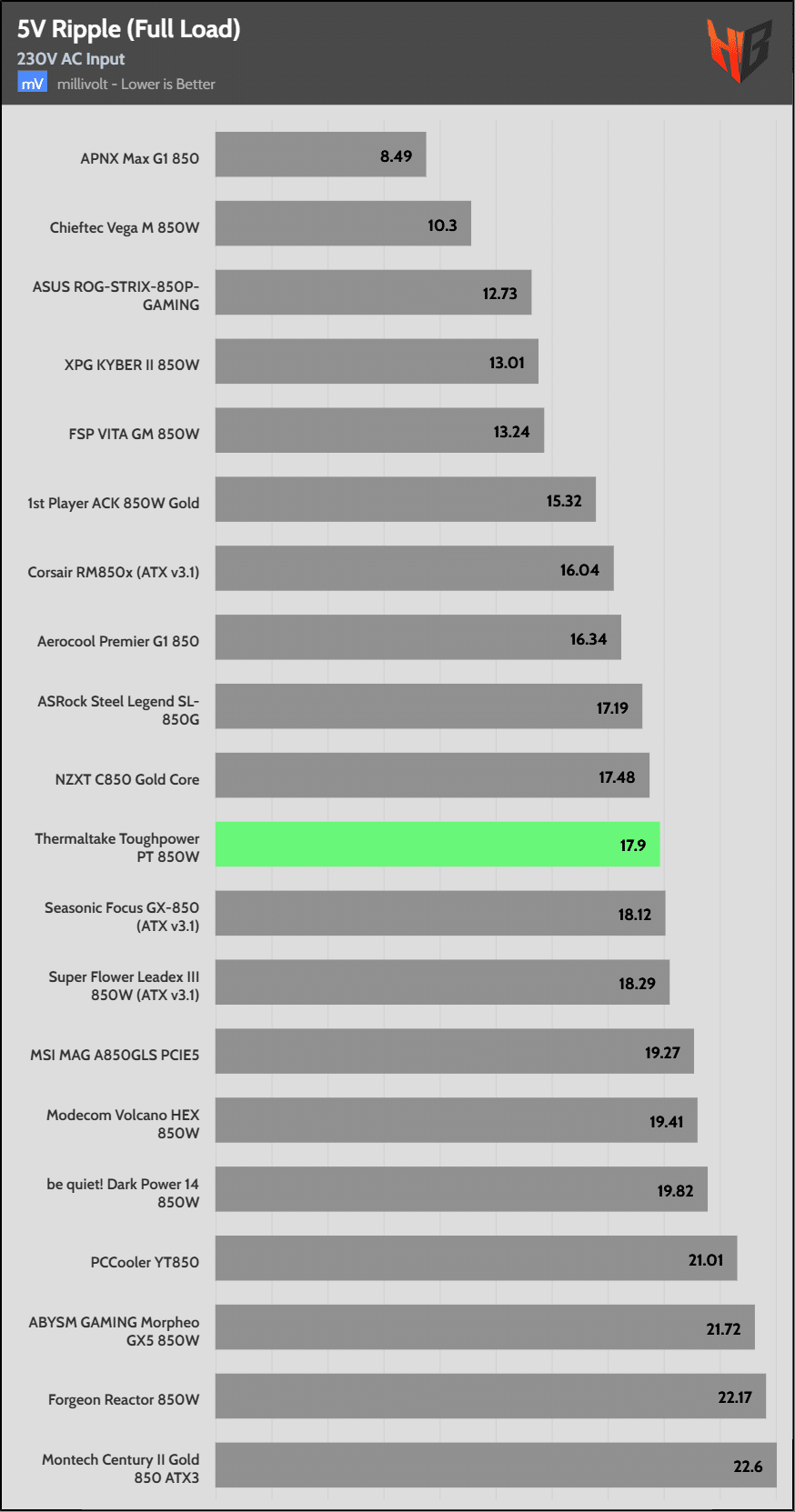

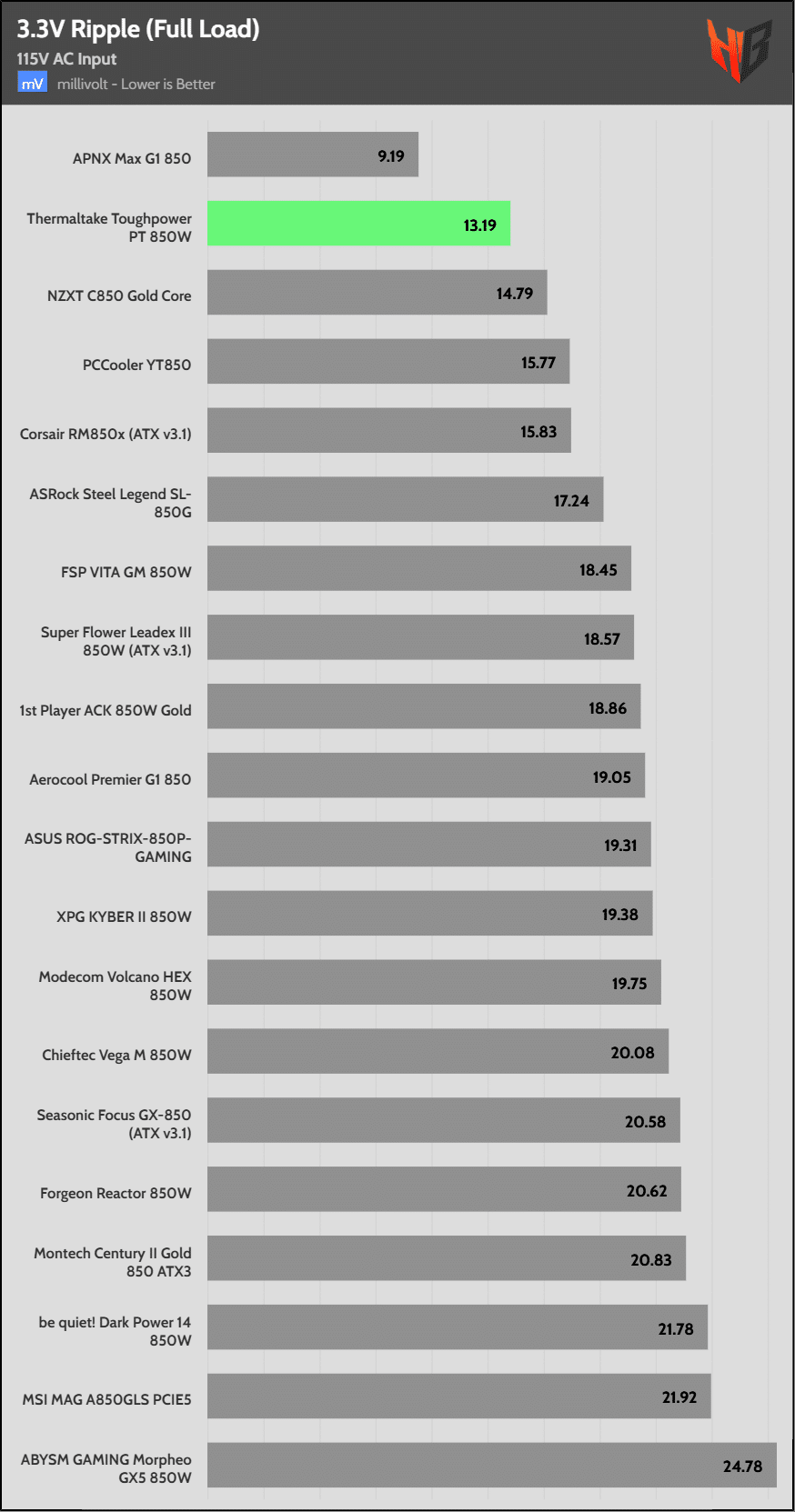

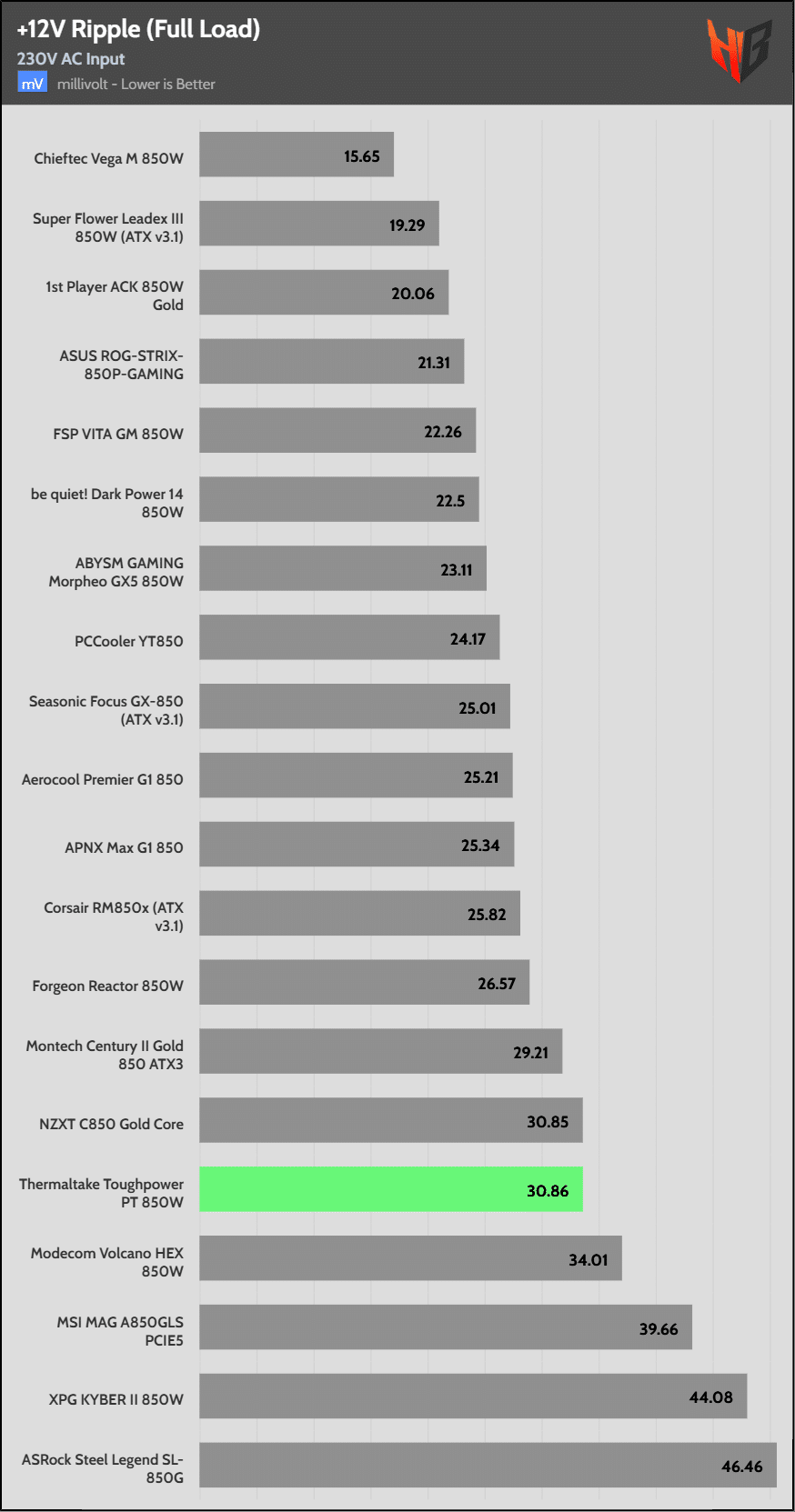

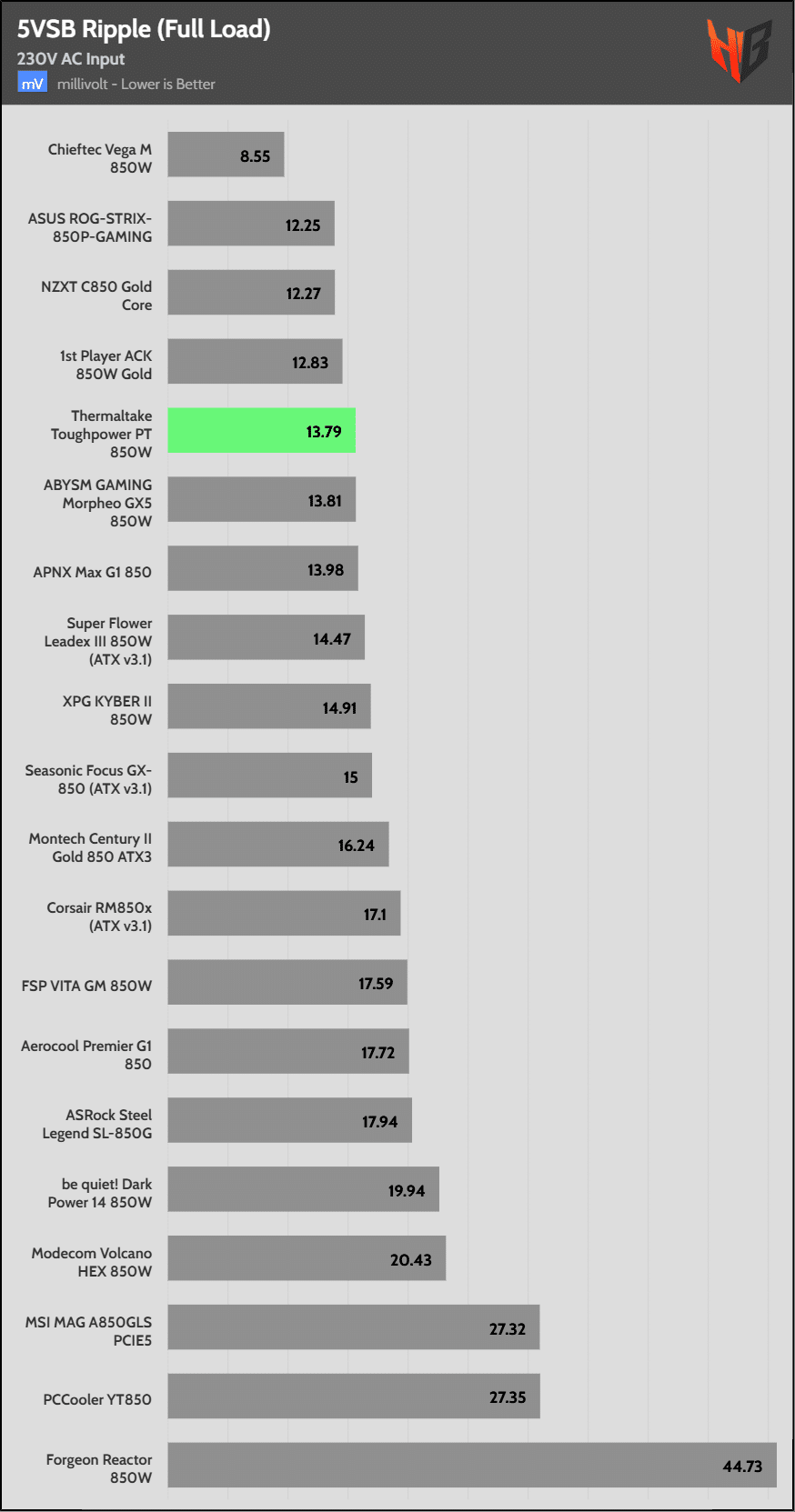

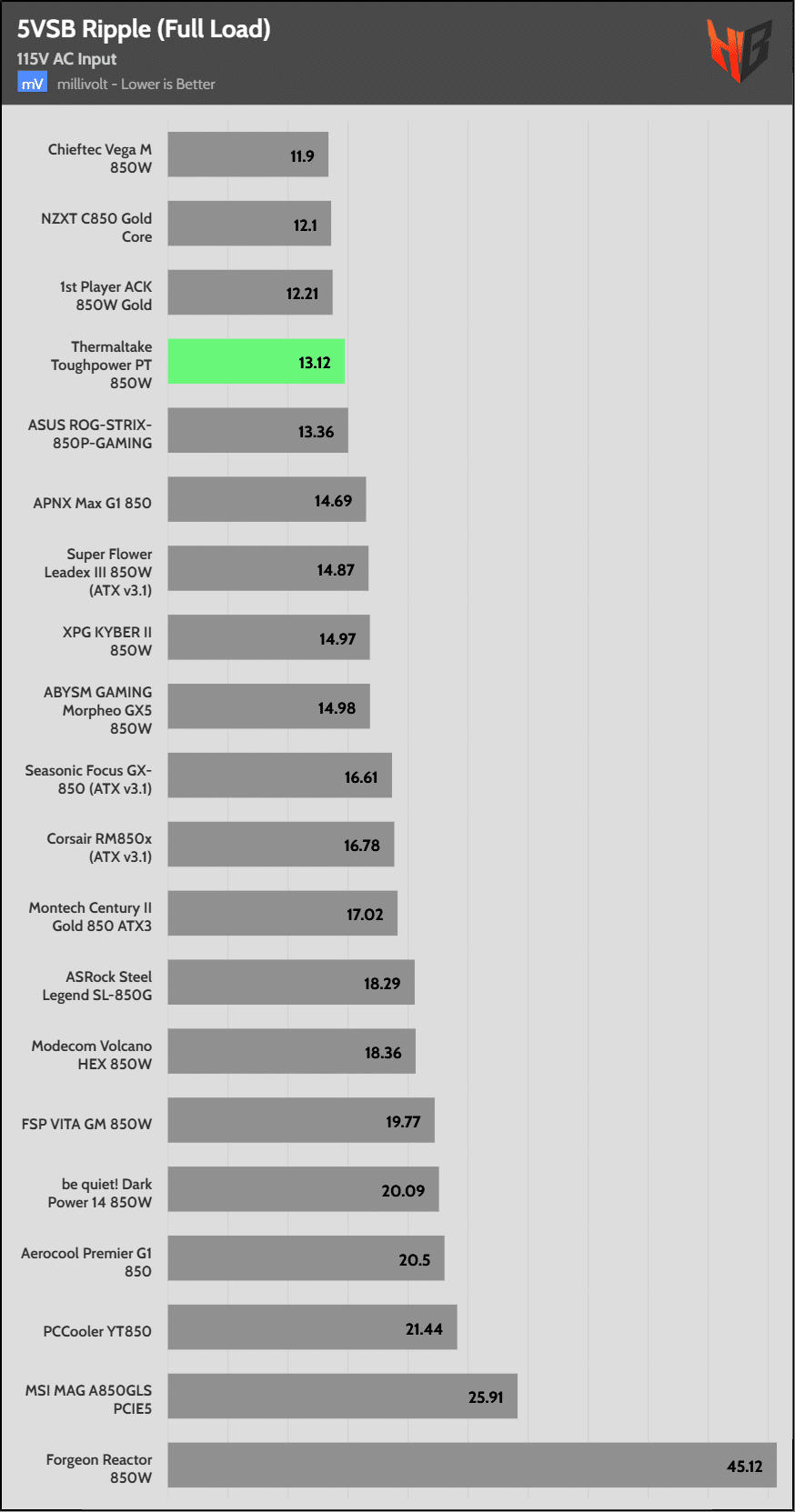

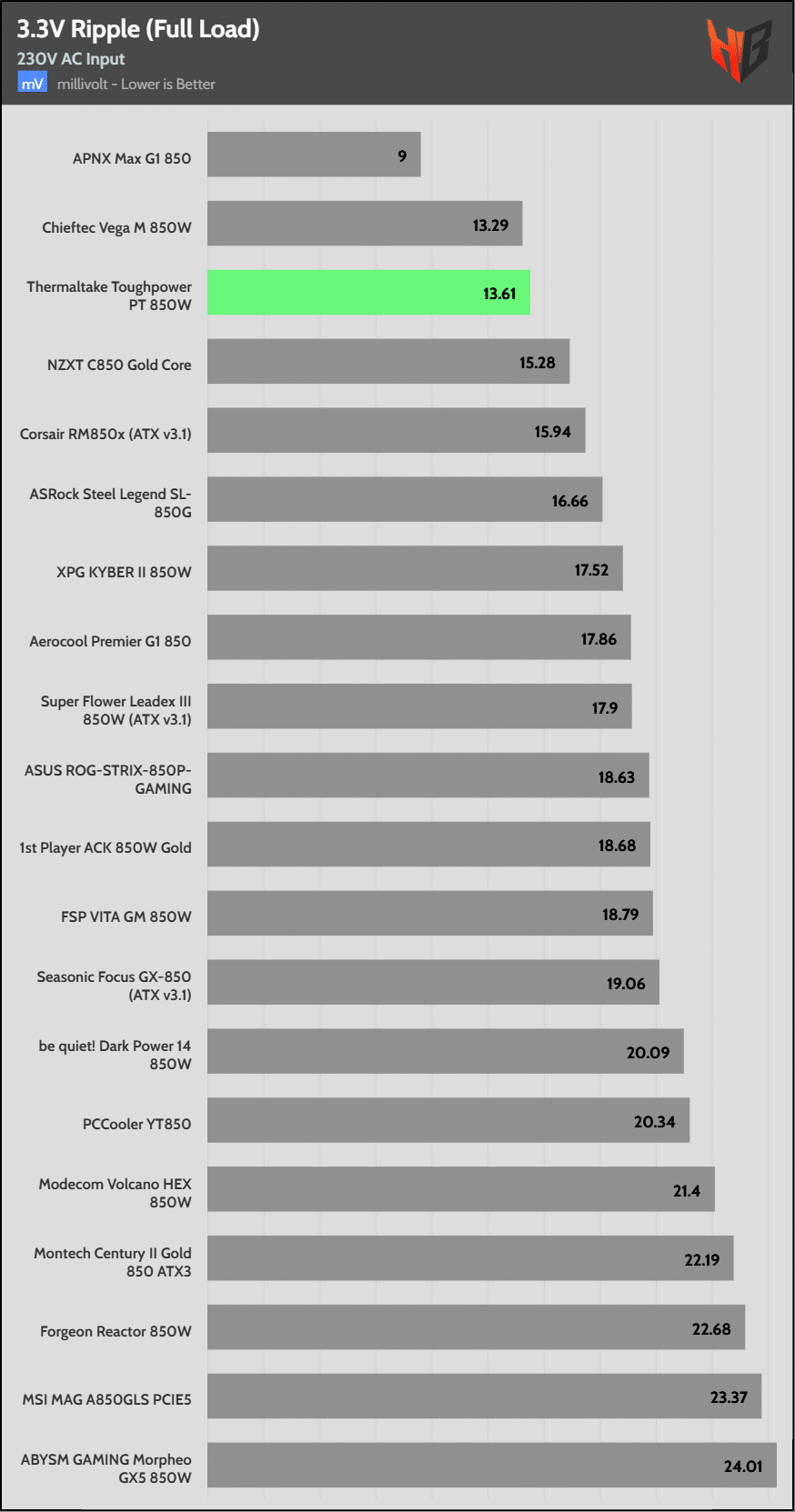

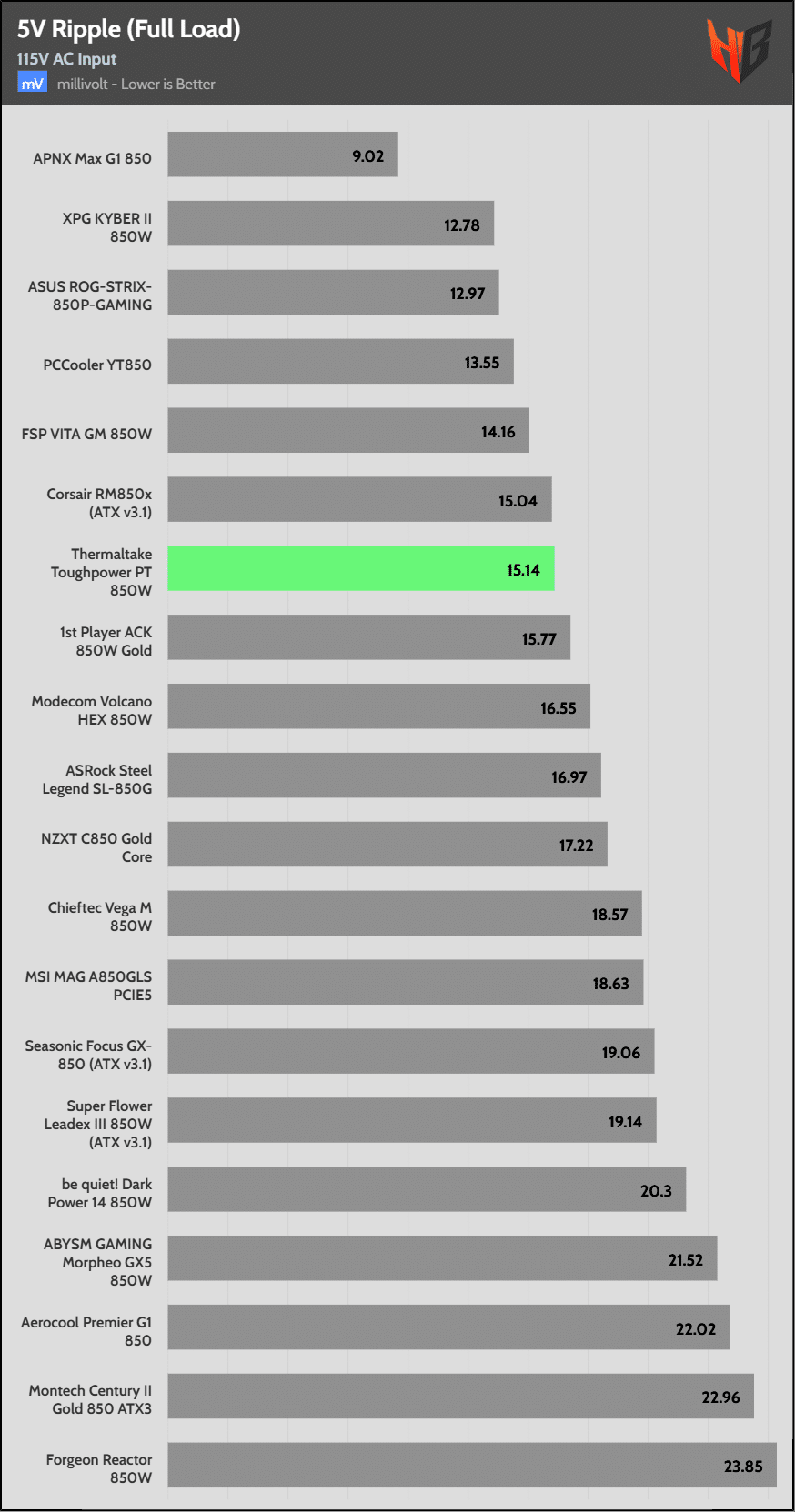

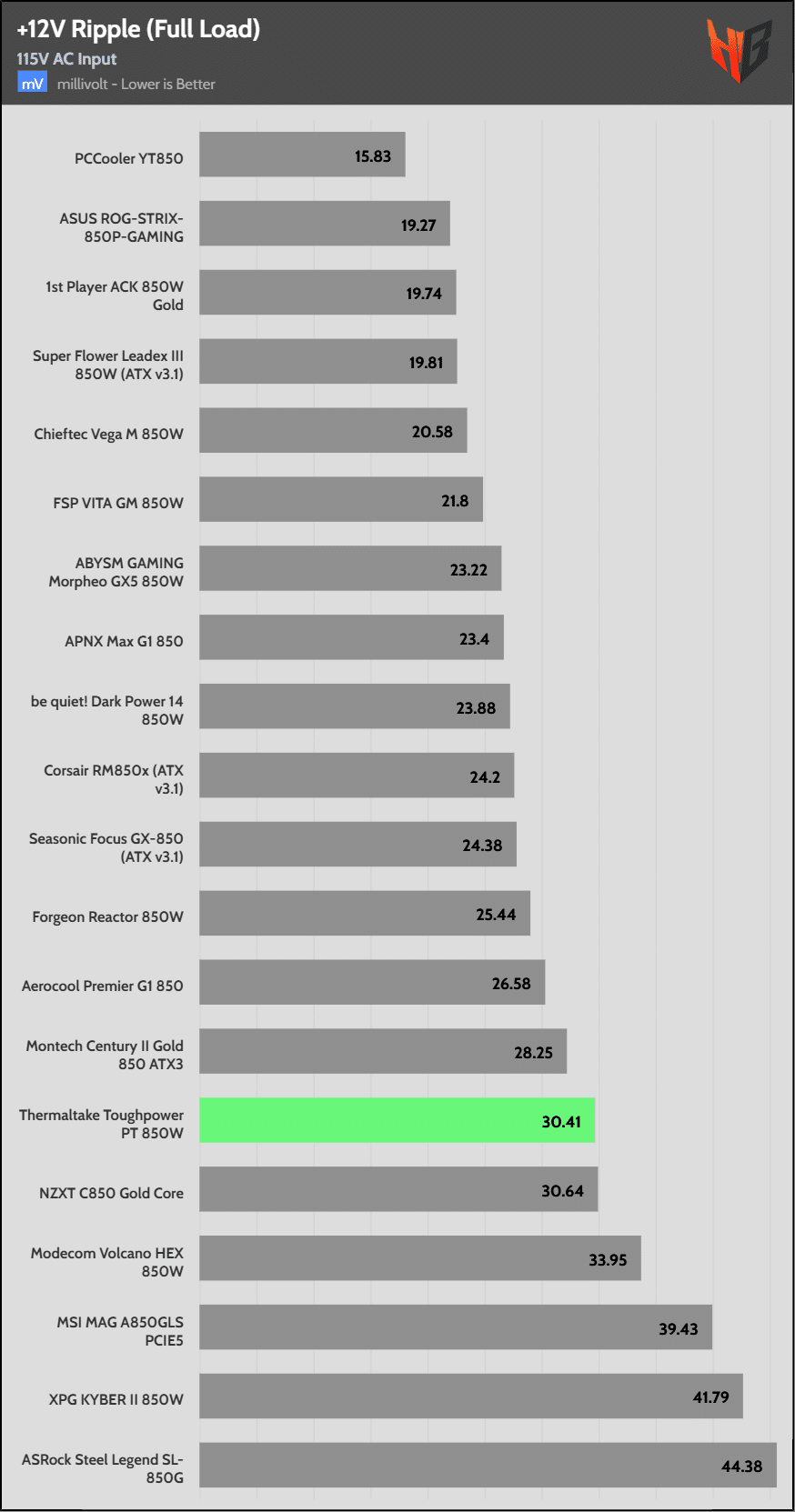

Ripple Suppression
Ripple in power supplies refers to the small, unwanted AC voltage fluctuations superimposed on the DC output. It occurs due to imperfect filtering during the AC-to-DC conversion. Lower ripple is highly preferable because it ensures a cleaner, more stable DC output, reducing noise and potential interference in sensitive electronics, improving performance, and extending component lifespan. High ripple can cause instability, overheating, or damage to connected devices.
| Test | 12V | 5V | 3.3V | 5VSB | Pass/Fail |
| 10% Load | 17.2 mV | 12.0 mV | 10.0 mV | 10.7 mV | Pass |
| 20% Load | 23.2 mV | 12.1 mV | 11.9 mV | 11.3 mV | Pass |
| 30% Load | 26.0 mV | 13.8 mV | 11.0 mV | 12.3 mV | Pass |
| 40% Load | 28.8 mV | 13.7 mV | 11.3 mV | 11.7 mV | Pass |
| 50% Load | 31.2 mV | 14.3 mV | 11.4 mV | 12.2 mV | Pass |
| 60% Load | 32.6 mV | 13.2 mV | 11.5 mV | 12.2 mV | Pass |
| 70% Load | 34.3 mV | 13.4 mV | 11.7 mV | 12.5 mV | Pass |
| 80% Load | 36.0 mV | 13.8 mV | 13.0 mV | 13.1 mV | Pass |
| 90% Load | 31.4 mV | 17.1 mV | 14.9 mV | 18.2 mV | Pass |
| 100% Load | 30.4 mV | 15.1 mV | 13.2 mV | 13.1 mV | Pass |
| 110% Load | 31.8 mV | 18.5 mV | 15.6 mV | 17.6 mV | Pass |
| Crossload 1 | 20.6 mV | 14.2 mV | 11.7 mV | 10.3 mV | Pass |
| Crossload 2 | 20.6 mV | 15.5 mV | 11.6 mV | 10.7 mV | Pass |
| Crossload 3 | 17.6 mV | 11.9 mV | 12.6 mV | 10.3 mV | Pass |
| Crossload 4 | 30.2 mV | 16.4 mV | 13.9 mV | 16.7 mV | Pass |
Ripple suppression is good overall.
