Box & Bundle

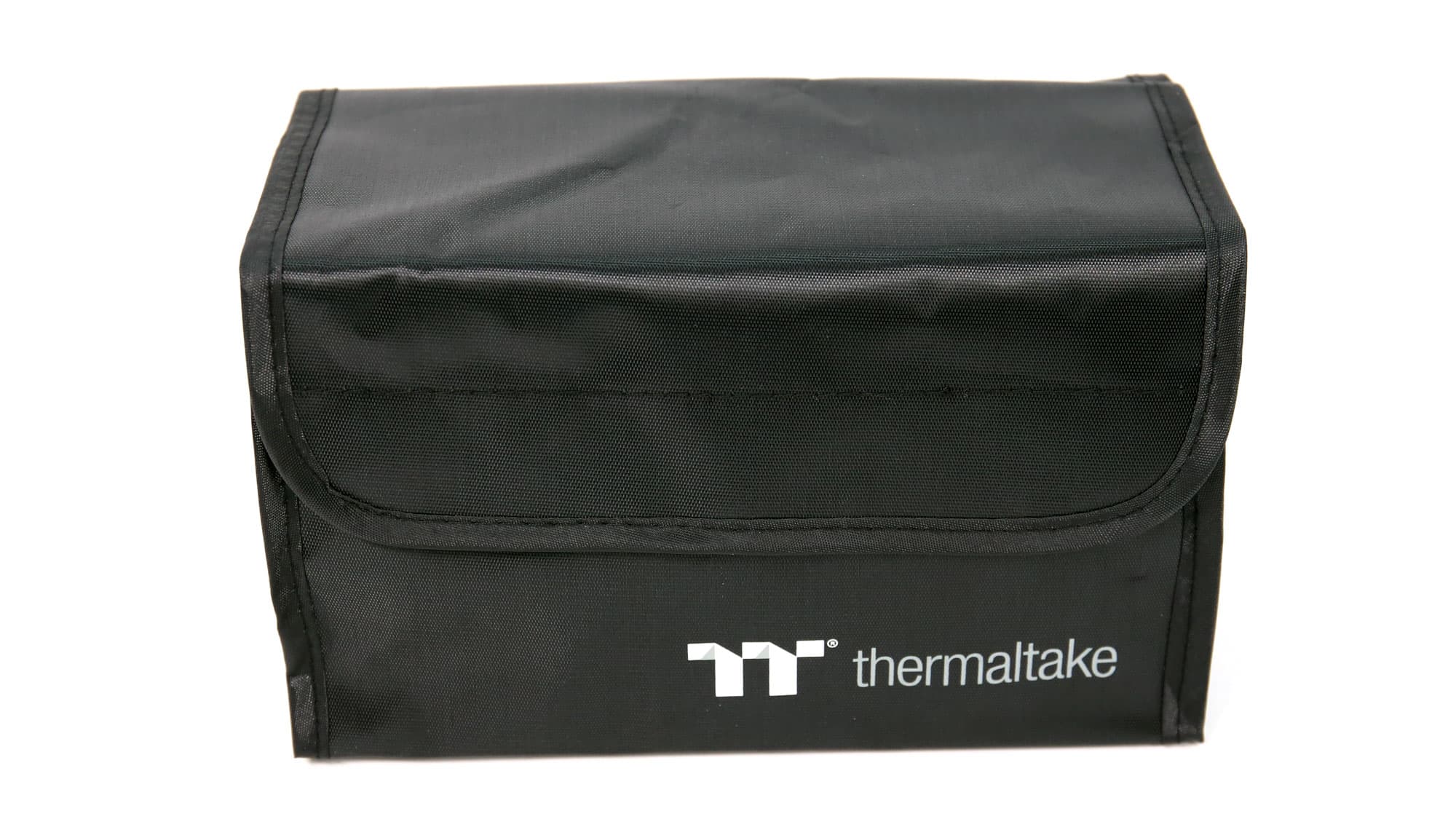

The box features a photo of the PSU on the front, accompanied by several badges highlighting key features, including ATX v3.1 compliance, a 12V-2×6 connector, and fully modular cabling. Inside, everything is neatly organized, and the included protection is sufficient. A pouch is provided for storing the modular cables—useful for keeping unused ones tidy. Finally, all documentation comes packed separately in a nylon bag.
Product Photos

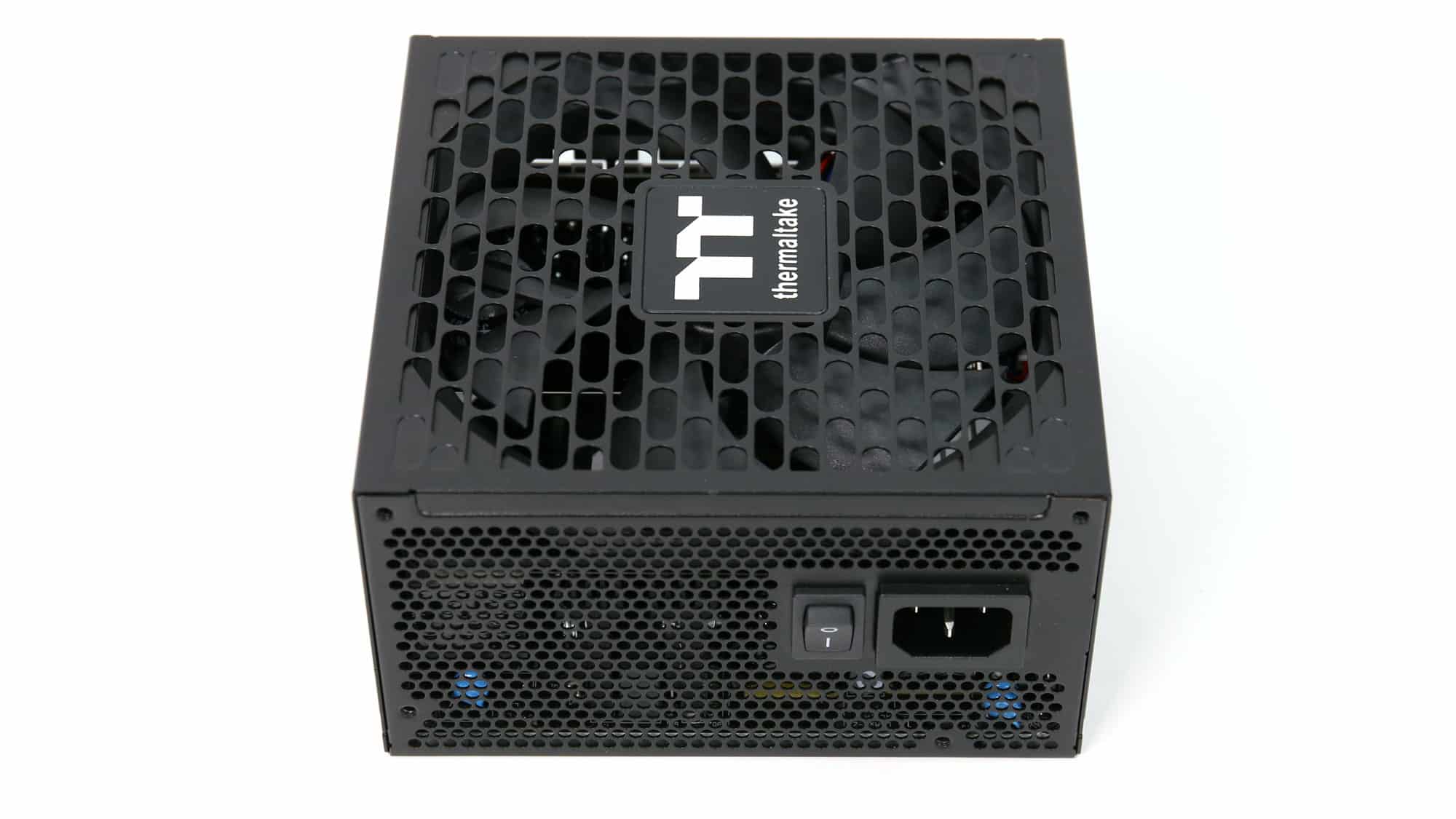

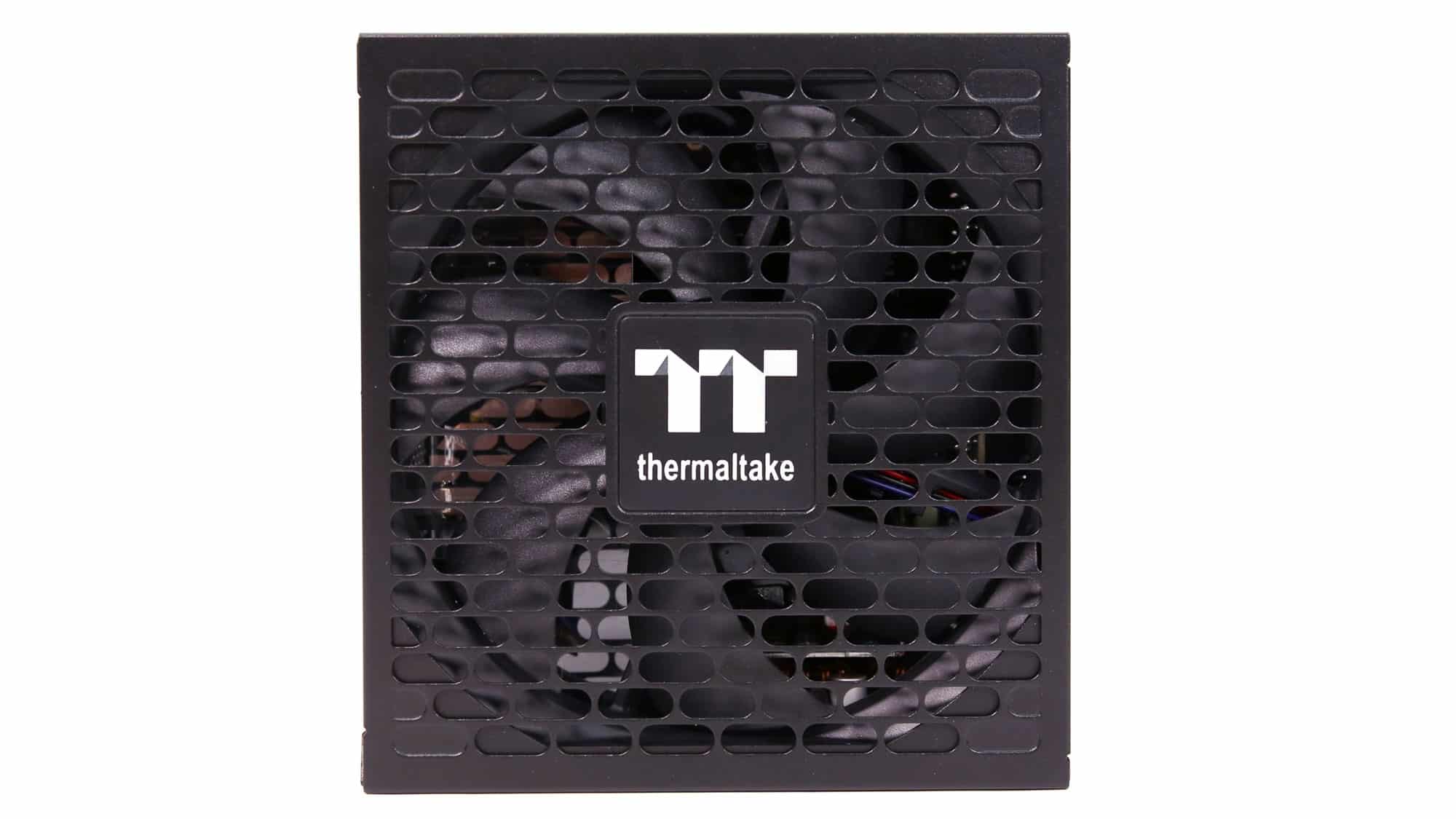

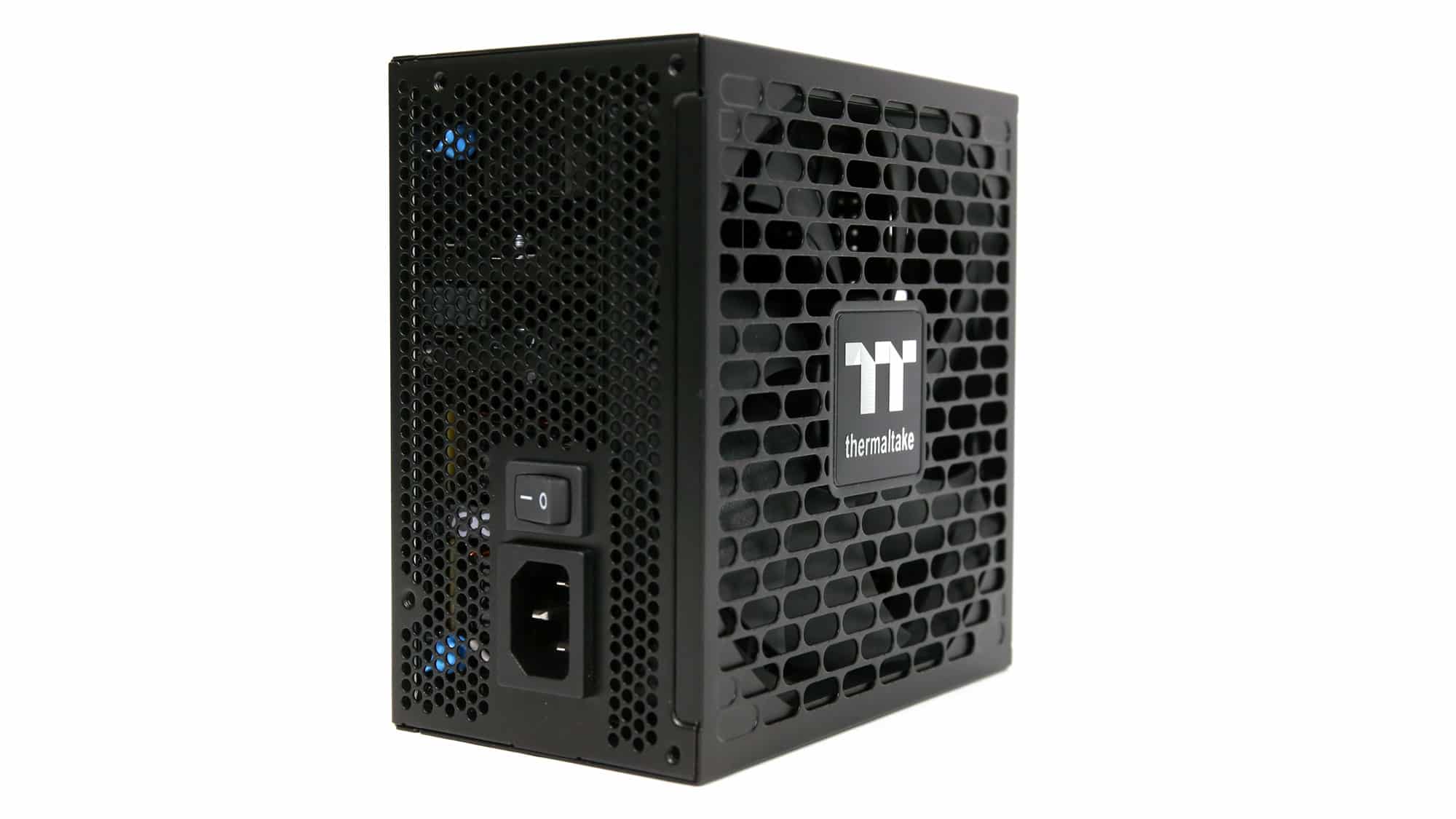

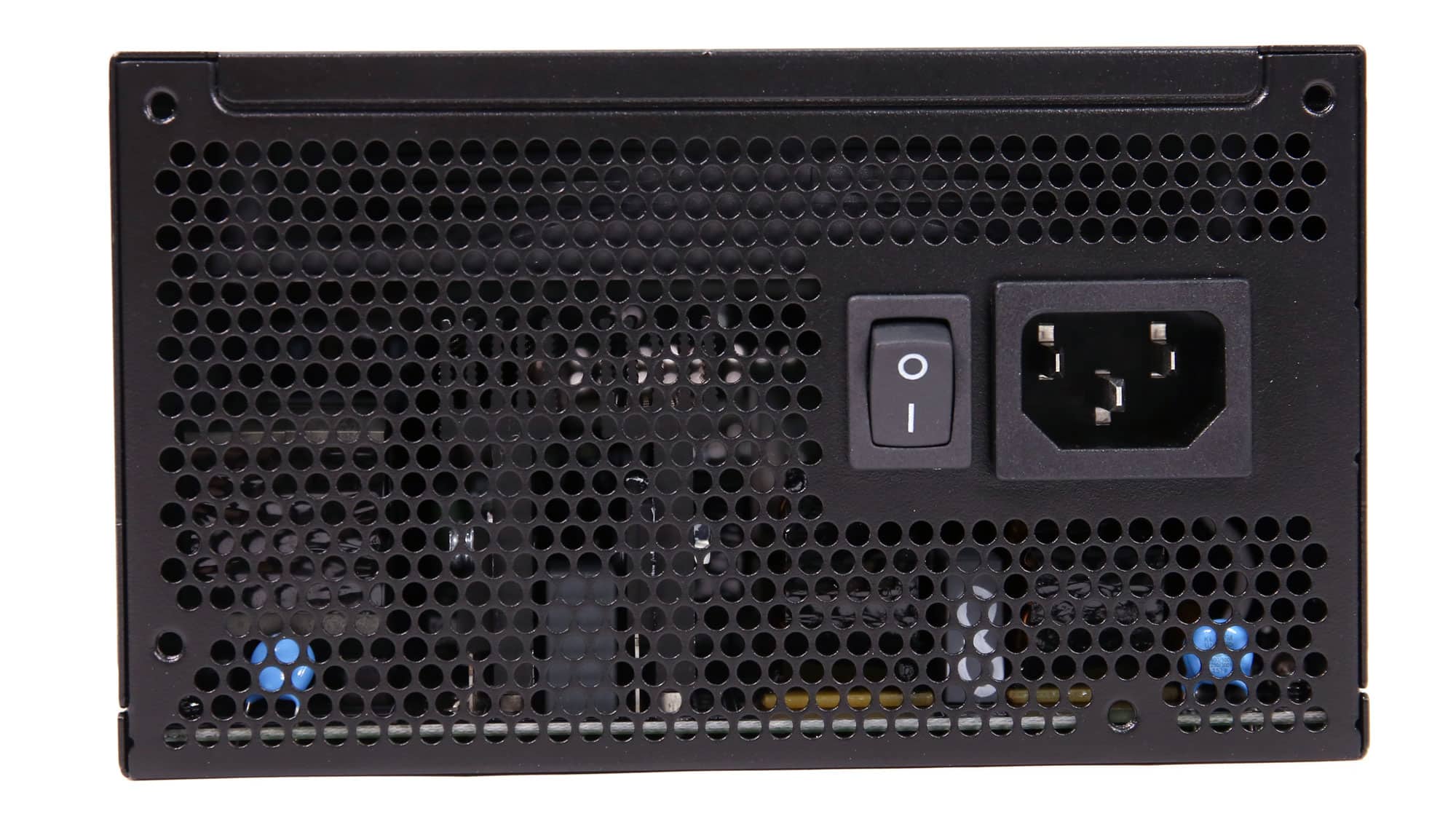

The PSU has a compact form factor, and its perforated fan grille with large openings ensures strong airflow—an essential detail given the small PCB layout and high power output. At the front, the unit includes the AC input socket and a power switch.

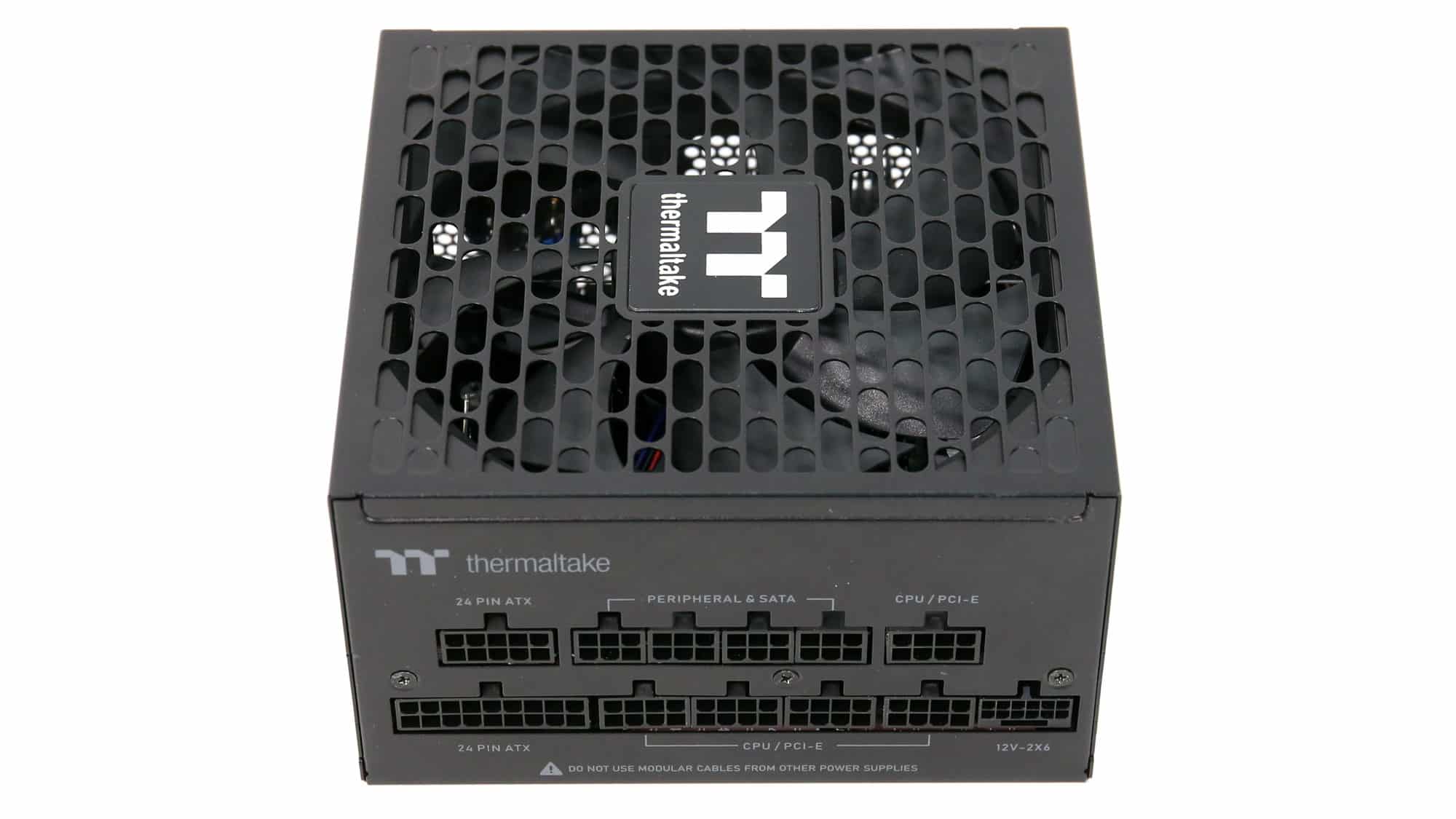

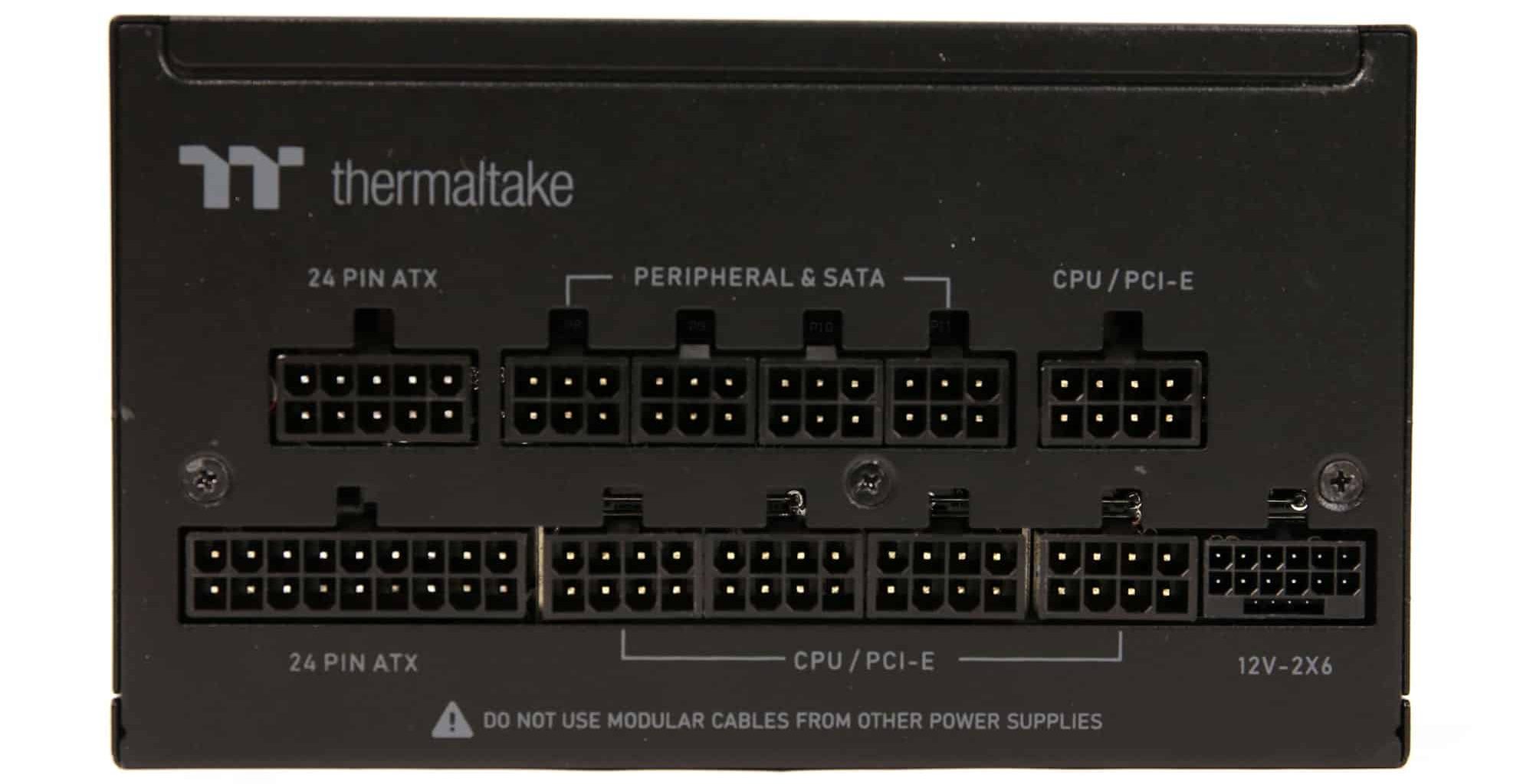

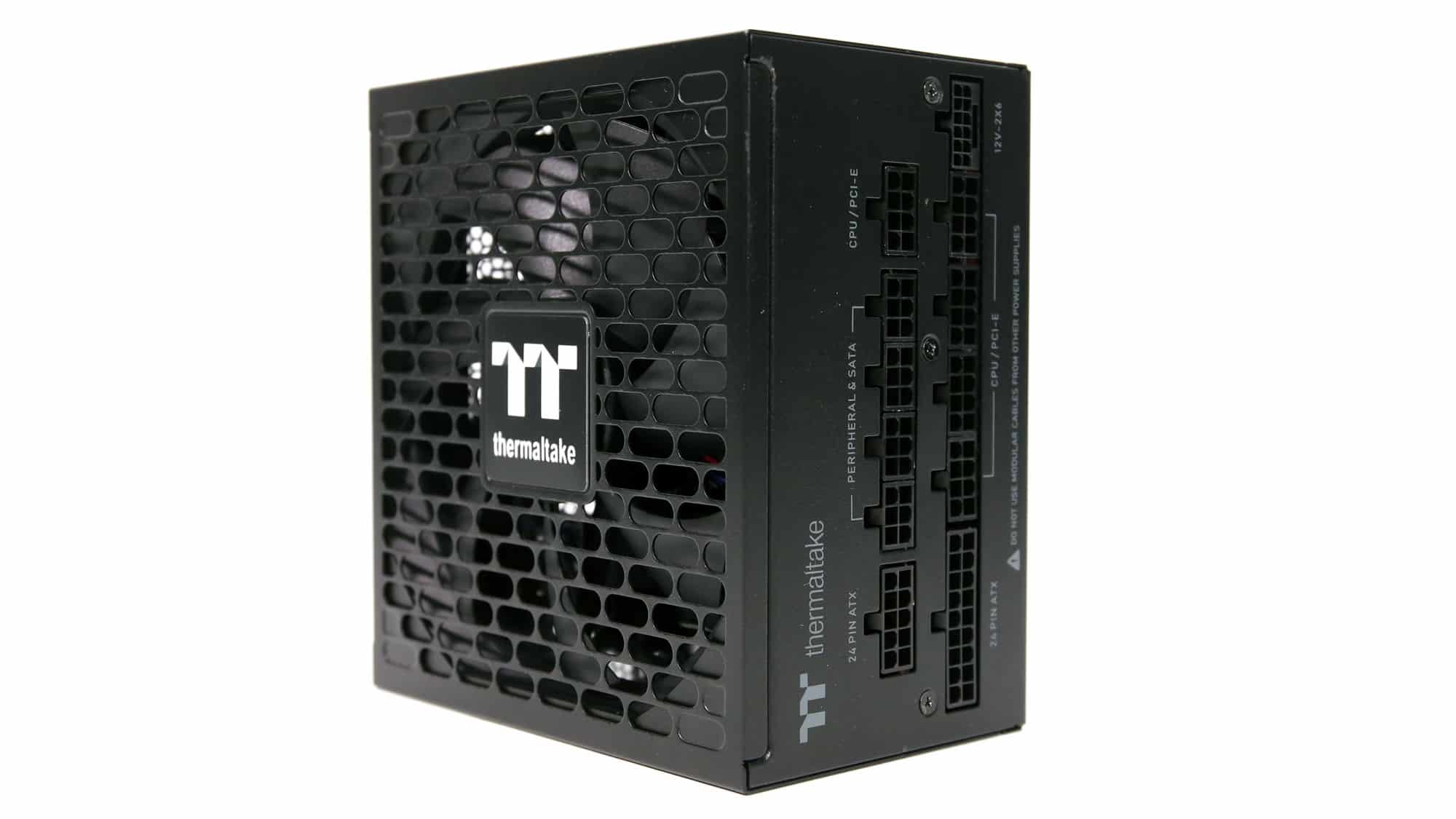

The modular panel has twelve sockets, including one native 12V-2×6 header.

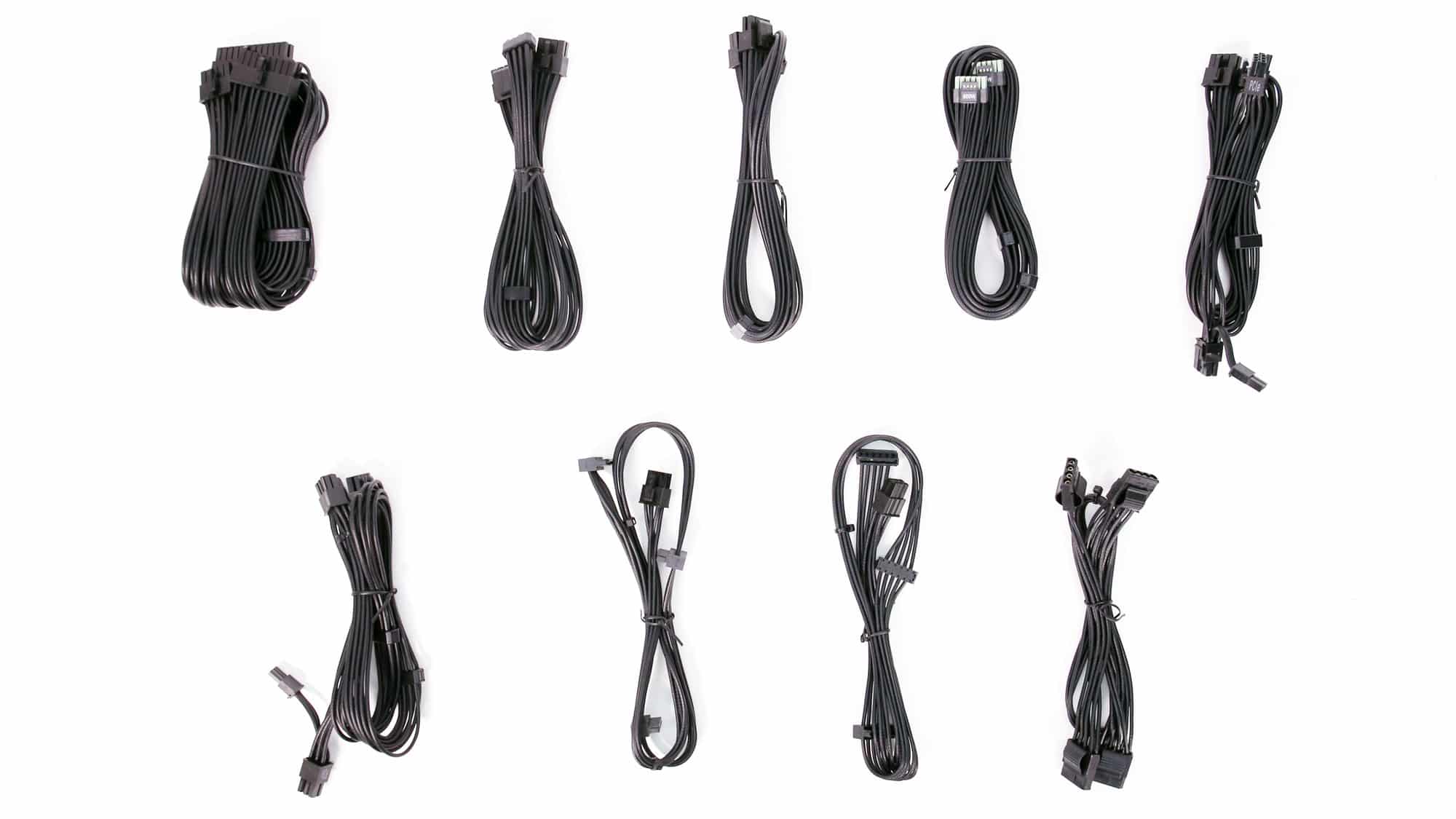

| Modular Cables | ||||
| Description | Cable Count | Connector Count (Total) | Gauge | Cable Type |
|---|---|---|---|---|

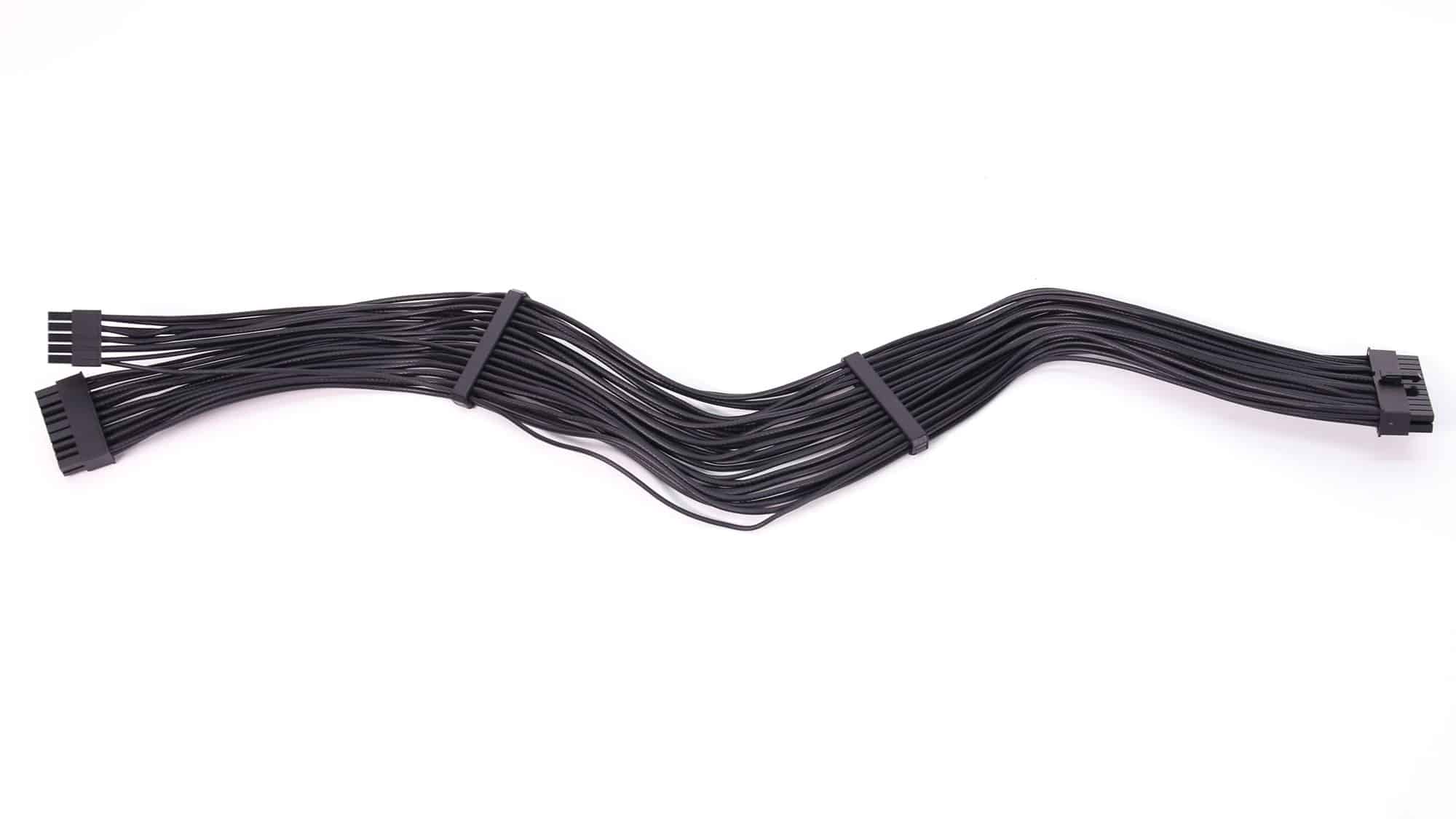

| ATX connector 24 pin (540mm) | 1 | 1 | 16-20AWG | Tinned Copper |

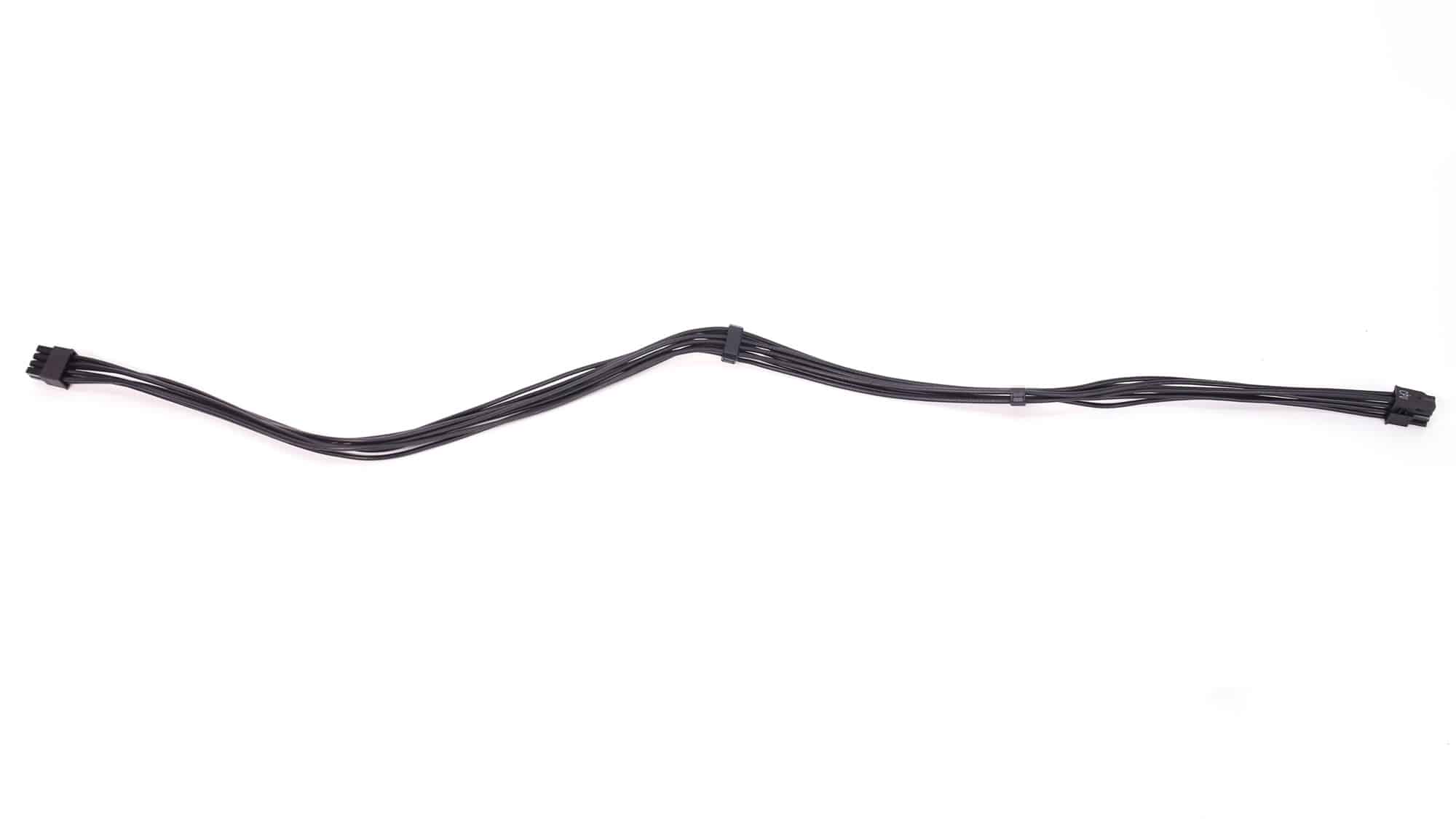

| 4+4 pin ATX12V (700mm) | 2 | 2 | 16AWG | Tinned Copper |

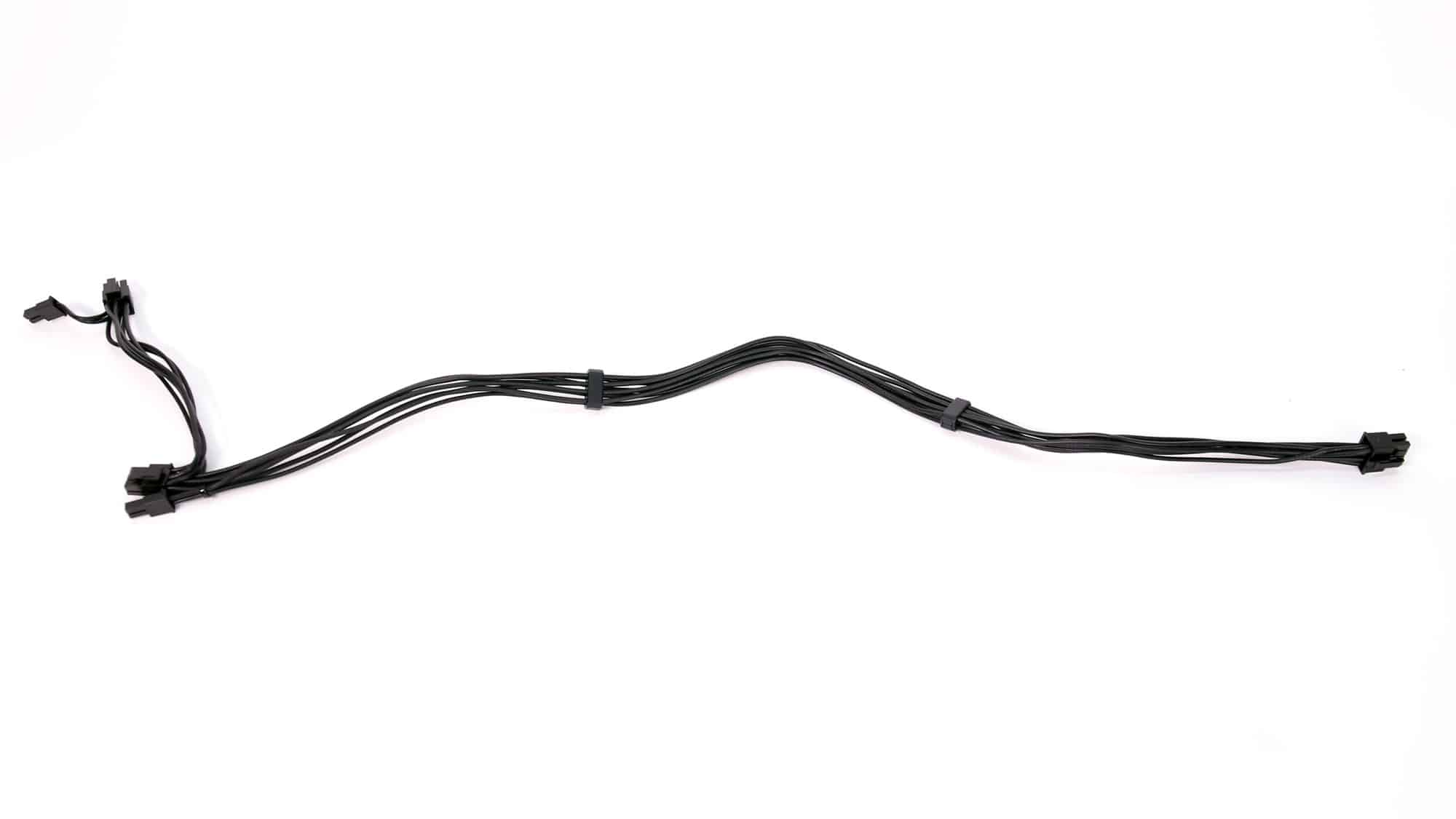

| 6+2 pin PCIe (600mm+150mm) | 2 | 4 | 16-18AWG | Tinned Copper |

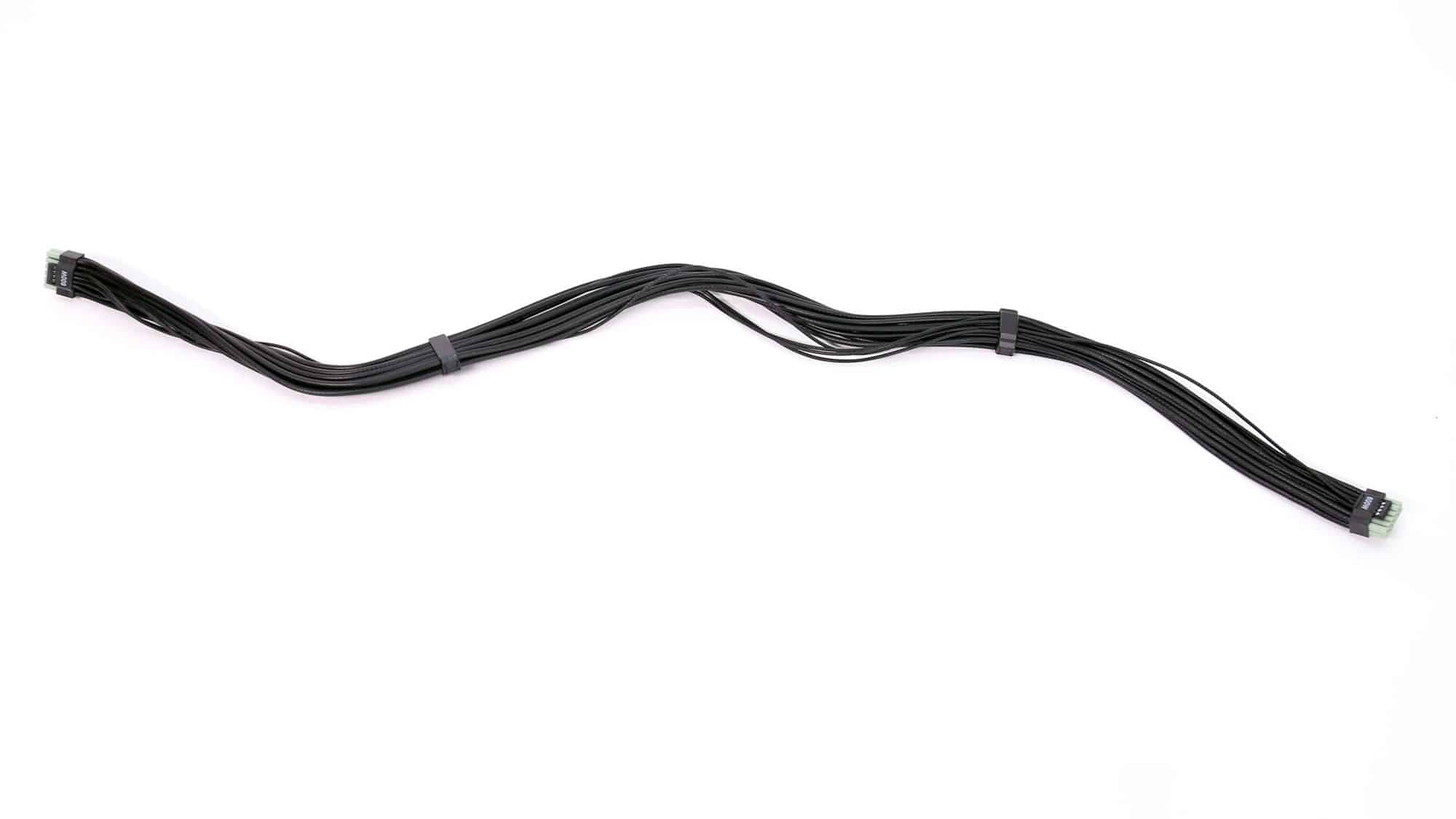

| 12+4 pin PCIe (600mm) (600W) | 1 | 1 | 16-24AWG | Tinned Copper |

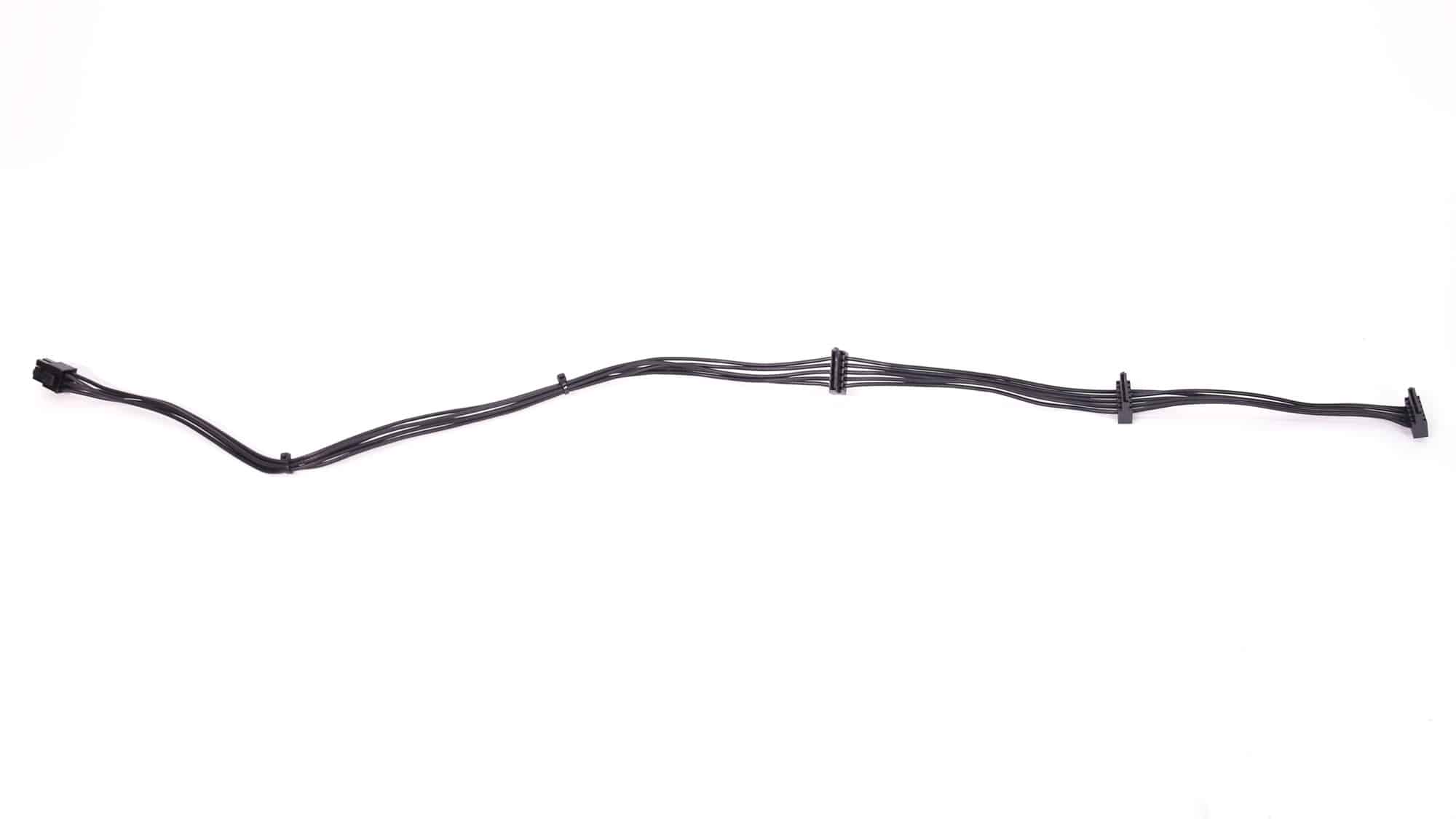

| SATA (450mm+150mm+150mm) | 2 | 6 | 18AWG | Tinned Copper |

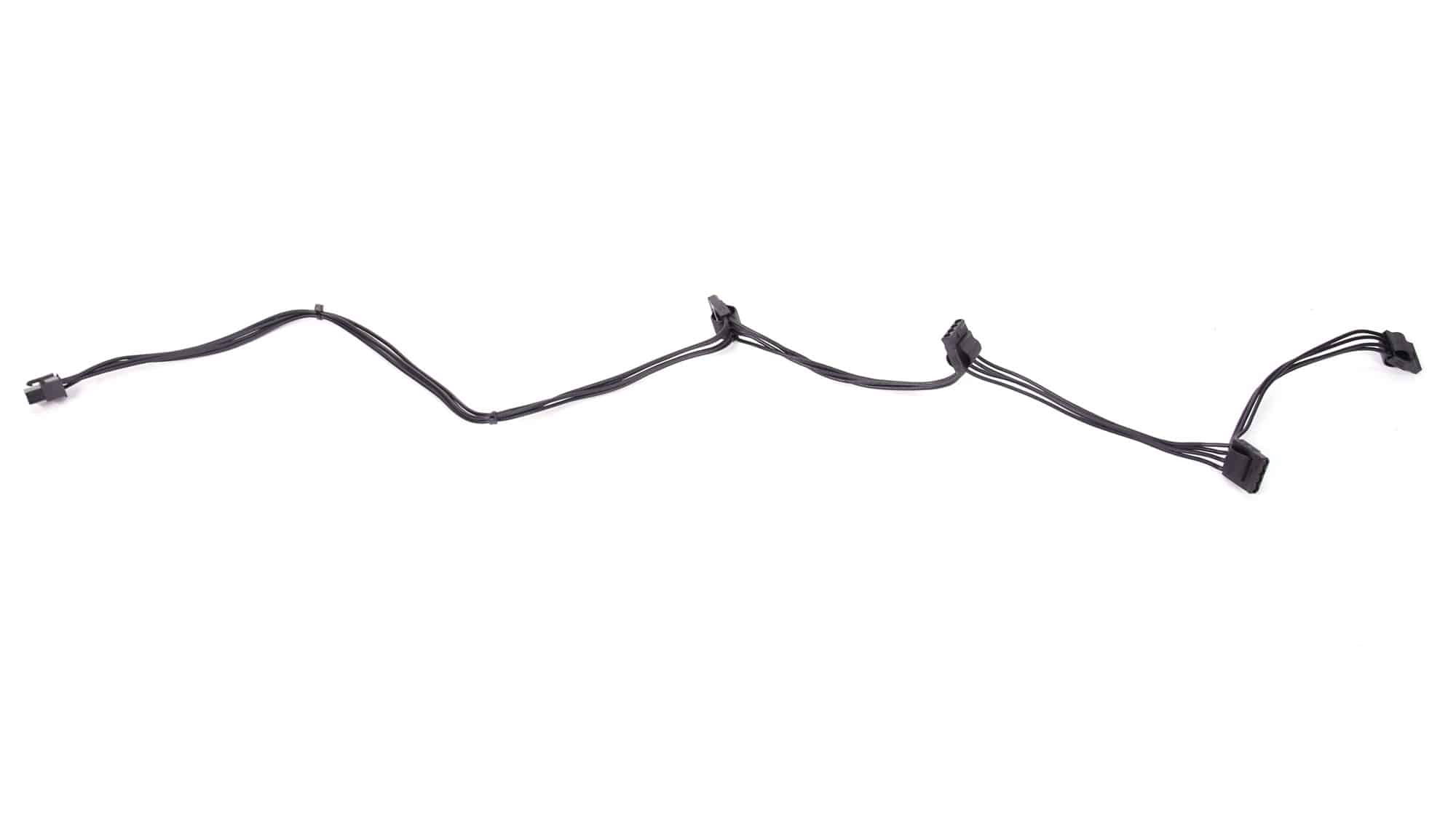

| 4-pin Molex (450mm+150mm+150mm+150mm) | 1 | 4 | 18AWG | Tinned Copper |

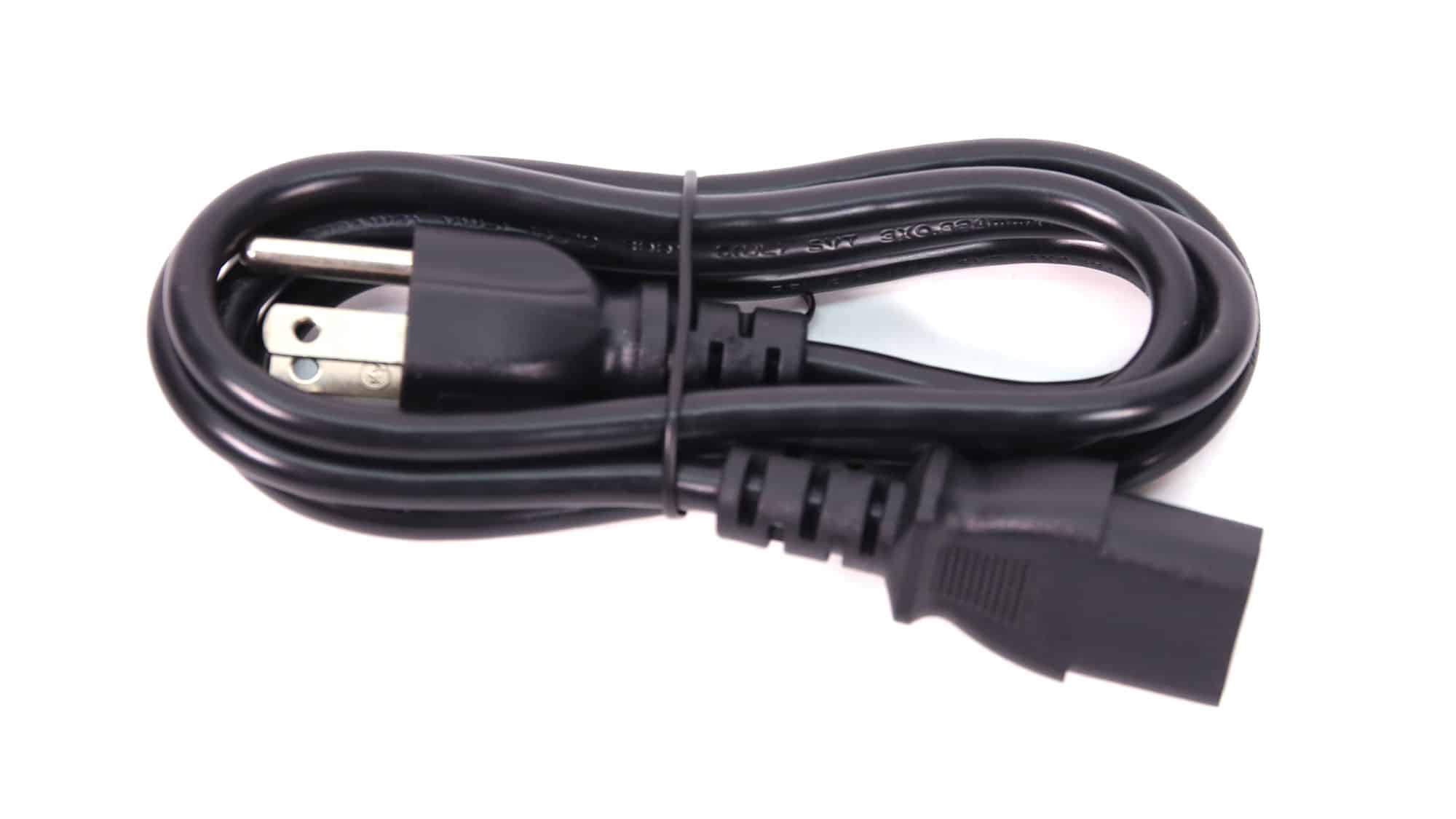

| AC Power Cord (1410mm) – C13 coupler | 1 | 1 | 18AWG | – |
The cable lengths are generally sufficient, though the ATX cable could be longer—ideally 600mm or more. High-power cables use thicker 16AWG wires to minimize voltage drop under heavy loads. The 850W and 1000W models include one 12V-2×6 connector, while the 1200W version provides two.
The number of peripheral connectors is adequate, as additional SATA or 4-pin Molex plugs are rarely needed nowadays—most motherboards can accommodate multiple NVMe drives. The spacing between connectors is also well-designed for easy cable routing.
