Box & Bundle

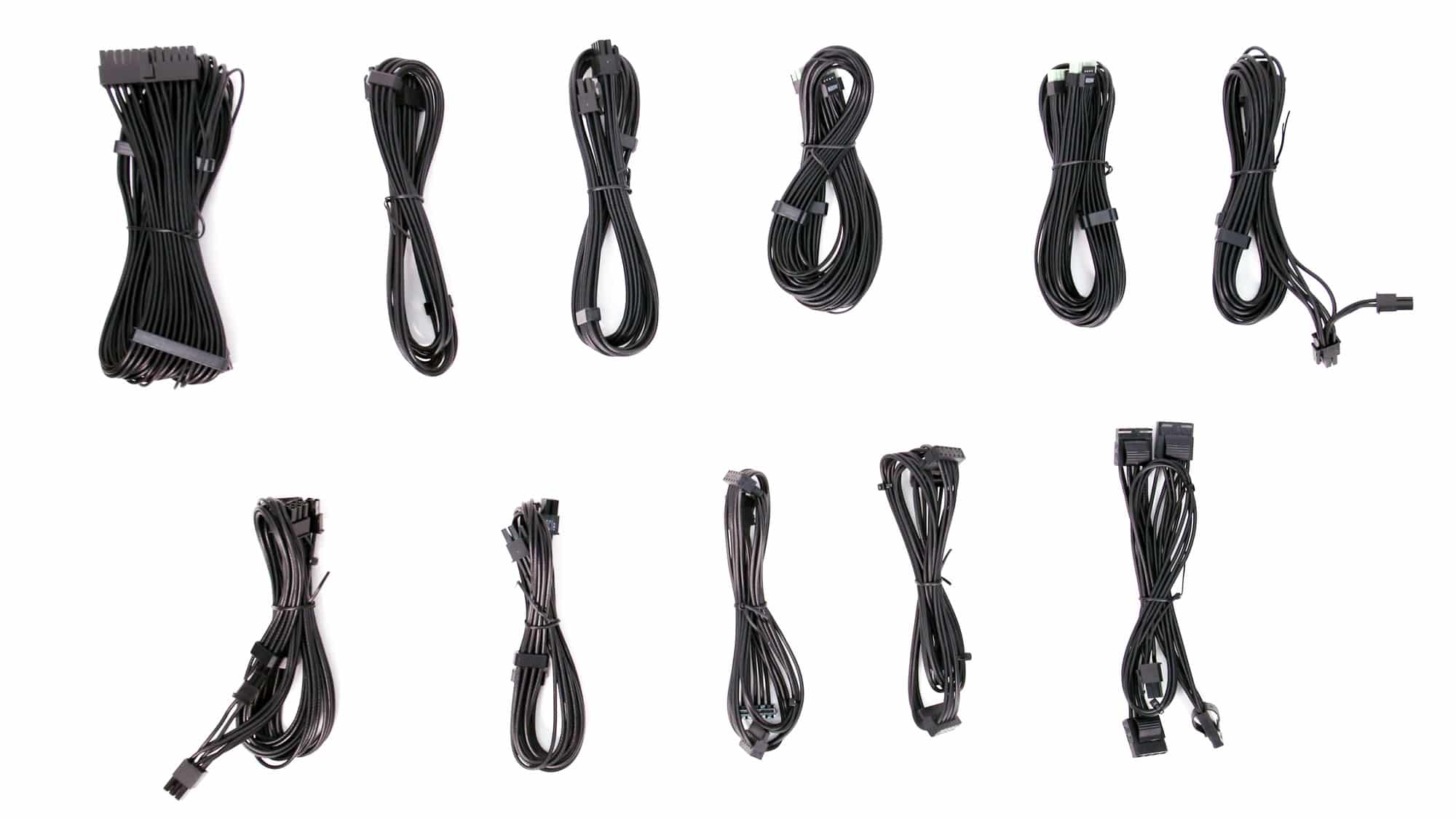

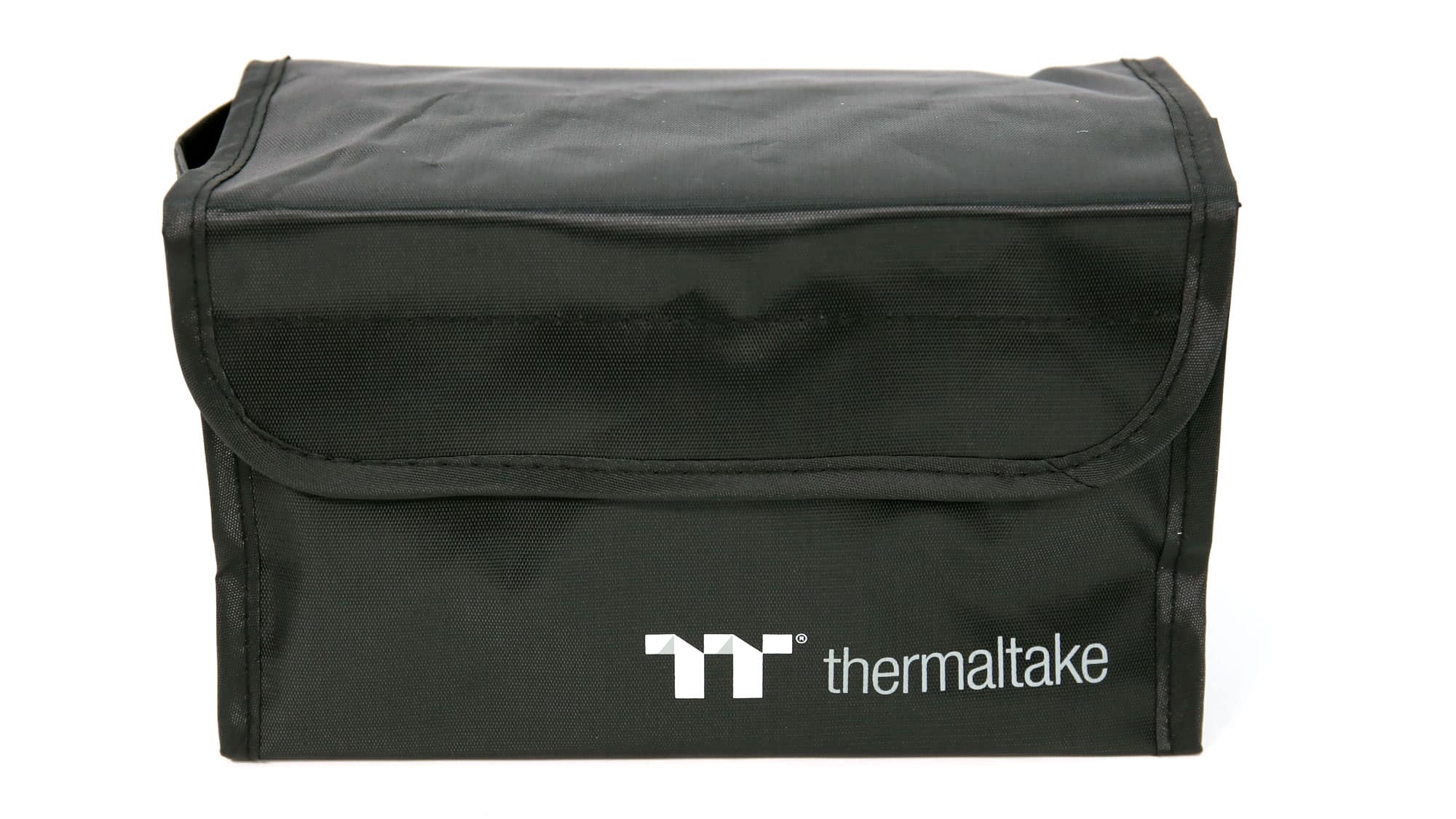

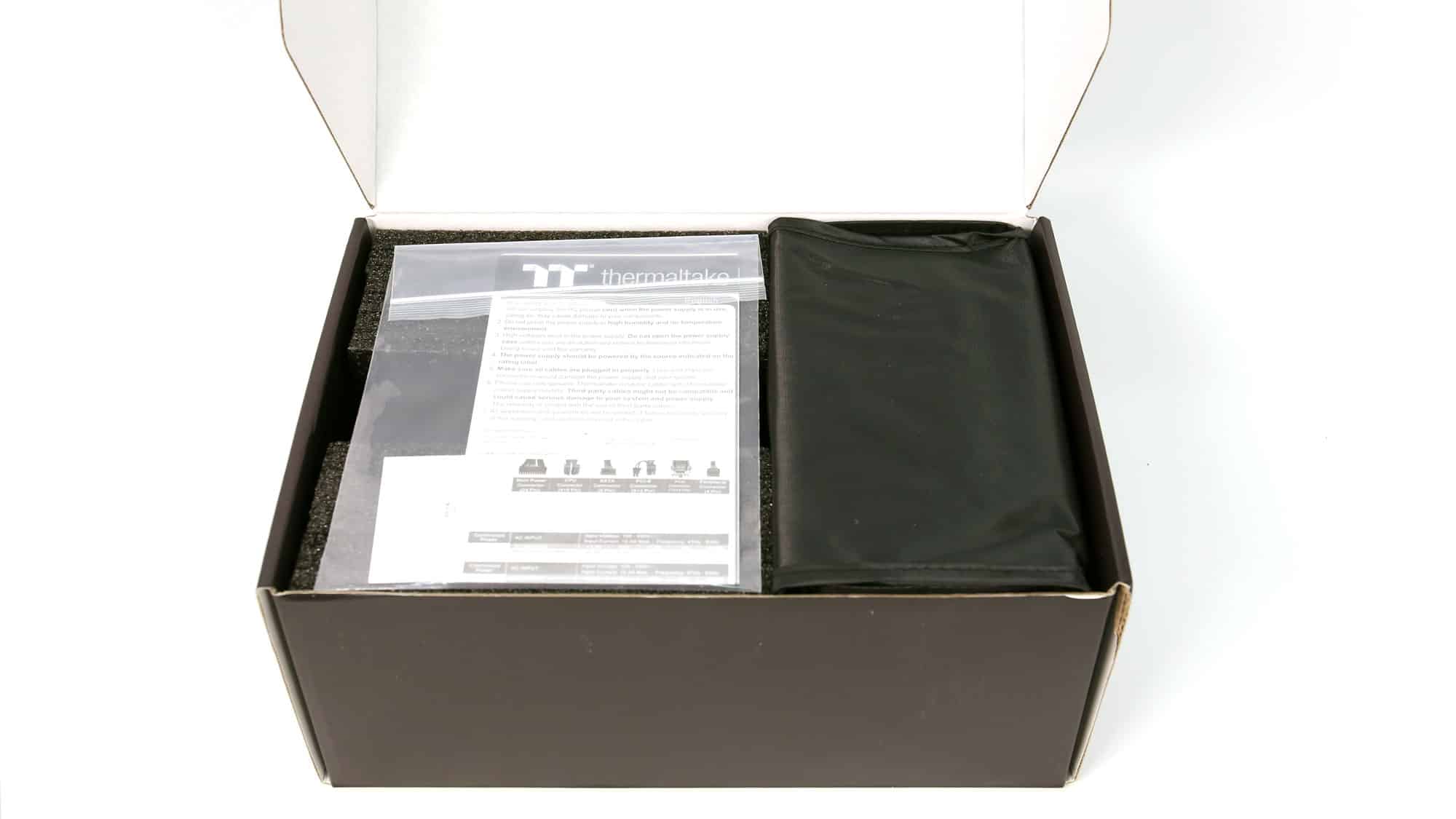

The box features a photo of the PSU on its face, along with several badges showing features such as ATX v3.1 compliance, a 12V-2×6 cable, fully modular cabling, and more. Internally, the contents are neatly arranged, and the provided protection is adequate. A pouch is also provided to store the modular cables. It will come in handy to keep the unused cables. Lastly, in a nylon bag, you will find the complete paperwork.
Product Photos

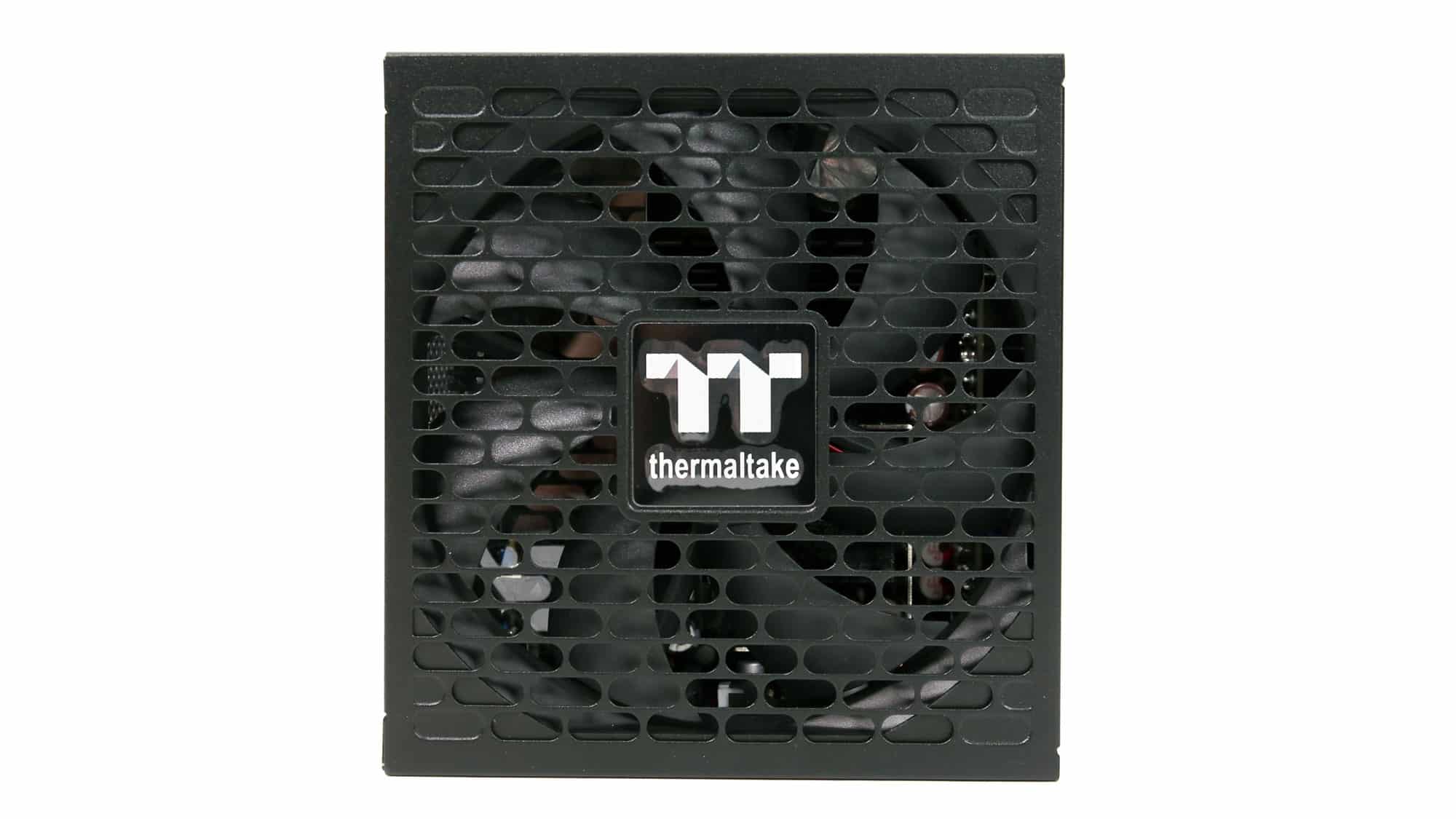

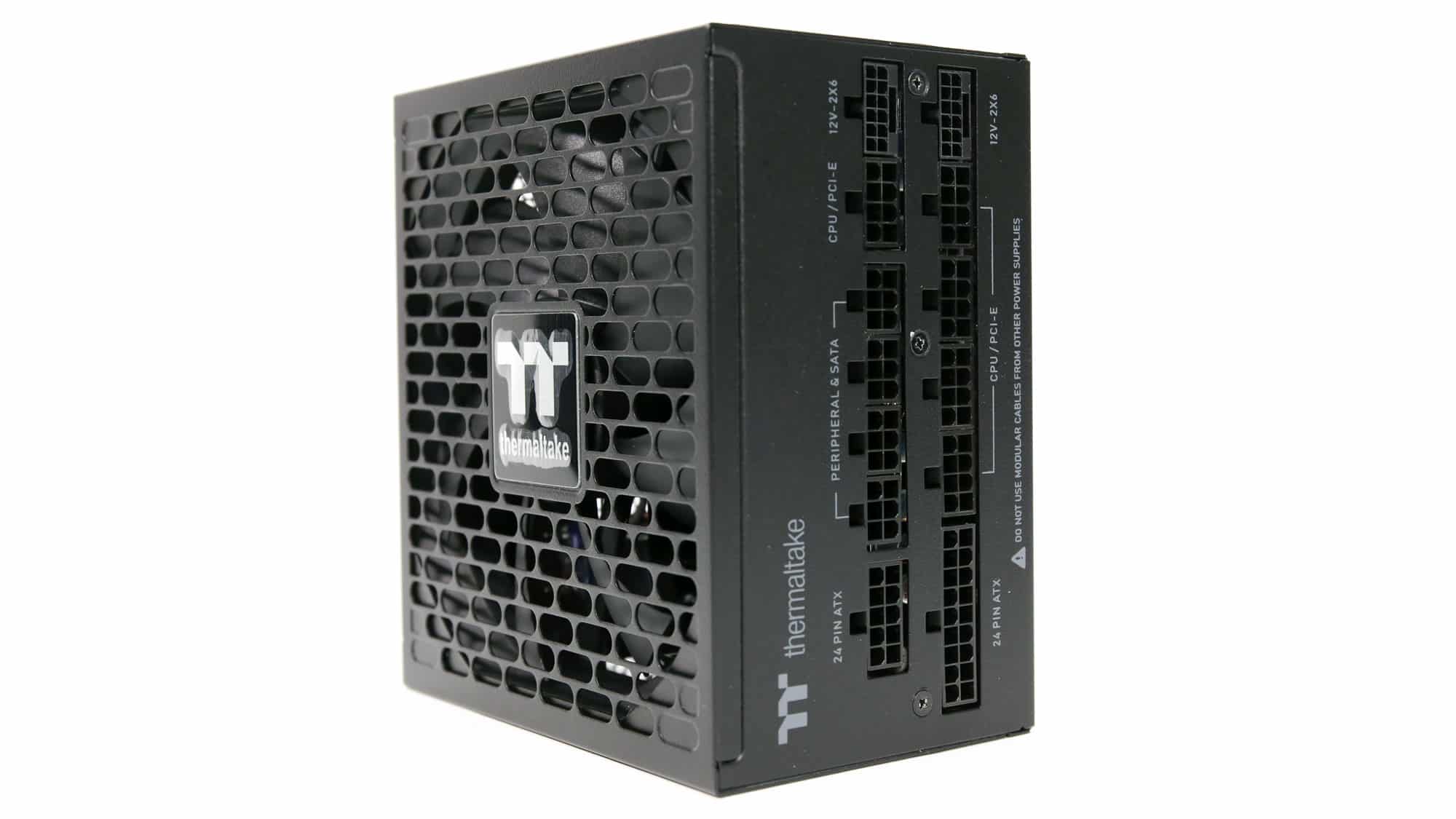

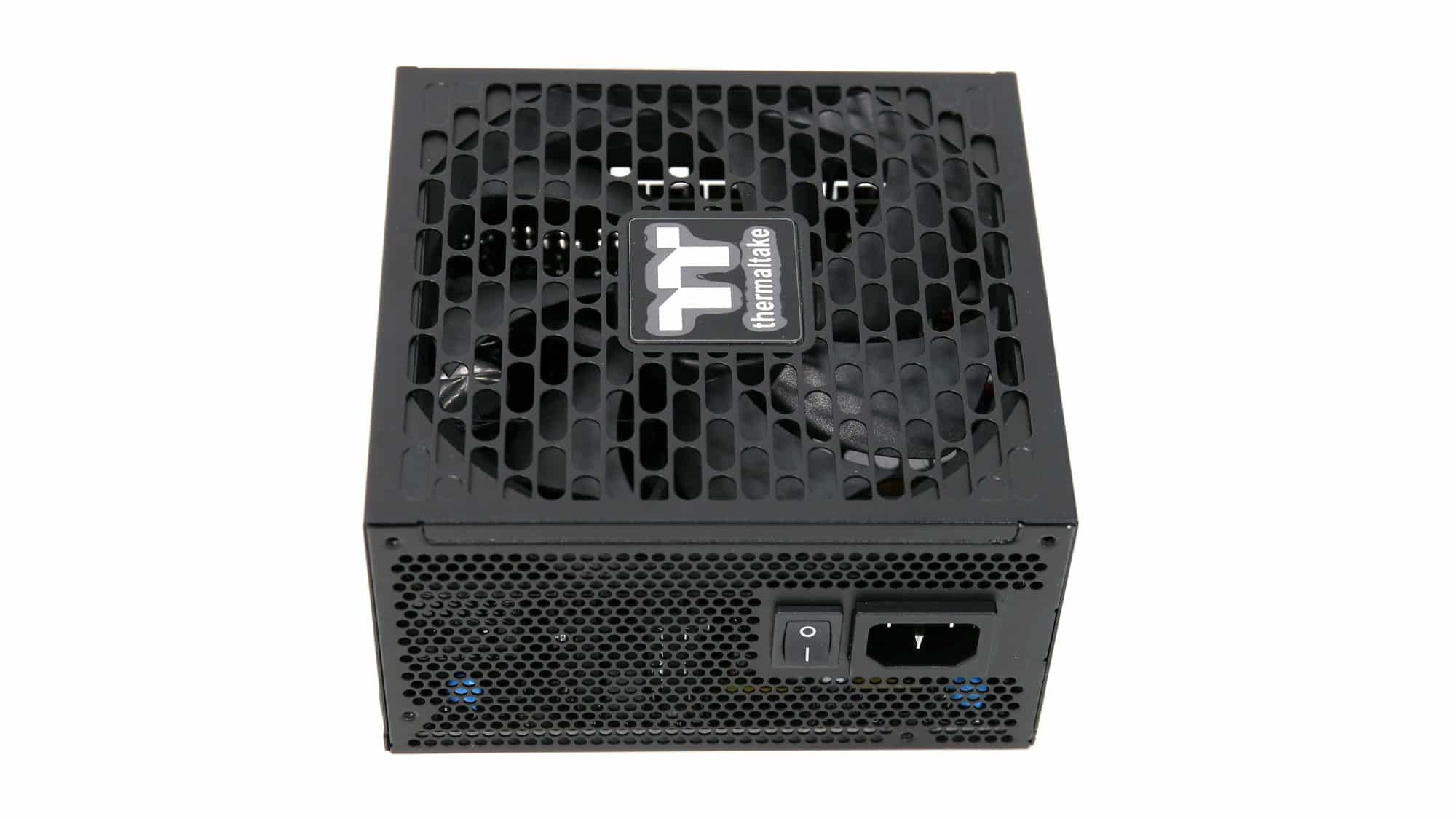

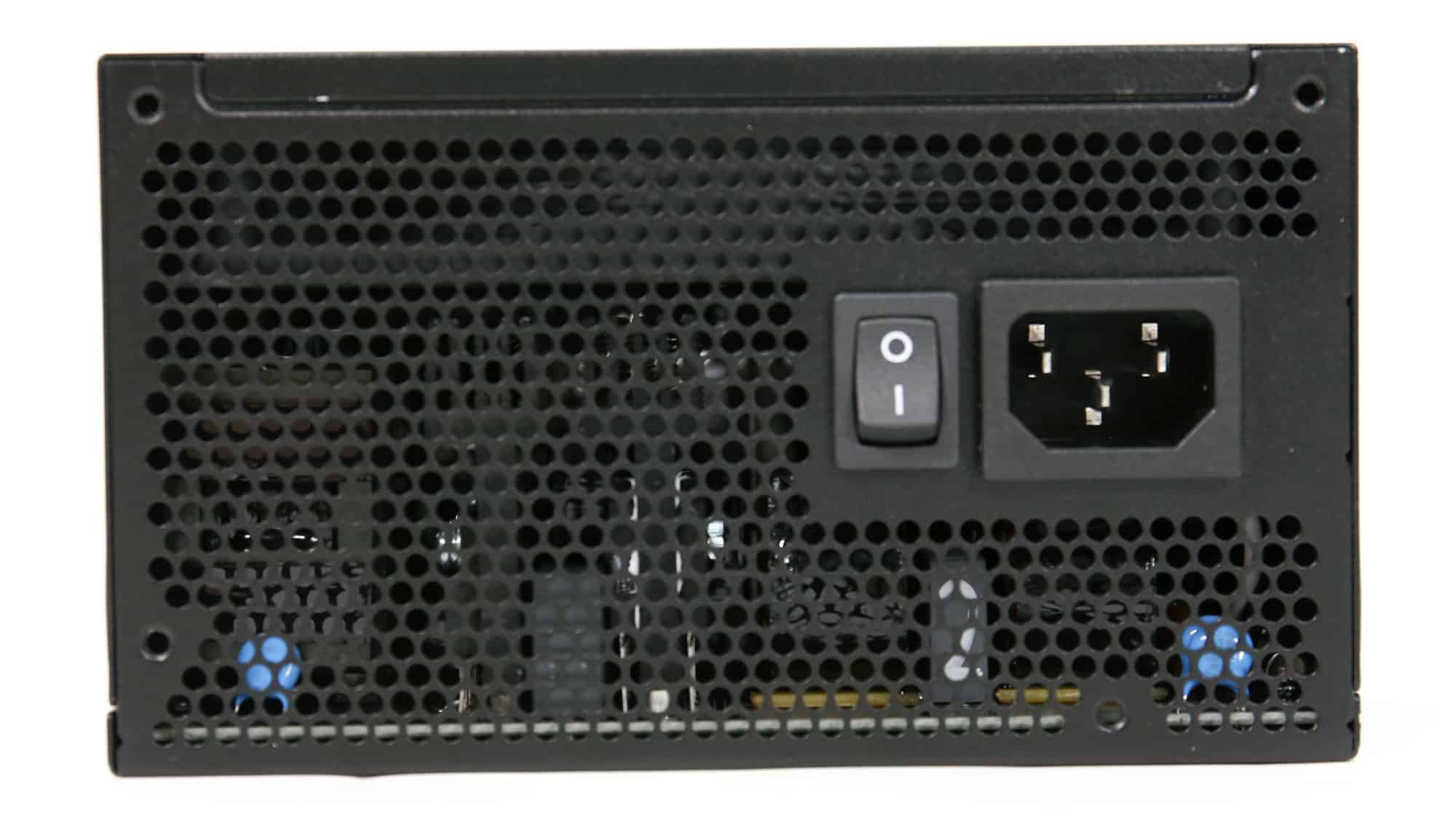

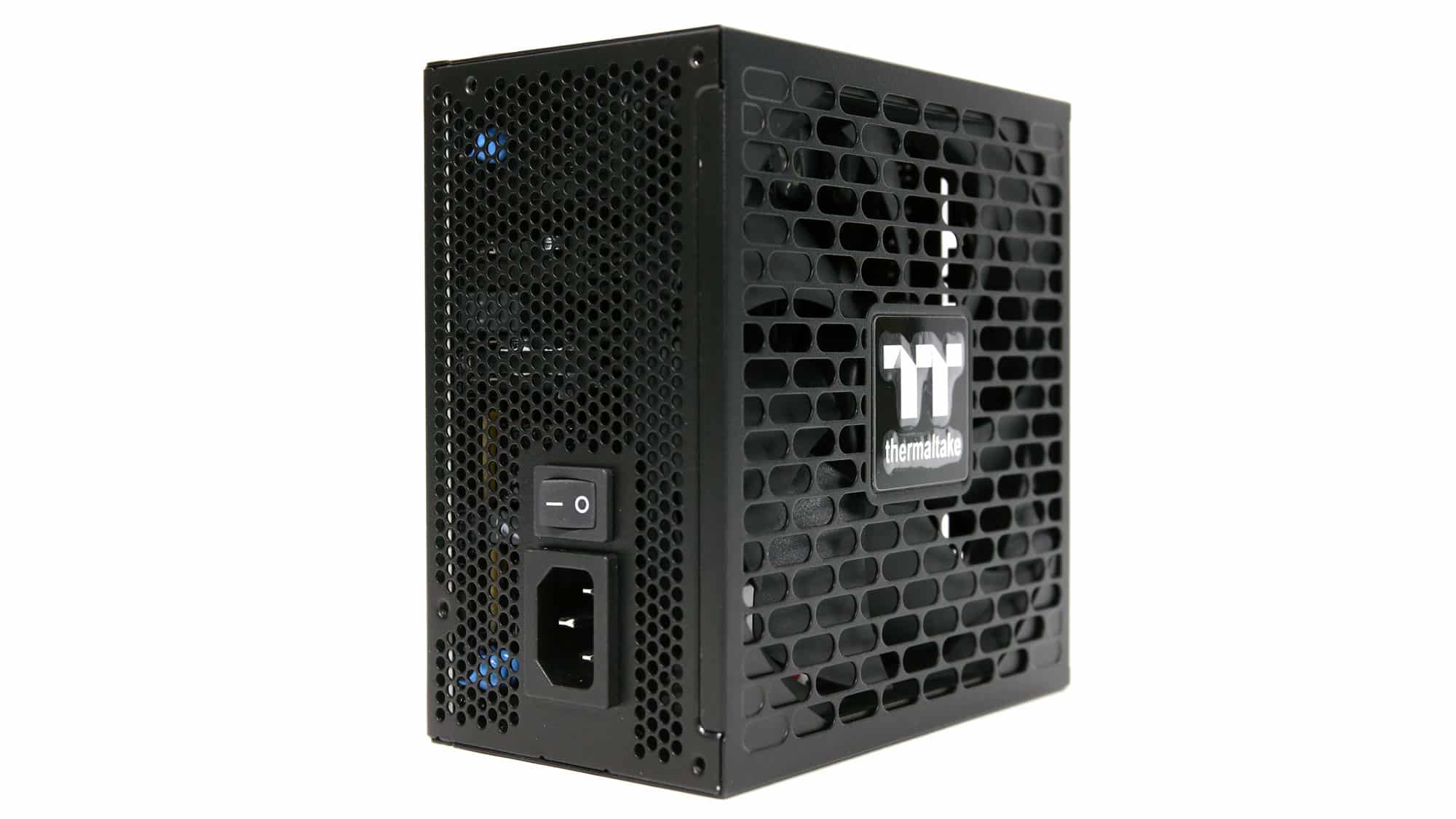

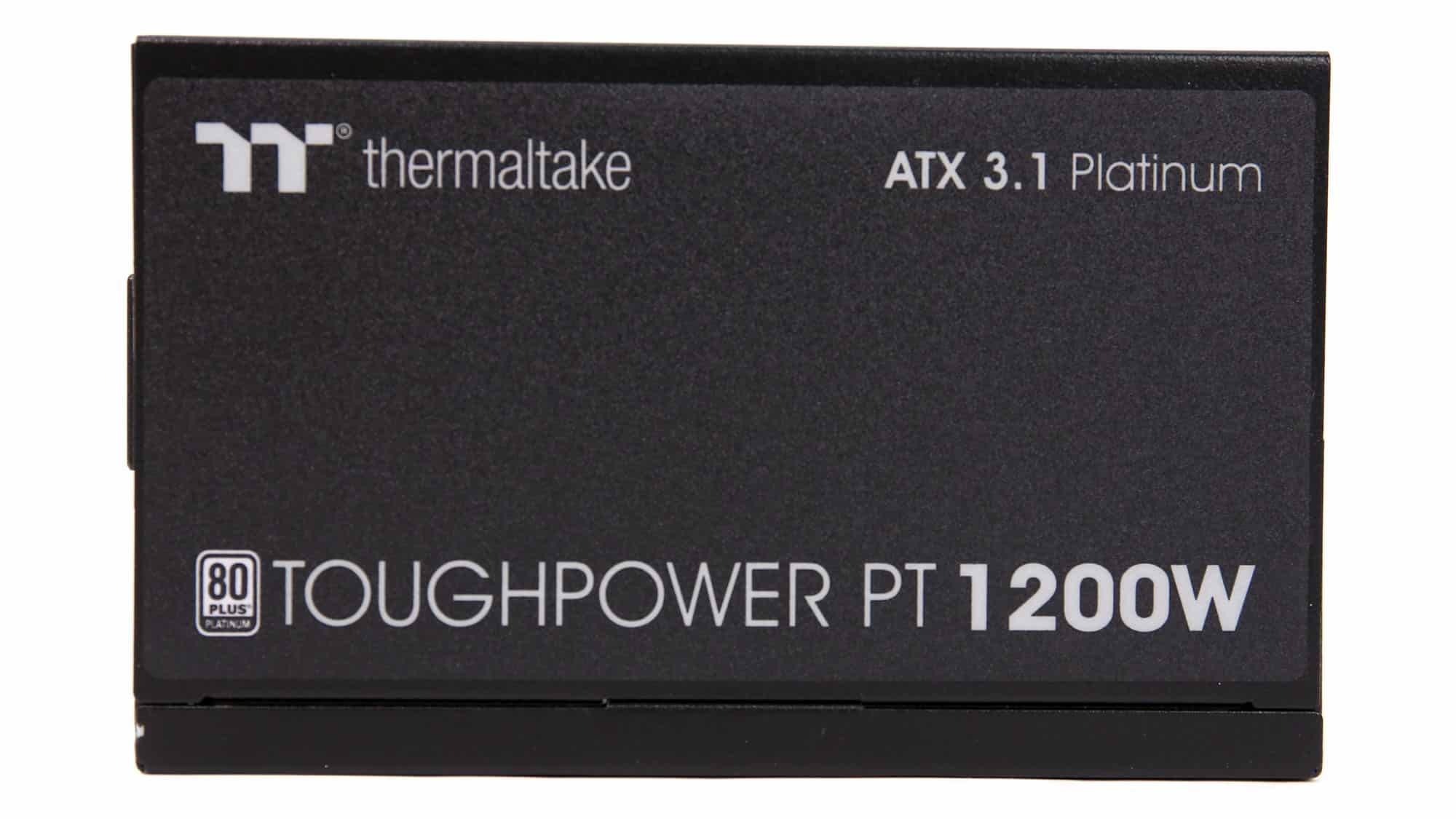

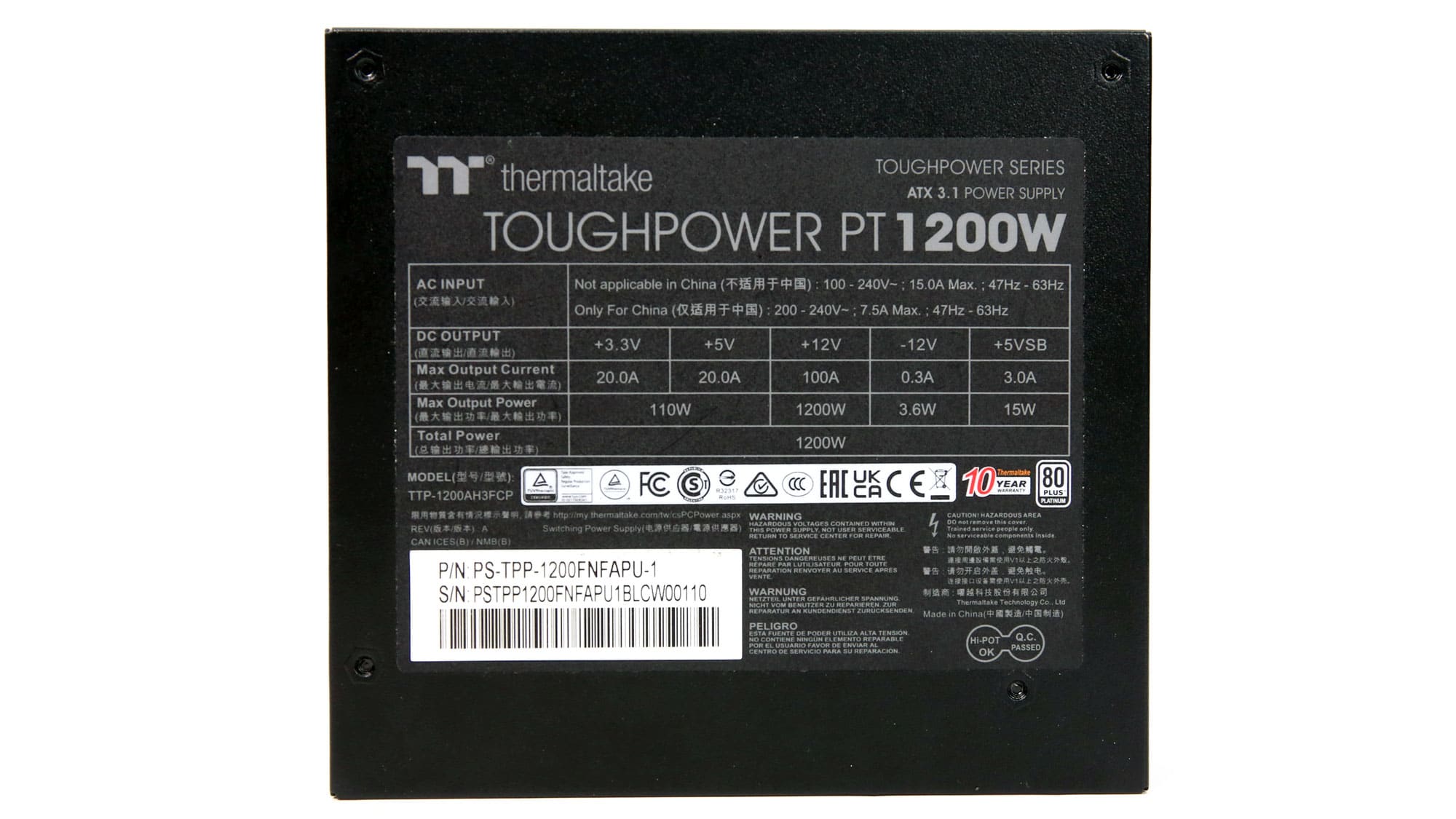

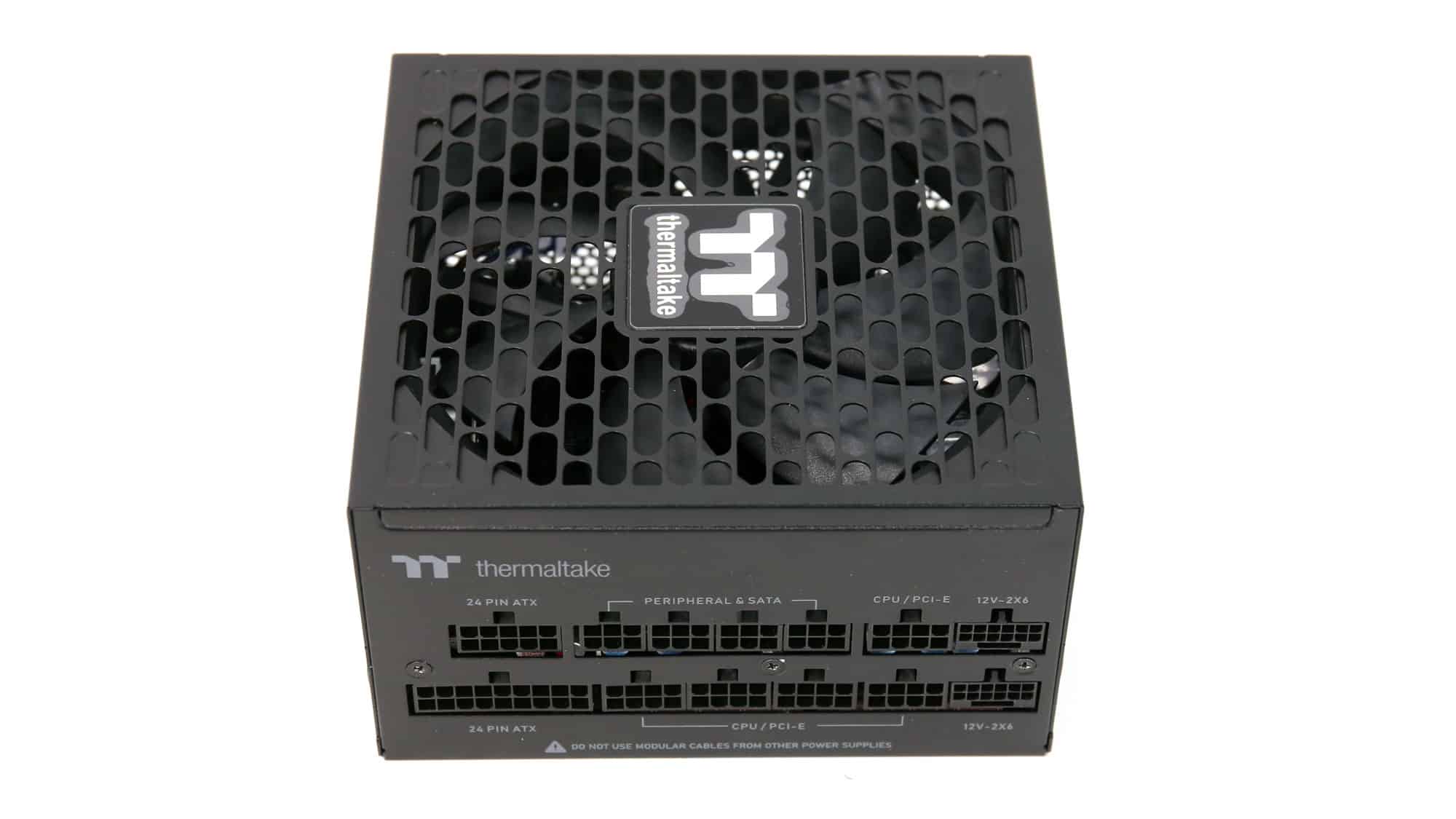

The PSU’s dimensions are compact, and the punched fan grille features large perforations for good airflow. This is a nice design feature because the compact PCB and the unit’s increased max power require good airflow. At the unit’s front side you will find the AC receptacle and the power switch.

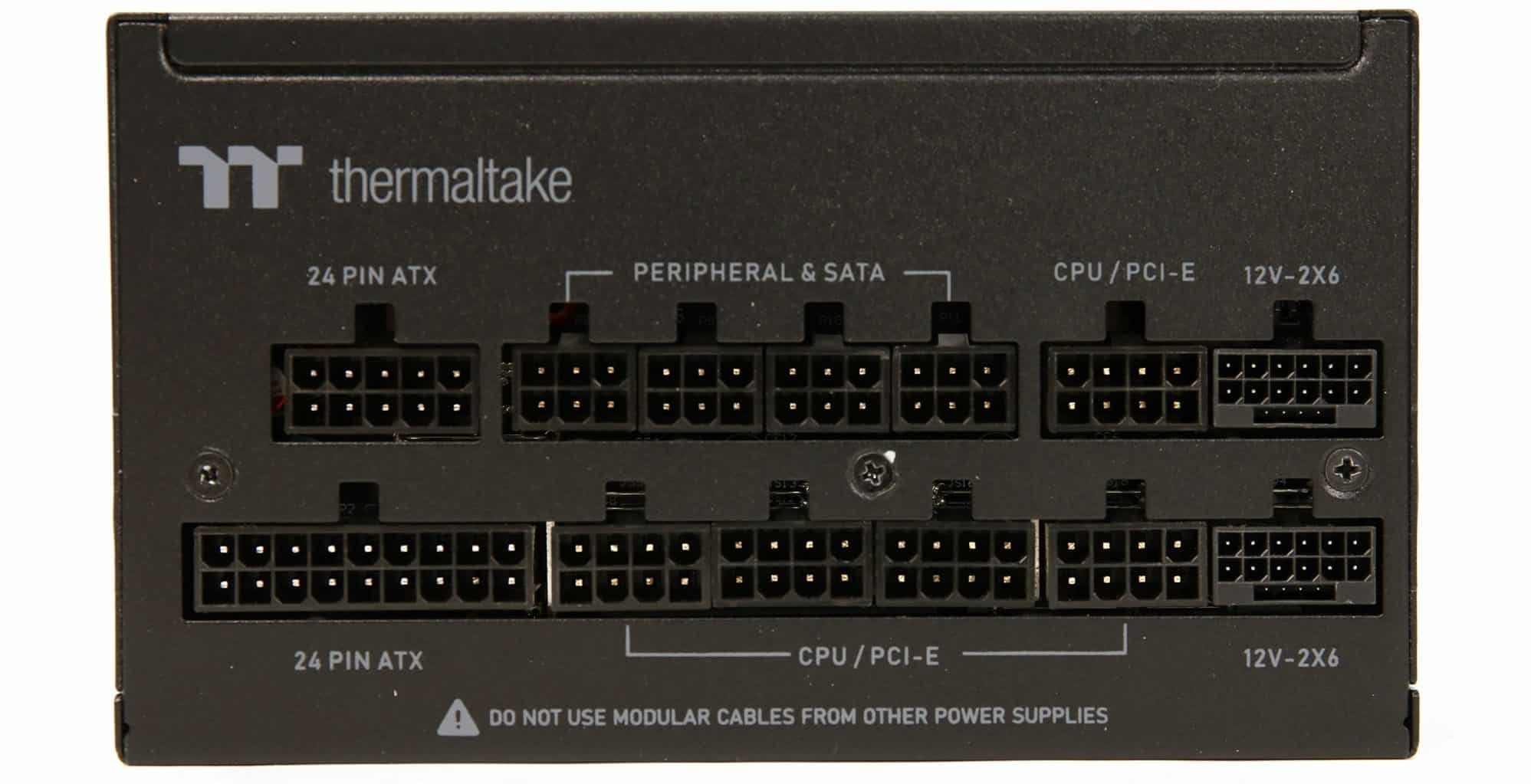

The modular panel has 13x sockets, including two native 12V-2×6 headers.
| Modular Cables | ||||
| Description | Cable Count | Connector Count (Total) | Gauge | In Cable Capacitors |
|---|---|---|---|---|

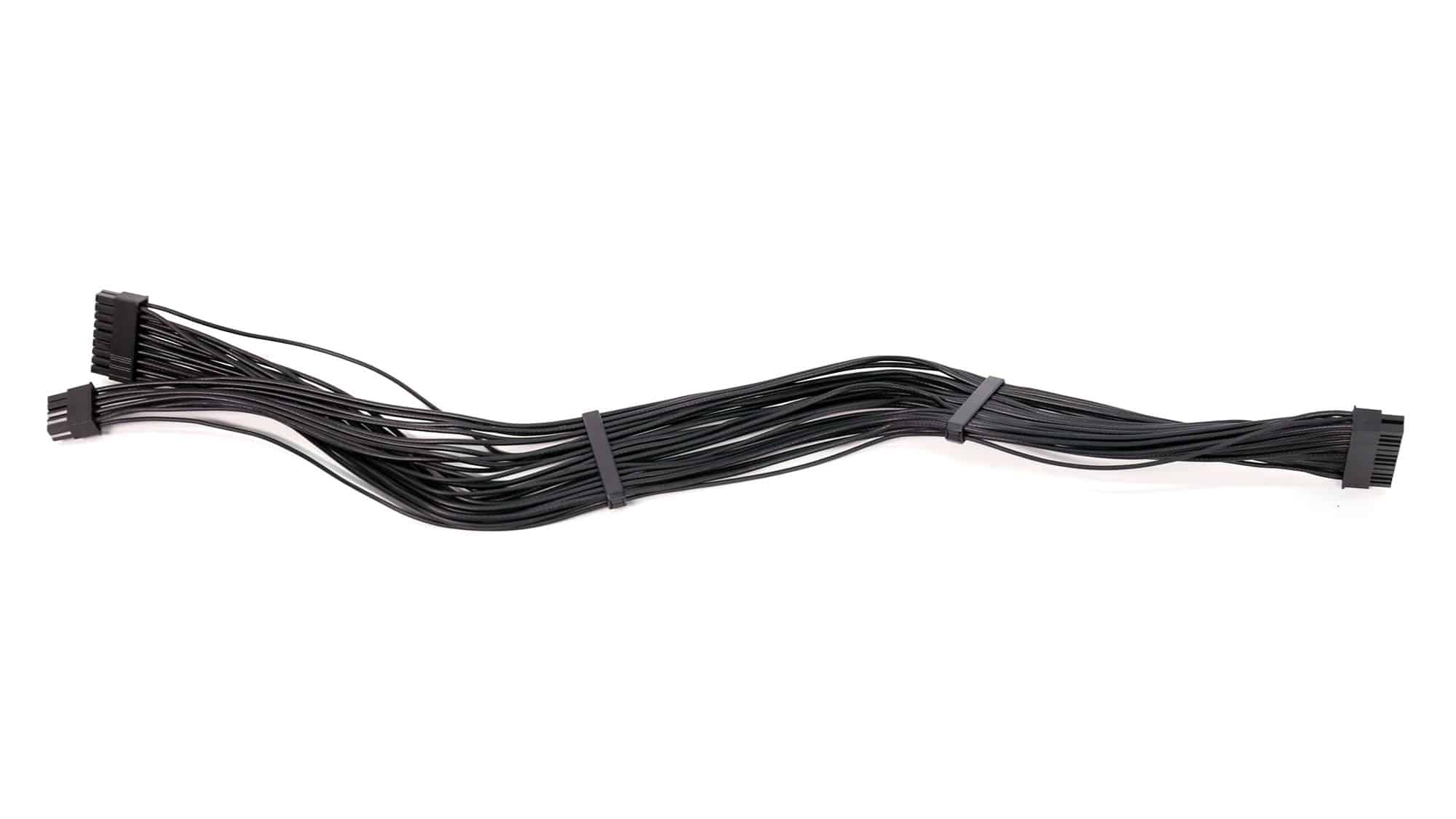

| ATX connector 24 pin (550mm) | 1 | 1 | 16-20AWG | No |

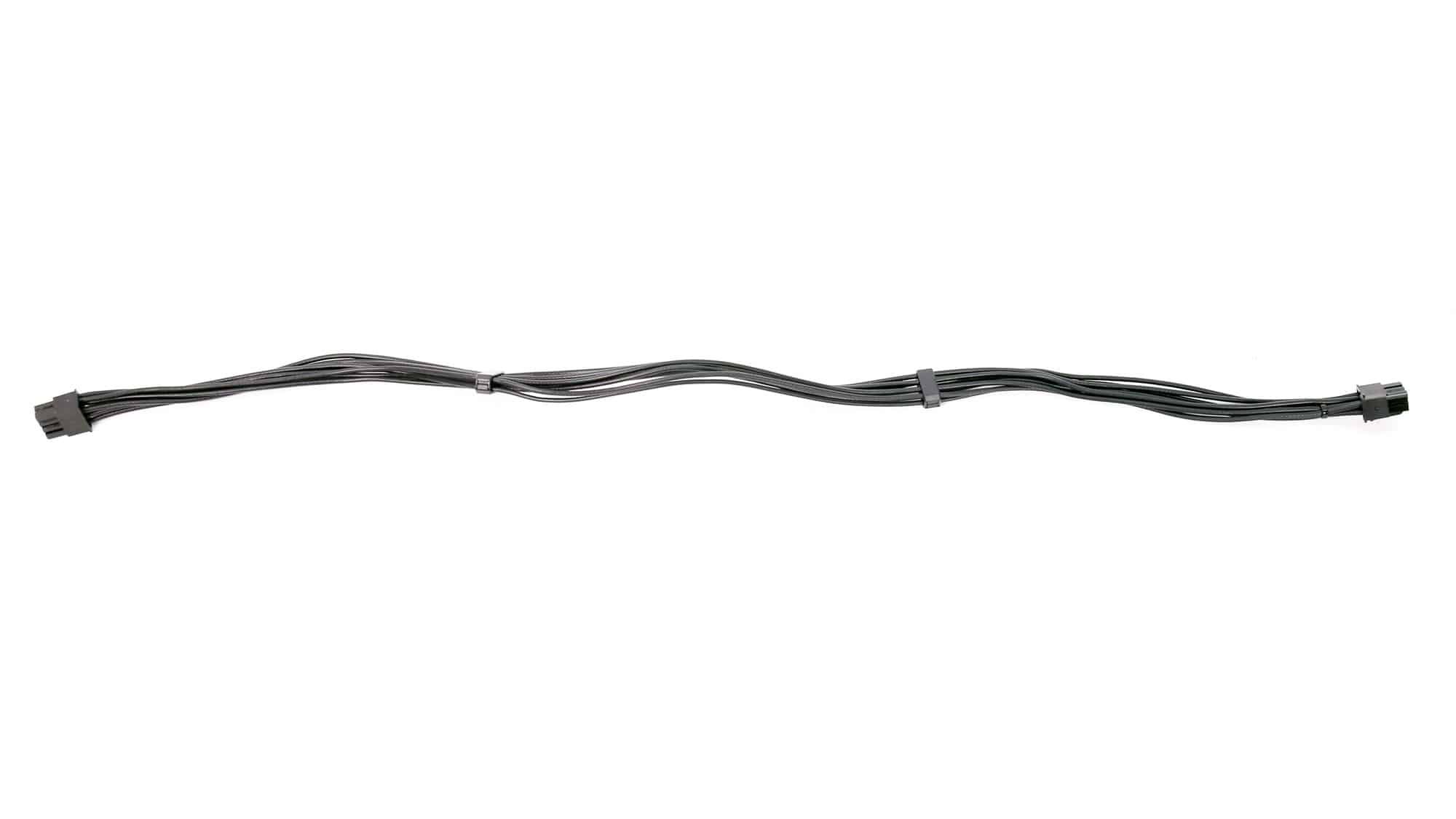

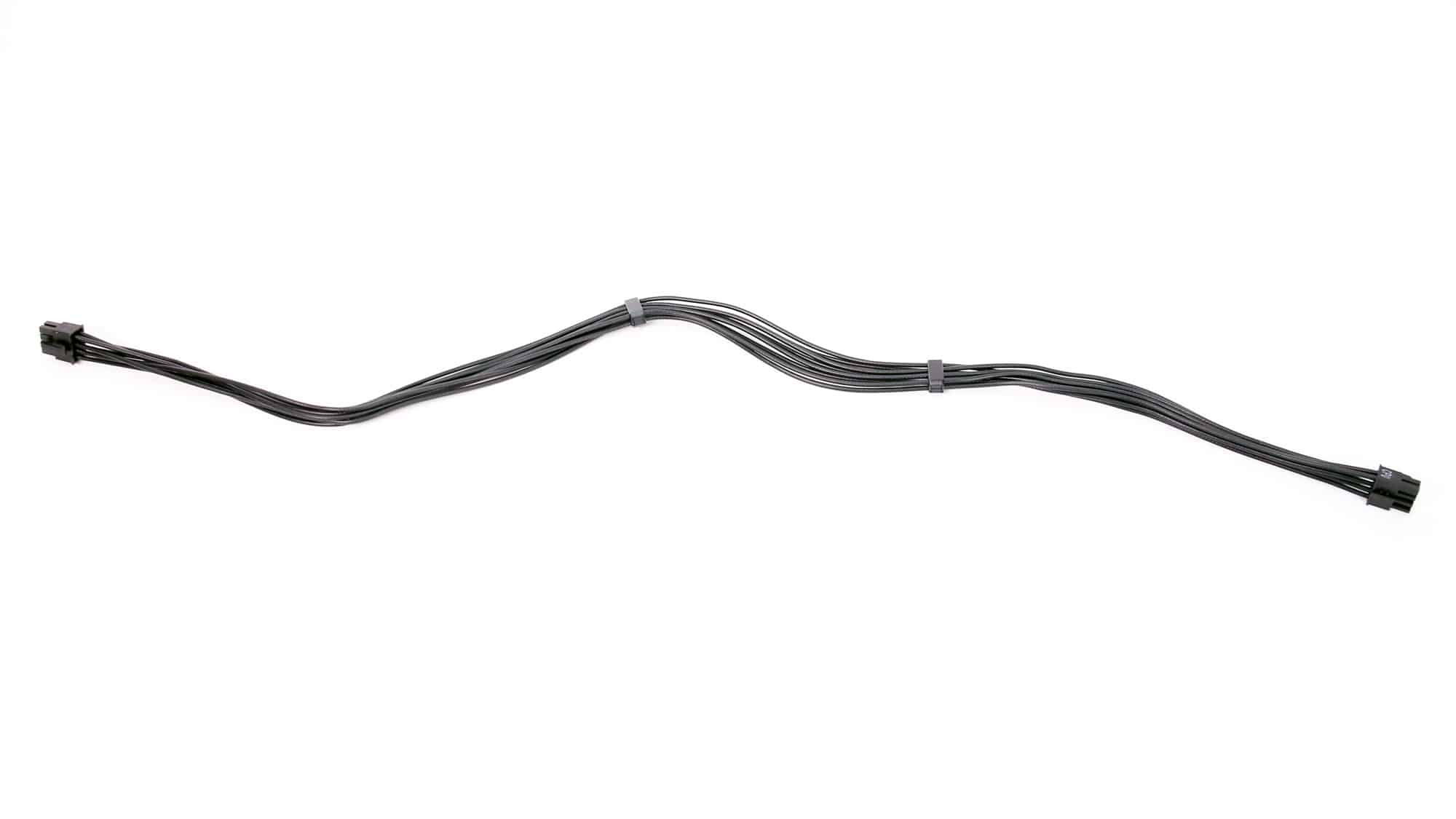

| 4+4 pin ATX12V (700mm) | 2 | 2 | 16AWG | No |

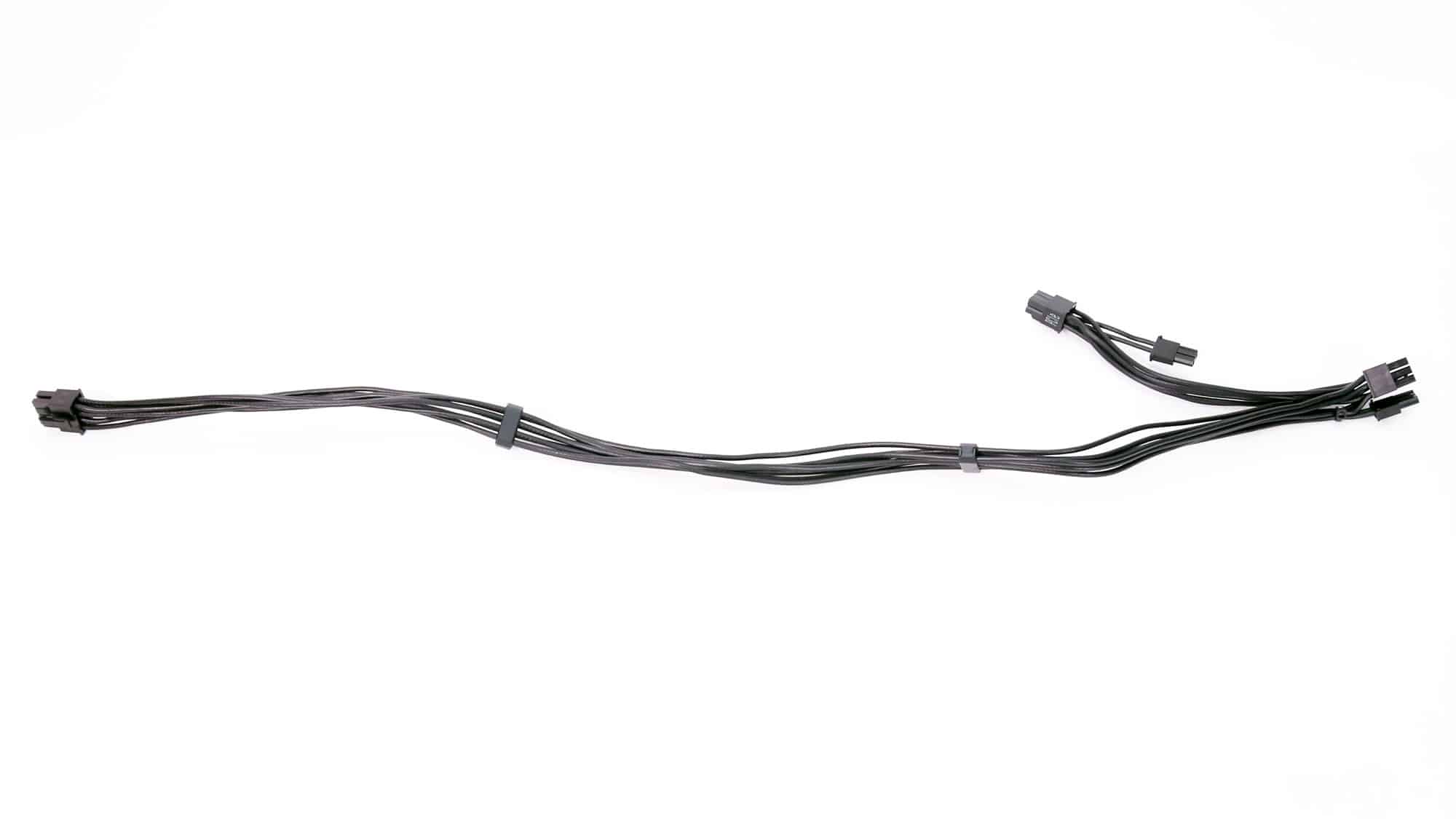

| 6+2 pin PCIe (600mm+150mm) | 2 | 4 | 16-18AWG | No |
| 6+2 pin PCIe (600mm) | 1 | 1 | 16AWG | No |
| 12+4 pin PCIe (600mm) (600W) | 2 | 2 | 16-24AWG | No |

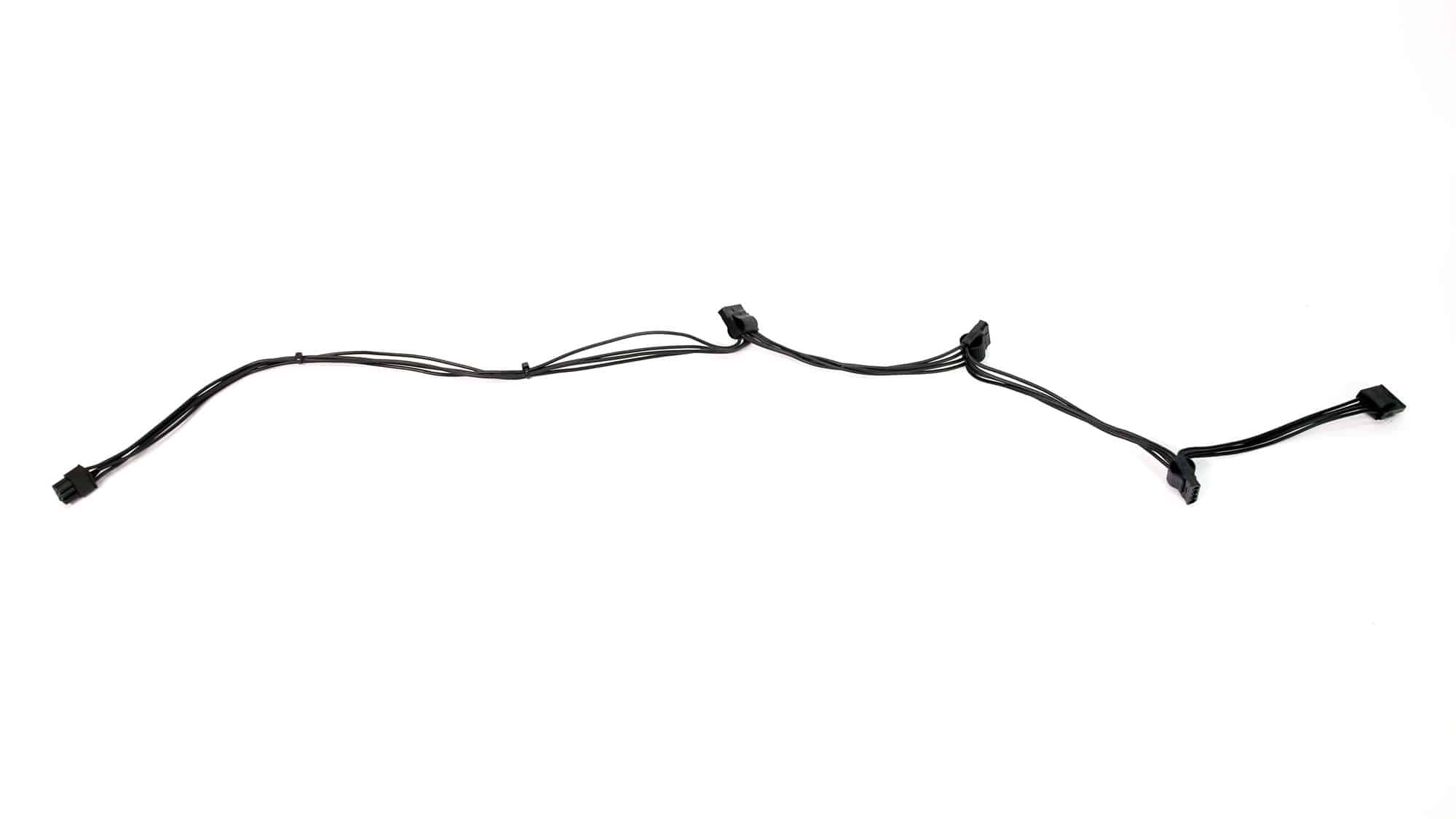

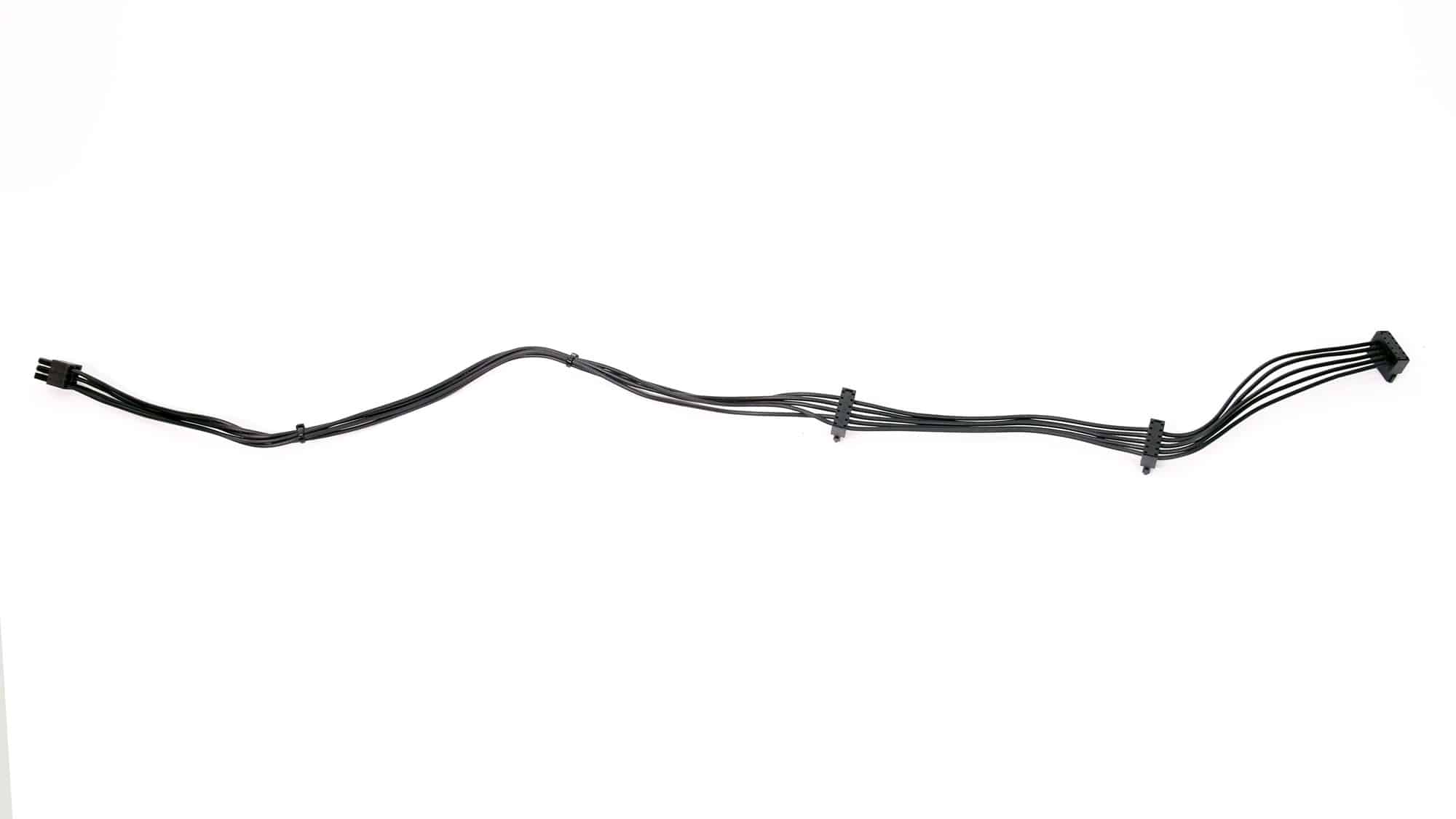

| SATA (450mm+150mm+150mm) | 2 | 6 | 18AWG | No |
| 4-pin Molex (450mm+150mm+150mm+150mm) | 1 | 4 | 18AWG | No |

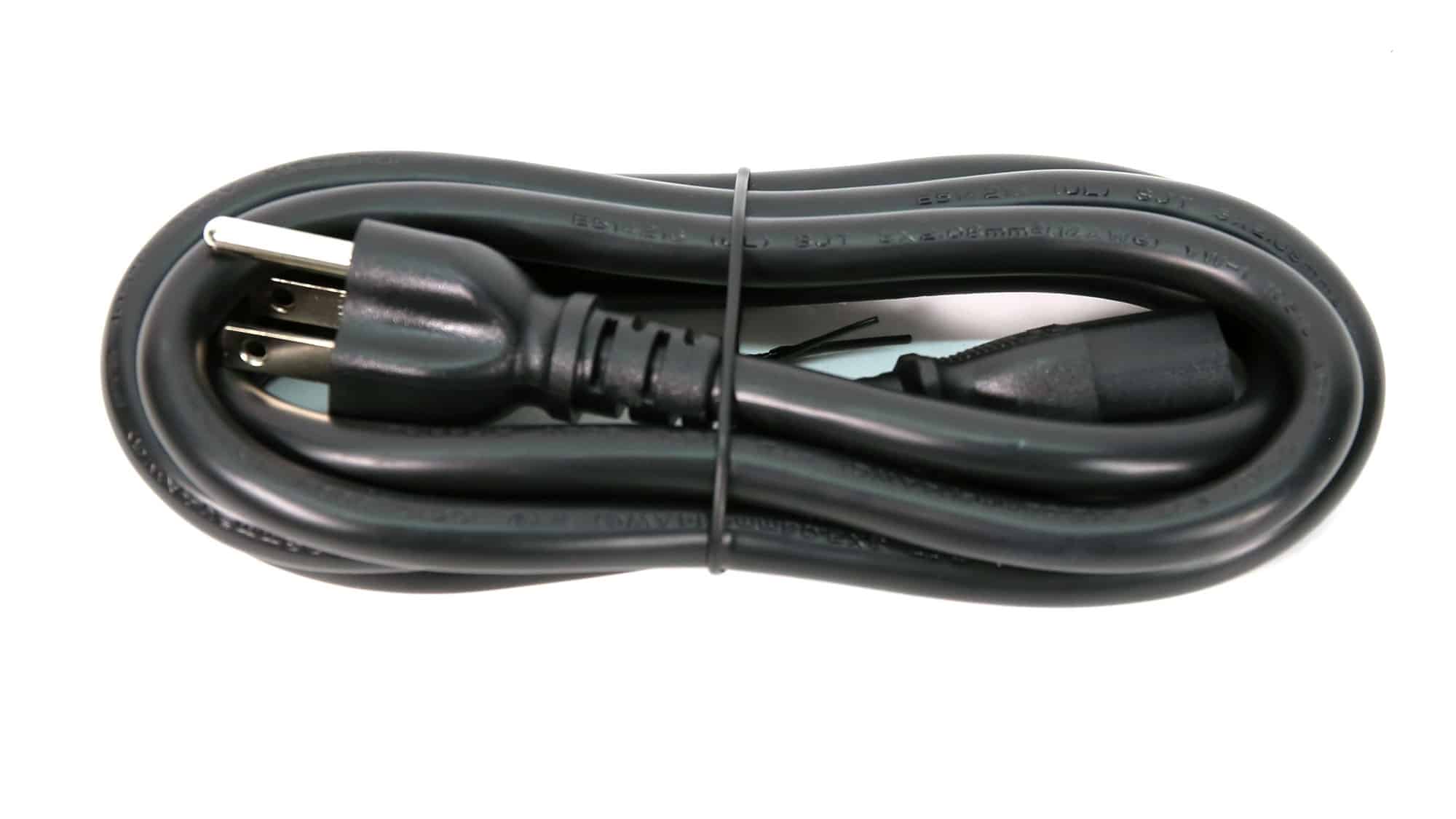

| AC Power Cord (1410mm) – C13 coupler | 1 | 1 | 14AWG | – |

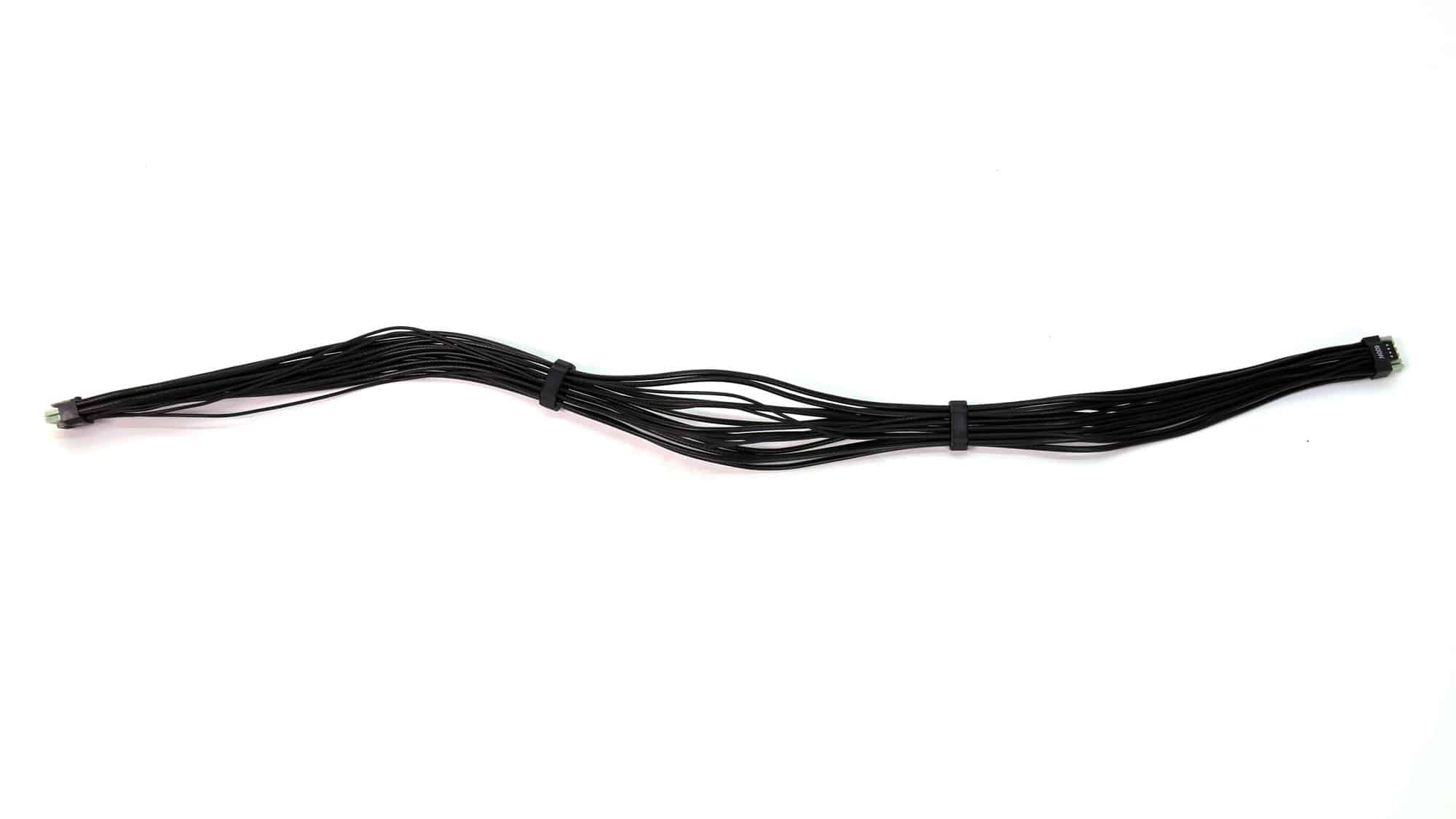

The cables are long enough, except for the ATX one, which ideally should be 600mm long or even longer. The high-power cables use thicker, 16AWG, for lower voltage drops at high loads. The pair of 12V-2×6 is a pleasant surprise, although it is overkill to have both set at 600W.
The number of peripheral connectors is sufficient. There is no need anymore for more SATA or 4-pin Molex connectors, since most mainboards can take two or more NVMe drives, and the distance between the peripheral connectors is adequate.
