Transient Response
20% Load – 20ms
| Advanced Transient Response 20% - 50 Hz - No Caps | ||||
| Voltage | Before | After | Change | Pass/Fail |
| 12V | 12.215V | 12.063V | 1.24% | Pass |
| 5V | 5.040V | 4.955V | 1.69% | Pass |
| 3.3V | 3.375V | 3.239V | 4.02% | Pass |
| 5VSB | 5.026V | 4.986V | 0.80% | Pass |
50% Load -20ms
| Advanced Transient Response 50% - 50 Hz - No Caps | ||||
| Voltage | Before | After | Change | Pass/Fail |
| 12V | 12.190V | 12.075V | 0.94% | Pass |
| 5V | 5.014V | 4.942V | 1.43% | Pass |
| 3.3V | 3.349V | 3.224V | 3.72% | Pass |
| 5VSB | 4.972V | 4.932V | 0.81% | Pass |

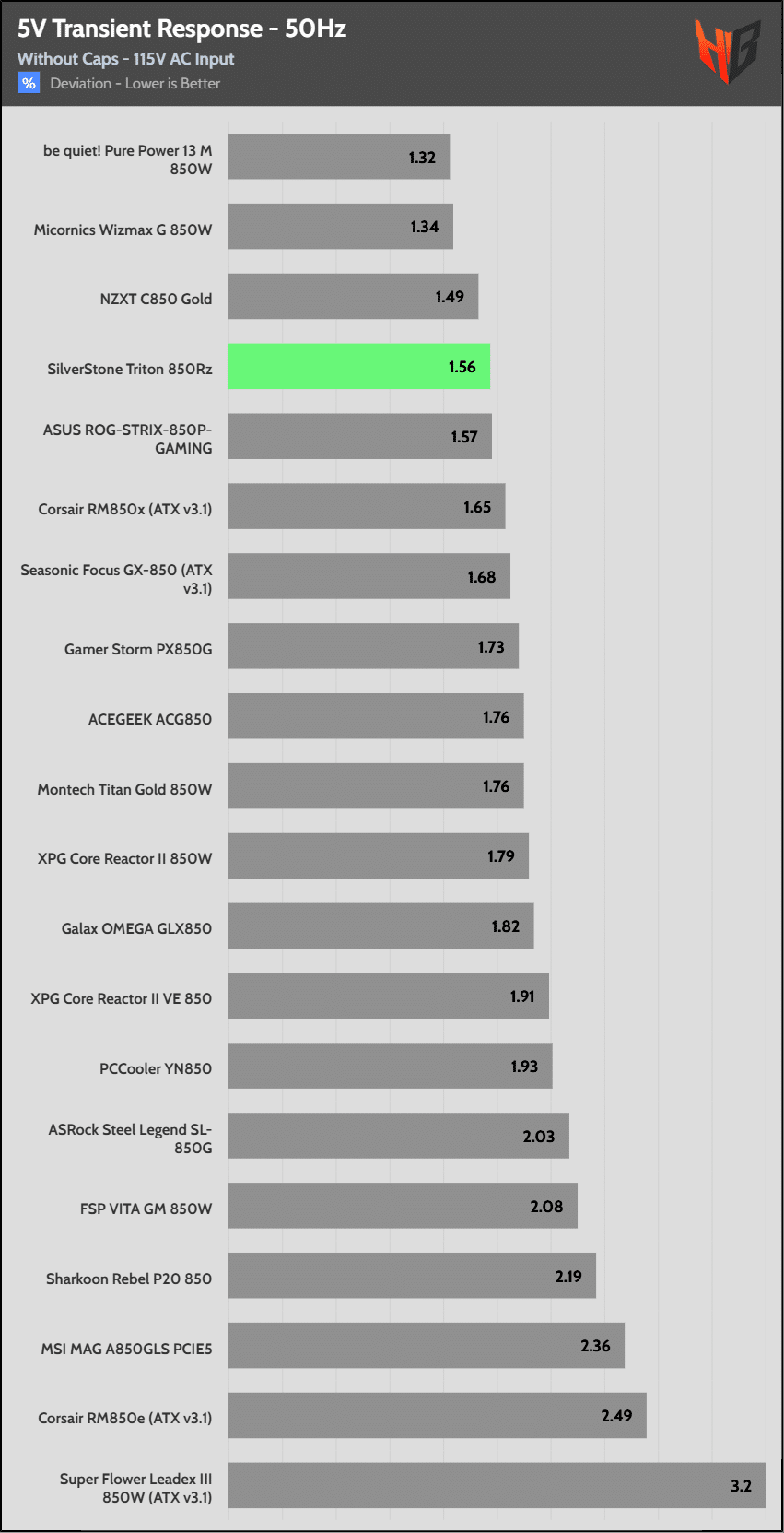

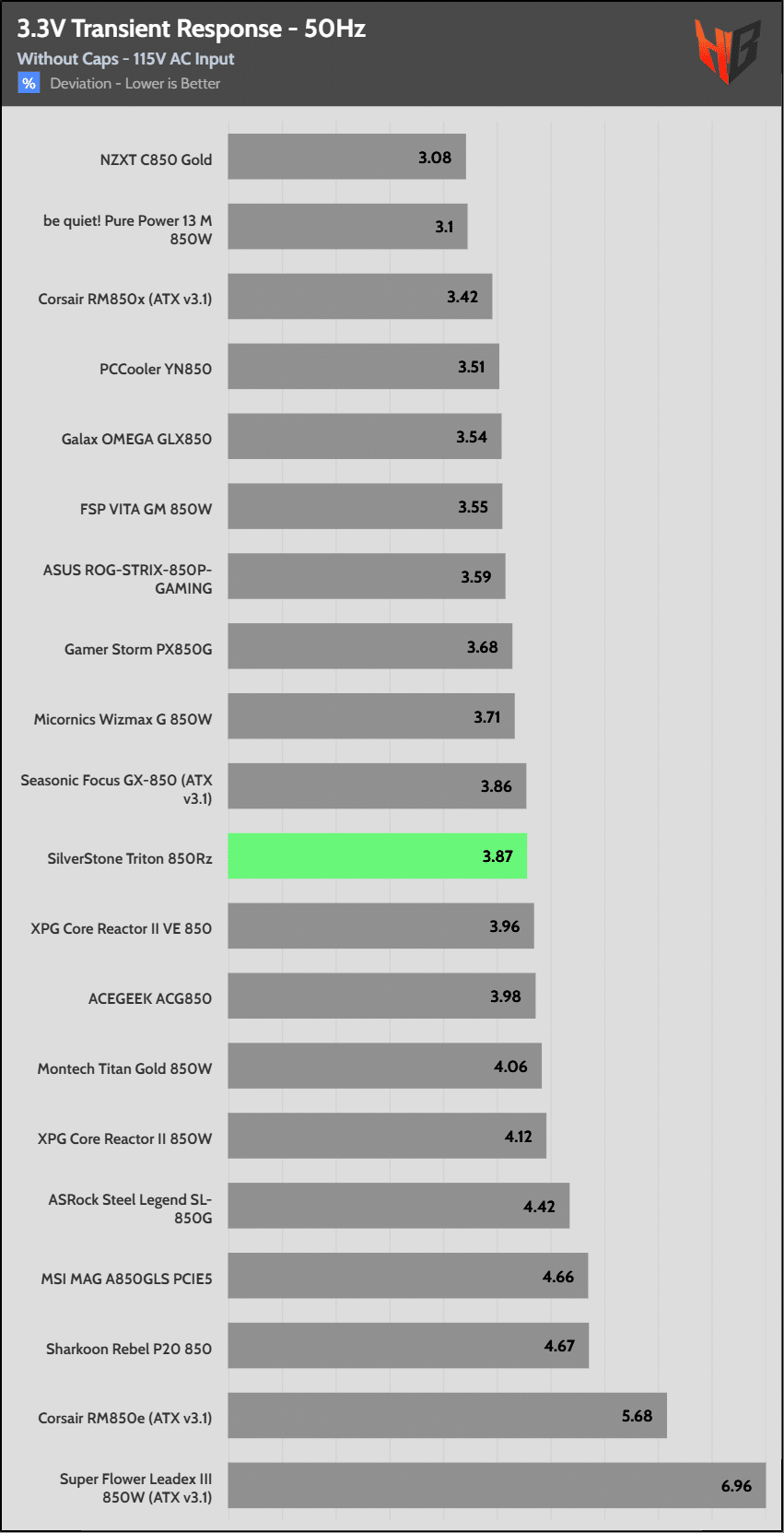

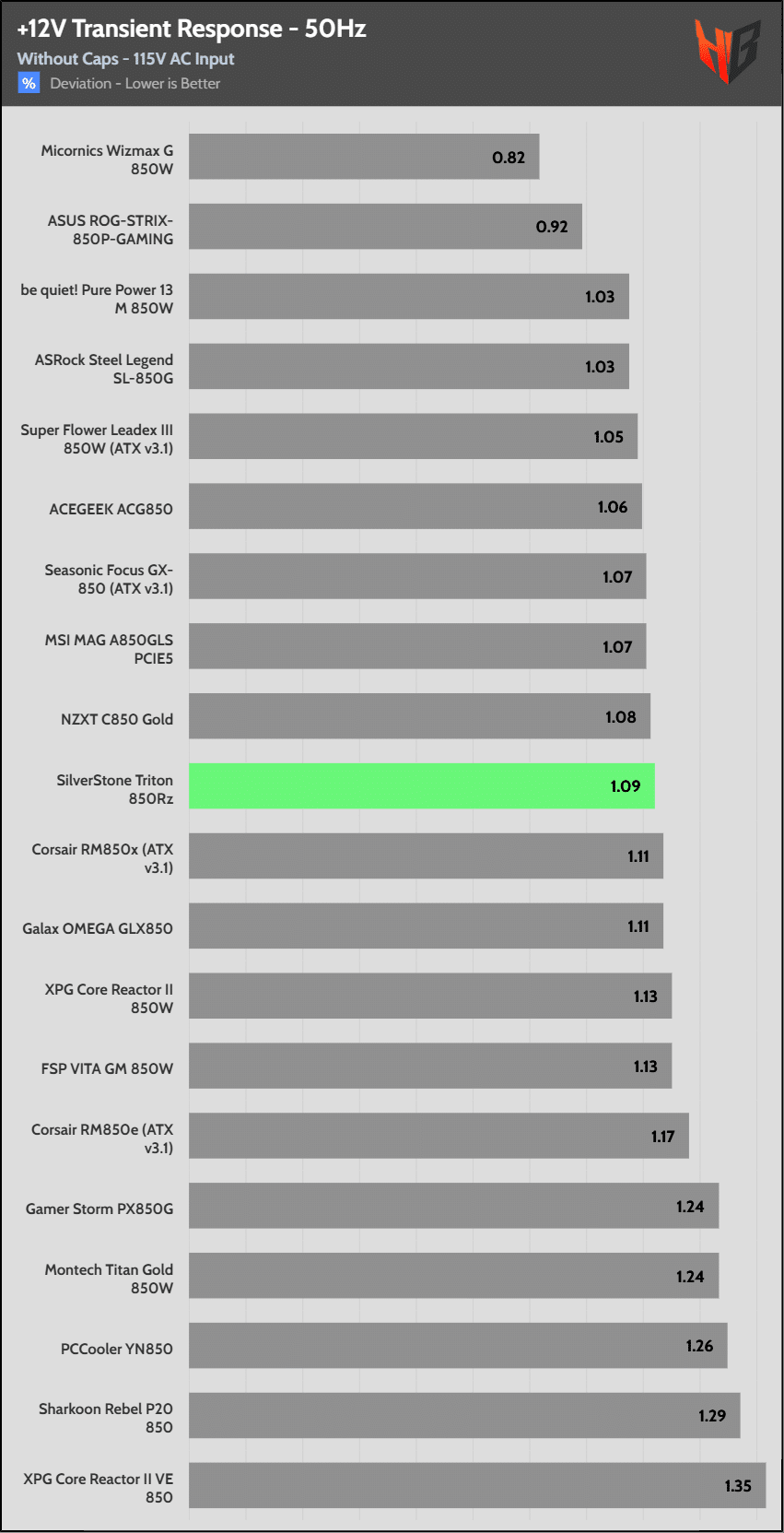

The transient response is good overall on all rails, for this category’s standards.

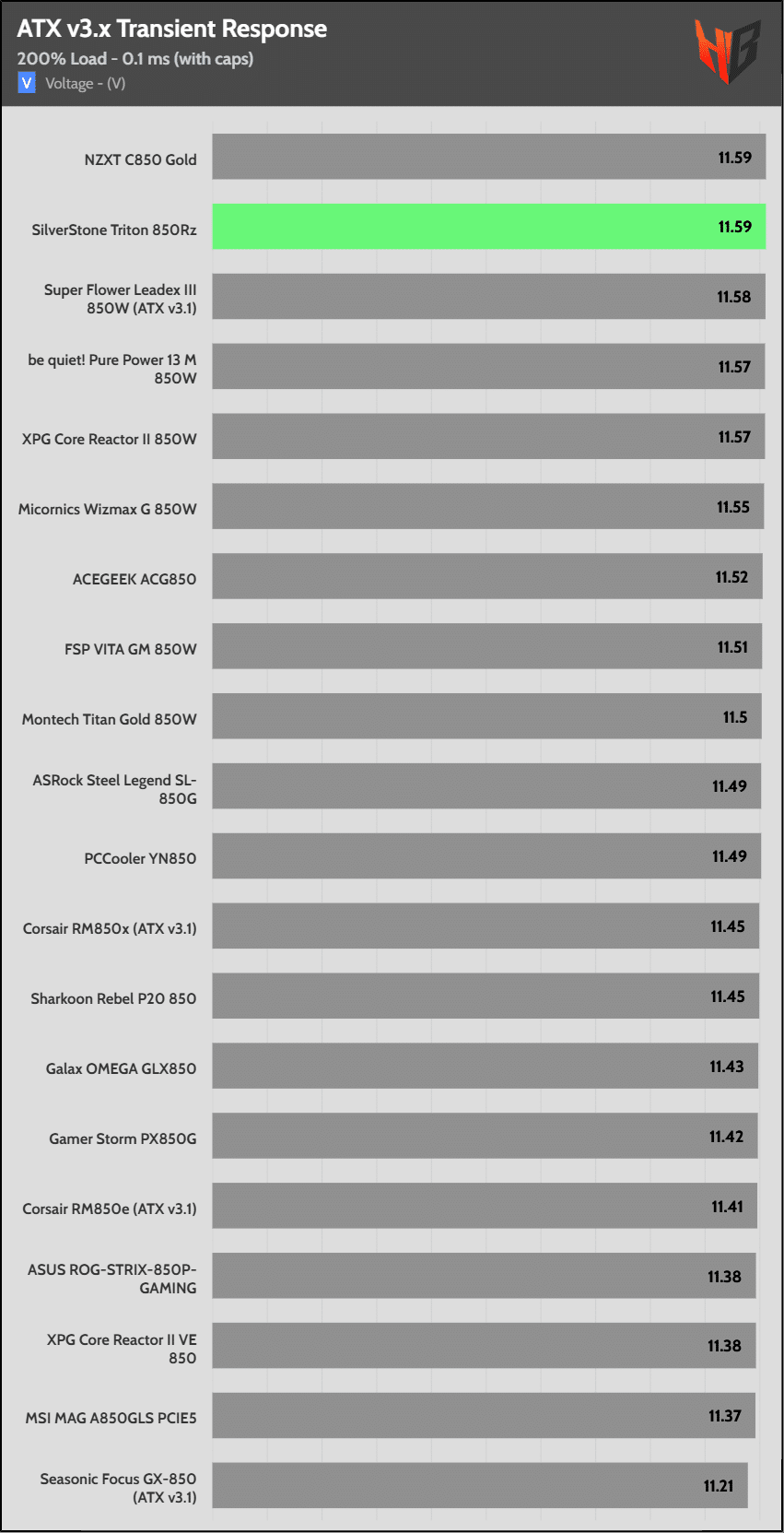

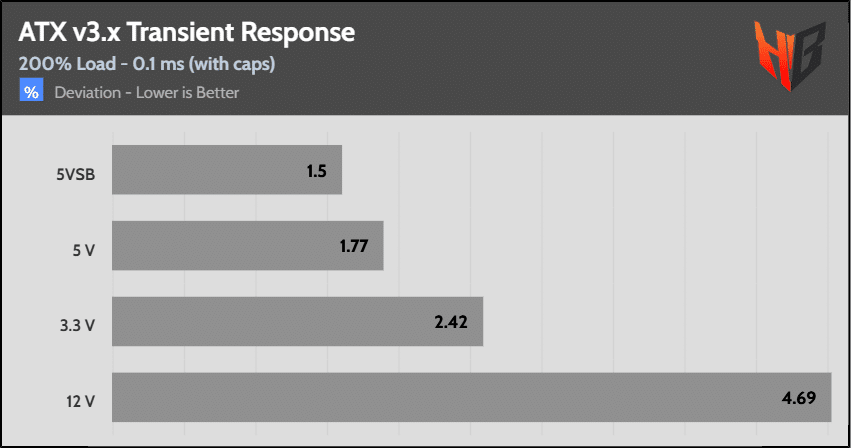

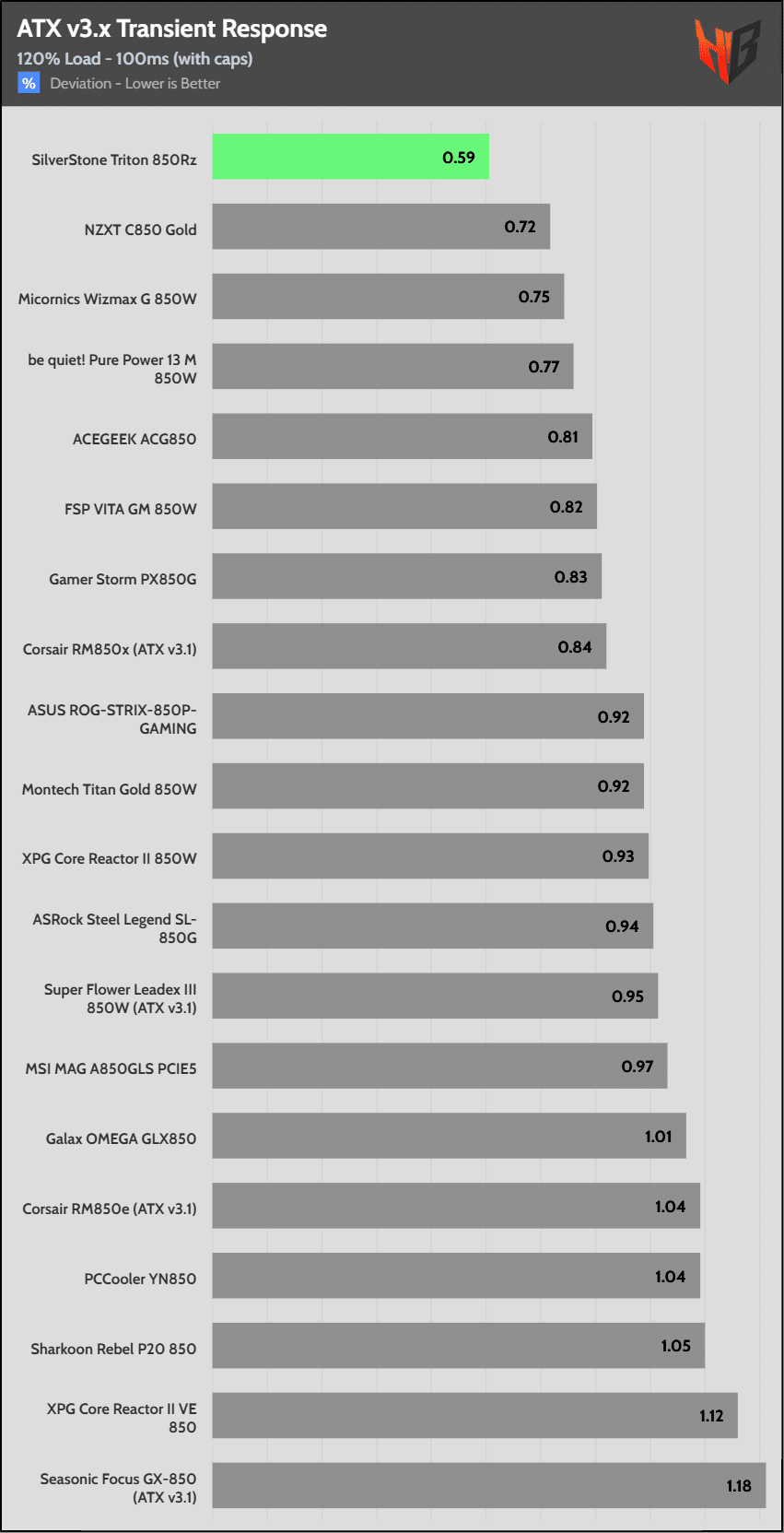

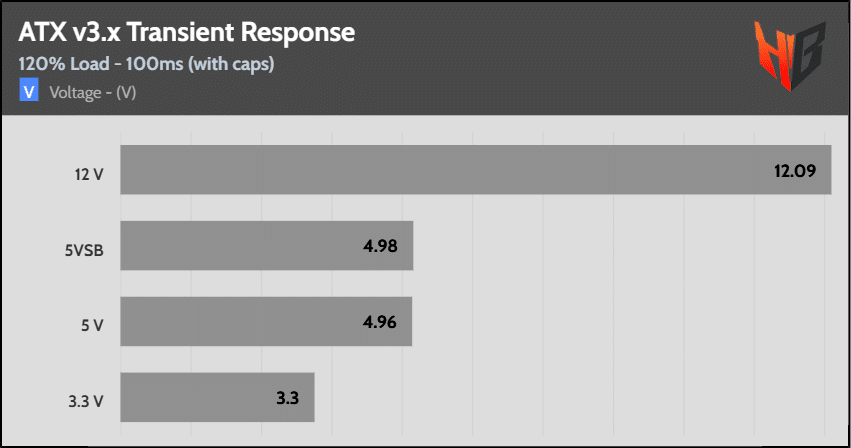

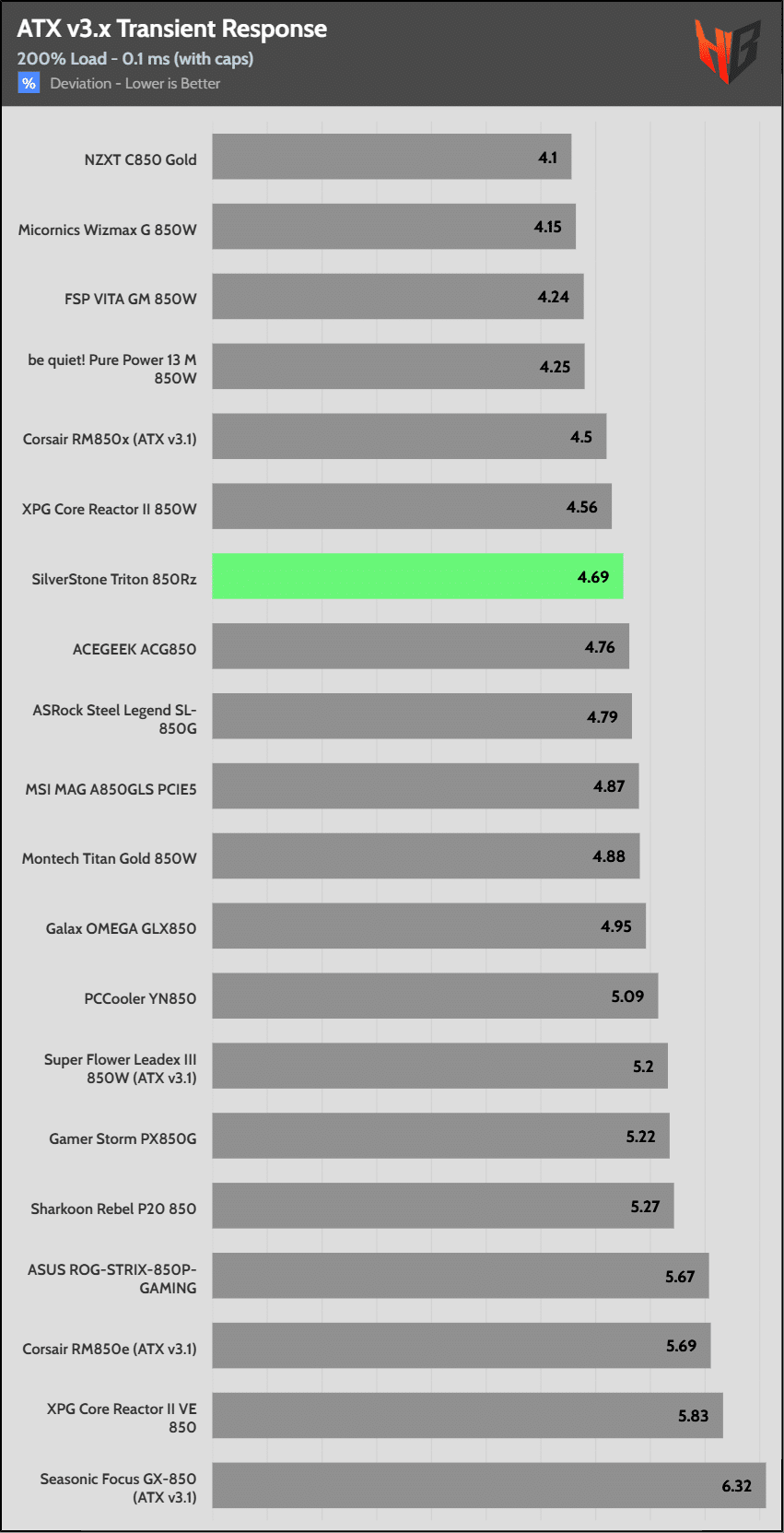

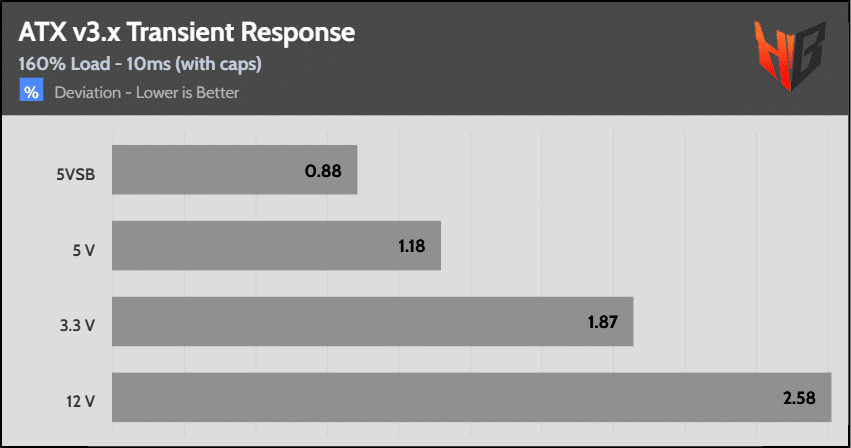

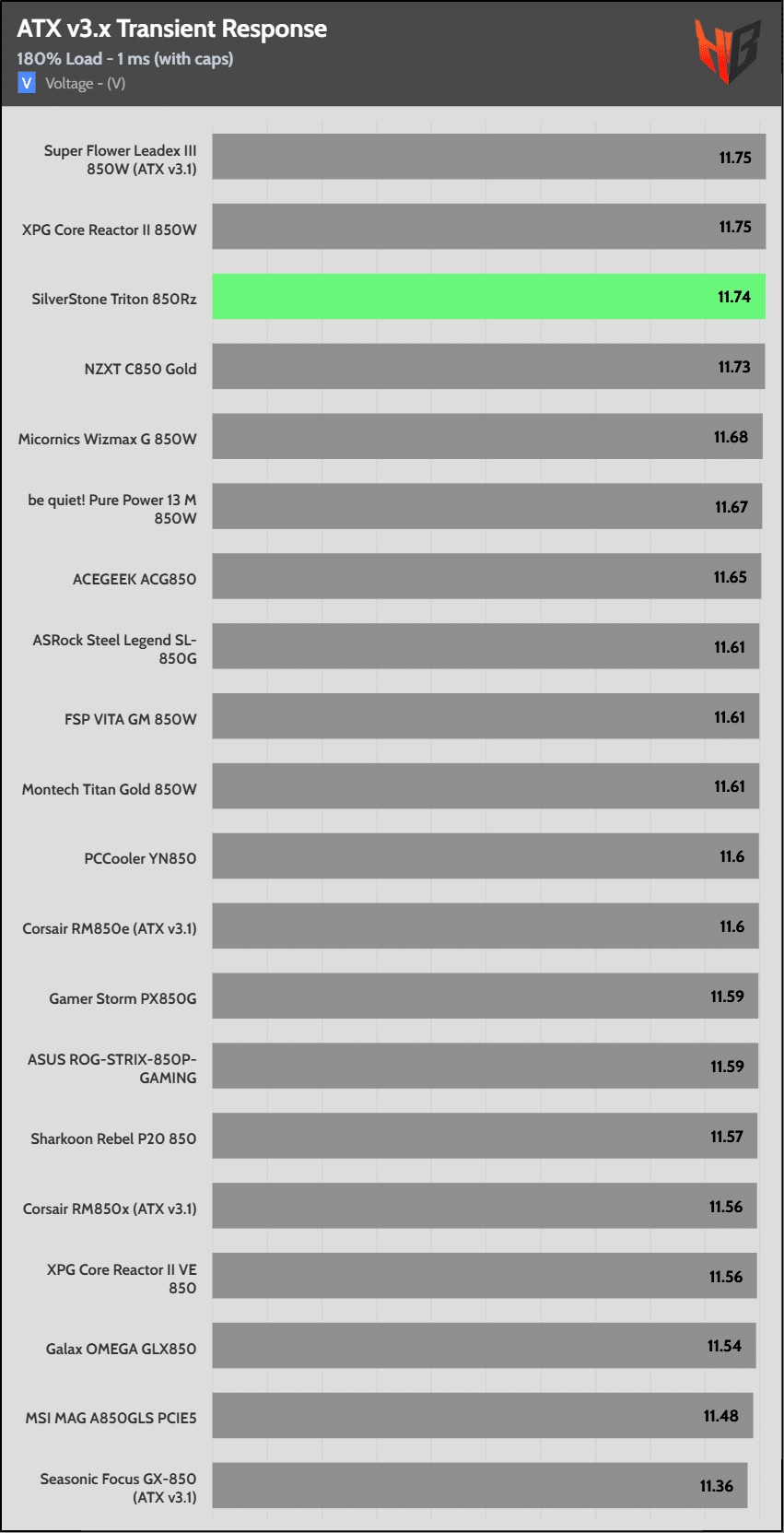

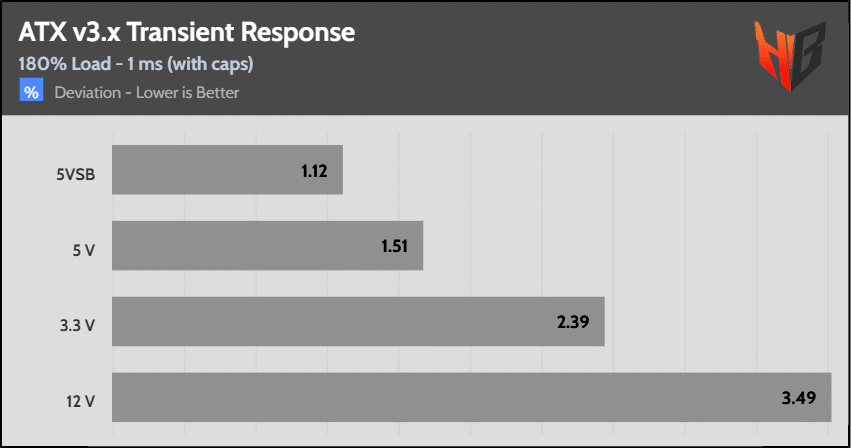

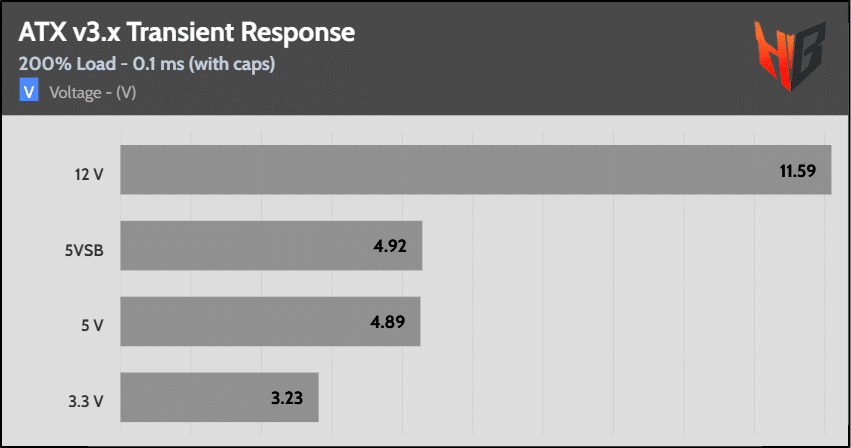

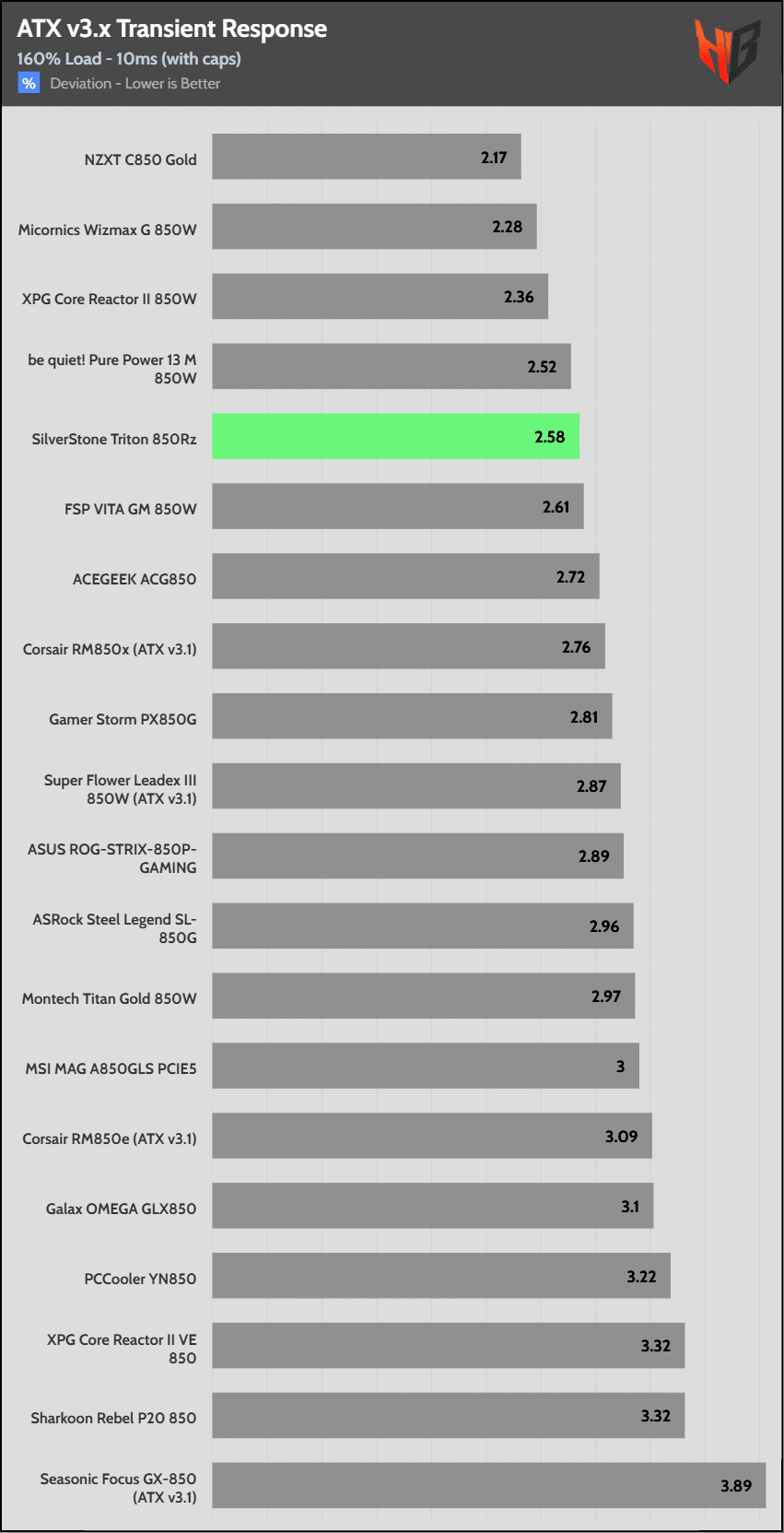

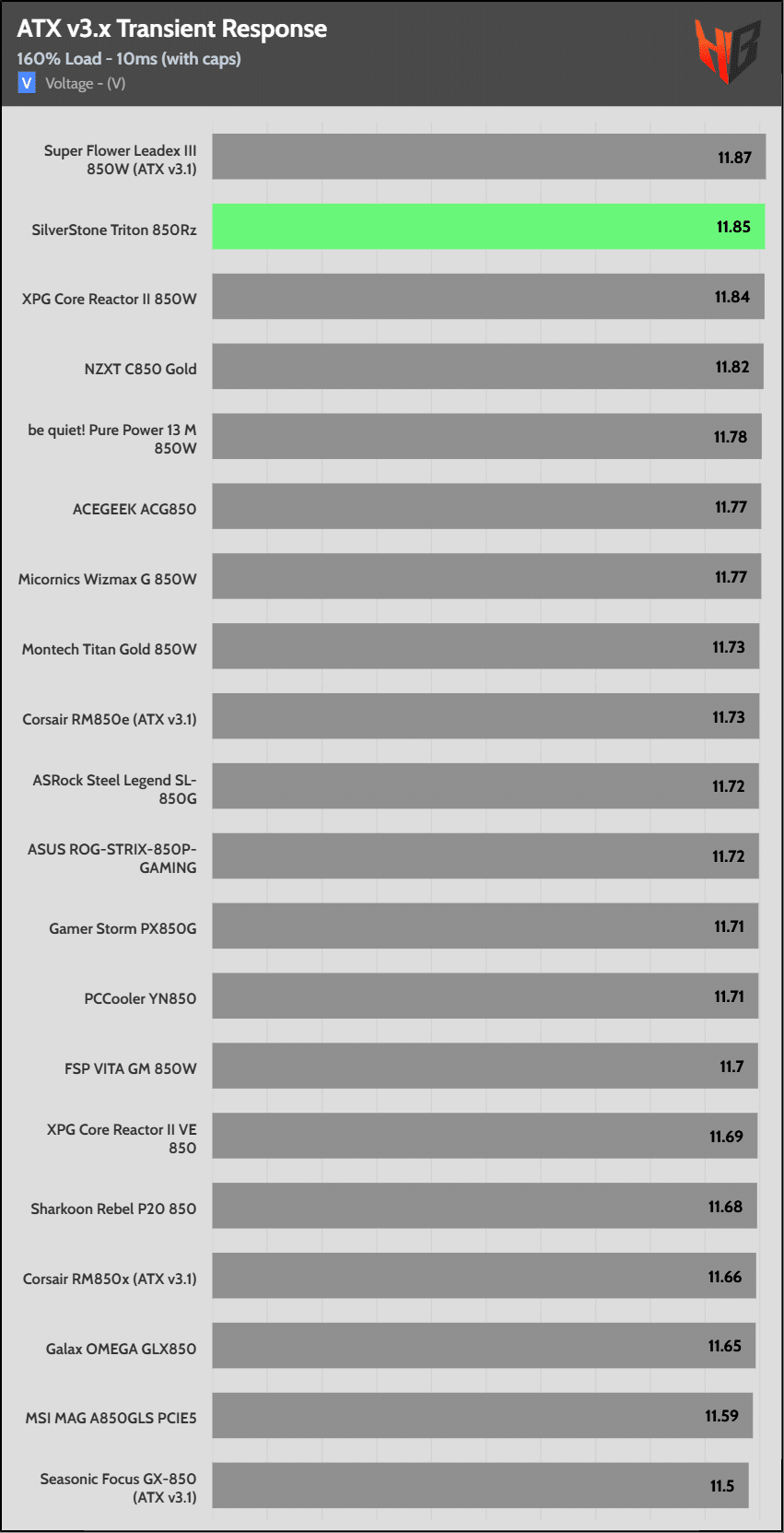

Transient Response ATX v3.1 Tests
The PSU passes all ATX v3.1 transient response tests.
The 12V rail’s performance is good at high loads. This is a nice surprise!
