SilverStone Triton 850Rz ATX v3.1 PSU Review

Box & Bundle

I love it when the PSU comes in a generic box instead of the proper retail one, because this allows me to post a photo of whatever! Here is a photo of one of Venice’s canals and bridges.

Product Photos

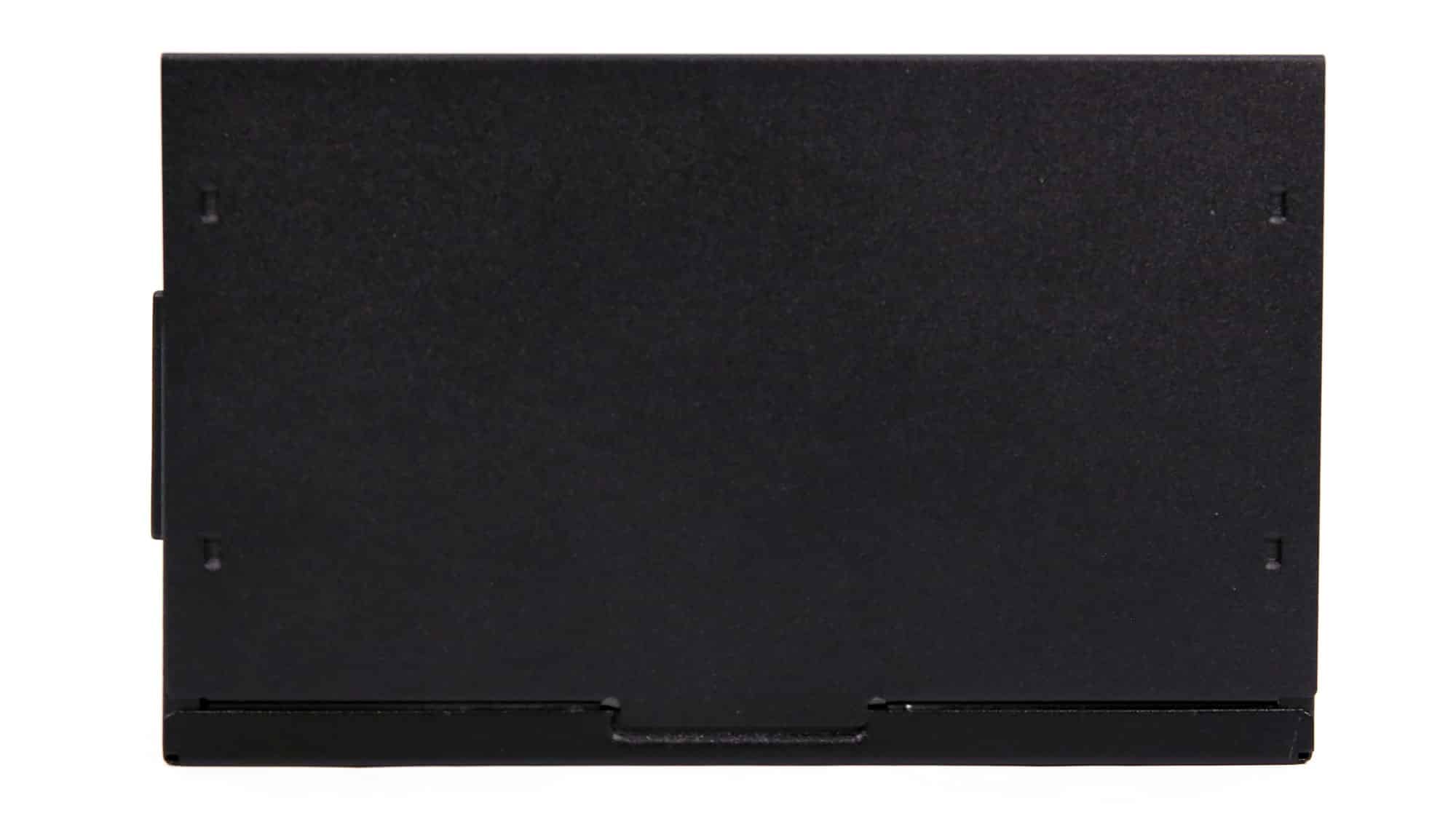

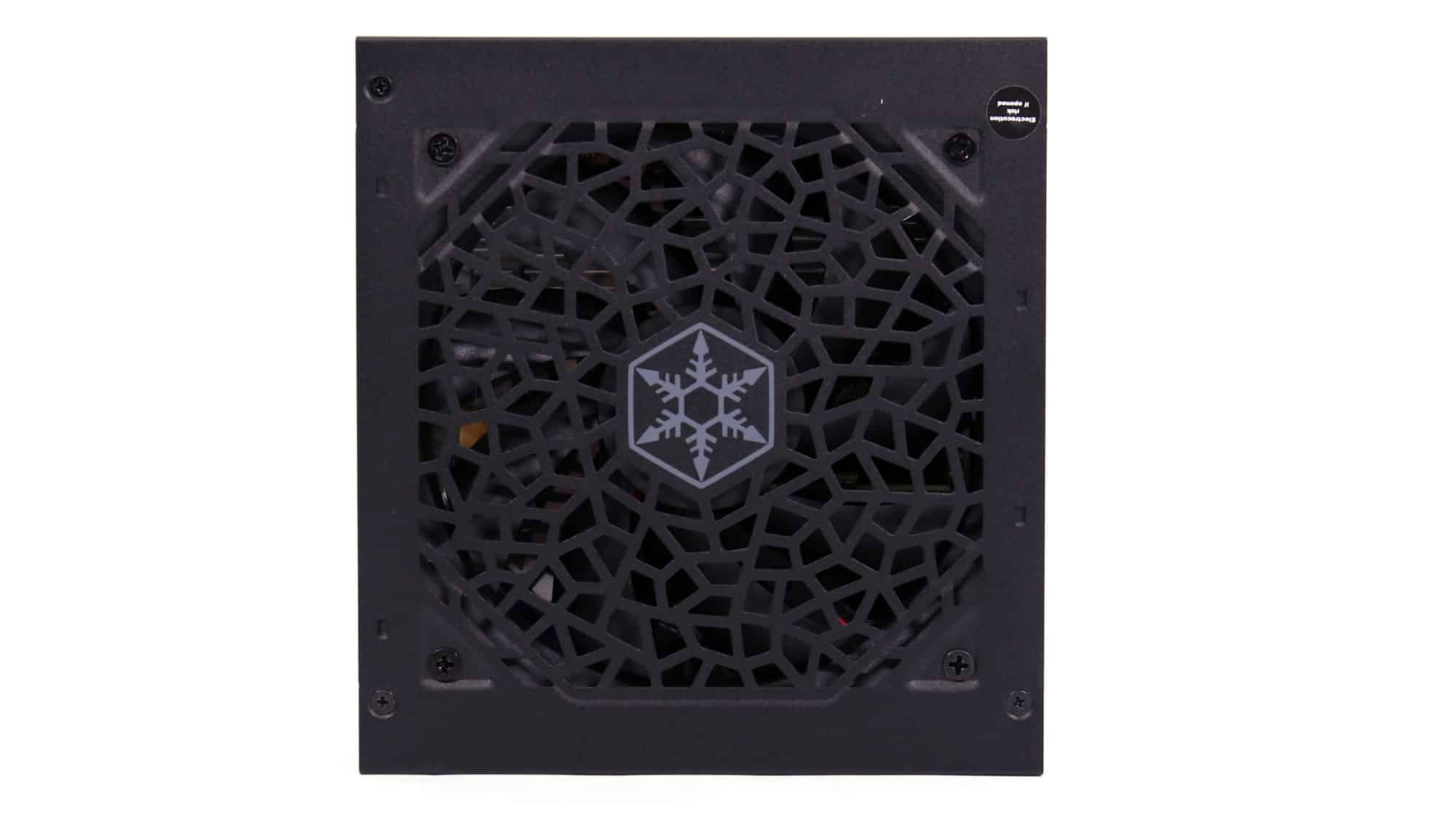

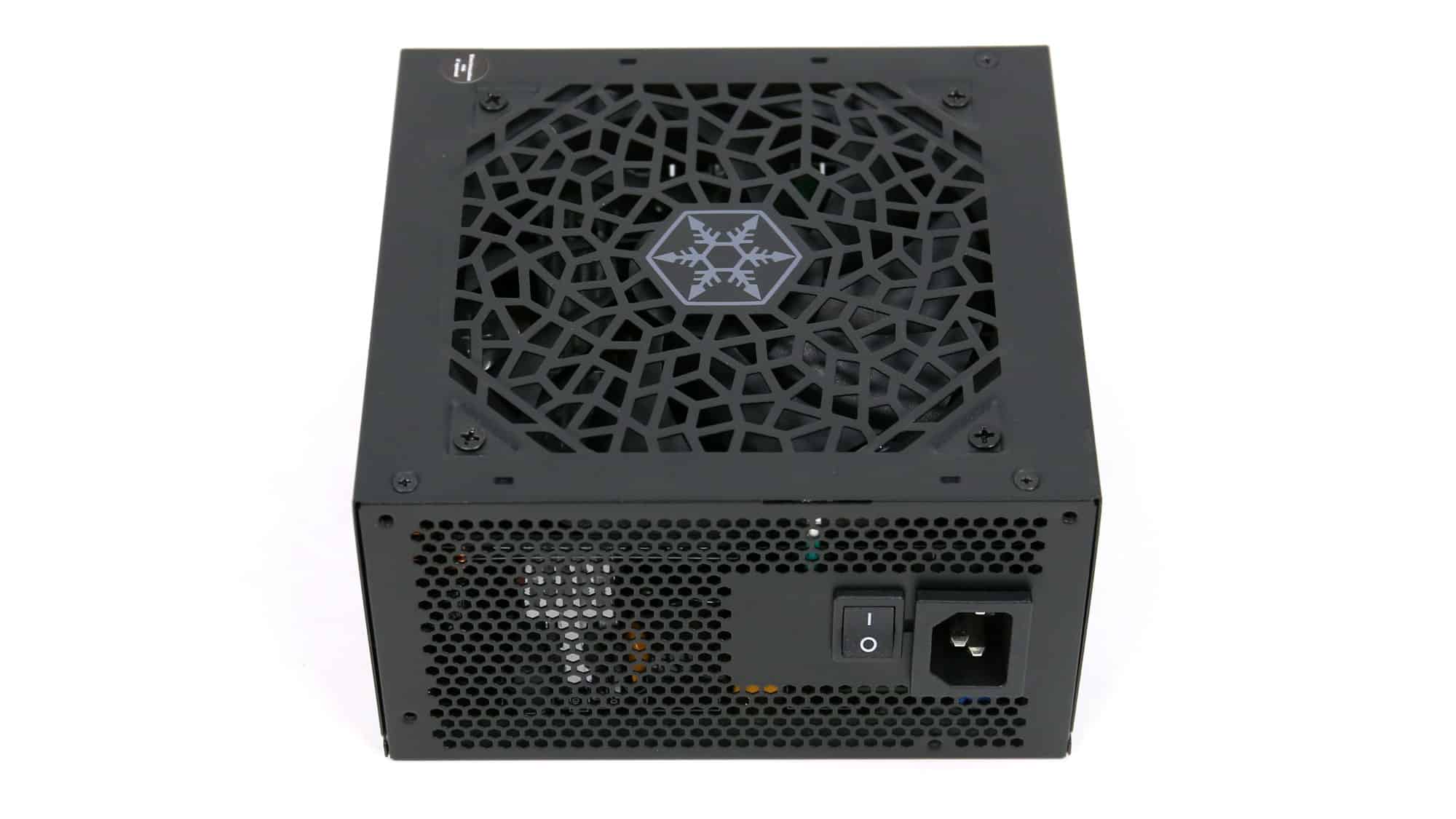

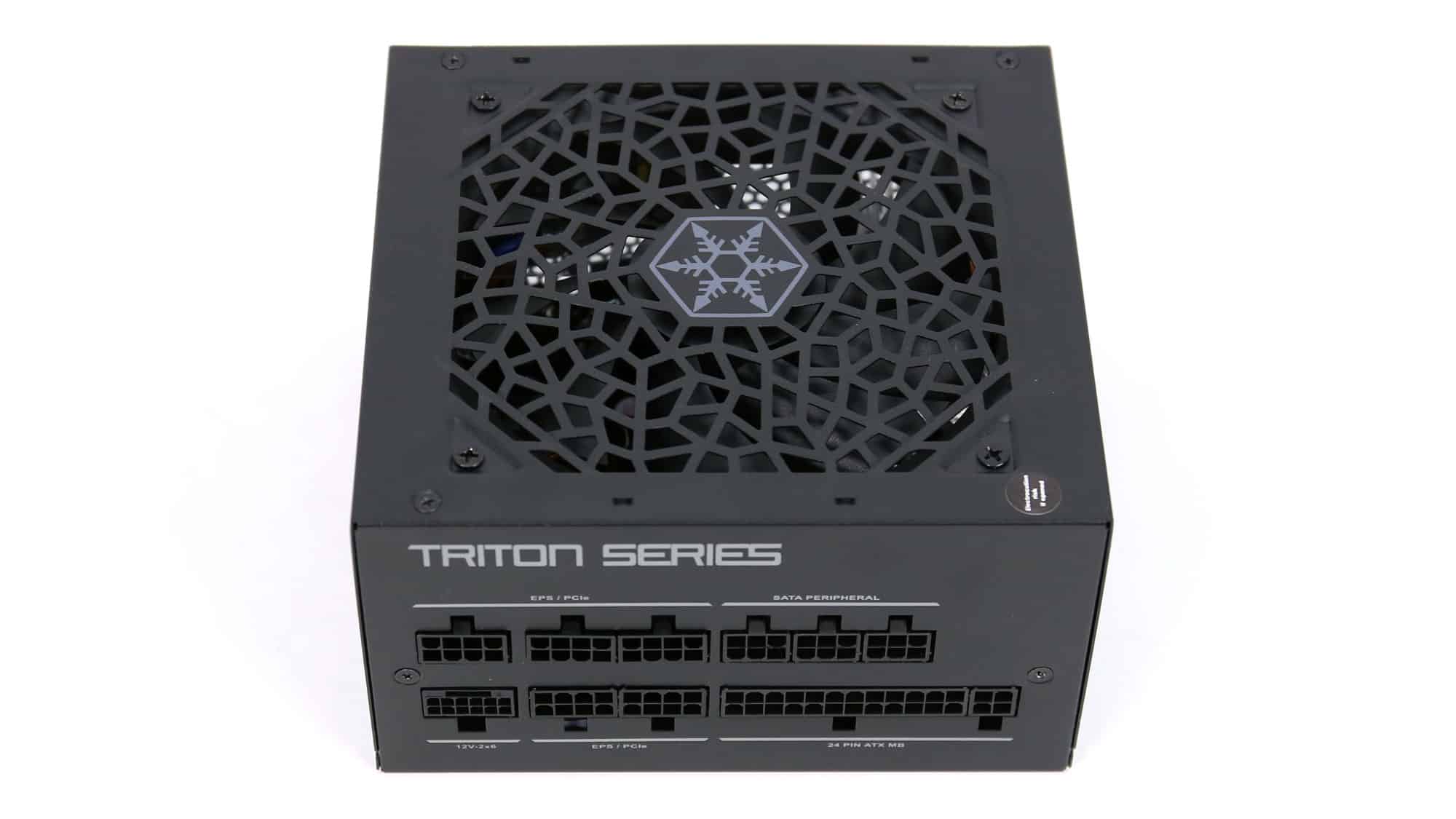

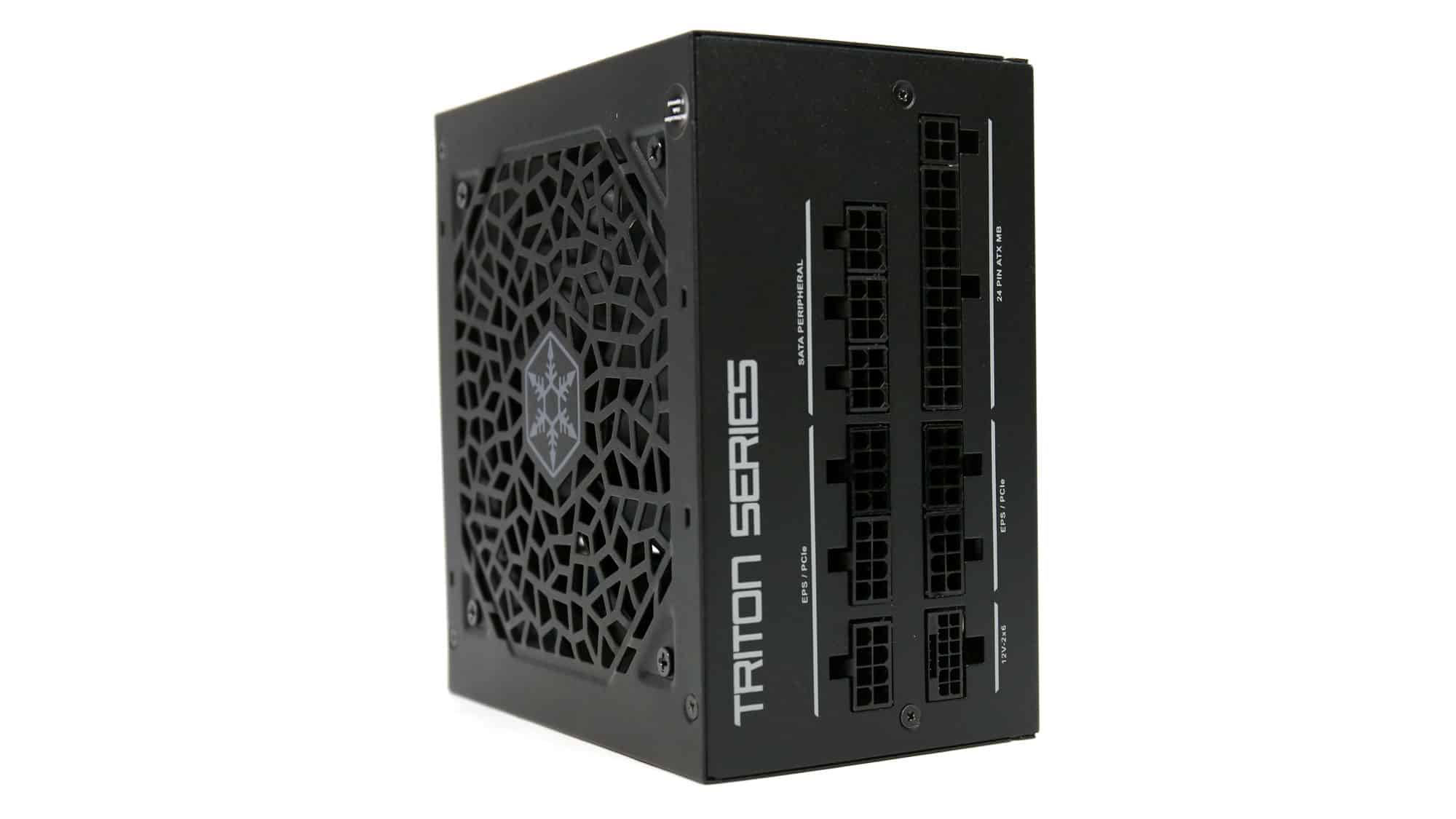

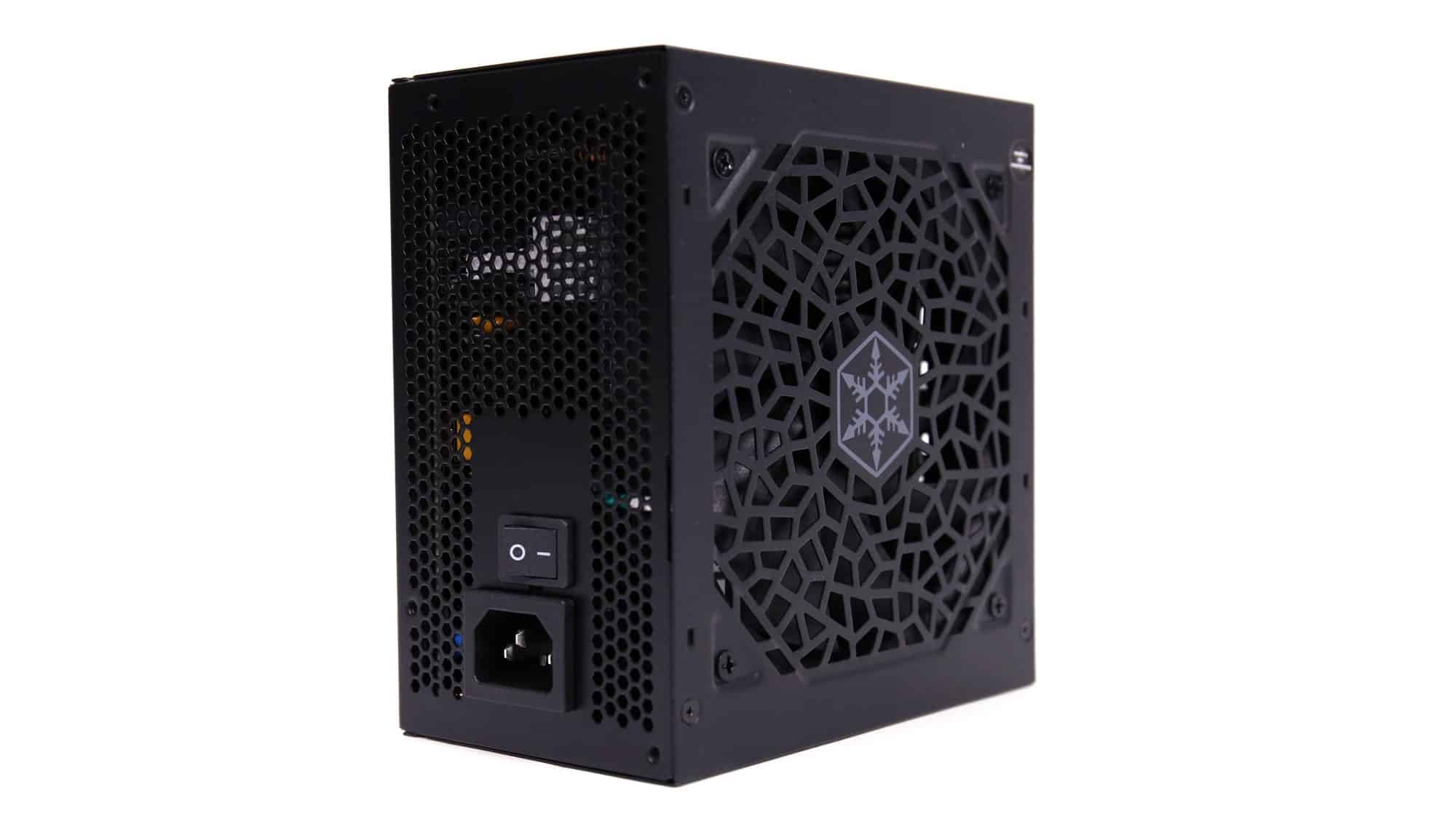

The PSU has compact dimensions, and the fan grille has punched perforations, which are large enough to allow for good airflow from the relatively small fan (120mm diameter). At the PSU’s front side, you find the usual staff, the AC receptacle, and the power switch.

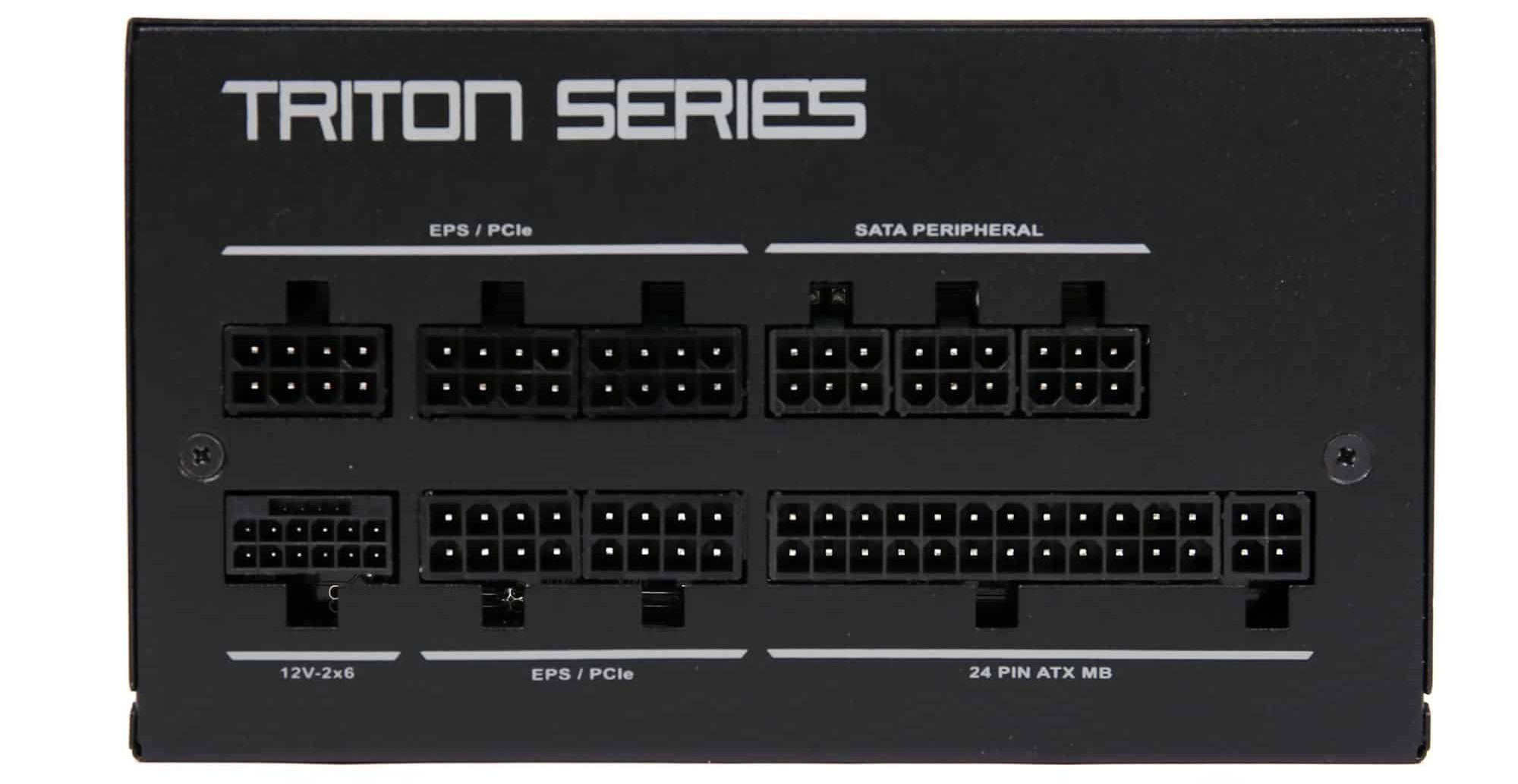

The modular panel has eleven sockets, including a native 12V-2×6 header.

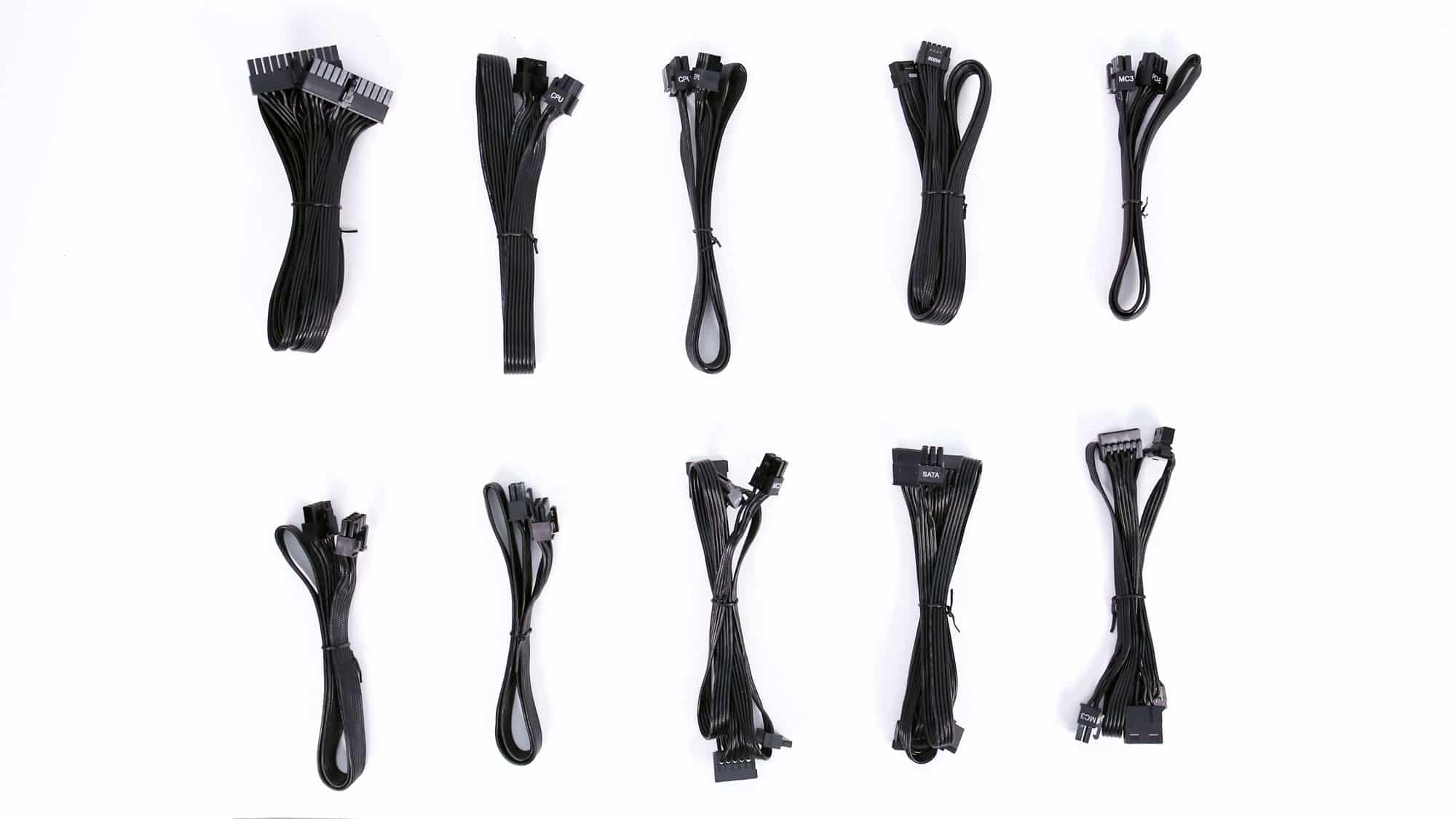

Modular Cables

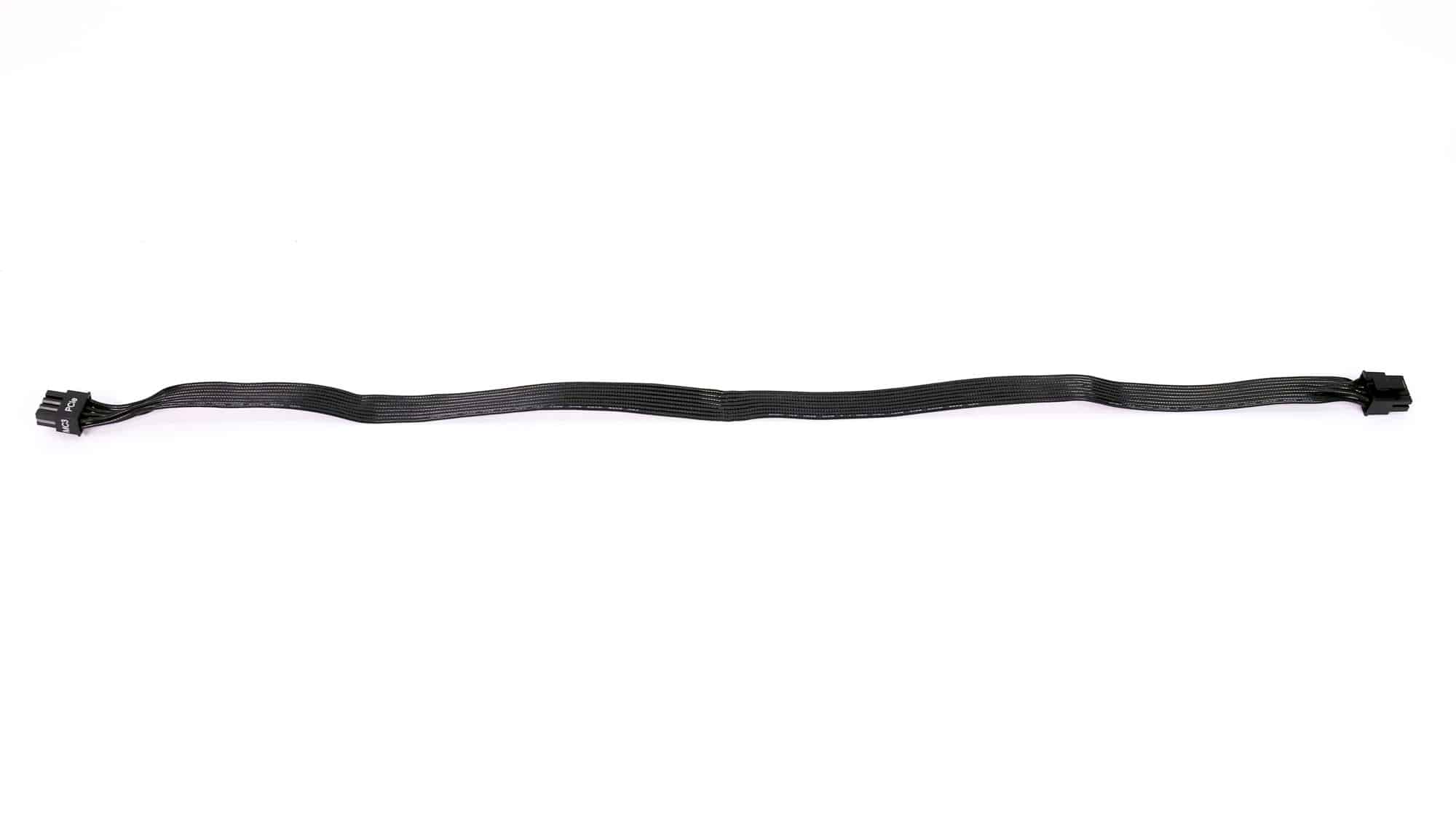

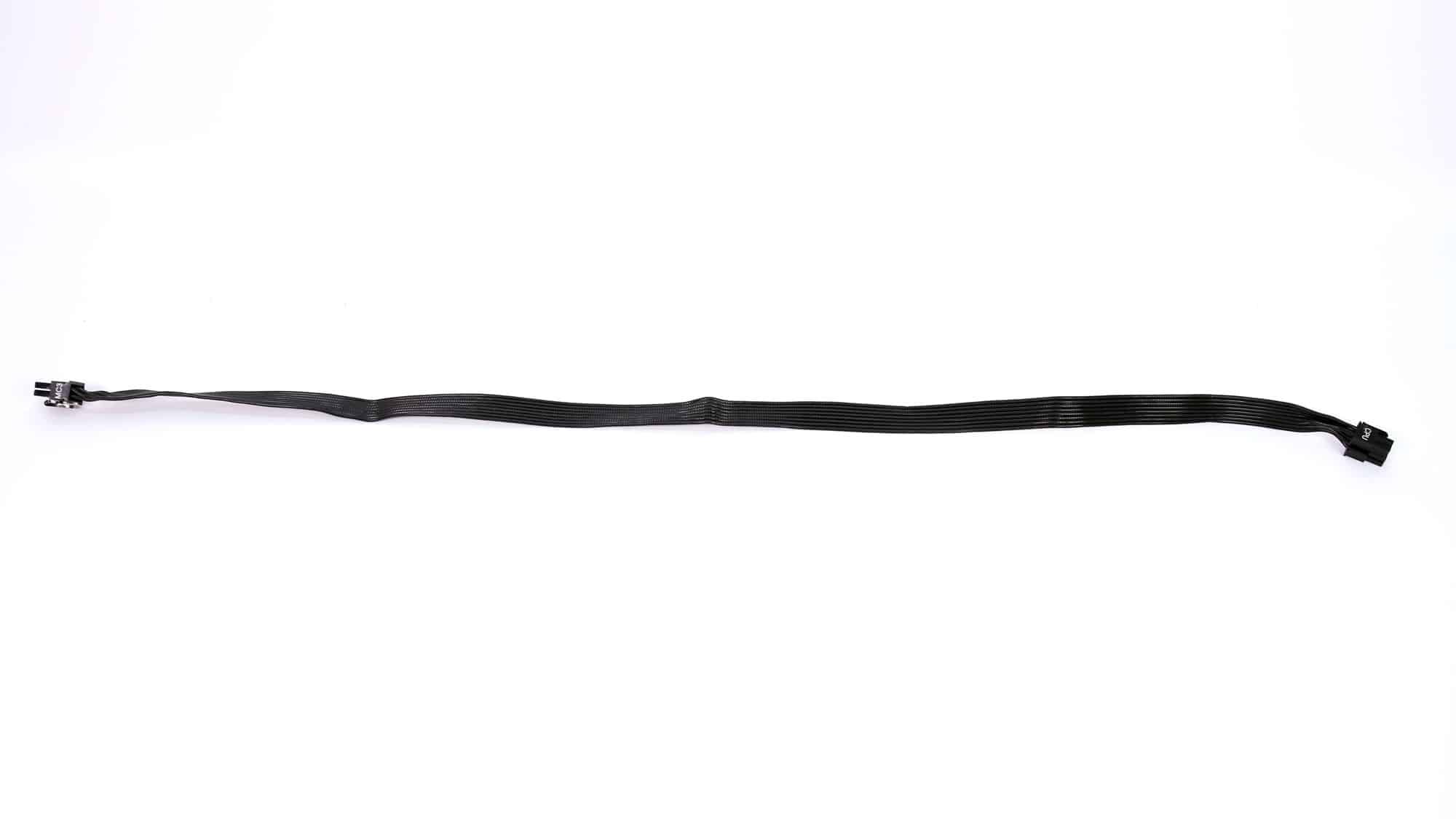

Description Cable Count Connector Count (Total) Gauge In Cable Capacitors

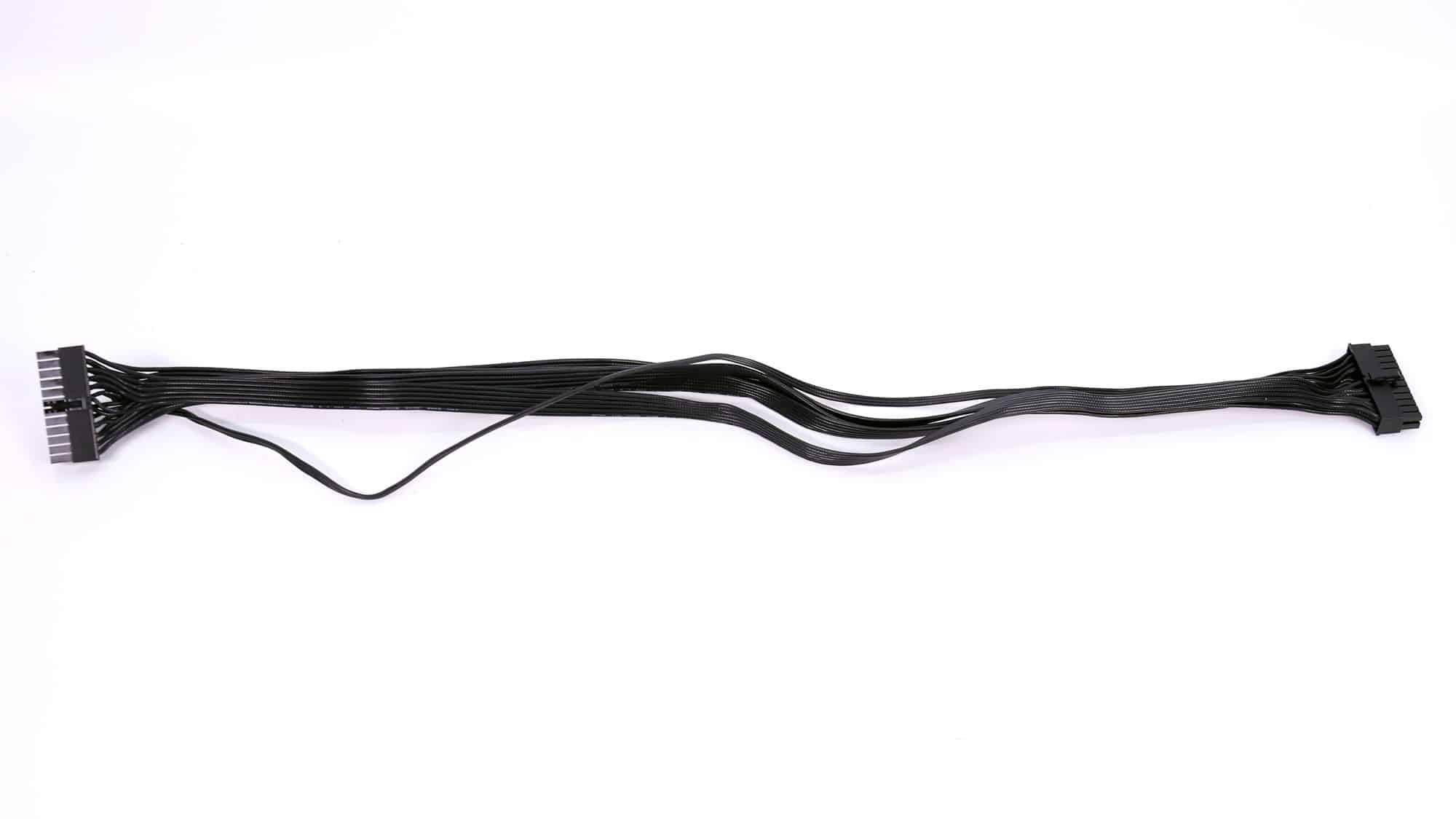

ATX connector 24 pin (600mm) 1 1 18AWG No
4+4 pin ATX12V (700mm) 2 2 18AWG No
6+2 pin PCIe (600mm) 3 3 18AWG No

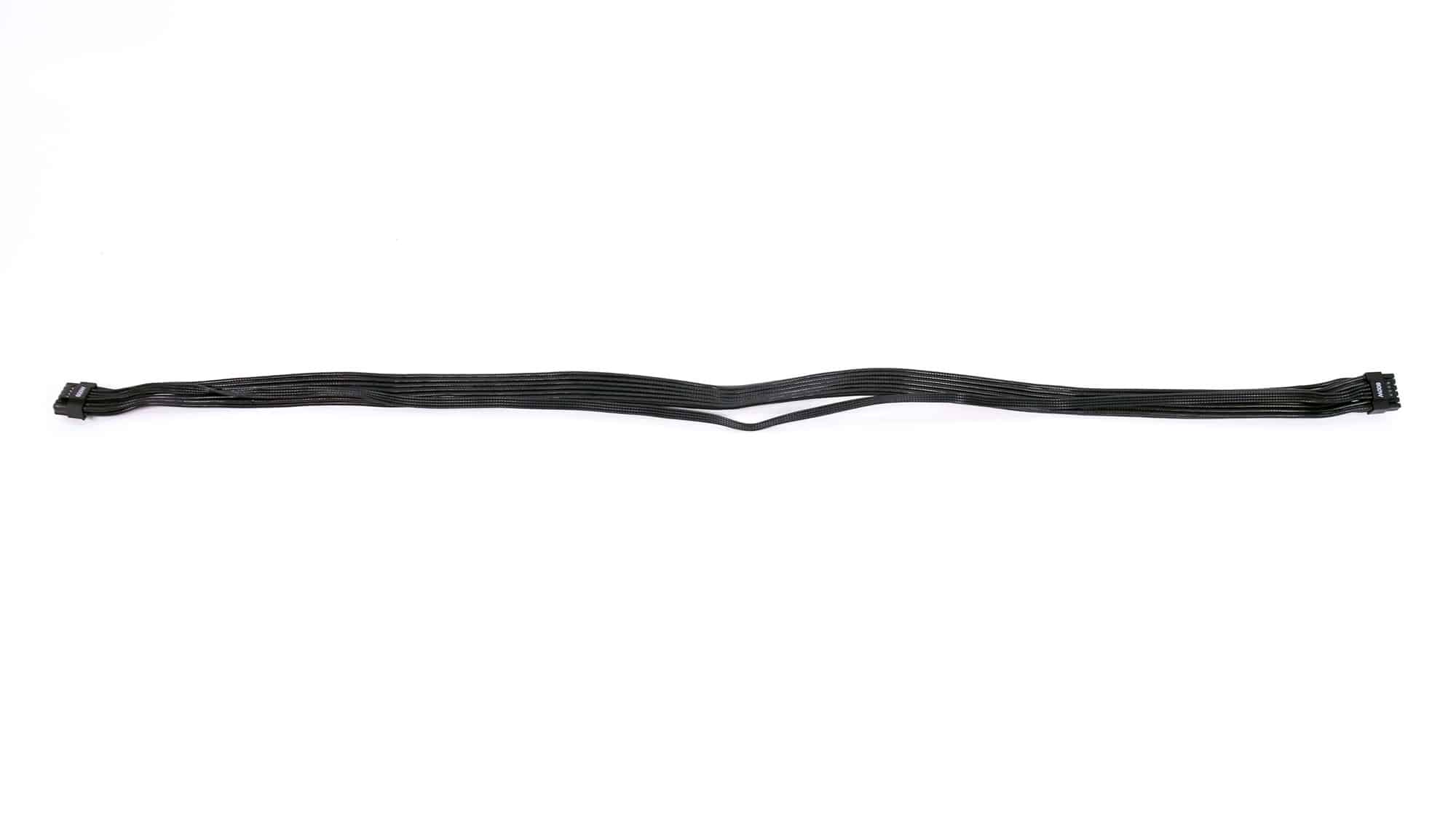

12+4 pin PCIe (600mm) (600W) 1 1 16-24AWG No

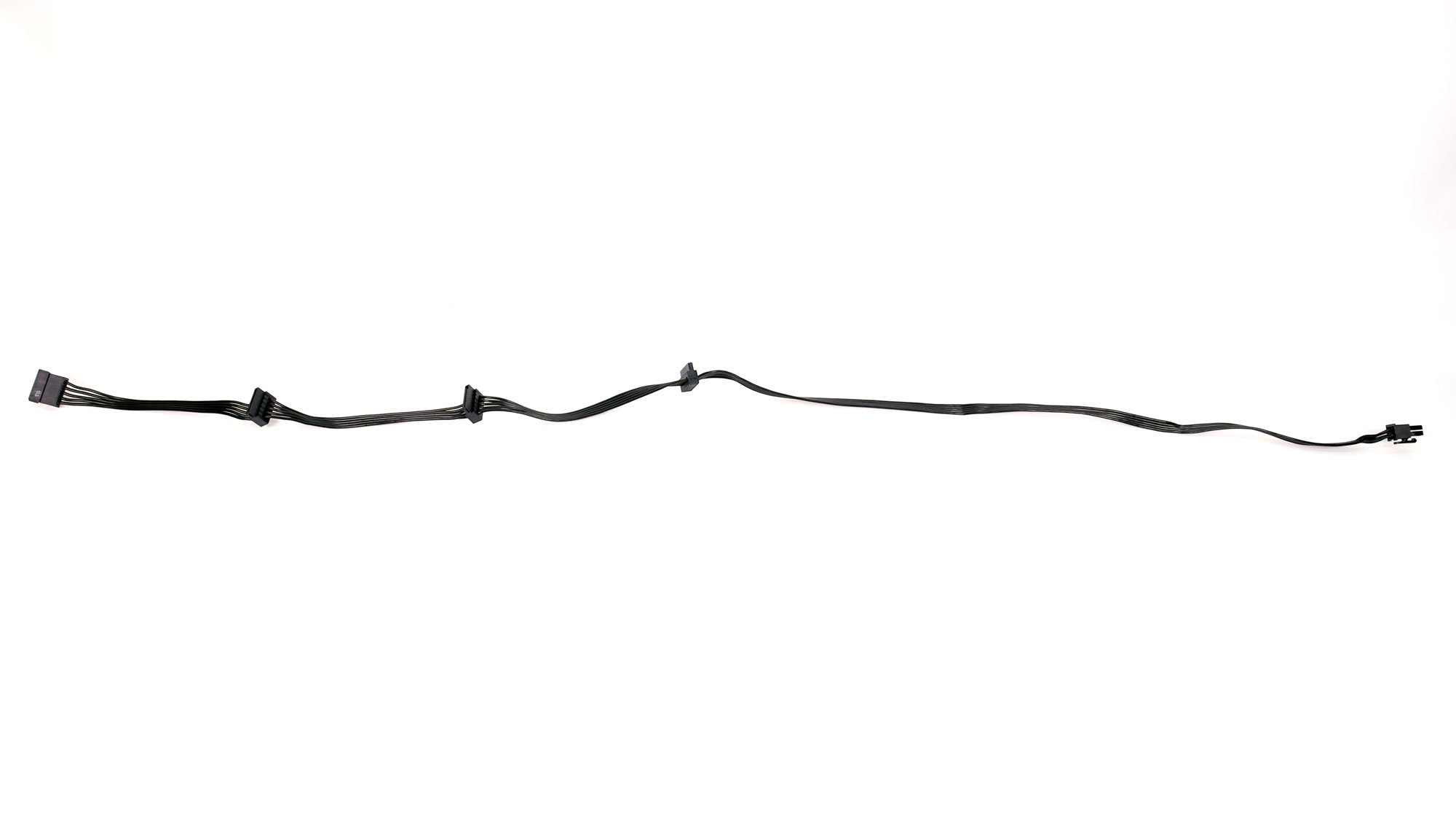

SATA (515mm+150mm+150mm+150mm) 1 4 18AWG No

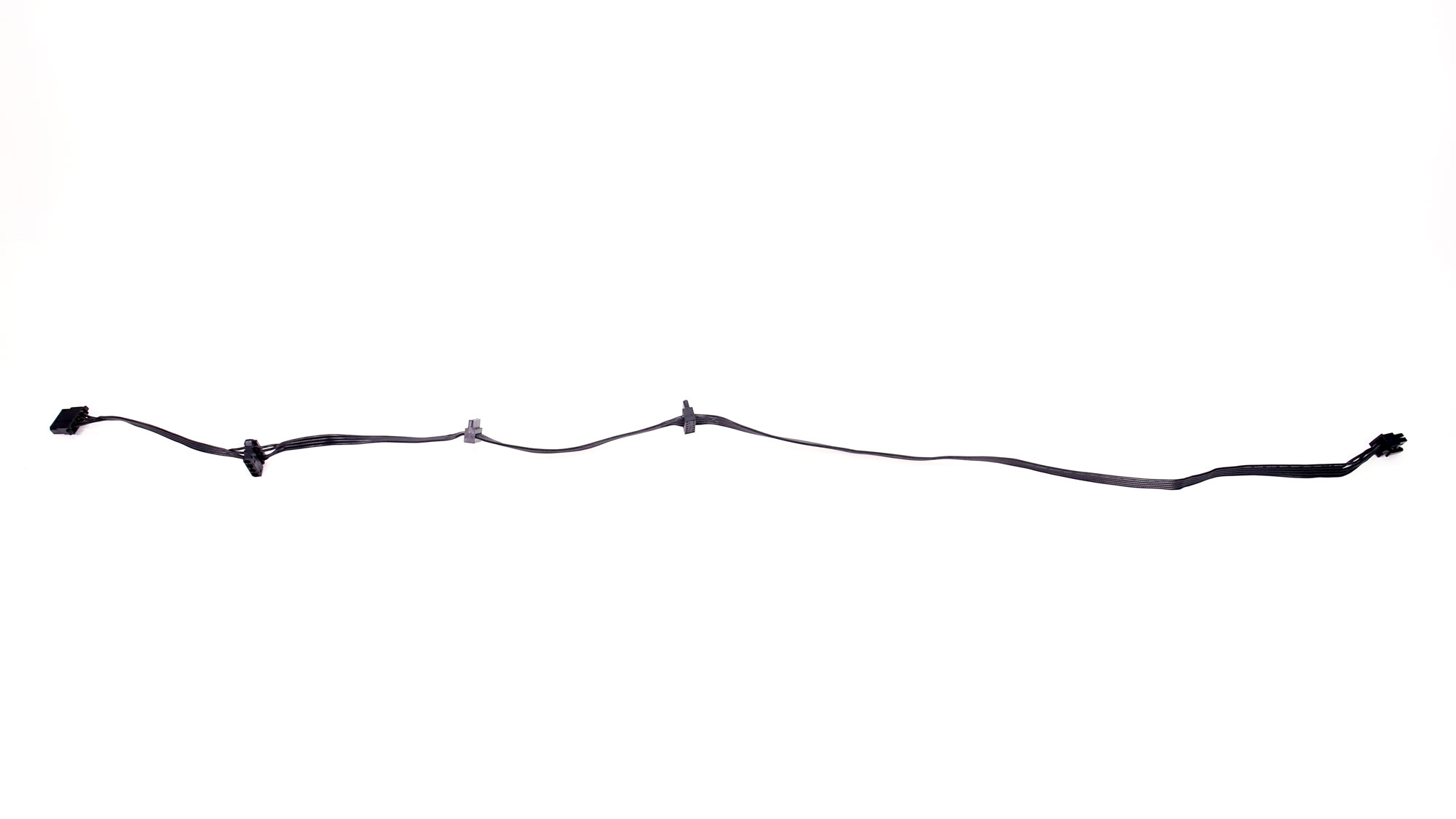

SATA (505mm+150mm) / 4-pin Molex (+150mm+150mm) 1 2 / 2 18AWG No

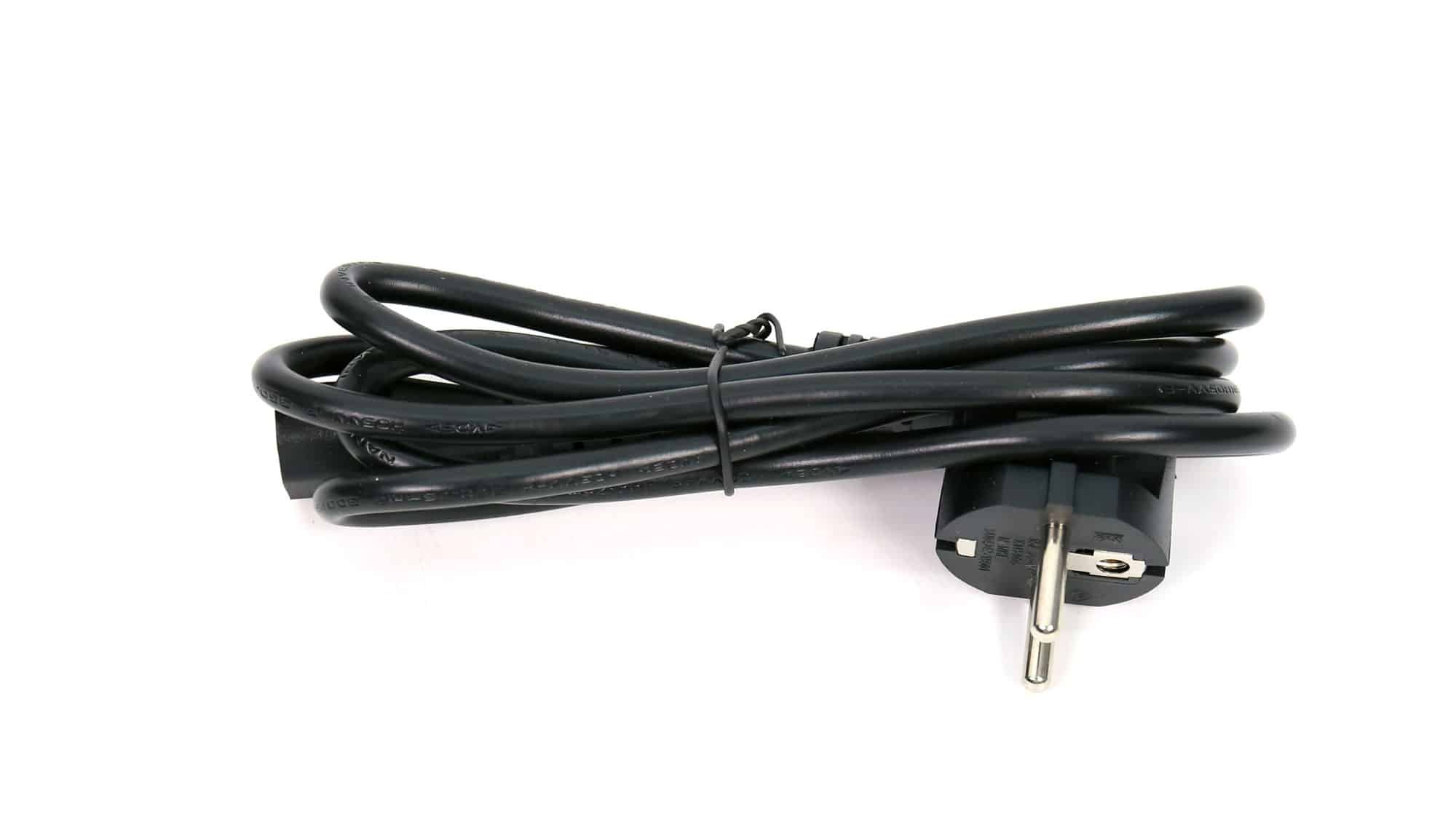

AC Power Cord (1350mm) – C13 coupler 1 1 18AWG

There are enough cables and connectors to handle the unit’s maximum power smoothly. The ATX cable is long enough, and the EPS cables reach 700mm. I would like to see 16AWG gauges on the ATX, EPS, and 6+2 pin PCIe connectors for lower voltage drops under high loads. Lastly, the distance between the peripheral cables is ideal, at 150mm.
