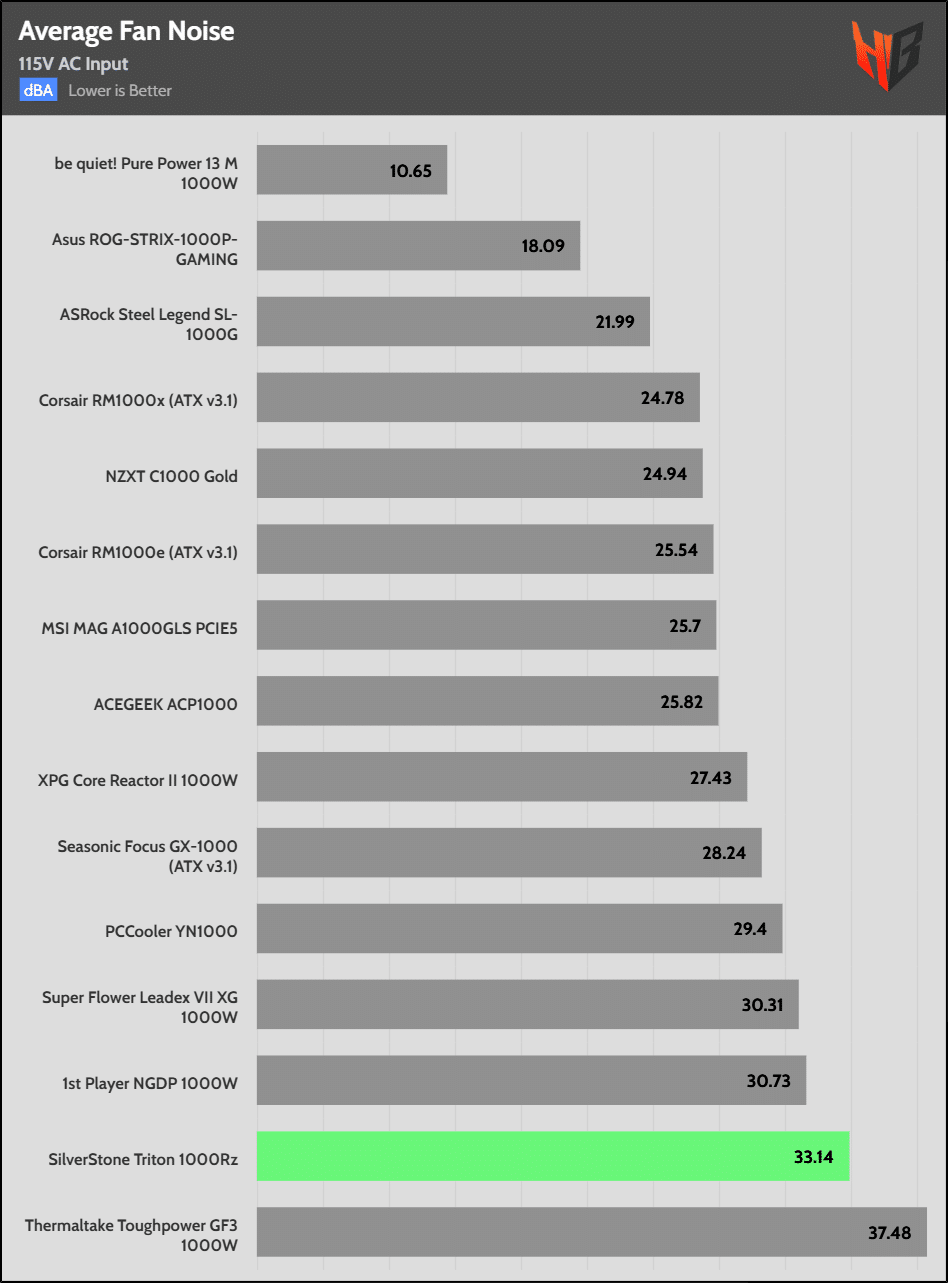

Average Noise
The PSU’s average noise output is high, but the small heatsinks on the secondary side set the limits here. With a looser fan speed profile, the platform’s reliability could be compromised especially under harsh operating conditions.

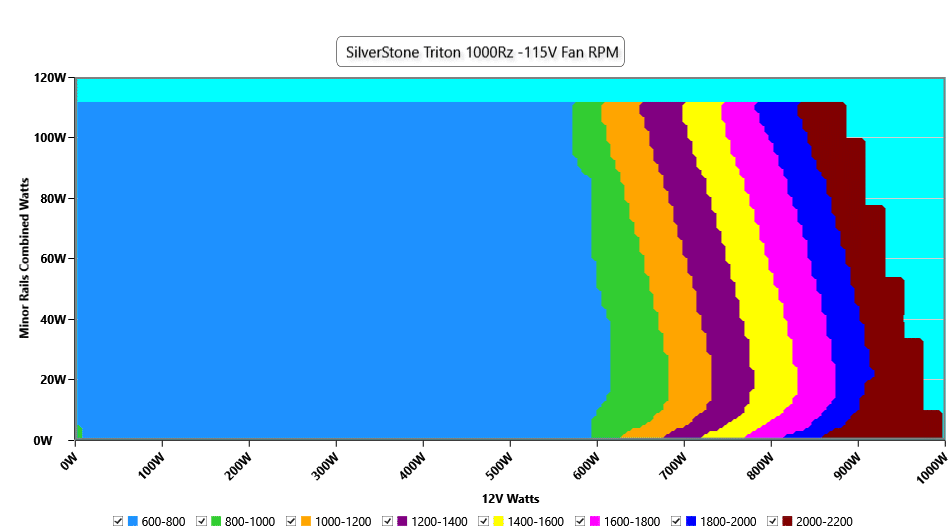

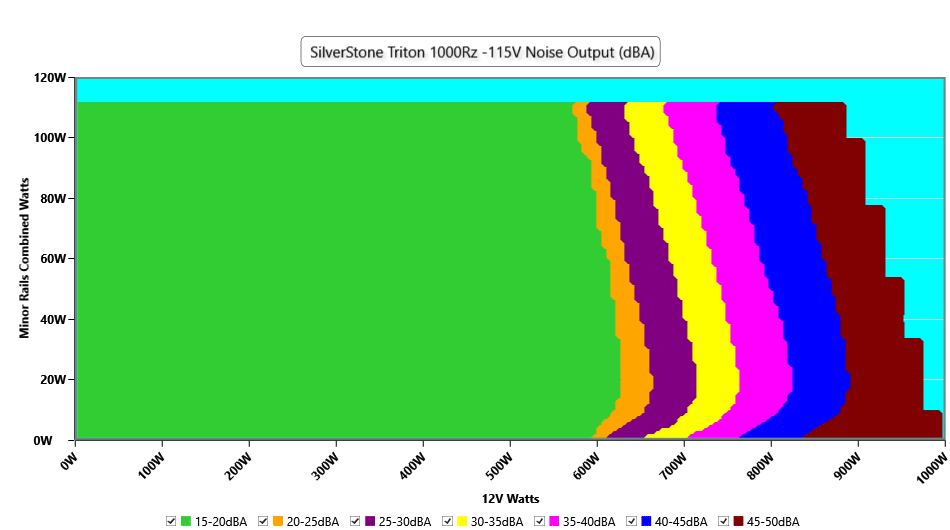

Fan Noise & Speed Maps @ 28-32 °C – 115V
There is no fan-stop feature, but the fan’s noise is kept low at up to 600W load. The 30 dBA mark is passed at 650W, and noise quickly ramps up above 45 dBA with loads exceeding 850W.

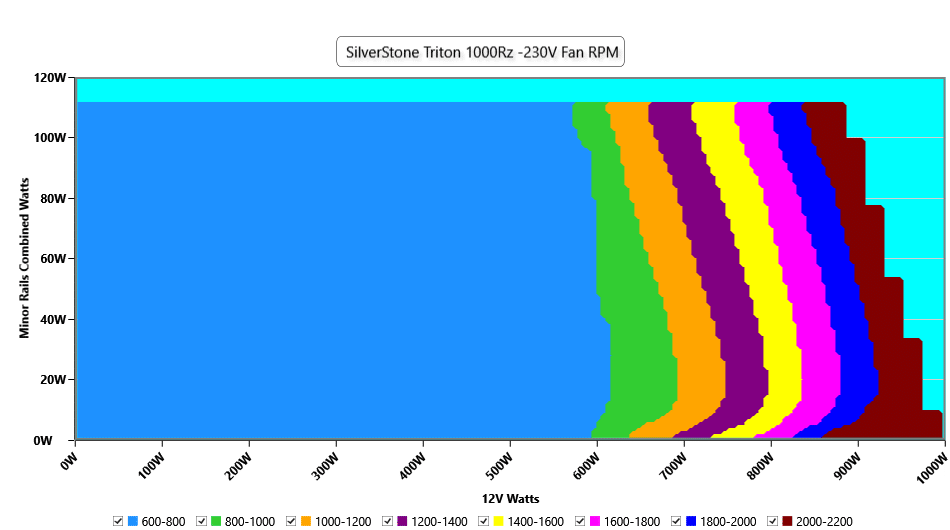

Fan Noise & Speed Maps @ 28-32 °C – 230V
The 230V fan speed profile is identical to the 115V.
