Transient Response
20% Load – 20ms
| Advanced Transient Response 20% - 50 Hz - No Caps | ||||
| Voltage | Before | After | Change | Pass/Fail |
| 12V | 11.997V | 11.886V | 0.92% | Pass |
| 5V | 4.995V | 4.915V | 1.60% | Pass |
| 3.3V | 3.348V | 3.181V | 4.98% | Pass |
| 5VSB | 4.986V | 4.928V | 1.17% | Pass |
50% Load -20ms
| Advanced Transient Response 50% - 50 Hz - No Caps | ||||
| Voltage | Before | After | Change | Pass/Fail |
| 12V | 11.968V | 11.829V | 1.16% | Pass |
| 5V | 4.985V | 4.883V | 2.04% | Pass |
| 3.3V | 3.343V | 3.174V | 5.05% | Pass |
| 5VSB | 4.934V | 4.865V | 1.41% | Pass |

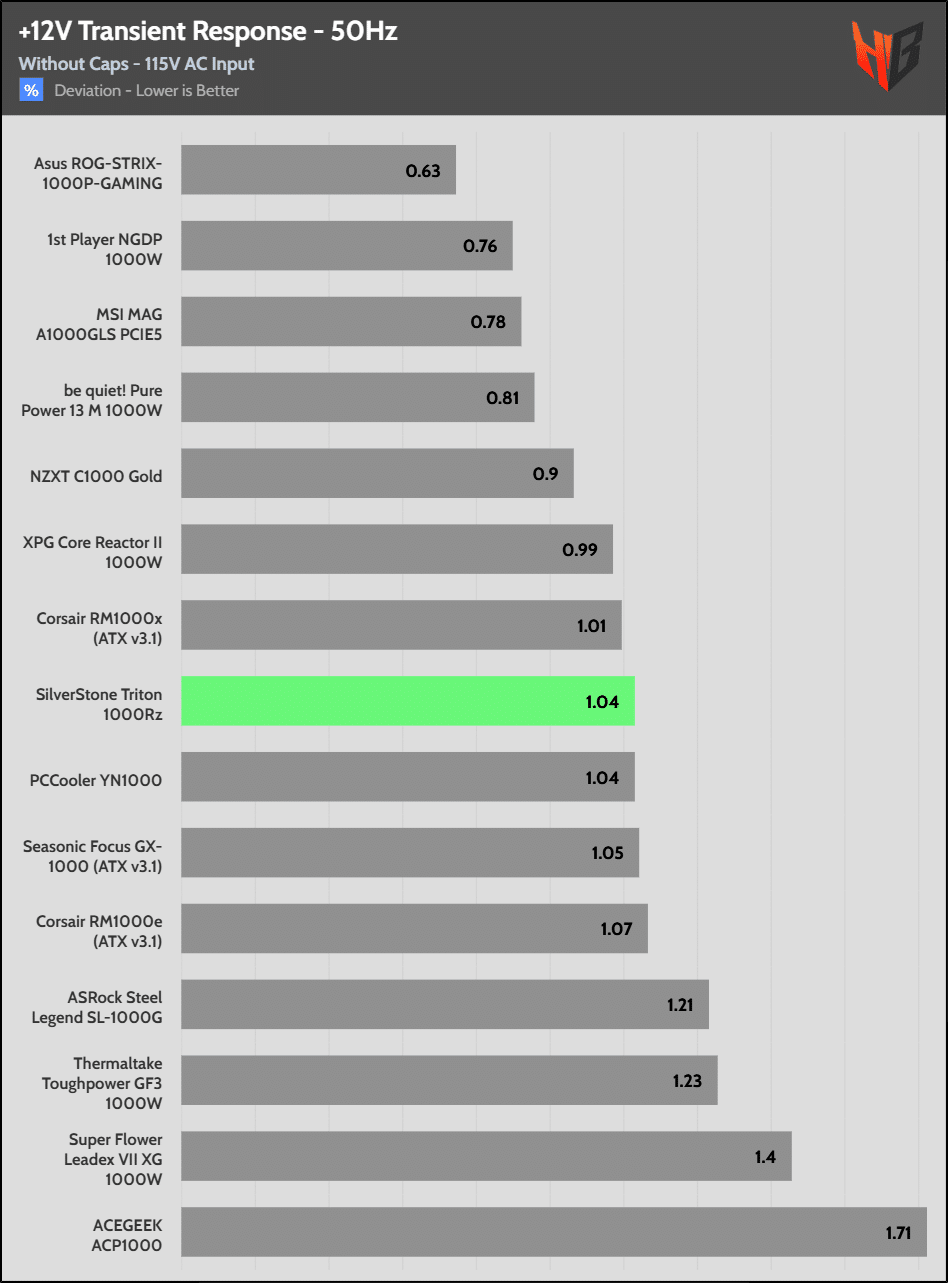

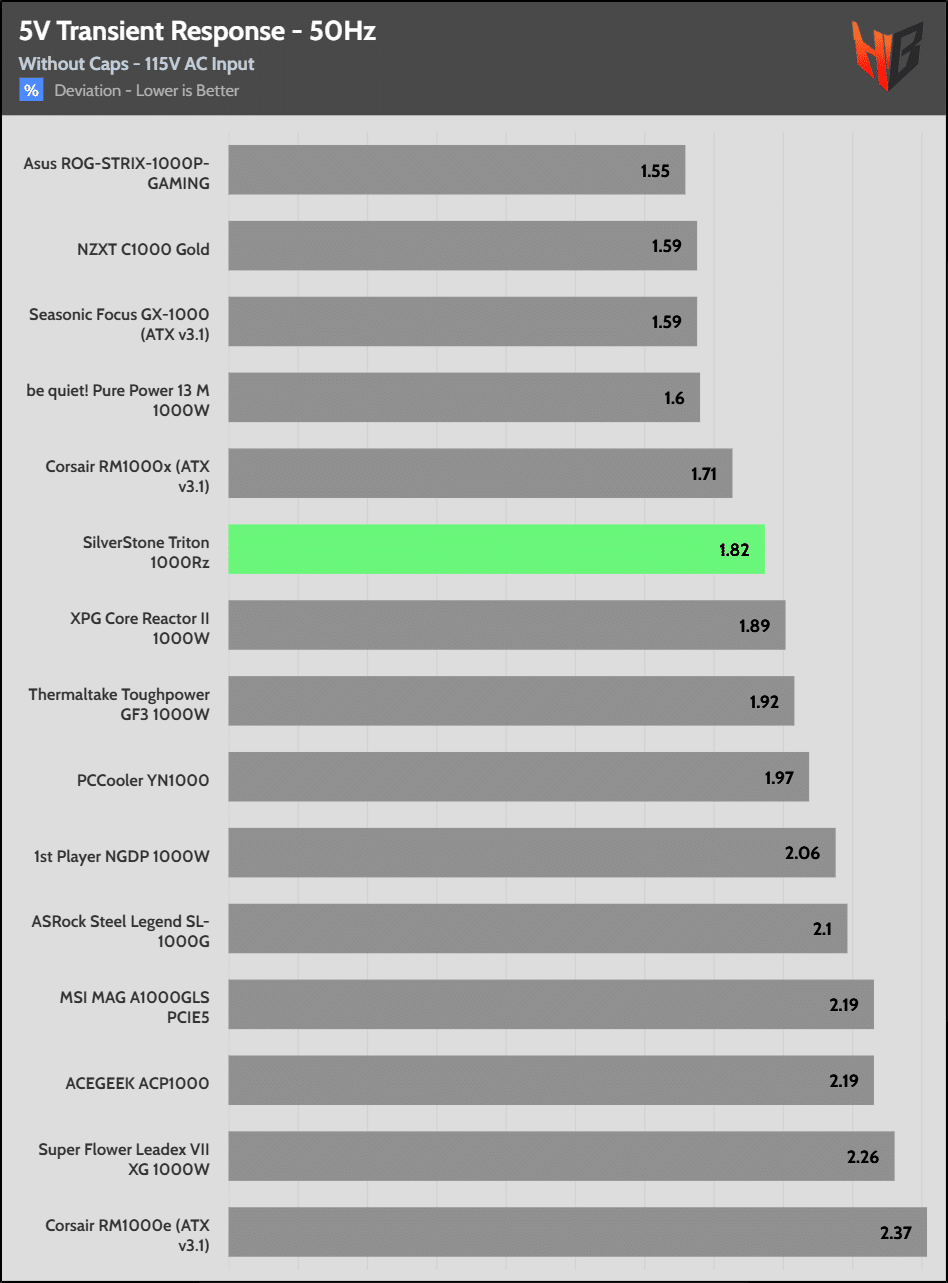

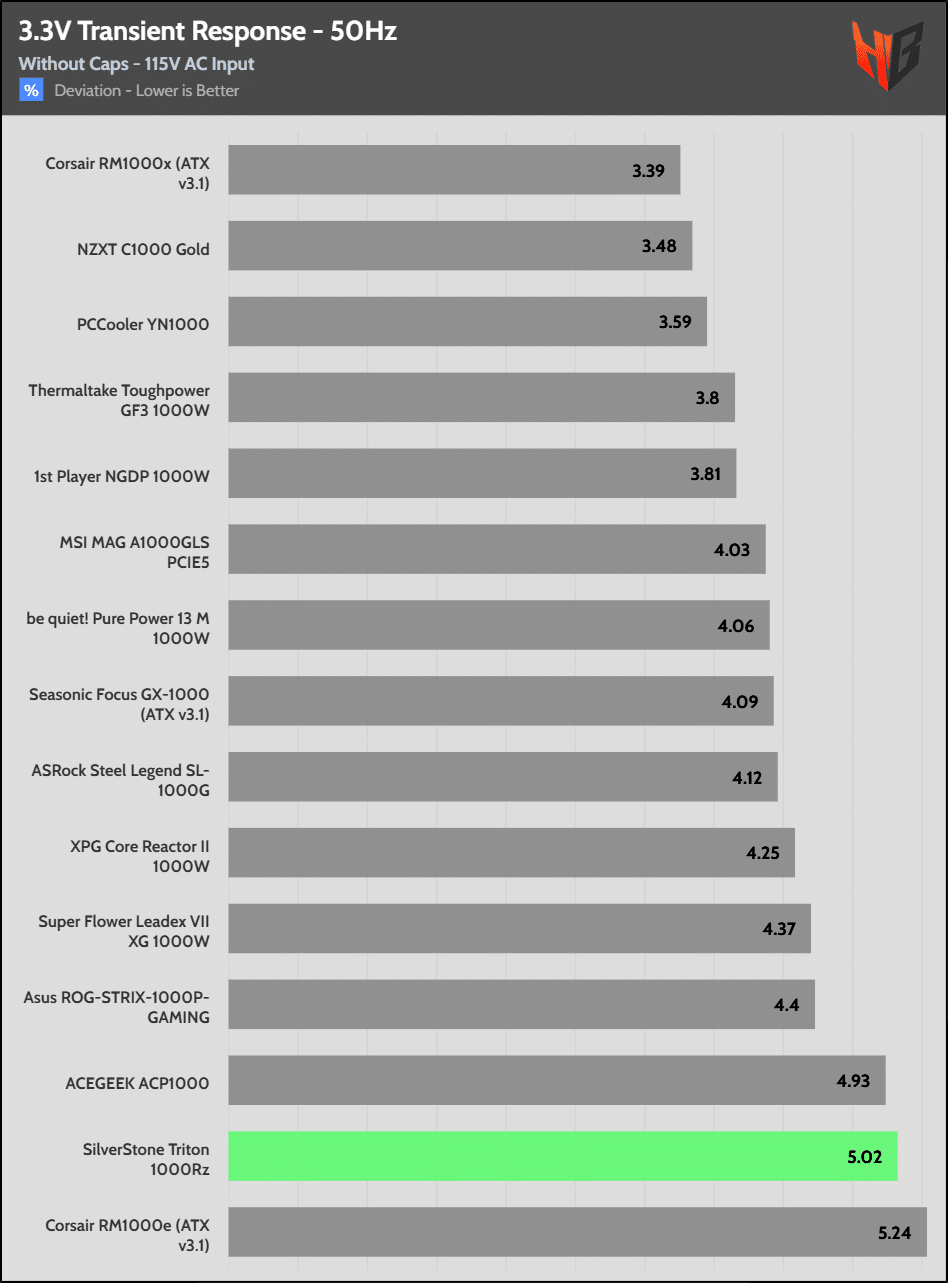

The transient response is good at 12V and 5V, but mediocre at 3.3V.

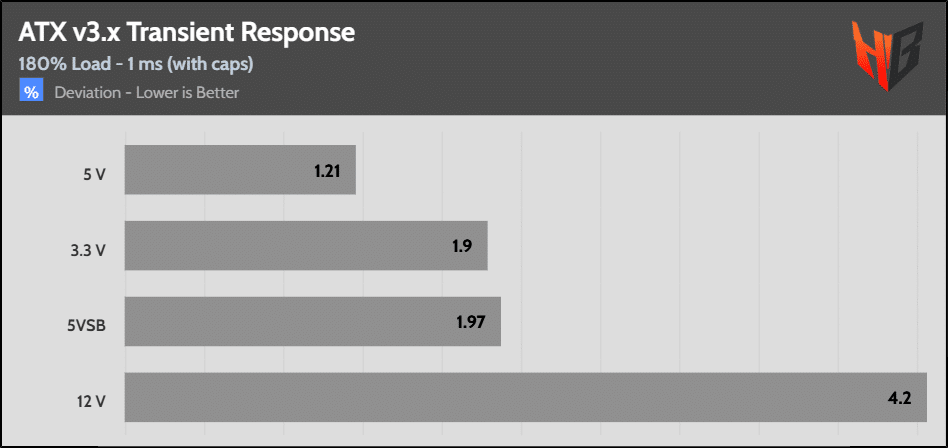

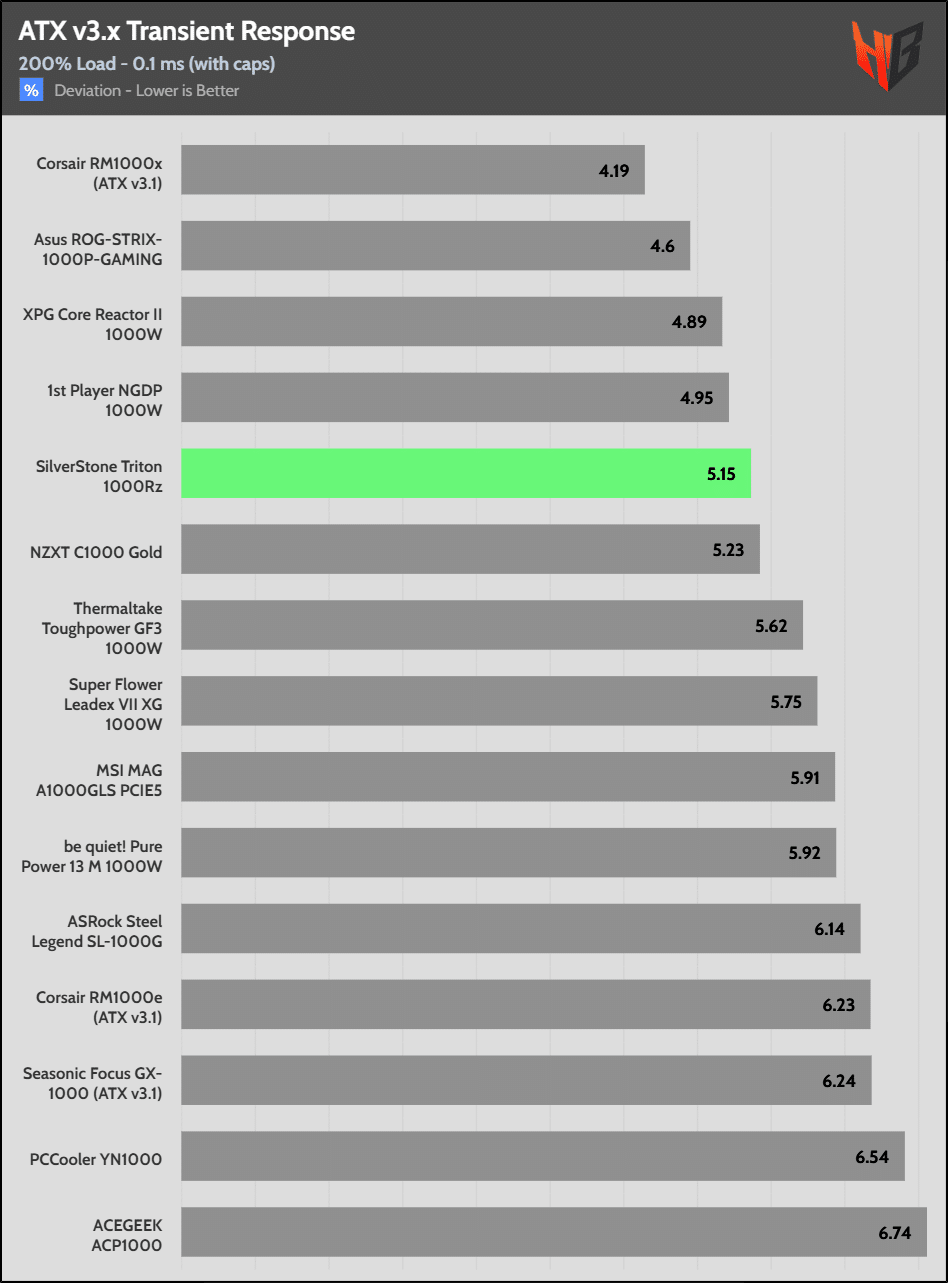

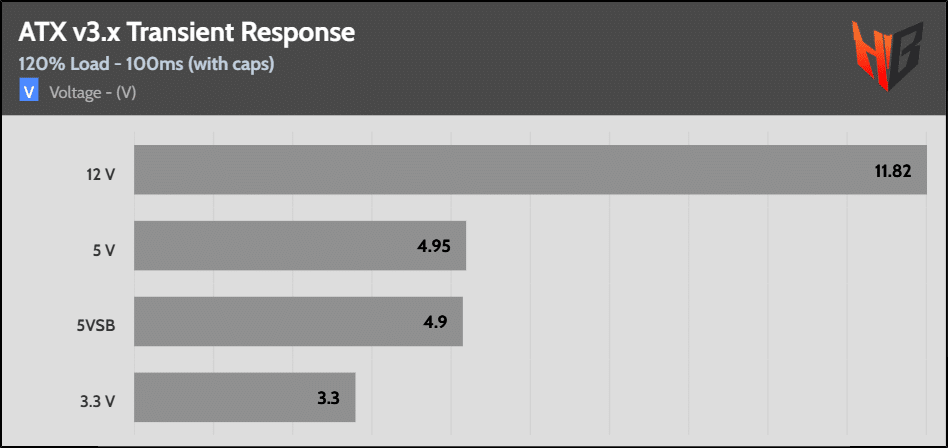

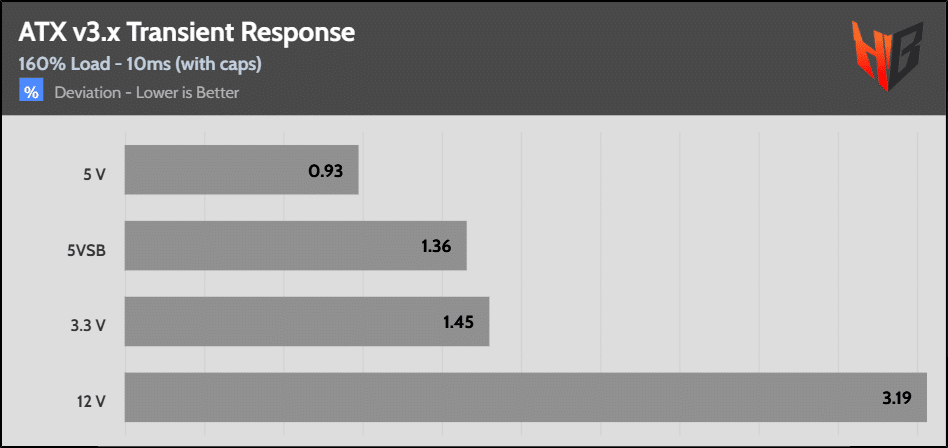

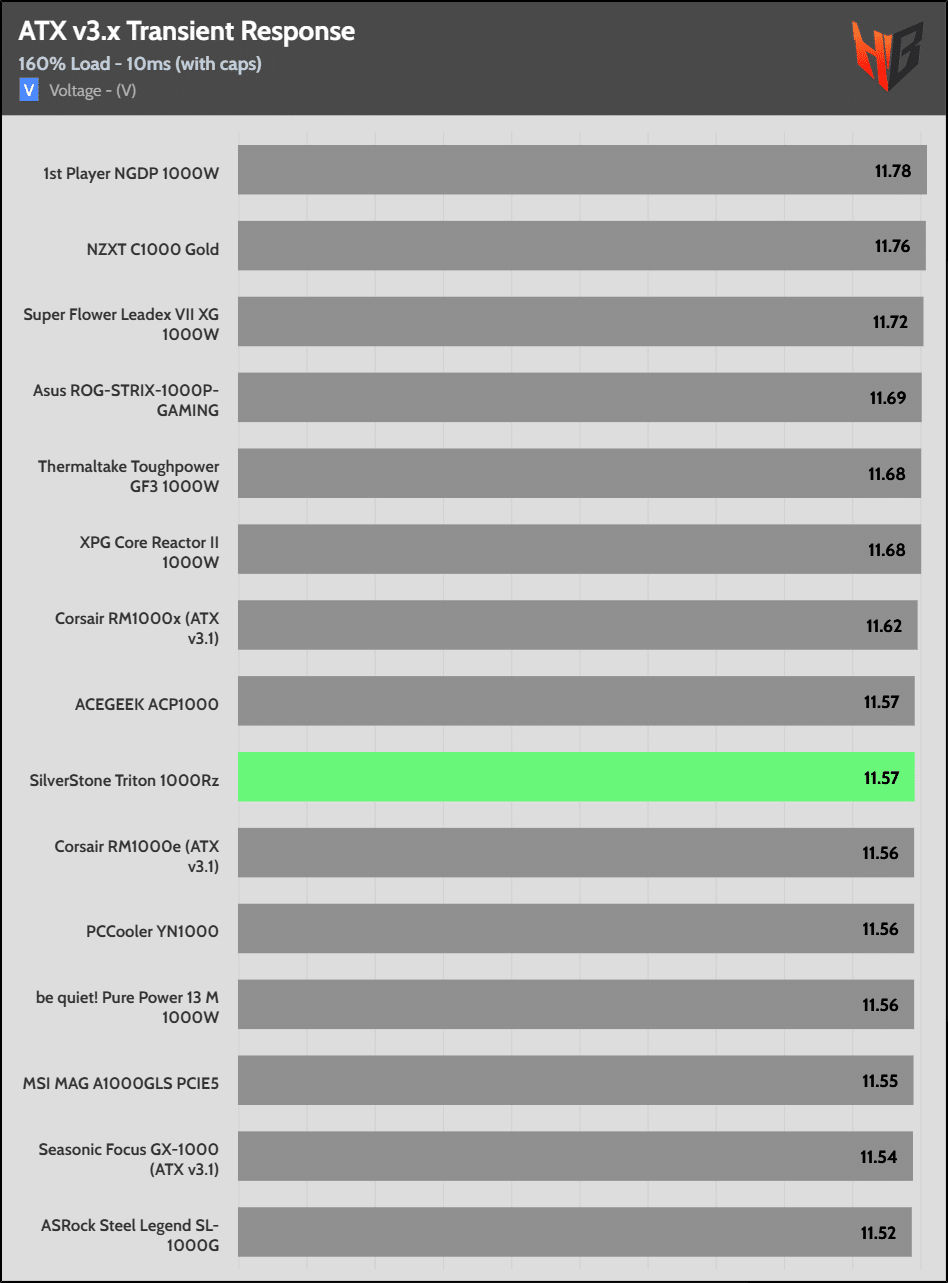

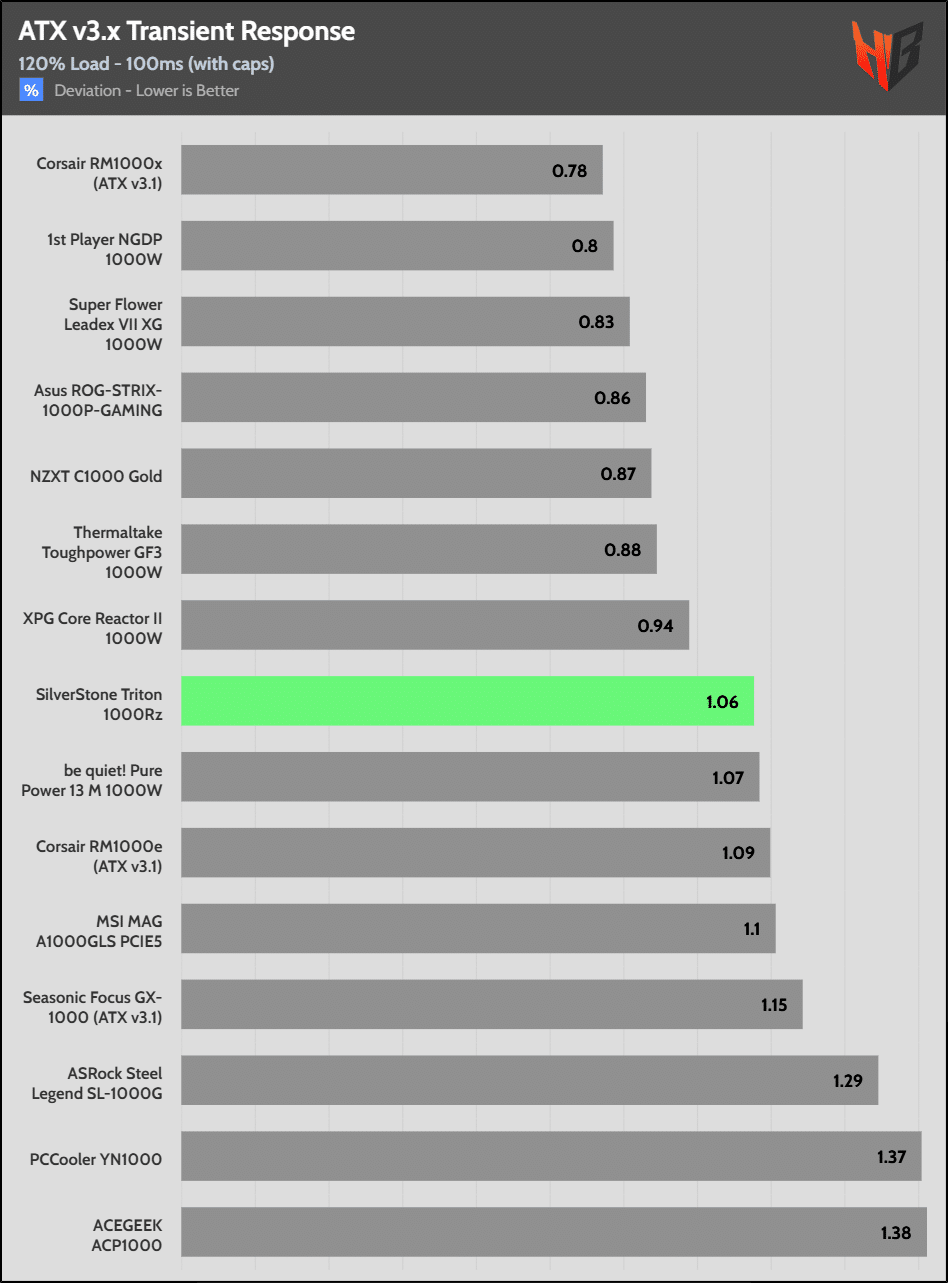

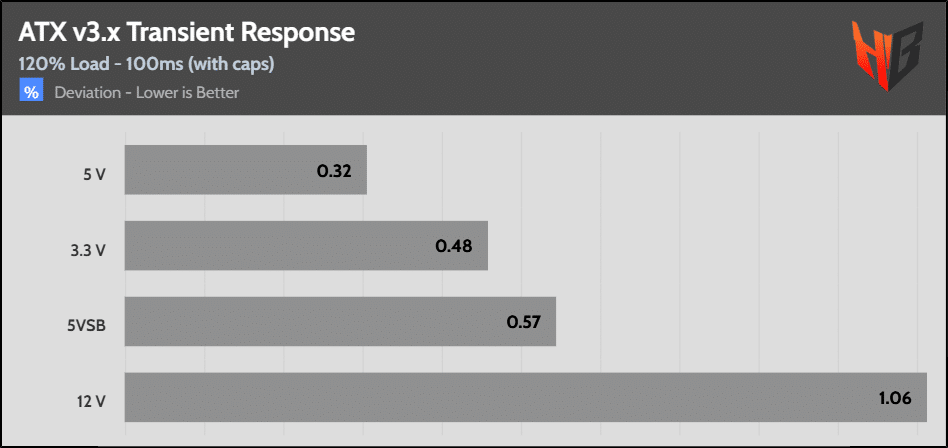

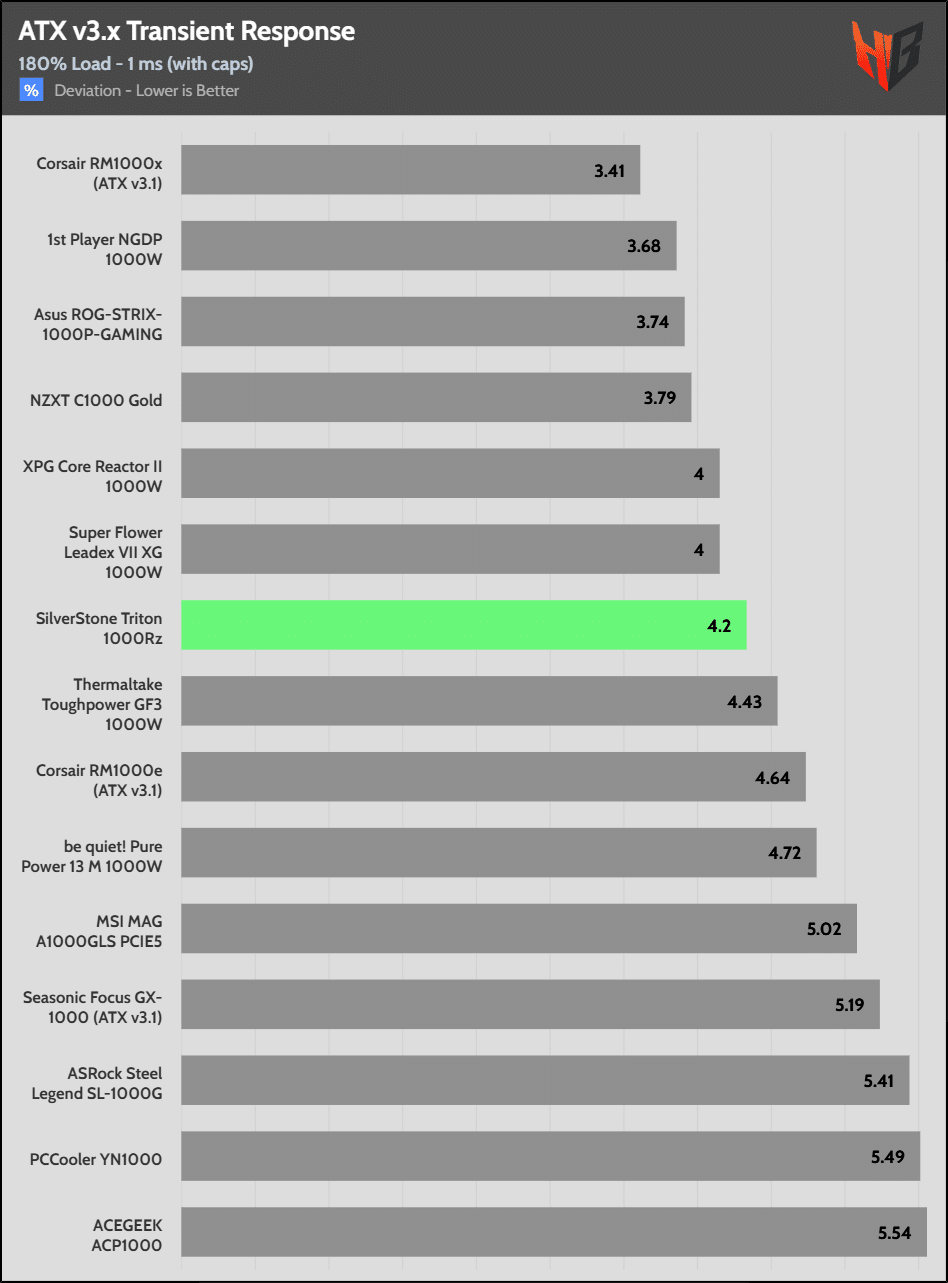

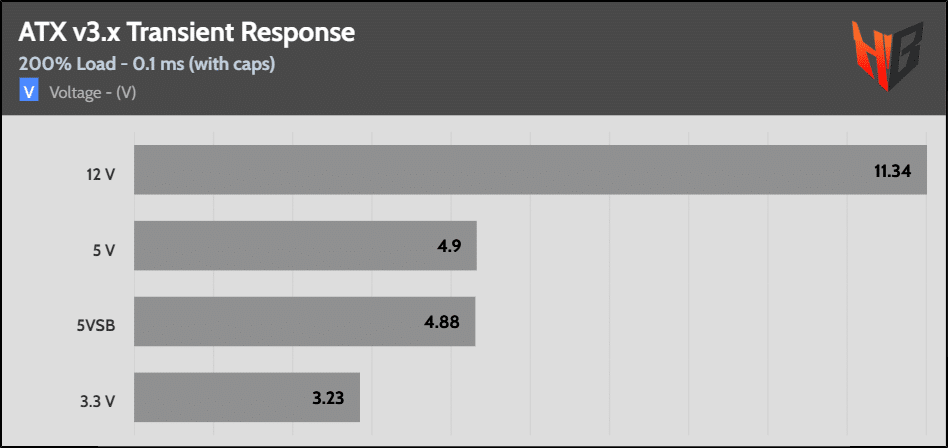

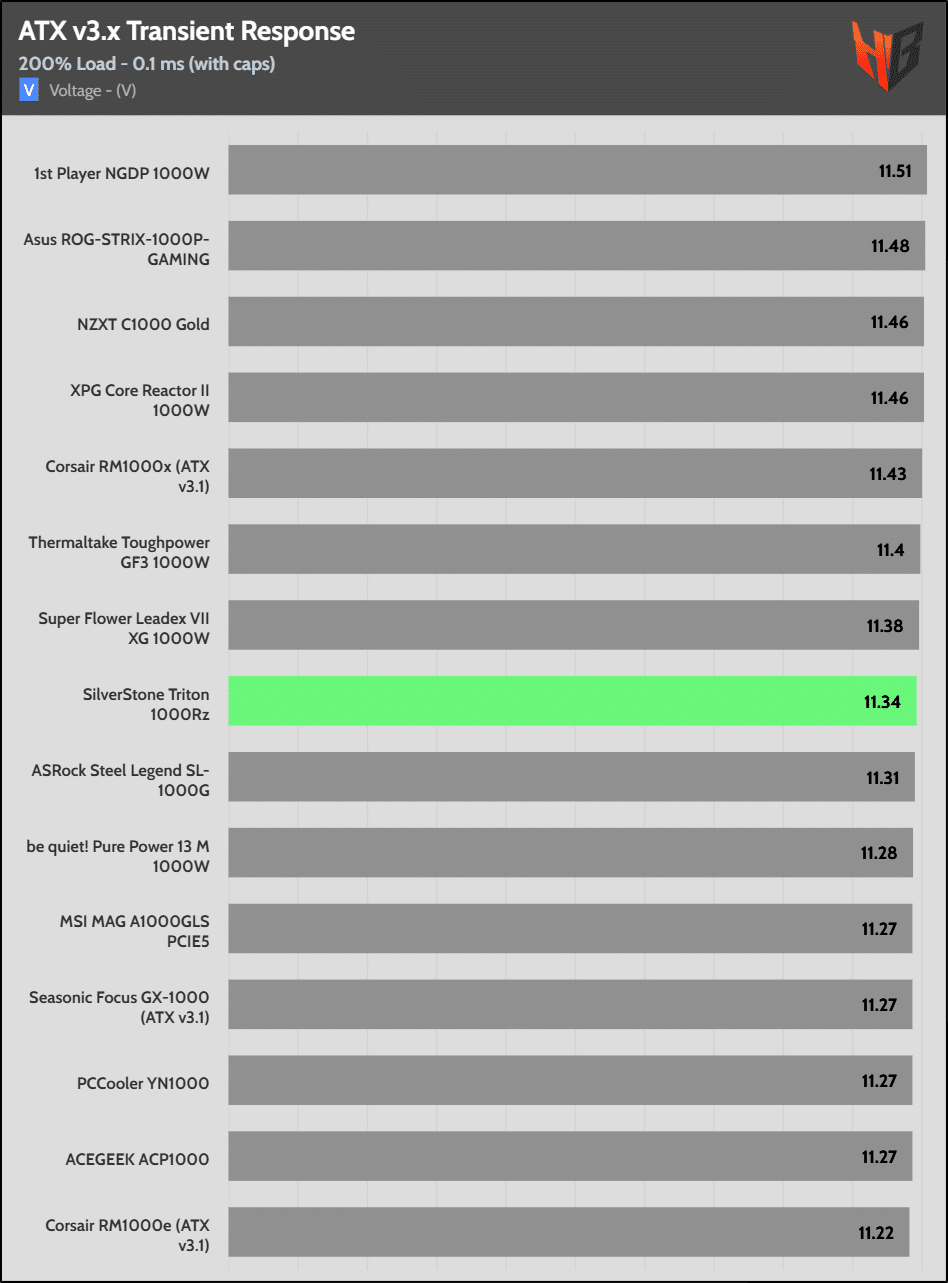

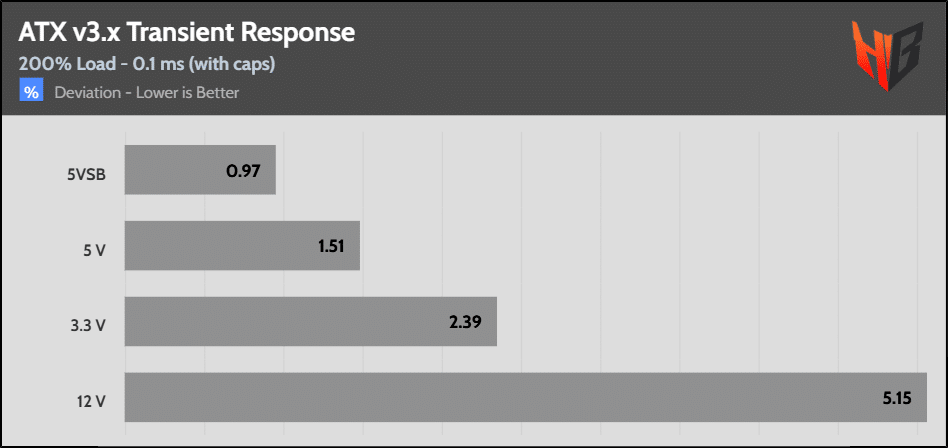

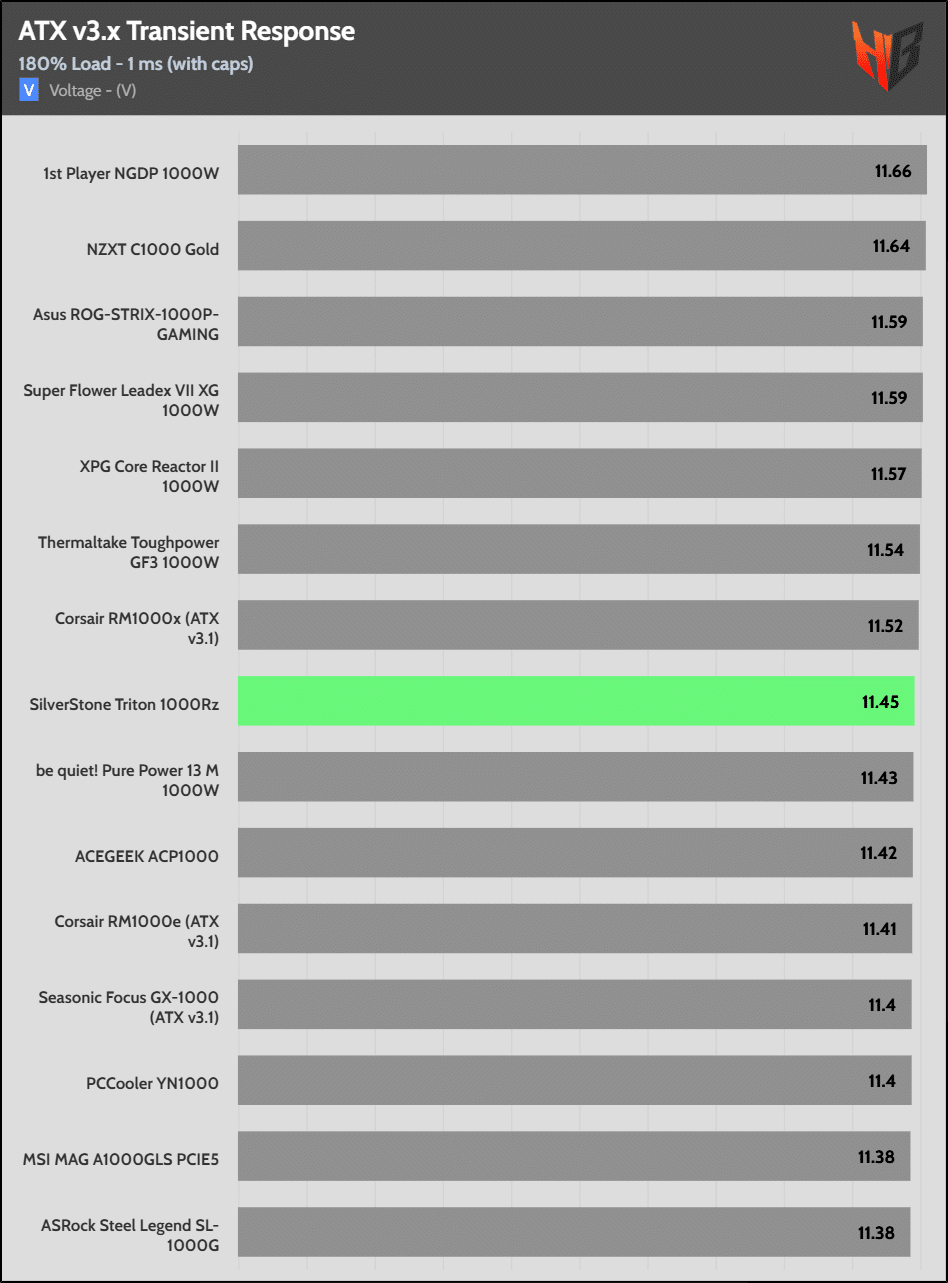

Transient Response ATX v3.1 Tests
The PSU passes all ATX v3.1 transient response tests.
The 12V rail’s performance is decent but definitely not competitive.
