Box & Bundle
I love it when the PSU comes in a generic box instead of the proper retail one, because this allows me to post a photo of one of my cats. Enjoy Tom sleeping!
Product Photos

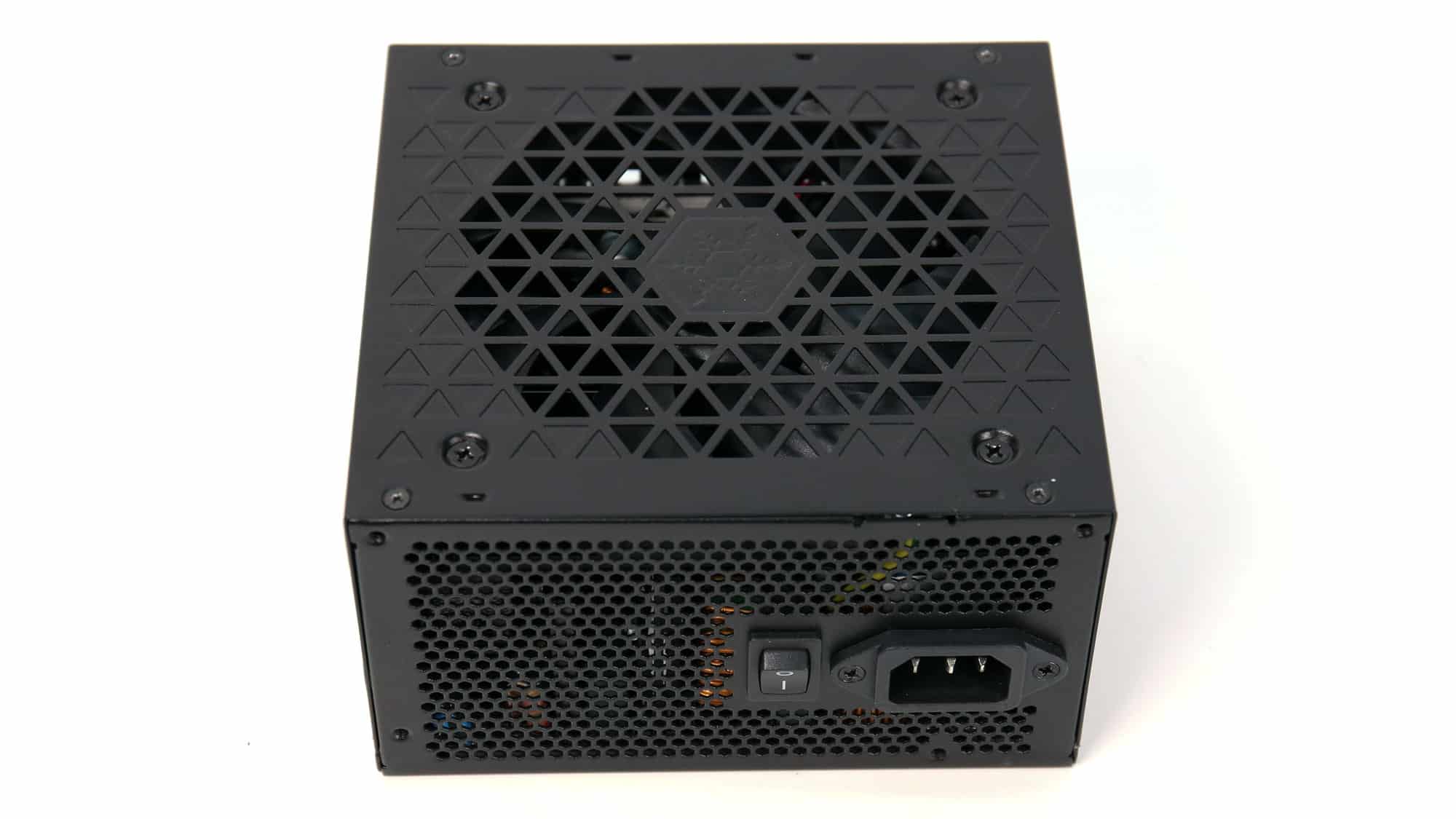

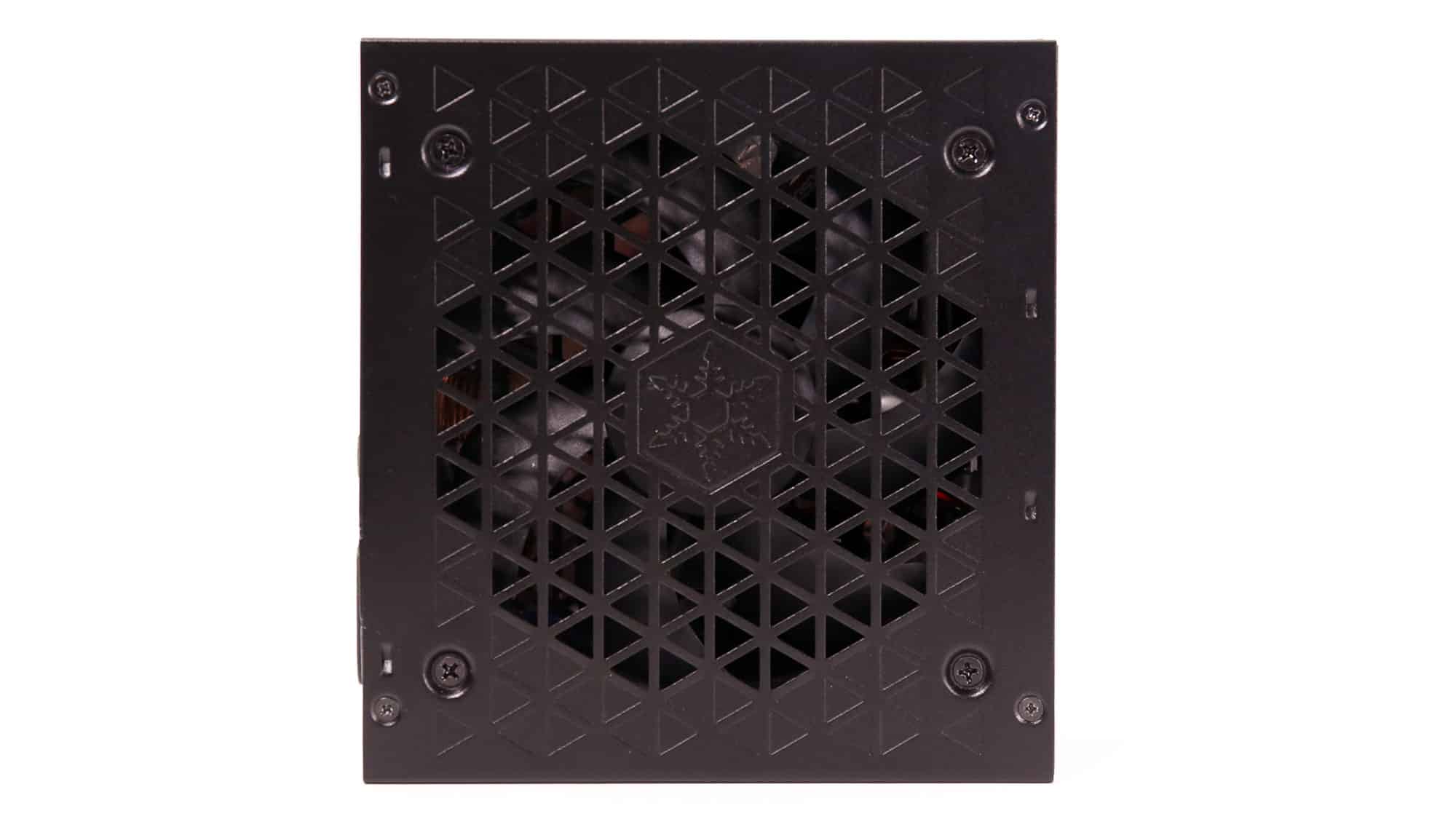

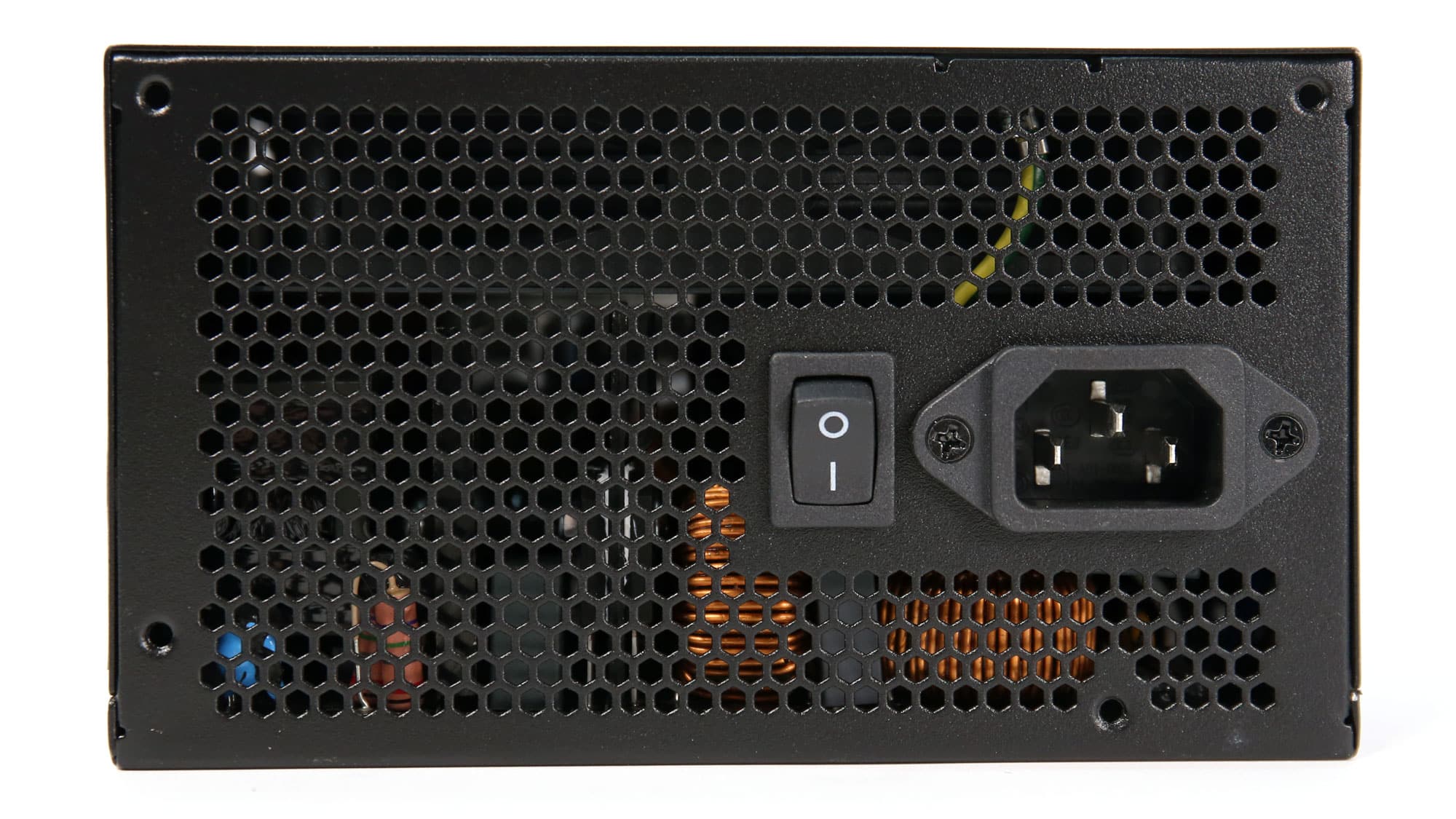

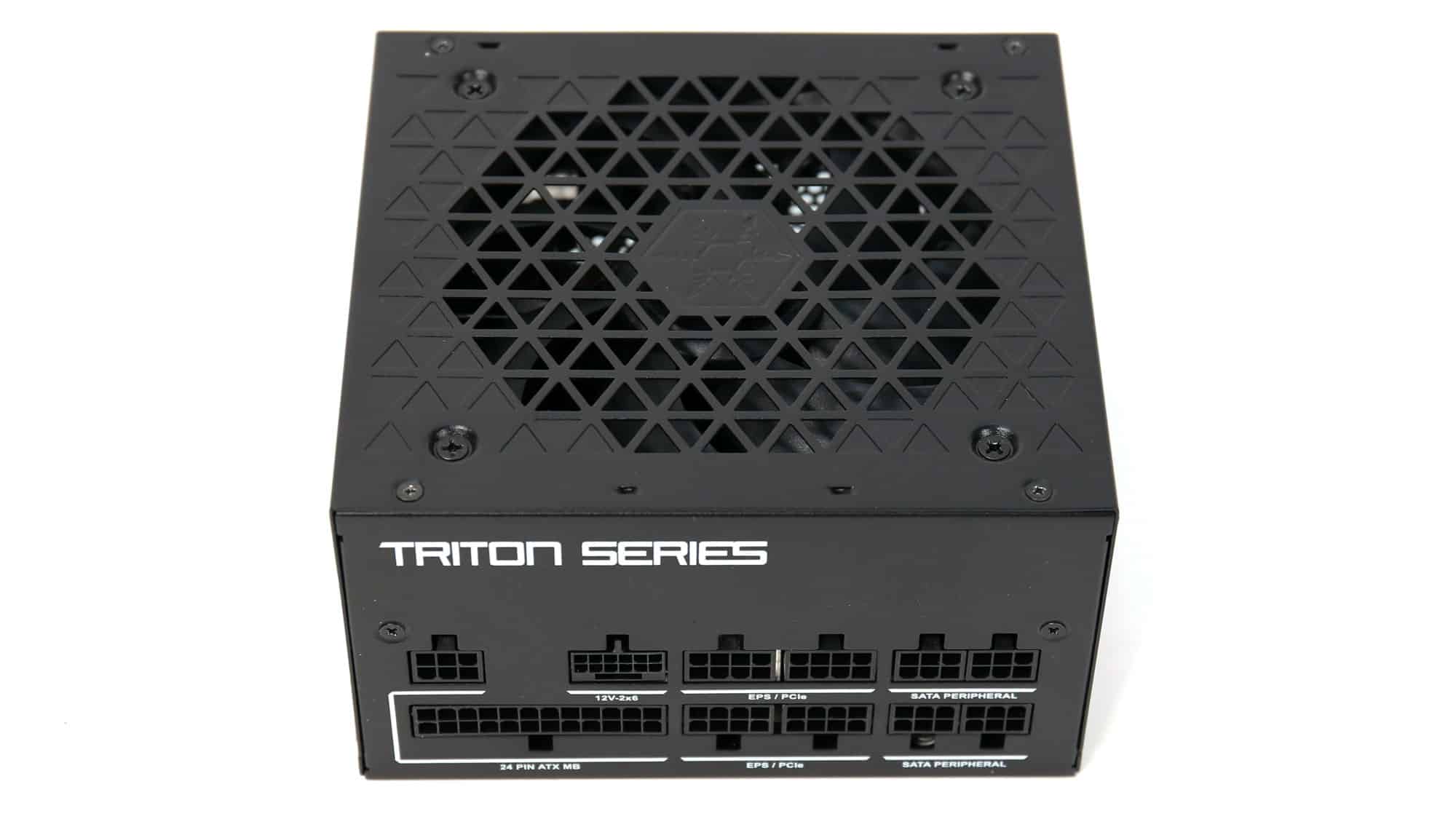

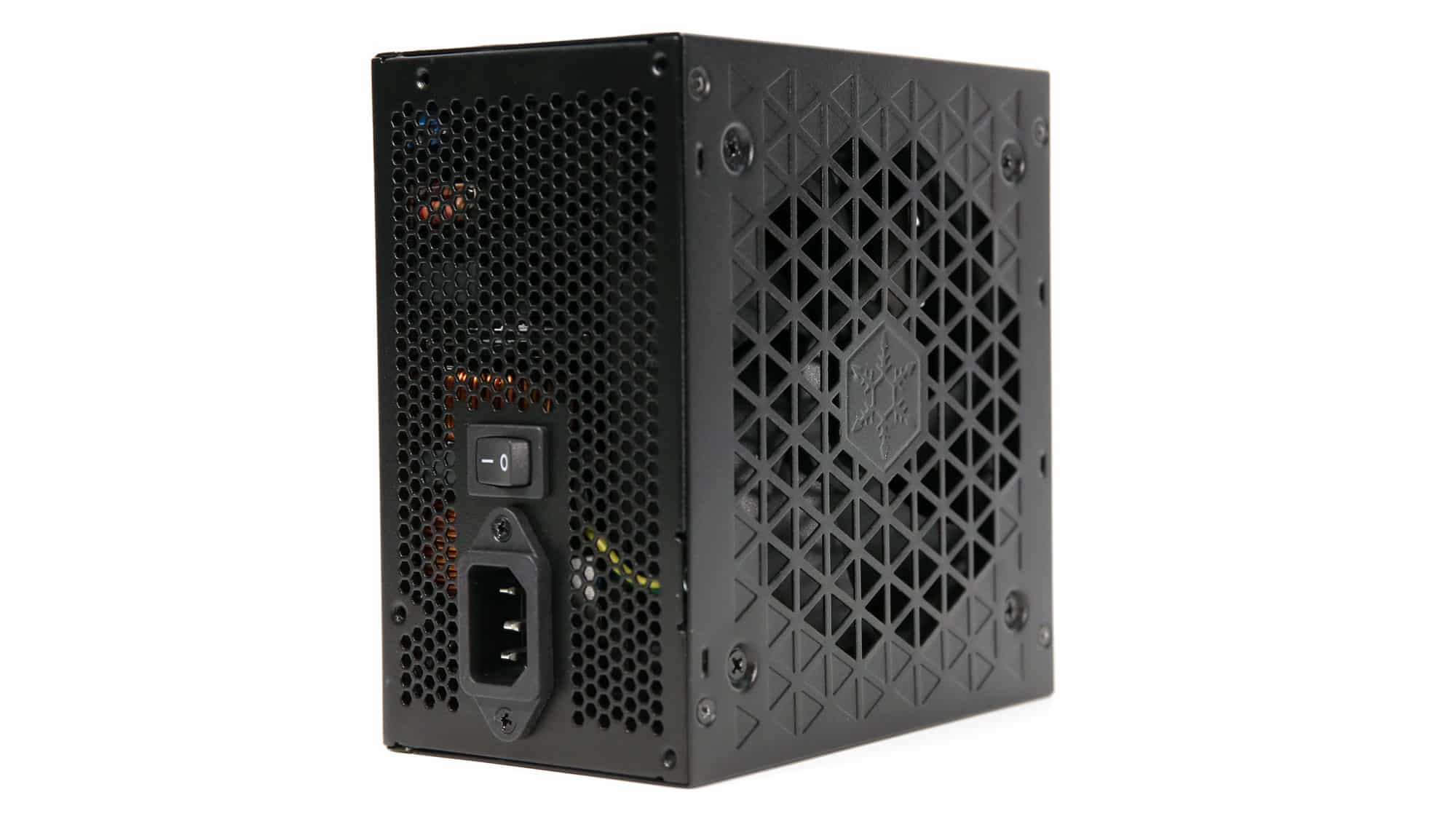

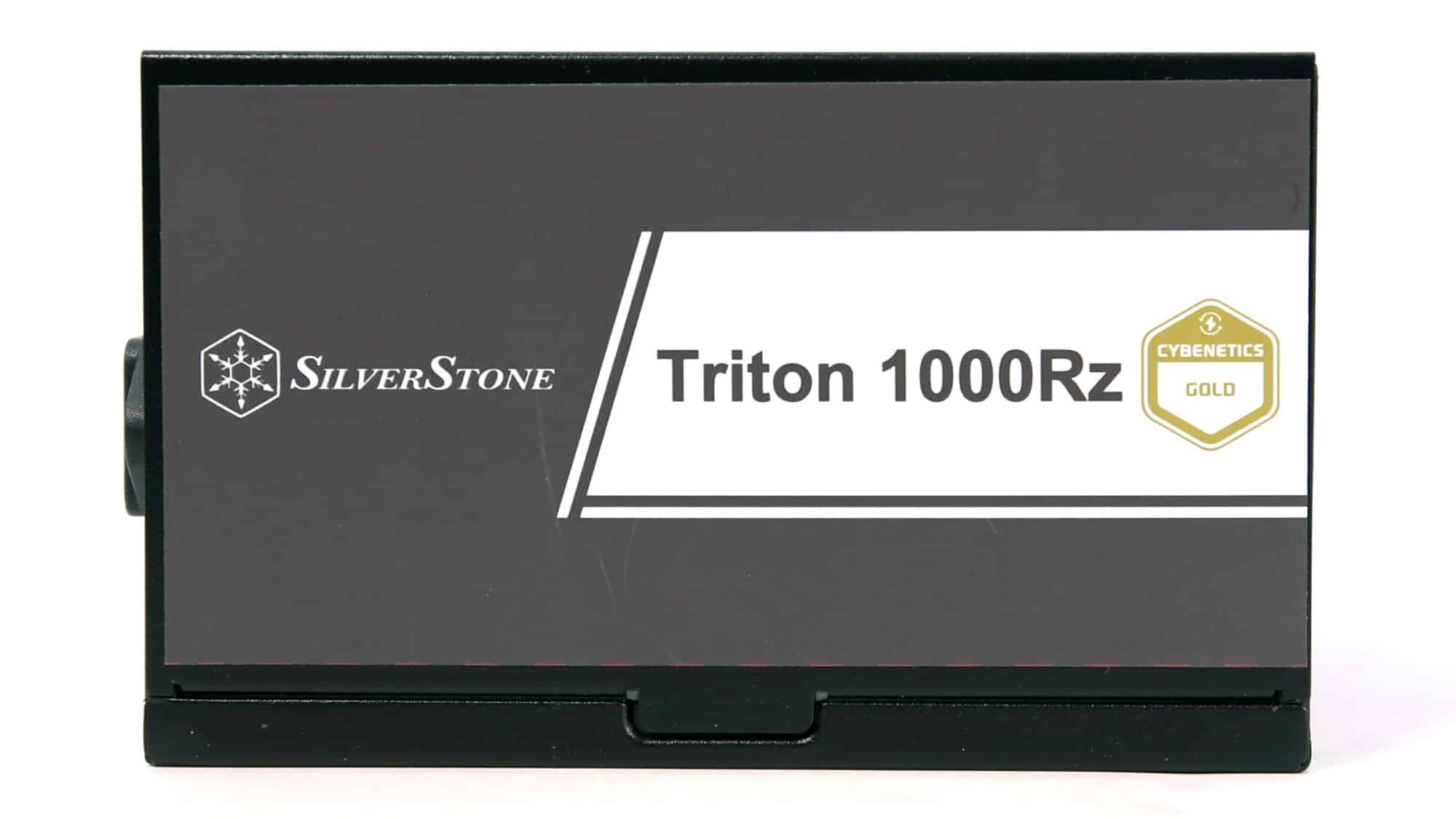

The PSU has compact dimensions, and the fan grille has punched perforations, which are large enough to allow for good airflow from the relatively small fan (120mm diameter). At the PSU’s front side, you find the usual staff, the AC receptacle, and the power switch.

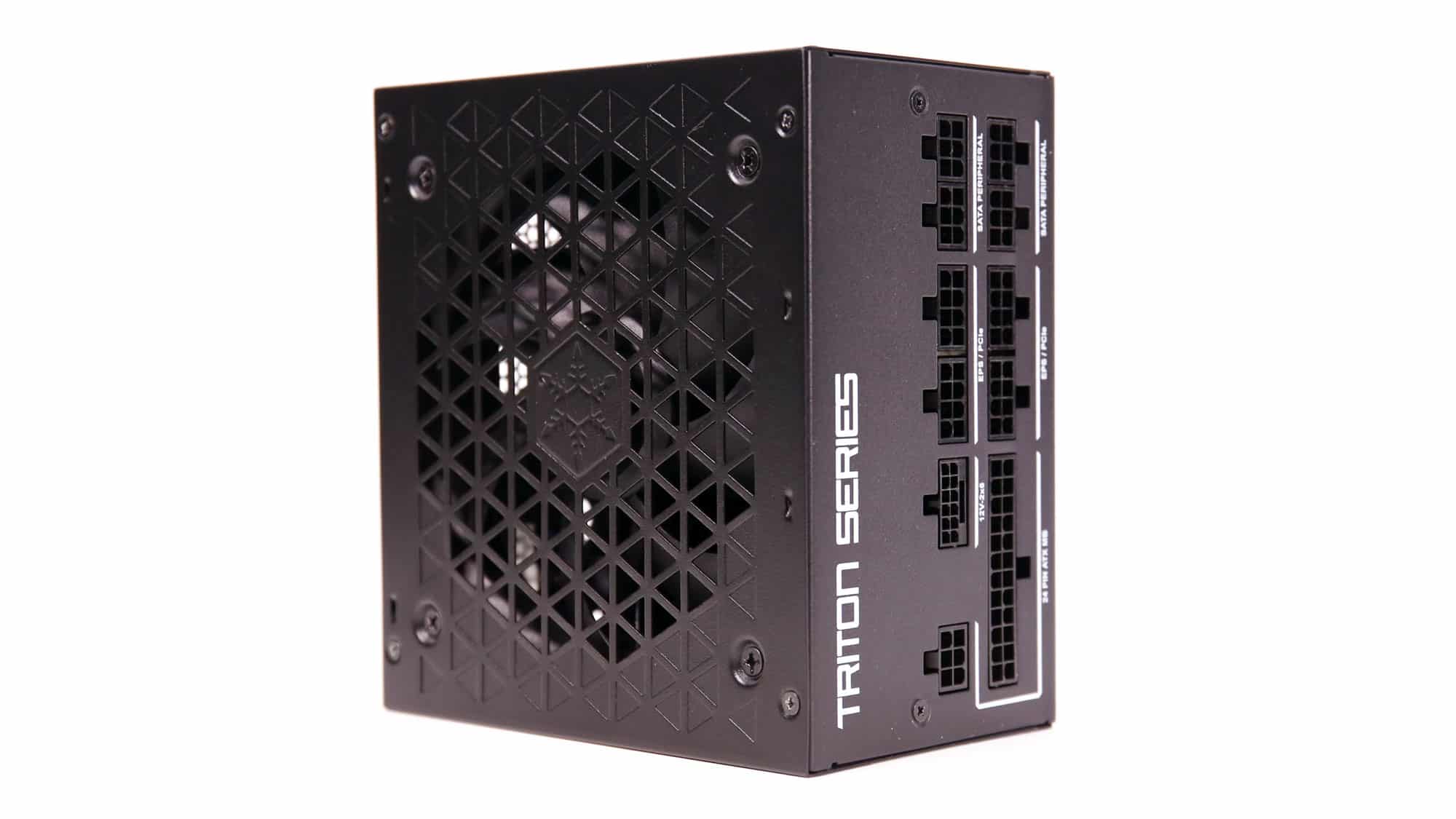

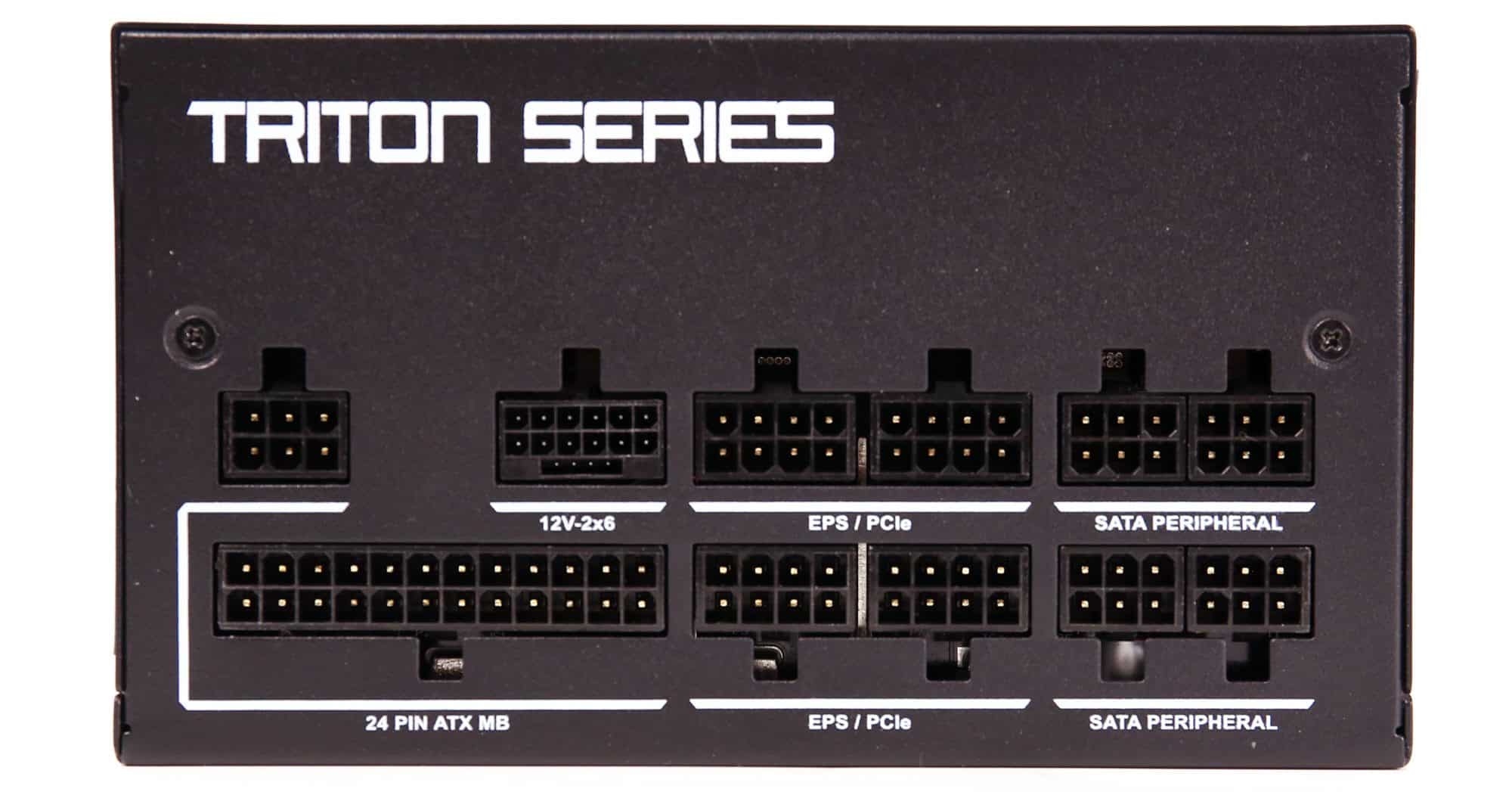

The modular panel has eleven sockets, including a native 12V-2×6 header.

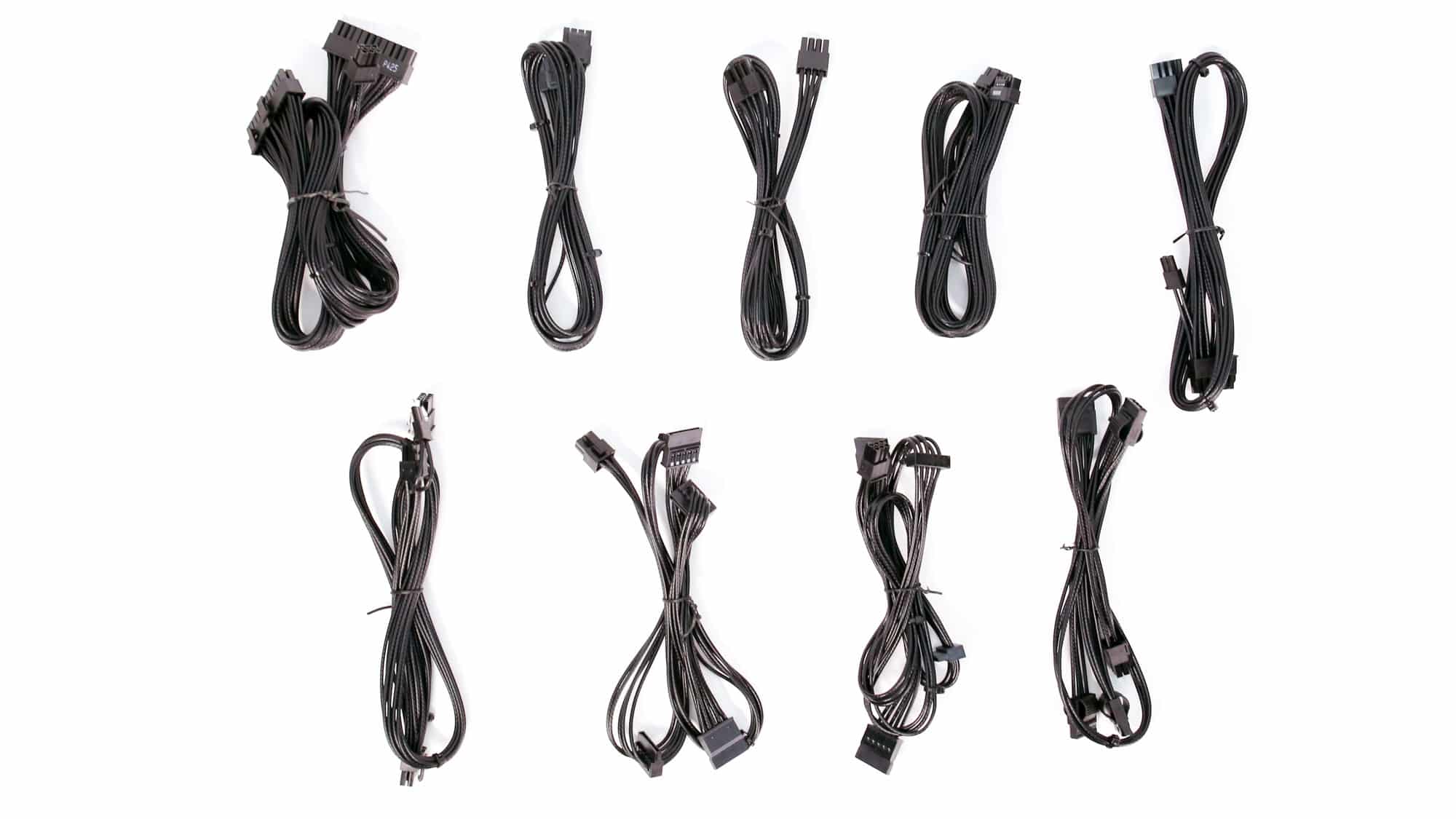

| Modular Cables | ||||
| Description | Cable Count | Connector Count (Total) | Gauge | In Cable Capacitors |
|---|---|---|---|---|

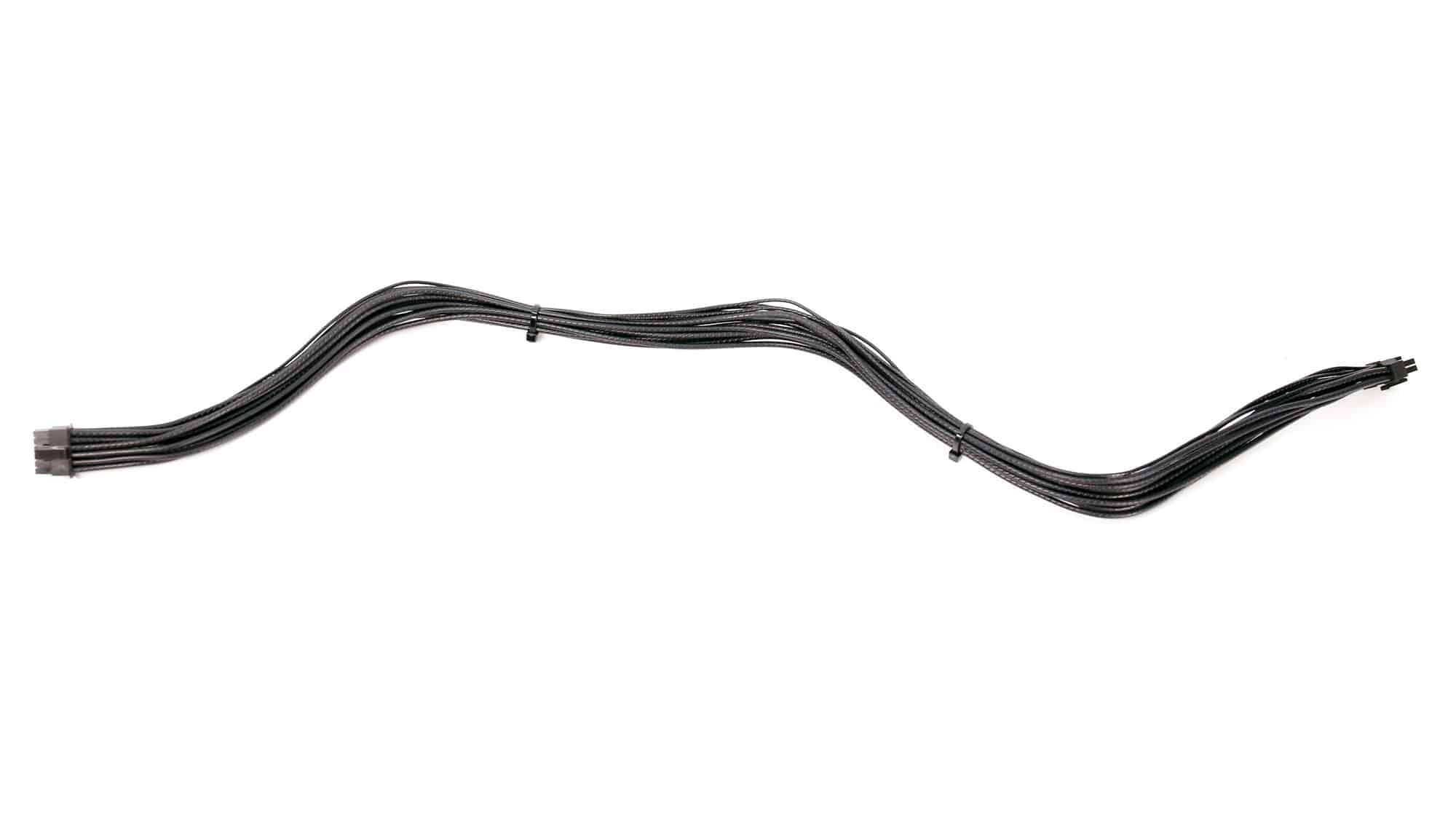

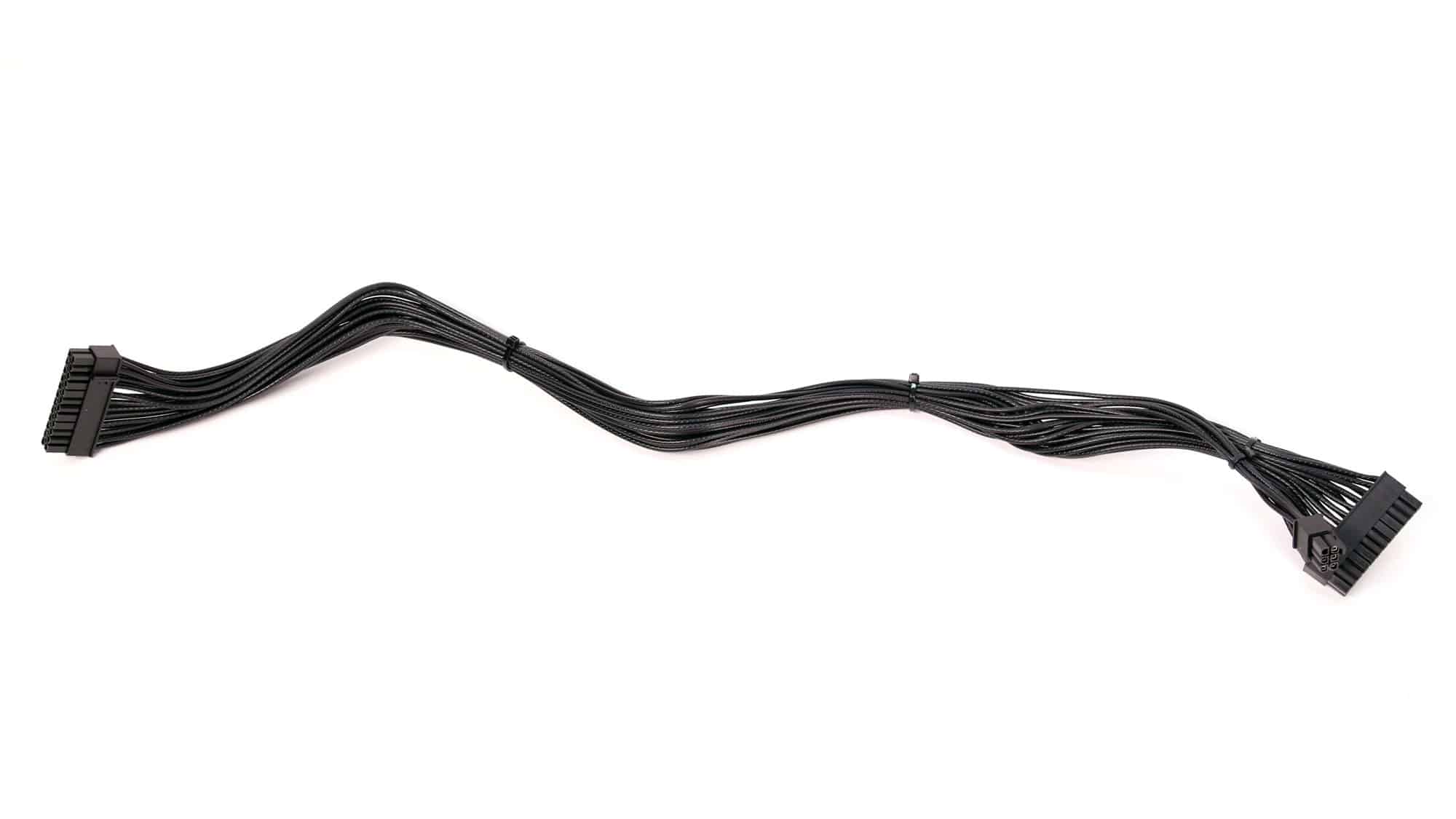

| ATX connector 20+4 pin (590mm) | 1 | 1 | 18AWG | No |

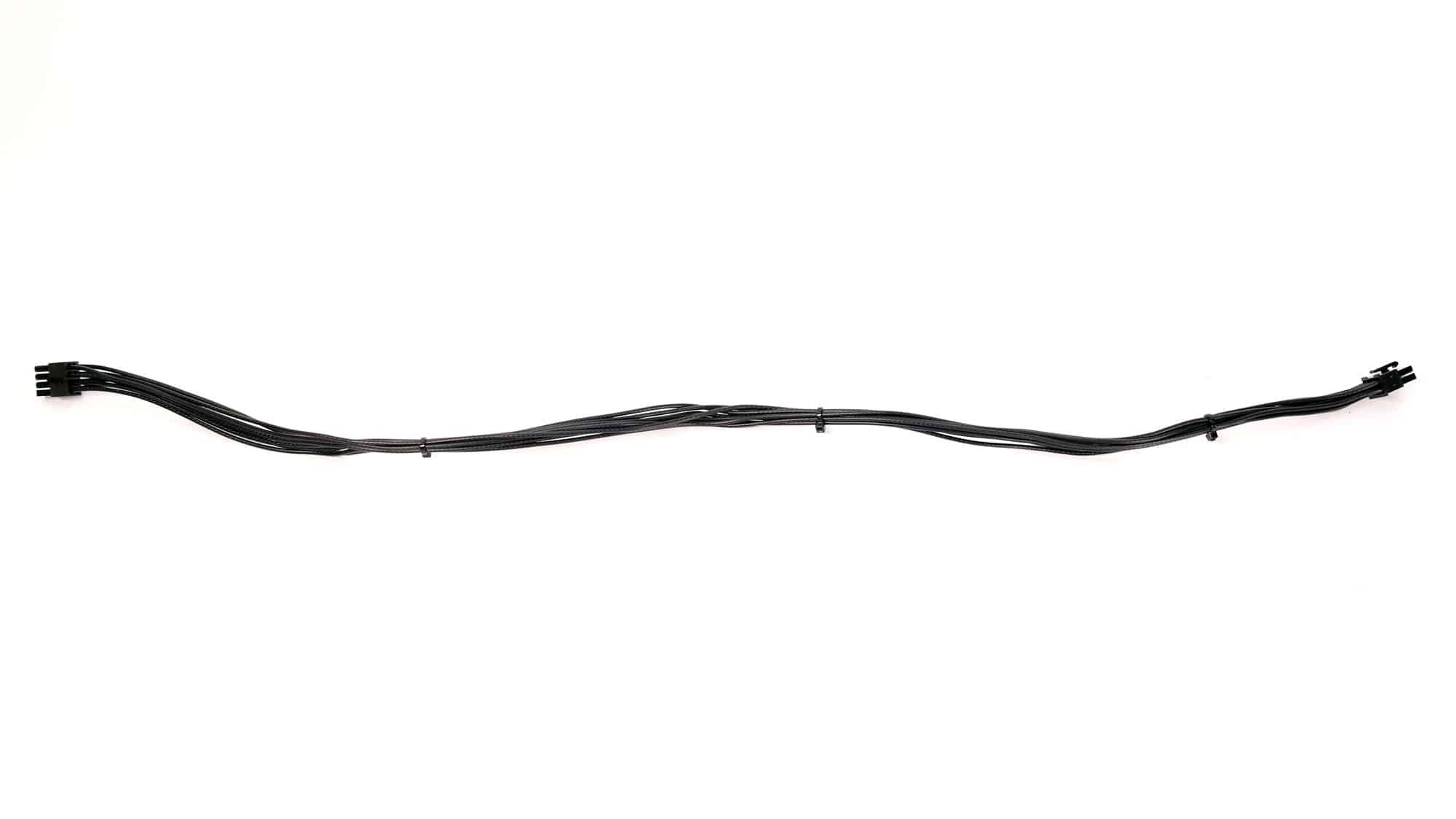

| 4+4 pin EPS12V (700mm) | 2 | 2 | 18AWG | No |

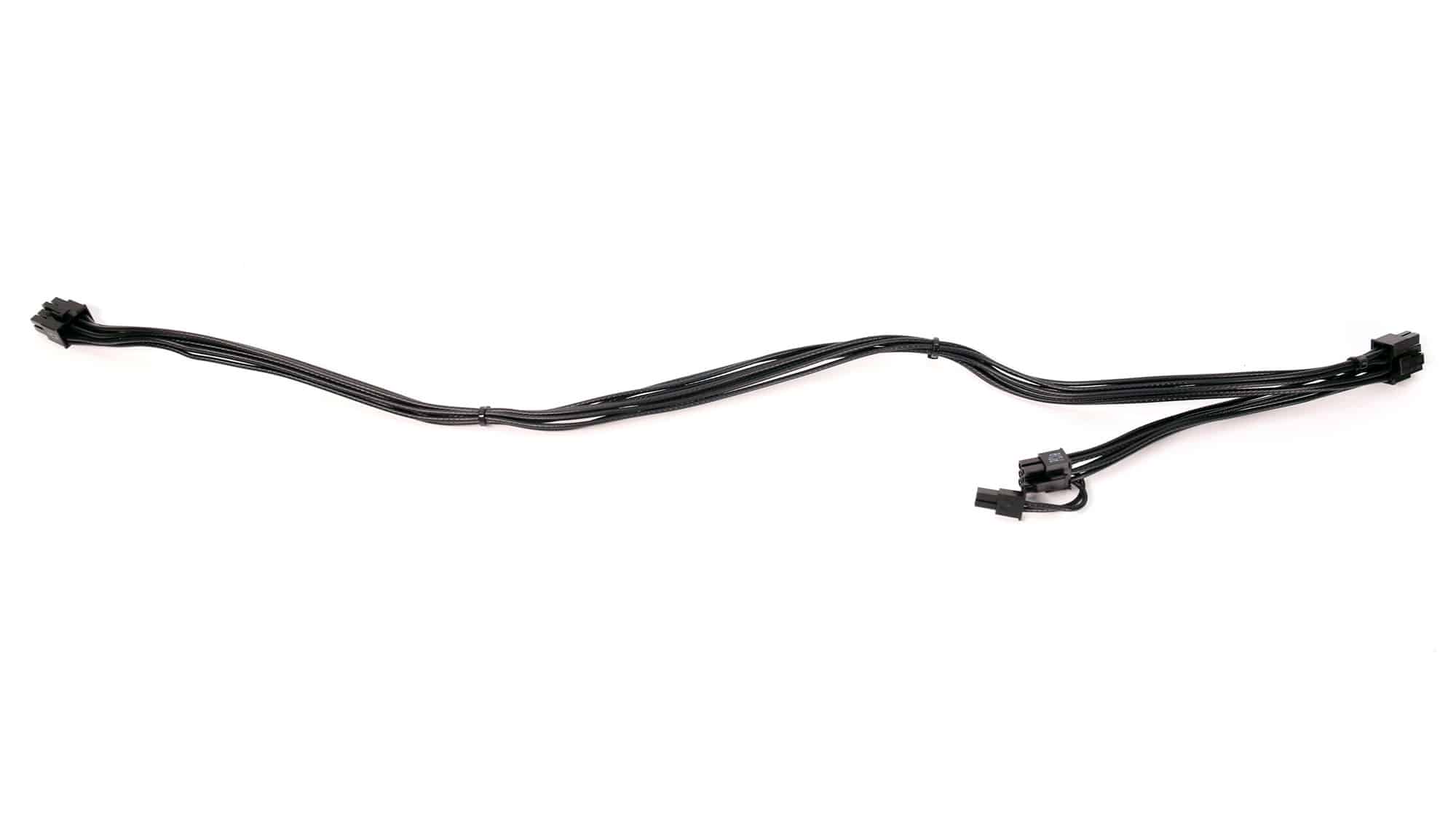

| 6+2 pin PCIe (600mm+150mm) | 2 | 4 | 18AWG | No |
| 12+4 pin PCIe (600mm) (600W) | 1 | 1 | 16-24AWG | No |

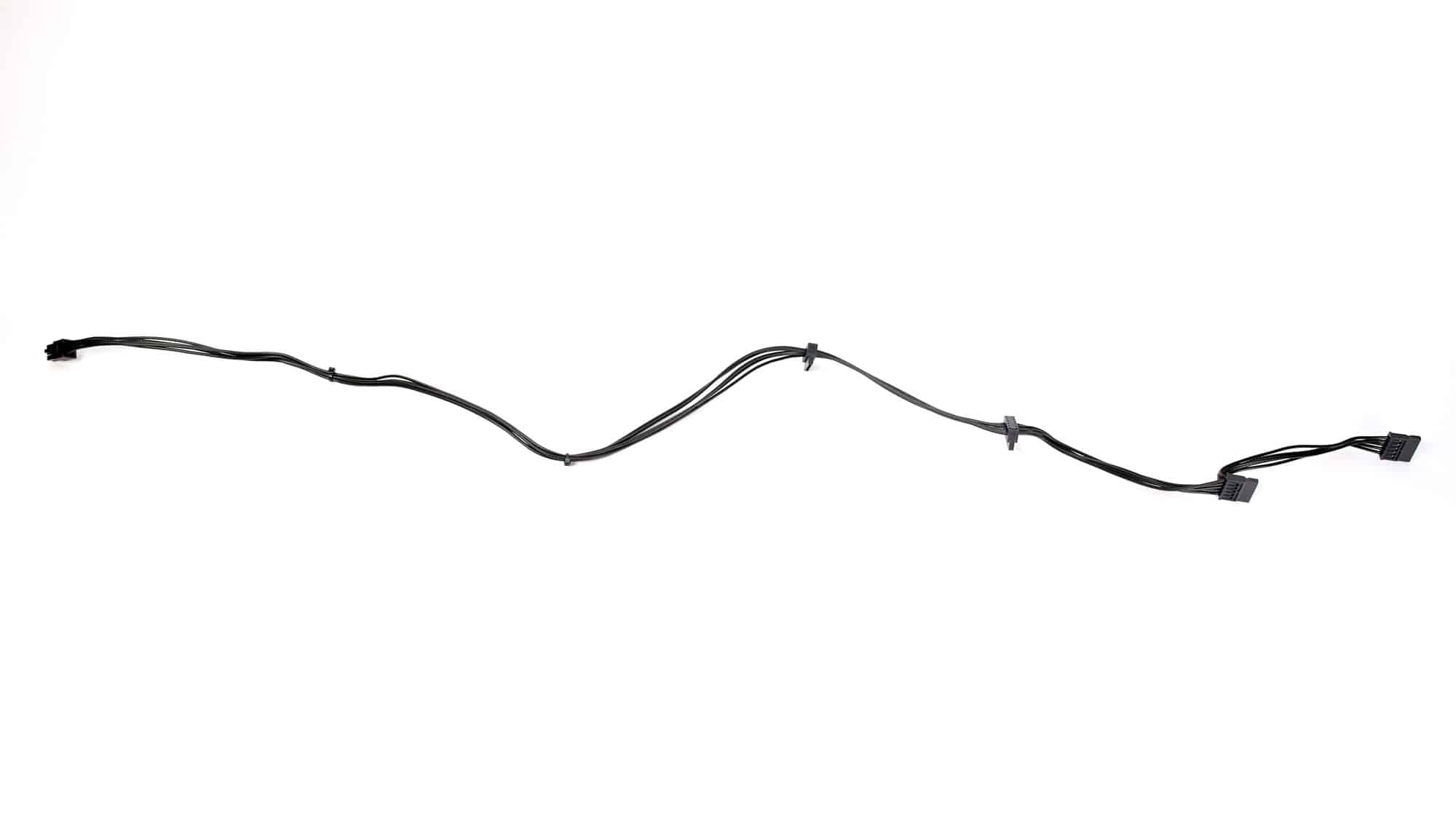

| SATA (600mm+150mm+150mm+150mm) | 2 | 8 | 18AWG | No |

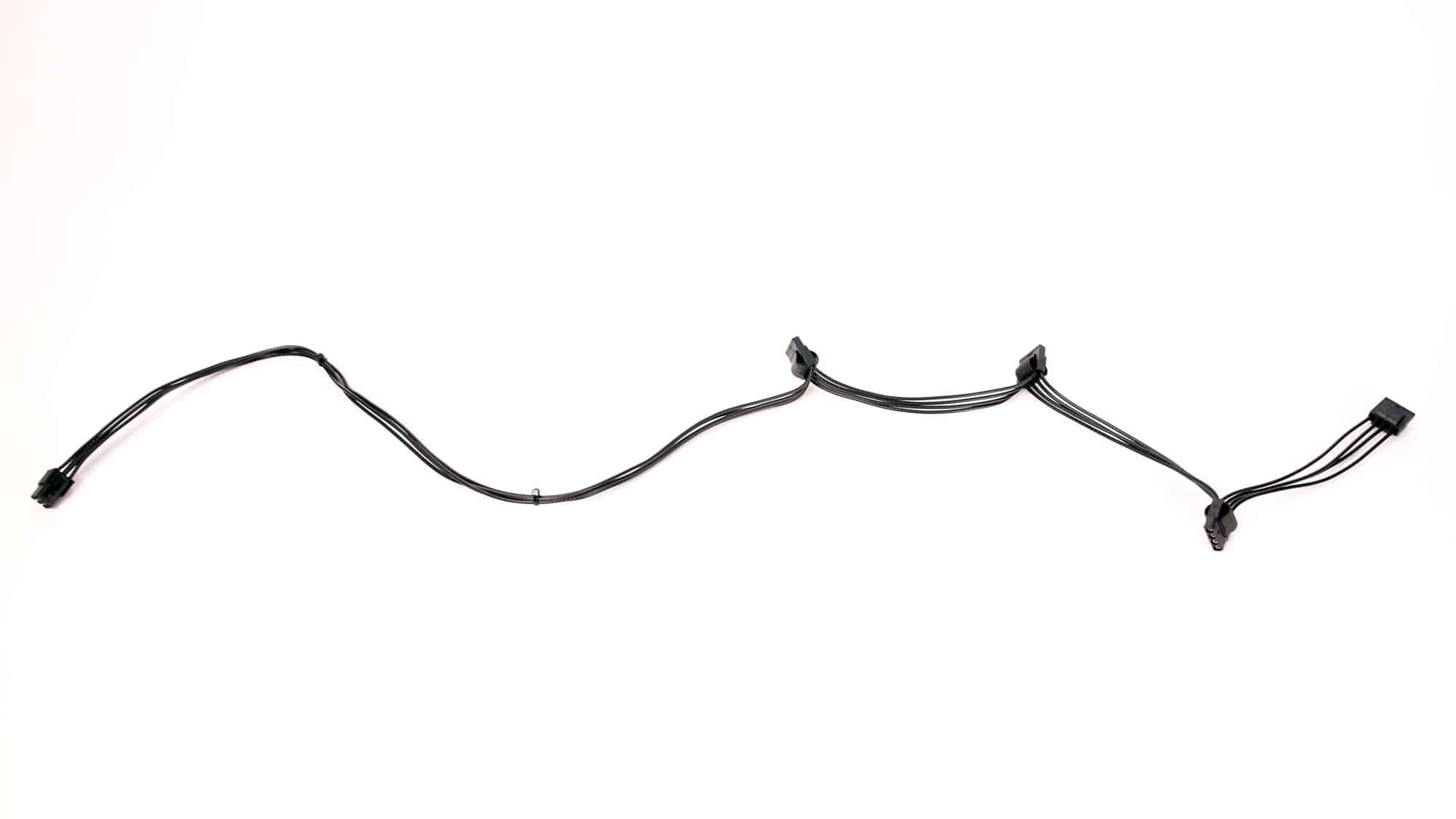

| 4-pin Molex (600mm+150mm+150mm+150mm) | 1 | 4 | 18AWG | No |
There are enough cables and connectors to handle the unit’s maximum power smoothly. The ATX cable is long enough, and the EPS cables reach 700mm. I would like to see 16AWG gauges on the ATX, EPS, and 6+2 pin PCIe connectors for lower voltage drops under high loads. Lastly, the distance between the peripheral cables is ideal, at 150mm.
