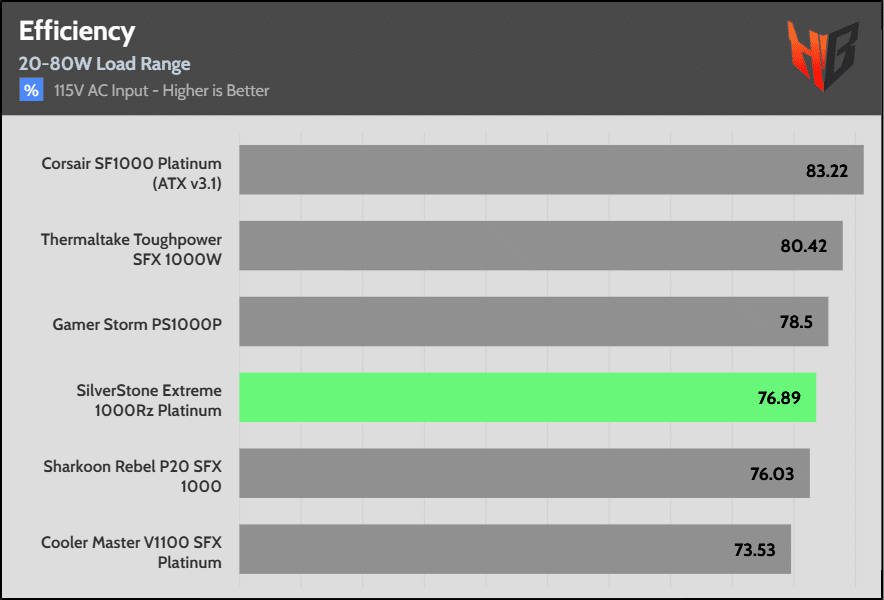

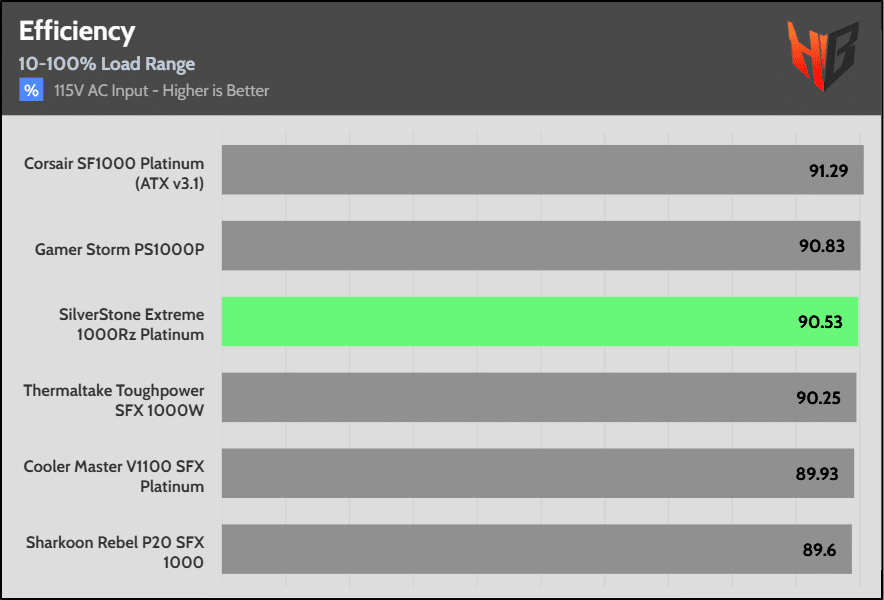

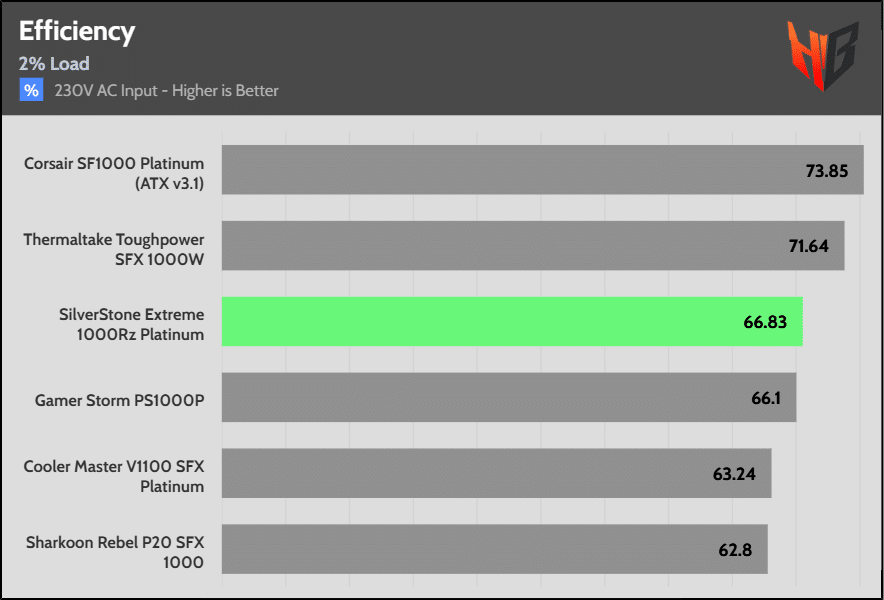

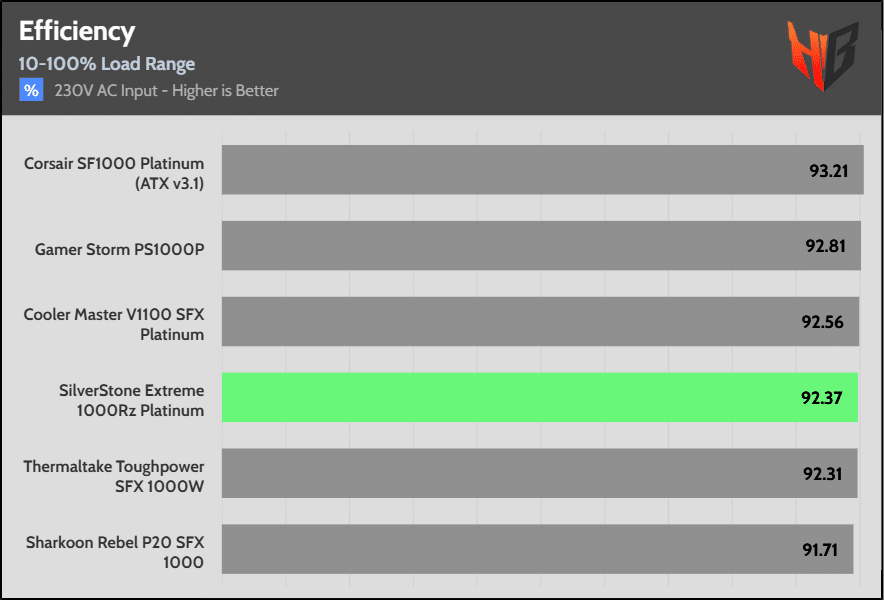

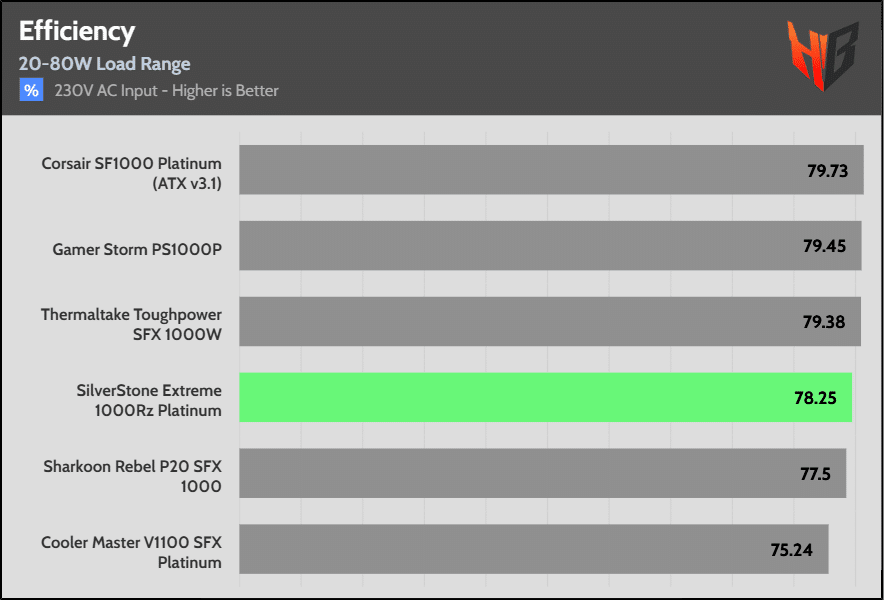

Efficiency Normal, Light & Super-Light Loads
Efficiency is high enough at normal and light loads, but it doesn’t exceed 70% at super-light loads.

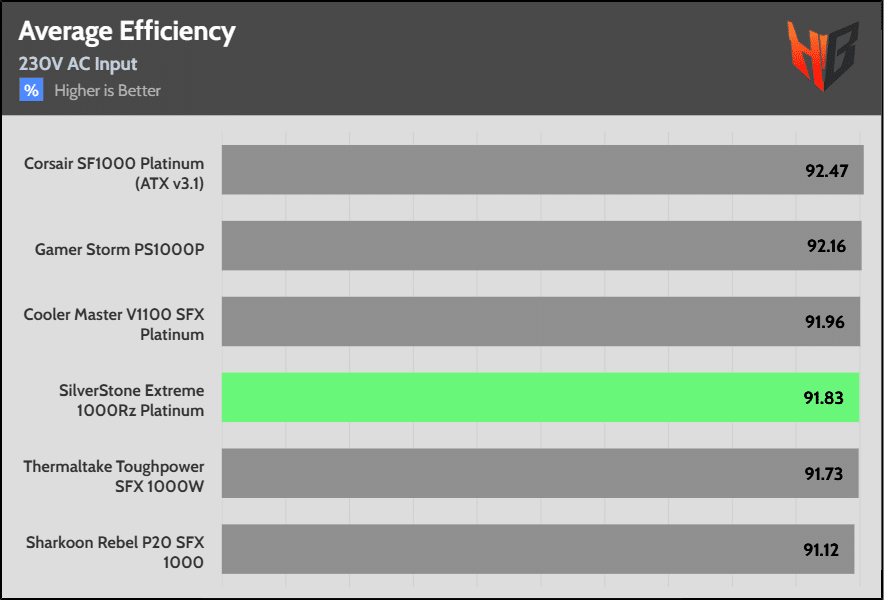

Average Efficiency
The average efficiency meets the Cybenetics Platinum criteria.

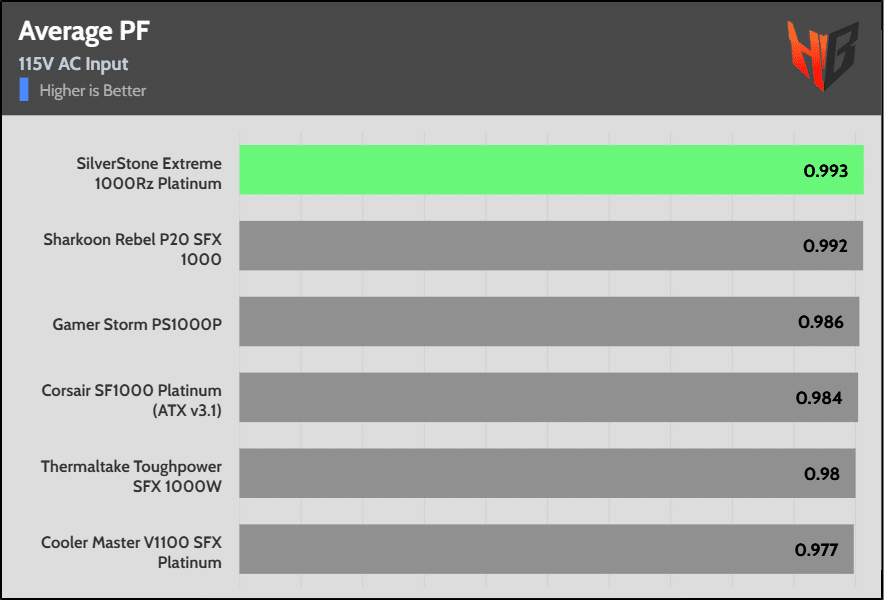

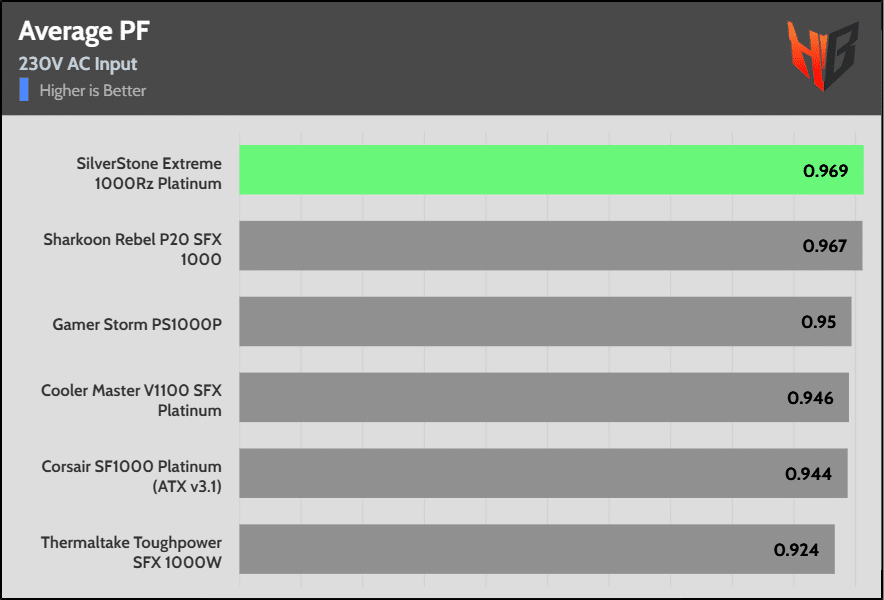

Average PF
The APFC converter achieves good performance.

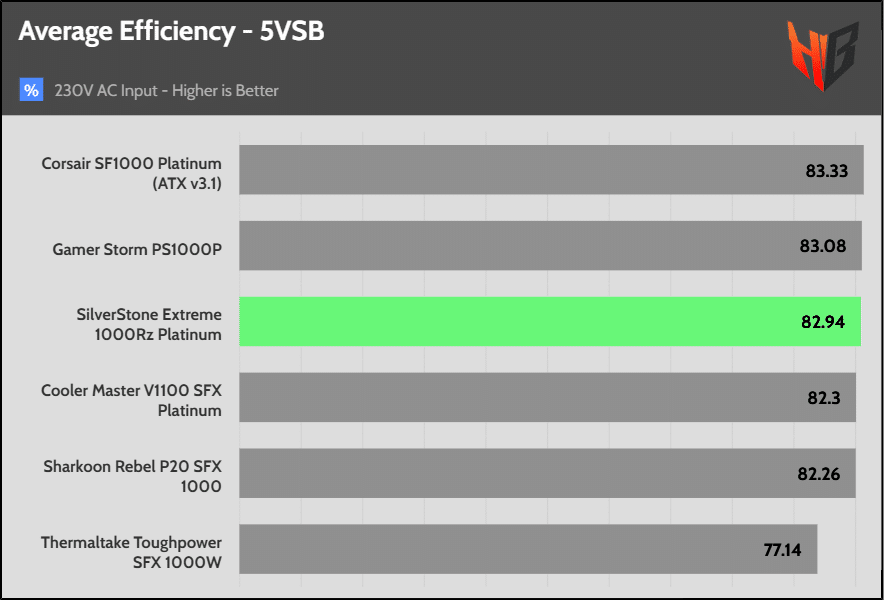

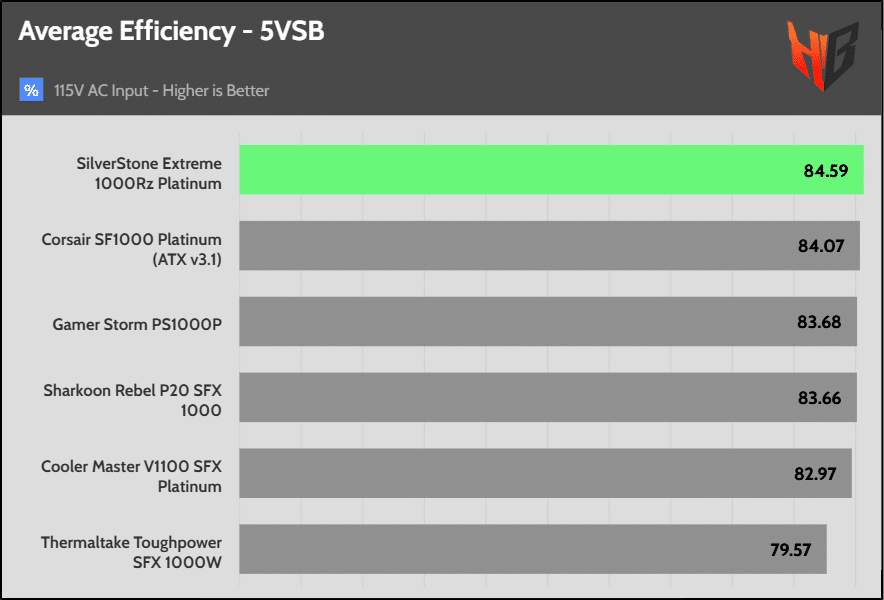

Average Efficiency 5VSB
The 5VSB rail’s efficiency is high.

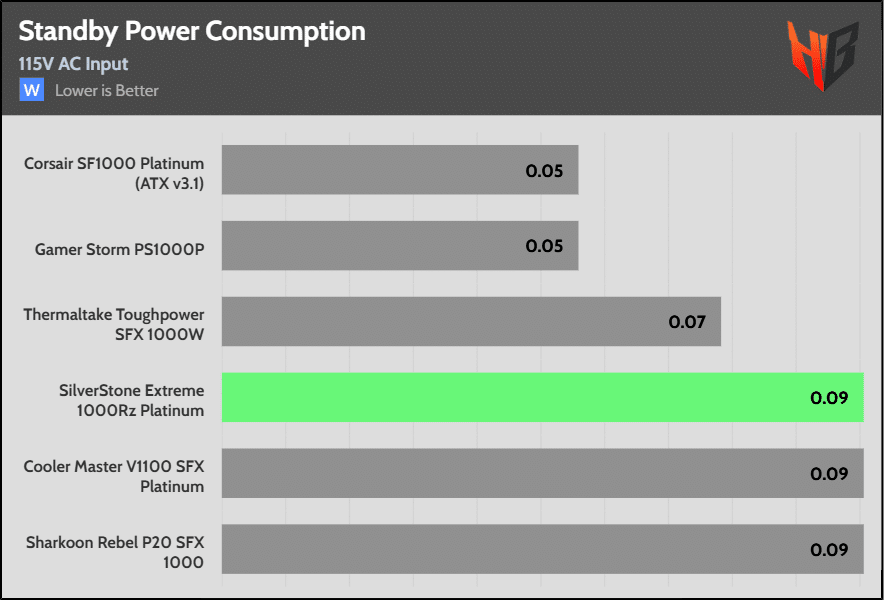

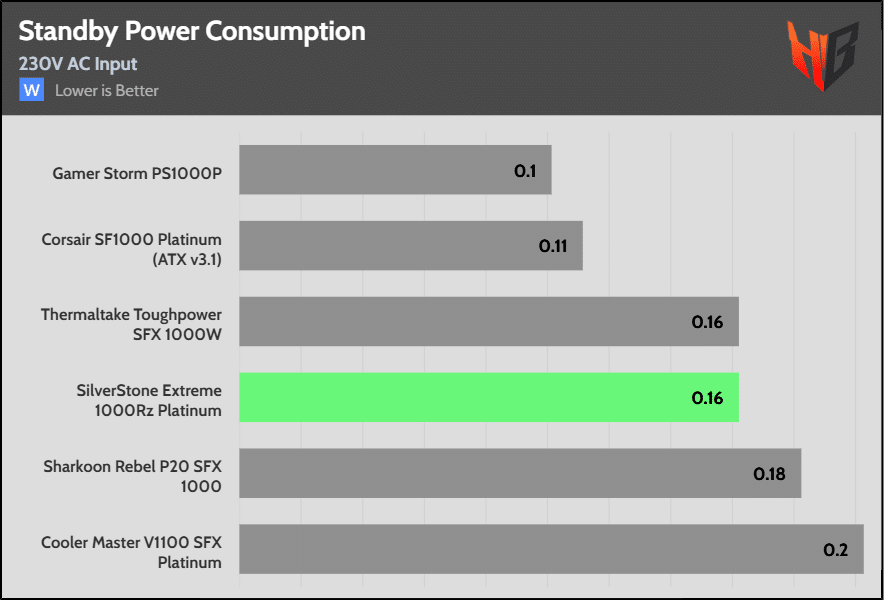

Vampire Power
Vampire power is increased at 230V.
