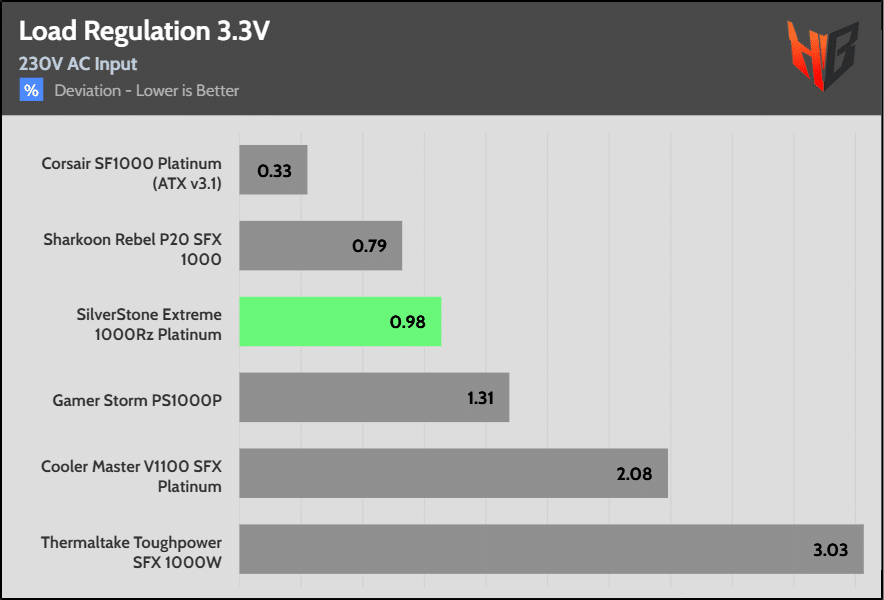

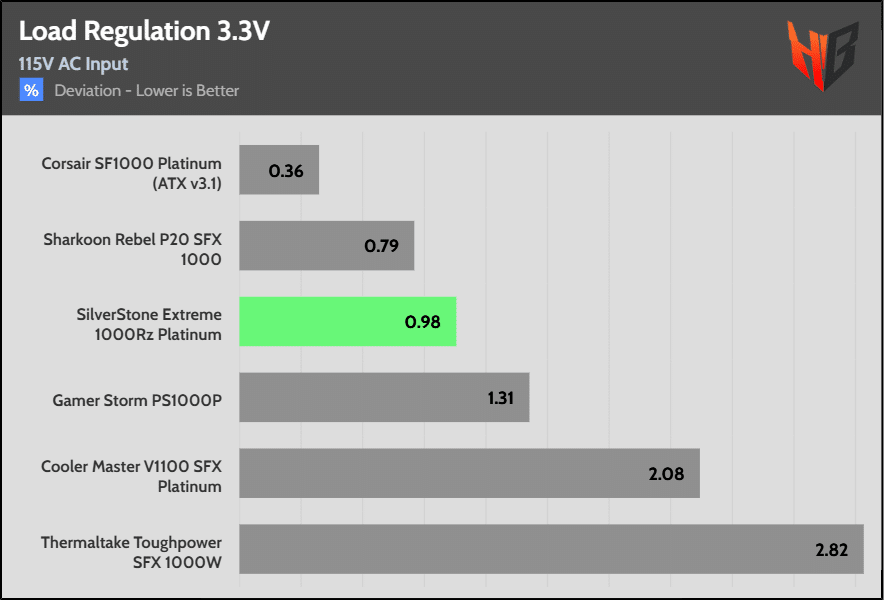

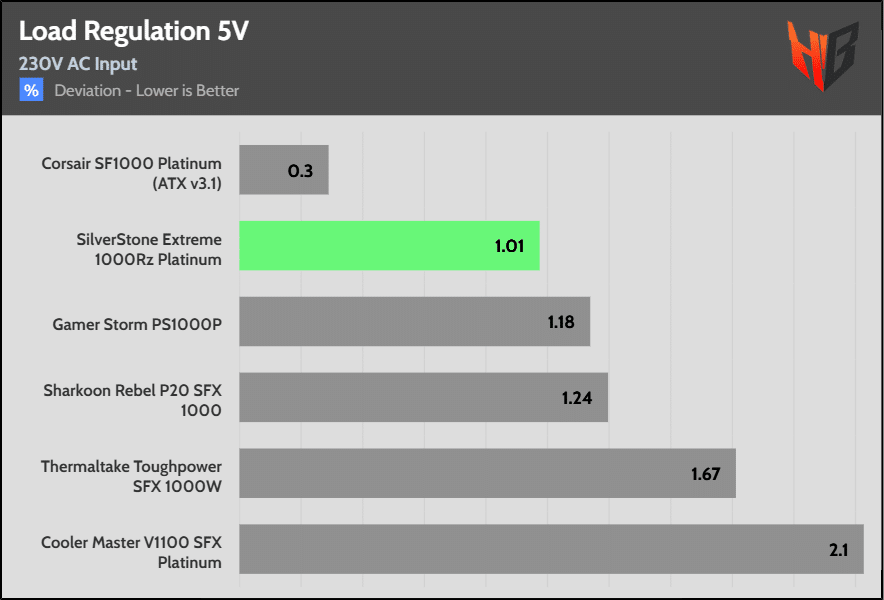

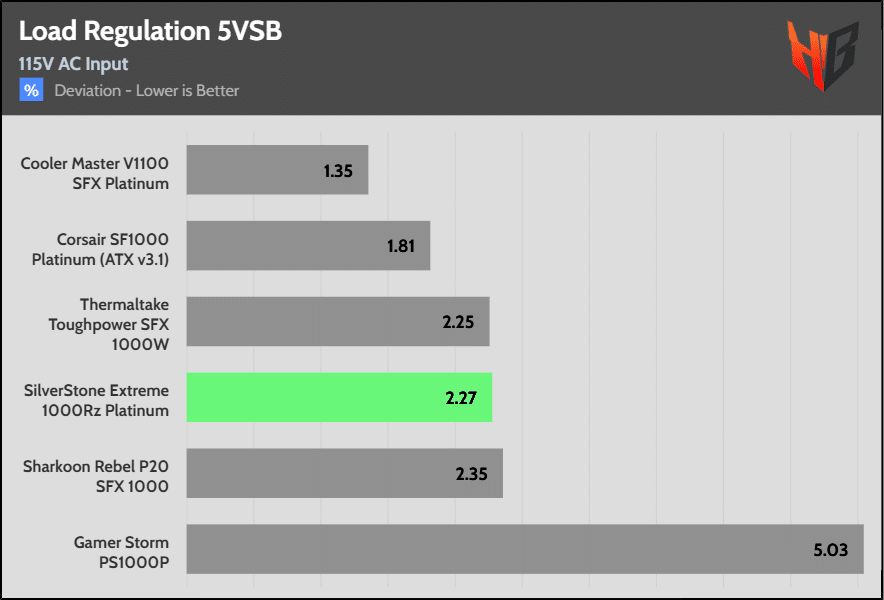

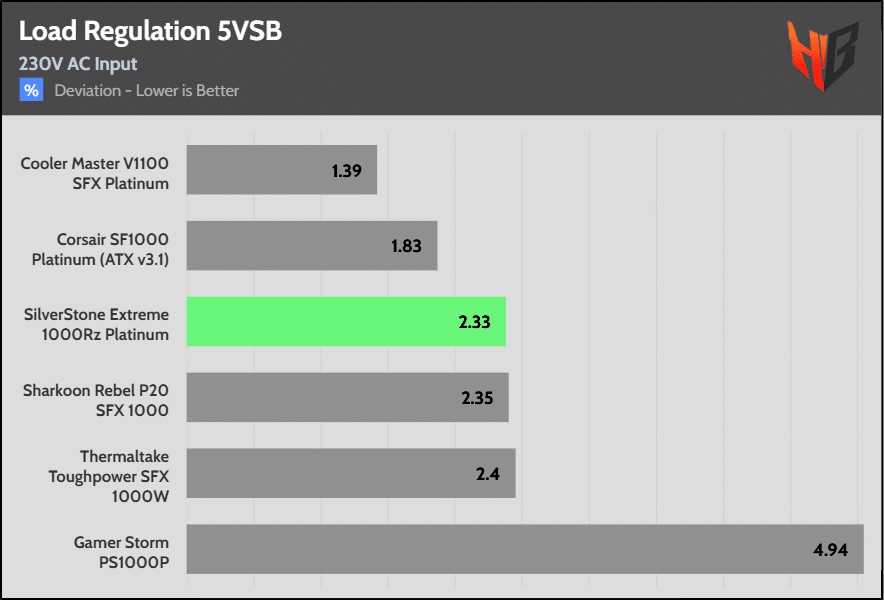

Load Regulation
| Test | 12V | 5V | 3.3V | 5VSB | DC/AC (Watts) | Efficiency | Fan Speed (RPM) | PSU Noise (dB[A]) | Temps (In/Out) | PF/AC Volts |
| 10% | 6.417A | 1.995A | 2A | 0.986A | 100.022 | 86.624% | 0 | <6.0 | 45.19°C | 0.982 |
| 12.220V | 5.013V | 3.301V | 5.073V | 115.48 | 40.42°C | 114.95V | ||||
| 20% | 13.857A | 2.993A | 3.001A | 1.185A | 199.982 | 90.393% | 0 | <6.0 | 44.98°C | 0.992 |
| 12.202V | 5.013V | 3.299V | 5.063V | 221.24 | 40.64°C | 114.93V | ||||
| 30% | 21.672A | 3.494A | 3.504A | 1.385A | 300.038 | 91.604% | 0 | <6.0 | 41.24°C | 0.995 |
| 12.181V | 5.011V | 3.297V | 5.054V | 327.59 | 58.19°C | 114.9V | ||||
| 40% | 29.495A | 3.995A | 4.011A | 1.586A | 399.856 | 92.132% | 1099 | 13.8 | 41.69°C | 0.996 |
| 12.159V | 5.008V | 3.291V | 5.044V | 434.135 | 60.66°C | 114.87V | ||||
| 50% | 36.987A | 4.995A | 5.016A | 1.788A | 499.554 | 92.07% | 1108 | 14.2 | 42.21°C | 0.997 |
| 12.140V | 5.007V | 3.29V | 5.034V | 542.595 | 63.66°C | 114.85V | ||||
| 60% | 44.571A | 6.005A | 6.022A | 1.991A | 600.1 | 91.857% | 1112 | 14.3 | 42.73°C | 0.998 |
| 12.122V | 4.997V | 3.289V | 5.023V | 653.334 | 68.24°C | 114.82V | ||||
| 70% | 52.099A | 7.02A | 7.035A | 2.195A | 699.837 | 91.014% | 1465 | 24.4 | 43.19°C | 0.997 |
| 12.106V | 4.988V | 3.284V | 5.012V | 768.977 | 74°C | 114.79V | ||||
| 80% | 59.734A | 8.037A | 8.053A | 2.299A | 799.877 | 90.469% | 1828 | 31.6 | 43.79°C | 0.998 |
| 12.086V | 4.978V | 3.278V | 5.003V | 884.162 | 75.36°C | 114.76V | ||||
| 90% | 67.738A | 8.551A | 8.554A | 2.403A | 899.675 | 89.87% | 2377 | 39.8 | 44.7°C | 0.997 |
| 12.064V | 4.971V | 3.273V | 4.994V | 1001.058 | 75.96°C | 114.74V | ||||
| 100% | 75.567A | 9.067A | 9.086A | 3.015A | 999.71 | 89.251% | 2764 | 44.9 | 45.13°C | 0.998 |
| 12.043V | 4.964V | 3.269V | 4.977V | 1120.173 | 76.73°C | 114.72V | ||||
| 110% | 83.360A | 10.088A | 10.201A | 3.02A | 1100.327 | 88.514% | 3035 | 47.0 | 46.1°C | 0.997 |
| 12.021V | 4.957V | 3.264V | 4.968V | 1243.153 | 78.66°C | 114.69V | ||||
| CL1 | 0.115A | 12.056A | 12.011A | 0A | 101.318 | 81.043% | 0 | <6.0 | 56.36°C | 0.982 |
| 12.242V | 4.994V | 3.305V | 5.075V | 125.023 | 41.17°C | 114.94V | ||||
| CL2 | 0.114A | 20.177A | 0A | 0A | 101.406 | 78.559% | 0 | <6.0 | 57.61°C | 0.983 |
| 12.251V | 4.956V | 3.296V | 5.078V | 129.102 | 41.21°C | 114.94V | ||||
| CL3 | 0.114A | 0A | 20.084A | 0A | 67.397 | 73.389% | 0 | <6.0 | 58.37°C | 0.971 |
| 12.241V | 5.002V | 3.286V | 5.077V | 91.837 | 40°C | 114.95V | ||||
| CL4 | 83.034A | 0A | 0A | 0A | 1000.149 | 89.823% | 2748 | 44.6 | 45°C | 0.997 |
| 12.045V | 4.968V | 3.26V | 5.032V | 1113.471 | 75.64°C | 114.73V |

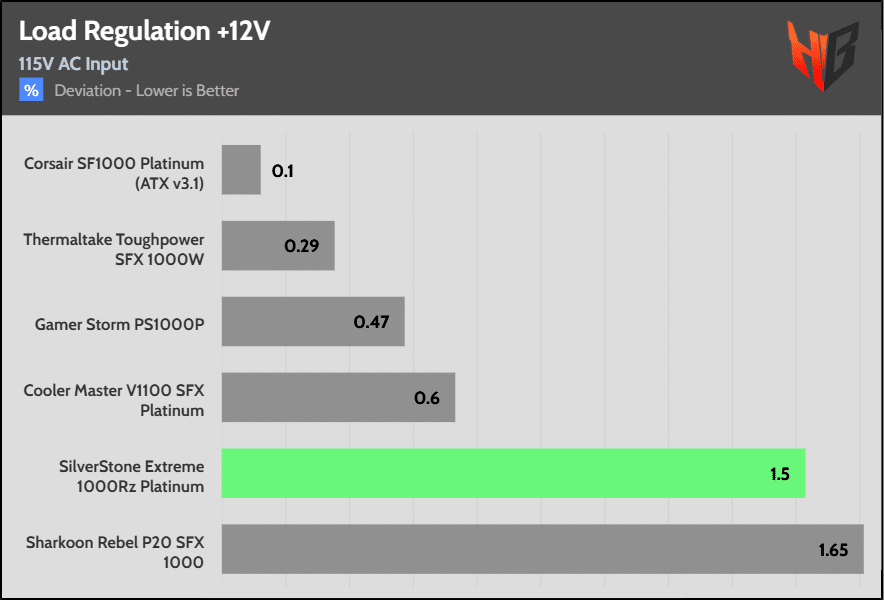

Load regulation is loose at 12V, the most important rail, and tight enough on the minor rails.
| Test | 12V | 5V | 3.3V | 5VSB | DC/AC (Watts) | Efficiency | Fan Speed (RPM) | PSU Noise (dB[A]) | Temps (In/Out) | PF/AC Volts |
| 20W | 1.216A | 0.499A | 0.5A | 0.196A | 20.009 | 64.19% | 0 | <6.0 | 38.76°C | 0.864 |
| 12.223V | 5.011V | 3.3V | 5.09V | 31.172 | 36.38°C | 114.96V | ||||
| 40W | 2.674A | 0.698A | 0.7A | 0.295A | 40.006 | 76.53% | 0 | <6.0 | 40.42°C | 0.931 |
| 12.223V | 5.012V | 3.3V | 5.089V | 52.271 | 37.39°C | 114.96V | ||||
| 60W | 4.134A | 0.898A | 0.9A | 0.393A | 60.005 | 82.088% | 0 | <6.0 | 42.74°C | 0.961 |
| 12.222V | 5.012V | 3.3V | 5.086V | 73.092 | 38.72°C | 114.96V | ||||
| 80W | 5.593A | 1.098A | 1.1A | 0.492A | 79.971 | 84.73% | 0 | <6.0 | 44.7°C | 0.972 |
| 12.220V | 5.012V | 3.3V | 5.083V | 94.42 | 39.82°C | 114.96V |
A glance at the light loads table is always useful, as the PSU will typically operate at light loads.

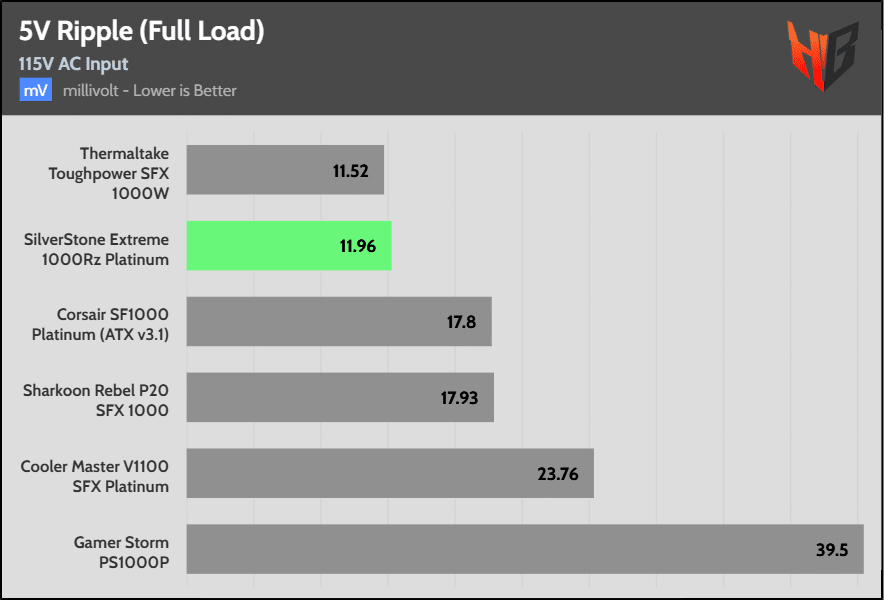

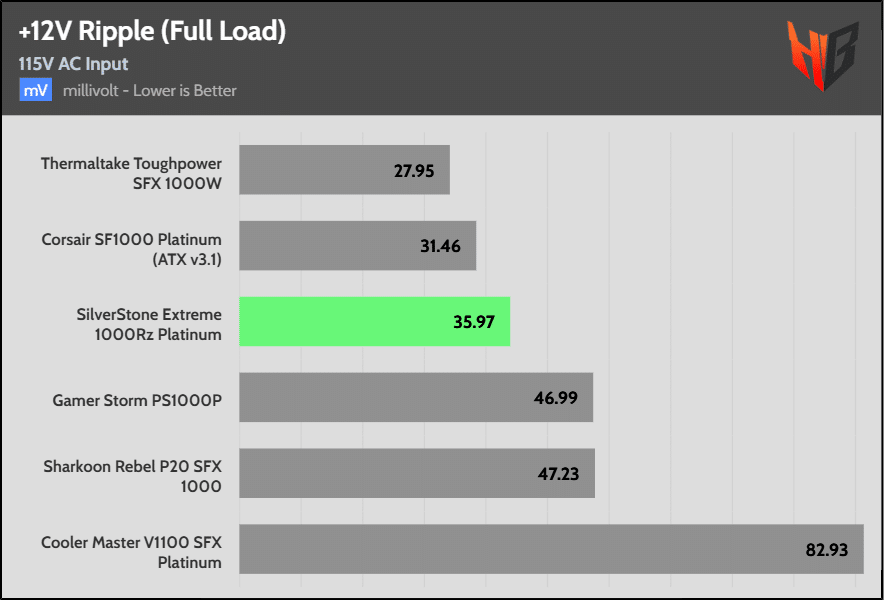

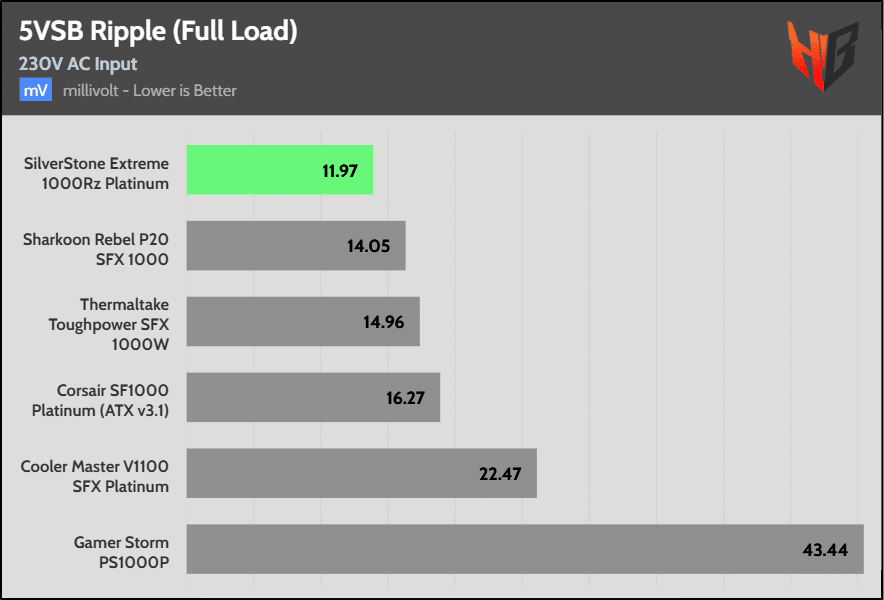

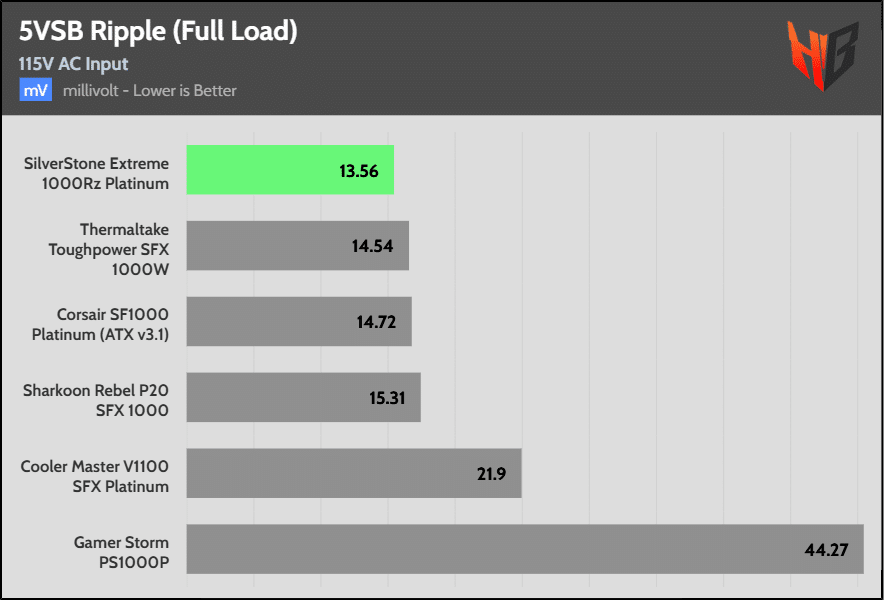

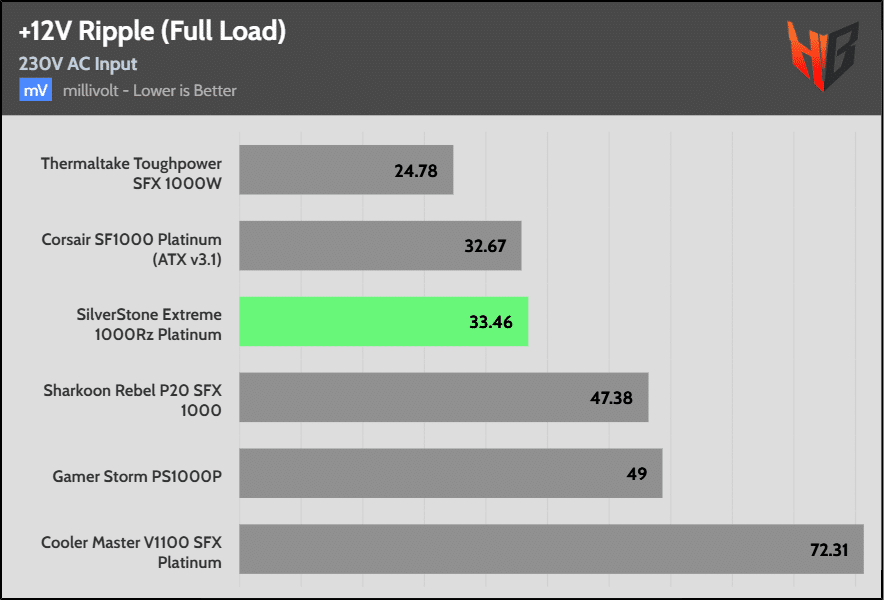

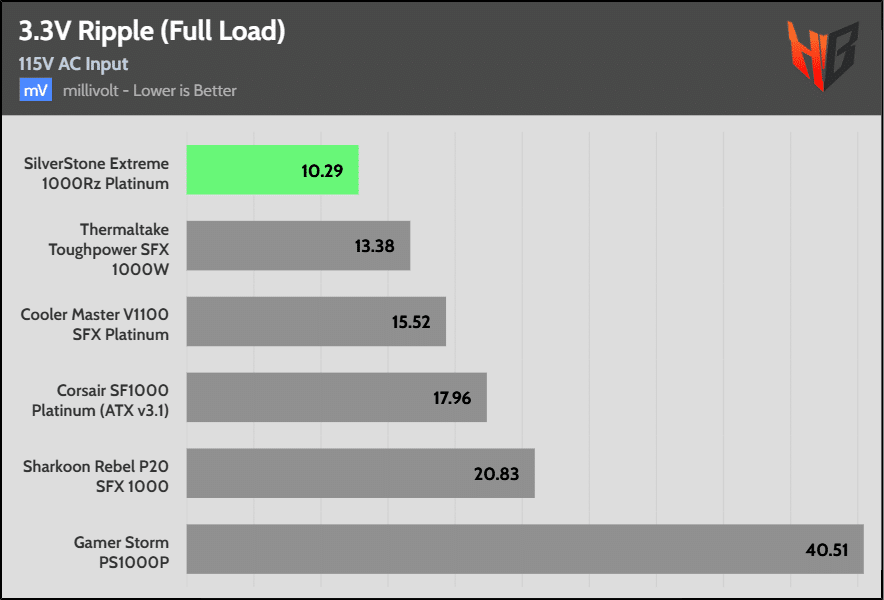

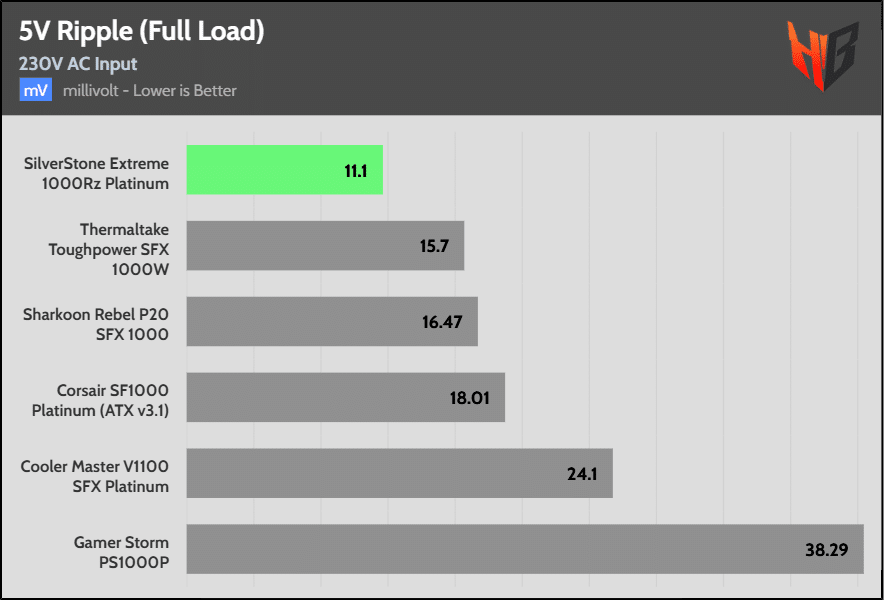

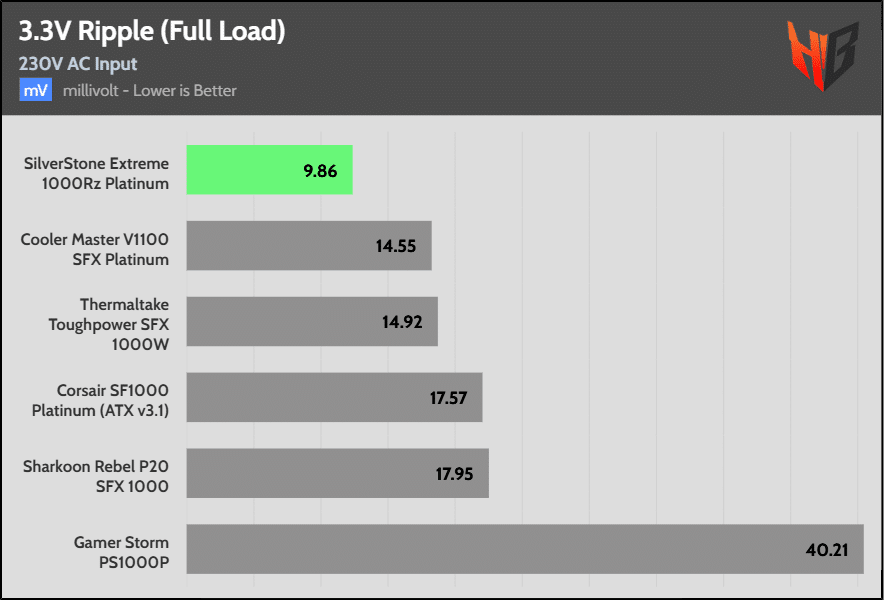

Ripple Suppression
| Test | 12V | 5V | 3.3V | 5VSB | Pass/Fail |
| 10% Load | 10.3 mV | 6.7 mV | 3.8 mV | 6.3 mV | Pass |
| 20% Load | 15.1 mV | 6.8 mV | 4.0 mV | 6.9 mV | Pass |
| 30% Load | 19.0 mV | 7.2 mV | 6.7 mV | 7.3 mV | Pass |
| 40% Load | 20.3 mV | 8.2 mV | 7.8 mV | 7.6 mV | Pass |
| 50% Load | 22.4 mV | 8.7 mV | 9.4 mV | 8.2 mV | Pass |
| 60% Load | 24.3 mV | 9.9 mV | 9.6 mV | 8.3 mV | Pass |
| 70% Load | 23.2 mV | 9.6 mV | 9.2 mV | 9.2 mV | Pass |
| 80% Load | 23.7 mV | 10.8 mV | 11.0 mV | 10.1 mV | Pass |
| 90% Load | 23.1 mV | 11.3 mV | 12.4 mV | 11.2 mV | Pass |
| 100% Load | 36.0 mV | 12.0 mV | 10.3 mV | 13.6 mV | Pass |
| 110% Load | 36.2 mV | 12.6 mV | 11.2 mV | 13.7 mV | Pass |
| Crossload 1 | 16.0 mV | 9.1 mV | 6.6 mV | 17.7 mV | Pass |
| Crossload 2 | 10.5 mV | 7.9 mV | 4.0 mV | 17.5 mV | Pass |
| Crossload 3 | 10.5 mV | 8.8 mV | 7.1 mV | 17.5 mV | Pass |
| Crossload 4 | 35.9 mV | 11.4 mV | 7.4 mV | 25.0 mV | Pass |
Ripple suppression is good on all rails.
