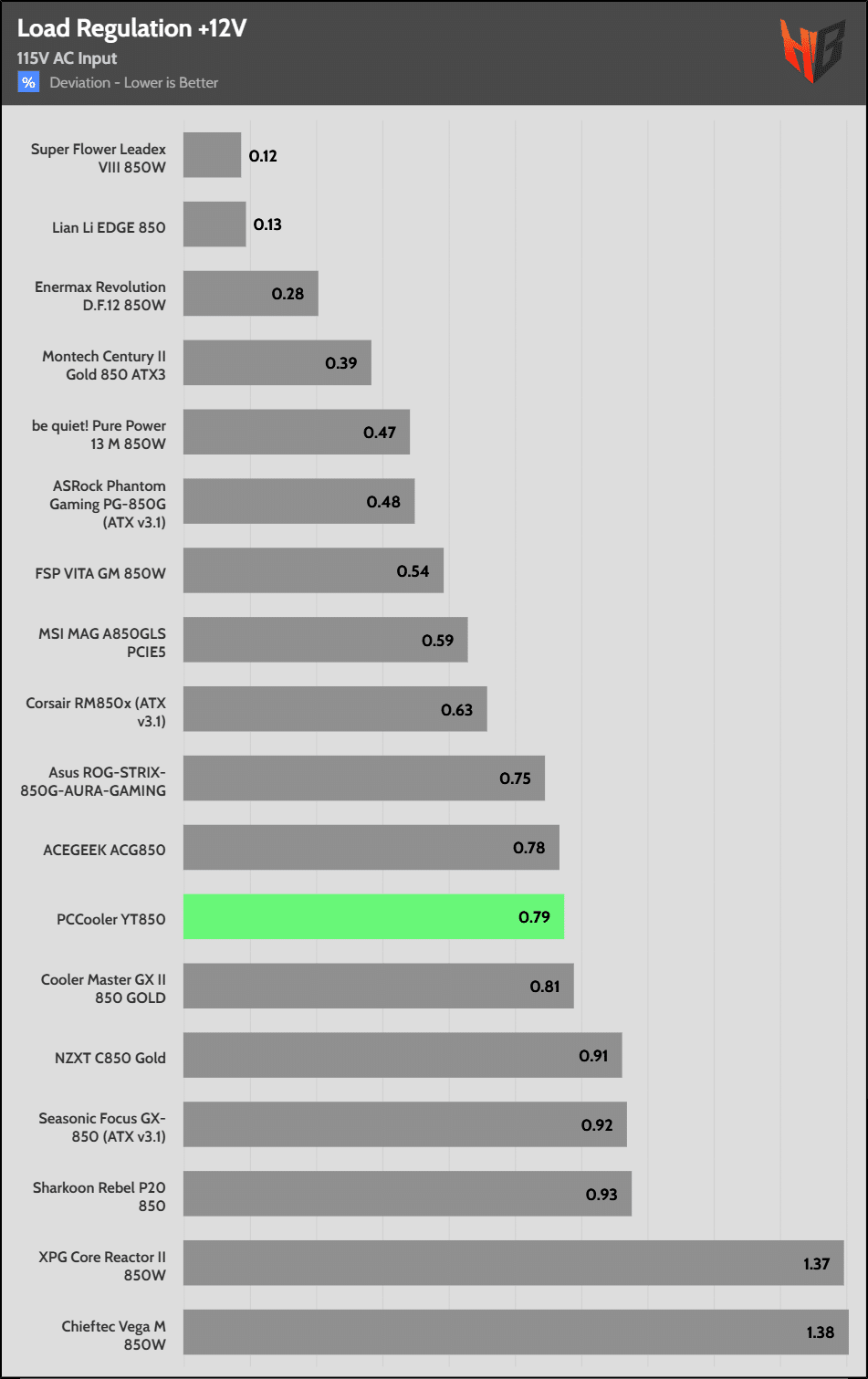

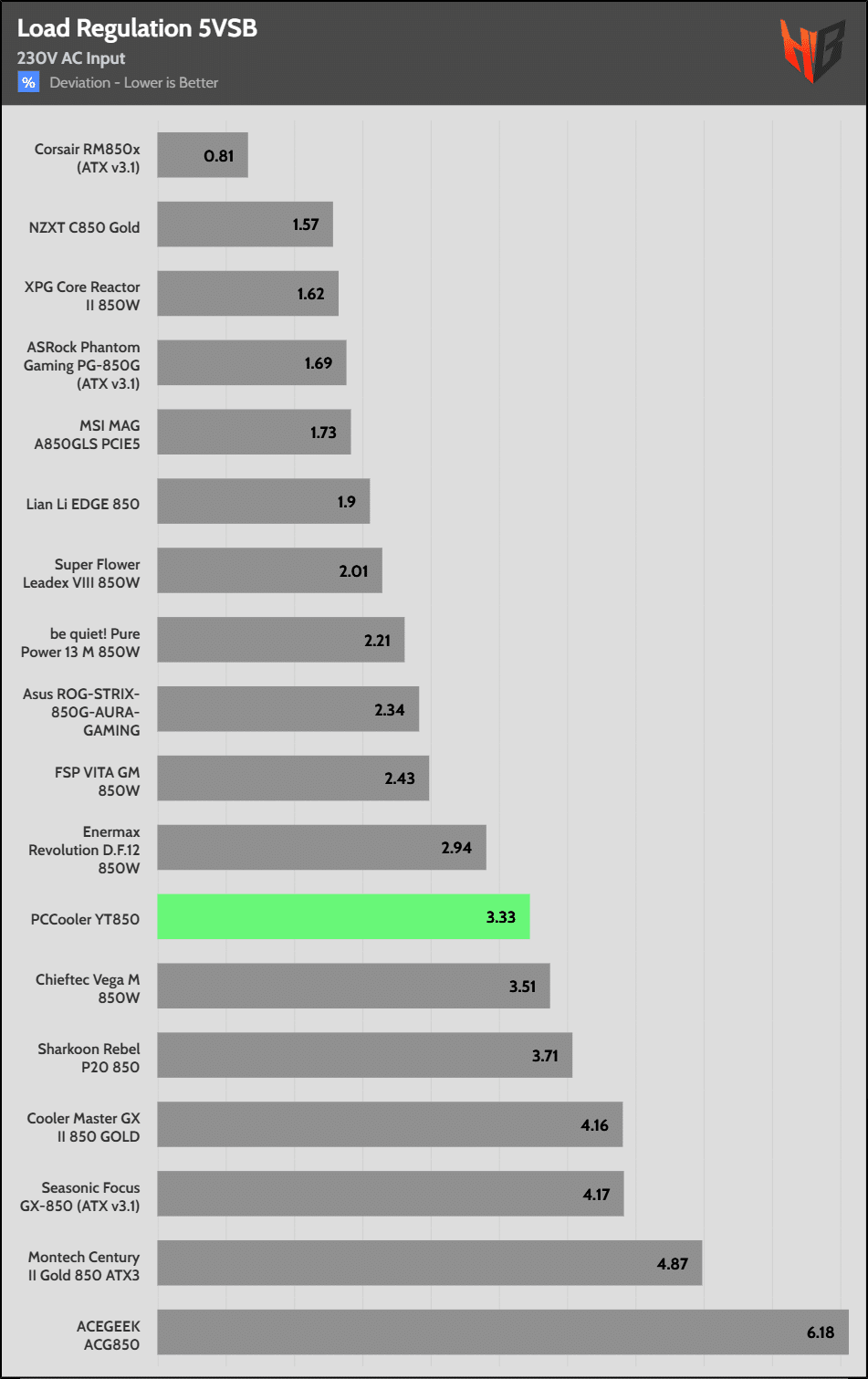

Load Regulation
It measures the stability of the output voltage when the load connected to the power supply varies.
| Test | 12V | 5V | 3.3V | 5VSB | DC/AC (Watts) | Efficiency | Fan Speed (RPM) | PSU Noise (dB[A]) | Temps (In/Out) | PF/AC Volts |
| 10% | 5.226A | 1.964A | 1.94A | 0.989A | 85.008 | 85.082% | 0 | <6.0 | 48.75°C | 0.968 |
| 12.132V | 5.093V | 3.403V | 5.057V | 99.913 | 40.01°C | 114.91V | ||||
| 20% | 11.466A | 2.947A | 2.911A | 1.19A | 169.982 | 90.411% | 0 | <6.0 | 49.9°C | 0.981 |
| 12.129V | 5.092V | 3.401V | 5.043V | 188.008 | 40.57°C | 114.89V | ||||
| 30% | 18.085A | 3.438A | 3.397A | 1.392A | 254.997 | 91.901% | 0 | <6.0 | 50.78°C | 0.986 |
| 12.105V | 5.092V | 3.4V | 5.03V | 277.467 | 41.05°C | 114.87V | ||||
| 40% | 24.695A | 3.929A | 3.883A | 1.595A | 340.095 | 92.076% | 0 | <6.0 | 56.23°C | 0.986 |
| 12.102V | 5.092V | 3.4V | 5.017V | 369.361 | 41.85°C | 114.84V | ||||
| 50% | 30.957A | 4.911A | 4.855A | 1.799A | 425.122 | 91.822% | 0 | <6.0 | 57.21°C | 0.987 |
| 12.101V | 5.092V | 3.399V | 5.003V | 462.982 | 42.23°C | 114.82V | ||||
| 60% | 37.188A | 5.9A | 5.833A | 2.001A | 509.644 | 91.282% | 873 | 25.7 | 42.68°C | 0.986 |
| 12.097V | 5.087V | 3.395V | 4.989V | 558.318 | 64.8°C | 114.8V | ||||
| 70% | 43.491A | 6.889A | 6.812A | 2.212A | 594.993 | 90.826% | 872 | 25.7 | 43.09°C | 0.986 |
| 12.092V | 5.083V | 3.392V | 4.975V | 655.087 | 65.59°C | 114.78V | ||||
| 80% | 49.791A | 7.874A | 7.788A | 2.317A | 679.82 | 90.331% | 868 | 25.6 | 43.6°C | 0.987 |
| 12.089V | 5.08V | 3.39V | 4.965V | 752.593 | 68.33°C | 114.75V | ||||
| 90% | 56.479A | 8.368A | 8.262A | 2.423A | 765.253 | 89.733% | 863 | 25.4 | 44.04°C | 0.988 |
| 12.088V | 5.08V | 3.389V | 4.954V | 852.809 | 72.35°C | 114.72V | ||||
| 100% | 62.915A | 8.861A | 8.767A | 3.045A | 850.036 | 88.965% | 1448 | 40.2 | 45.82°C | 0.989 |
| 12.085V | 5.079V | 3.388V | 4.927V | 955.473 | 70.23°C | 114.7V | ||||
| 110% | 69.223A | 9.852A | 9.84A | 3.05A | 934.628 | 88.33% | 1450 | 40.2 | 46.58°C | 0.989 |
| 12.082V | 5.076V | 3.384V | 4.919V | 1058.114 | 72.14°C | 114.66V | ||||
| CL1 | 0.116A | 13.02A | 12.857A | 0A | 111.312 | 82.778% | 874 | 25.7 | 41.43°C | 0.977 |
| 12.145V | 5.085V | 3.399V | 5.078V | 134.473 | 58.68°C | 114.9V | ||||
| CL2 | 0.115A | 19.707A | 0A | 0A | 101.403 | 80.714% | 1453 | 40.3 | 40.03°C | 0.974 |
| 12.139V | 5.074V | 3.405V | 5.084V | 125.631 | 50.91°C | 114.9V | ||||
| CL3 | 0.115A | 0A | 19.455A | 0A | 67.396 | 74.435% | 1452 | 40.3 | 39.76°C | 0.963 |
| 12.133V | 5.096V | 3.392V | 5.082V | 90.542 | 47.9°C | 114.91V | ||||
| CL4 | 70.354A | 0A | 0A | 0.001A | 849.882 | 89.586% | 1445 | 40.1 | 45.21°C | 0.988 |
| 12.080V | 5.088V | 3.393V | 5.041V | 948.676 | 65.25°C | 114.69V |

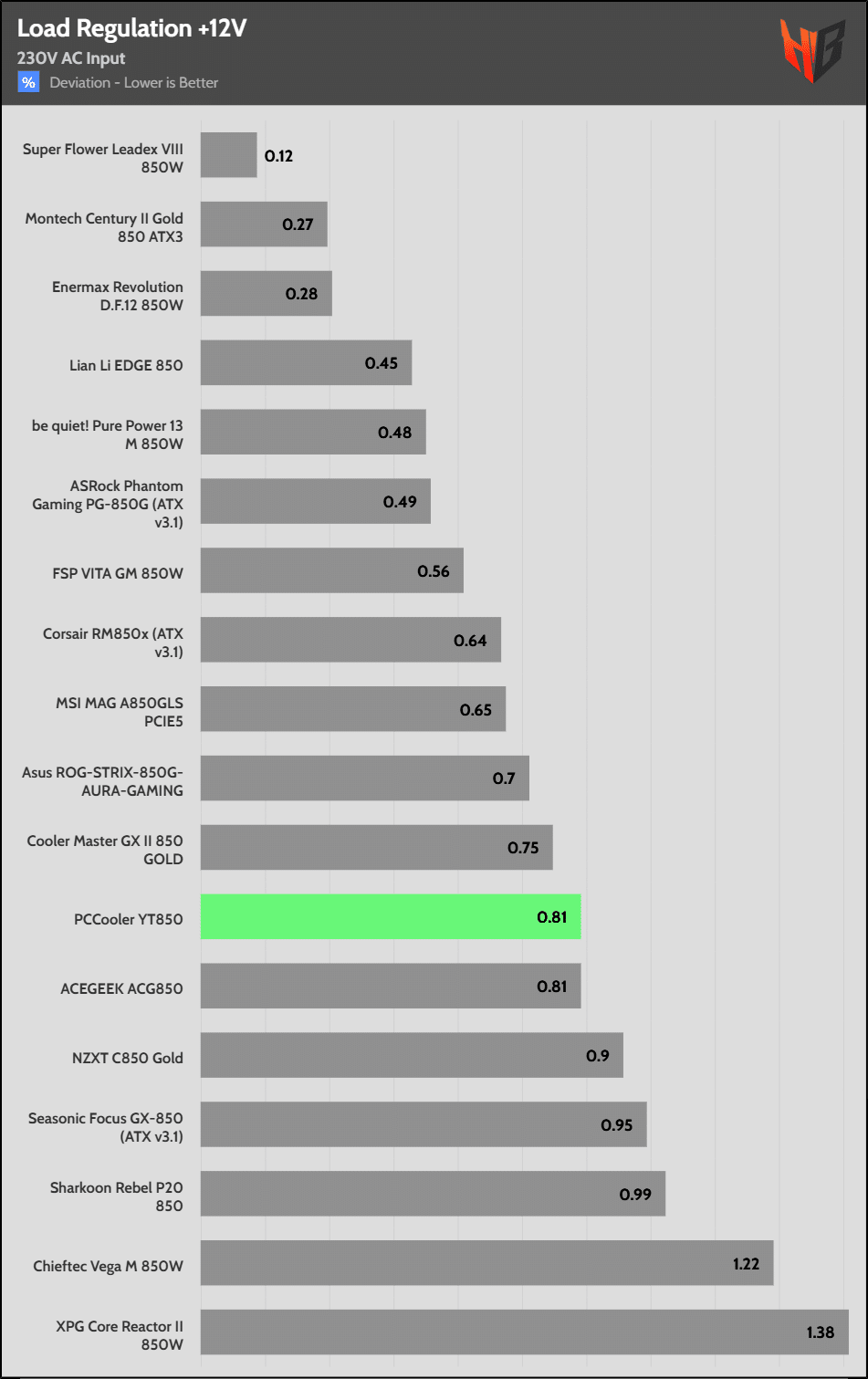

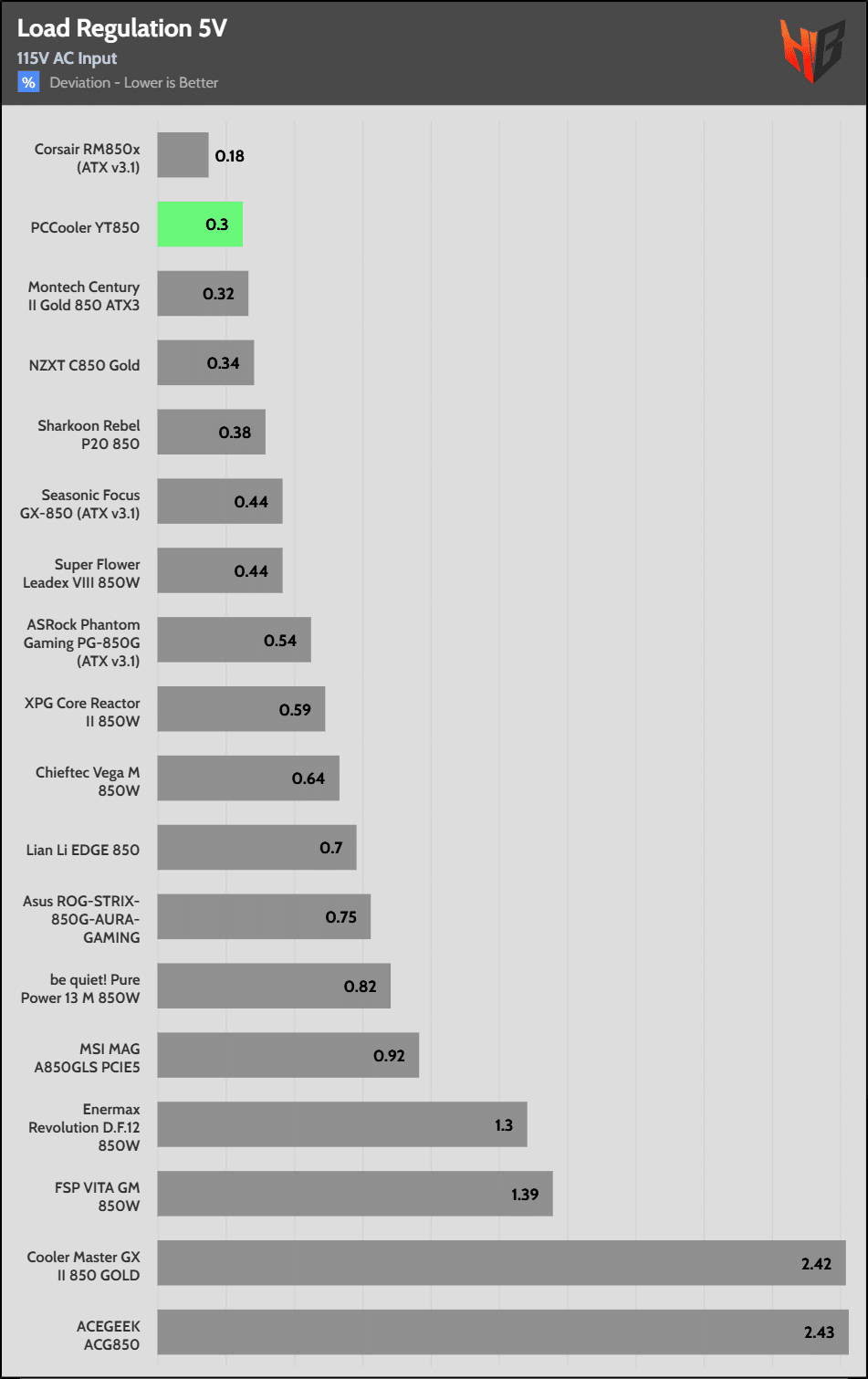

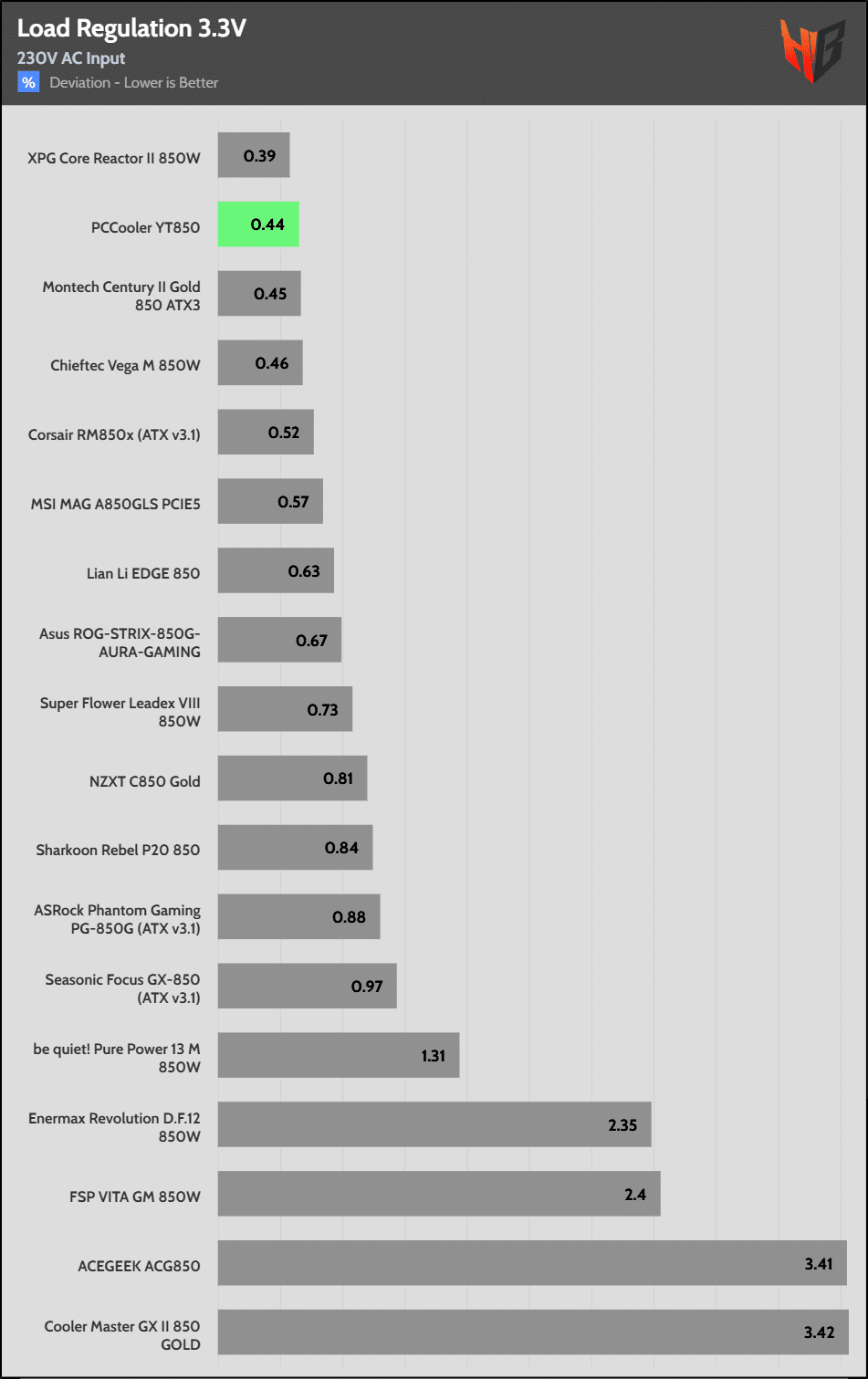

Load regulation is within 1% on all primary rails, so all is good here.
| Test | 12V | 5V | 3.3V | 5VSB | DC/AC (Watts) | Efficiency | Fan Speed (RPM) | PSU Noise (dB[A]) | Temps (In/Out) | PF/AC Volts |
| 20W | 1.234A | 0.491A | 0.485A | 0.196A | 20.009 | 75.594% | 0 | <6.0 | 43.52°C | 0.782 |
| 12.037V | 5.091V | 3.402V | 5.089V | 26.47 | 36.6°C | 114.94V | ||||
| 40W | 2.716A | 0.688A | 0.679A | 0.295A | 40.006 | 82.505% | 0 | <6.0 | 46.11°C | 0.909 |
| 12.040V | 5.091V | 3.402V | 5.085V | 48.488 | 37.27°C | 114.93V | ||||
| 60W | 4.166A | 0.884A | 0.873A | 0.394A | 60.005 | 81.929% | 0 | <6.0 | 47.01°C | 0.951 |
| 12.129V | 5.092V | 3.403V | 5.08V | 73.242 | 38.46°C | 114.92V | ||||
| 80W | 5.634A | 1.08A | 1.067A | 0.493A | 79.975 | 85.121% | 0 | <6.0 | 48.07°C | 0.965 |
| 12.131V | 5.094V | 3.404V | 5.075V | 93.954 | 39.27°C | 114.92V |
A glance at the light-load table is always useful, as the PSU typically operates at light loads.

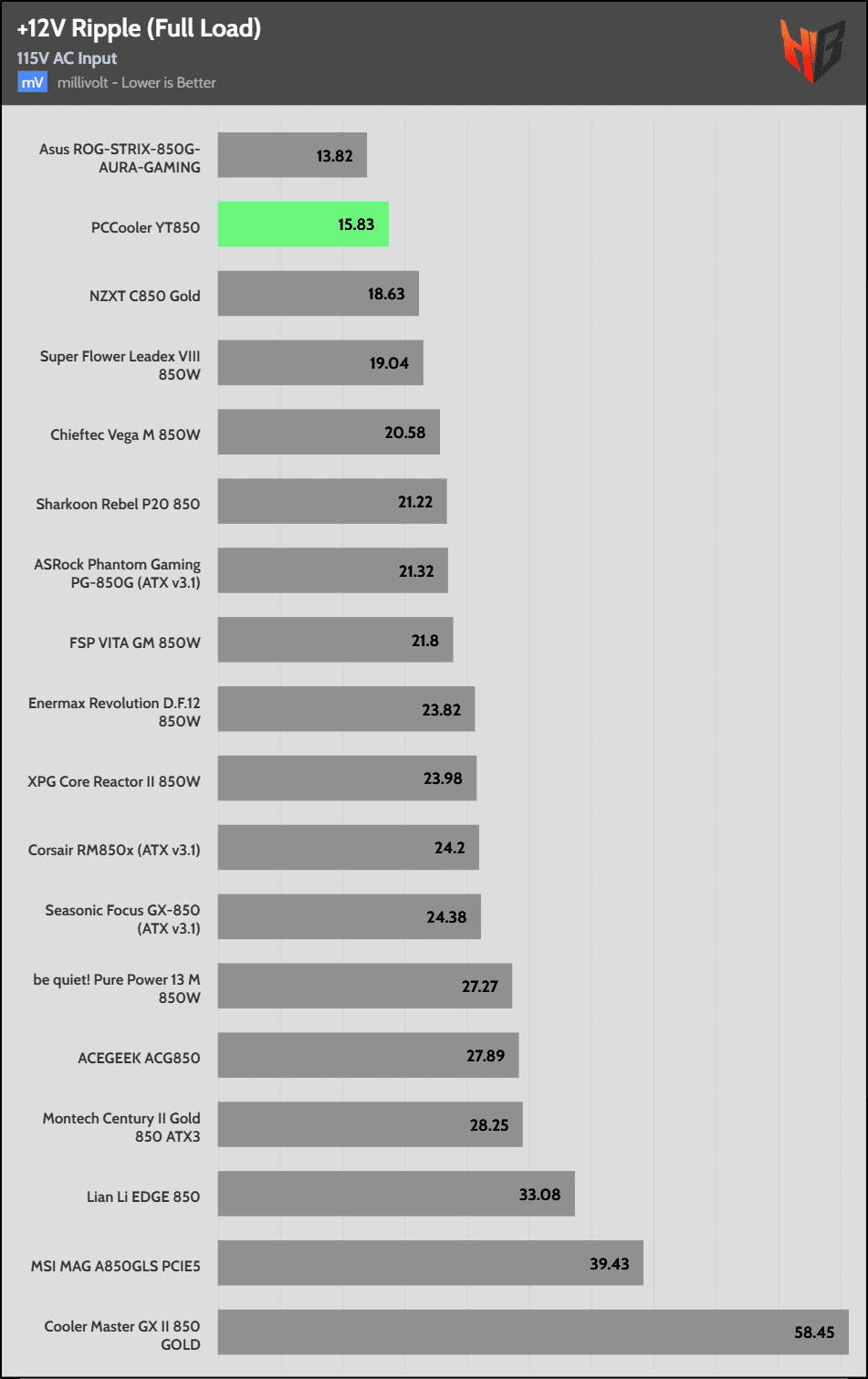

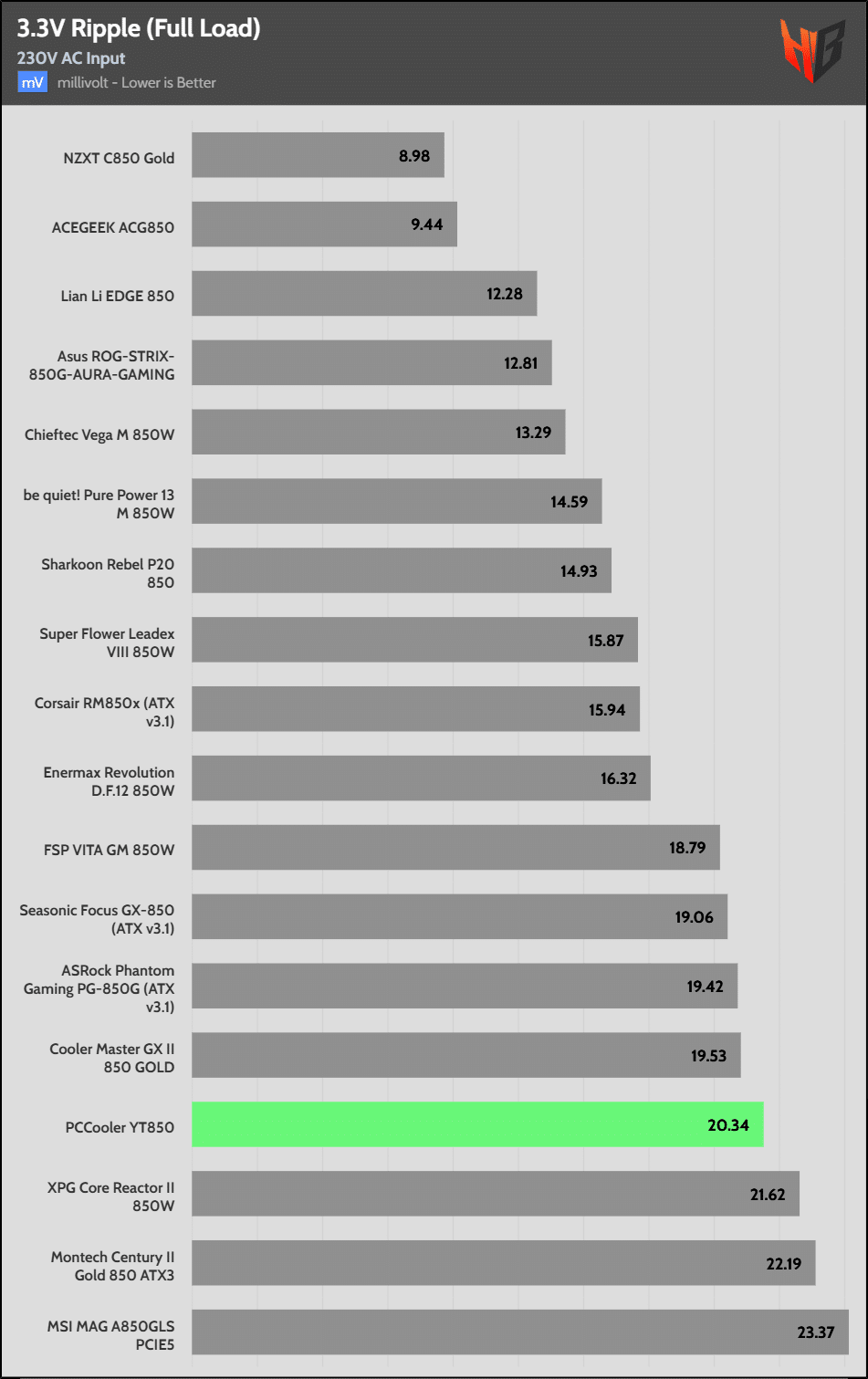

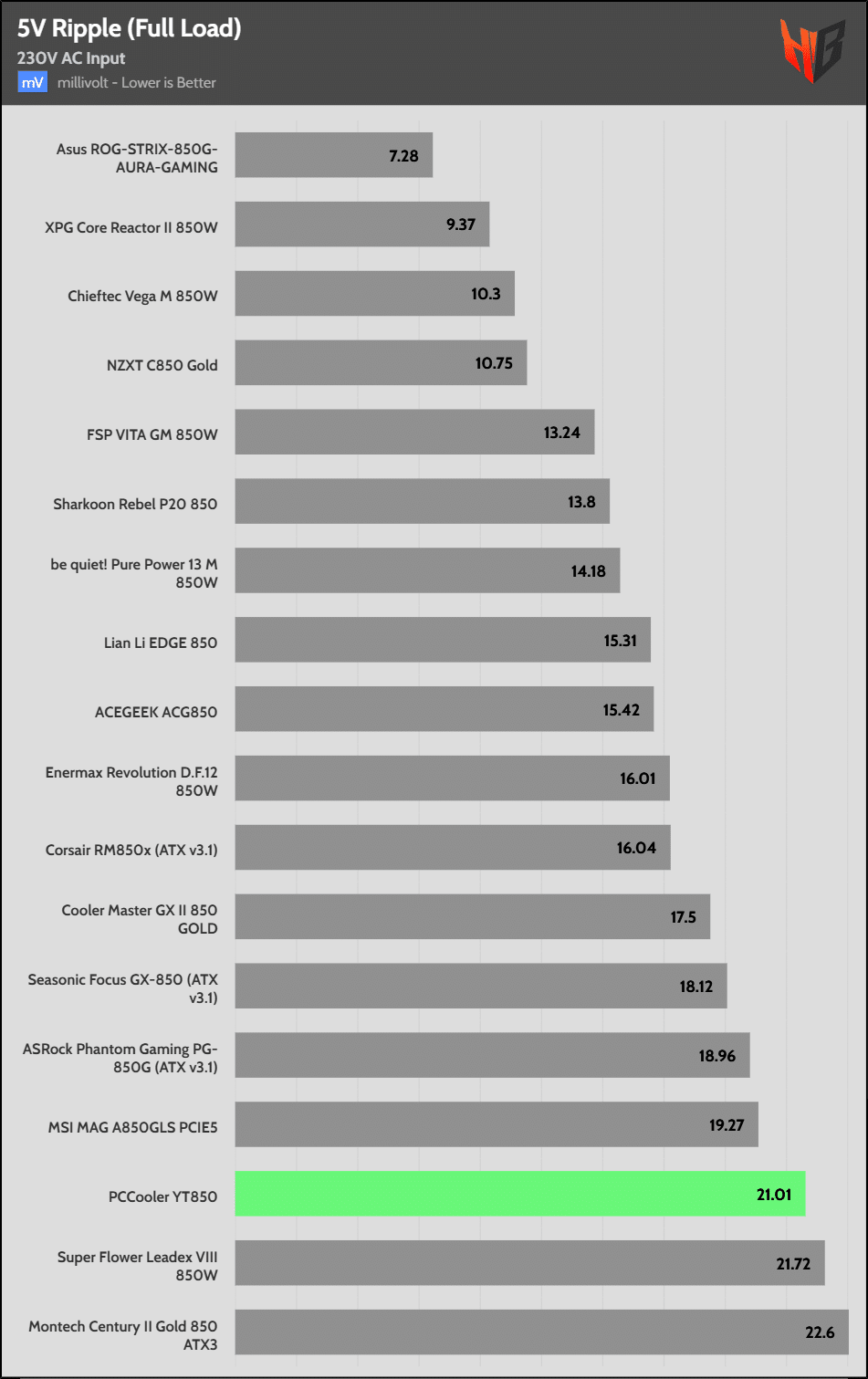

Ripple Suppression
Ripple in power supplies refers to the small, unwanted AC voltage fluctuations superimposed on the DC output. It occurs due to imperfect filtering of the AC-to-DC conversion process. Lower ripple is highly preferable because it ensures a cleaner, more stable DC output, thereby reducing noise and potential interference in sensitive electronics, which improves performance and extends the lifespan of components. High ripple can cause instability, overheating, or damage to connected devices.
| Test | 12V | 5V | 3.3V | 5VSB | Pass/Fail |
| 10% Load | 14.3 mV | 14.6 mV | 10.5 mV | 19.9 mV | Pass |
| 20% Load | 16.2 mV | 15.3 mV | 11.7 mV | 20.9 mV | Pass |
| 30% Load | 17.3 mV | 16.8 mV | 13.1 mV | 22.3 mV | Pass |
| 40% Load | 17.0 mV | 19.9 mV | 16.1 mV | 22.6 mV | Pass |
| 50% Load | 16.8 mV | 18.4 mV | 13.9 mV | 23.6 mV | Pass |
| 60% Load | 13.0 mV | 10.3 mV | 8.9 mV | 16.3 mV | Pass |
| 70% Load | 13.3 mV | 11.4 mV | 9.4 mV | 17.0 mV | Pass |
| 80% Load | 13.3 mV | 11.5 mV | 13.4 mV | 19.4 mV | Pass |
| 90% Load | 13.8 mV | 11.1 mV | 14.6 mV | 18.9 mV | Pass |
| 100% Load | 15.8 mV | 13.6 mV | 15.8 mV | 21.4 mV | Pass |
| 110% Load | 18.2 mV | 13.4 mV | 16.8 mV | 21.0 mV | Pass |
| Crossload 1 | 12.1 mV | 10.1 mV | 11.9 mV | 12.8 mV | Pass |
| Crossload 2 | 11.3 mV | 8.9 mV | 6.3 mV | 10.3 mV | Pass |
| Crossload 3 | 9.3 mV | 8.8 mV | 13.4 mV | 10.7 mV | Pass |
| Crossload 4 | 16.8 mV | 11.7 mV | 11.6 mV | 15.8 mV | Pass |

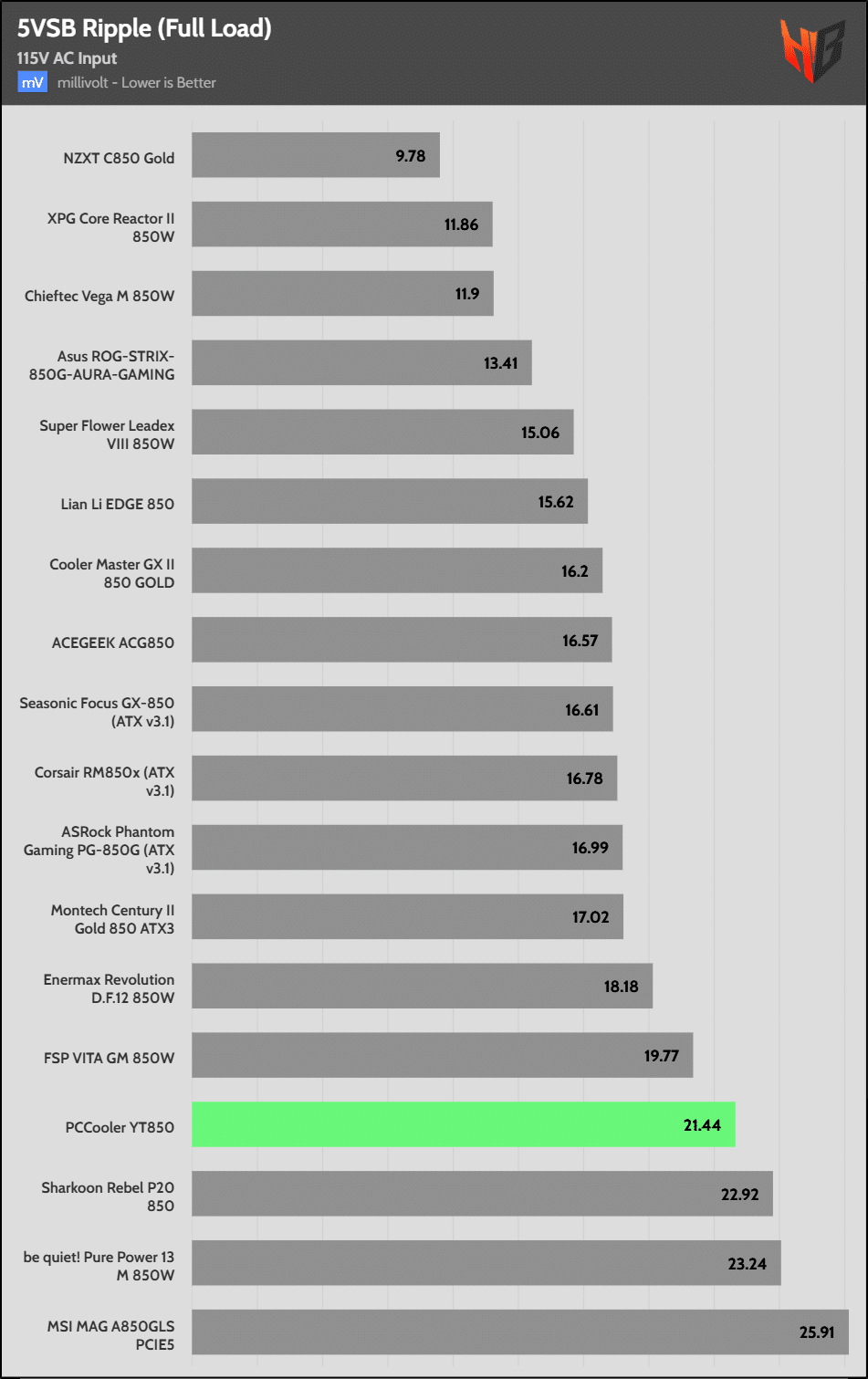

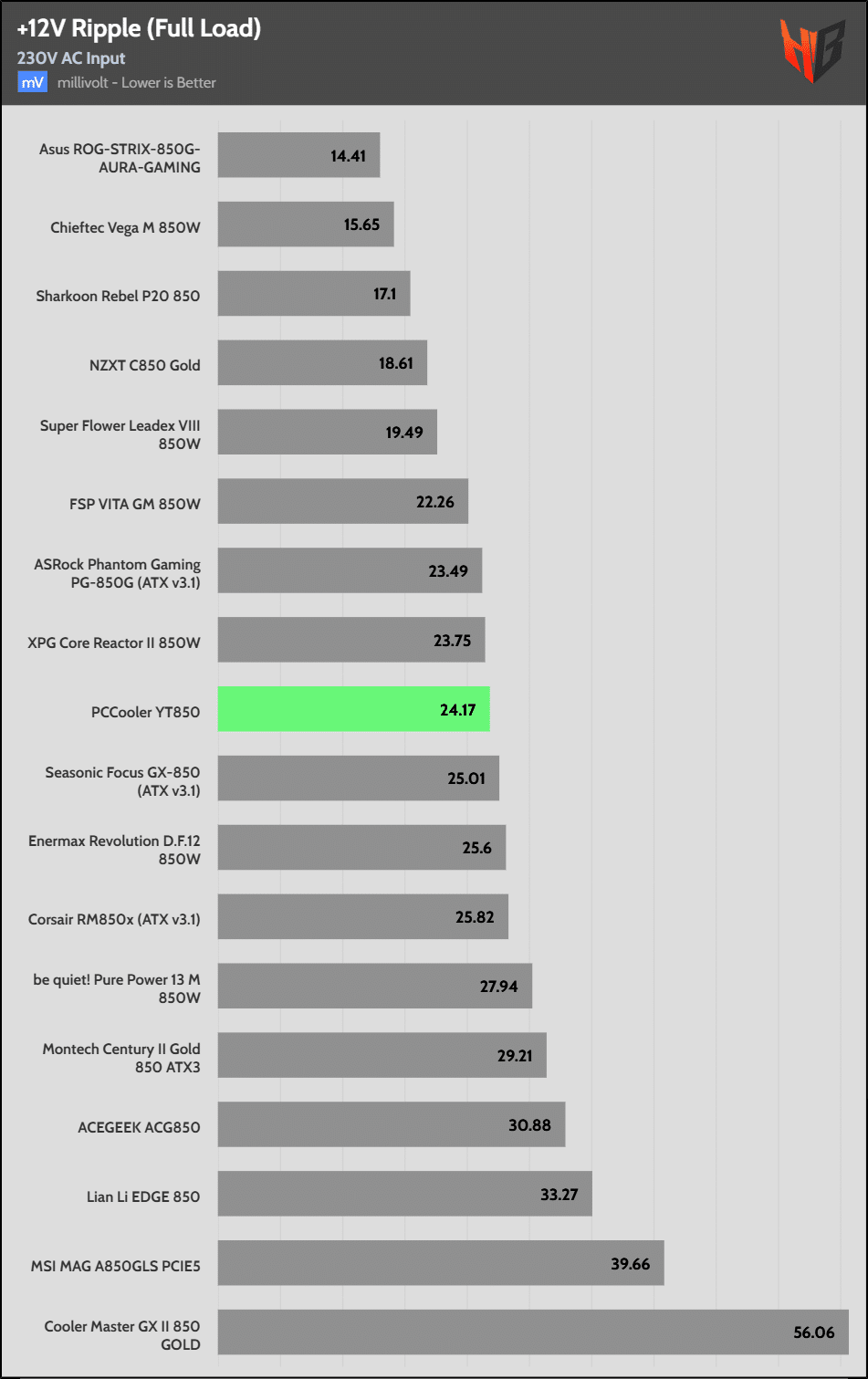

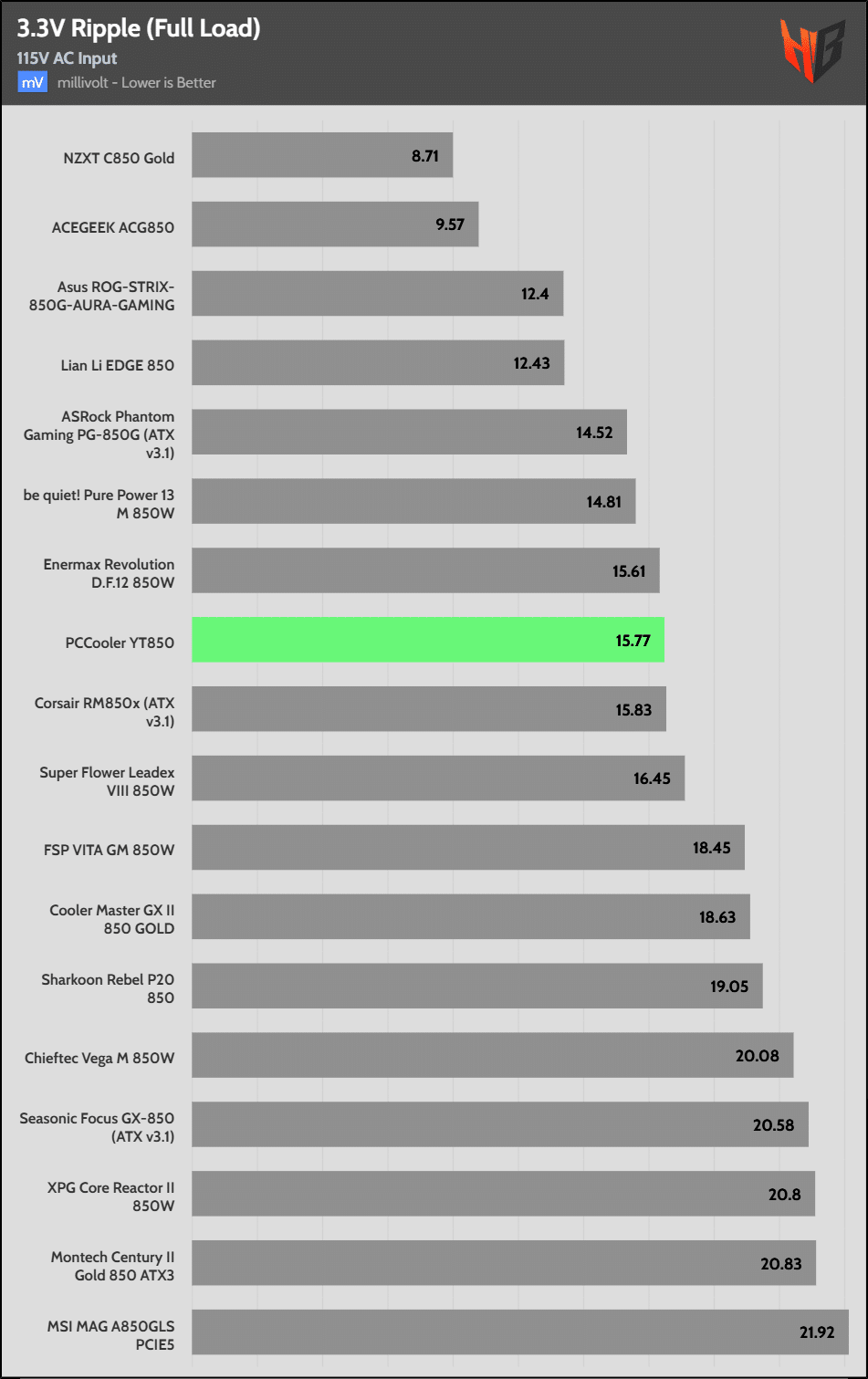

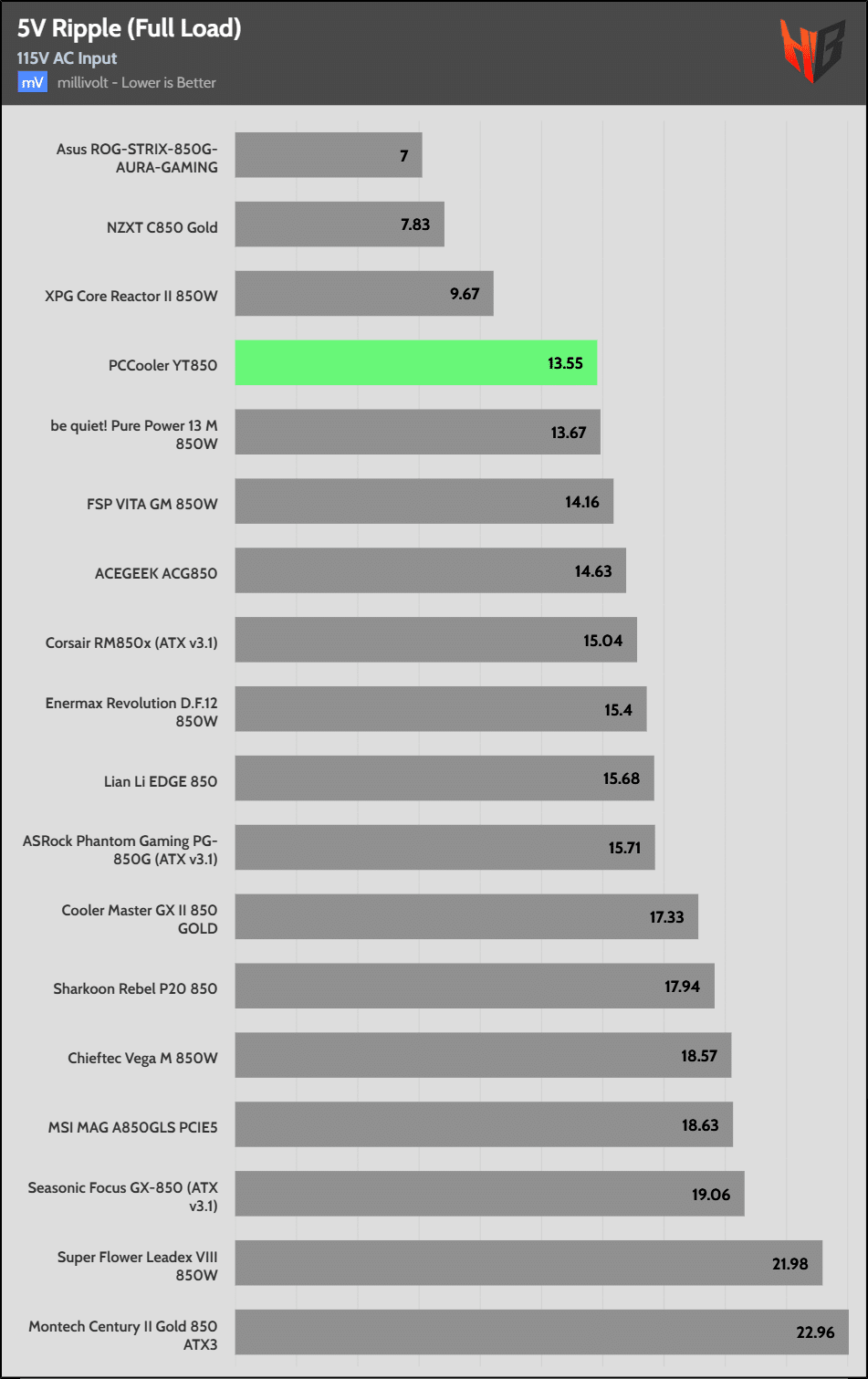

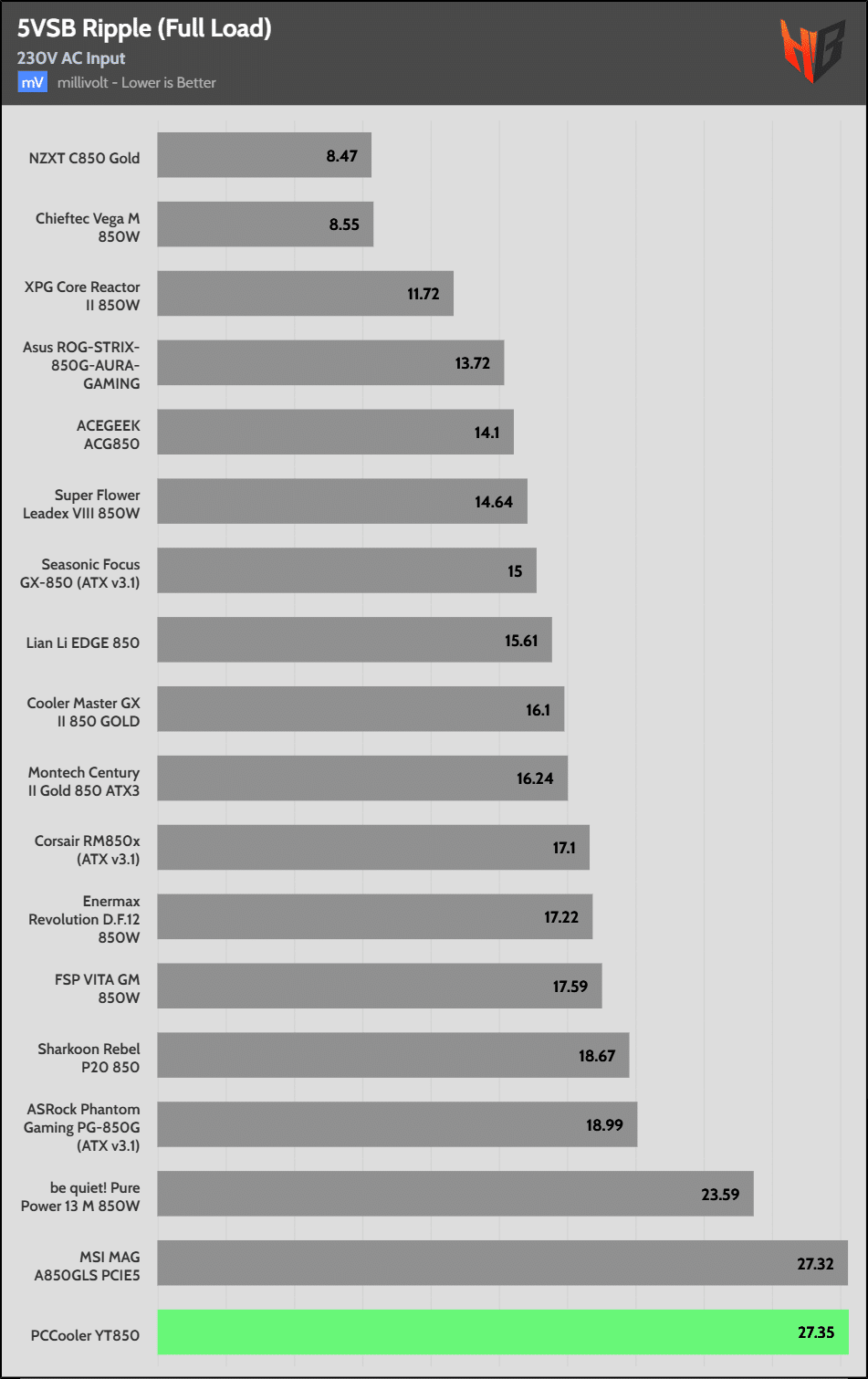

Ripple suppression is good overall.
